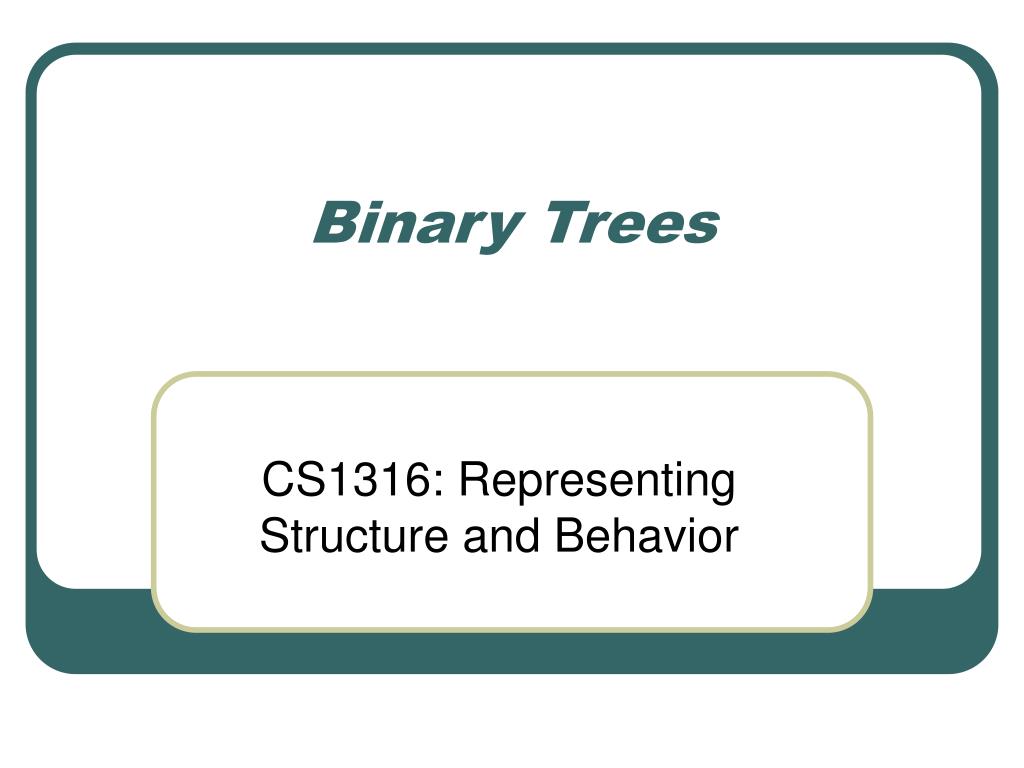

  1. Binary Trees CS1316: Representing Structure and Behavior

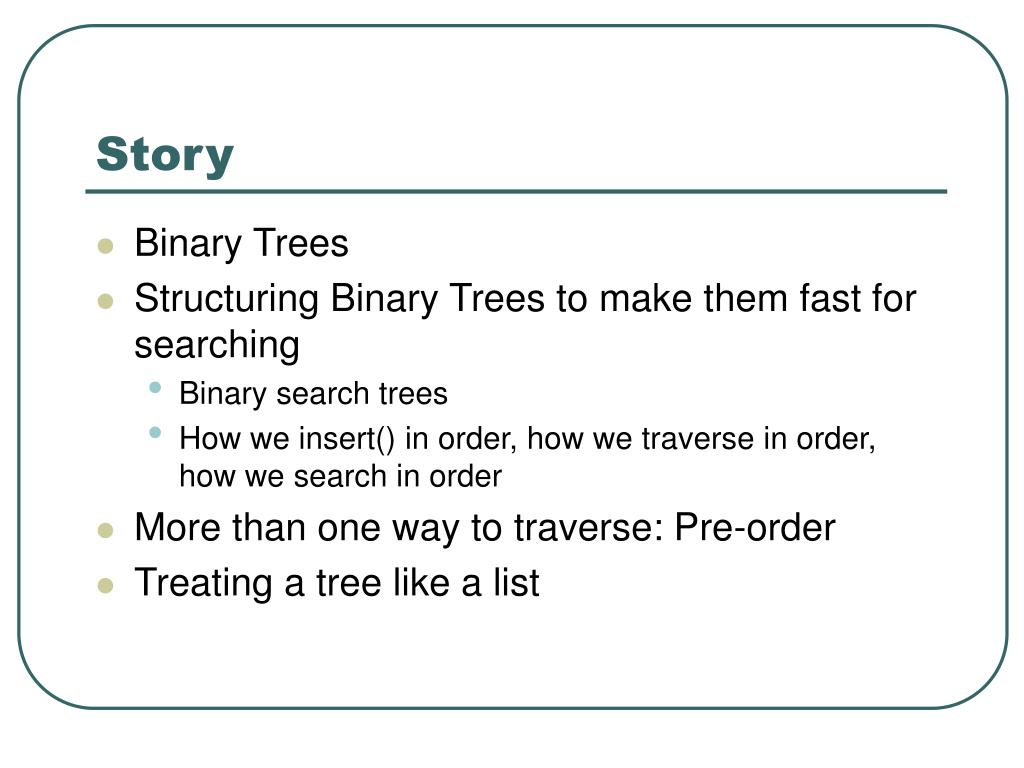

  2. Story • Binary Trees • Structuring Binary Trees to make them fast for searching • Binary search trees • How we insert() in order, how we traverse in order, how we search in order • More than one way to traverse: Pre-order • Treating a tree like a list

  3. Here’s the question • Searching a list and an array is O(n) • We can arrange an array so that searching it is O(log n) • Binary search of an ordered array. • Lists are harder to arrange to create a faster search. • How about trees?

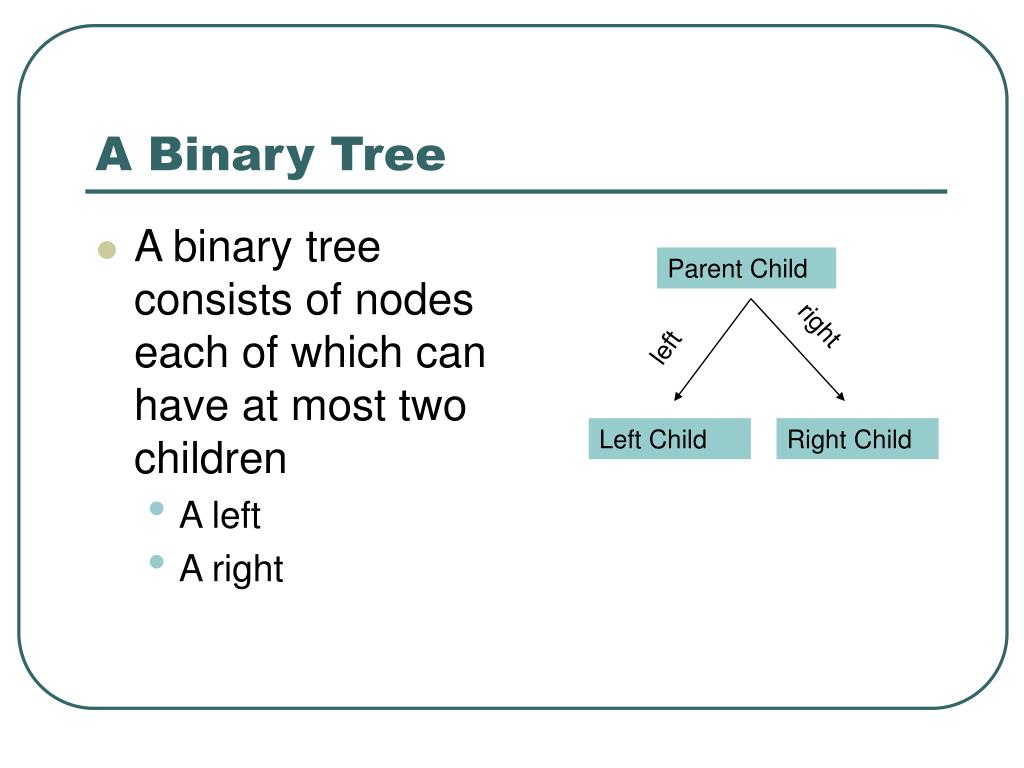

  4. A Binary Tree • A binary tree consists of nodes each of which can have at most two children • A left • A right Parent Child left right Left Child Right Child

  5. Every node in a binary tree is another tree Parent Child left right Left Child Right Child Parent Child left right Parent Child Left Child Right Child left right Left Child Right Child

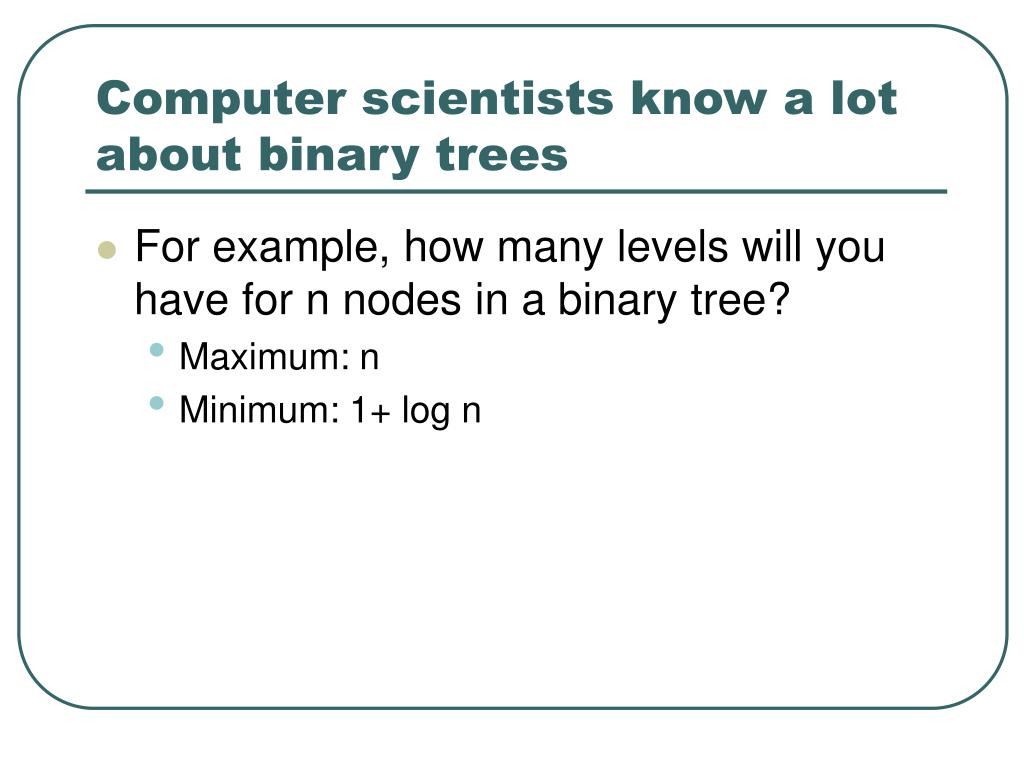

  6. Computer scientists know a lot about binary trees • For example, how many levels will you have for n nodes in a binary tree? • Maximum: n • Minimum: 1+ log n

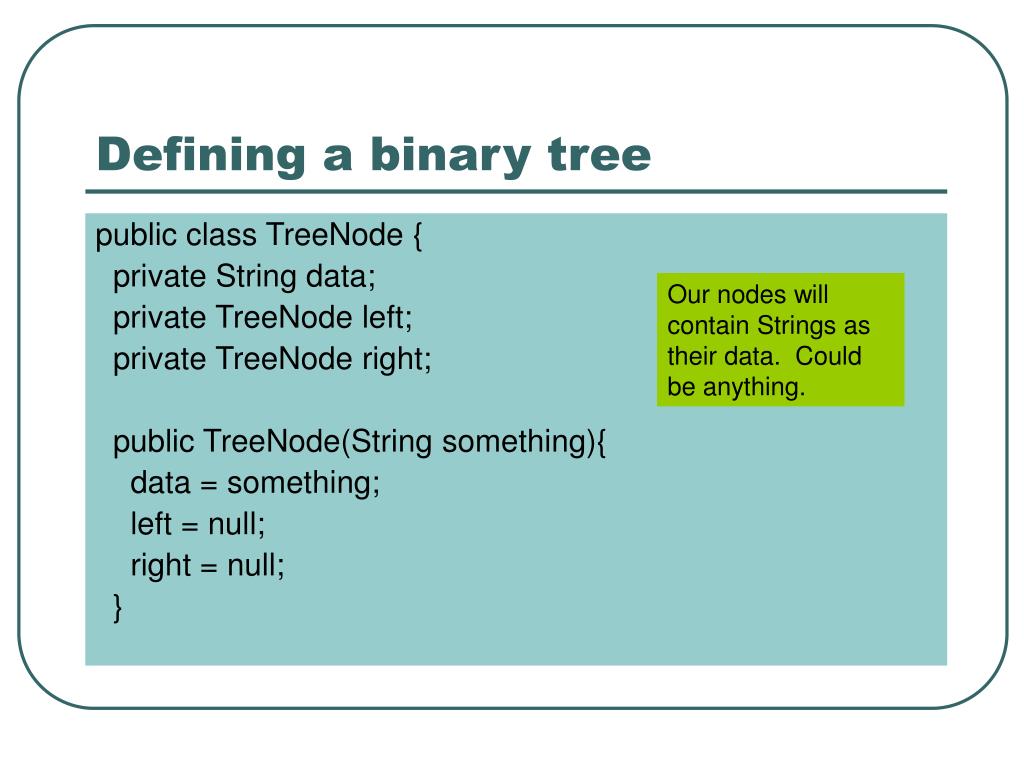

  7. Defining a binary tree public class TreeNode { private String data; private TreeNode left; private TreeNode right; public TreeNode(String something){ data = something; left = null; right = null; } Our nodes will contain Strings as their data. Could be anything.

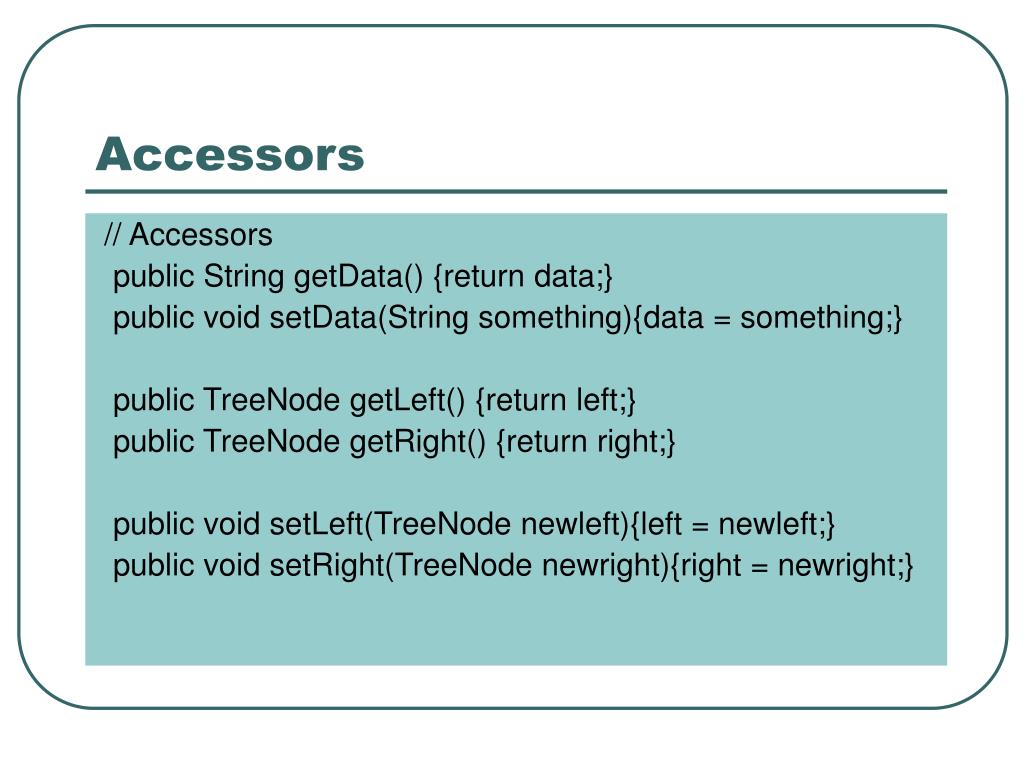

  8. Accessors // Accessors public String getData() {return data;} public void setData(String something){data = something;} public TreeNode getLeft() {return left;} public TreeNode getRight() {return right;} public void setLeft(TreeNode newleft){left = newleft;} public void setRight(TreeNode newright){right = newright;}

  9. Defining printing on a node (for a tree, recursively) public String toString() {return "This:"+this.getData()+ " Left: "+this.getLeft() + " Right: "+this.getRight();}

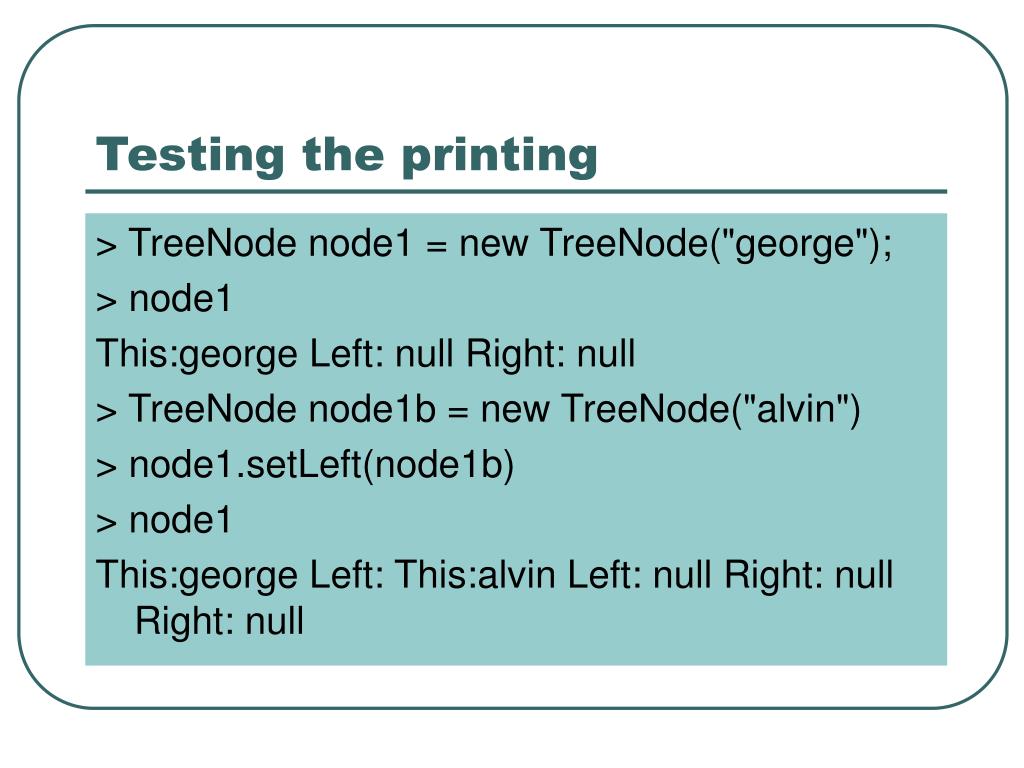

  10. Testing the printing > TreeNode node1 = new TreeNode("george"); > node1 This:george Left: null Right: null > TreeNode node1b = new TreeNode("alvin") > node1.setLeft(node1b) > node1 This:george Left: This:alvin Left: null Right: null Right: null

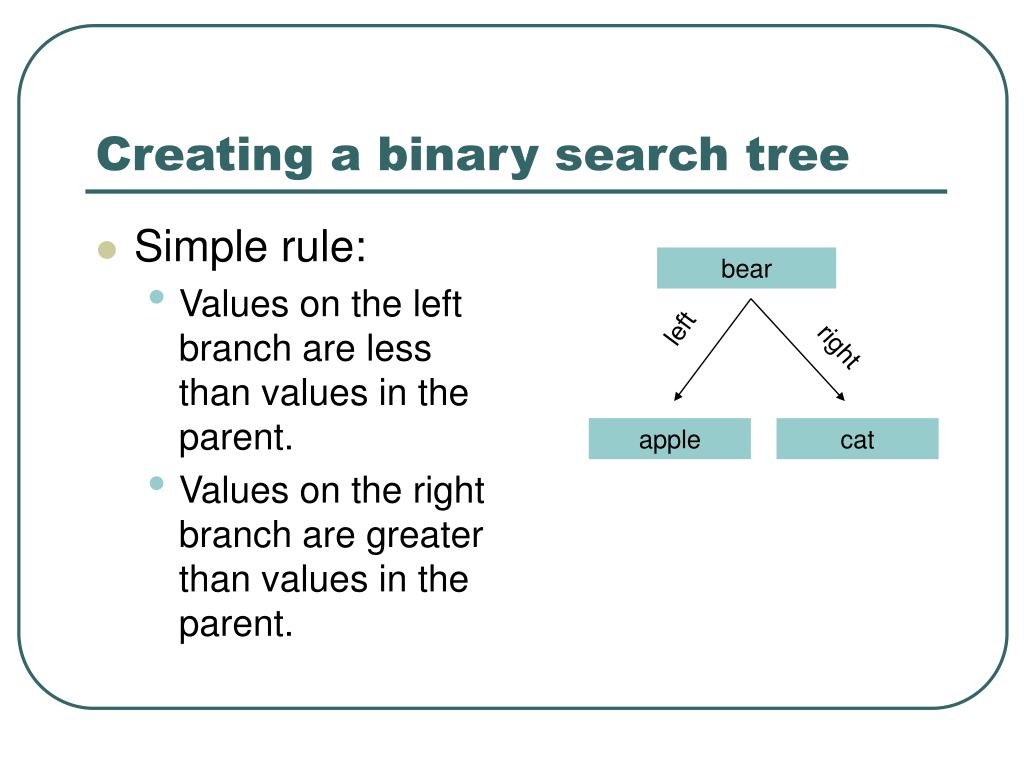

  11. Creating a binary search tree • Simple rule: • Values on the left branch are less than values in the parent. • Values on the right branch are greater than values in the parent. bear left right apple cat

  12. Inserting in order in a binary tree • Is the value to insert less than the current node’s value? • Does the left branch have a node already? If not, put it there. • If so, insert it on the left. • The value to insert must be greater than or equal to the current node’s value. • Does the right branch have a node already? If not, put it there. • If so, insert it on the right.

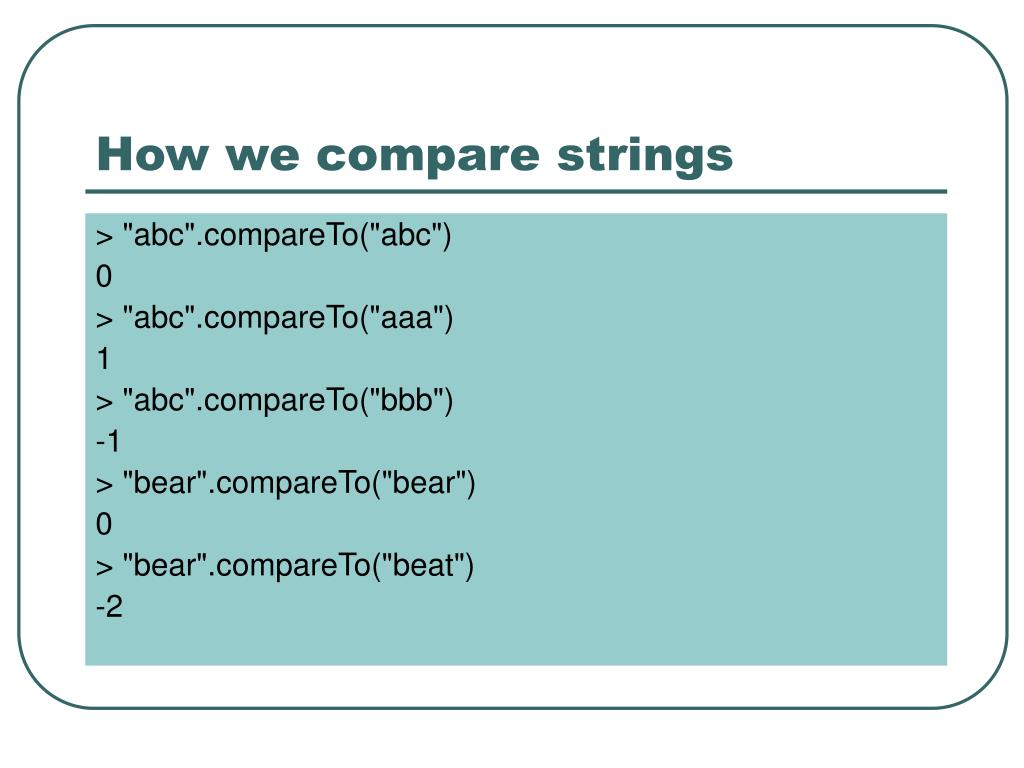

  13. How we compare strings > "abc".compareTo("abc") 0 > "abc".compareTo("aaa") 1 > "abc".compareTo("bbb") -1 > "bear".compareTo("bear") 0 > "bear".compareTo("beat") -2

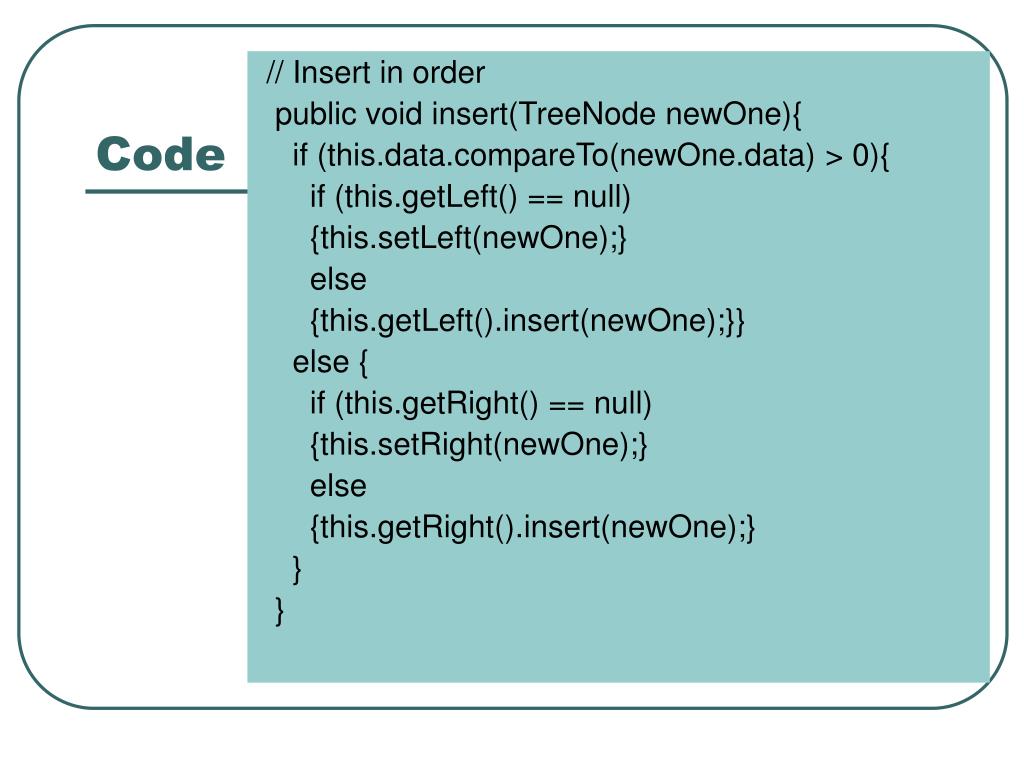

  14. Code // Insert in order public void insert(TreeNode newOne){ if (this.data.compareTo(newOne.data) > 0){ if (this.getLeft() == null) {this.setLeft(newOne);} else {this.getLeft().insert(newOne);}} else { if (this.getRight() == null) {this.setRight(newOne);} else {this.getRight().insert(newOne);} } }

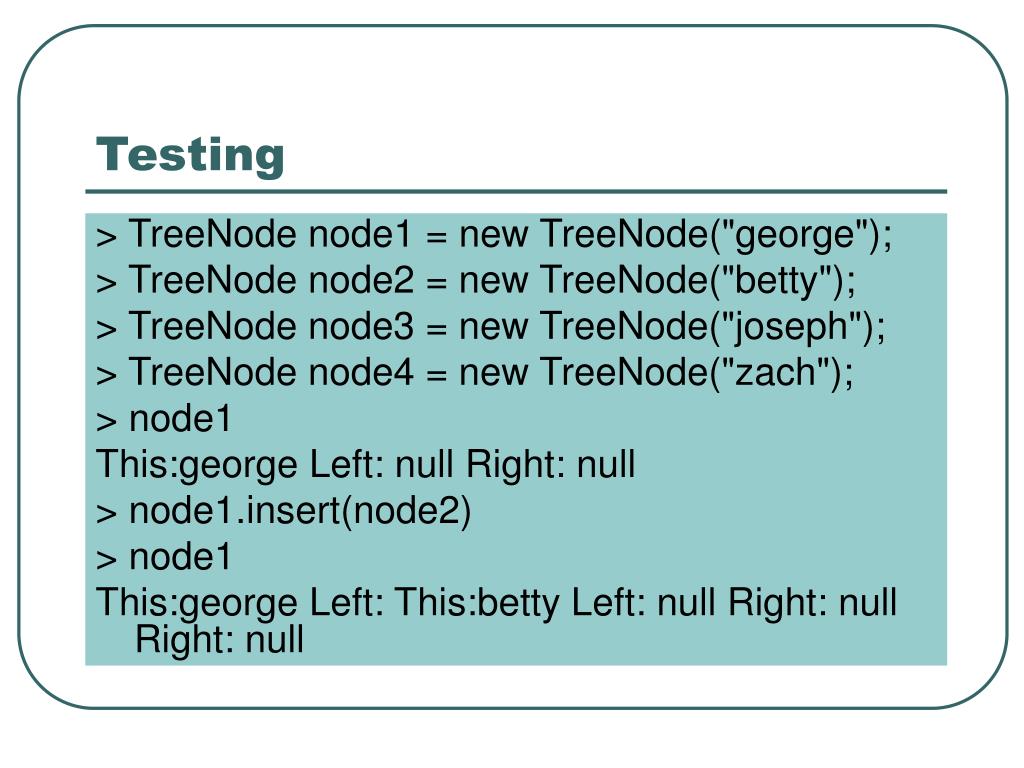

  15. Testing > TreeNode node1 = new TreeNode("george"); > TreeNode node2 = new TreeNode("betty"); > TreeNode node3 = new TreeNode("joseph"); > TreeNode node4 = new TreeNode("zach"); > node1 This:george Left: null Right: null > node1.insert(node2) > node1 This:george Left: This:betty Left: null Right: null Right: null

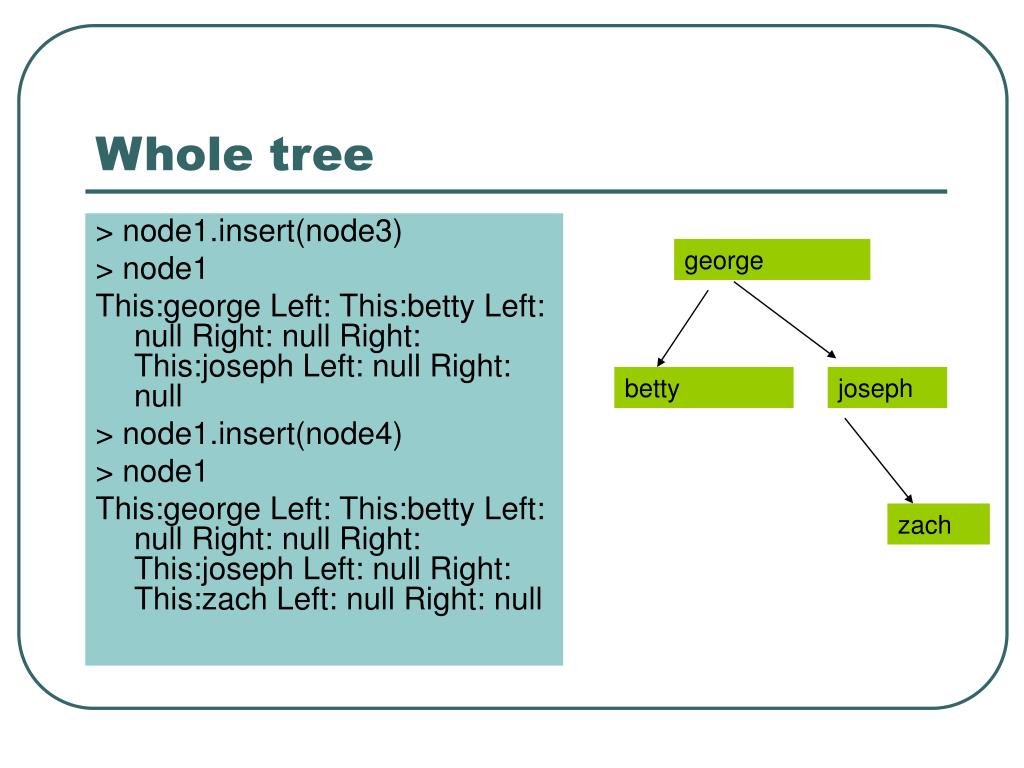

  16. Whole tree > node1.insert(node3) > node1 This:george Left: This:betty Left: null Right: null Right: This:joseph Left: null Right: null > node1.insert(node4) > node1 This:george Left: This:betty Left: null Right: null Right: This:joseph Left: null Right: This:zach Left: null Right: null george betty joseph zach

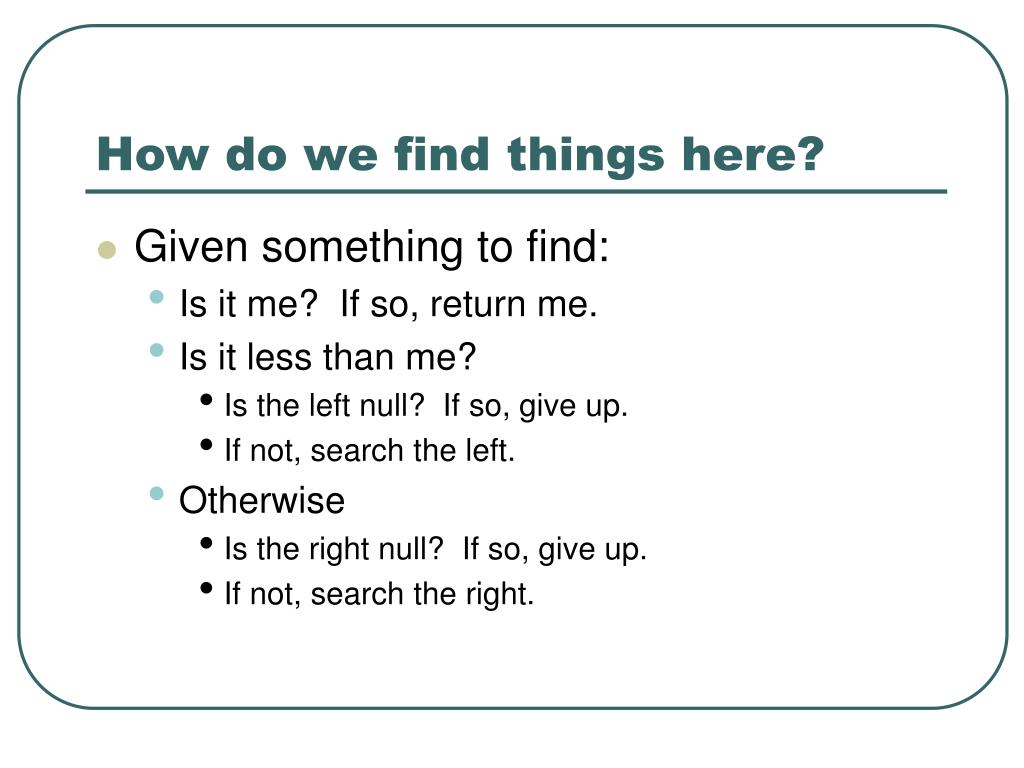

  17. How do we find things here? • Given something to find: • Is it me? If so, return me. • Is it less than me? • Is the left null? If so, give up. • If not, search the left. • Otherwise • Is the right null? If so, give up. • If not, search the right.

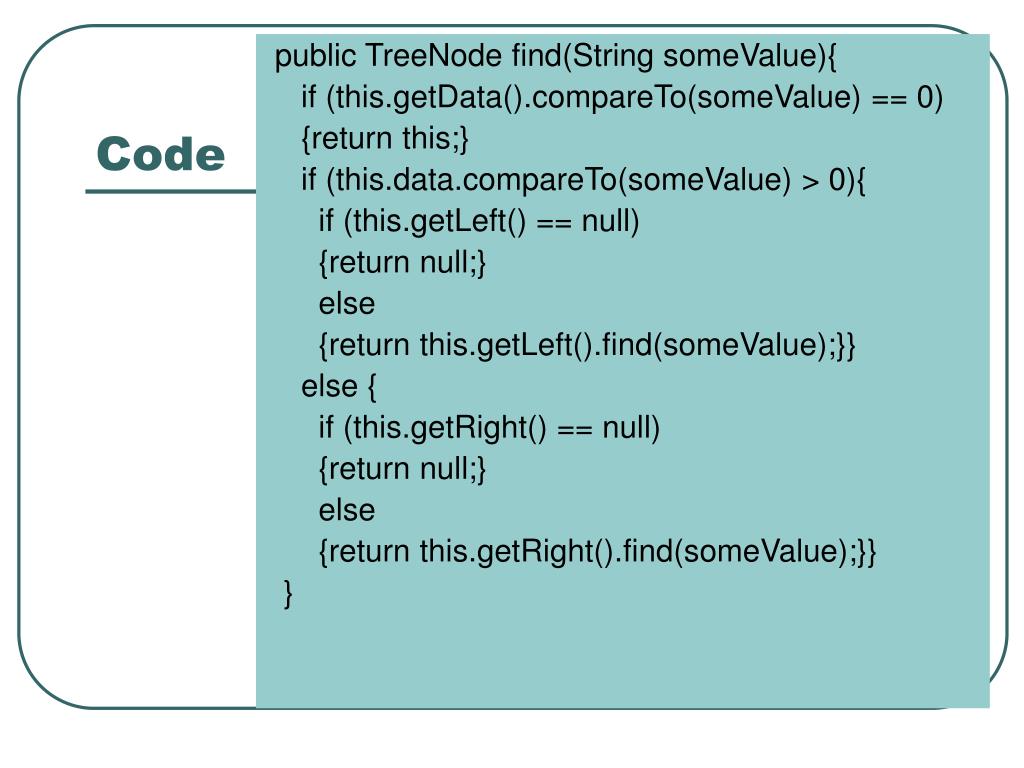

  18. Code public TreeNode find(String someValue){ if (this.getData().compareTo(someValue) == 0) {return this;} if (this.data.compareTo(someValue) > 0){ if (this.getLeft() == null) {return null;} else {return this.getLeft().find(someValue);}} else { if (this.getRight() == null) {return null;} else {return this.getRight().find(someValue);}} }

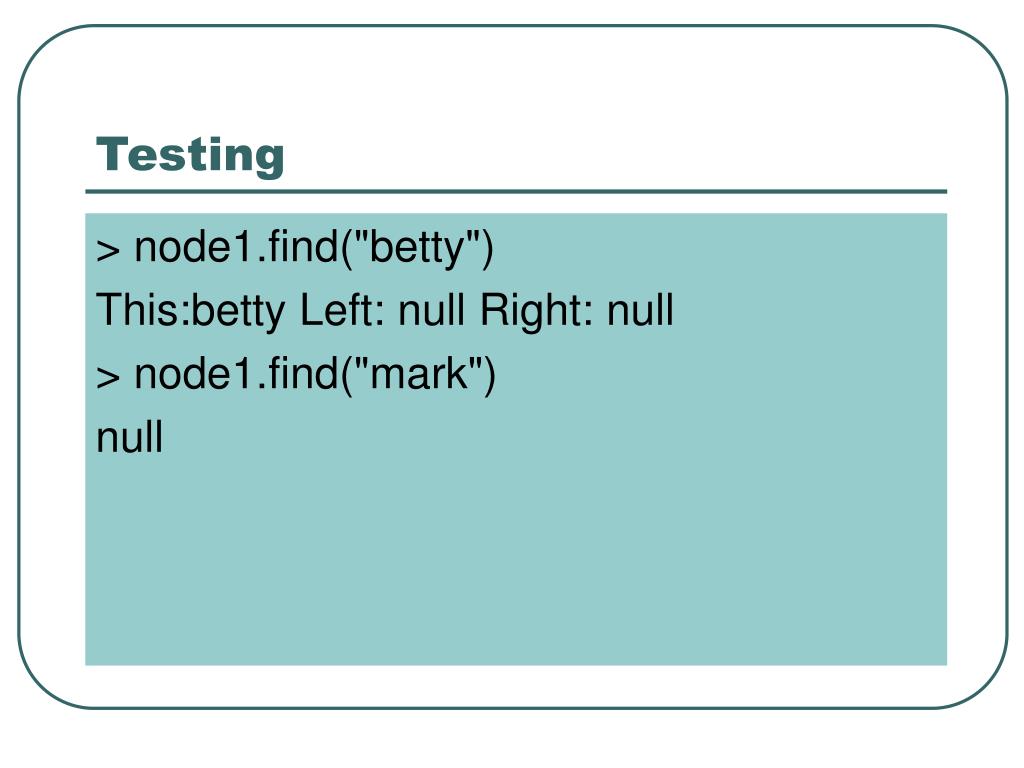

  19. Testing > node1.find("betty") This:betty Left: null Right: null > node1.find("mark") null

  20. Algorithm order: O(log n) Do you see why? • For a balanced tree! • A tree can be unbalanced and still be a binary search tree. george betty joseph betty zach george joseph zach

  21. How do we print a tree in order? • Is there a left node? • Print the left • Print me • Is there a right node? • Print the right

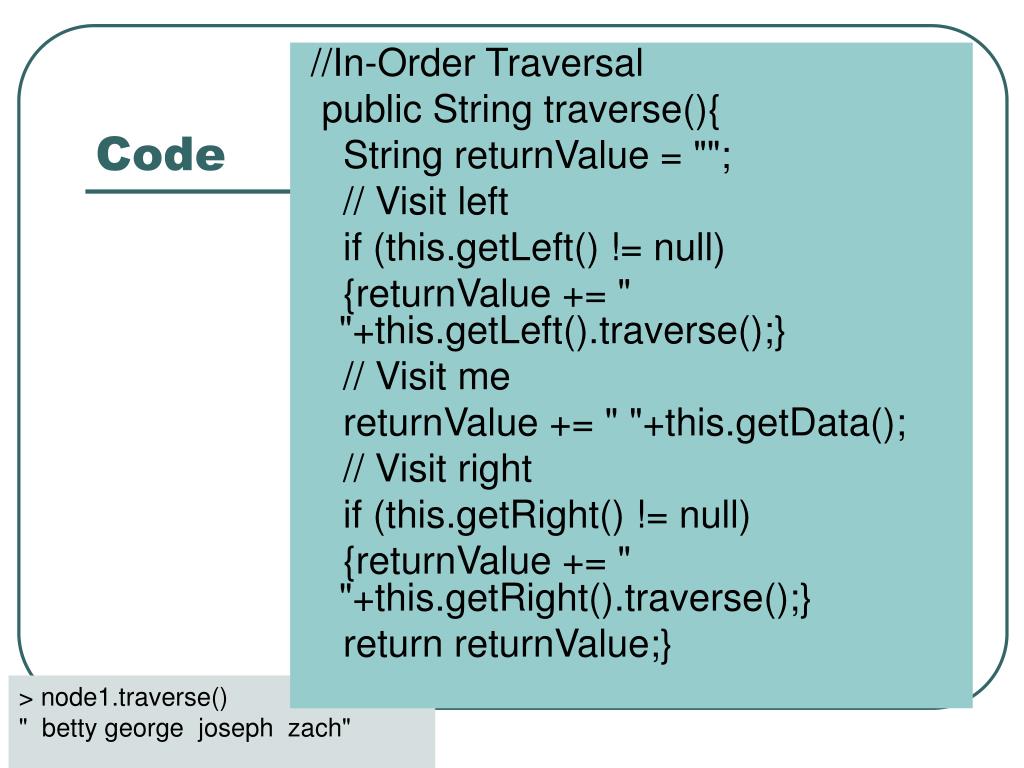

  22. Code //In-Order Traversal public String traverse(){ String returnValue = ""; // Visit left if (this.getLeft() != null) {returnValue += " "+this.getLeft().traverse();} // Visit me returnValue += " "+this.getData(); // Visit right if (this.getRight() != null) {returnValue += " "+this.getRight().traverse();} return returnValue;} > node1.traverse() " betty george joseph zach"

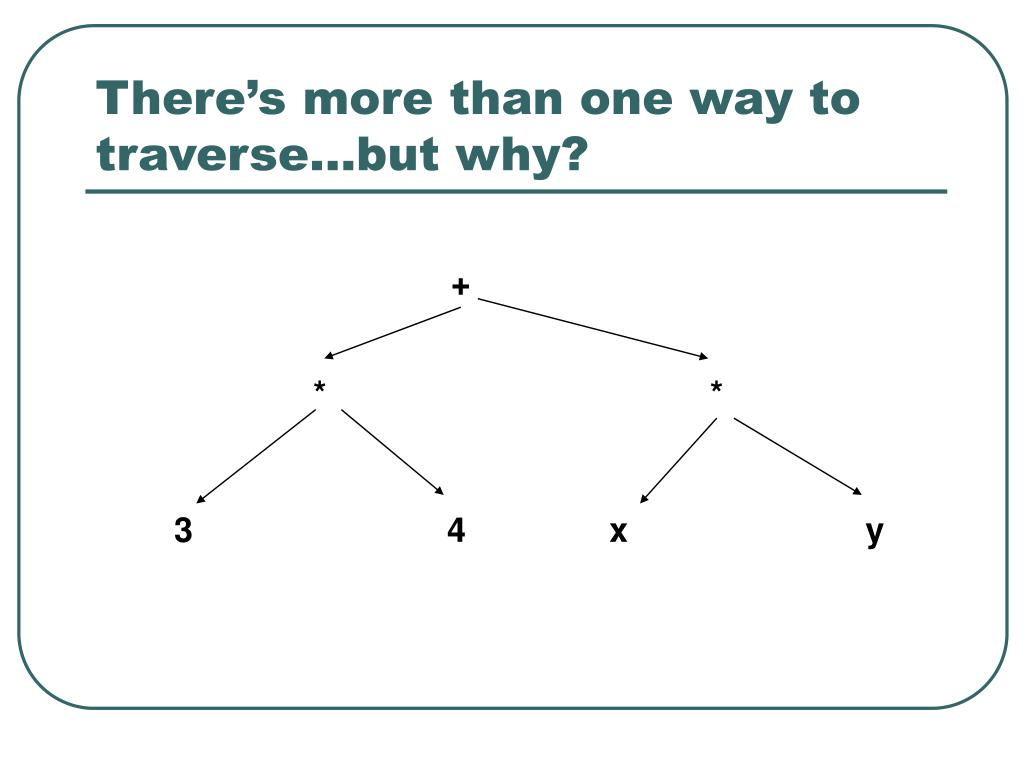

  23. There’s more than one way to traverse…but why? + * * 3 4 x y

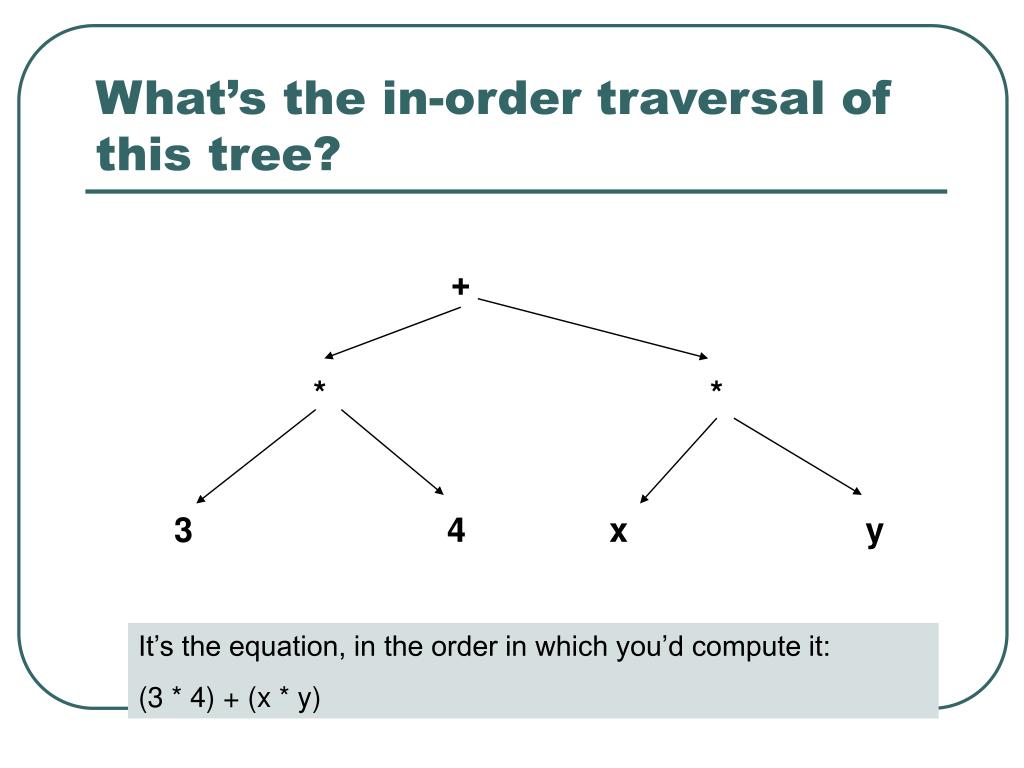

  24. What’s the in-order traversal of this tree? + * * 3 4 x y It’s the equation, in the order in which you’d compute it: (3 * 4) + (x * y)

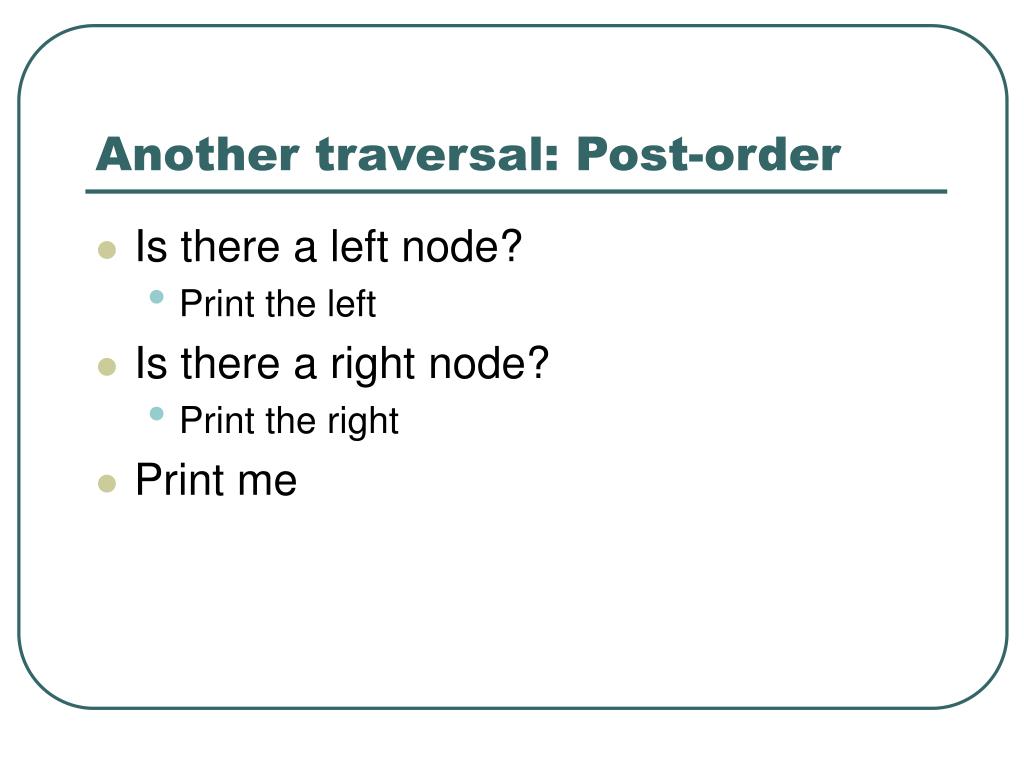

  25. Another traversal: Post-order • Is there a left node? • Print the left • Is there a right node? • Print the right • Print me

  26. What’s the post-order traversal of this tree? + * * 3 4 x y It’s the equation, in the order in which you’d compute it on an HP calculator: 3 4 * x y * +

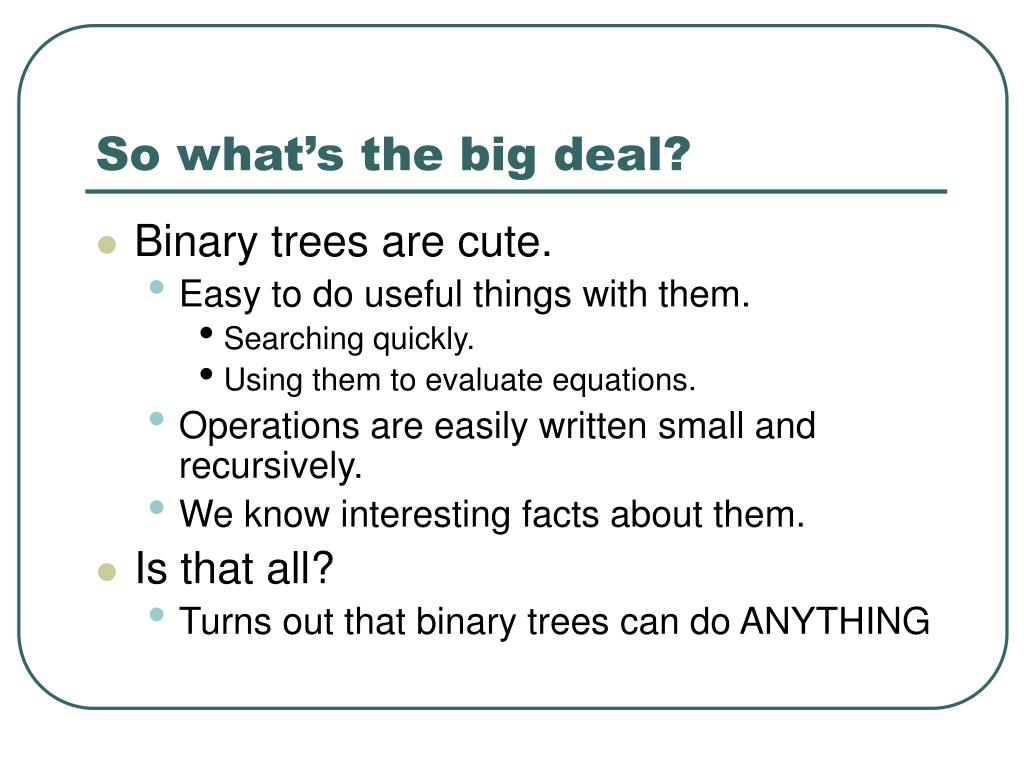

  27. So what’s the big deal? • Binary trees are cute. • Easy to do useful things with them. • Searching quickly. • Using them to evaluate equations. • Operations are easily written small and recursively. • We know interesting facts about them. • Is that all? • Turns out that binary trees can do ANYTHING

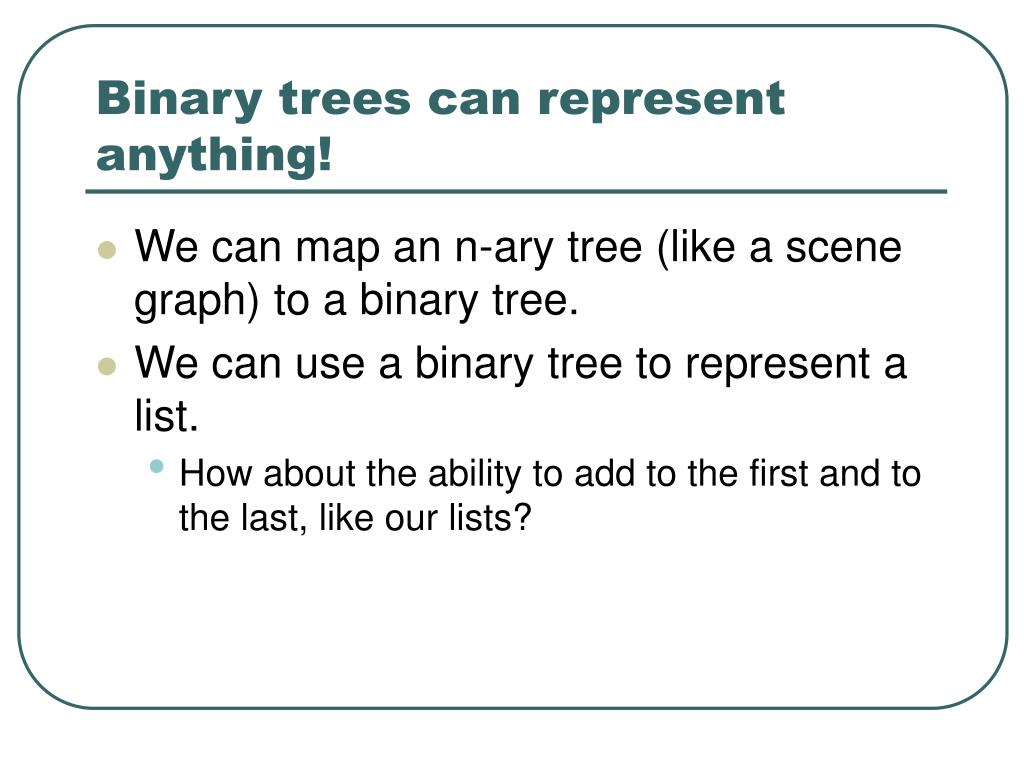

  28. Binary trees can represent anything! • We can map an n-ary tree (like a scene graph) to a binary tree. • We can use a binary tree to represent a list. • How about the ability to add to the first and to the last, like our lists?

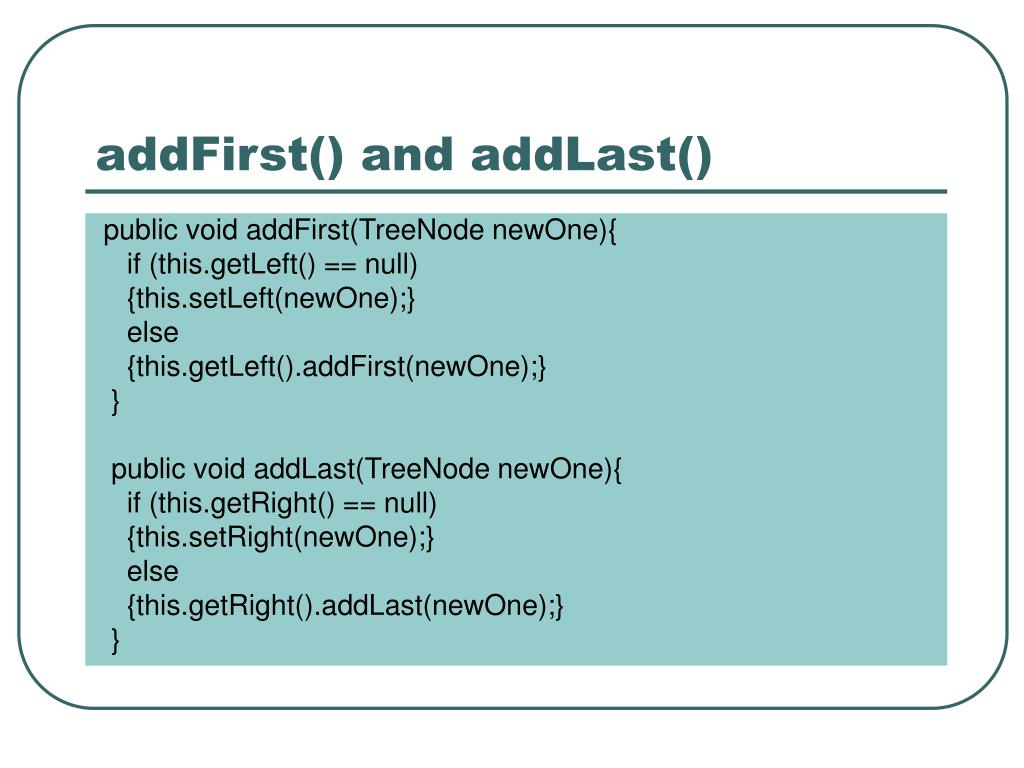

  29. addFirst() and addLast() public void addFirst(TreeNode newOne){ if (this.getLeft() == null) {this.setLeft(newOne);} else {this.getLeft().addFirst(newOne);} } public void addLast(TreeNode newOne){ if (this.getRight() == null) {this.setRight(newOne);} else {this.getRight().addLast(newOne);} }

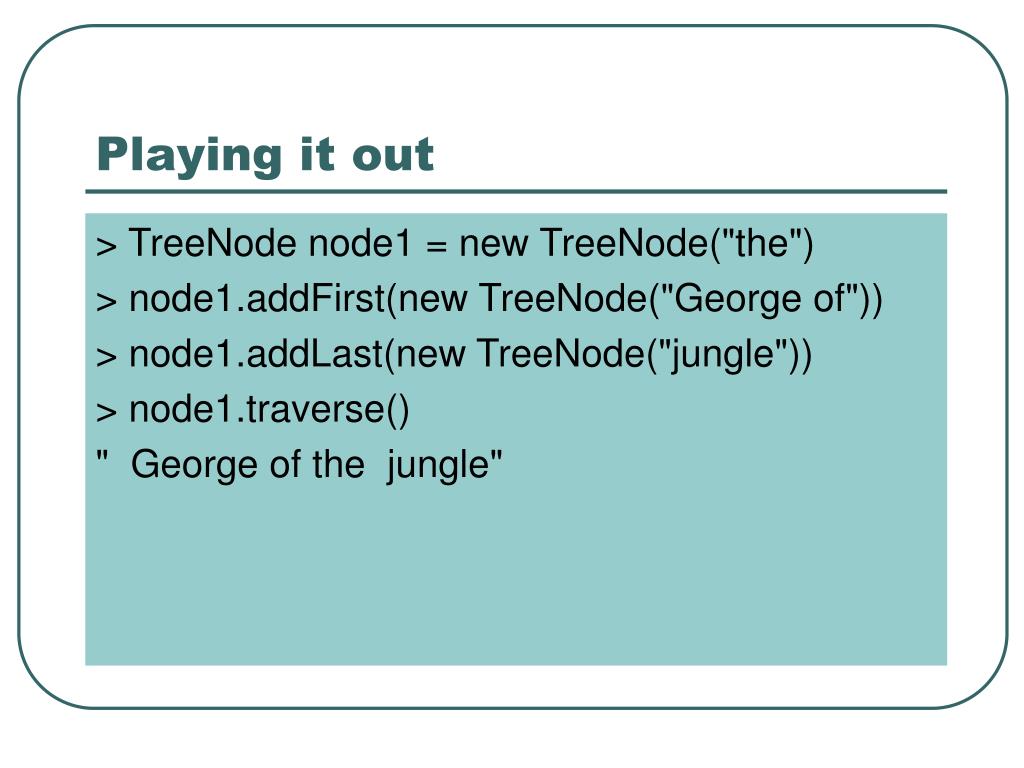

  30. Playing it out > TreeNode node1 = new TreeNode("the") > node1.addFirst(new TreeNode("George of")) > node1.addLast(new TreeNode("jungle")) > node1.traverse() " George of the jungle"

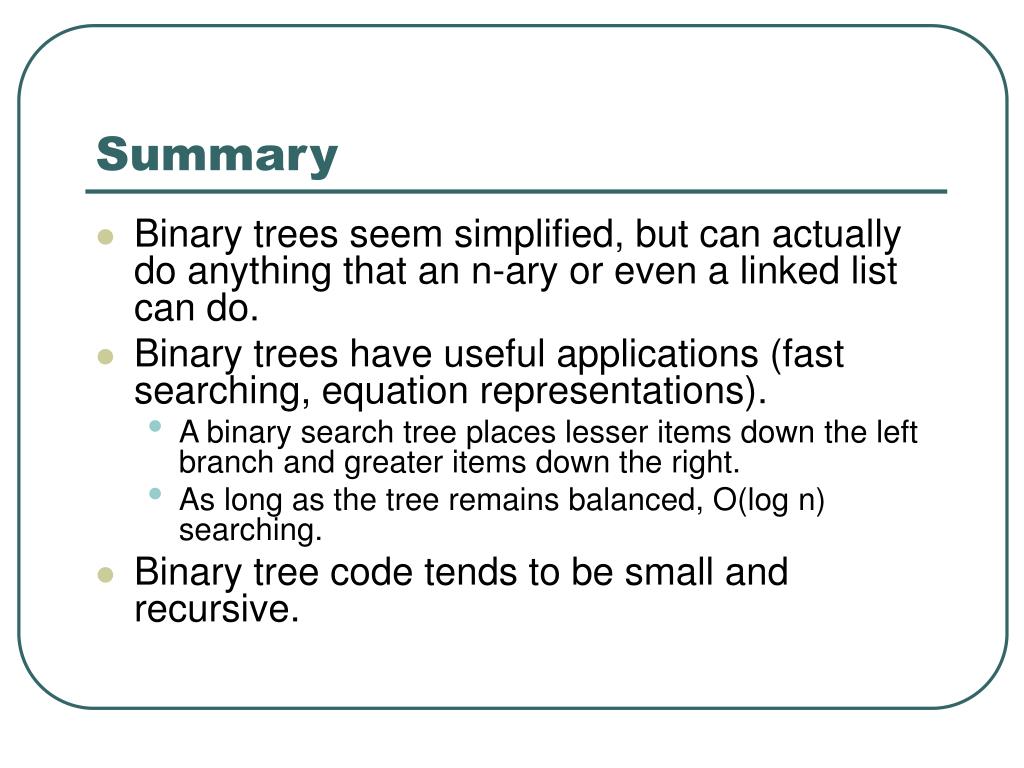

  31. Summary • Binary trees seem simplified, but can actually do anything that an n-ary or even a linked list can do. • Binary trees have useful applications (fast searching, equation representations). • A binary search tree places lesser items down the left branch and greater items down the right. • As long as the tree remains balanced, O(log n) searching. • Binary tree code tends to be small and recursive.
