Self - Inductance

Self - Inductance. Faraday postulated that a magnetic field consists of lines of force surrounding the current-carrying conductor. Think of these lines as elastic bands that close on themselves. As the current increases and decreases, the bands expand and collapse about the conductor.

ken
Télécharger la présentation

Self - Inductance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

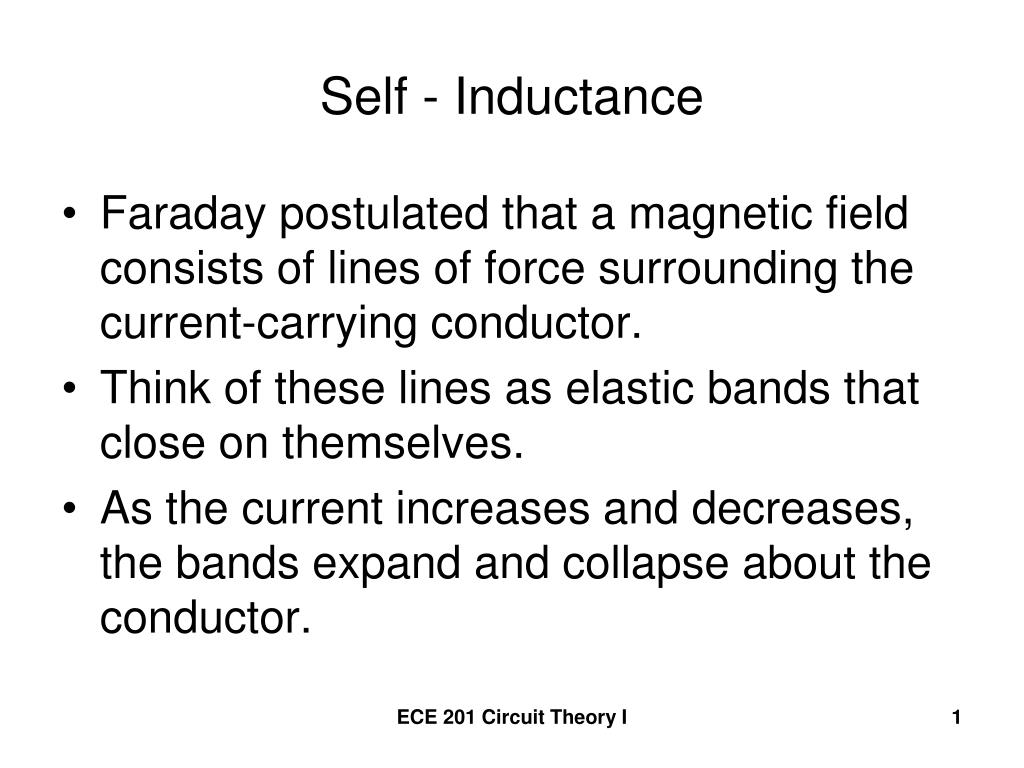

  1. Self - Inductance • Faraday postulated that a magnetic field consists of lines of force surrounding the current-carrying conductor. • Think of these lines as elastic bands that close on themselves. • As the current increases and decreases, the bands expand and collapse about the conductor. ECE 201 Circuit Theory I

  2. Self – Inductance continued Compress for decreasing magnetic field (due to decreasing current). Faraday’s Law : the voltage induced into the conductor is proportional to the number of lines that cut the conductor. Expand for increasing magnetic field (due to increasing current). ECE 201 Circuit Theory I

  3. Faraday’s Law λ is called the “flux linkage” and is measured in weber-turns ECE 201 Circuit Theory I

  4. Magnetic field linking an N-turn coil ECE 201 Circuit Theory I

  5. Permeance, P • Permeance describes the magnetic properties of the space occupied by the flux. • Units are webers/ampere-turn. ECE 201 Circuit Theory I

  6. ECE 201 Circuit Theory I

  7. Voltage Polarity • When i increases, di/dt is + and v is +. • Energy produces the magnetic field ECE 201 Circuit Theory I

  8. Voltage Polarity • When i decreases, di/dt is - and v is -. • i is still + • Magnetic field collapses - + ECE 201 Circuit Theory I
