  1. Streaming Integral Image Generation on FPGA The Pennsylvania State University Department of Computer Science & Engineering Microsystems Design Lab (www.cse.psu.edu/~mdl) Michael DeBole Acknowledgements: K. Irick

  2. Ubiquitous Distributed Systems? Distributed System with Pre-Processing done at Camera Nodes! Traditional System Relies on a Central Point for Computation and Video Analysis Limitations • Large Area • High Power and Energy Requirements • Sub-Optimal Performance • Costly Advantages • Distributed System • Low Area • High performance • Cost Efficient Equip Each Camera with a Local Processing Element!

  3. Integral Image Computation

  4. Storage Requirements i Example: 512 x 512 Image 8-Bit Pixels (Grayscale) j 32-Bit Words = MaxBits =

  5. Streaming Computation Components Accumulator • Goals • Minimal Internal Storage • Small Latency • Pixel Rate Frequency (~27MHz) Single Adder RAM (# of Entries = Num of Rows) Raster Scan # of Bits Equals Bits Needed for Last Sum

  6. Dynamic Memory Storage Based on Current Position (i,j) Need to determine number of bits needed to store current sum Recall: Tricks: Images 256 < M,N < 1024 I and J require 10 bits Slight Overestimate 10-Bit Address Lookup Dual Port Memory (1024 entries x ~4bits)

  7. Integral Image Architecture

  8. System Configuration

  9. Current System Setup • Xilinx Tools • Xilinx ISE, XPS, SDK • ML410 System Development Board • Virtex4-FX60 device • 2 Embedded PPC Cores • Slices: 25,280 • DSP48s: 128 • BlockRams: 232

  10. Integral Image System Status: ML410 Base System With Ethernet Host Ethernet Application Integral Image Hardware (w/ Support Logic) Integral Image Hardware w/ PLBstreamer Map Blob/Filtering Application to FPGA Complete To Be Done

  11. Ethernet Application

  12. Integral Image Simulation Results 1 Image = 5ms Realtime (33ms)

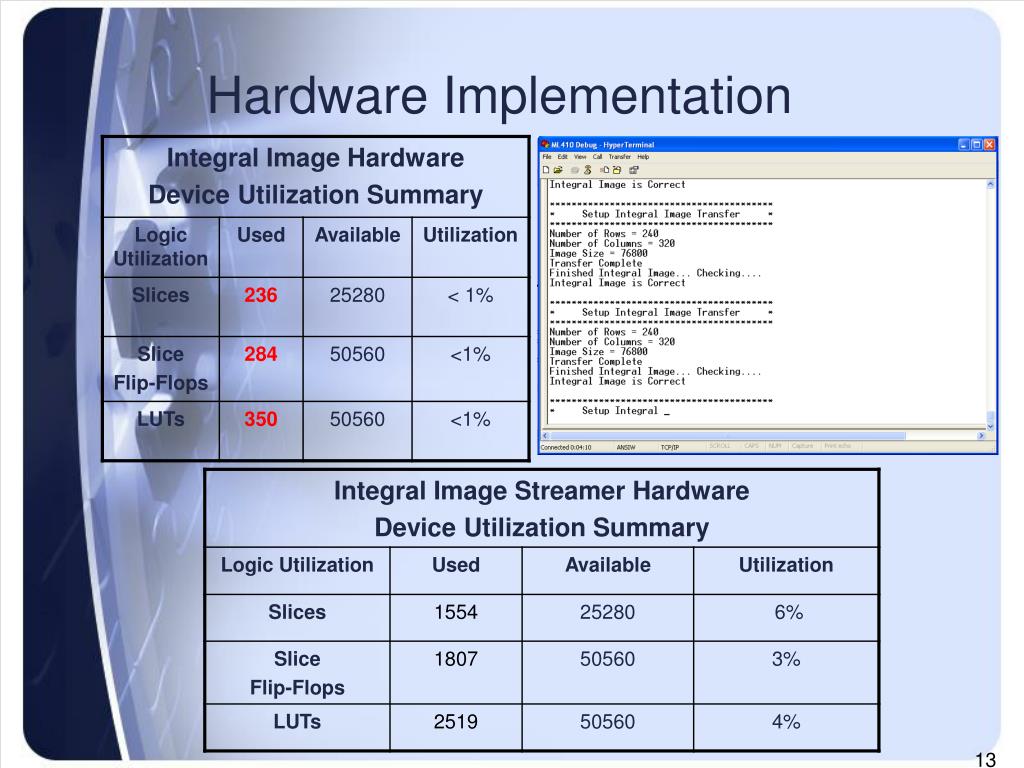

  13. Hardware Implementation

  14. Conclusions • Real-Time Streaming Integral Imaging Hardware • Minimal Resources, Application Specific Memory Utilization • To Do: Map Application to FPGA

  15. Thank You! Questions?
