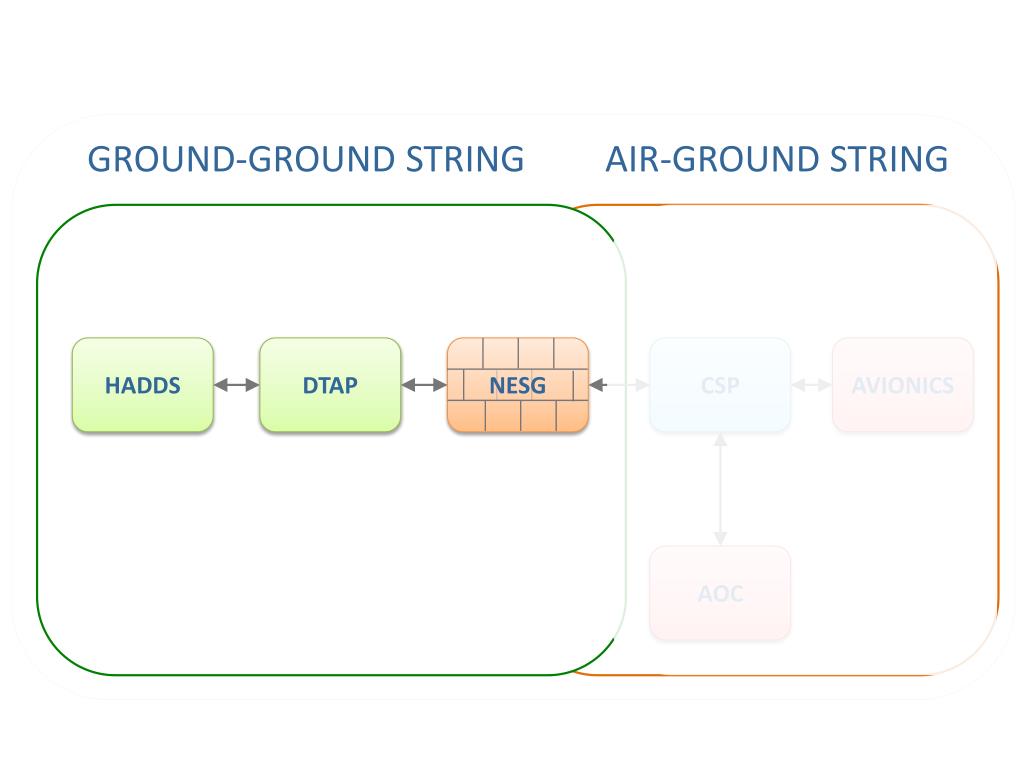

  1. GROUND-GROUND STRING AIR-GROUND STRING HADDS DTAP NESG CSP AVIONICS AOC

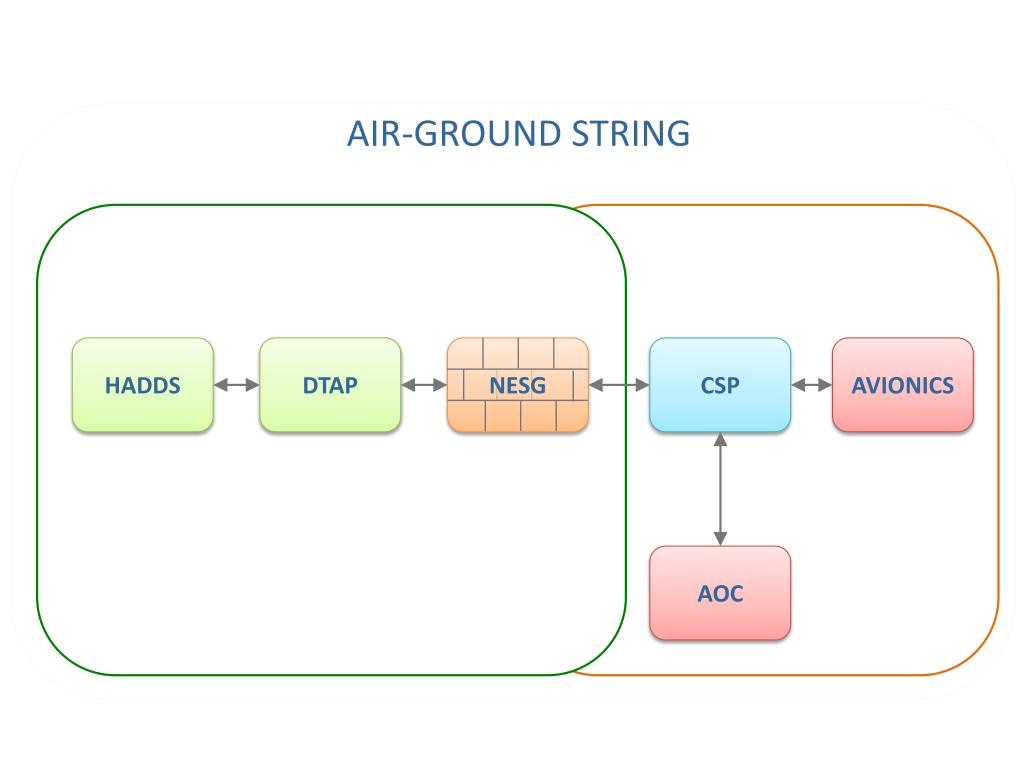

  2. AIR-GROUND STRING HADDS DTAP NESG CSP AVIONICS AOC

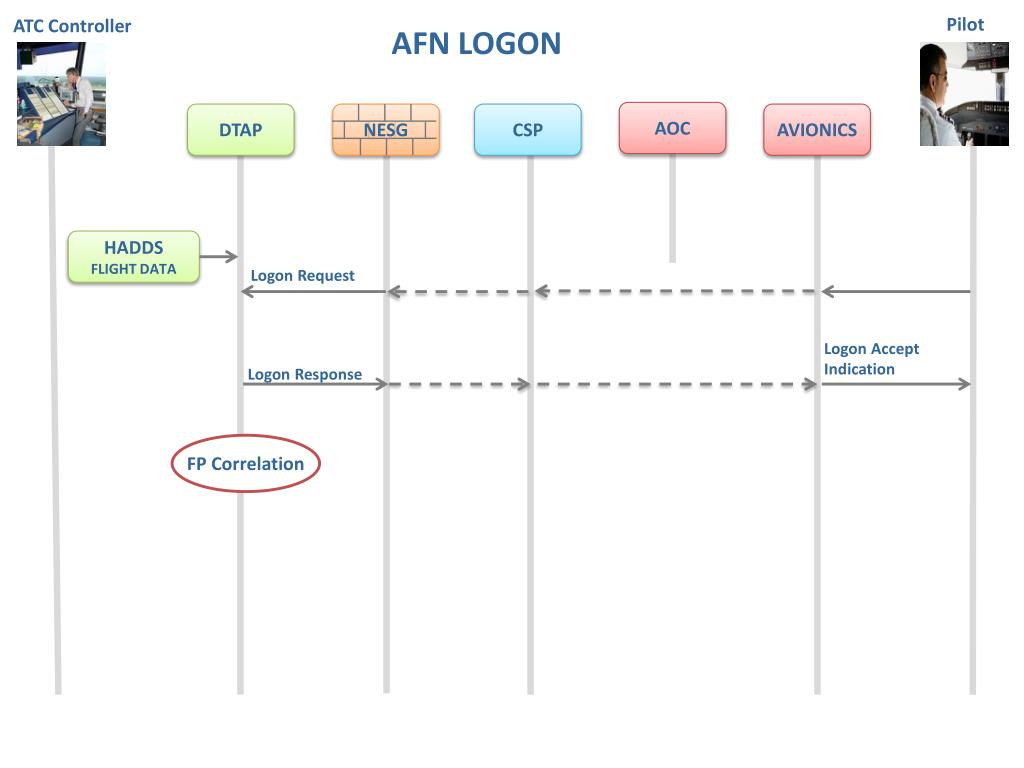

  3. Pilot ATC Controller AFN LOGON AOC DTAP NESG CSP AVIONICS HADDS FLIGHT DATA Logon Request Logon Accept Indication Logon Response FP Correlation

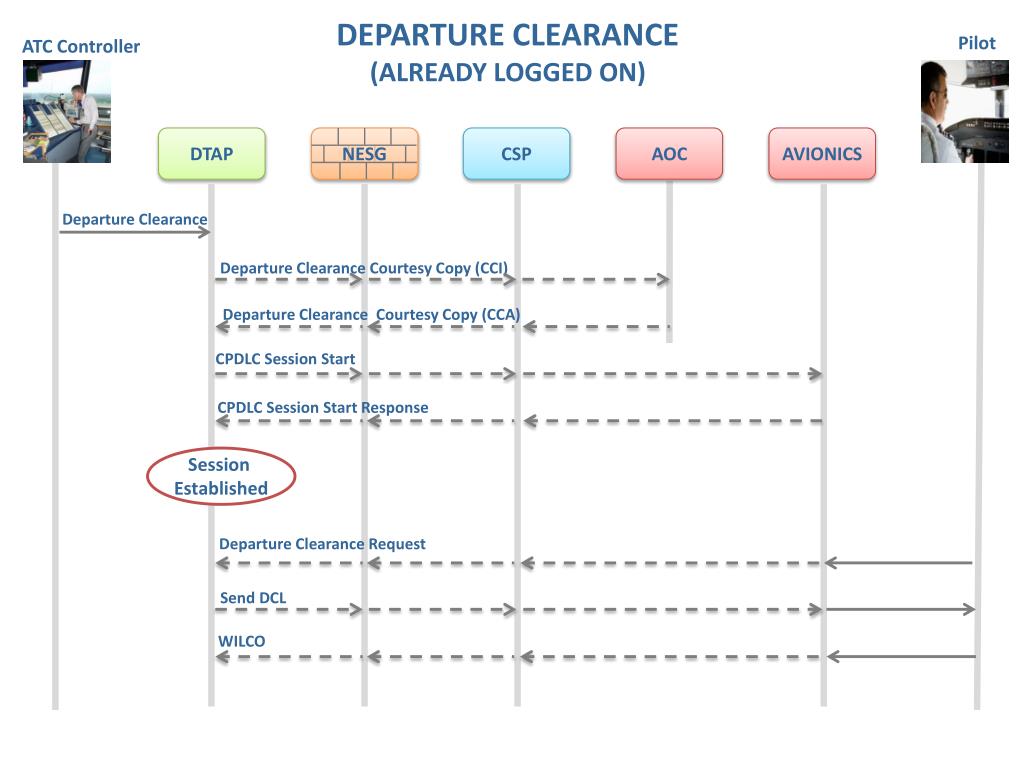

  4. DEPARTURE CLEARANCE (ALREADY LOGGED ON) Pilot ATC Controller DTAP NESG CSP AOC AVIONICS Departure Clearance Departure Clearance Courtesy Copy (CCI) Departure Clearance Courtesy Copy (CCA) CPDLC Session Start CPDLC Session Start Response Session Established Departure Clearance Request Send DCL WILCO

  5. REVISED DEPARTURE CLEARANCE (ALREADY LOGGED ON, SESSION ESTABLISHED) ATC Controller Pilot AVIONICS NESG DTAP CSP AOC HADDS REVISED FLIGHT DATA Revised Departure Clearance Departure Clearance Courtesy Copy (CCR) Departure Clearance Courtesy Copy (CCA) Send Revised DCL WILCO

  6. ATC Controller Pilot DCL SERVICE DTAP NESG CSP AOC AVIONICS HADDS FLIGHT DATA Logon Request Logon Accept Indication Logon Response FP Correlation Logon Departure Clearance Departure Clearance Courtesy Copy (CCI) Departure Clearance Courtesy Copy(CCA) CPDLC Session Start CPDLC Session Start Response Session Established Departure Clearance Request Send DCL WILCO DCL Revised Departure Clearance Departure Clearance Courtesy Copy (CCR) Departure Clearance Courtesy Copy (CCA) Send Revised DCL Revised DCL WILCO

  7. DCL Trials Architecture Airline HOST TOWER ARTCC DTAP 1 HOST MONITOR HADDS CSP & API FDP ARINC HID KYBRD HMI DCL HADDS ERAM FAA Technical Center FNTB FANS 1/A+ STACK AFN MOUSE DEMARC TEST IP DATA RECORD FTI OPSIP NESG ED-8 ACY HADDS TEST ED-8 ACY OS DEMARC DEMARC ERAM TOWER HID 2 IP TEST DTAP TDLS 2 HOST DEMARC TOWER DTAP HADDS ERAM 3 2,3 2,3 DTAP TDLS 3 SITA HID 2,3 HOST 2,3 PC-RCU Strip Printer ARTCC 2,3 Airline HOST

  8. System Test - DCL TRIALS ARCHITECTURE FAA Technical Center Trials Lab Subnetworks FAA Technical Center FNTB DTAP 618-622-do258a HOST MONITOR HADDS CSP & API FDP ARINC HID KYBRD HMI DCL HADDS ERAM Airline HOST FANS 1/A+ STACK AFN MOUSE DEMARC IP 620-622-do258a NESG ED-8 ACY DATA RECORD IP 620-622-do258a Airlines Tech Center Project Aircraft – N47 DEMARC Rs 429 IP Strip Printer 620-622-do258a PC-RCU HADDS Airline HOST DEMARC Sim, playback AVIONICS SITA Fans 1/A+ 618-622-do258a Tech Center Project Aircraft – N47

  9. Time Line : Pre-Conditions Event can happen anytime between the time barriers Session is Established Pilot Requests DCL Pilot Logs On FP is Forwarded to DTAP FP is Filed ~ 2 hrs. before Departure Time Controller Prepares DCL ~ 30 minutes before departure Logon-to-FP Correlation Occurs

  10. Logon Info • Logon Info: • Aircraft Registration (Tail Number) • Flight ID, aircraft position, and application information • Logon-to-FP Correlation • Deposit the logon data in the flight object • Set the identified logon to Active • Identify the flight object in the logon record

  11. DTAP Aircraft DTAP Protocol Stack FANS DCL/ AFN FANS DCL / AFN 622 622 NULL NULL CSP A620 ACARS Processing A620 ACARS Processing A620 ACARS Processing TEI Processing Air/Ground Routing Function Air/Ground Routing Function MATIP BATAP 618 (VHF) 618 (VHF) MATIP IP IP POA AVLC AVLC POA 8802 LAN Telco MSK D8PSK D8PSK MSK NESG A/G Service FAA Telco Service /LAN
