Chemistry in Parallel Computing Brian W. Hopkins Mississippi Center for Supercomputing Research 18 September 2008

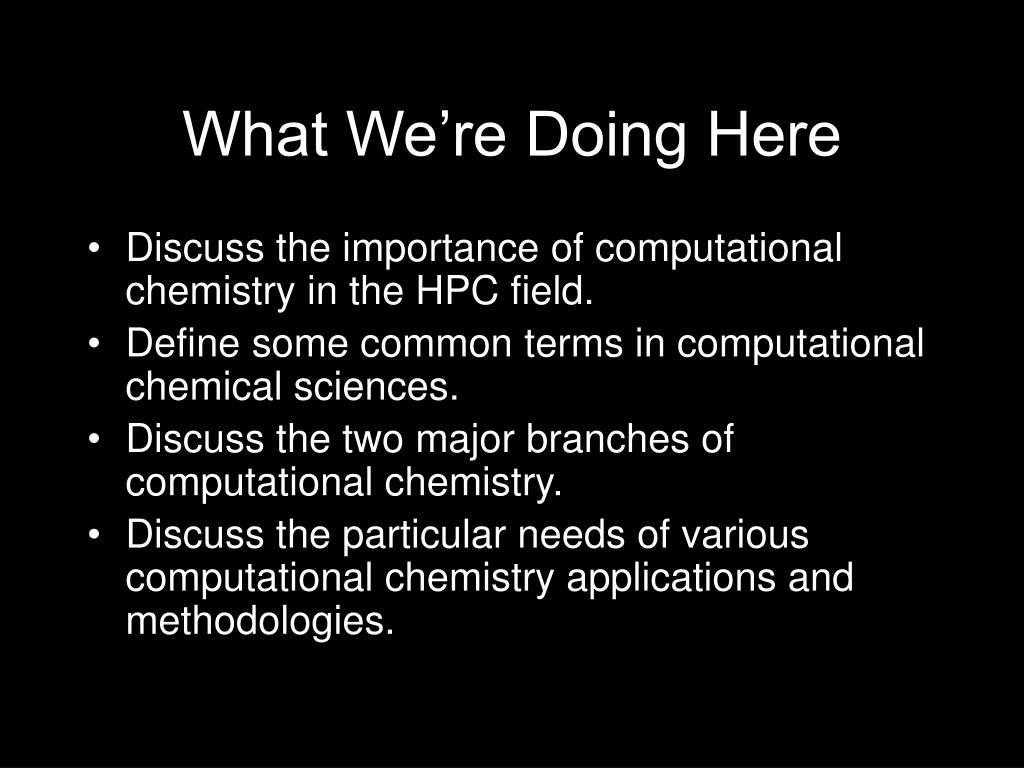

What We’re Doing Here • Discuss the importance of computational chemistry in the HPC field. • Define some common terms in computational chemical sciences. • Discuss the two major branches of computational chemistry. • Discuss the particular needs of various computational chemistry applications and methodologies.

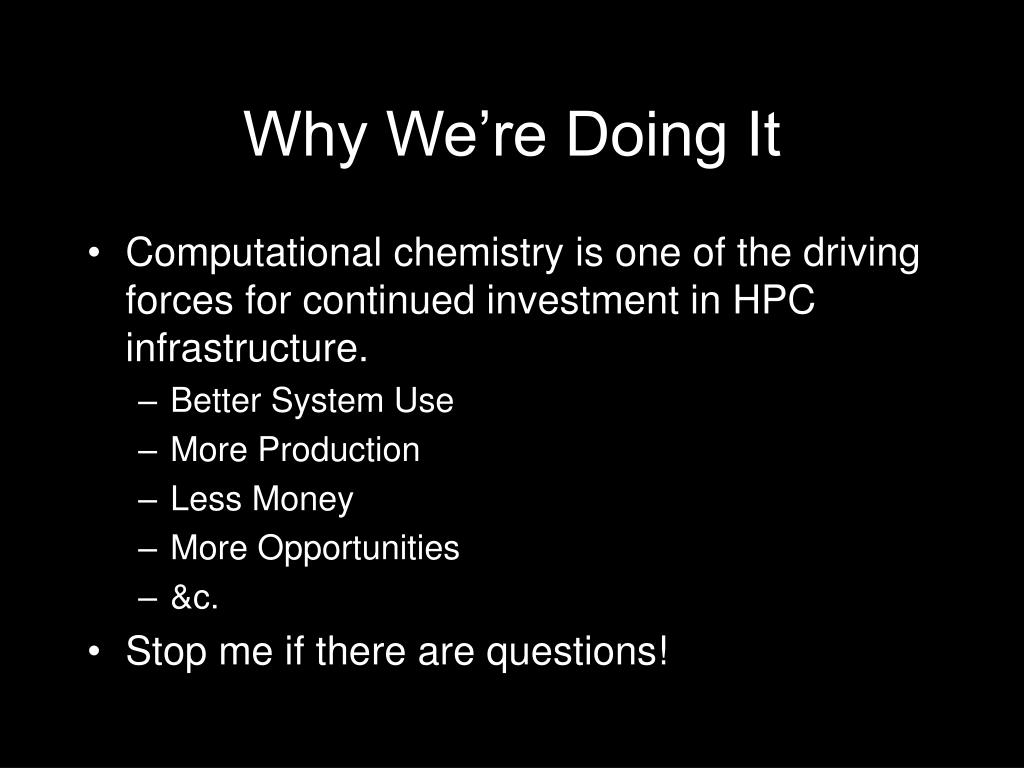

Why We’re Doing It • Computational chemistry is one of the driving forces for continued investment in HPC infrastructure. • Better System Use • More Production • Less Money • More Opportunities • &c. • Stop me if there are questions!

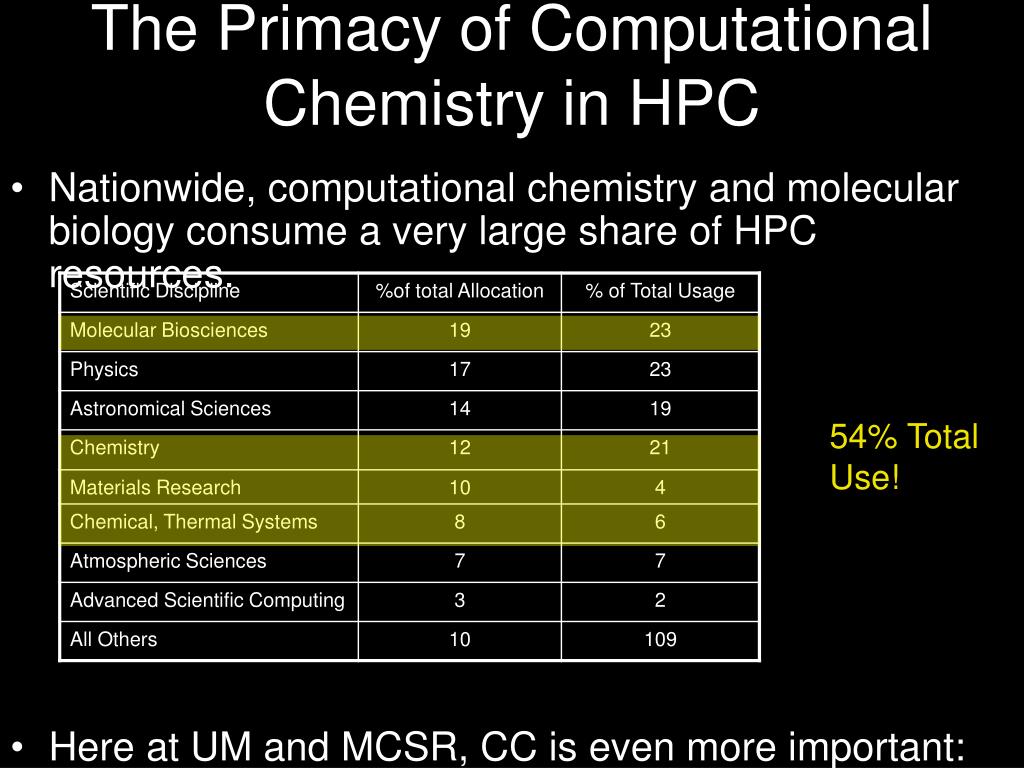

The Primacy of Computational Chemistry in HPC • Nationwide, computational chemistry and molecular biology consume a very large share of HPC resources. • Here at UM and MCSR, CC is even more important: >90% of MCSR flops used by CC applications. 54% Total Use!

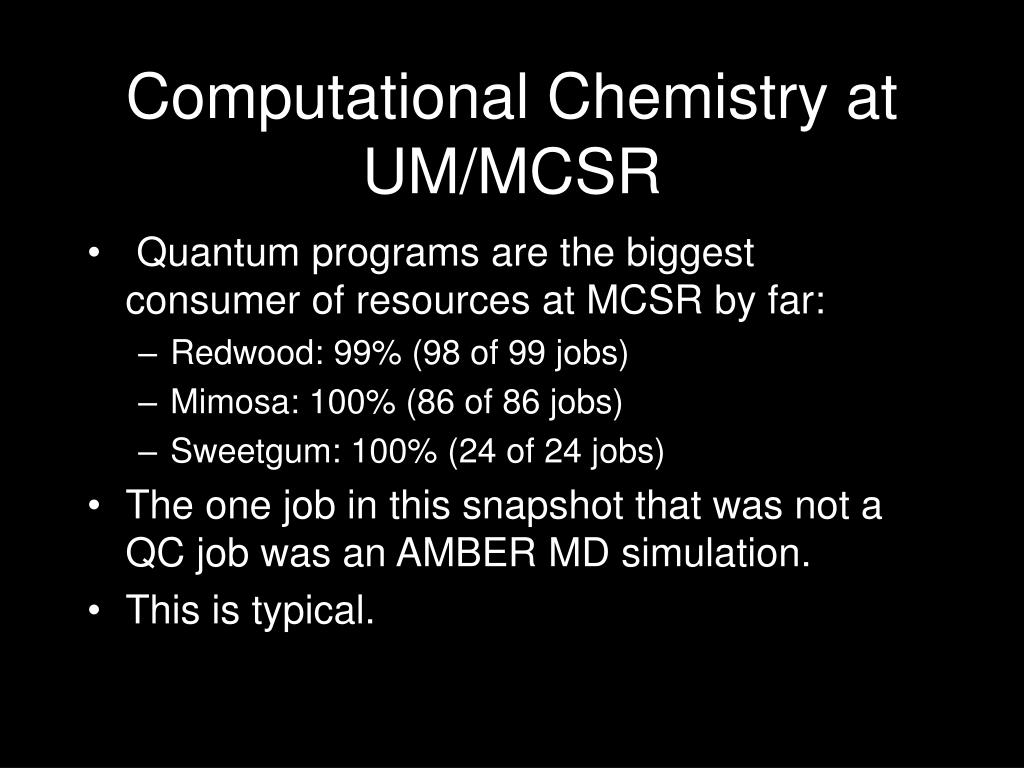

Computational Chemistry at UM/MCSR • Quantum programs are the biggest consumer of resources at MCSR by far: • Redwood: 99% (98 of 99 jobs) • Mimosa: 100% (86 of 86 jobs) • Sweetgum: 100% (24 of 24 jobs) • The one job in this snapshot that was not a QC job was an AMBER MD simulation. • This is typical.

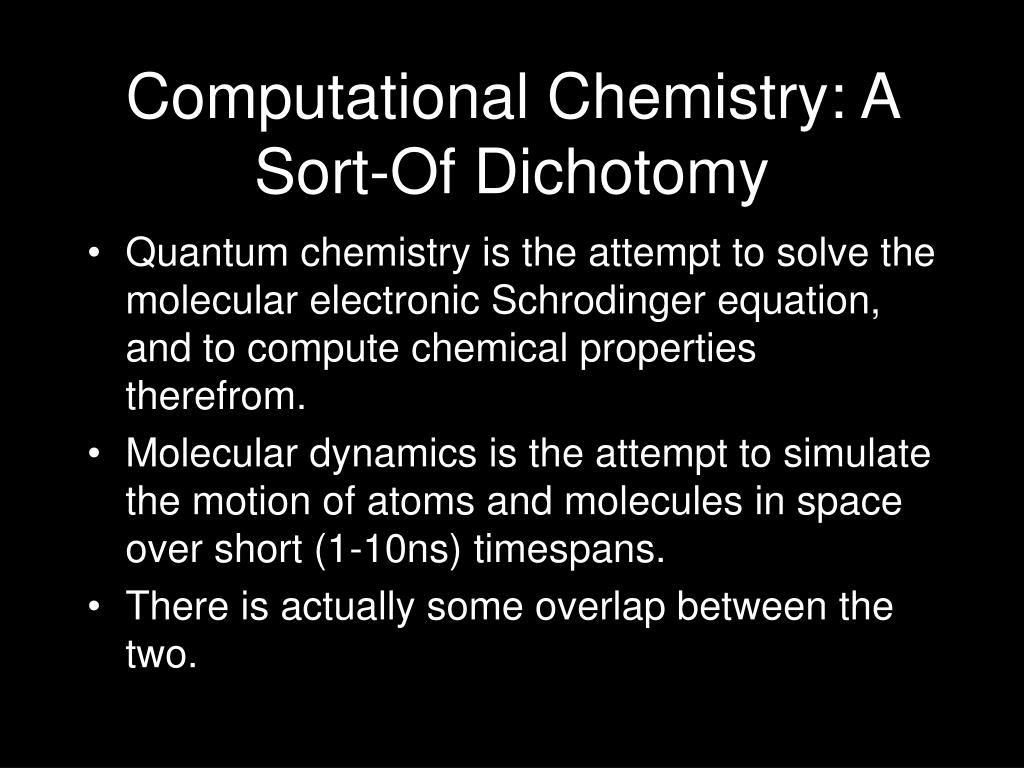

Computational Chemistry: A Sort-Of Dichotomy • Quantum chemistry is the attempt to solve the molecular electronic Schrodinger equation, and to compute chemical properties therefrom. • Molecular dynamics is the attempt to simulate the motion of atoms and molecules in space over short (1-10ns) timespans. • There is actually some overlap between the two.
Quantum Chemistry: Overview • The equations that describe chemical behavior are known: • While known, these equations are not solvable by any analytic approach. • The basic problem: interdependence of a very large number of electronic coordinates. • While analytic solutions are not available, approximate numerical solutions are.
The Polynomial Scaling Problem • Because of the complexity of the Schrodinger equation, the baseline QC method (HF theory) scales with the system size N as O(N4). • More accurate methods scale from O(N4) -- O(N8). • The very best method scales with (get this) O(N!). • “System size” here is some cooked-up number generated by hashing the number of electrons, the number of orbitals, symmetry, &c. • The polynomial scaling problem applies to every resource used by a job: CPU time, memory, disk, everything.
A Word on Alphabet Soup • Always remember that the Schrodinger Equation cannot be solved; we’re always working at some level or approximation • HF • DFT • MP2 • MP4 • CCSD, CISD • CCSD(T) • CCSDT, CISDT • CCSDTQ, CISDTQ • … • FCC, FCI • The fewer approximations we make, the better the results (and the more the calculation costs). Increasing accuracy Increasing expense Decreasing scalability Decreasing availability
Iteration in Quantum Chemistry • To solve the interdependence of coordinates, QC programs rely on iteration. • A guess is made for the location of each electron; that guess is processed; lather, rinse, repeat. • When the solution stops changing, you’re done. • The converged solution gives both a total energy of the molecule and a wavefunction that decribes its state.

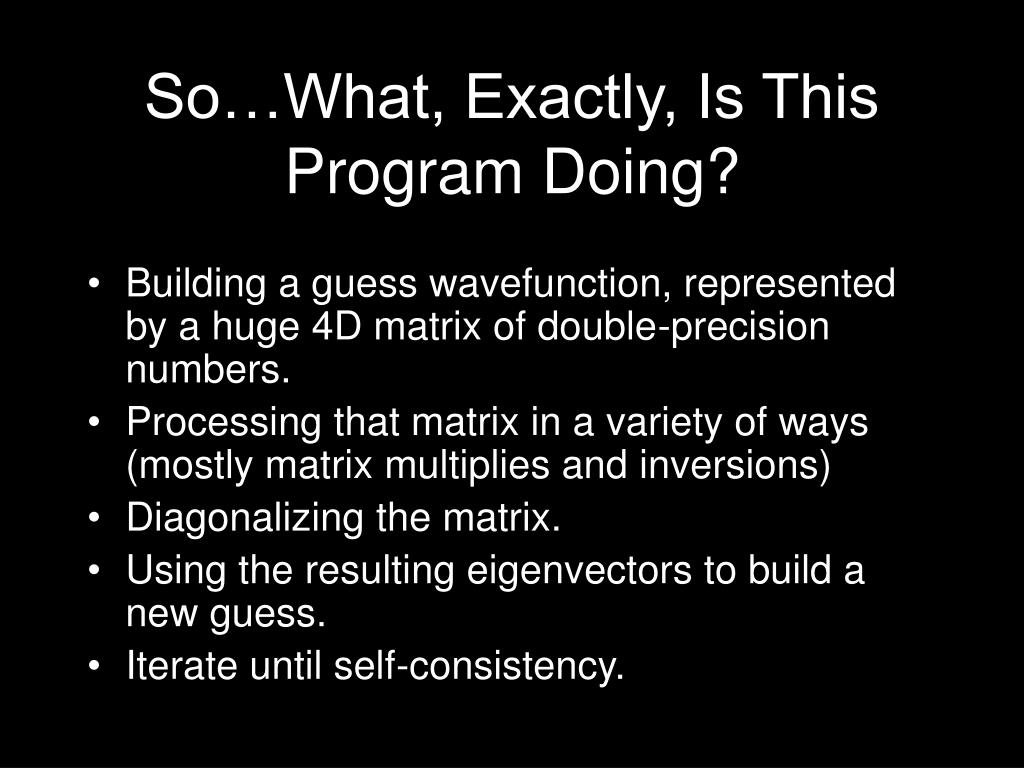

So…What, Exactly, Is This Program Doing? • Building a guess wavefunction, represented by a huge 4D matrix of double-precision numbers. • Processing that matrix in a variety of ways (mostly matrix multiplies and inversions) • Diagonalizing the matrix. • Using the resulting eigenvectors to build a new guess. • Iterate until self-consistency.
Common Chemical Properties • Many common chemical properties are computed by building derivatives of the molecular electronic wavefunction. • molecular structures • harmonic vibrational frequencies • polarizabilities • &c. • These derivatives can be calculated analytically or numerically.
Geometry Optimization • One extremely common job type is the geometry optimization. • Procedure: • Start with a guess set of nuclear coordinates • Compute the wavefunction for the molecule • Compute the derivative of the wavefunction with respect to the nuclear coordinates • Adjust the nuclear coordinates • Repeat until the derivative is within tolerance of zero in every dimension • Note that this is a nested iteration: we’re iterating to build a wavefunction, Requested convergence on RMS density matrix=1.00D-08 within 64 cycles. Requested convergence on MAX density matrix=1.00D-06. SCF Done: E(RHF) = -565.830259809 A.U. after 16 cycles Convg = 0.7301D-08 -V/T = 2.0017 S**2 = 0.0000 • then we’re iterating again to find a geometry Item Value Threshold Converged? Maximum Force 0.000289 0.000015 NO RMS Force 0.000078 0.000010 NO Maximum Displacement 0.037535 0.000060 NO RMS Displacement 0.006427 0.000040 NO

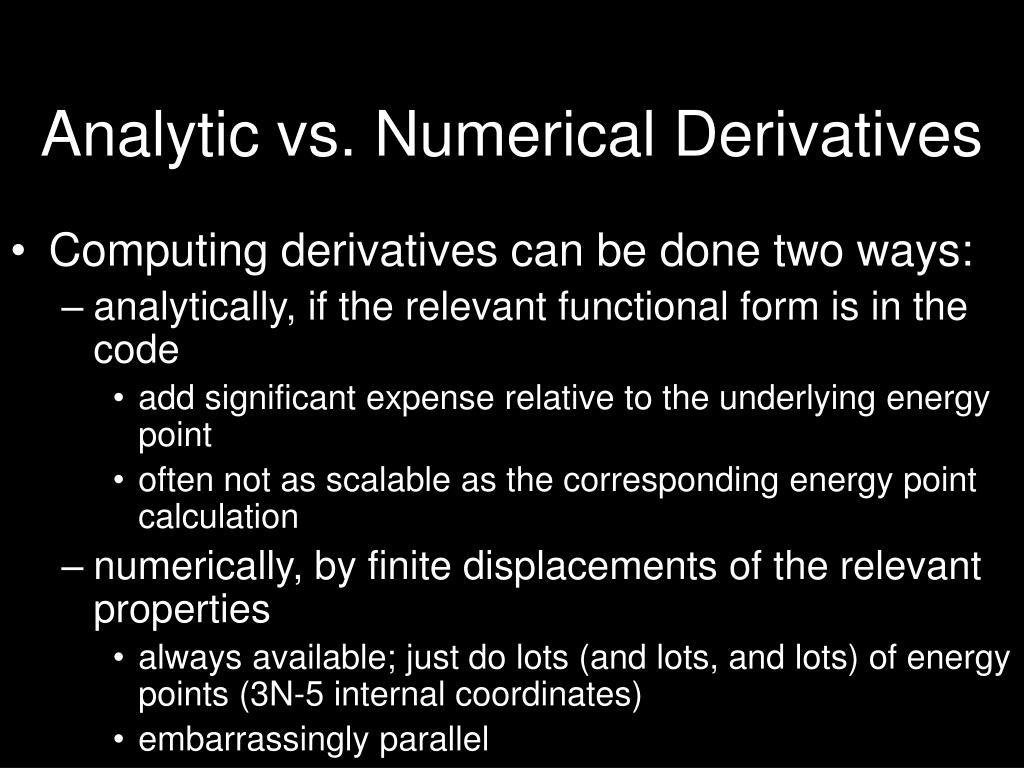

Analytic vs. Numerical Derivatives • Computing derivatives can be done two ways: • analytically, if the relevant functional form is in the code • add significant expense relative to the underlying energy point • often not as scalable as the corresponding energy point calculation • numerically, by finite displacements of the relevant properties • always available; just do lots (and lots, and lots) of energy points (3N-5 internal coordinates) • embarrassingly parallel

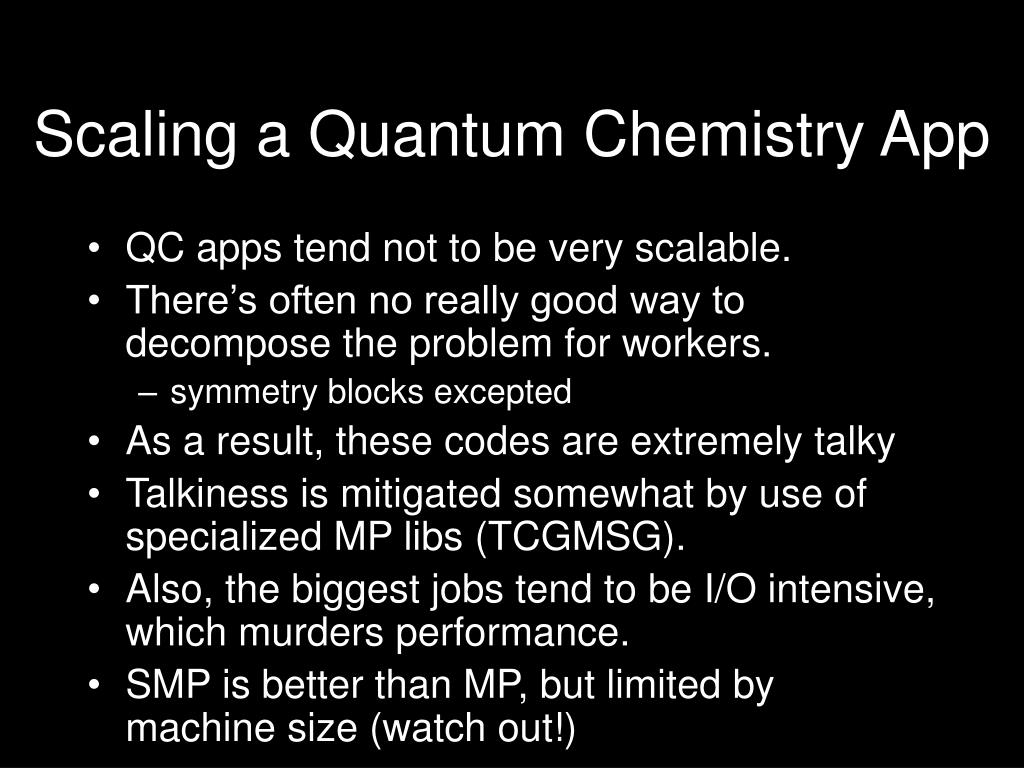

Scaling a Quantum Chemistry App • QC apps tend not to be very scalable. • There’s often no really good way to decompose the problem for workers. • symmetry blocks excepted • As a result, these codes are extremely talky • Talkiness is mitigated somewhat by use of specialized MP libs (TCGMSG). • Also, the biggest jobs tend to be I/O intensive, which murders performance. • SMP is better than MP, but limited by machine size (watch out!)
The Scaling Wall • Gaussian scales to ~8 procs in the very best cases; many jobs will not scale at all. • NWChem will scale for most jobs to a few dozen procs; some jobs to just a handful. • MPQC will scale to many procs, but functionality is limited. • All parallel QC programs show some limited soft scaling • Always consult program manuals for scalability of a new method. • For most quantum chemists, the principal utility of a big machine like redwood is for running a large number of jobs on a few procs each.
Quantum Chemistry and the Computing Specialist • User-set parameters: • the molecule to be studied • the set of orbitals used to describe the molecule (ie, basis set) • the level of approximation used to compute • Opportunities for user guidance: • what program to use? • how to build/optimize that program for a platform • how to effectively run the program on the machine • identification of common pitfalls (and pratfalls, too) • PARALLEL PROJECTS, SERIAL JOBS
Molecular Simulation Methods • Basic idea: do a very rudimentary energy calculation for a very large number of atomic configurations; translate these energies into thermodynamic properties via the molecular partition function • Configurations can be determined either deterministically (MD) or stochastically (MC), but that doesn’t matter. • we’ll look at MD as an example
The Molecular Dynamics Procedure • Begin with a set of molecules in a periodic box • like Asteroids, only geekier • Compute instantaneous forces on every atom in the box • bonds, angles, dihedrals, impropers within molecules • vdW and coulomb forces for proximal atoms • kspace electrostatic forces for distal atoms • Allow the atoms to move for 0.5 -- 2 fs. • Repeat from 100,000 to 10,000,000 times • Occasionally print out atomic positions, velocities, forces, and thermodynamic properties • Most analysis done post-hoc.
A Snapshot of Computational Demands • Bonded forces: • bonds • angles • dihedrals • impropers • Short-range pair forces: • van der Waals forces • coulomb forces • Long-range pair forces: • kspace Ewald sum for elctrostatics

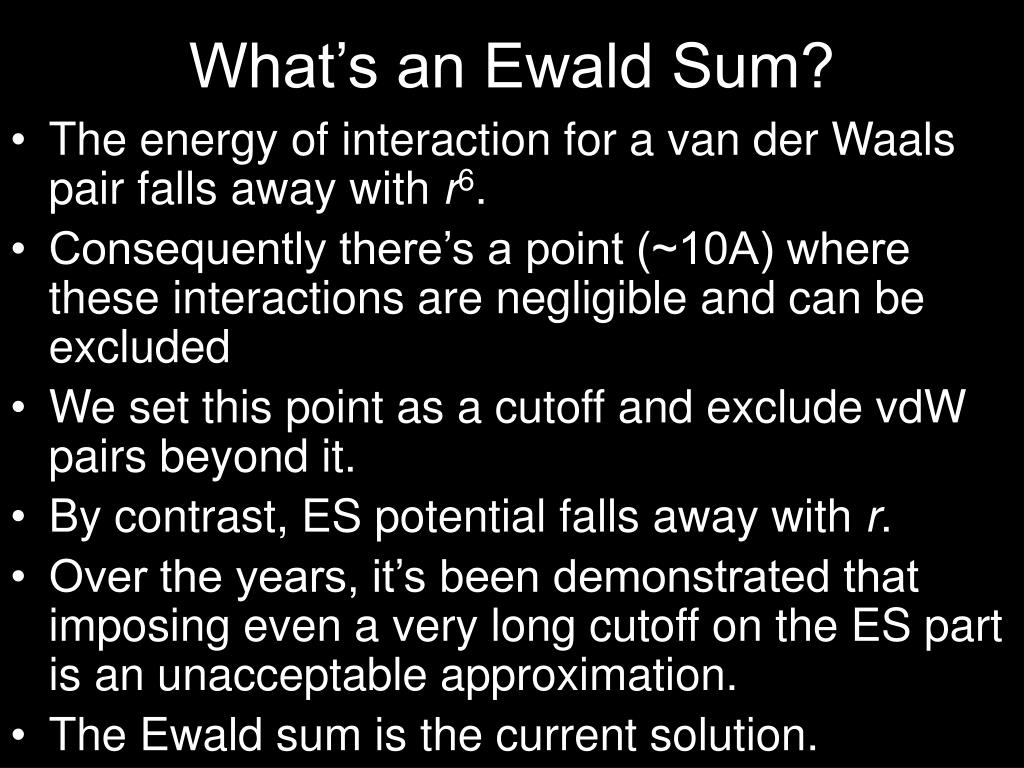

What’s an Ewald Sum? • The energy of interaction for a van der Waals pair falls away with r6. • Consequently there’s a point (~10A) where these interactions are negligible and can be excluded • We set this point as a cutoff and exclude vdW pairs beyond it. • By contrast, ES potential falls away with r. • Over the years, it’s been demonstrated that imposing even a very long cutoff on the ES part is an unacceptable approximation. • The Ewald sum is the current solution.
Electrostatics in Fourier Space • When transformed into Fourier space (aka kspace), the ES part converges more rapidly. • Thus, the Ewald sum: • Real space ES for pairs within the vdW cutoff • Fourier (k-)space ES for longer range pairs until convergence is achieved (usually 5-7 layers of periodic images). • Fourier space ES for short range pairs as a correction against double counting. • And the particle-mesh Ewald sum: • Real space as in Ewald • Fourier space done by projecting atomic forces onto a grid, computing kspace part, projecting forces from grid back onto atoms

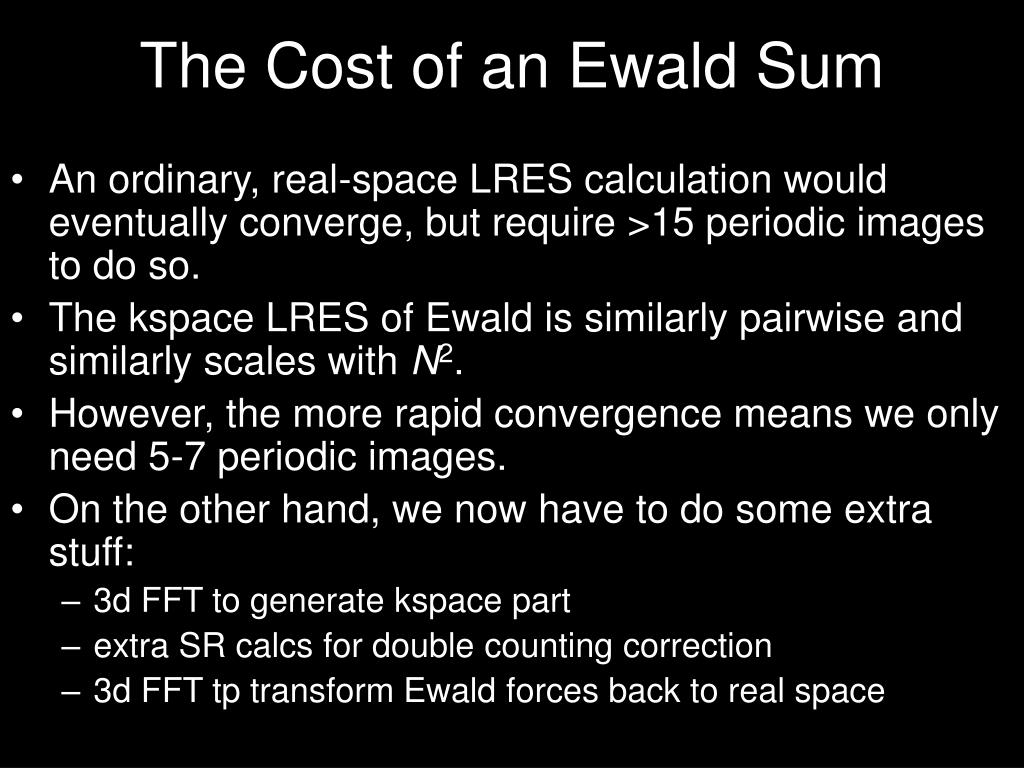

The Cost of an Ewald Sum • An ordinary, real-space LRES calculation would eventually converge, but require >15 periodic images to do so. • The kspace LRES of Ewald is similarly pairwise and similarly scales with N2. • However, the more rapid convergence means we only need 5-7 periodic images. • On the other hand, we now have to do some extra stuff: • 3d FFT to generate kspace part • extra SR calcs for double counting correction • 3d FFT tp transform Ewald forces back to real space
Particle-Mesh Ewald • The expense of an Ewald sum can be reduced by mapping atomic (particle) charges onto a grid (mesh) with far fewer points. • This grid can be transformed into kspace, the Ewald sum done, and transformed back. • The Ewald forces are then reverse-mapped onto the atoms that made up the grid. • This is an approximation, of which there are various flavors: • PME • SPME • PPPM • &c. • Scales as NlogN rather than N2. • Reduced scaling + extra mapping expense = crossover point? • In practice, crossover point is so low as to not matter.
Scaling an MD Simulation • MD programs lend themselves moderately well to MP parallelism. • Typical approach is spatial decomposition; ie, each PE computes forces & integrates for a region within the simulation cell. • Talk points are limited: • Pairlist builds • 3D FFT for Ewald sum • Mapping and unmapping for PME • New atomic positions in integrator • Thus, the main issue is whether or not there’s enough work to go around --> soft scaling very pronounced • I/O can be an issue, esp. for large boxes; should be limited to once every 100-1000 steps, though.

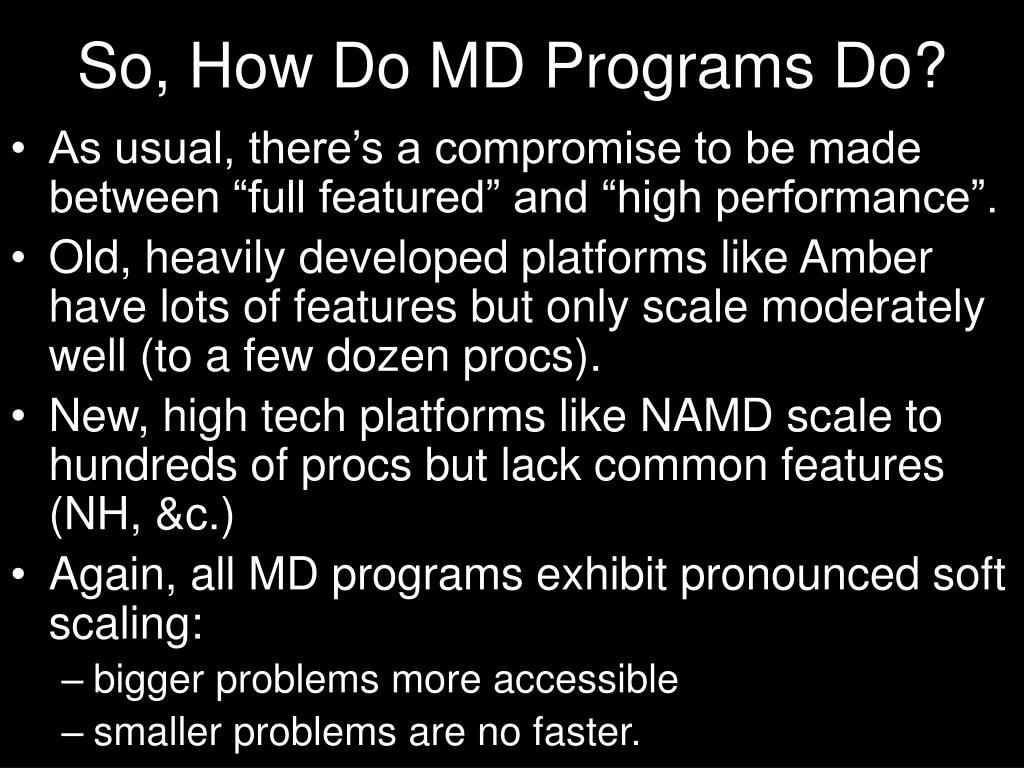

So, How Do MD Programs Do? • As usual, there’s a compromise to be made between “full featured” and “high performance”. • Old, heavily developed platforms like Amber have lots of features but only scale moderately well (to a few dozen procs). • New, high tech platforms like NAMD scale to hundreds of procs but lack common features (NH, &c.) • Again, all MD programs exhibit pronounced soft scaling: • bigger problems more accessible • smaller problems are no faster.

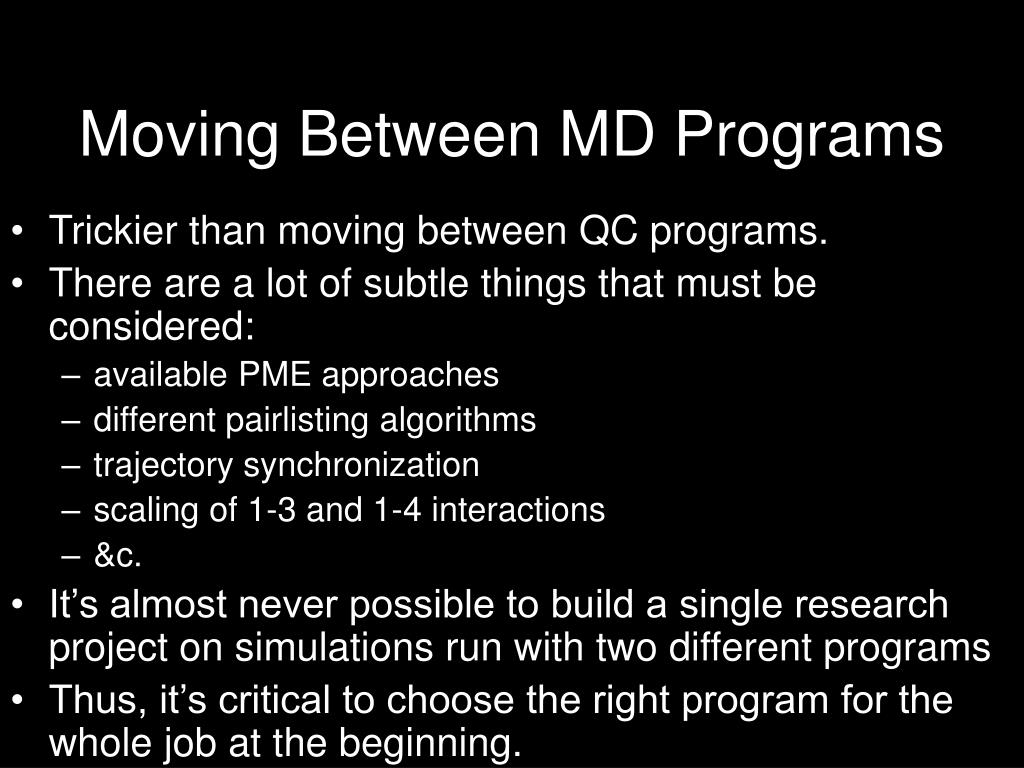

Moving Between MD Programs • Trickier than moving between QC programs. • There are a lot of subtle things that must be considered: • available PME approaches • different pairlisting algorithms • trajectory synchronization • scaling of 1-3 and 1-4 interactions • &c. • It’s almost never possible to build a single research project on simulations run with two different programs • Thus, it’s critical to choose the right program for the whole job at the beginning.
Molecular Simulation and the Computing Specialist • User-set parameters: • the size of the box • the length of the timestep • the number of steps needed • the forcefield features needed • Opportunities for guidance: • Which program to use • building/optimizing for a platform • scaling limits for a job of given size • &c.
Summary • Quantum Chemistry: • listen to what your users need • help the user organize jobs into “parallel projects” • go shopping for the best-scaling program to do individual job types • programs are more or less perfectly interchangeable, with a little care • Molecular Simulation • listen to what your users need • help the user shop for the best program for their sim • be careful about what you choose, because you’ll be stuck with it
