Binary Trees

Binary Trees. Binary Trees. A Binary tree is a tree in which every node has none, one, or at most, two children A Proper Binary Tree has two children or no children To make every binary tree into a proper binary tree, we add empty nodes as leaves. Properties of a Proper Binary Tree.

kiara-nieves
Télécharger la présentation

Binary Trees

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Binary Trees

  2. Binary Trees • A Binary tree is a tree in which every node has none, one, or at most, two children • A Proper Binary Tree has two children or no children • To make every binary tree into a proper binary tree, we add empty nodes as leaves

  3. Properties of a Proper Binary Tree • Level = all nodes at the same depth • Level d has at most 2d nodes Level Max Nodes Height(h) 2 0 1 1 1 2 0 2 4 • Number of external nodes: at least h+1 and at most 2h • Number of internal nodes: at least h and at most 2h – 1 • Total no. nodes: at least 2h + 1 and at most 2h+1 – 1 • Number of external nodes = number of internal nodes + 1

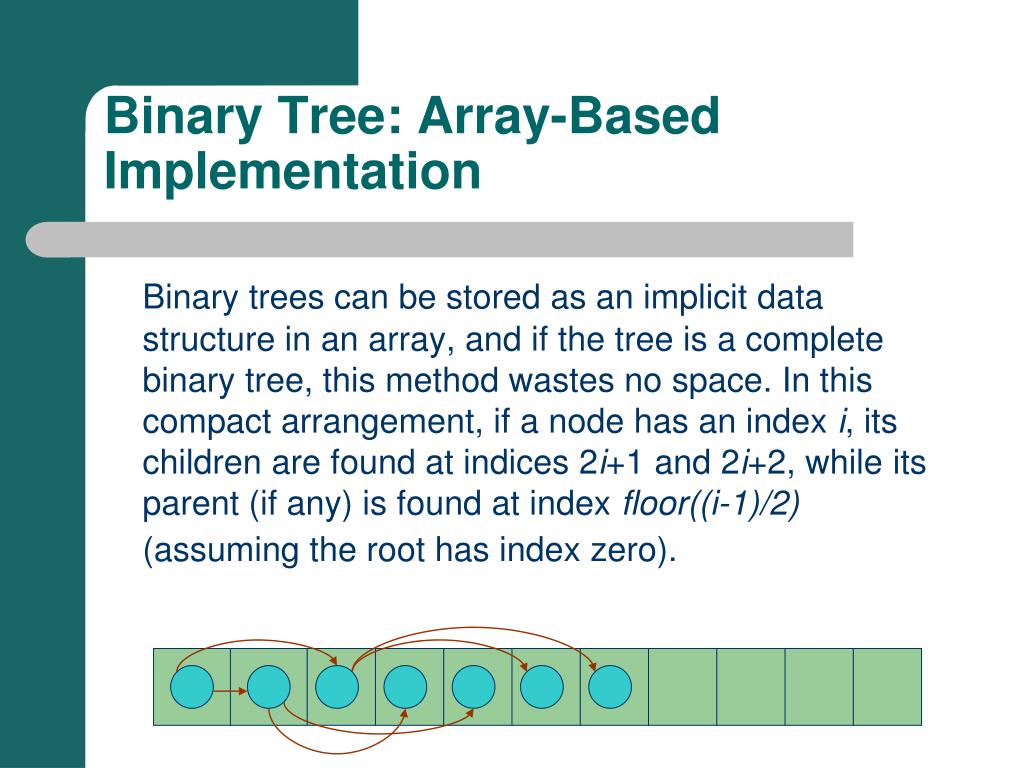

  4. Binary Tree: Array-Based Implementation Binary trees can be stored as an implicit data structure in an array, and if the tree is a complete binary tree, this method wastes no space. In this compact arrangement, if a node has an index i, its children are found at indices 2i+1 and 2i+2, while its parent (if any) is found at index floor((i-1)/2) (assuming the root has index zero).

  5. O M T C E P U • • • . . . i 0 1 2 3 4 5 6 t [ i ] O M T C E P U . . . Binary Tree: Array-Based Implementation 0 1 2 3 4 5 6 store node #0 in array location 0, node #1 in array location 1, etc.

  6. i 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 0 t [ i ] 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 20 … 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 … Binary Tree: Array-Based Implementation • But, unless each level of the tree is full so that there are no "dangling limbs," there can be much wasted space in the array. E C M U T P O

  7. left left NULL NULL parent NULL parent parent NULL NULL right right element r s t T Binary Tree: Node-Based Implementation

  8. Node for a Binary Tree struct Node { char element; Node *left; Node *right; Node *parent; Node() : element( char() ){ // default constructor parent=right=left=NULL;} Node* sibling() const { // get the sibling return(this==parent->left ? parent->right : parent- >left); } };

  9. Data Members of a Binary Tree template < typename Object > class LinkedBinaryTree{ private: Node *theRoot; int sz; };

  10. Constructor of a Binary Tree template < typename Object > class LinkedBinaryTree{ public: LinkedBinaryTree() { // constructor theRoot = new Node; sz = 1; }; }

  11. Operations of the LinkedBinaryTree • Generic Methods: bool isEmpty() int size() iter children( pos ) iter elements() iter positions() • Update methods: void swapElements( w, x ) void replaceElement( pos, e ) void expandExternal( pos ) Void removeAboveExternal( pos )

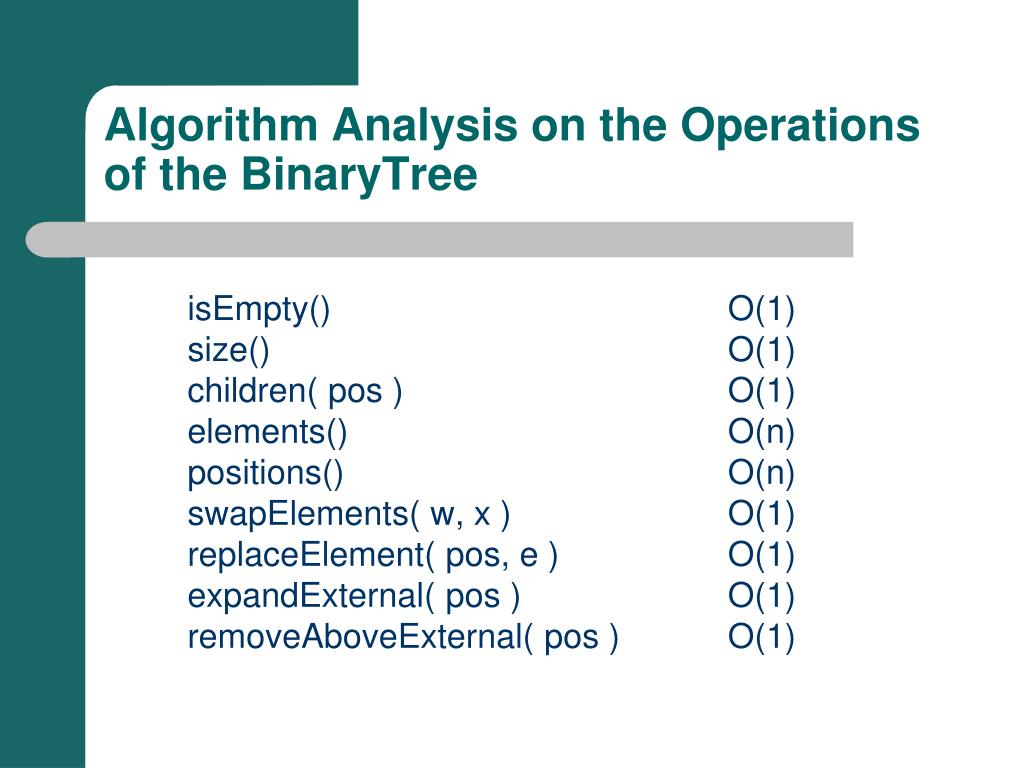

  12. Algorithm Analysis on the Operations of the BinaryTree isEmpty() O(1) size() O(1) children( pos ) O(1) elements() O(n) positions() O(n) swapElements( w, x ) O(1) replaceElement( pos, e ) O(1) expandExternal( pos ) O(1) removeAboveExternal( pos ) O(1)

  13. Operations of the LinkedBinaryTree • Accessor methods: pos root() pos parent( pos ) bool isInternal( pos ) bool isExternal( pos ) bool isRoot( pos ) pos leftChild ( pos ) pos rightChild( pos ) pos sibling( pos )

  14. Adds two new, empty nodes as children. T.expandExternal(T.root()); Inserts the element. T.replaceElement( T.root(),'A'); A Creating a LinkedBinaryTree Object Creates the tree with an empty external node. LinkedBinaryTree<char> T;

  15. Instantiating a LinkedBinaryTree Object theRoot Creates the tree with an empty external node. LinkedBinaryTree<char> T; //Default constructor LinkedBinaryTree(){ theRoot = new Node; sz = 1; }

  16. Adds two new, empty nodes as children. Adding an Element to a LinkedBinaryTree Object – Step 1 theRoot void expandExternal( const Position& v ){ expandExternal(nodePtr(v)); } void expandExternal( Node *n ){ n->left = new Node; n->left-parent = n; n->right = new Node; n->right->parent = n; sz += 2; }

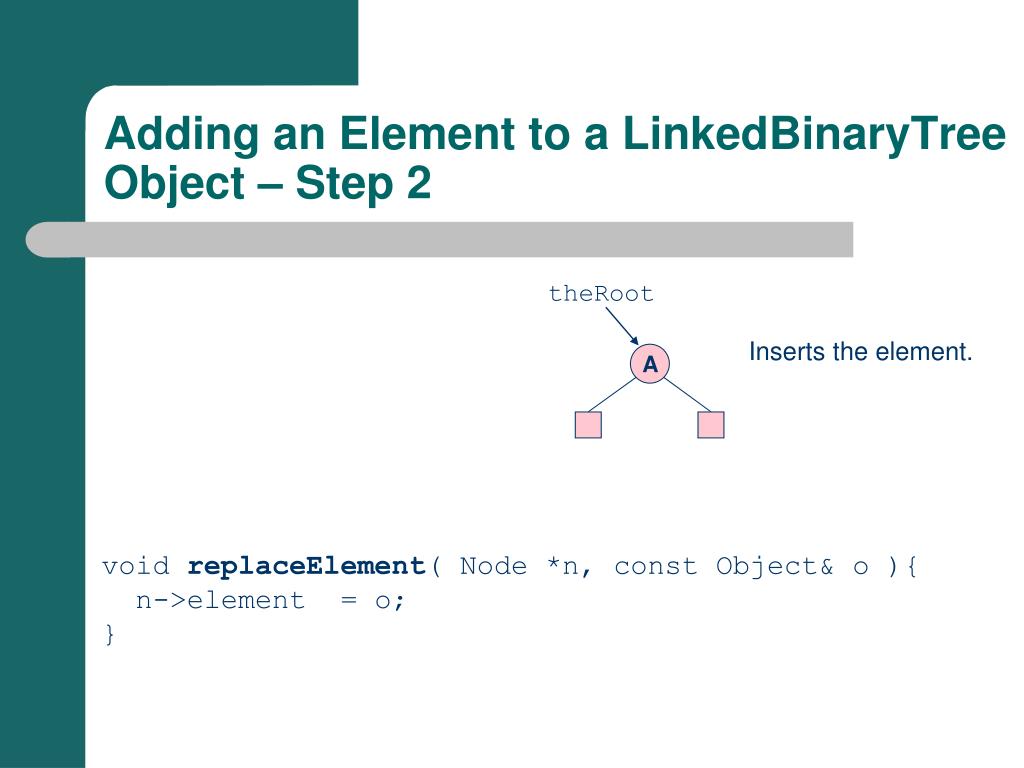

  17. Inserts the element. A Adding an Element to a LinkedBinaryTree Object – Step 2 theRoot void replaceElement( Node *n, const Object& o ){ n->element = o; }

  18. Removing an Element from a LinkedBinaryTree Object Node* removeAboveExternal( Node *n ){ Node *p = n->parent; Node *s = n->sibling(); if( isRoot(p) ) setRoot(s); else{ Node *g = p->parent; if( p == g->left ) g->left = s; else g->right = s; s->parent = g; } delete n; delete p; sz -= 2; return s; } theRoot p A n s theRoot s

  19. Removing an Element from a LinkedBinaryTree Object Node* removeAboveExternal( Node *n ){ Node *p = n->parent; Node *s = n->sibling(); if( isRoot(p) ) setRoot(s); else{ Node *g = p->parent; if( p == g->left ) g->left = s; else g->right = s; s->parent = g; } delete n; delete p; sz -= 2; return s; } theRoot A g B C p D n s theRoot A g B C s
