Hypothalamus

Sagittal Section:. Hypothalamus. Dorsal n. Paraventricular n. (PVN). Dorsomedial n. Posterior n. Lateral (LH). Ventromedial n. (VMH). Post. PVN. Pre - Optic. Ant. VMH. Mammillary Body. Infundibular A. Supraoptic n. Pituitary Gland. Suprachiasmatic n. Paraven.

kiley
Télécharger la présentation

Hypothalamus

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

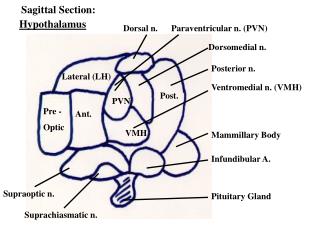

  1. Sagittal Section: Hypothalamus Dorsal n. Paraventricular n. (PVN) Dorsomedial n. Posterior n. Lateral (LH) Ventromedial n. (VMH) Post. PVN Pre - Optic Ant. VMH Mammillary Body Infundibular A. Supraoptic n. Pituitary Gland Suprachiasmatic n. Paraven

  2. Supraoptic n. + PVN(oxytocin, vasopressin) Infundibular + PVN + supraoptic n. + VMH Adrenocorticotropic h. (ACTH) , gonadotropic h., thyroid stim.h. , etc. Oxytocin, Vasopressin

  3. 1. Medial forebrain Bundle (MFB): LH to/from Frontal cortex, n. accumbens, striatum, limbic system MFB also : DA, NE, 5-HT from midbrain (VTA, Substantia Nigra, Locus Coeruleus, Raphe n.) 2. Stria Terminalis – Hypothalamus from/to Septum & Amygdala 3. Ventral Amygdala Path - Hypothalamus from/to Amygdala; Amygdala from/to brainstem, prefrontal cortex (for PFC part of MFB) 4. Fornix – Hypothalamus from/to Septum & Hippocampus

  4. Extended Limbic System Cingulum B. PCC ACC Corpus Callosum * Papez circuit ILC Hippocampus Septum PLC Thal Ant. NAC Insula F OFC A EC Pyriform C. Hypothalamus 5-HT NE DA

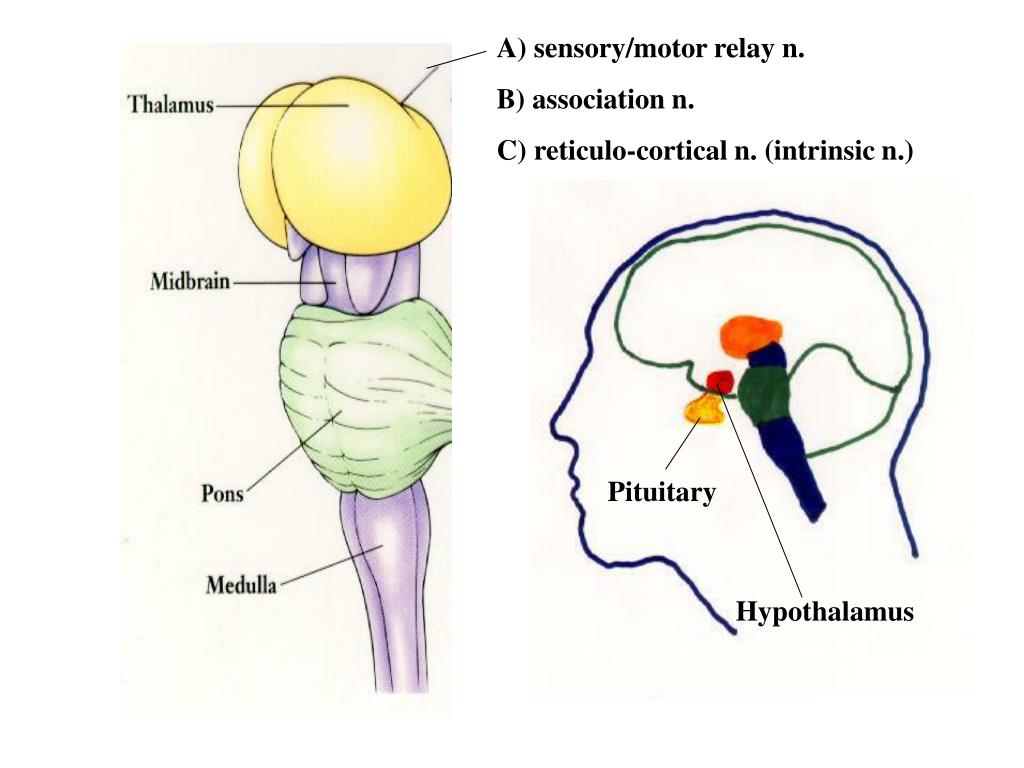

  5. A) sensory/motor relay n. B) association n. C) reticulo-cortical n. (intrinsic n.) Pituitary Hypothalamus

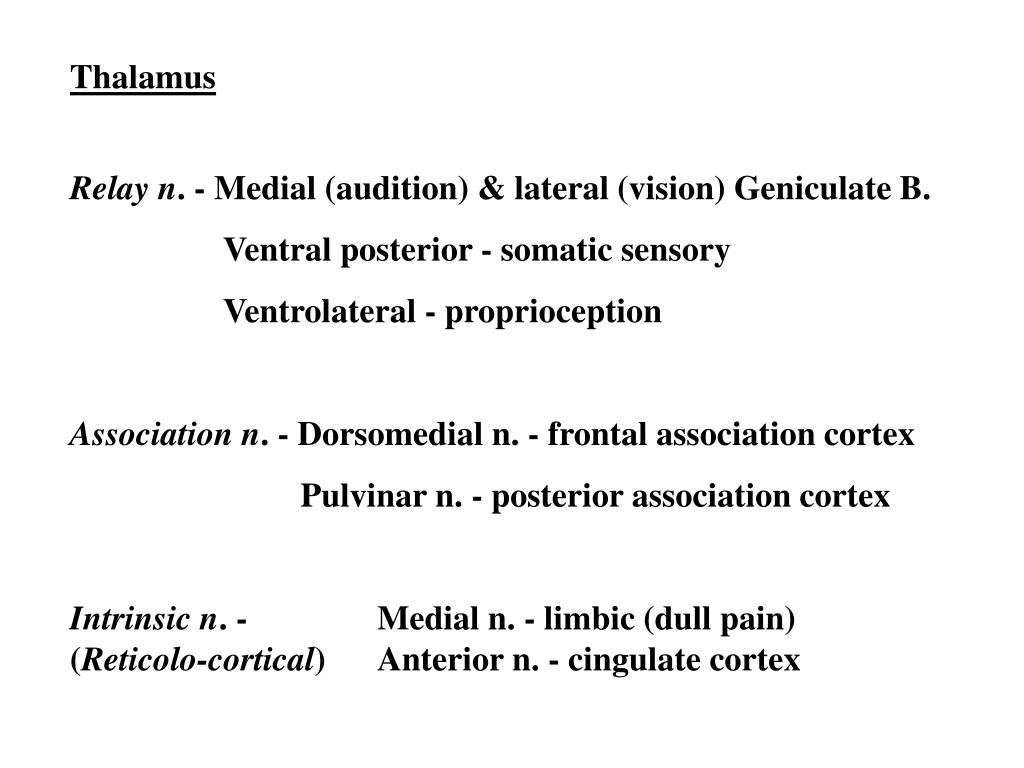

  6. Thalamus Relay n. - Medial (audition) & lateral (vision) Geniculate B. Ventral posterior - somatic sensory Ventrolateral - proprioception Association n. - Dorsomedial n. - frontal association cortex Pulvinar n. - posterior association cortex Intrinsic n. - Medial n. - limbic (dull pain) (Reticolo-cortical) Anterior n. - cingulate cortex
