1. Risk Management – It’s more than just an FMEA. 33rd Annual Meeting - AMDM April 21, 2006 Bill McLain Keystone Regulatory Services, LLC AMDM 33rd Annual Meeting

2. Today’s Topics • Introduction to ISO 14971:2000 and Risk Management Concepts • Overview of ISO 14971:2000 • Integrating Risk Management and the Quality Management System • Including ISO 14971:2000 in Your Internal Audit Process • Upcoming Changes to ISO 14971:2000 • Some Examples of Deliverables AMDM 33rd Annual Meeting

3. History of ISO 14971:2000 • Risk Analysis • October 1997 - EN 1441 published • October 1998 - ISO 14971-1 published • Risk Management • July 1996 - EN 60601-1-4 published • October 2000 – ISO14971 published • July 2002 - EN ISO 14971 becomes harmonized • July 2003 – ISO 14971/A1 Annex H published • April 2004 – EN 1441 no longer has presumption of conformity • 2006 – ISO 14971:200X revisions AMDM 33rd Annual Meeting

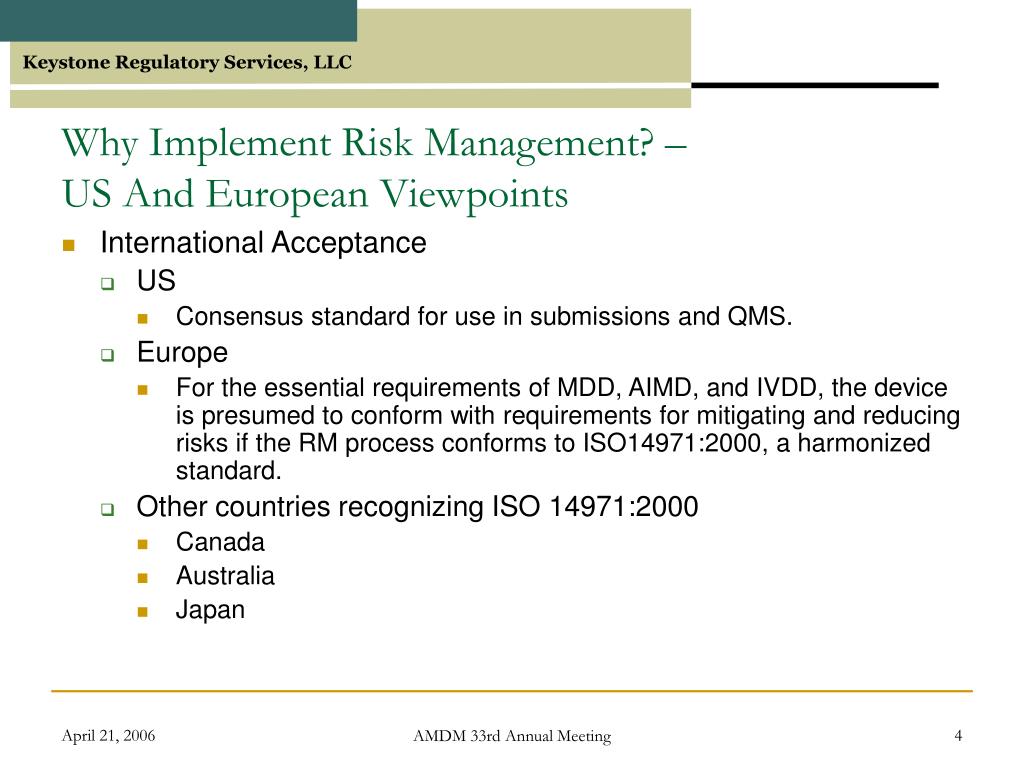

4. Why Implement Risk Management? – US And European Viewpoints • International Acceptance • US • Consensus standard for use in submissions and QMS. • Europe • For the essential requirements of MDD, AIMD, and IVDD, the device is presumed to conform with requirements for mitigating and reducing risks if the RM process conforms to ISO14971:2000, a harmonized standard. • Other countries recognizing ISO 14971:2000 • Canada • Australia • Japan AMDM 33rd Annual Meeting

5. Overview of the Risk Management Process AMDM 33rd Annual Meeting

6. The Basic Process • The System • Management Responsibilities AMDM 33rd Annual Meeting

7. Some Fundamental Principles • RM is applicable to all stages of the life cycle of the device • Applies a systematic approach to the process. • Use of all medical devices entails some degree of risk. • The process “lives”. It’s not once and done. AMDM 33rd Annual Meeting

8. Clause 2. Terms and definitions (select) • hazard – potential source of harm • harm – physical injury or damage to the health of people, or damage to the property or the environment. • objective evidence – information which can be proven true, based on facts obtained through observation, measurement, test or other means • risk – combination of the probability of occurrence of harm and the severity of that harm AMDM 33rd Annual Meeting

9. Clause 2. Terms and definitions (select) • risk control – process through which decisions are reached and protective measures are implemented for reducing risks to, or maintaining risks, within specified levels • risk evaluation – judgment, on the basis of risk analysis, of whether a risk which is acceptable has been achieved in a given context based on the current values of society. • safety – freedom from unacceptable risk • severity – measure of the possible consequences of a hazard. AMDM 33rd Annual Meeting

10. Management Responsibilities • Define the policy for determining acceptable risk, taking Standards and Regulations into account • Ensure the provision of adequate resources • Ensure the assignment of trained, qualified personnel (must maintain records showing person has appropriate qualifications) • Review results of risk management at defined intervals to ensure suitability and effectiveness AMDM 33rd Annual Meeting

11. Risk Management Plan • Scope of the plan, describing the device and life cycle phases for which plan is applicable • A verification plan • Allocation of responsibilities • Requirements for reviewing risk management activities • Criteria for risk acceptability AMDM 33rd Annual Meeting

12. Risk Analysis AMDM 33rd Annual Meeting

13. Risk Analysis Procedure • Analysis of intended use using Annex A as a basis • Description of the device/accessory analyzed • Identification of person who conducted the risk assessment • Date of the analysis AMDM 33rd Annual Meeting

14. Risk Analysis Should Also Include: • Description of the intended use AND any reasonably foreseeable misuse • Listing of qualitative and quantitative characteristics that could affect safety • Excellent self-analysis questions can be found in Annex A of the Directive AMDM 33rd Annual Meeting

15. Risk Analysis - Identifying hazards • You need to compile a list of foreseeable hazards that could lead to a hazardous situation • List must be maintained in risk management file AMDM 33rd Annual Meeting

16. Risk Analysis – Estimating the risk • After identifying hazard, risk in normal and fault conditions must be estimated • If you can’t estimate risk, possible consequences should be prepared and include in file • Methods of risk estimation and other techniques found in Annexes E and F AMDM 33rd Annual Meeting

17. Risk Evaluation AMDM 33rd Annual Meeting

18. Risk Evaluation - Hazards • Must evaluate every hazard and determine whether estimated risk is so low that risk reduction is not required • Standard does not specify acceptable risk levels • Compare to medical devices already in use • Risk can be accepted if benefits outweigh risks AMDM 33rd Annual Meeting

19. Risk Evaluation – Residual Risk • After evaluating hazards, you need to ask: • Is risk so low that there is no need to consider it? • Is the risk outweighed by the benefit? • Is the overall balance of all risks and benefits acceptable? AMDM 33rd Annual Meeting

20. From Annex E - Risk concepts applied to medical devices AMDM 33rd Annual Meeting

21. Risk Evaluation - Types of Failure • There are two types of failure: • Random failure • Systematic failure • Statistical probability can often be assigned to random failures AMDM 33rd Annual Meeting

22. Risk Control AMDM 33rd Annual Meeting

23. Risk Control – Analyzing the Options • Need to identify risk control measures that are appropriate for reducing risk to an acceptable level. Must be evaluated in order of priority: • Inherent safety by design • Protective measures in the device or manufacturing process • Information for safety • Must be maintained in risk management file AMDM 33rd Annual Meeting

24. Risk Control – Implementing Measures • Manufacturer needs to implement risk control measures • Proof of implementation of measures and verification of effectiveness must be kept on file • Residual risk must be evaluated • Gather data and conduct a risk/benefit analysis AMDM 33rd Annual Meeting

25. Post Production Information AMDM 33rd Annual Meeting

26. Risk Monitoring – Reporting • Results of the risk management process must be contained in risk management report which needs to contain: • Traceability for each hazard in the risk analysis • The risk evaluation • Implementation and verification of risk control measures • Assessment that residual risk is acceptable AMDM 33rd Annual Meeting

27. Risk Monitoring – Post Production • Need to maintain a systematic procedure to review information in post-production phase and evaluate: • Previously unrecognized hazards • Whether the estimate risk from a hazard is no longer acceptable • If the original assessment is otherwise invalidated AMDM 33rd Annual Meeting

28. Overview of The Standard • General Clauses • Clause 1. Scope of Standard • Clause 2. Terms and definitions • Clause 3. General requirements for risk management AMDM 33rd Annual Meeting

29. Overview of The Standard • Requirements Clauses • Clause 4. Risk Analysis (Steps 1, 2 and 3 of flow chart) • Clause 5. Risk evaluation (Step 4) • Clause 6. Risk control (Steps 5 to 10) • Clause 7. Overall residual risk evaluation (Step 11) • Clause 8. Risk management report (Step 12) • Clause 9. Post-production information (Step 13) AMDM 33rd Annual Meeting

30. Overview of The Standard • The Annexes • Annex A (informative) Questions that can be used to identify medical device characteristics that could impact on safety • Annex B (informative) Guidance on risk analysis for in vitro diagnostic medical devices • Annex C (informative) Guidance on risk analysis procedure for toxicological hazards • Annex D (informative) Examples of possible hazards and contributing factors associated with medical devices AMDM 33rd Annual Meeting

31. Overview of The Standard • The Annexes (cont’d) • Annex E (informative) Risk concepts applied to medical devices • Annex F (informative) Information on risk analysis techniques • Annex G (informative) Other standards that contain information related to the elements of risk management described in this International Standard • Bibliography AMDM 33rd Annual Meeting

32. The RM Process and the Quality Management System AMDM 33rd Annual Meeting

33. Goal of This Section • Provide insights how ISO 14971 integrates with the modern QMS. • Directly (Clause 7 in ISO 13485:2003) • Indirectly (Remaining Clauses) AMDM 33rd Annual Meeting

34. Brief ISO 13485:2003 overview • ProcessApproach AMDM 33rd Annual Meeting

35. Brief ISO 13485:2003 overview • Key Processes • Processes vital to operation of company – Core Process. • Processes supporting Core Process • Processes covered by key standards. • Vary by organization AMDM 33rd Annual Meeting

36. Brief ISO 13485:2003 overview • Key Processes • Examples • New Product Development • Customer Service • Marketing? • Purchasing • Inspection • Packaging, Sterilization, Final Release • Shipping and Installation • Risk Management AMDM 33rd Annual Meeting

37. Brief ISO 13485:2003 overview • Requirements for Risk Management In ISO 13485 (Clause 7) • Clause 7.1 • The organization shall establish documented requirements for risk management throughout product realization. Records arising from risk management shall be maintained (see 4.2.4 and Note 3). • NOTE 3 See ISO 14971 for guidance related to risk management. AMDM 33rd Annual Meeting

38. Brief ISO 13485:2003 overview • Requirements for Risk Management In ISO 13485 (Clause 7) • Clause 7.3.2 Design and development inputs • Inputs relating to product requirements shall be determined and records maintained (see 4.2.4). These inputs shall include • e) output(s) of risk management (see 7.1). AMDM 33rd Annual Meeting

39. RM and QMS Elements • Management Responsibilities • incorporate RM into organization. • planning including risk planning. • resources and establishing responsibilities and authorities • review of the QMS and the RM system. AMDM 33rd Annual Meeting

40. RM and QMS Elements • Outsourcing • Many items outside manufacturer’s direct control. (sterilization, tooling, test, design, manufacturing) • RM can be applied to outsourced operations to determine levels of control AMDM 33rd Annual Meeting

41. RM and QMS Elements • Planning • Both the QMS and the RMS span the entire lifecycle of the medical device. • Several opportunities to integrate RM requirements into the QMS – the daily functioning of the business. AMDM 33rd Annual Meeting

42. RM and QMS Elements • Design and Development • An area of strong ties to the RM process AMDM 33rd Annual Meeting

43. RM and QMS Elements • Design and Development Planning • Risk Management planning • Determine risk acceptability criteria by management AMDM 33rd Annual Meeting

44. RM and QMS Elements • Design and Development Input • Identify hazards and harms • Estimate risks • Evaluate risks • Determine requirements for risk control measures. AMDM 33rd Annual Meeting

45. RM and QMS Elements • Design and Development Output • Design risk controls • device design • process design AMDM 33rd Annual Meeting

46. RM and QMS Elements • Design and Development Verification • Determine if individual residual risk is acceptable • Have new safety requirements been identified? • Design and Development Validation • Are overall residual risks acceptable? • Have new safety requirements been identified? AMDM 33rd Annual Meeting

47. RM and QMS Elements • Traceability • Risk data can be used to determine which components require traceability AMDM 33rd Annual Meeting

48. RM and QMS Elements • Purchasing Controls and Acceptance Activities • Supplier selection, evaluation and re-evaluation criteria should be tied to risks and hazards associated with purchased products and services. • Acceptance criteria (and specifications) for purchased products and services should be identified risks and risk control measures. AMDM 33rd Annual Meeting

49. RM and QMS Elements • Production and Process Controls • Another area of strong ties to RM process AMDM 33rd Annual Meeting

50. RM and QMS Elements • Production and Process Controls • Manufacturing processes source of identified hazards. • equipment, processes, environment, personnel, etc. AMDM 33rd Annual Meeting
