Science Starter!

Science Starter!. A hockey puck has a mass of 0.115 kg and strikes the pole of the net at 25 m/s. It bounces off with the same speed but in the opposite direction at 25 m/s, as shown. What is the impulse on the puck?

klaus
Télécharger la présentation

Science Starter!

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

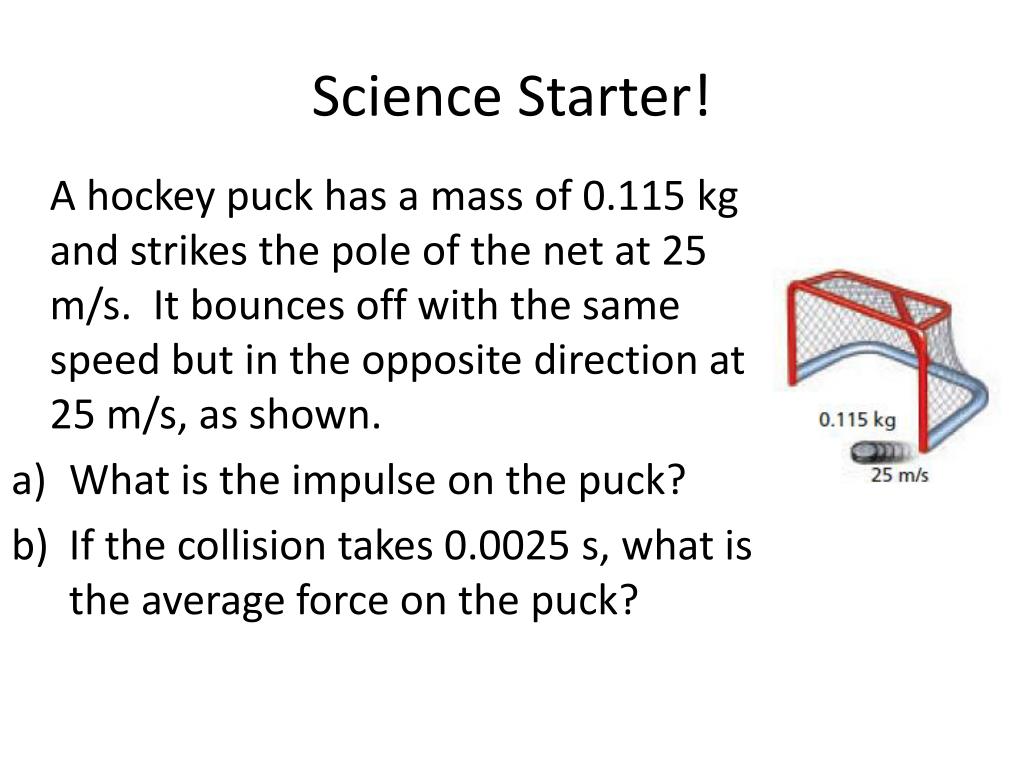

  1. Science Starter! A hockey puck has a mass of 0.115 kg and strikes the pole of the net at 25 m/s. It bounces off with the same speed but in the opposite direction at 25 m/s, as shown. • What is the impulse on the puck? • If the collision takes 0.0025 s, what is the average force on the puck?

  2. Conservation of Momentum Total momentum of a system remains the same during a collision:

  3. Example 1 A 600 kg car traveling east at 10 m/s makes a head-on collision with an 1800 kg truck moving west at 5 m/s. After the collision, the truck continues moving west but with a decreased speed of 0.5 m/s. With what speed and in what direction does the car move?

  4. Example 2 Joe, 150 kg, is running at 4 m/s towards little Mike, 50 kg, who is standing still. If they stick together after the tackle, what is their combined speed?

  5. Recoil / Explosion Objects are initially together and “explode” apart: • Total momentum before the explosion may be zero: • Example – A gun firing a bullet • Total momentum before the explosion may have a value: • Example – A boy rolling on a skateboard jumps off

  6. Example 3 A 2.5 kg bow fires a 0.5 kg arrow so that the arrow flies off at 5 m/s. What is the recoil velocity of the bow? Example 4 A 50 kg girl is riding her 5 kg skateboard at 2.0 m/s, when she jumps off of the back at 1.5 m/s. How fast, and in what direction, does the skateboard move?
