Camera Readout and Trigger Timing in Cluster Electronics for Efficient Decision Making

This document outlines the advanced concepts and implementations of camera readout and timing triggers within cluster electronics. It focuses on the Level 1 (L1) distribution and decision-making process, detailing the contributions from various institutes such as UCM, CIEMAT, IFAE, and UB. Key discussions include the preamplifier configuration, digitization processes, and analog trigger concepts. The aim is to enhance synchronization and efficiency in data acquisition, trailing new levels of performance in electronic readout systems.

krystyn-norb
Télécharger la présentation

Camera Readout and Trigger Timing in Cluster Electronics for Efficient Decision Making

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

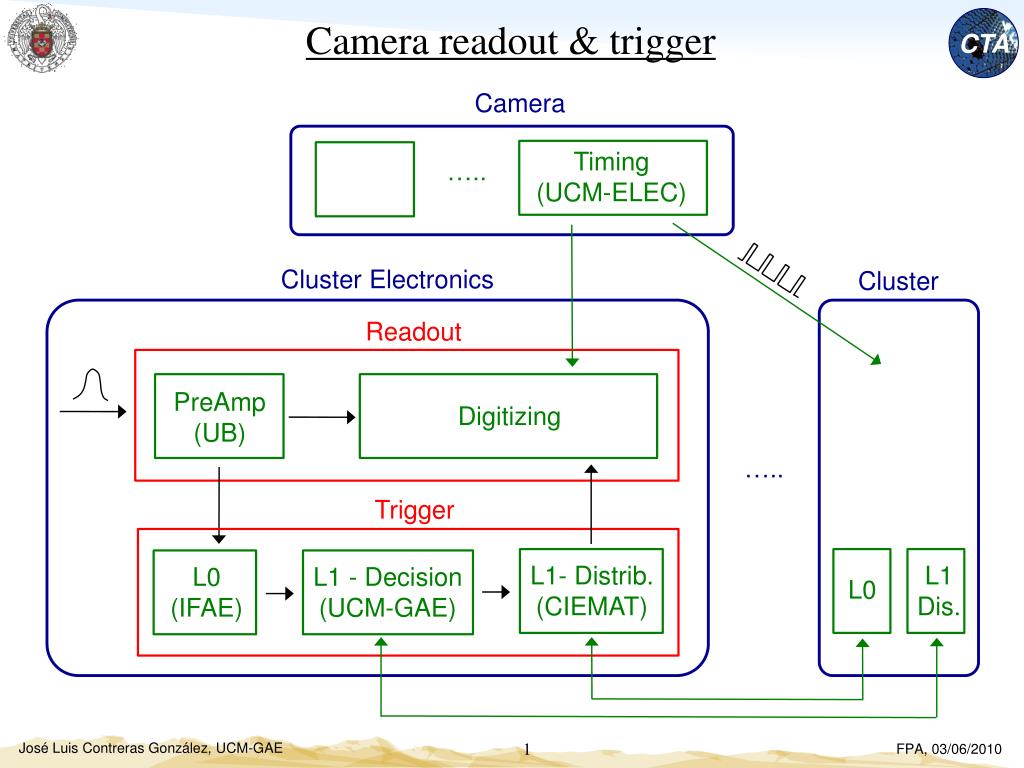

  1. Camera readout & trigger Timing (UCM-ELEC) ….. Camera Cluster Cluster Electronics Readout L1- Distrib. (CIEMAT) L1 - Decision (UCM-GAE) L0 (IFAE) PreAmp (UB) Digitizing Trigger ….. L1 Dis. L0

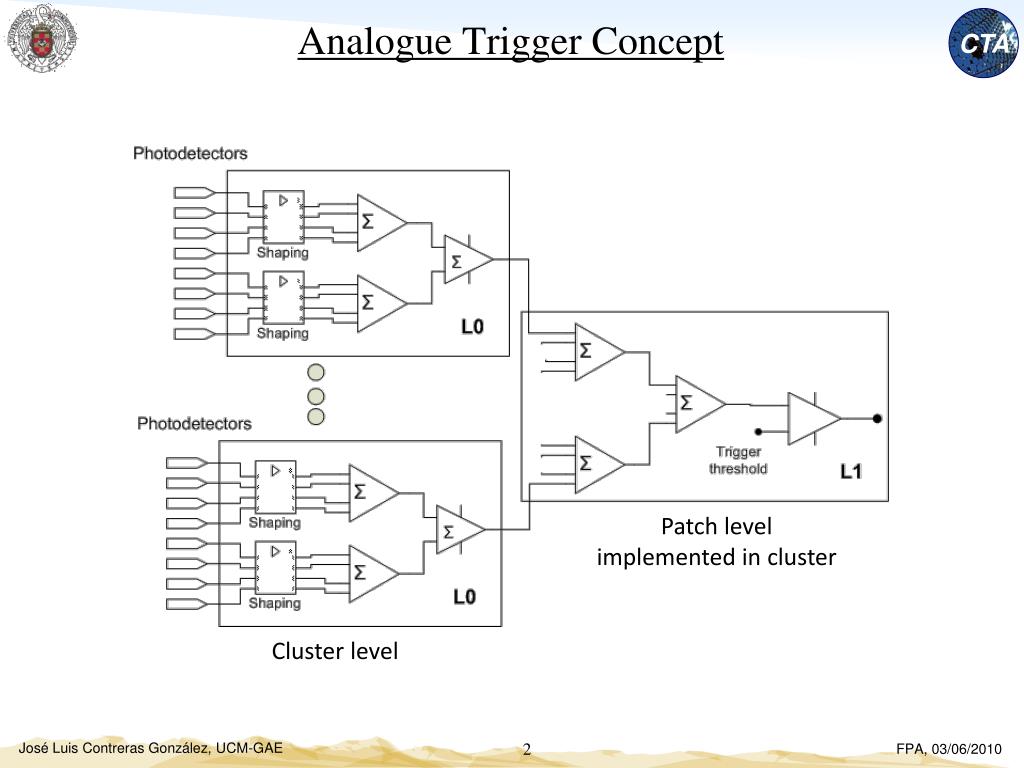

  2. Analogue Trigger Concept Patch level implemented in cluster Cluster level

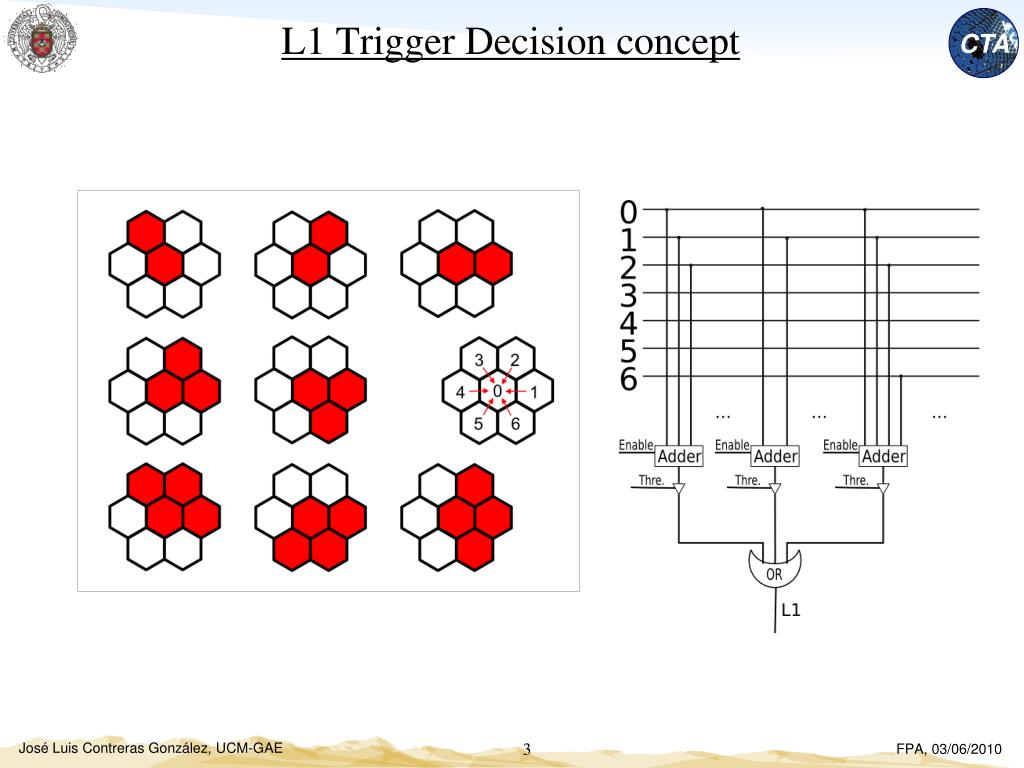

  3. L1 Trigger Decision concept

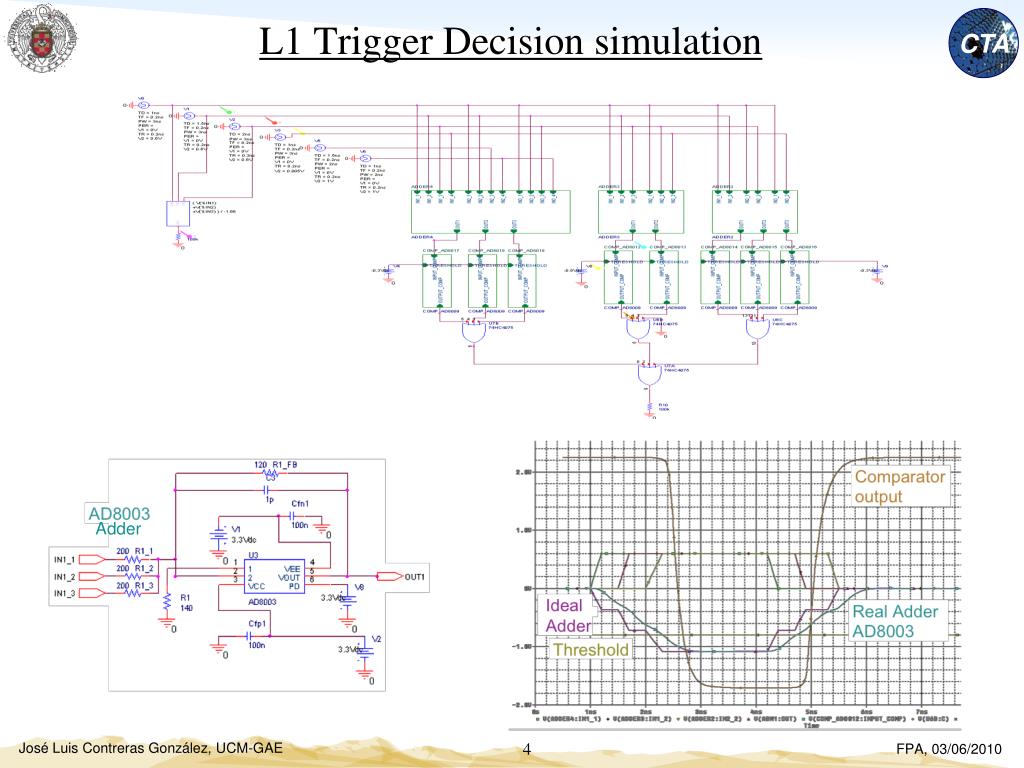

  4. L1 Trigger Decision simulation Adder
