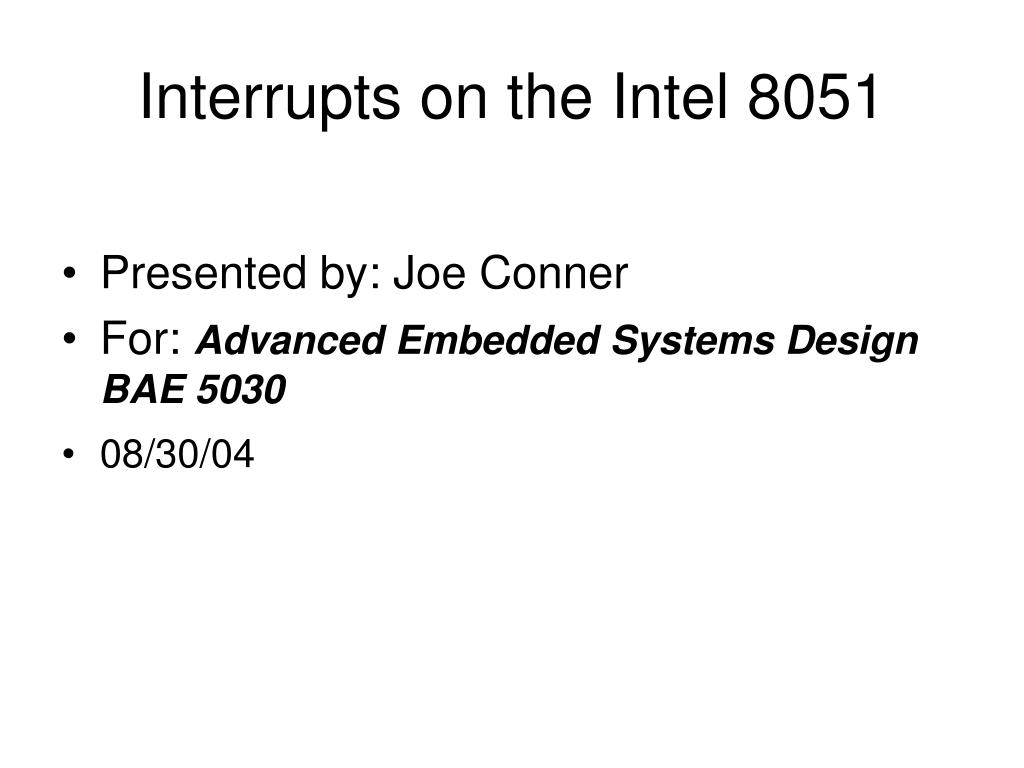

  1. Interrupts on the Intel 8051 • Presented by: Joe Conner • For: Advanced Embedded Systems DesignBAE 5030 • 08/30/04

  2. Overview • Memory Map • Interrupts • How interrupts are handled • Response Time

  3. Memory Map • TCON (0x88) • IE (0xA8) • IP (0xB8) • SCON (0x98)

  4. Interrupts • The 8051 provides 5 interrupt sources • INT0 • INT1 • TF0 • TF1 • RI/TI External Interrupts and can be either level or transition activated Timer 0 and 1 overflow/rollover activated Serial Port both receive and transmit Since both TX and RX are the same interrupt, the service routine will have to determine which it was. All the bits that generate interrupts can be set or cleared by software, with the same results as if they had been set or cleared by hardware.

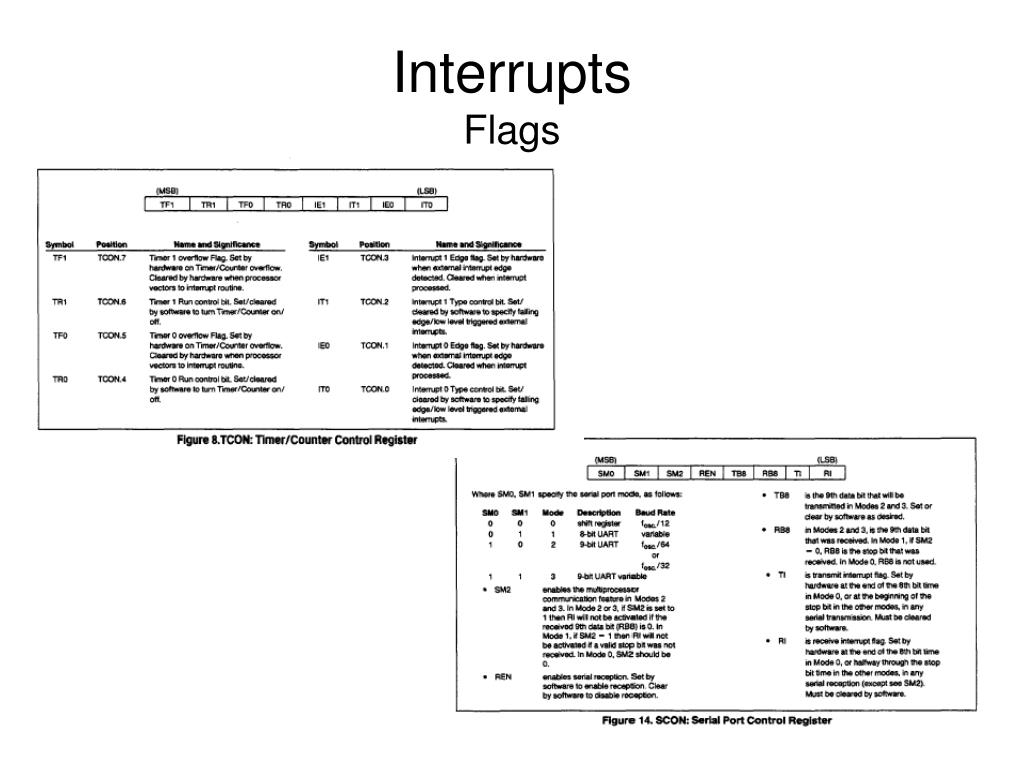

  5. InterruptsFlags

  6. InterruptsEnabled and Disabled • All interrupt sources can be individually enabled or disabled by setting bits in Special Function Register IE

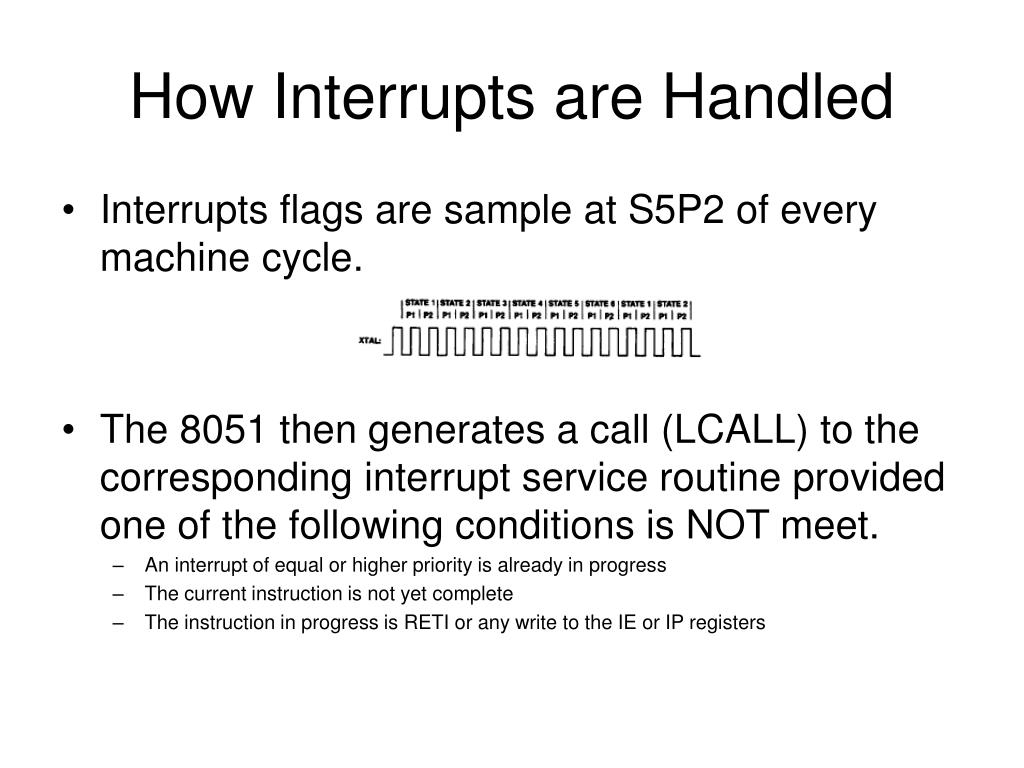

  7. How Interrupts are Handled • Interrupts flags are sample at S5P2 of every machine cycle. • The 8051 then generates a call (LCALL) to the corresponding interrupt service routine provided one of the following conditions is NOT meet. • An interrupt of equal or higher priority is already in progress • The current instruction is not yet complete • The instruction in progress is RETI or any write to the IE or IP registers

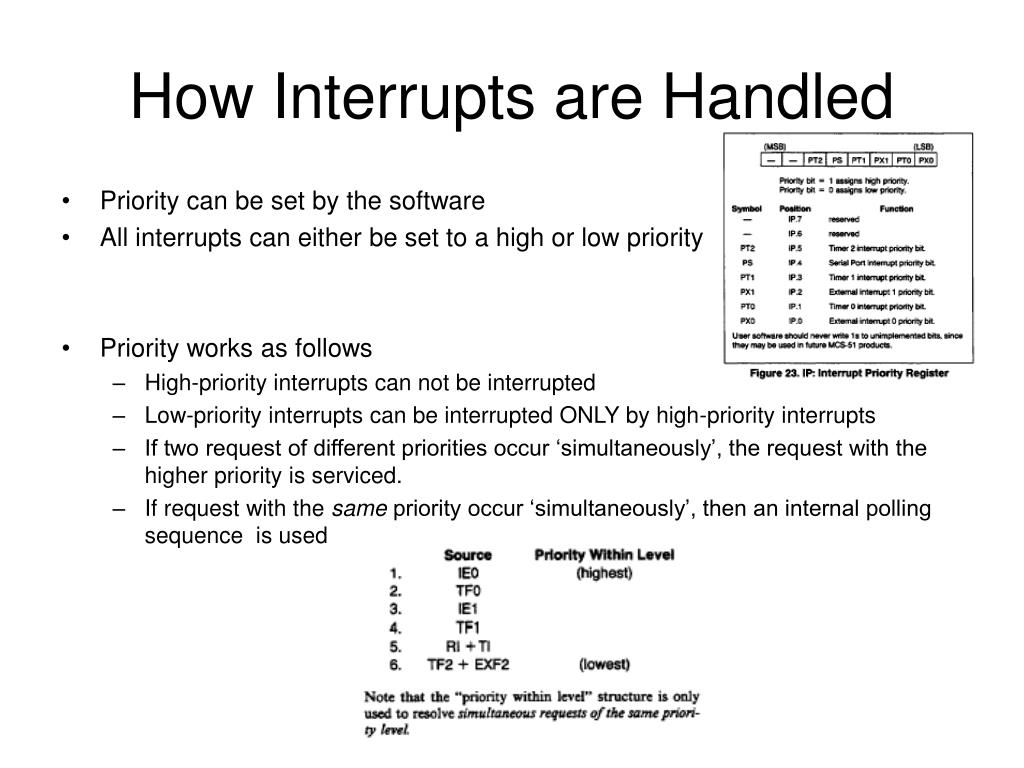

  8. How Interrupts are Handled • Priority can be set by the software • All interrupts can either be set to a high or low priority • Priority works as follows • High-priority interrupts can not be interrupted • Low-priority interrupts can be interrupted ONLY by high-priority interrupts • If two request of different priorities occur ‘simultaneously’, the request with the higher priority is serviced. • If request with the same priority occur ‘simultaneously’, then an internal polling sequence is used

  9. How Interrupts are Handled • If none of the previous conditions have violated, then the 8051 will generate a LCALL to the appropriate serving routine. In most cases it also clears the flag that generated the interrupt. • Note: Serial Port flag is never cleared and as such must be handled by software • LCALL pushes the current contents of the Program Counter onto the stack and reloads an address that depends on the source of the interrupt • Execution proceeds until RETI is encountered. The execution of this command allows the 8051 to know that the current interrupt routine is no longer in progress • The 8051 then reloads the Program Counter from the stack and continues from where is left off.

  10. Response Time • In a single-interrupt system, the response time is always more then 3 cycles, but less then 9 cycles.
