Hazard Statement Domain

Hazard Statement Domain. Domain specialization of <note> element. Hazard Statement Domain. Aligned to the ANSI Z535 and ISO 3864-2 standard for hazard statements. < hazardstatement level =„warning" labelformat =„2" panelarrangement ="horizontal"> < messagepanel >

kyros
Télécharger la présentation

Hazard Statement Domain

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

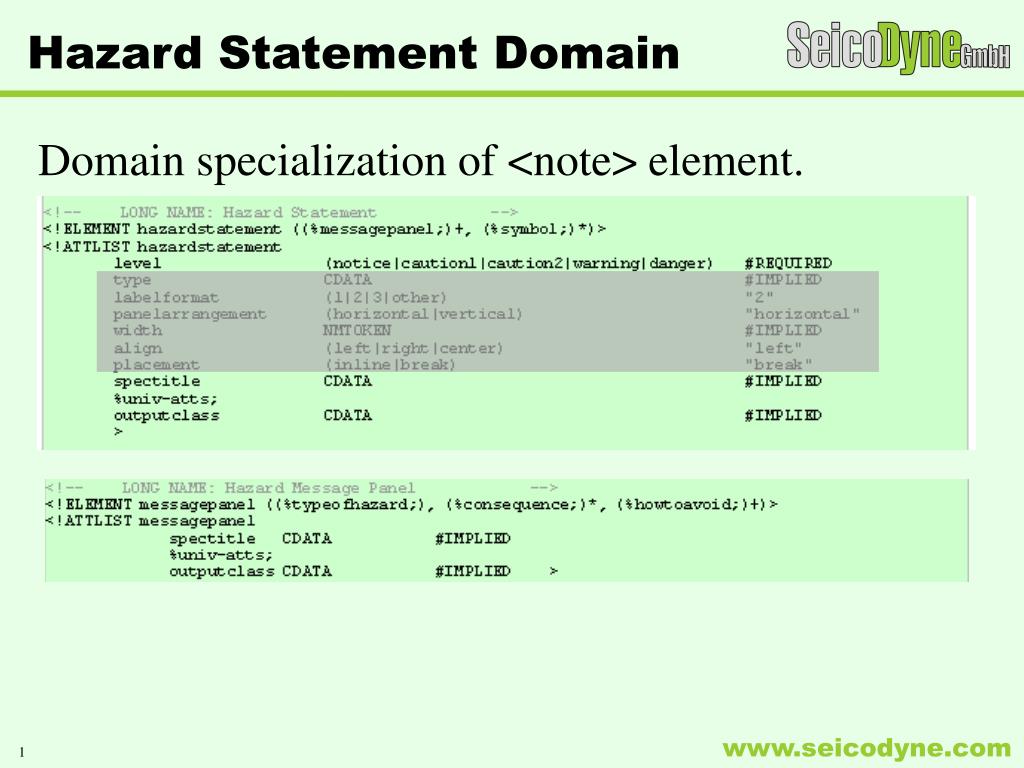

  1. Hazard Statement Domain Domain specialization of <note> element.

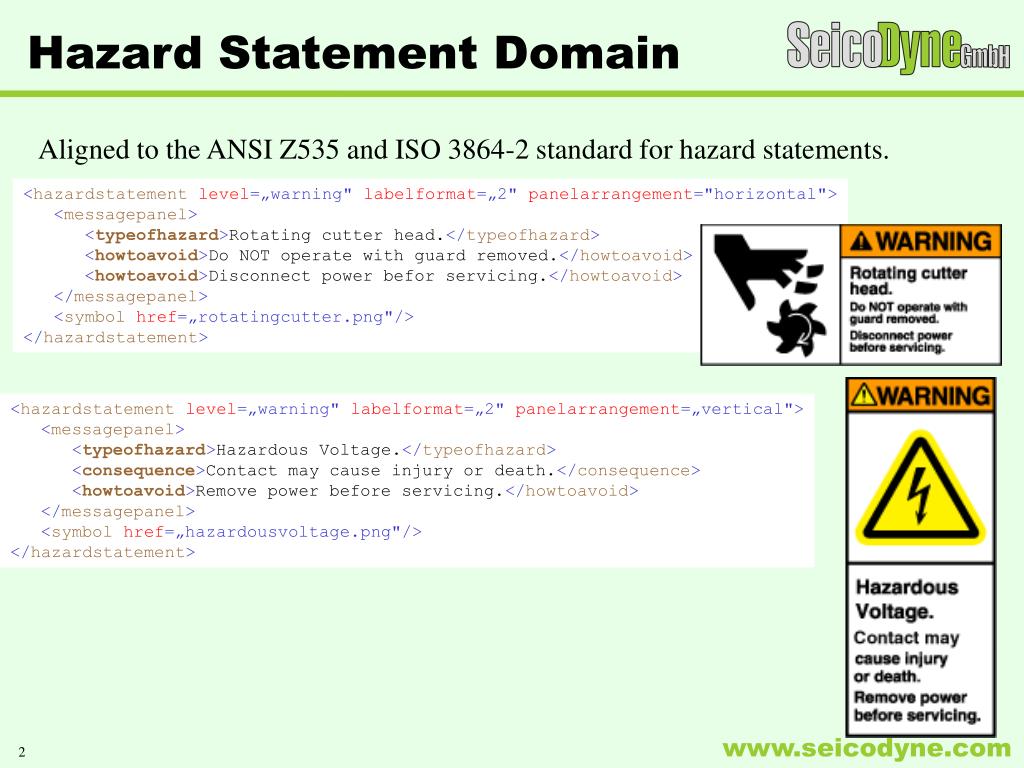

  2. Hazard Statement Domain Aligned to the ANSI Z535 and ISO 3864-2 standard for hazard statements. <hazardstatementlevel=„warning" labelformat=„2" panelarrangement="horizontal"> <messagepanel> <typeofhazard>Rotating cutter head.</typeofhazard> <howtoavoid>Do NOT operate with guard removed.</howtoavoid> <howtoavoid>Disconnect power befor servicing.</howtoavoid> </messagepanel> <symbolhref=„rotatingcutter.png"/> </hazardstatement> <hazardstatementlevel=„warning" labelformat=„2" panelarrangement=„vertical"> <messagepanel> <typeofhazard>Hazardous Voltage.</typeofhazard> <consequence>Contact may cause injury or death.</consequence> <howtoavoid>Remove power before servicing.</howtoavoid> </messagepanel> <symbolhref=„hazardousvoltage.png"/> </hazardstatement>

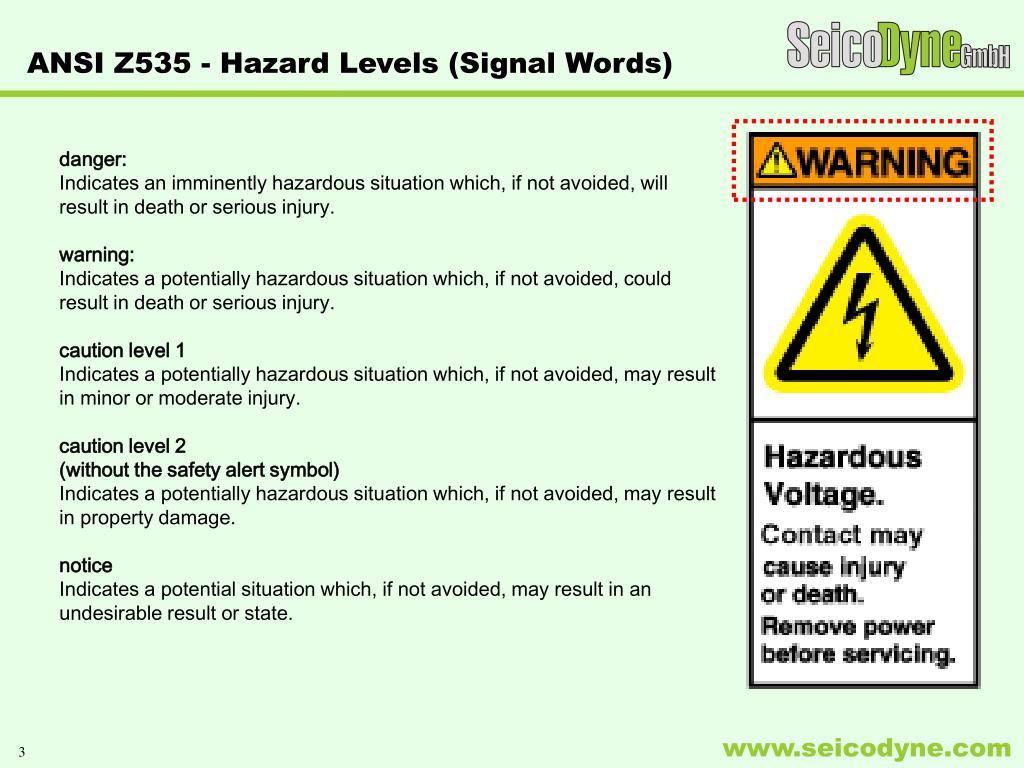

  3. ANSI Z535 - Hazard Levels (Signal Words) danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. caution level 1 Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. caution level 2 (without the safety alert symbol) Indicates a potentially hazardous situation which, if not avoided, may result in property damage. notice Indicates a potential situation which, if not avoided, may result in an undesirable result or state.

  4. ANSI Z535 – Content of word message • <typeofhazard> • Information on an observer on the type of hazard, e.g.: • Machinery Damage • Lifting Hazard • Hazardous Voltage • <consequence> • Information on an observer on the consequences of not avoiding the hazard, e.g.: • Contact may cause burn • Moving parts can crush and cut • <howtoavoid> • Information on an observer on how to avoid the hazard, e.g.: • Do not operate with guard removed. • Wear proper protective equipment. See NFPA 70E. • Turn off and lock out system power before servicing. • See manual before servicing.

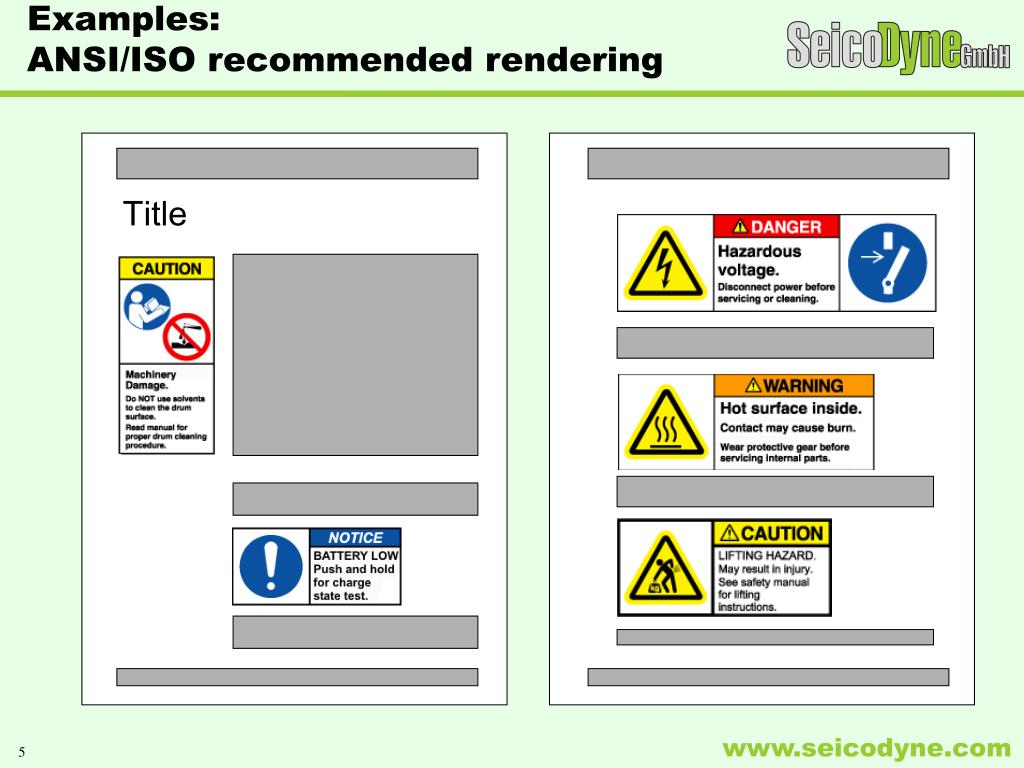

  5. Examples:ANSI/ISO recommended rendering Title

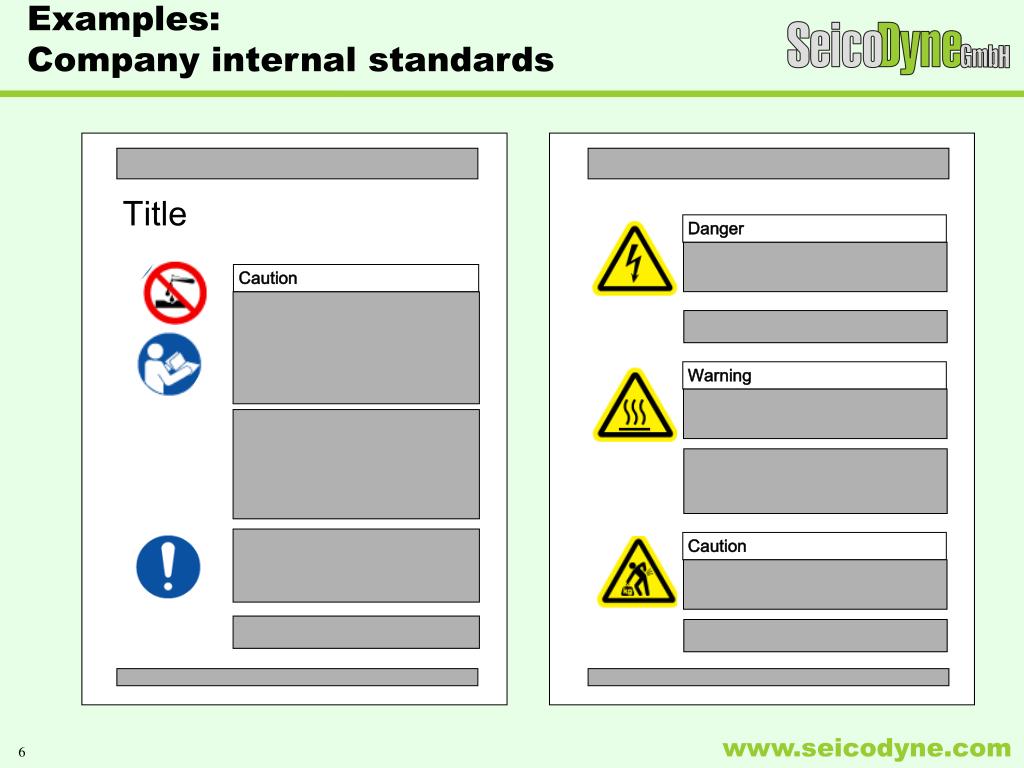

  6. Examples:Company internal standards Title Danger Caution Warning Caution

  7. Examples:Company internal standards Title Danger Caution Warning Caution
