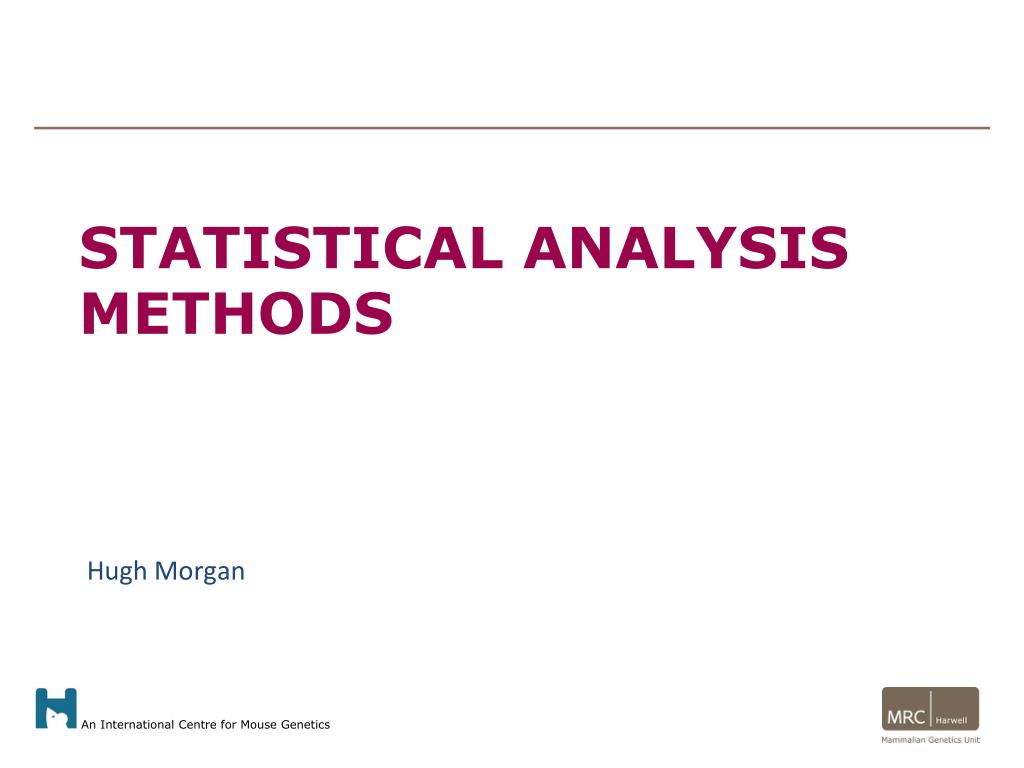

  1. Hugh Morgan Statistical analysis methods

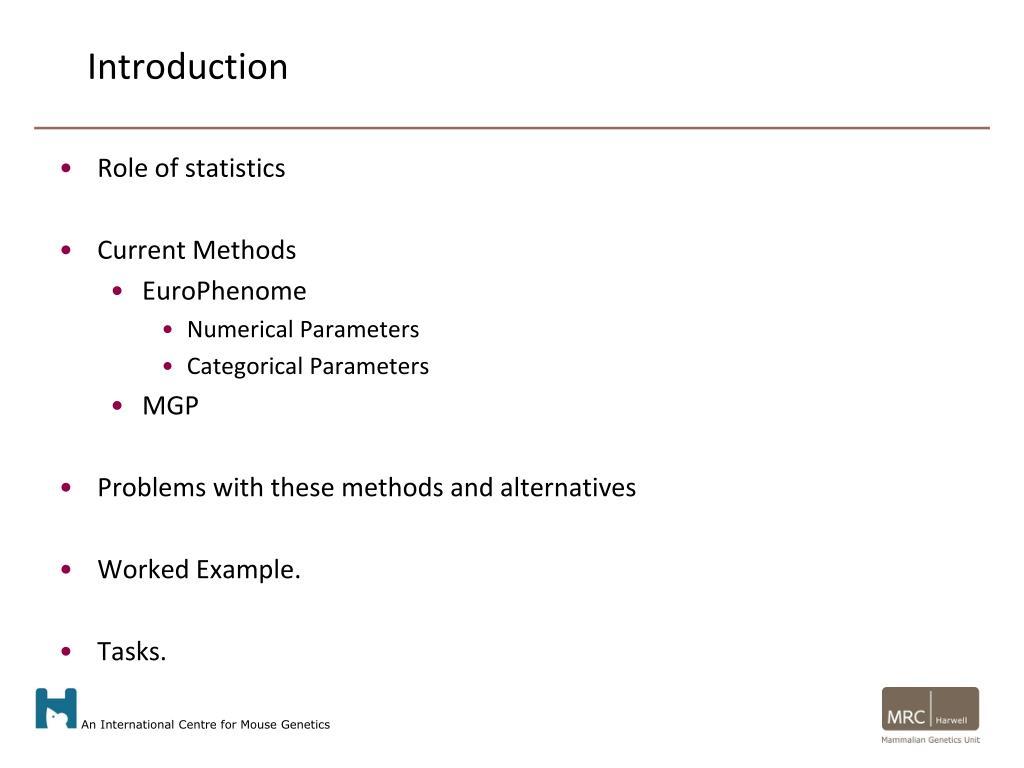

  2. Introduction • Role of statistics • Current Methods • EuroPhenome • Numerical Parameters • Categorical Parameters • MGP • Problems with these methods and alternatives • Worked Example. • Tasks.

  3. Role of statistics • To determine the effect of the genomic alteration on the phenotype of the animal • Distinguish effect from substantial multi-factorial noise • Provide an estimate of the confidence in the veracity of the effect

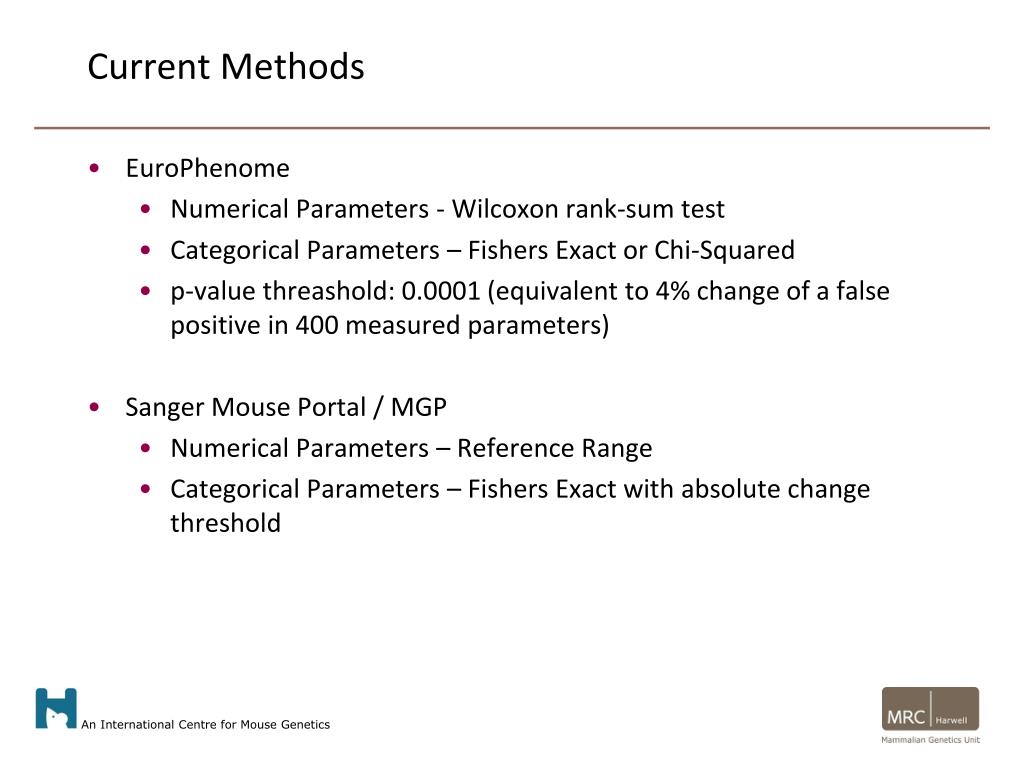

  4. Current Methods • EuroPhenome • Numerical Parameters - Wilcoxon rank-sum test • Categorical Parameters – Fishers Exact or Chi-Squared • p-value threashold: 0.0001 (equivalent to 4% change of a false positive in 400 measured parameters) • Sanger Mouse Portal / MGP • Numerical Parameters – Reference Range • Categorical Parameters – Fishers Exact with absolute change threshold

  5. Do them yourself • All commands are at: • http://mrcmousenetwork.har.mrc.ac.uk/r-commands-mrc-mouse-network-training • Get data: • Akt2, Fat mass, View Data, Get as CSV, Save Page • Install R (if required, google R) • akt2Fat=read.csv("akt2Fat.csv") • summary(akt2Fat) • Wilcoxon rank-sum test • wilcox.test(Value~Genotype, data = akt2Fat) • W = 1, p-value = 6.252e-06 • T Test • t.test(Value~Genotype, data = akt2Fat) • t = -9.5627, df = 23.909, p-value = 1.212e-09

  6. Do them yourself • All commands are at: • http://mrcmousenetwork.har.mrc.ac.uk/r-commands-mrc-mouse-network-training • Get data: • Akt2, Fat mass, View Data, Get as CSV, Save Page • Install R (if required, google R) • akt2Fat=read.csv("akt2Fat.csv") • summary(akt2Fat) • Wilcoxon rank-sum test • wilcox.test(Value~Genotype, data = akt2Fat) • W = 1, p-value = 6.252e-06 • T Test • t.test(Value~Genotype, data = akt2Fat) • t = -9.5627, df = 23.909, p-value = 1.212e-09

  7. Do them yourself • Get data: • Abcd4, Touch escape • R • abcd4Touch=matrix(c(122,9,2,8),2) • Fishers Exact Test • fisher.test(abc4Touch)

  8. abcd4Touch=matrix(c(122,9,2,8),2)

  9. Do them yourself • Get data: • Abcd4, Touch escape • R • abcd4Touch=matrix(c(122,9,2,8),2) • Fishers Exact Test • fisher.test(abcd4Touch) Fisher's Exact Test for Count Data data: abcd4Touch p-value = 3.052e-07 alternative hypothesis: true odds ratio is not equal to 1 95 percent confidence interval: 8.491575 550.552750 sample estimates: odds ratio 50.40908

  10. Sanger Mouse Portal / MGP • Numerical Parameters – Reference Range • Calculate the range of values that encompases 95% of the baseline dataset • Call a line phenodeviant in a parameter if 60% or more of the animals fall outside of that range • Categorical Parameters – Fishers Exact with absolute change threshold • Fishers Exact test gives p-value < 5% AND • Absolute change of proportion > 60%

  11. Sanger Mouse Portal / MGP • Numerical Parameters – Reference Range • Calculate the range of values that encompases 95% of the baseline dataset • Call a line phenodeviant in a parameter if 60% or more of the animals fall outside of that range

  12. Sanger Mouse Portal / MGP • Numerical Parameters – Reference Range • Calculate the range of values that encompases 95% of the baseline dataset • Call a line phenodeviant in a parameter if 60% or more of the animals fall outside of that range • Categorical Parameters – Fishers Exact with absolute change threshold • Fishers Exact test gives p-value < 5% AND • Absolute change of proportion > 60%

  13. Problems with these methods and alternatives • Local structure / Lack of independence • Numerical Parameters - Wilcoxon rank-sum test • Categorical Parameters – Fishers Exact or Chi-Squared • MGP • Numerical Parameters – Reference Range • Categorical Parameters – Fishers Exact with absolute change threshold

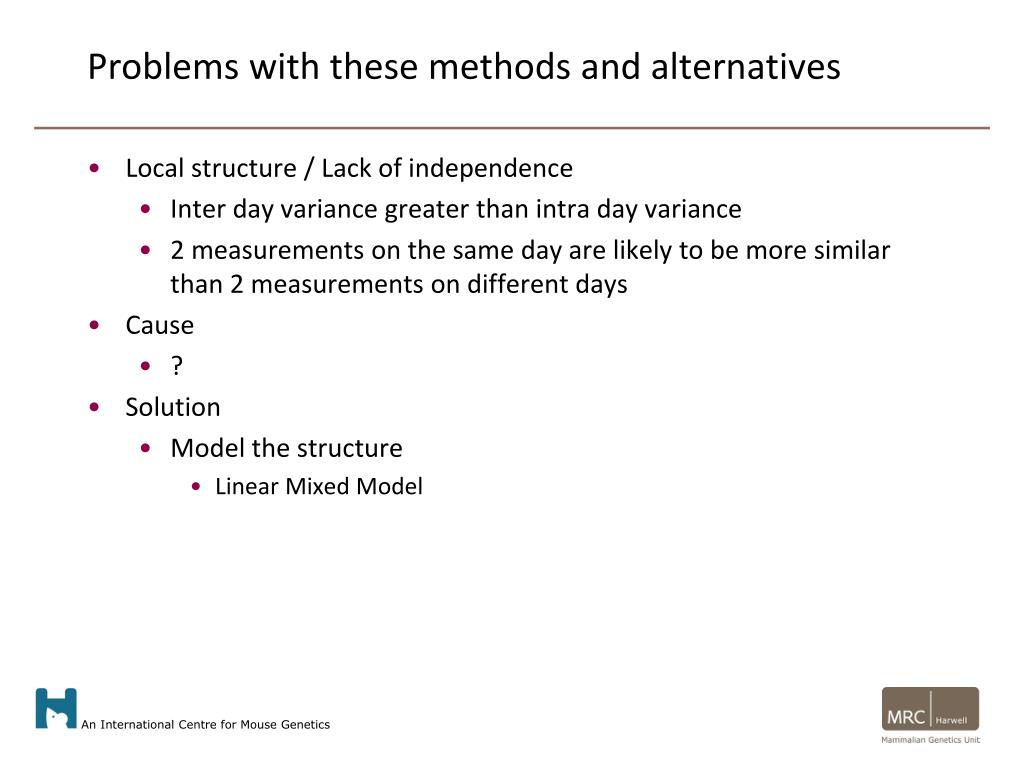

  14. Problems with these methods and alternatives • Local structure / Lack of independence • Inter day variance greater than intra day variance • 2 measurements on the same day are likely to be more similar than 2 measurements on different days • Cause • ? • Solution • Model the structure • Linear Mixed Model

  15. Mixed Model • Model data as sum of 2 normal distributions, plus a number of fixed effects • Normally distributed • Inter animal difference • Inter day difference • Fixed • Gender • Other parameters such as Weight • Genomic alteration (Genotype) • Gender / Genotype effect • Calculate p value given that Genotype effect is zero

  16. Do them yourself • Get data: • Ptk7, Grip-Strength, Forelimb grip strength measurement mean, View Data, Get as CSV, Save File • R • ptk7GS=read.csv("ptk7GS.csv") • summary(ptk7GS) Centre Strain Genotype Zygosity Gender Parameter WTSI:29 129/SvEv:29 Akt2 :14 :15 Male:29 Fat mass:29 baseline:15 Hom:14

  17. Do them yourself • Linear Model (no batch effect modeled) • ptk7GSLM=lm(Value~Genotype + Gender + Genotype*Gender, ptk7GS, na.action="na.omit") • summary(ptk7GSLM) Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) 68.777 2.475 27.794 < 2e-16 *** GenotypePtk7 -14.134 5.891 -2.399 0.01777 * GenderMale 11.454 4.011 2.855 0.00497 ** GenotypePtk7:GenderMale 1.987 8.966 0.222 0.82496 --- Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1 Residual standard error: 20.7 on 136 degrees of freedom Multiple R-squared: 0.1222, Adjusted R-squared: 0.1028 F-statistic: 6.311 on 3 and 136 DF, p-value: 0.0004862

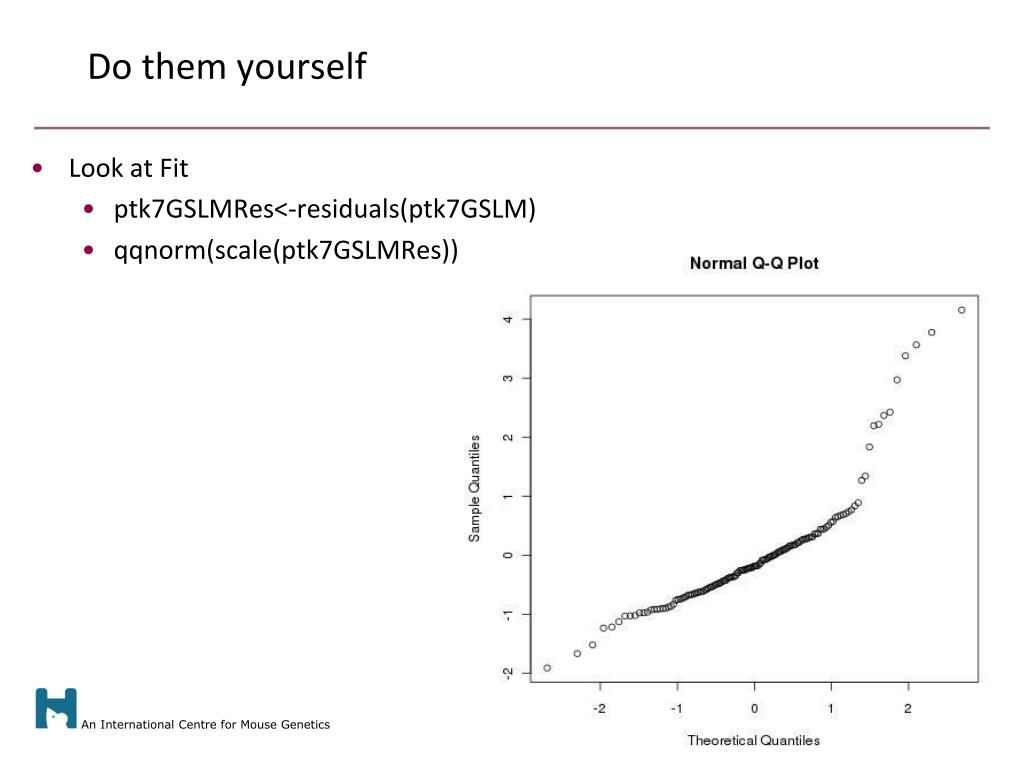

  18. Do them yourself • Look at Fit • ptk7GSLMRes<-residuals(ptk7GSLM) • qqnorm(scale(ptk7GSLMRes))

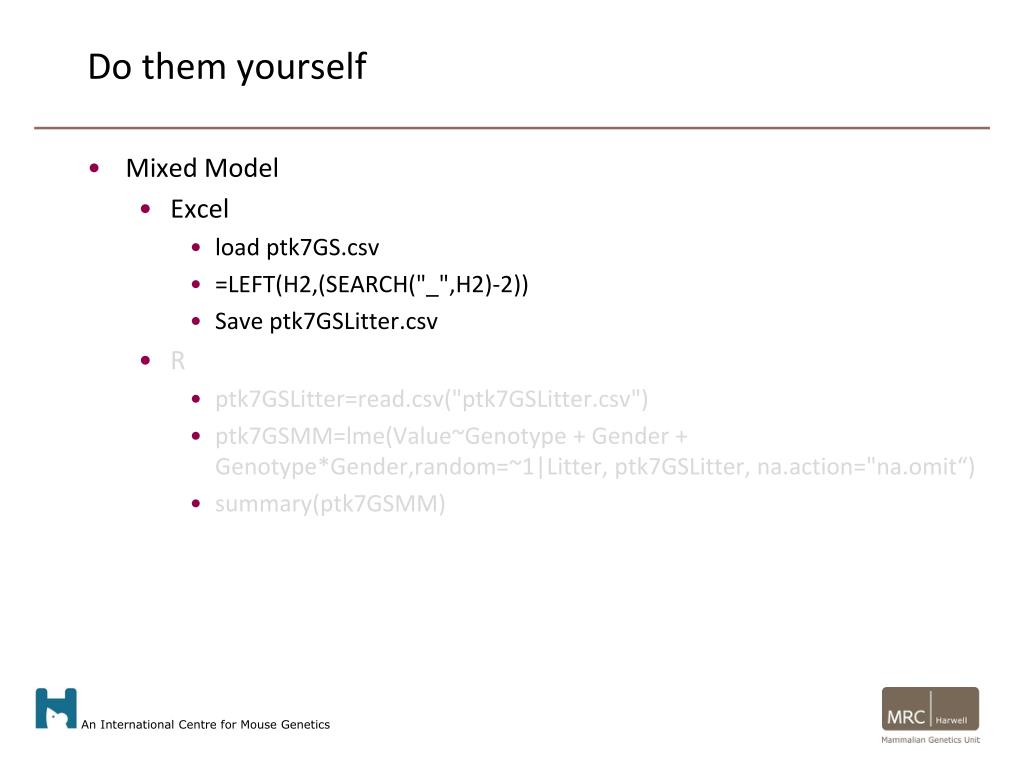

  19. Do them yourself • Mixed Model • Excel • load ptk7GS.csv • =LEFT(H2,(SEARCH("_",H2)-2)) • Save ptk7GSLitter.csv • R • ptk7GSLitter=read.csv("ptk7GSLitter.csv") • ptk7GSMM=lme(Value~Genotype + Gender + Genotype*Gender,random=~1|Litter, ptk7GSLitter, na.action="na.omit“) • summary(ptk7GSMM)

  20. Do them yourself • Mixed Model • R • ptk7GSLitter=read.csv("ptk7GSLitter.csv") • ptk7GSMM=lme(Value~Genotype + Gender + Genotype*Gender, random=~1|Litter, ptk7GSLitter, na.action="na.omit“) • summary(ptk7GSMM) Linear mixed-effects model fit by REML Fixed effects: Value ~ Genotype + Gender + Genotype * Gender Value Std.Error DF t-value p-value (Intercept) 67.02067 3.377184 85 19.845137 0.0000 GenotypePtk7 -12.05973 7.461470 85 -1.616267 0.1097 GenderMale 12.59607 4.403984 85 2.860154 0.0053 GenotypePtk7:GenderMale 1.42342 8.819061 85 0.161403 0.8722

  21. Do them yourself • Mixed Model • ptk7GSMMRes<-residuals(ptk7GSMM) • qqnorm(scale(ptk7GSLMRes))
