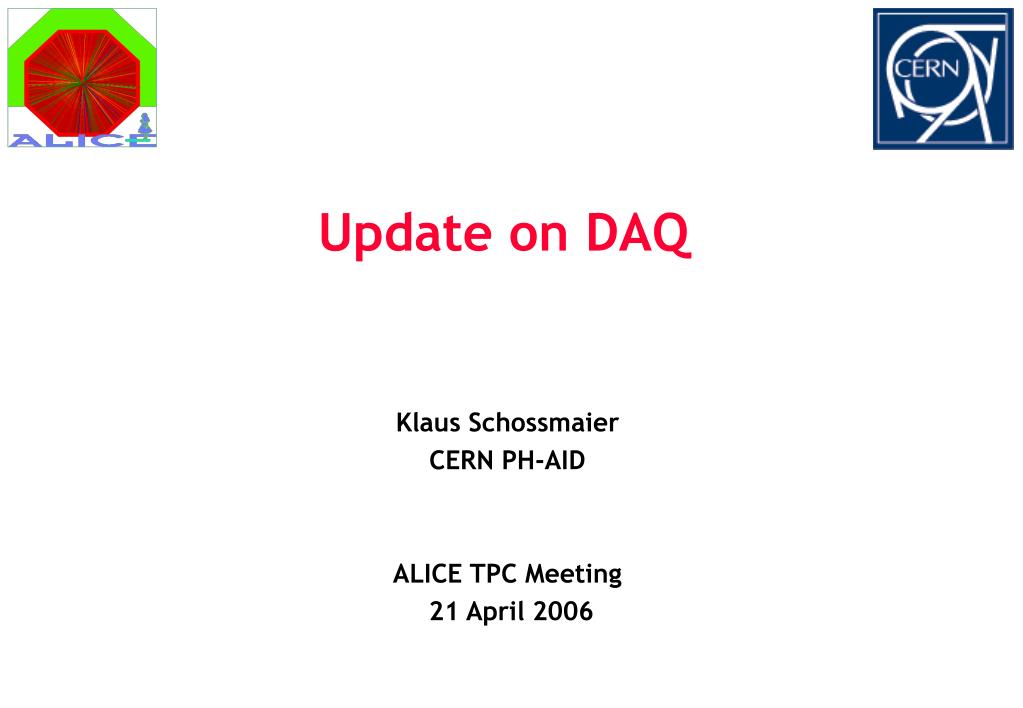

  1. Update on DAQ Klaus Schossmaier CERN PH-AID ALICE TPC Meeting 21 April 2006

  2. DAQ setups for the TPC • RCU Lab (epaitbeam02): • 2 DDLs, 1 D-RORC, integration: RCU, SIU, Trigger, DATE, HLT, ECS • SXL2 (pcald23): • 1 DDL, 1 D-RORC, checks for installation, RORC utilities, LabView • SXL2 (aldaqpc021): • 1 DDL, 1 D-RORC, TPC electronics characterization, RORC utilities, LabView • Hall 167 (pcalicetpc167): • 2 DDLs, 1 D-RORC, TPC prototype with cosmics • PX24/CR1 and SXL2 for commissioning • 108 final SIUs have been given to Luciano • Patch cords (14x 40m and 10x 60m E2000-LC) for SXL2 are available • 2 Linux PCs for operating the DAQ/ECS have been placed in the clean room ALICE TPC meeting, 21 April 2006

  3. Planned DAQ Setup PC SXL2 RCU RCU 6x 6x PC SIU SIU (runControl) 6x DDL 6x DDL HLT Farm PX24/CR2 General Purpose Network (GPN) 6x DDL 6x DRORC 6x DRORC DRORC LDC LDC LDC Event Building Network (Gigabit Ethernet) PX24/CR1 Server GDC Gateway (DATE, ECS) TDS 2 TB Disk array (RAID 5) ALICE TPC meeting, 21 April 2006

  4. Milestones !!! • LHCC Milestones • Combined TRG/DAQ/HLT with the TPC • 450 (May06): running mode A+B • 451 (Jun06): running mode A+B+C • Work to be done • Maintaining the DAQ setups • Continuing the installations of machinery in CR1 • DATE v5.15 installation/configuration • ECS v2.7 installation/configuration • Integration DAQ/Trigger/HLT/ECS • Implementation of the different calibration runs • Participation in data quality monitoring (MOOD) • Participation in the RCU configuration via DDL • Scheme to capture RCU  DDL  equipmentId ALICE TPC meeting, 21 April 2006
