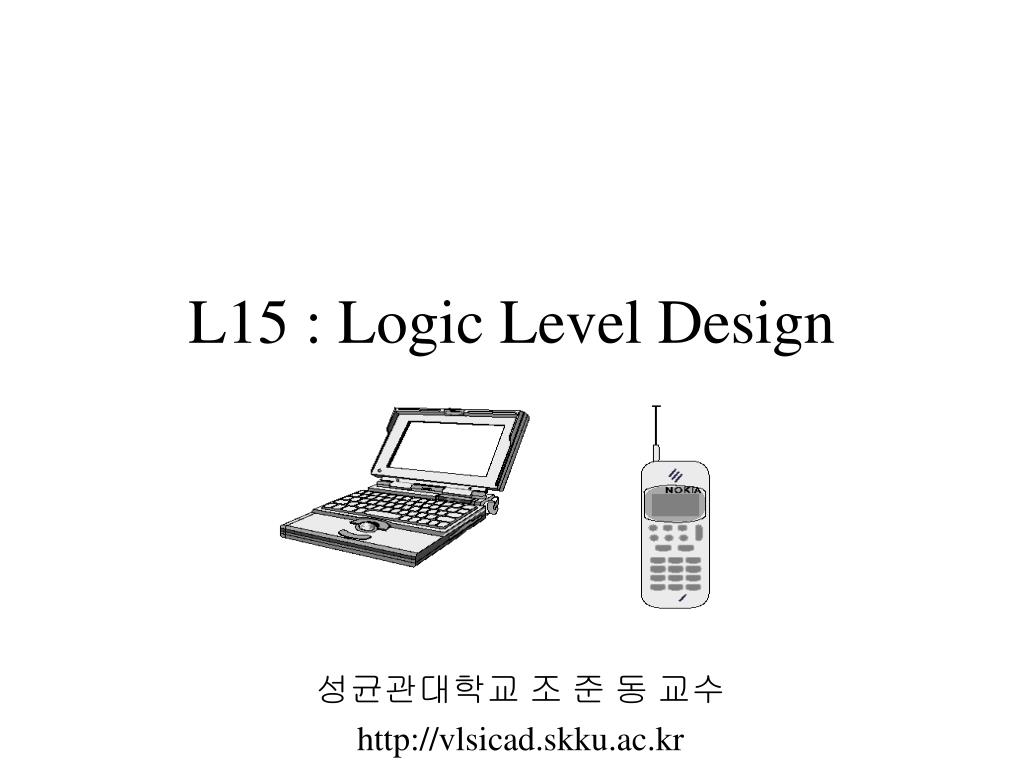

  1. L15 : Logic Level Design 성균관대학교 조 준 동 교수 http://vlsicad.skku.ac.kr

  2. Node Transition Activity

  3. Low Activity XOR Function

  4. 15-20% of the total power is due to glitching. GLITCH (Spurious transitions)

  5. Glitches

  6. Hazard Generation in Logic Circuits • Static hazard: A transient pulse of width w (= the delay of the inverter). • Dynamic hazard: the transient consists of three edges, two rising and one falling with w of two units. • Each input can have several arriving paths.

  7. High-Performance PowerDistribution • (S: Switching probability; C: Capacitance) • Start with all logic at the lowest power level; then, successive iterations of delay calculation, identifying the failing blocks, and powering • up are done until either all of the nets pass their delay criteria or the • maximum power level is reached. • Voltage drops in ground and supply wires use up a more serious fraction of the total noise margin

  8. Logic Transformation • Use a signal with low switching activity to reduce the activity on a highly active signal. • Done by the addition of a redundant connection between the gate with low activity (source gate) to the gate with a high switching activity (target gate). • Signals a, b, and g1 have very high switching activity and most of time its value is zero • Suppose c and g1 are selected as the source and target of a new connection ` 1 is undetectable, hence the function of the new circuit remains the same. • Signal c has a long run of zero, and zero is the controlling value of the and gate g1 , most of the switching activities at the input of g1 will not be seen at the output, thus switching activity of the gate g1 is reduced. • The redundant connection in a circuit may result in some irredundant connections becoming redundant. • By adding ` 1 , the connections from c to g3 become redundant.

  9. Logic Transformation

  10. Logic Transformation

  11. Frequency Reduction • Power saving • Reduces capacitance on the clock network • Reduces internal power in the affected registers • Reduces need for muxes(data recirculation) • Opportunity • Large opportunity for power reduction, dependent on; • Number of registers gated • percentage of time clock is enabled • Cost • Testability • Complicates clock tree synthesis • Complicates clock skew balancing

  12. GATED-CLOCK D-FLIP-FLOP • Flip- op present a large internal capacitance on the internal clock node. • If the DFF output does not switch, the DFF does not have to be clocked.

  13. Frequency Reduction Clock Gating Example - When D is not equal to Q

  14. Frequency Reduction library ieee;use ieee.std_logic_1164.all;use ieee.std_logic_unsigned.all;entity nongate is port(clk,rst : in std_logic; data_in : in std_logic_vector(31 downto 0); data_out : out std_logic_vector(31 downto 0));end nongate;architecture behave of nongate is signal load_en : std_logic; signal data_reg : std_logic_vector(31 downto 0); signal count : integer range 0 to 15;begin FSM : process begin wait until clk'event and clk='1'; if rst='0' then count <= 0; elsif count=9 then count <= 0; else count <= count+1; end if; end process FSM; enable_logic : process(count,load_en) begin if(count=9) then load_en <= '1'; else load_en <= '0'; end if; end process enable_logic; datapath : process begin wait until clk'event and clk='1'; if load_en='1' then data_reg <= data_in; end if; end process datapath; data_out <= data_reg; end behave; configuration cfg_nongate of nongate is for behave end for; end cfg_nongate; • Clock Gating Example - Before Code

  15. Frequency Reduction library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_unsigned.all; entity gate is port(clk,rst : in std_logic; data_in : in std_logic_vector(31 downto 0); data_out : out std_logic_vector(31 downto 0)); end gate; architecture behave of gate is signal load_en,load_en_latched,clk_en : std_logic; signal data_reg : std_logic_vector(31 downto 0); signal count : integer range 0 to 15; begin • Clock Gating Example - After Code

  16. Frequency Reduction FSM : process begin wait until clk'event and clk='1'; if rst='0' then count <= 0; elsif count=9 then count <= 0; else count <= count+1; end if; end process FSM; enable_logic : process(count,load_en) begin if(count=9) then load_en <= '1'; else load_en <= '0'; end if; end process enable_logic; deglitch : PROCESS(clk,load_en) begin if(clk='0') then load_en_latched <= load_en; end if; end process deglitch; clk_en <= clk and load_en_latched; datapath : process begin wait until clk_en'event and clk_en='1'; data_reg <= data_in; end process datapath; data_out <= data_reg; end behave; configuration cfg_gate of gate is for behave end for; end cfg_gate;

  17. Frequency Reduction • Clock Gating Example - Report

  18. Frequency Reduction  4-bit Synchronous Counter Library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_arith.all; entity BINARY is Port ( clk : In std_logic; reset : In std_logic; count : BUFFER UNSIGNED (3 downto 0)); end BINARY; architecture BEHAVIORAL of BINARY is begin process(reset,clk,count) begin • 4-bit Synchronous & Ripple counter - code if (reset = '0') then count <= "0000” elsif (clk'event and clk = '1') then if (count = UNSIGNED'("1111")) then count <= "0000"; else count <=count+UNSIGNED'("1"); end if; end if; end process; end BEHAVIORAL; configuration CFG_BINARY_BLOCK_BEHAVIORAL of BINARY is for BEHAVIORAL end for; end CFG_BINARY_BLOCK_BEHAVIORAL;

  19. Frequency Reduction  4-bit Ripple Counter Library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_arith.all; entity RIPPLE is Port ( clk : In std_logic; reset : In std_logic; count : BUFFER UNSIGNED (3 downto 0)); end RIPPLE; architecture BEHAVIORAL of RIPPLE is signal count0, count1, count2 : std_logic; begin process(count) begin count0 <= count(0); count1 <= count(1); count2 <= count(2); end process; process(reset,clk) begin if (reset = '0') then count(0) <= '0'; elsif (clk'event and clk = '1') then if (count(0) = '1') then count(0) <= '0'; else count(0) <= '1'; end if; end if; end process; process(reset,count0) begin if (reset = '0') then count(1) <= '0'; elsif (count0'event and count0 = '1') then

  20. Frequency Reduction if (count(1) = '1') then count(1) <= '0'; else count(1) <= '1'; end if; end if; end process; process(reset,count1) begin if (reset = '0') then count(2) <= '0'; elsif (count1'event and count1 = '1') then if (count(2) = '1') then count(2) <= '0'; else count(2) <= '1'; end if; end if; end process; process(reset,count2) begin if (reset = '0') then count(3) <= '0'; elsif (count2'event and count2 = '1') then if (count(3) = '1') then count(3) <= '0'; else count(3) <= '1'; end if; end if; end process; end BEHAVIORAL; configuration CFG_RIPPLE_BLOCK_BEHAVIORAL of RIPPLE is for BEHAVIORAL end for; end CFG_RIPPLE_BLOCK_BEHAVIORAL;

  21. Frequency Reduction • 4-bit Synchronous & Ripple counter - Report

  22. References [9] D. Gajski, N. Dutt, A. Wu, S. Lin, High-Level Synthesis, Introduction to Chip and System Design, Kluwer Academic Publishers, 1992. [10] J. S. Gardner, \Designing with the IDT SyncFIFO: the Architecture of the Future", 1992 Synchronous (Clocked) FIFO Design Guide, Integrated Device Technology AN-60, pp. 7-10, 1992, Santa Clara, CA. [11] A. Ghosh, S. Devadas, K. Keutzer, J. White, \Estimation of Average Switching Activity in Combinational and Sequential Circuits", Proceedings of the 29th DAC, pp. 253-259, June 1992, Anaheim, CA. [12] J. L. Hennessy, D. A. Patterson, Computer Architecture - A Quantitative Approach, Morgan Kaufmann Publishers, Palo Alto, CA, 1990. [13] S. Kodical, \Simultaneous Switching Noise", 1993 IDT High-Speed CMOS Logic Design Guide, Integrated Device Technology AN-47, pp. 41-47, 1993, Santa Clara, CA. [14] F. Najm, \Transition Density, A Stochastic Measure of Activity in Digital Circuits", Proceedings of the 28th DAC, pp. 644-649, June 1991, Anaheim, CA. [1] H. B. Bakoglu, Circuits, Interconnections and Packaging for VLSI, Addison-Wesley, 1990. [2] T. K. Callaway, E. E. Swartzlander, \Estimating the Power Con- sumption of CMOS Adders", 11th Symp. on Comp. Arithmetic, pp. 210-216, Windsor, Ontario, 1993. [3] A. P. Chandrakasan, S. Sheng, R. W. Brodersen, \Low-Power CMOS Digital Design", IEEE Journal of Solid-State Circuits, pp. 473-484, April 1992. [4] A. P. Chandrakasan, M. Potkonjak, J. Rabaey, R. W. Brodersen, \HYPER-LP: A System for Power Minimization Using Archi- tectural Transformations", ICCAD-92, pp.300-303, Nov. 1992, Santa Clara, CA. [5] A. P. Chandrakasan, M. Potkonjak, J. Rabaey, R. W. Brodersen, \An Approach to Power Minimization Using Transformations", IEEE VLSI for Signal Processing Workshop, pp. , 1992, CA. [6] S. Devadas, K. Keutzer, J. White, \Estimation of Power Dissi- pation in CMOS Combinational Circuits", IEEE Custom Inte- grated Circuits Conference, pp. 19.7.1-19.7.6, 1990. [7] D. Dobberpuhl et al. \A 200-MHz 64-bit Dual-Issue CMOS Mi- croprocessor", IEEE Journal of Solid-State Circuits, pp. 1555- 1567, Nov. 1992. [8] R. J. Fletcher, \Integrated Circuit Having Outputs Congured for Reduced State Changes", U.S. Patent no. 4,667,337, May, 1987.

  23. References [21] J. Tabor, Noise Reduction Using Low Weight and Constant Weight Coding Techniques, Master's Thesis, EECS Dept., MIT, May 1990. [22] W.-C. Tan, T. H.-Y. Meng, \Low-power polygon renderer for computer graphics", Int. Conf. on A.S.A.P., pp. 200-213, 1993. [23] N. Weste, K. Eshraghian, Principles of CMOS VLSI Design, A Systems Perspective, Addison-Wesley Publishing Company, 1988. [24] R. Wilson, \Low power and paradox", Electronic Engineering Times, pp. 38, November 1, 1993. [25] J. Ziv, A. Lempel, A universal Algorithm for Sequential Data Compression", IEEE Trans. on Inf. Theory, vol. IT-23, pp. 337-343, 1977. [16] A. Park, R. Maeder, \Codes to Reduce Switching Transients Across VLSI I/O Pins", Computer Architecture News, pp. 17-21, Sept. 1992. [17] Rambus - Architectural Overview, Rambus Inc., Mountain View, CA, 1993. Contact ray@rambus.com. [18] A. Shen, A. Ghosh, S. Devadas, K. Keutzer, \On Average Power Dissipation and Random Pattern Testability", ICCAD-92, pp. 402-407, Nov. 1992, Santa Clara, CA. [19] M. R. Stan, \Shift register generators for circular FIFOs", Electronic Engineering, pp. 26-27, February 1991, Morgan Grampian House, London, England. [20] M. R. Stan, W. P. Burleson, \Limited-weight codes for low power I/O", International Workshop on Low Power Design, April 1994, Napa, CA.

  24. DesignPower Gate Level Power Model • Switching Power • Power dissipated when a load capacitance(gate+wire) is charged or discharged at the driver’s output • If the technology library contains the correct capacitance value of the cell and if capacitive_load_unit attribute is specified then no additional information is needed for switching power modeling • Output pin capacitance need not be modeled if the switching power is incorporated into the internal power

  25. DesignPower Gate Level Power Model • Internal Power • power dissipated internal to a library cell • Modeled using energy lookup table indexed by input transition time and output load • Library cells may contain one or more internal energy lookup tables

  26. DesignPower Gate Level Power Model • Leakage Power • Leakage power model supports a signal value for each library cell • State dependent leakage power is not supported

  27. Operand Isolation • Combinational logic dissipates significant power when output is unused • Inputs to combination logic held stable when output is unused

  28. Operation Isolation Example -Diagram Before Operand Isolation After Operand Isolation

  29. Operand Isolation Example -Before Code Library IEEE; Use IEEE.STD_LOGIC_1164.ALL; Use IEEE.STD_LOGIC_SIGNED.ALL; Entity Logic is Port( a, b, c : in std_logic_vector(7 downto 0); do : out std_logic_vector(15 downto 0); rst : in std_logic; clk : in std_logic ); End Logic; Architecture Behave ofLogic is Signal Count : integer; Signal Load_En : std_logic; Signal Load_En_Latched: std_logic; Signal Clk_En : std_logic; Signal Data_Add : std_logic_vector(7 downto 0); Signal Data_Mul : std_logic_vector(15 downto 0); Begin Process(clk,rst) --Counter Logic in FSM Begin If(clk='1' and clk'event) then If(rst='0') then Count <= 0; Elsif(Count=9) then Count <= 0; Else Count <= Count + 1; End If; End If; End Process;

  30. Operand Isolation Example -Before Code Process(Count) -- Enable Logic in FSM Begin If(Count=9) then Load_En <= '1'; Else Load_EN <= '0'; End If; End Process; Process(clk,Load_En) -- Latch(for Deglitch) Logic Begin If(clk='0') then Load_En_Latched <= Load_En; End If; End Process; clk_En <= clk and Load_En_Latched; Data_Add <= a + b; Data_Mul <= Data_Add * c; Process(Data_Mul,Clk_En) -- Data Reg Logic Begin If(Clk_En='1' and Clk_En'event) then Do <= Data_Mul; End If; End Process; End Behave; Configuration CFG_Logic of Logic is for Behave End for; End CFG_Logic;

  31. Operand Isolation Example -After Code Library IEEE; Use IEEE.STD_LOGIC_1164.ALL; Use IEEE.STD_LOGIC_SIGNED.ALL; Entity Logic1 is Port( a, b, c : in std_logic_vector(7 downto 0); do : out std_logic_vector(15 downto 0); rst : in std_logic; clk : in std_logic ); End Logic1; Architecture Behave of Logic1 is Signal Count : integer; Signal Load_En : std_logic; Signal Load_En_Latched : std_logic; Signal Clk_En : std_logic; Signal Data_Add : std_logic_vector(7 downto 0); Signal Data_Mul : std_logic_vector(15 downto 0); Signal Iso_Data_Add : std_logic_vector(7 downto 0); Begin Process(clk,rst) -- Counter Logic in FSM Begin If(clk='1' and clk'event) then If(rst='0') then Count <= 0; Elsif(Count=9) then Count <= 0; Else Count <= Count + 1; End If; End If; End Process;

  32. Operand Isolation Example -After Code Process(Count) -- Enable Logic in FSM Begin If(Count=9) then Load_En <= '1'; Else Load_EN <= '0'; End If; End Process; Process(clk,Load_En) -- Latch(for Deglitch) Logic Begin If(clk='0') then Load_En_Latched <= Load_En; End If; End Process; clk_En <= clk and Load_En_Latched; Data_Add <= a + b; Process(Load_En_Latched,Data_Add) -- Latch Begin -- for Operand Isolation If(Load_En_Latched='1' and Load_En_Latched'event) then Iso_Data_Add <= Data_Add; End If; End Process; Data_Mul <= Iso_Data_Add * c; Process(Data_Mul,Clk_En) -- Data Reg Logic Begin If(Clk_En='1' and Clk_En'event) then Do <= Data_Mul; End If; End Process; End Behave;

  33. Operand Isolation Example -Report Before Code After Code
