  1. Active Analogue CircuitsYear 2 B. Todd Huffman

  2. CP2 Circuit Theory Revision Lecture Basics, Kirchoff’s laws, Theveninand Norton’s theorem, Capacitors, Inductors AC theory, complex notation, LCR circuits • Passive Sign Convention (NEW!!!) • Example of PSC use (also NEW) • Good Texts: • Electronics Course Manual for 2nd year lab. • “Art of Electronics” by Horowitz and Hill October 2013 Todd Huffman

  3. +IR1 + – –V0 +IR2 + + – – +IR1 + – Kirchoff’s laws I1 I2 I1+I2–I3–I4=0 I3 I4 -V0+IR1+IR2+IR3=0 R1 I R2 V0 R3

  4. Thevenin and Norton theorem Req Veq  Req In Practice, to find Veq, Req… RL (open circuit) IL0 Veq=VL RL0 (short circuit) VL0 Req= resistance between terminals when all voltages sources shorted and current sources opened.

  5. Capacitors Q = CV +Q C -Q Capacitors resist change in voltage • Capacitors in series • Capacitors in parallel • Stored energy stored in form of electric field C1 C2 CN

  6. Inductors • Inductors in series • Inductors in parallel • Stored energy stored in form of magnetic field Inductors resist a change of current L “back emf” Self-inductance L1 L2

  7. AC circuit theory • Voltage represented by complex exponential • Impedance relates current and voltage V=ZIin complex notation: Resistance  R Inductance  jL Capacitance 1/jCand combinations thereof • Impedance has magnitude and phase represented by real component of easily shown from Q=VC

  8. Current is given by • So |Z| gives the ratio of magnitudes of V and I, and  give the phase difference by which current lags voltage

  9. Passive Sign Convention Passive devices ONLY - Learn it; Live it; Love it! R=Resistance Ω[ohms] Two seemingly Simple questions: Which way does the current flow, left or right? Voltage has a ‘+’ side and a ‘-’ side (you can see it on a battery)on which side should we put the ‘+’? On the left or the right? Given V=IR, does it matter which sides for V or whichdirection for I?

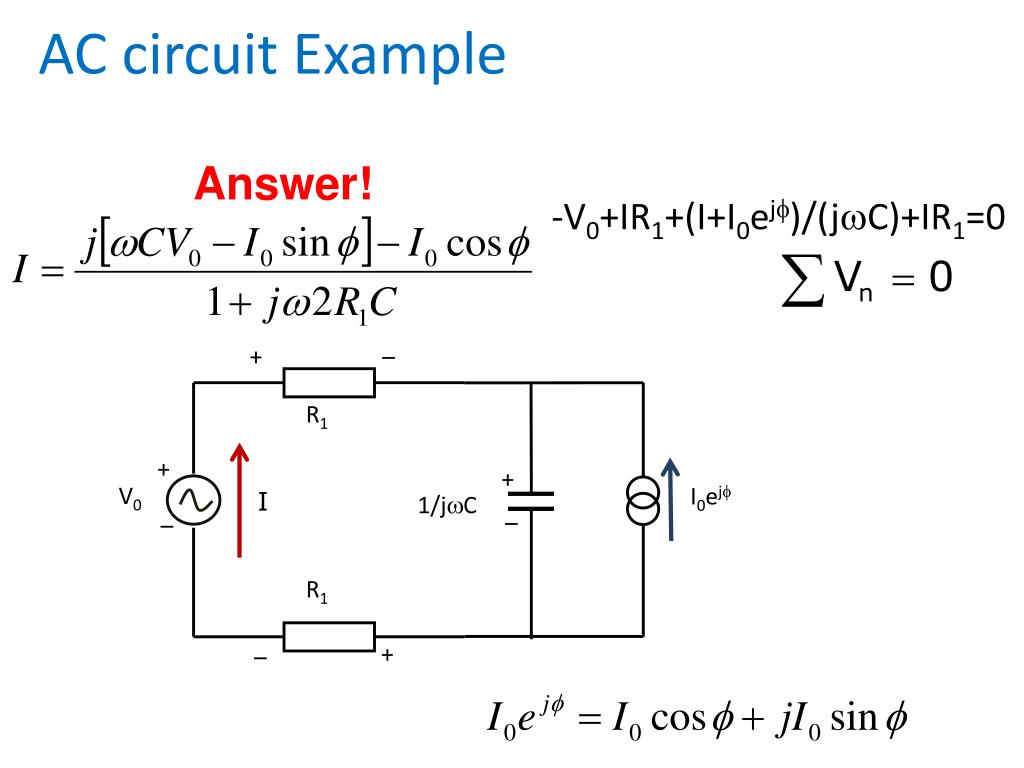

  10. + – + + – – + – AC circuit Example Answer! -V0+IR1+(I+I0ejf)/(jwC)+IR1=0 R1 I0ejf V0 I 1/jwC R1

  11. The Transistor! Go to diode part of lecture

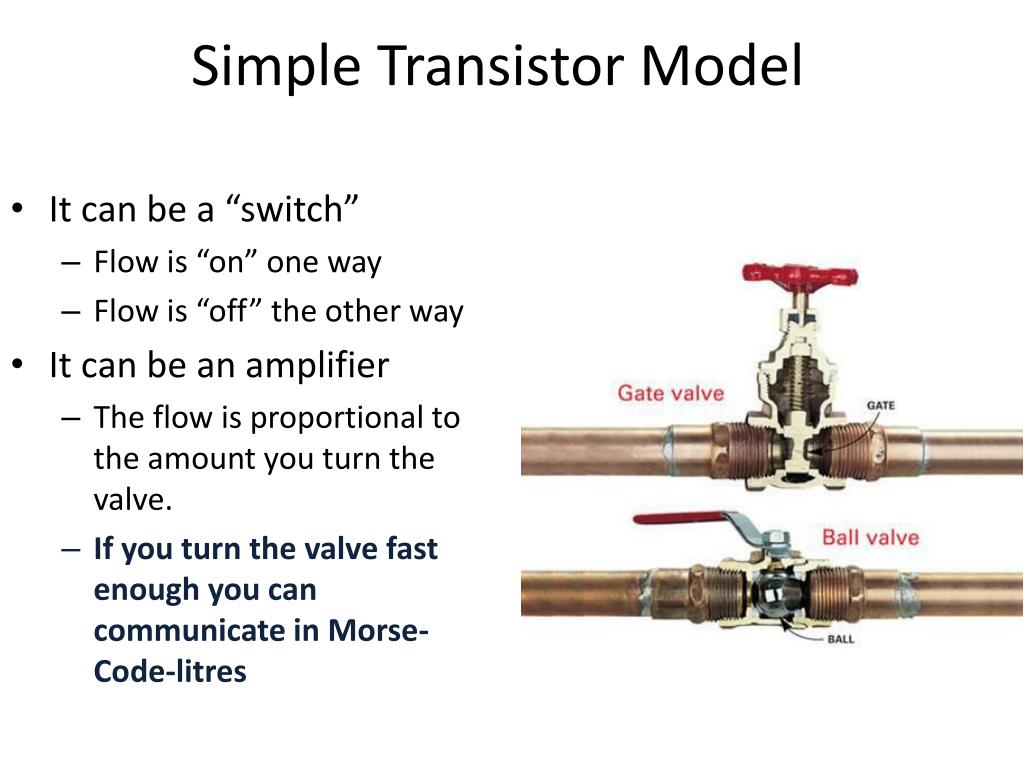

  12. Simple Transistor Model • It can be a “switch” • Flow is “on” one way • Flow is “off” the other way • It can be an amplifier • The flow is proportional to the amount you turn the valve. • If you turn the valve fast enough you can communicate in Morse-Code-litres

  13. Bipolar Junction Transistor curves On black board!

  14. First Transistor Small Signal Model Model works for npn and pnp(follow passive sign conv. on resistor) collector base + – vBE gmvBE b/gm Typical npn form shown emitter
