  1. Representing Information Digitally

  2. Digitization • Initially transforming data for computer use • Assigning people social security numbers • The creation of telephone numbers • Encoding information became the way to transform the real world into a context that the computer could understand

  3. Information Metamorphosis • Fitting the real world into the computer • Computer’s world • Electronic • Fast • Binary • Real World • Multiple forms of data / information • Imprecise / vague • Non uniform speeds

  4. Information Metamorphosis • Real World Data Forms • Numeric Data • Character Data • Graphical / Visual Data • Audio Data • Instructional Data • Methodology needed to transform real world data into computer world (binary)

  5. Binary Number System • A decimal number: 1,648,319 • A binary number: 1001 1101

  6. Binary Number System • Binary for numeric data • Binary digit = Bit • 8 Bits = Byte • Smallest addressable unit within the computer • 4 Bytes = Word • Basic unit for arithmetic • Contains 32 bits • Converting from binary

  7. Numeric Data

  8. Numeric Data • Converting to binary • Repeated division by 2 • Remainders are the important part • Read from bottom up as if left to right

  9. Character Data • Binary for Character Data • 8 bit combinations assigned to a symbol • Name for mapping process is ASCII table

  10. ASCII, The American Standard Code for Information Interchange

  11. Graphical Data • Binary for Graphical Data

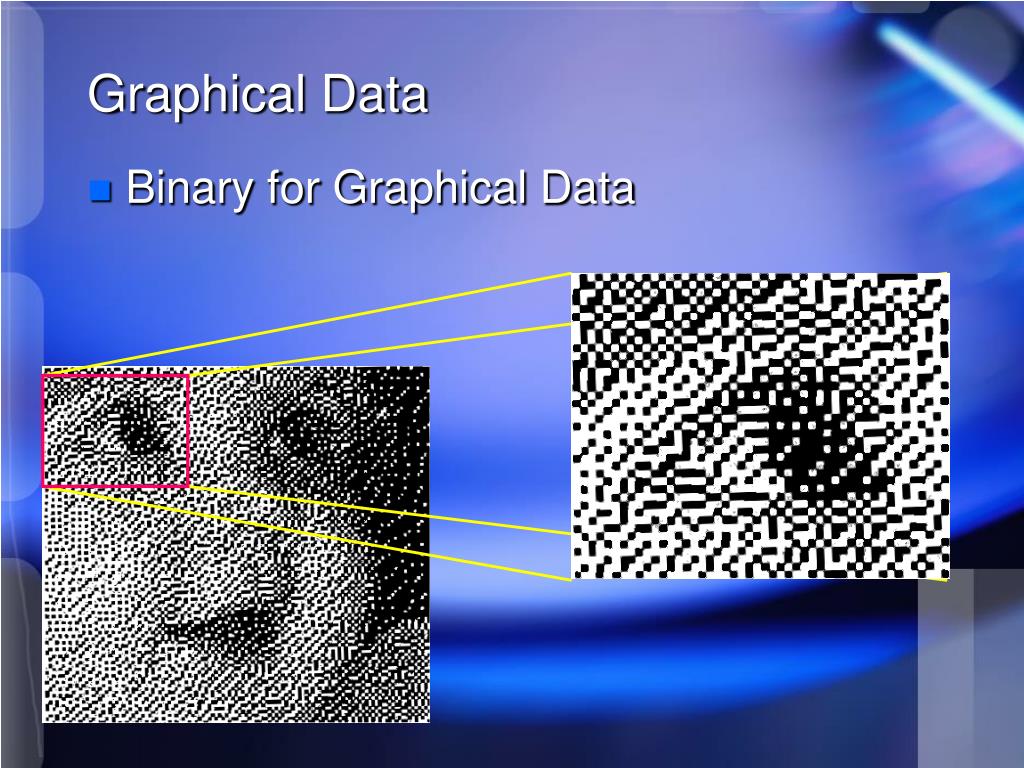

  12. Graphical Data • Binary for Graphical Data

  13. Graphical Data • Binary for Graphical Data • Each black pixel is represented as a “1” • Each white pixel is represented as a “0” • Pixels are grouped in units of 8 so they can be stored in 1 byte

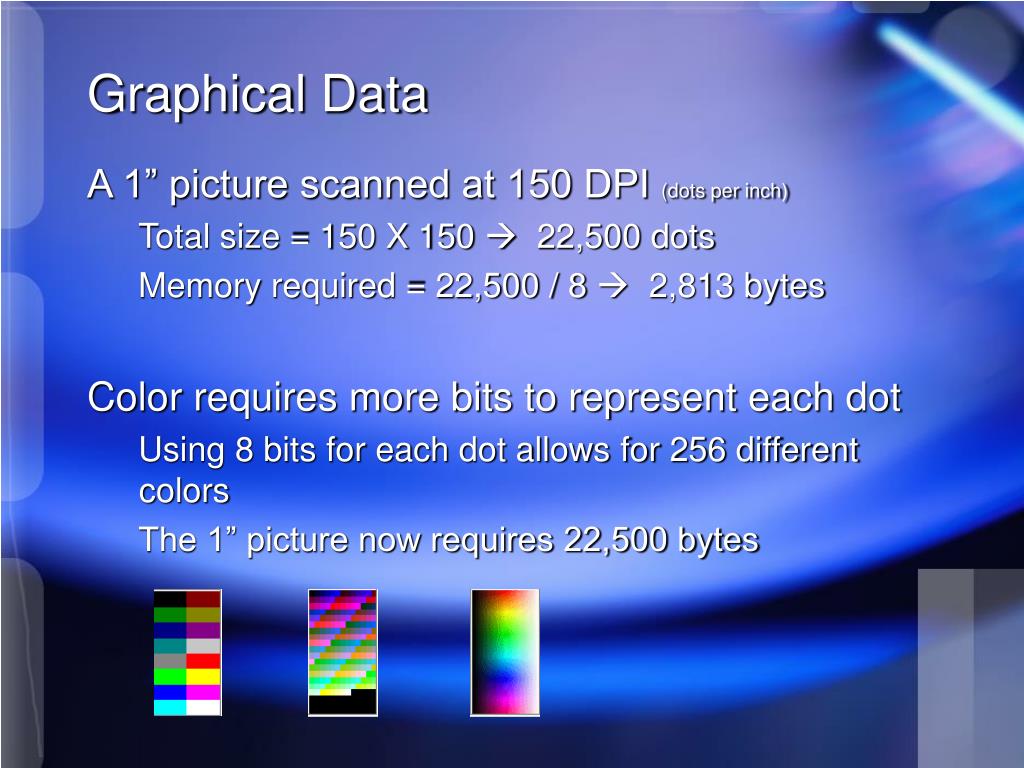

  14. Graphical Data A 1” picture scanned at 150 DPI (dots per inch) Total size = 150 X 150  22,500 dots Memory required = 22,500 / 8  2,813 bytes Color requires more bits to represent each dot Using 8 bits for each dot allows for 256 different colors The 1” picture now requires 22,500 bytes

  15. Graphical Data • Printers are rated in DPI for print quality • Scanners are rated in DPI for image resolution • Monitors / displays have display settings for display resolution • 800 X 600 • 1024 X 768 • 1280 X 1024 • 1400 X 1050

  16. Audio Data • Binary for audio data • Sound as a waveform • Y-axis represents voltage • X-axis represents time • Suppose the wave form shown represents 1 second of sound

  17. Audio Data • Divide Sample into segments

  18. Audio Data • Divide Sample into more segments

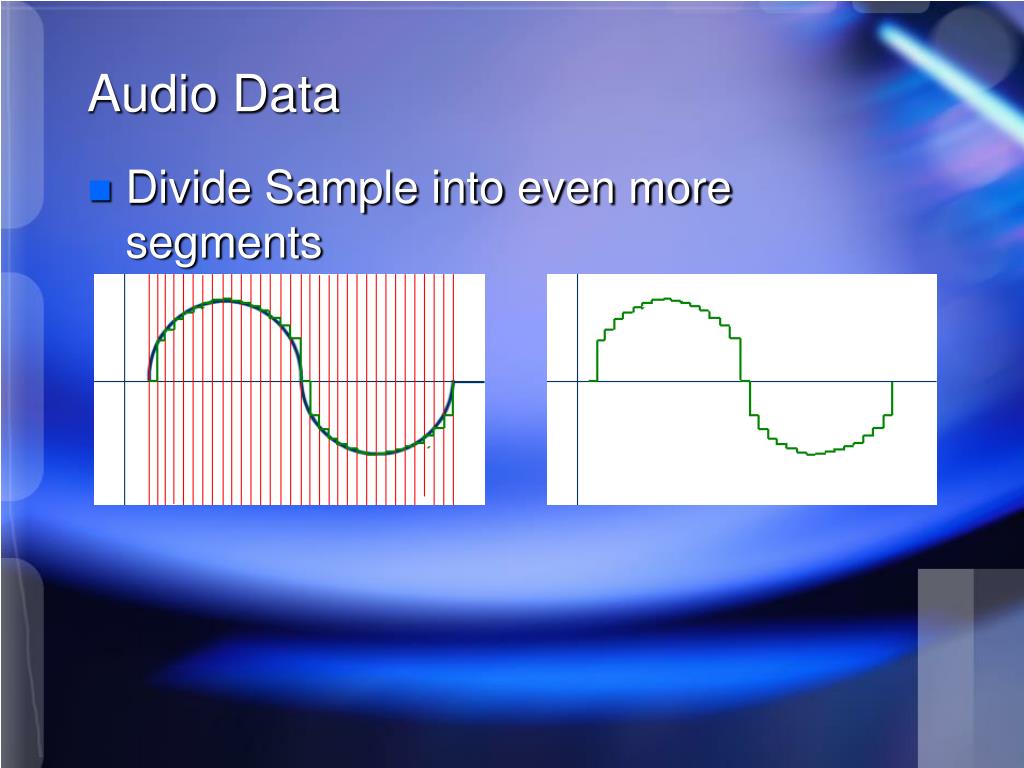

  19. Audio Data • Divide Sample into even more segments

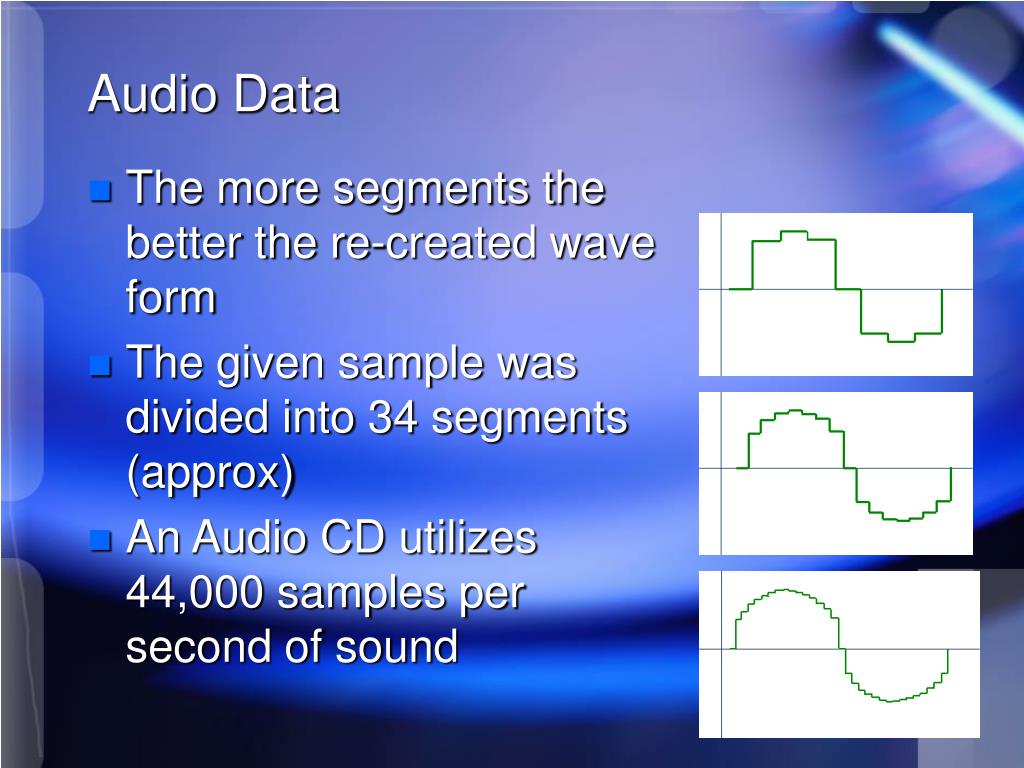

  20. Audio Data • The more segments the better the re-created wave form • The given sample was divided into 34 segments (approx) • An Audio CD utilizes 44,000 samples per second of sound

  21. Instructional Data • Binary for Instructional Data • Instructional Data has not only content but sequence • Driving directions to NJ Aquarium • Designated number of steps • Sequence of steps is critical to success • Rearranging sequence will not get you to the NJ Acquarium • Recipe / Directions / Program

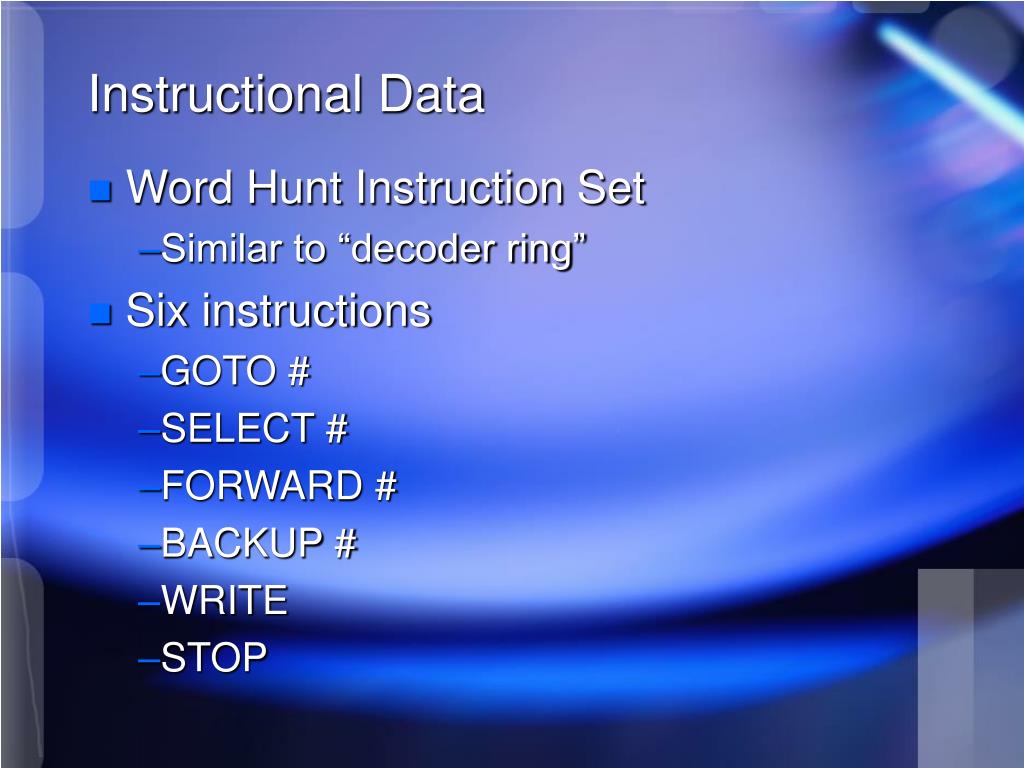

  22. Instructional Data • Word Hunt Instruction Set • Similar to “decoder ring” • Six instructions • GOTO # • SELECT # • FORWARD # • BACKUP # • WRITE • STOP

  23. Instructional Data • A program is a collection of instructions • Executing the program means to “carry out” the listed instructions • GOTO# - turn to designated page • SELECT# - count down this many lines • FORWARD# - count in this many words

  24. Instructional Data • Real computers have different types of instructions • Arithmetic • Data Movement • Logical / Comparison • Control • Input / Output
