Clock Upset and Finite State Machines

This study examines the vulnerability of finite state machines (FSMs) to Single Event Transients (SETs) induced by heavy ion strikes. SETs can cause clock upsets that may lead to multiple bit errors and affect error correction techniques like parity and Hamming codes. Key findings include critical transient width versus feature size, the significance of clock tree buffers, and the potential for error mitigation through temporal sampling latches. Recommendations for hardening FSMs against SETs are provided along with insights into the trade-offs required in high-radiation environments.

laszlo
Télécharger la présentation

Clock Upset and Finite State Machines

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

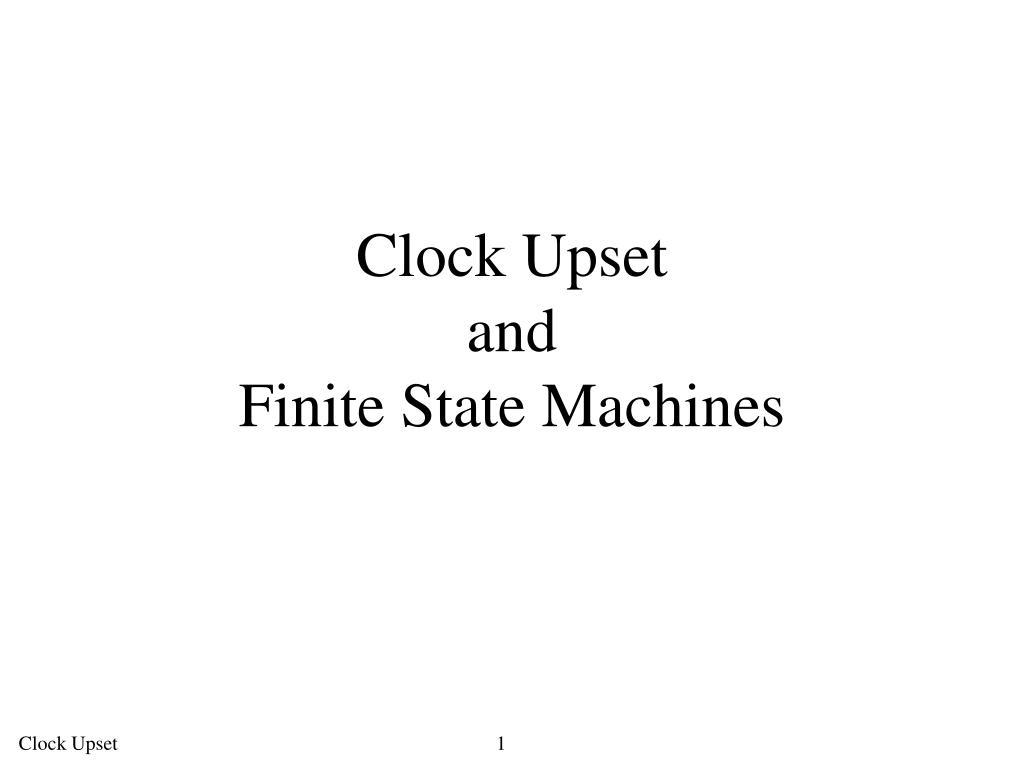

  1. Clock UpsetandFinite State Machines

  2. Single Event Transient (SET) Fraction of a nanosecond to several nanoseconds. From Aerospace

  3. Critical Transient Width vs FeatureSize for Unattenuated Propagation From Mavis

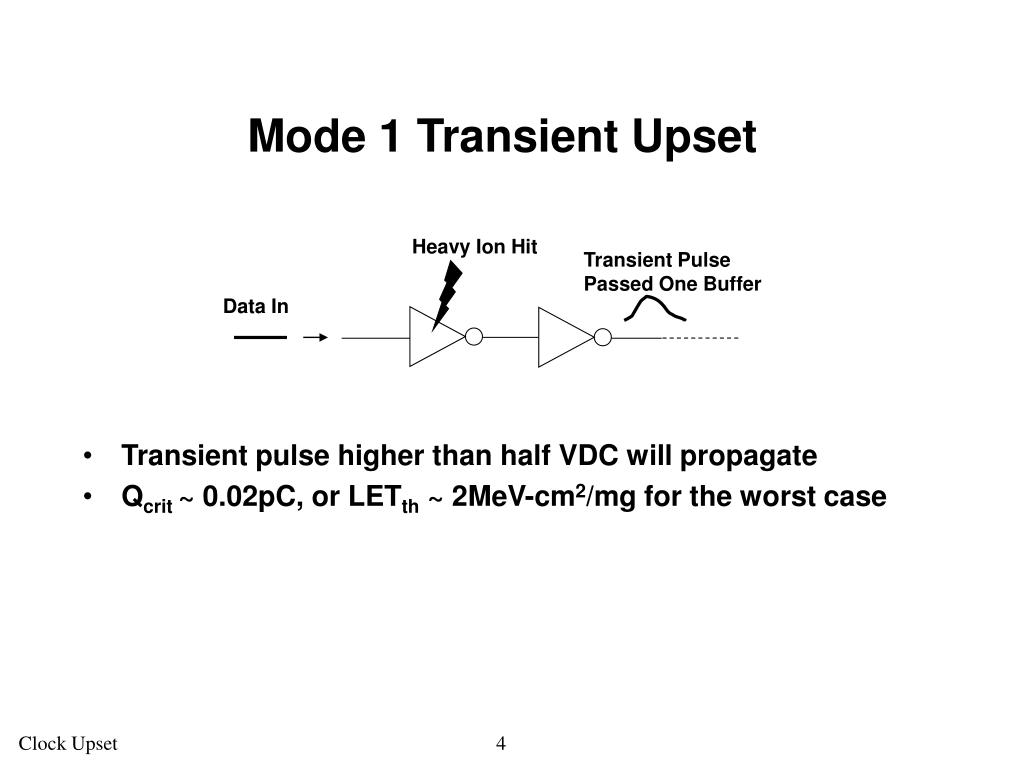

  4. Heavy Ion Hit Transient Pulse Passed One Buffer Data In Mode 1 Transient Upset • Transient pulse higher than half VDC will propagate • Qcrit ~ 0.02pC, or LETth ~ 2MeV-cm2/mg for the worst case

  5. Double Clocking As a Result of Heavy Ion Induced Pulse Heavy ion induced negative pulse Cartoon of clock/logic upset. The device is most sensitive during the transition.

  6. Simulated Upsets for Various LETs Can get narrow and runt pulses.

  7. Row Buffer Input Pad (14 Rows) Clock Buffer Clock Tree BuffersSensitive to SETs Heavy Ion

  8. Clock Upset Instrumentation Differential Error Counts Cumulative Error Counts

  9. Clock Upset Cross Section

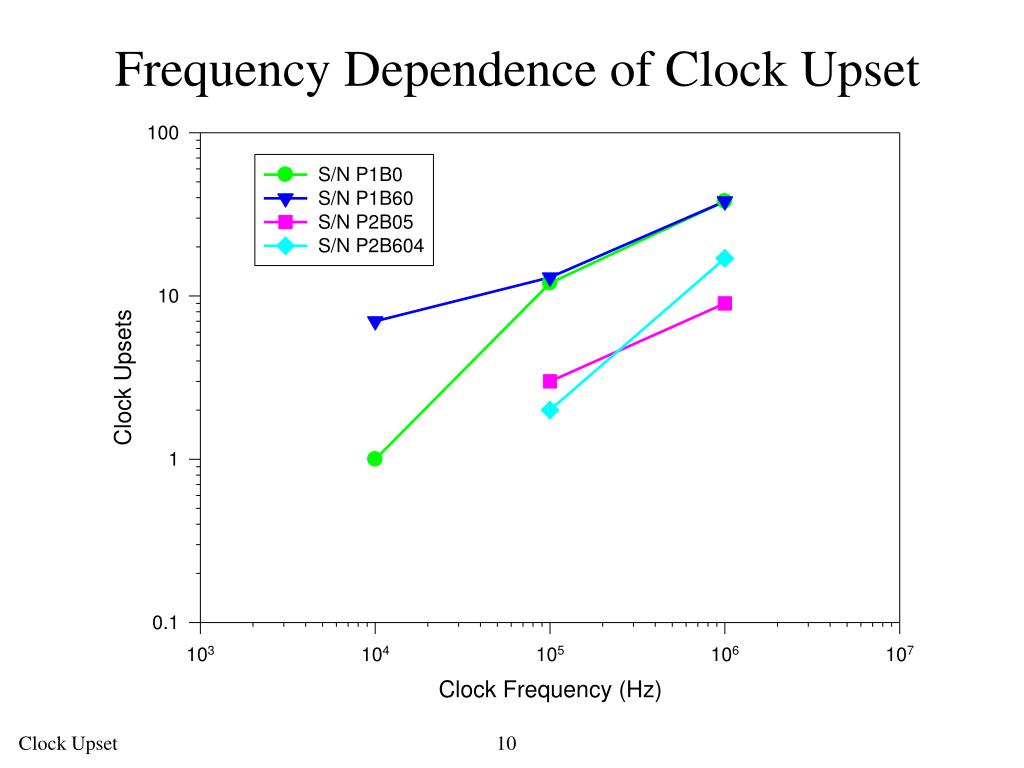

  10. Frequency Dependence of Clock Upset
