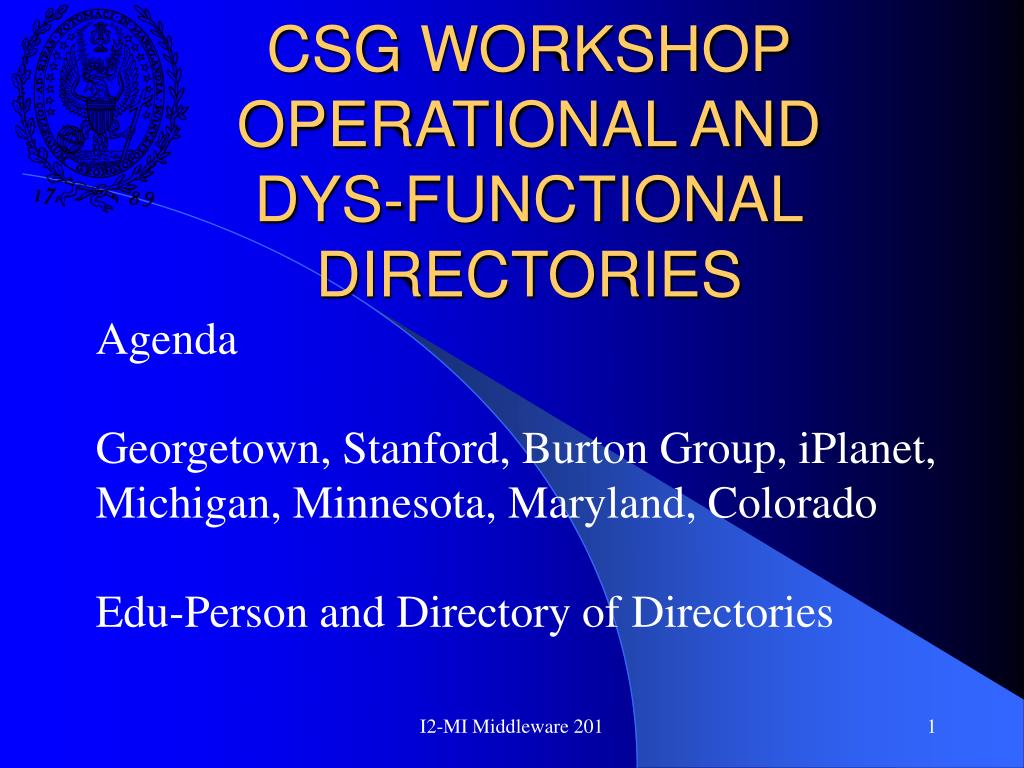

  1. CSG WORKSHOPOPERATIONAL ANDDYS-FUNCTIONALDIRECTORIES Agenda Georgetown, Stanford, Burton Group, iPlanet, Michigan, Minnesota, Maryland, Colorado Edu-Person and Directory of Directories I2-MI Middleware 201

  2. Directory Operations It’s Getting Deeper Internet2 Middleware 201 Michael R. Gettes Lead Application Systems Integrator Georgetown University gettes@Georgetown.EDU I2-MI Middleware 201

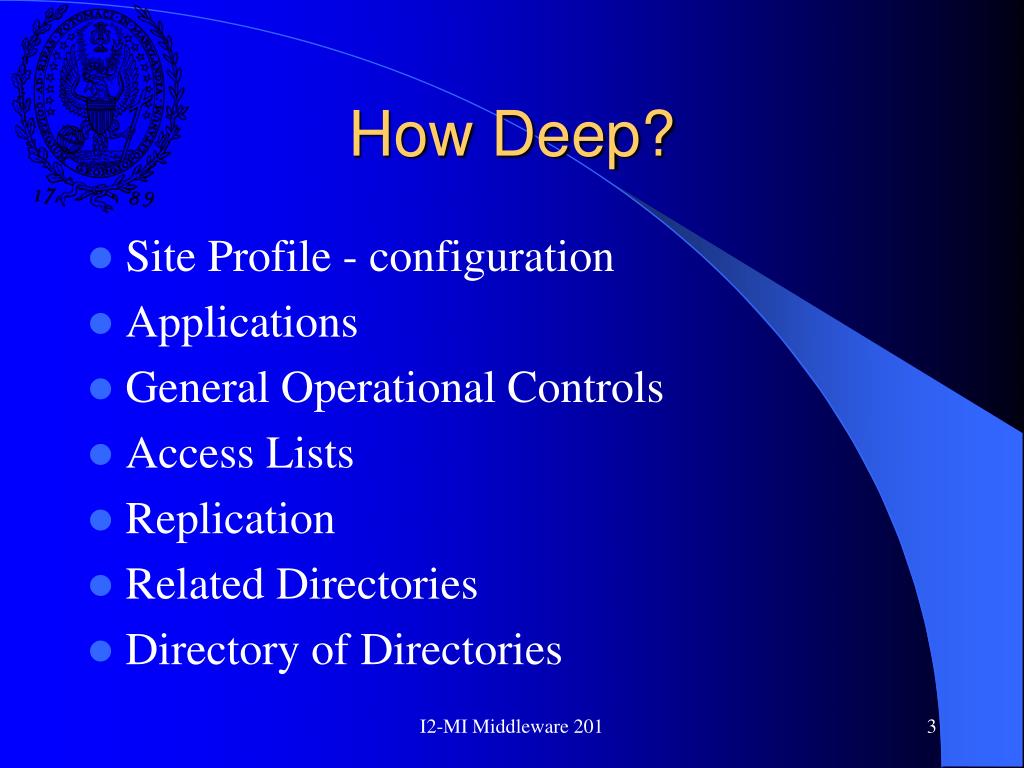

  3. How Deep? • Site Profile - configuration • Applications • General Operational Controls • Access Lists • Replication • Related Directories • Directory of Directories I2-MI Middleware 201

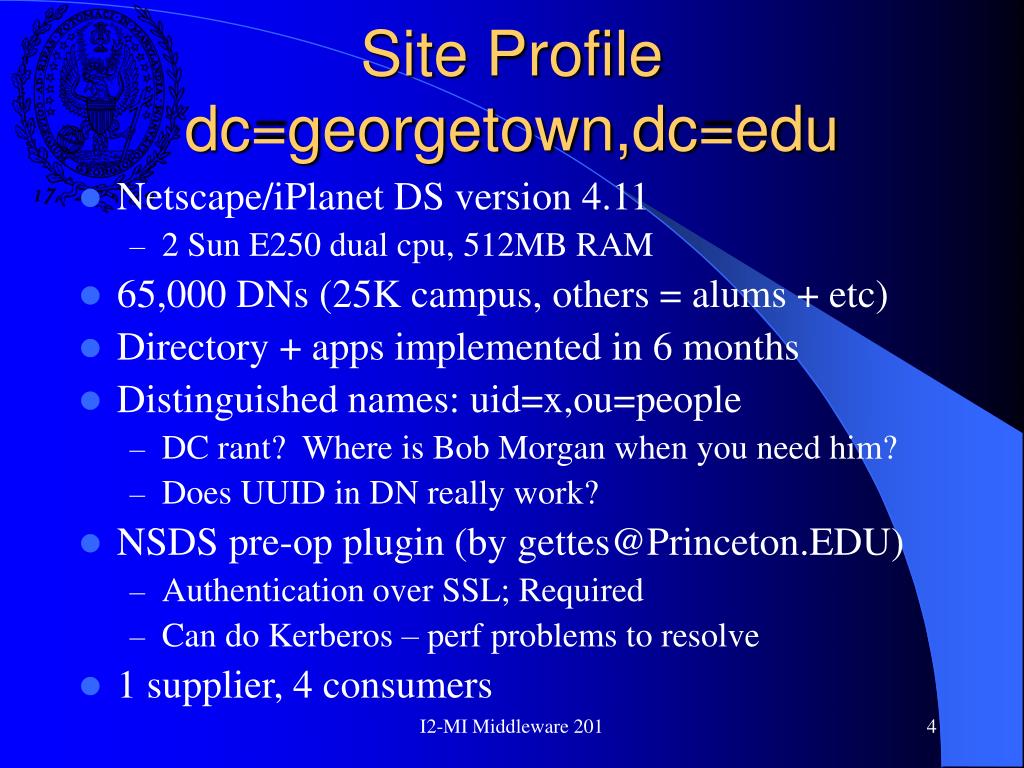

  4. Site Profile dc=georgetown,dc=edu • Netscape/iPlanet DS version 4.11 • 2 Sun E250 dual cpu, 512MB RAM • 65,000 DNs (25K campus, others = alums + etc) • Directory + apps implemented in 6 months • Distinguished names: uid=x,ou=people • DC rant? Where is Bob Morgan when you need him? • Does UUID in DN really work? • NSDS pre-op plugin (by gettes@Princeton.EDU) • Authentication over SSL; Required • Can do Kerberos – perf problems to resolve • 1 supplier, 4 consumers I2-MI Middleware 201

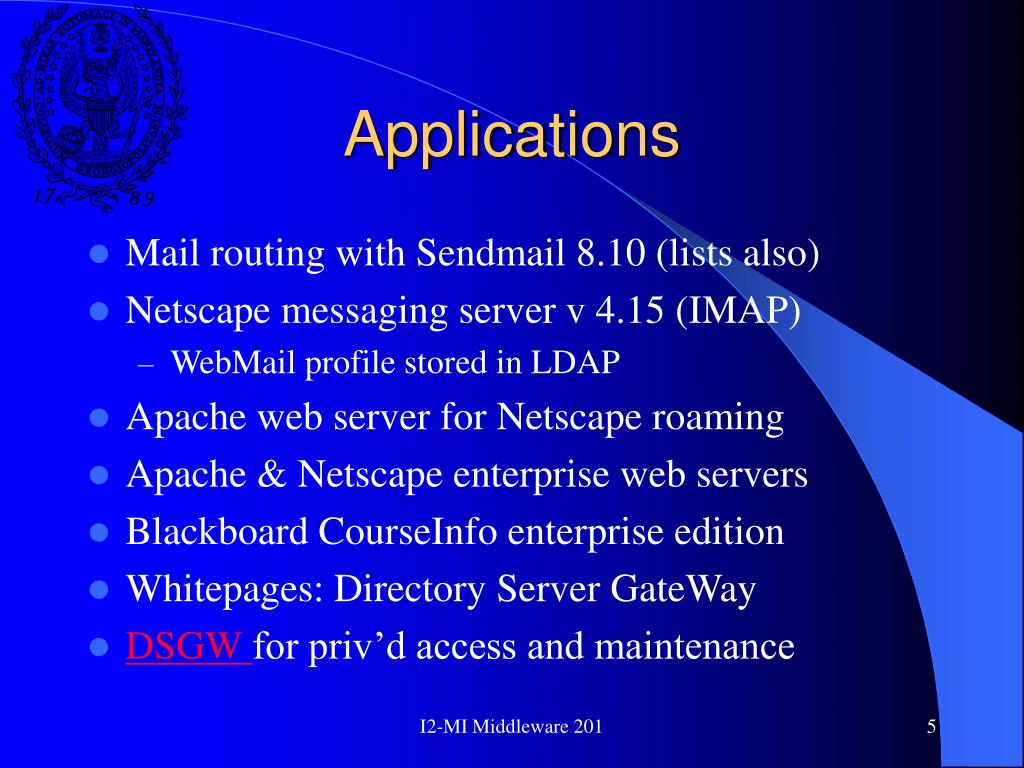

  5. Applications • Mail routing with Sendmail 8.10 (lists also) • Netscape messaging server v 4.15 (IMAP) • WebMail profile stored in LDAP • Apache web server for Netscape roaming • Apache & Netscape enterprise web servers • Blackboard CourseInfo enterprise edition • Whitepages: Directory Server GateWay • DSGW for priv’d access and maintenance I2-MI Middleware 201

  6. Applications (Continued) • Remote access with RADIUS (funk). • No SSL or proper LDAP binding (as of 3/2000). • Authenticates and authorizes for dial-up, DSL and VPN services using RADIUS called-id. • Alumni services (HoyasOnline). • External vendor in Dallas, TX (PCI). • They authenticate back to home directories. Apache used to authenticate and proxy to backend IIS server. • Email Forwarding for Life! I2-MI Middleware 201

  7. Applications (Continued) • Specialized support apps • Self service mail routing • Help Desk: mail routing, password resets, quota management via DSGW • Change password web page • Person registry populates LDAP people data, currently MVS based. • PerLDAP used quite a bit – very powerful! I2-MI Middleware 201

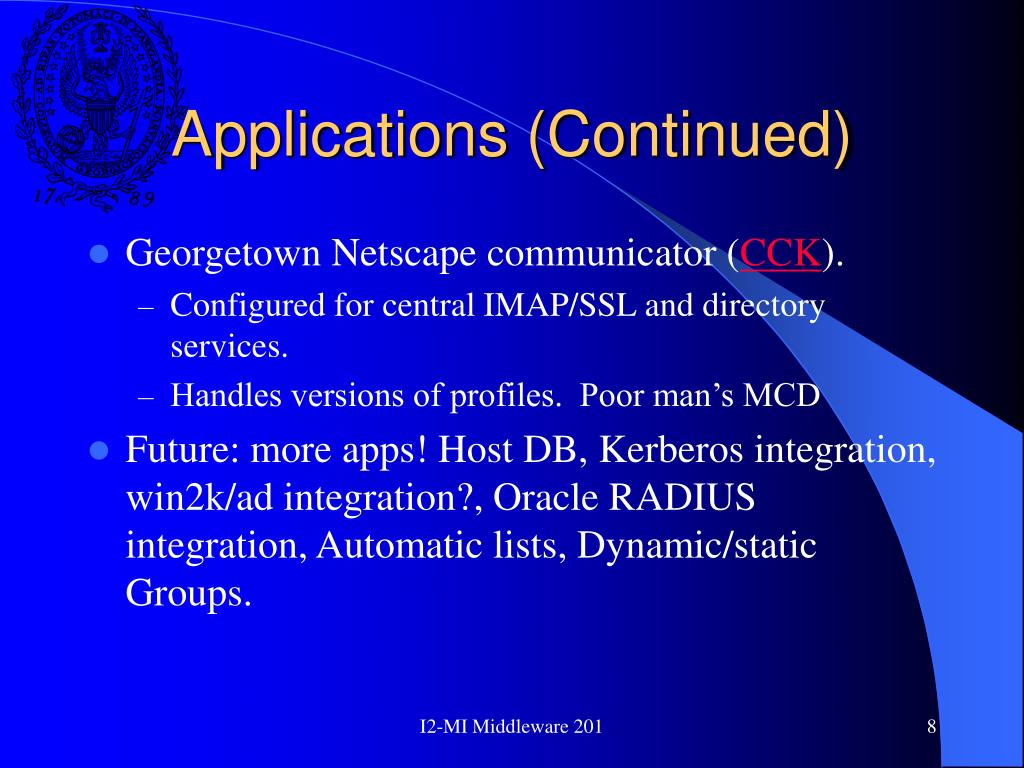

  8. Applications (Continued) • Georgetown Netscape communicator (CCK). • Configured for central IMAP/SSL and directory services. • Handles versions of profiles. Poor man’s MCD • Future: more apps! Host DB, Kerberos integration, win2k/ad integration?, Oracle RADIUS integration, Automatic lists, Dynamic/static Groups. I2-MI Middleware 201

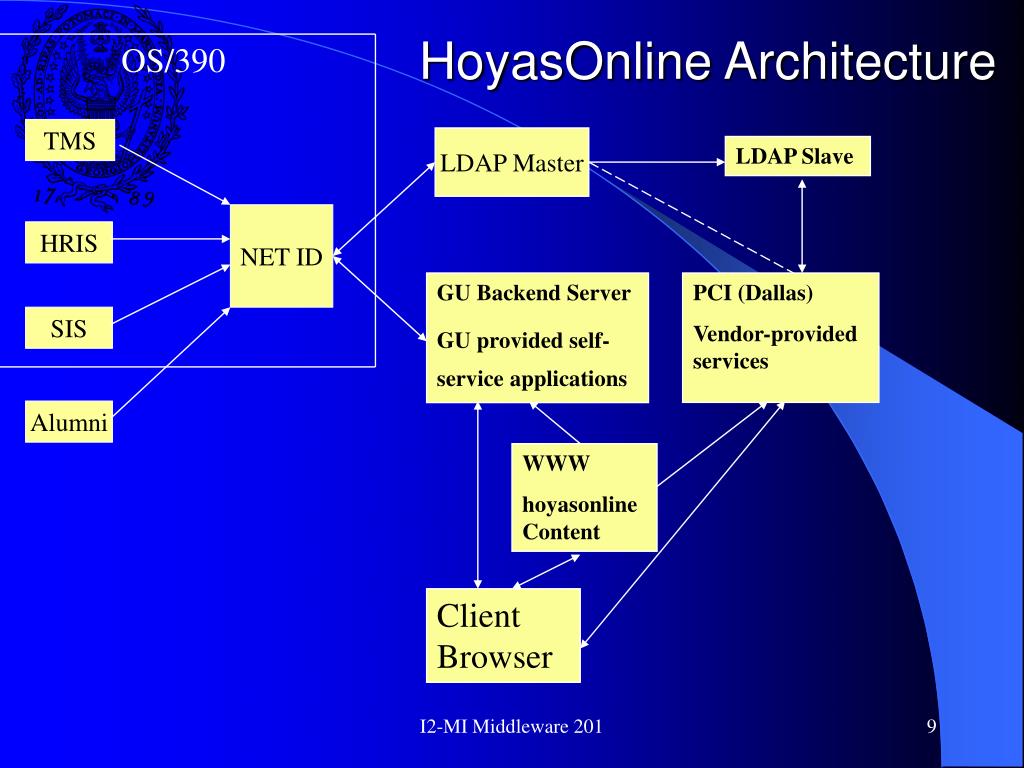

  9. HoyasOnline Architecture OS/390 TMS LDAP Master LDAP Slave NET ID HRIS GU Backend Server GU provided self-service applications PCI (Dallas) Vendor-provided services SIS Alumni WWW hoyasonline Content Client Browser I2-MI Middleware 201

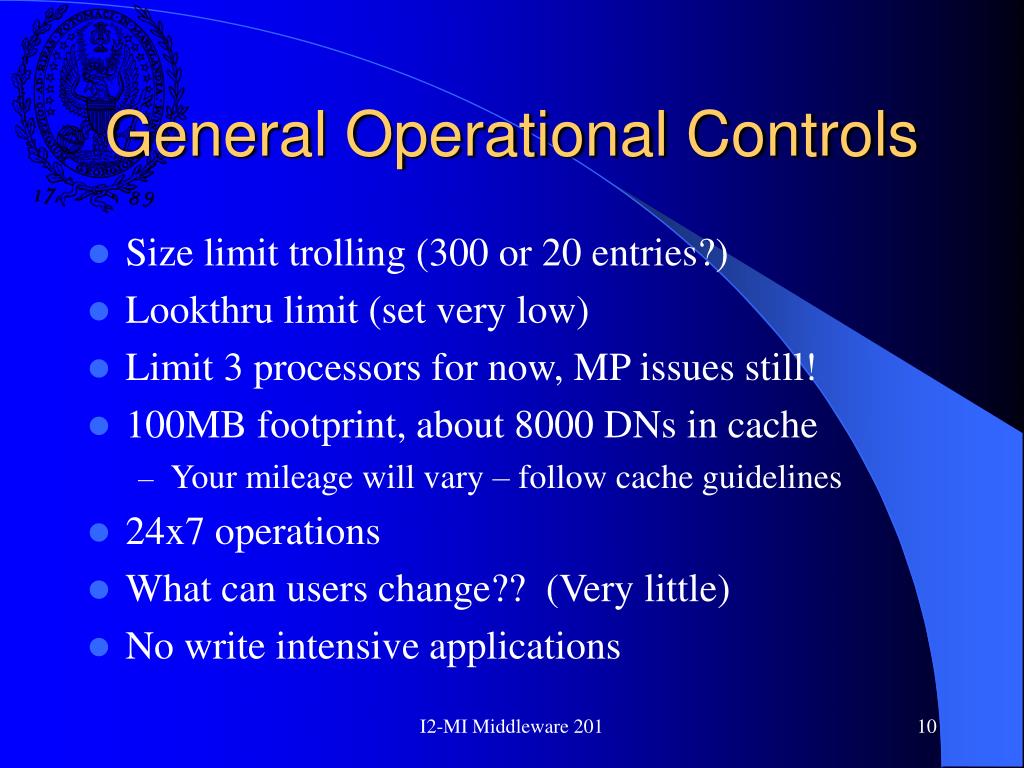

  10. General Operational Controls • Size limit trolling (300 or 20 entries?) • Lookthru limit (set very low) • Limit 3 processors for now, MP issues still! • 100MB footprint, about 8000 DNs in cache • Your mileage will vary – follow cache guidelines • 24x7 operations • What can users change?? (Very little) • No write intensive applications I2-MI Middleware 201

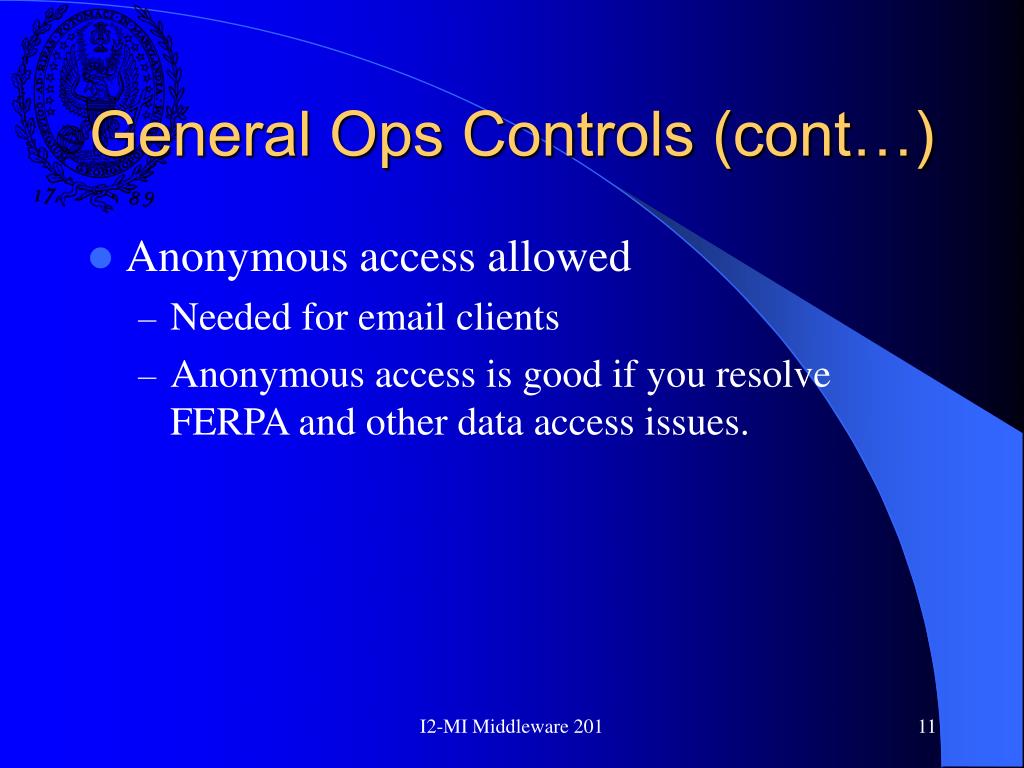

  11. General Ops Controls (cont…) • Anonymous access allowed • Needed for email clients • Anonymous access is good if you resolve FERPA and other data access issues. I2-MI Middleware 201

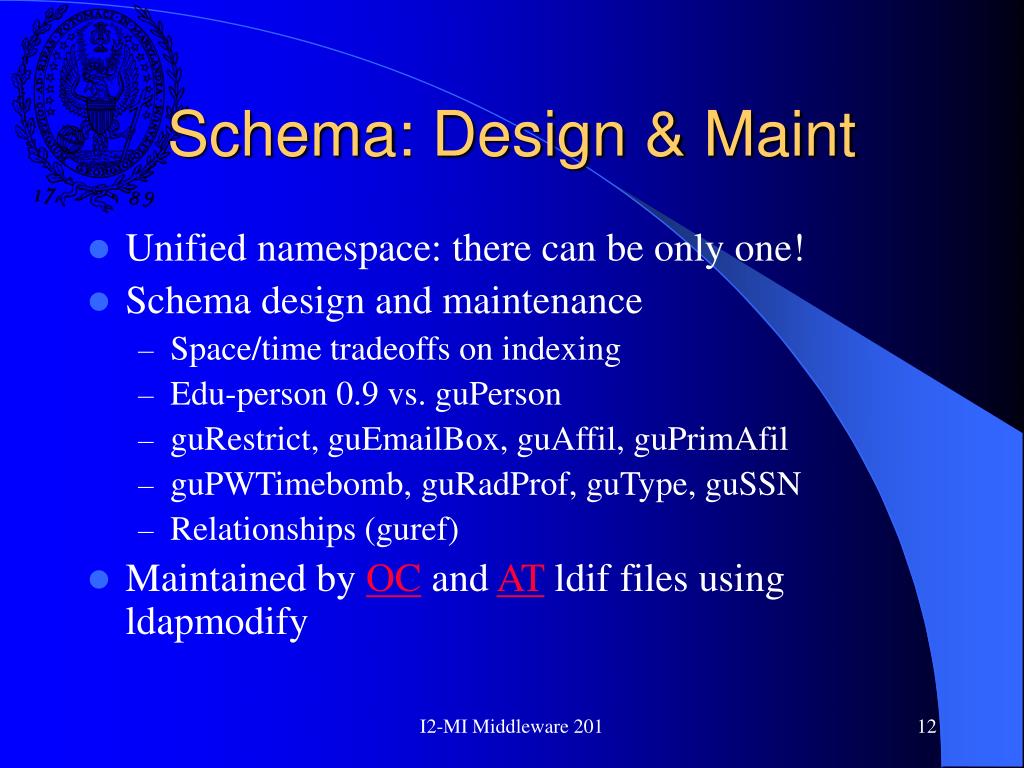

  12. Schema: Design & Maint • Unified namespace: there can be only one! • Schema design and maintenance • Space/time tradeoffs on indexing • Edu-person 0.9 vs. guPerson • guRestrict, guEmailBox, guAffil, guPrimAfil • guPWTimebomb, guRadProf, guType, guSSN • Relationships (guref) • Maintained by OC and AT ldif files using ldapmodify I2-MI Middleware 201

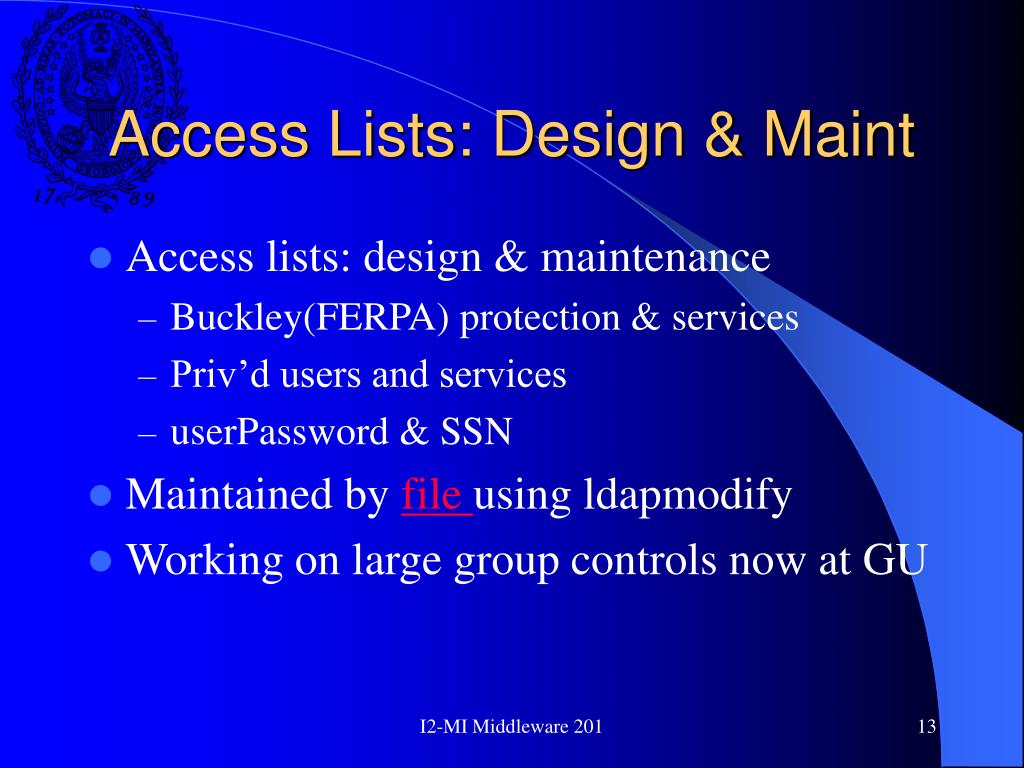

  13. Access Lists: Design & Maint • Access lists: design & maintenance • Buckley(FERPA) protection & services • Priv’d users and services • userPassword & SSN • Maintained by file using ldapmodify • Working on large group controls now at GU I2-MI Middleware 201

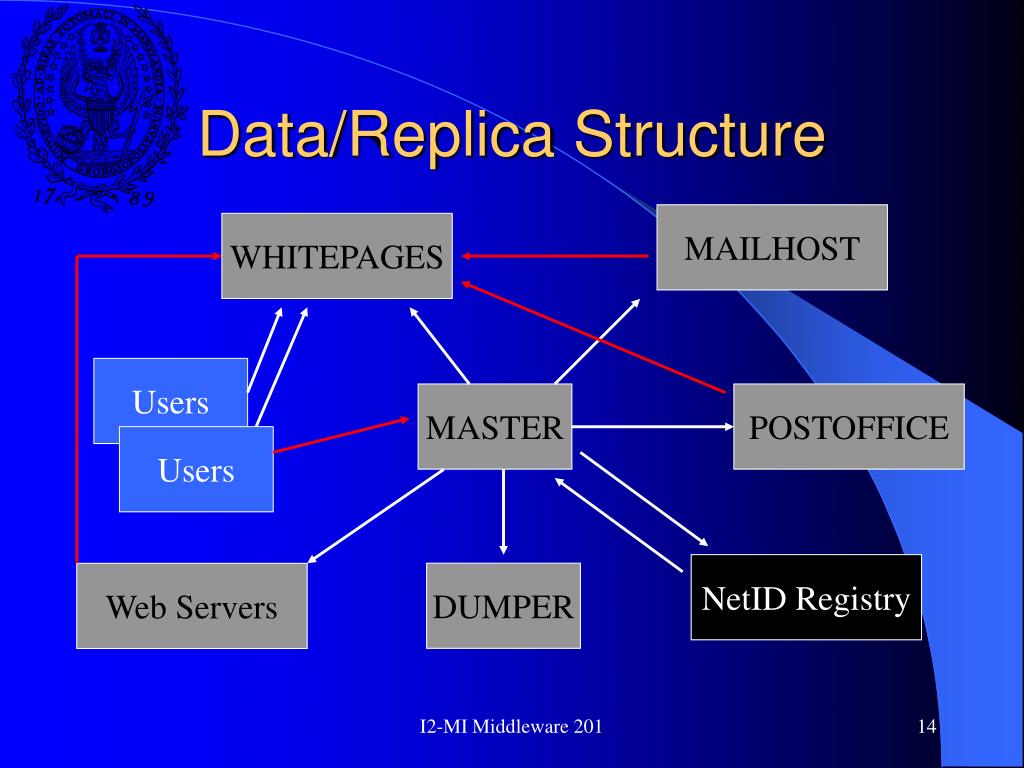

  14. Data/Replica Structure MAILHOST WHITEPAGES Users MASTER POSTOFFICE Users NetID Registry DUMPER Web Servers I2-MI Middleware 201

  15. Replication • Application/user performance • Failover, user and app service • Impact of DC= naming (replica init) • Monitoring: web page and notification • Dumper replica – periodic LDIF dumps • Backups? We don’t need no stinkin’ backups! • No good solution for backups I2-MI Middleware 201

  16. Replication (Continued) • Application/users config for mult servers • Deterministic operations vs random • Failover works for online repairs • Config servers are replicated also • 10 to 1 SRA/CRA ratio recommended • Cannot cascade with DC= (netscape) • Cascading is scary to me I2-MI Middleware 201

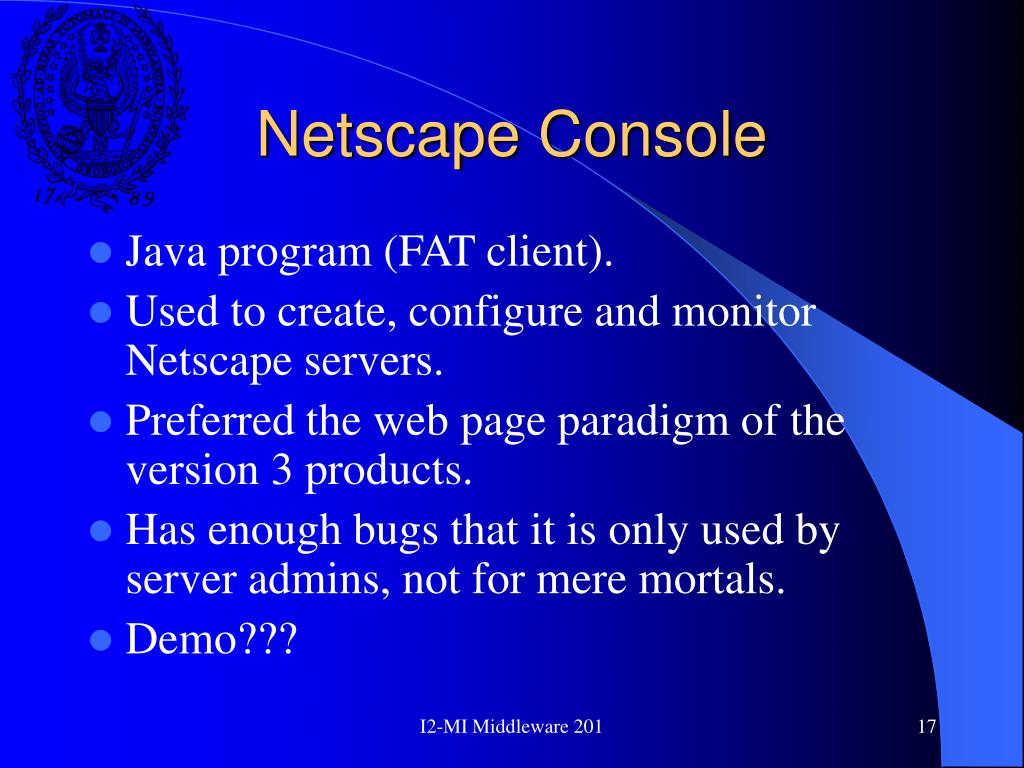

  17. Netscape Console • Java program (FAT client). • Used to create, configure and monitor Netscape servers. • Preferred the web page paradigm of the version 3 products. • Has enough bugs that it is only used by server admins, not for mere mortals. • Demo??? I2-MI Middleware 201

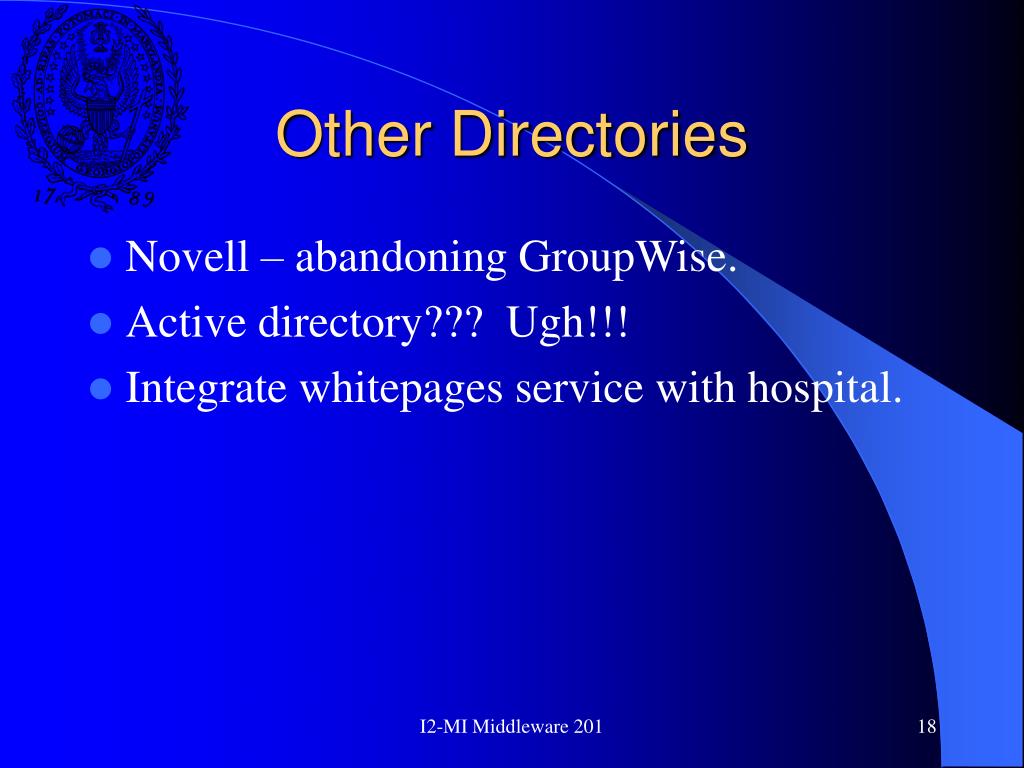

  18. Other Directories • Novell – abandoning GroupWise. • Active directory??? Ugh!!! • Integrate whitepages service with hospital. I2-MI Middleware 201

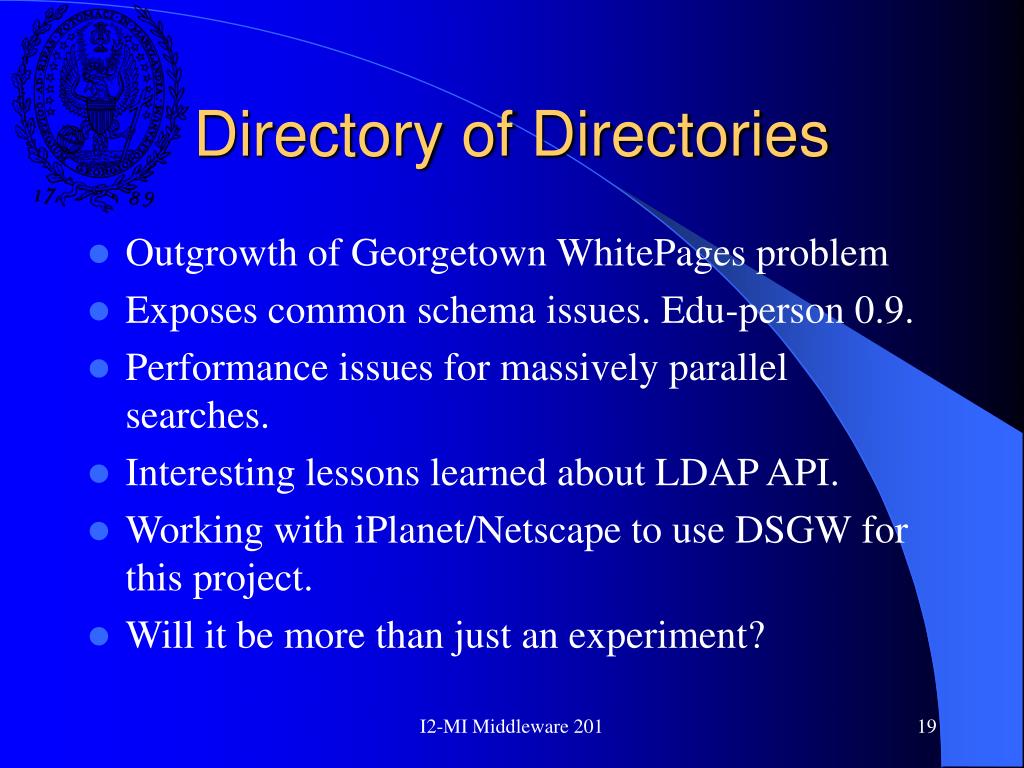

  19. Directory of Directories • Outgrowth of Georgetown WhitePages problem • Exposes common schema issues. Edu-person 0.9. • Performance issues for massively parallel searches. • Interesting lessons learned about LDAP API. • Working with iPlanet/Netscape to use DSGW for this project. • Will it be more than just an experiment? I2-MI Middleware 201
