Buckling of Columns

Buckling of Columns. A designer should satisfy. Strength requirements (Ultimate Strength, Plasticity) Deflection requirements (Serviceability) Stability requirements Fatigue and Fracture Strengths Durability conditions. If specified conditions are exceeded the structure is assumed

leighna
Télécharger la présentation

Buckling of Columns

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

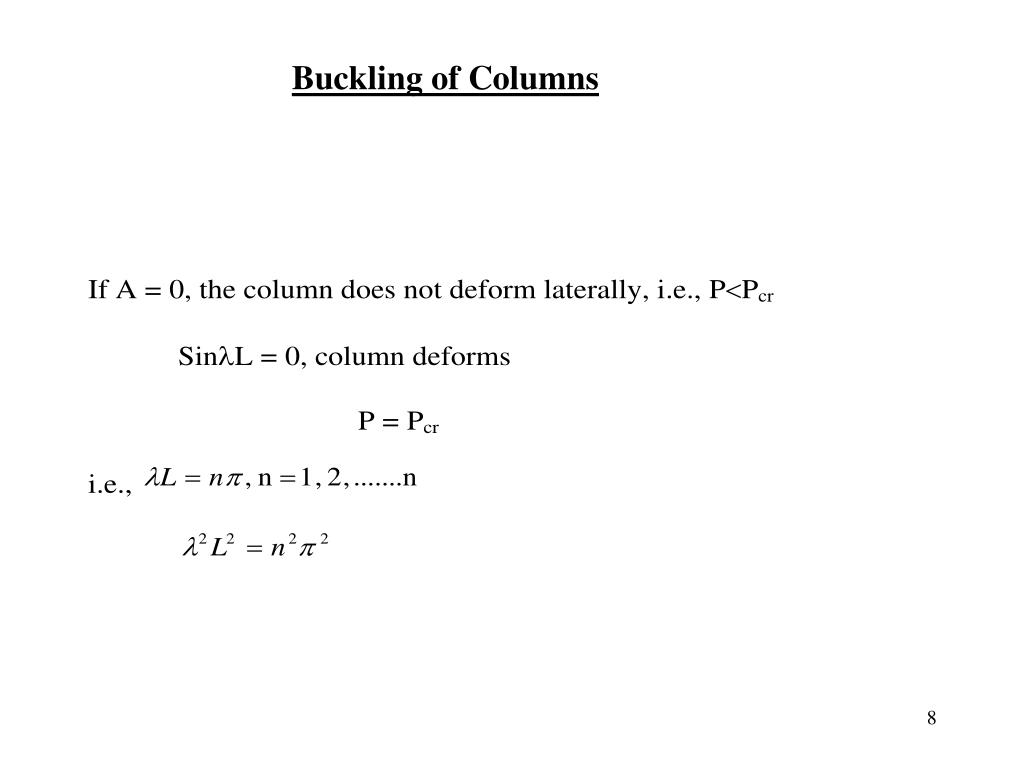

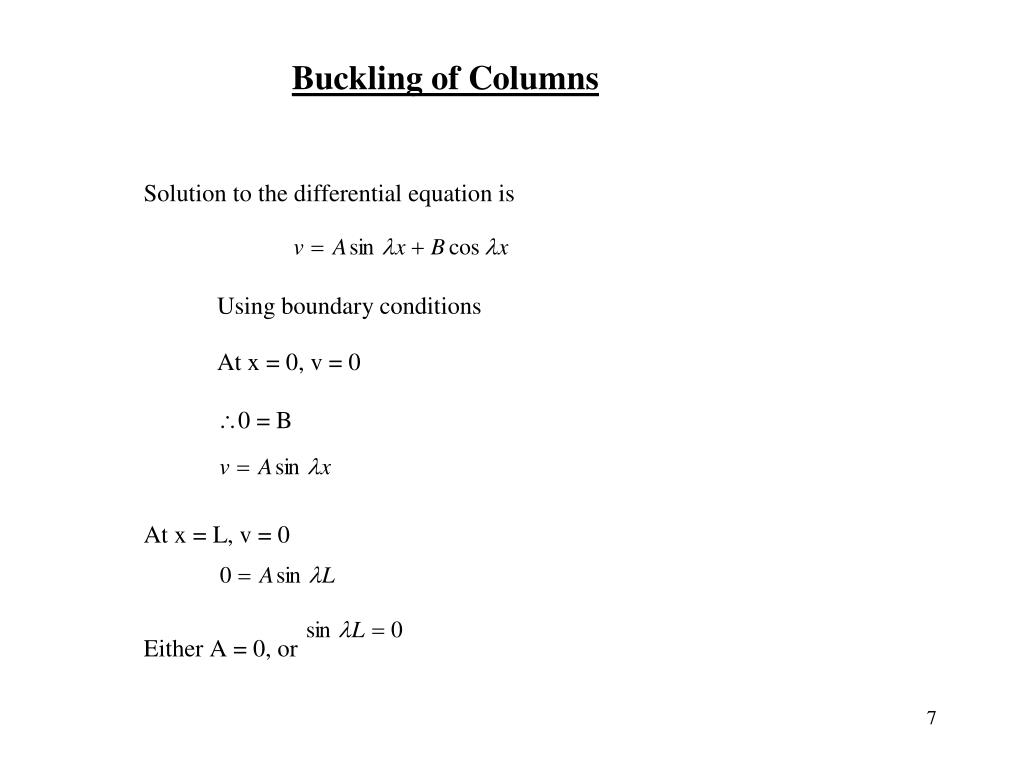

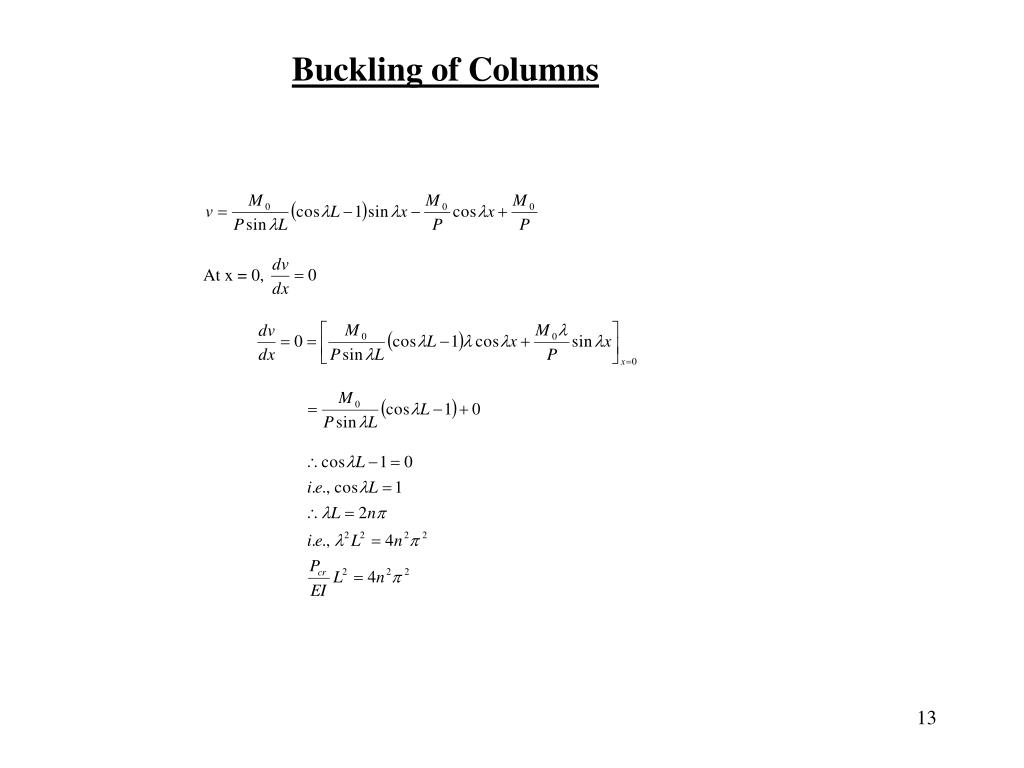

  1. Buckling of Columns A designer should satisfy • Strength requirements (Ultimate Strength, Plasticity) • Deflection requirements (Serviceability) • Stability requirements • Fatigue and Fracture Strengths • Durability conditions If specified conditions are exceeded the structure is assumed to have failed and should be repaired or condemned.

  2. Buckling of Columns Stability requirements can be described under three equilibrium conditions;

  3. Buckling of Columns

  4. Buckling of Columns

  5. Buckling of Columns

  6. Buckling of Columns

  7. Buckling of Columns

  8. Buckling of Columns

  9. Buckling of Columns

  10. Buckling of Columns

  11. Buckling of Columns

  12. Buckling of Columns

  13. Buckling of Columns

  14. Buckling of Columns

  15. Buckling of Columns

  16. Buckling of Columns

  17. Buckling of Columns

  18. Buckling of Columns
