GTK - TDC analysis. Lukas Perktold 24 th February 2010. Progress.  Layout vs Schematic ► Parasitic extraction Corner Simulation ? check Loop Dynamics. LVS. Layout vs Schematic - Match. layout not strictly hierarchically for large designs rather time consuming (~3h per run)

leoma
Télécharger la présentation

GTK - TDC analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

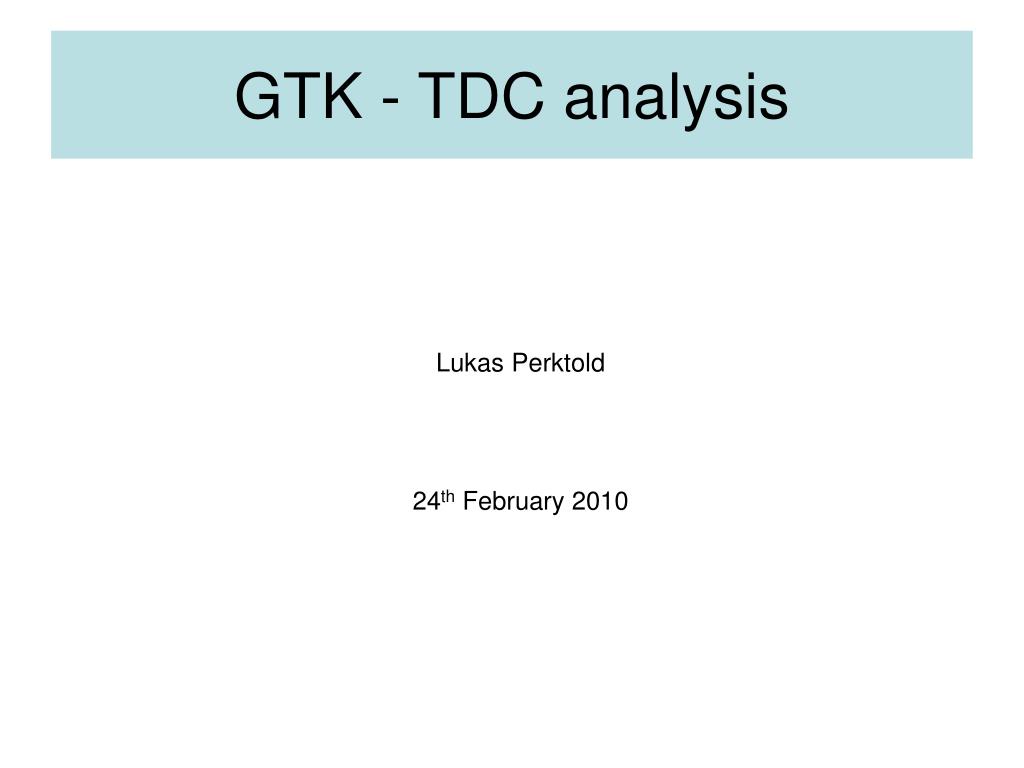

  1. GTK - TDC analysis Lukas Perktold 24th February 2010

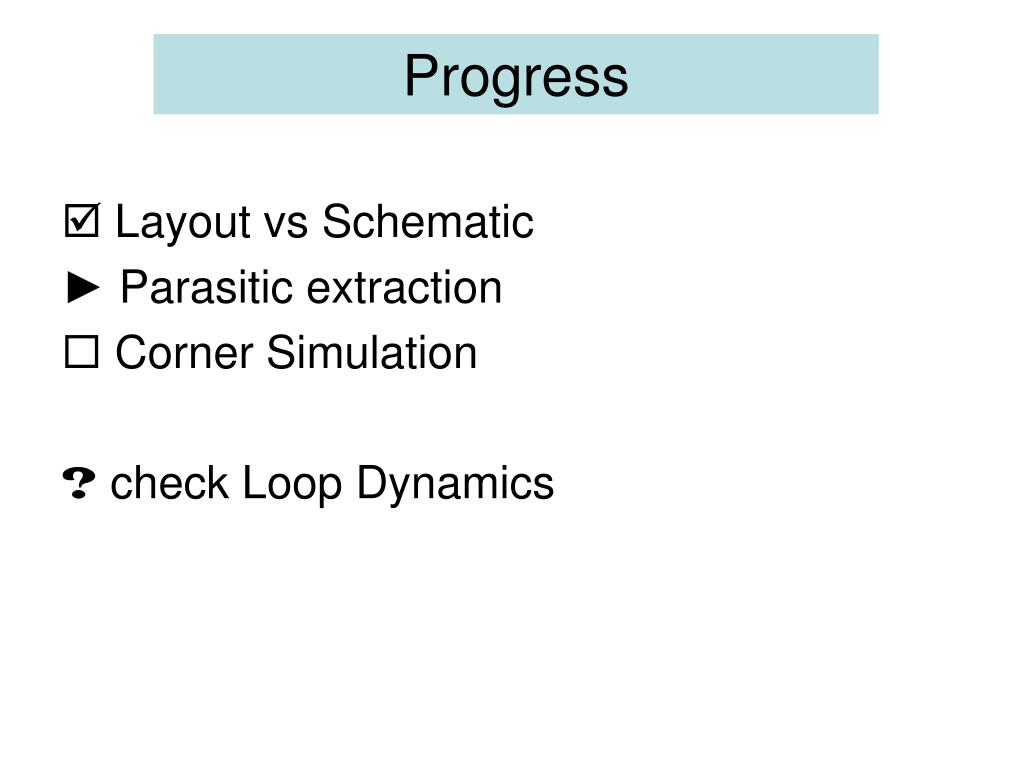

  2. Progress  Layout vs Schematic ► Parasitic extraction • Corner Simulation ? check Loop Dynamics

  3. LVS • Layout vs Schematic - Match • layout not strictly hierarchically • for large designs rather time consuming (~3h per run) • running LVS for DLL and EndOfColumn

  4. Parasitics • two suspicious nodes • both use weak drivers to drive load A) From Delay Line to Phase Detector B) Driver to drive Hit Registers green: strong drivers (factor 8x) blue: “analog” clock signal (550 mV – 1.2 V)

  5. Layout - EndOfColumn <0> <0> <1> <1> <2> <2> <3> <3> Delay Line Hit Registers Coarse Counter + Hit Registers Coarse Counter + Hit Registers <4> <4> <5> <5> <6> <6> <7> <7> <8> <8> Delay Line Delay Line PD, CP, LF & Logic PD, CP, LF & Logic

  6. DL to PD - Parasitics • Metal 2 wire • width = 0.28 um • length ~ 250 um • some minimum distance neighbor • Resistance ~ 50 Ohm • Capacitance ~ 100 fF • time constant: tau = 5 ps • cannot simulate whole circuit with parasitic components • some nodes cannot be extracted -> Design Kit version ?!? (using old version)

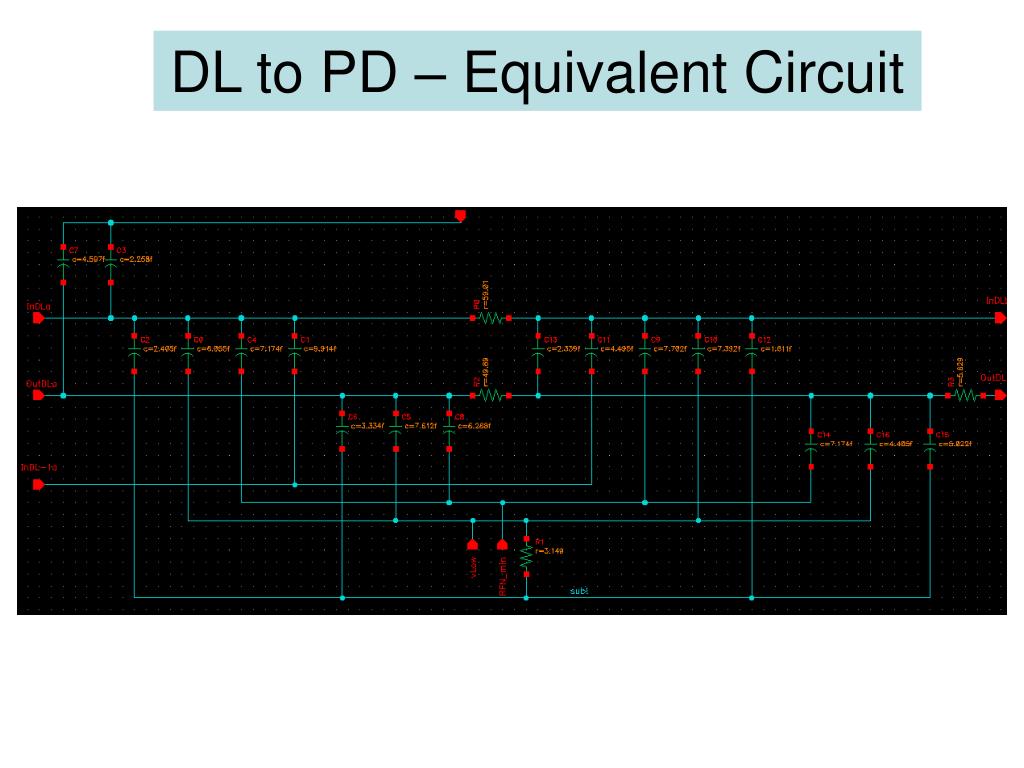

  7. DL to PD – Equivalent Circuit

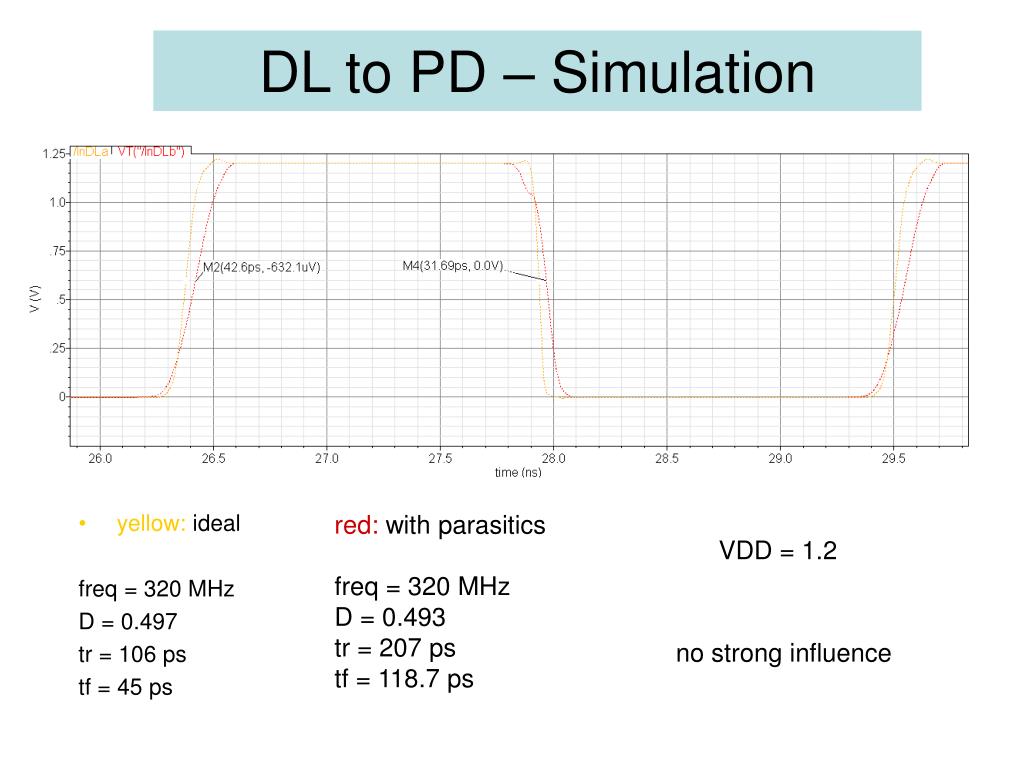

  8. Corners DL to PD – Simulation • yellow: ideal freq = 320 MHz D = 0.497 tr = 106 ps tf = 45 ps red: with parasitics freq = 320 MHz D = 0.493 tr = 207 ps tf = 118.7 ps VDD = 1.2 no strong influence

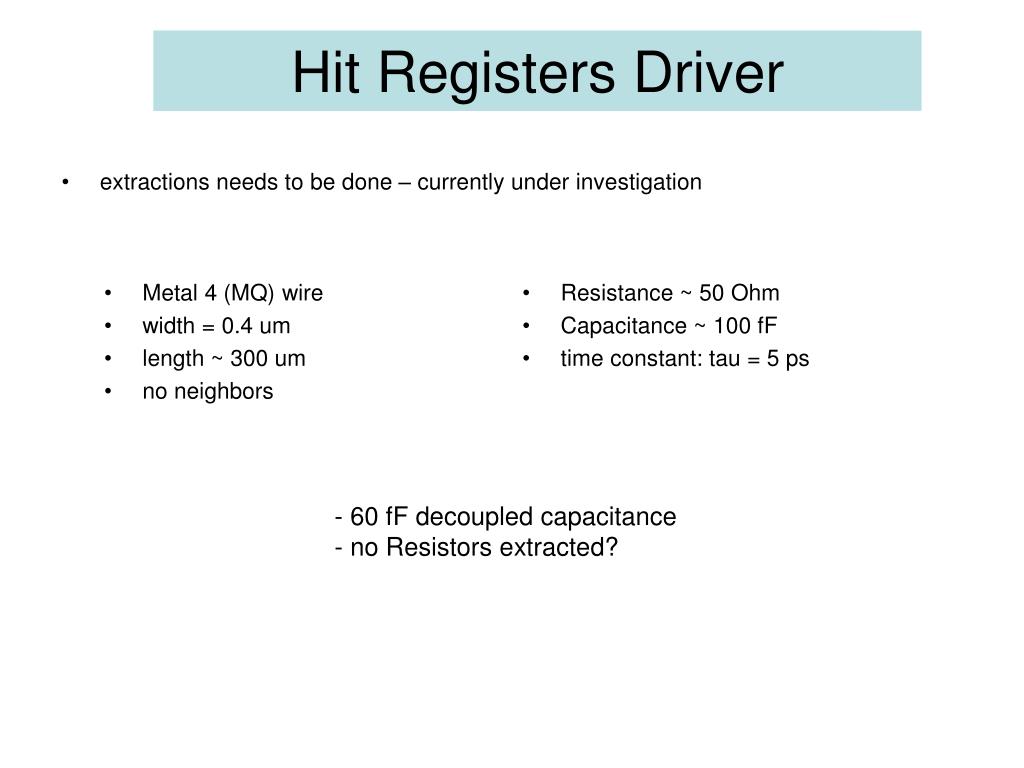

  9. Corners Hit Registers Driver • extractions needs to be done – currently under investigation • Metal 4 (MQ) wire • width = 0.4 um • length ~ 300 um • no neighbors • Resistance ~ 50 Ohm • Capacitance ~ 100 fF • time constant: tau = 5 ps - 60 fF decoupled capacitance - no Resistors extracted?

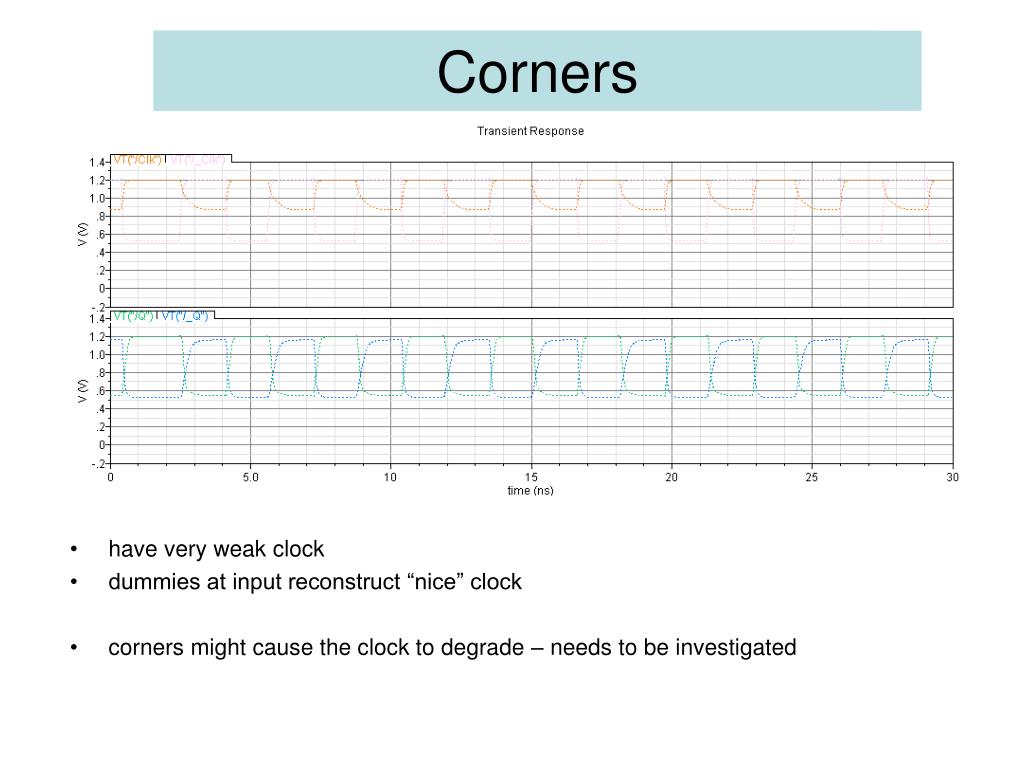

  10. Corners Corners • have very weak clock • dummies at input reconstruct “nice” clock • corners might cause the clock to degrade – needs to be investigated

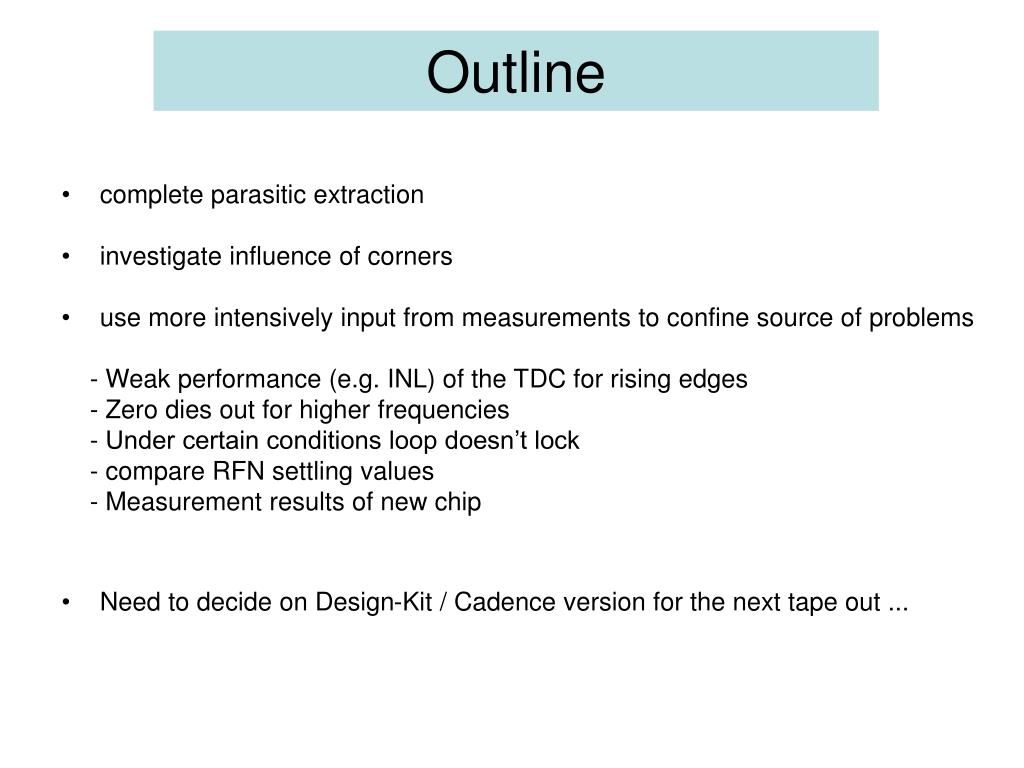

  11. Outline • complete parasitic extraction • investigate influence of corners • use more intensively input from measurements to confine source of problems - Weak performance (e.g. INL) of the TDC for rising edges - Zero dies out for higher frequencies - Under certain conditions loop doesn’t lock - compare RFN settling values - Measurement results of new chip • Need to decide on Design-Kit / Cadence version for the next tape out ...
