  1. TI: An Efficient Indexing Mechanism for Real-Time Search on TweetsSIGMOD ‘11C. Chen et al Pete Bohman Adam Kunk

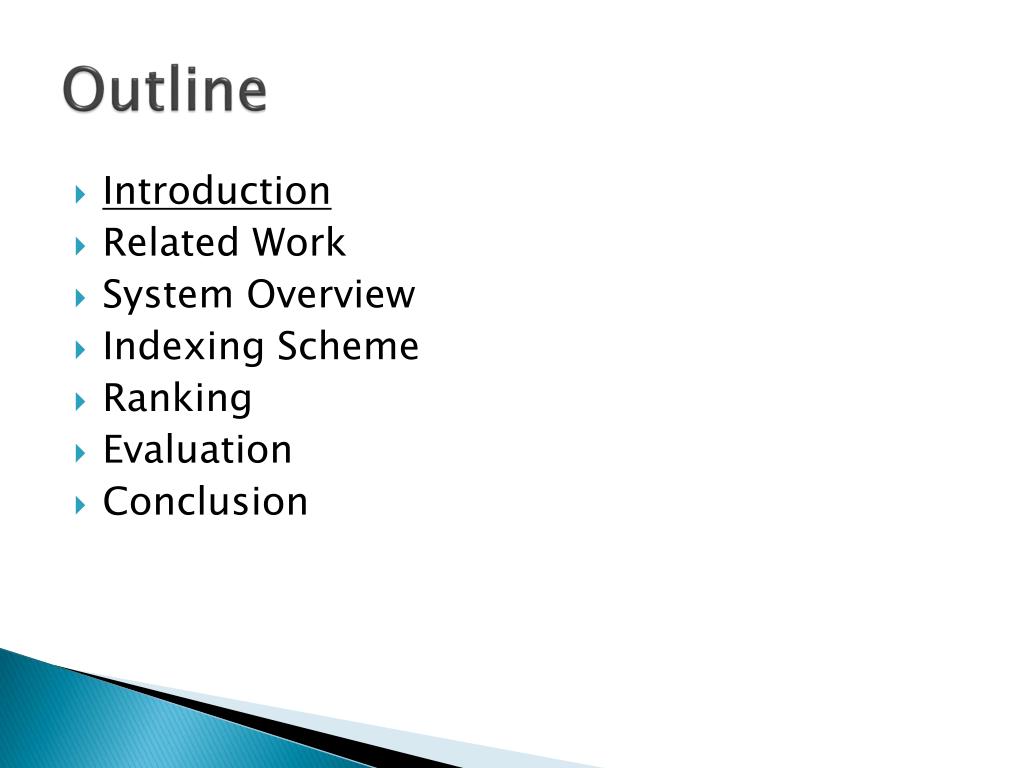

  2. Outline • Introduction • Related Work • System Overview • Indexing Scheme • Ranking • Evaluation • Conclusion

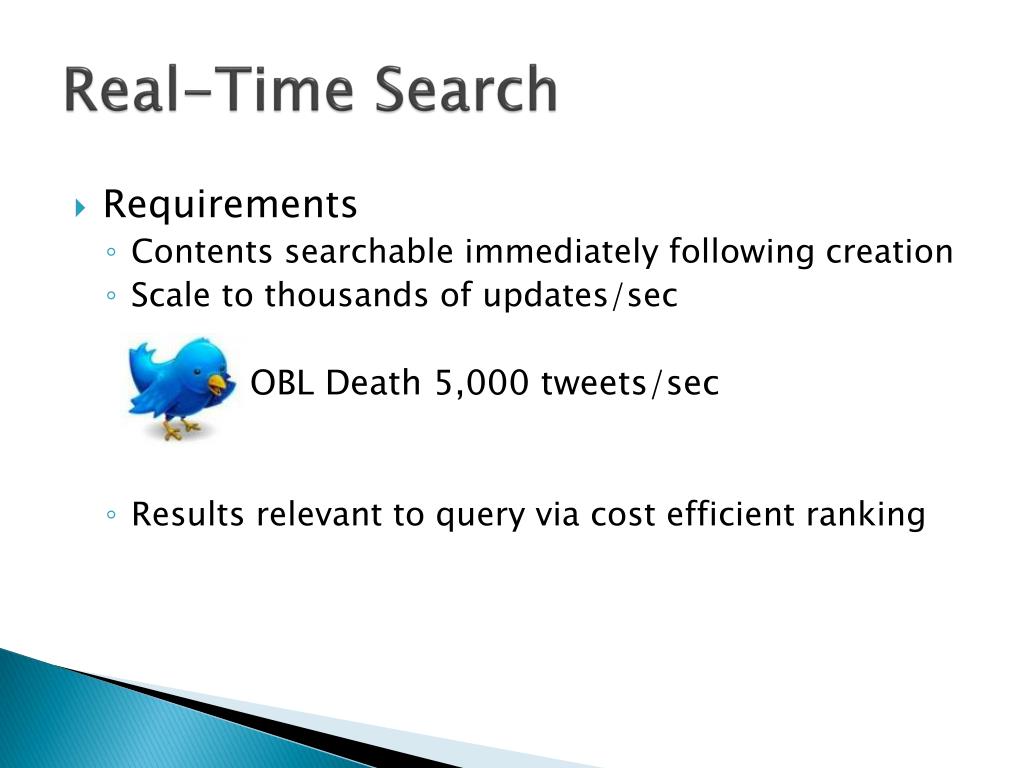

  3. Real-Time Search • Requirements • Contents searchable immediately following creation • Scale to thousands of updates/sec OBL Death 5,000 tweets/sec • Results relevant to query via cost efficient ranking

  4. Real-Time Search Vs. Time Rank TI Rank

  5. TI Concepts • Real-time search of microblogging applications is provided via two components: • Indexing Mechanism – for pruning tweets, only looking at a subset of all tweets (allows for speed) • Ranking Mechanism – for looking at relevant tweets (weeding out tweets that are not deemed important enough) • Main idea: look at important tweets only

  6. Outline • Introduction • Related Work • System Overview • Indexing Scheme • Ranking • Evaluation • Conclusion

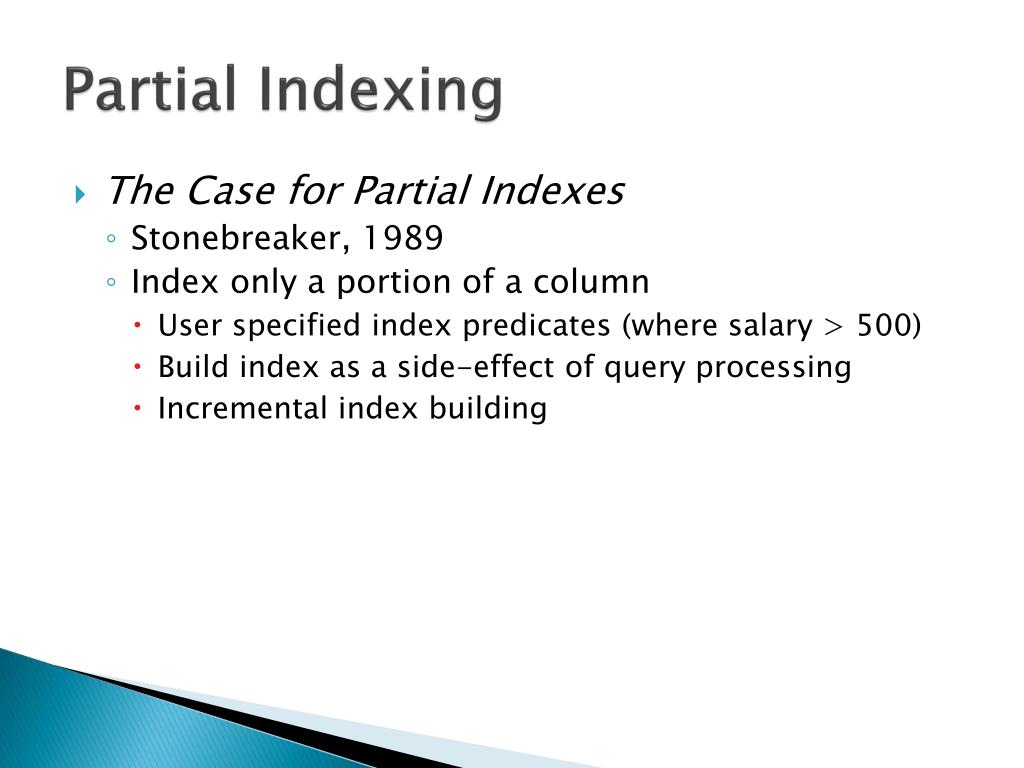

  7. Partial Indexing • The Case for Partial Indexes • Stonebreaker, 1989 • Index only a portion of a column • User specified index predicates (where salary > 500) • Build index as a side-effect of query processing • Incremental index building

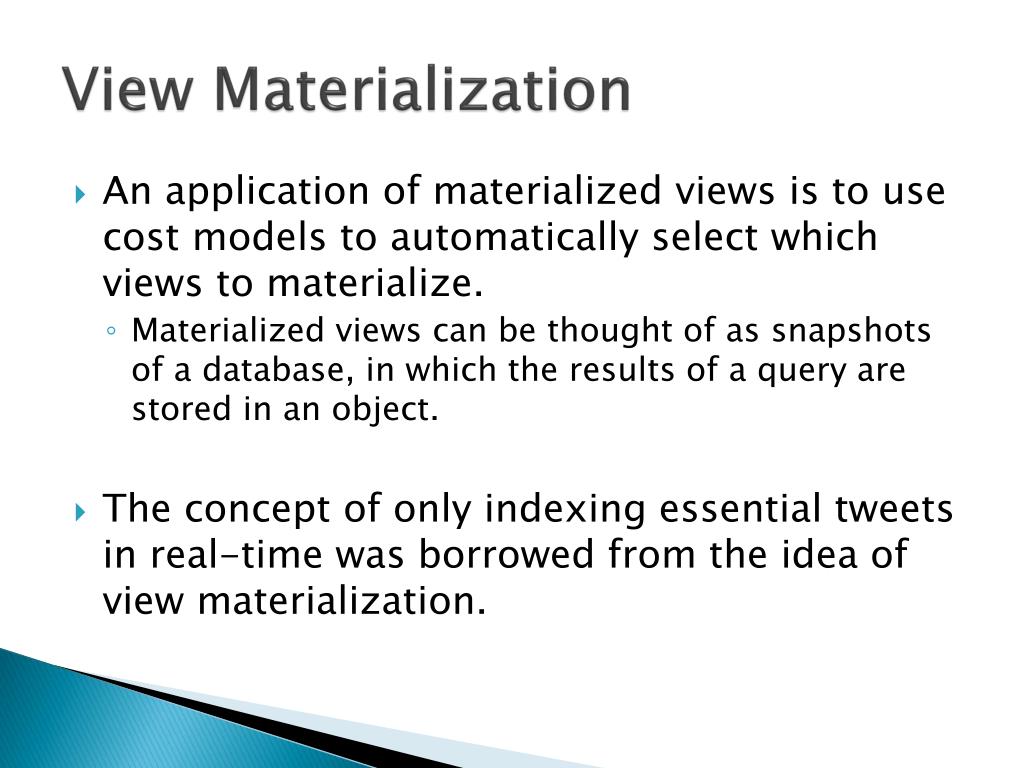

  8. View Materialization • An application of materialized views is to use cost models to automatically select which views to materialize. • Materialized views can be thought of as snapshots of a database, in which the results of a query are stored in an object. • The concept of only indexing essential tweets in real-time was borrowed from the idea of view materialization.

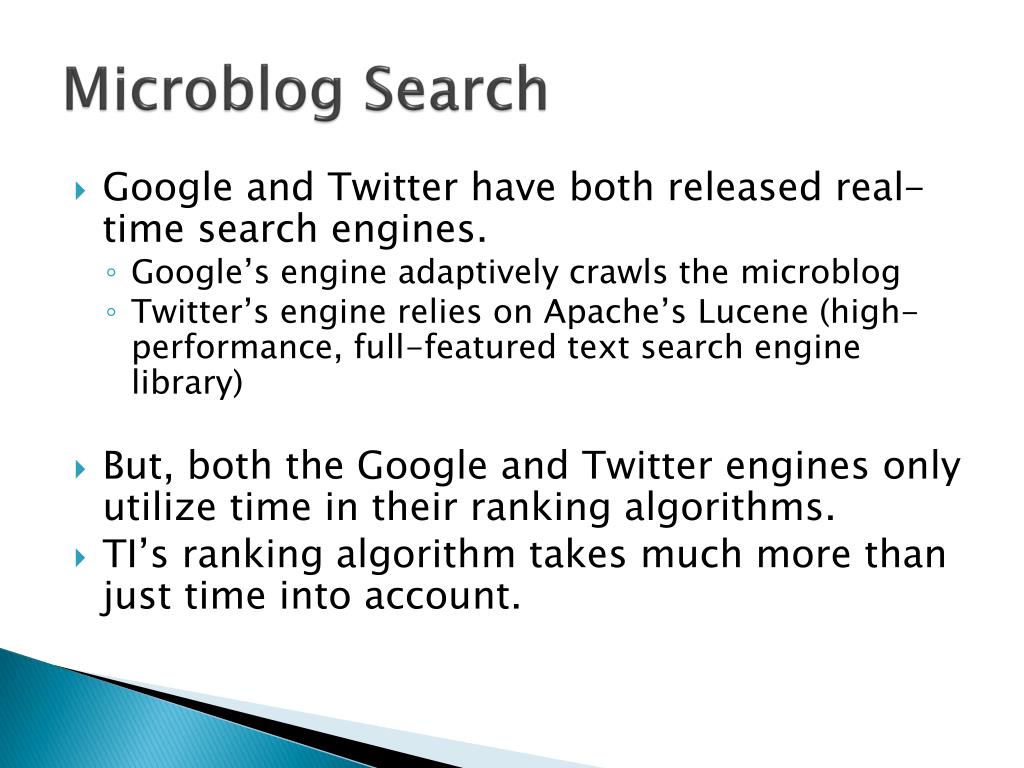

  9. Microblog Search • Google and Twitter have both released real-time search engines. • Google’s engine adaptively crawls the microblog • Twitter’s engine relies on Apache’s Lucene (high-performance, full-featured text search engine library) • But, both the Google and Twitter engines only utilize time in their ranking algorithms. • TI’s ranking algorithm takes much more than just time into account.

  10. Outline • Introduction • Related Work • System Overview • Indexing Scheme • Ranking • Evaluation • Conclusion

  11. TI Architecture

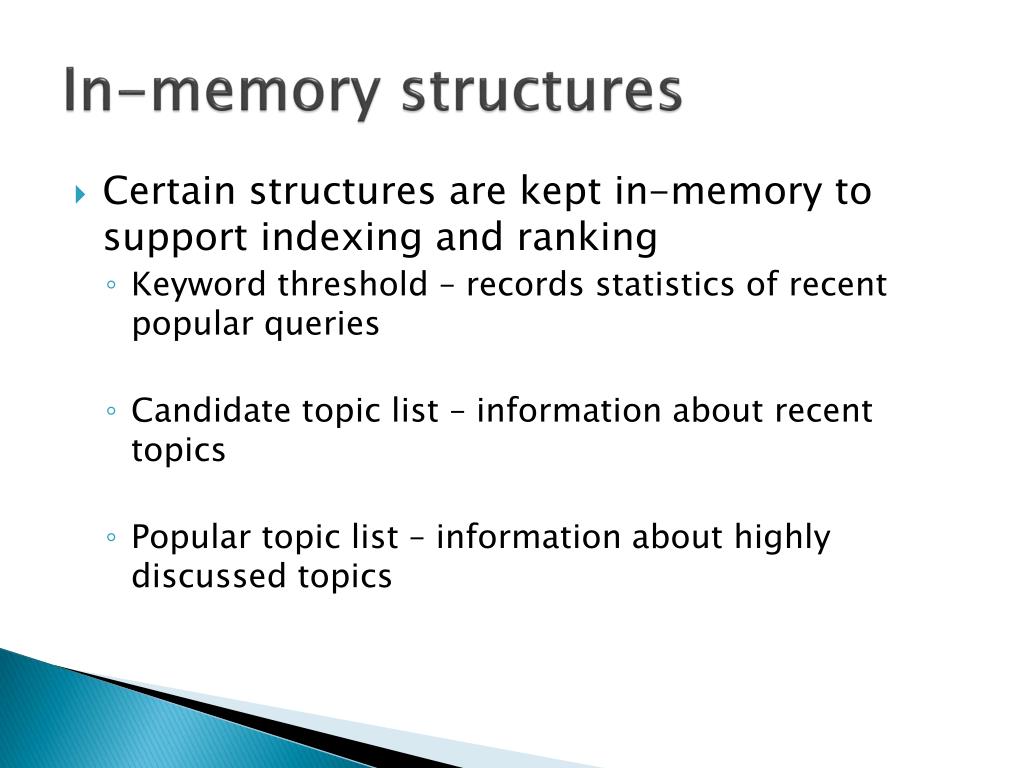

  12. In-memory structures • Certain structures are kept in-memory to support indexing and ranking • Keyword threshold – records statistics of recent popular queries • Candidate topic list – information about recent topics • Popular topic list – information about highly discussed topics

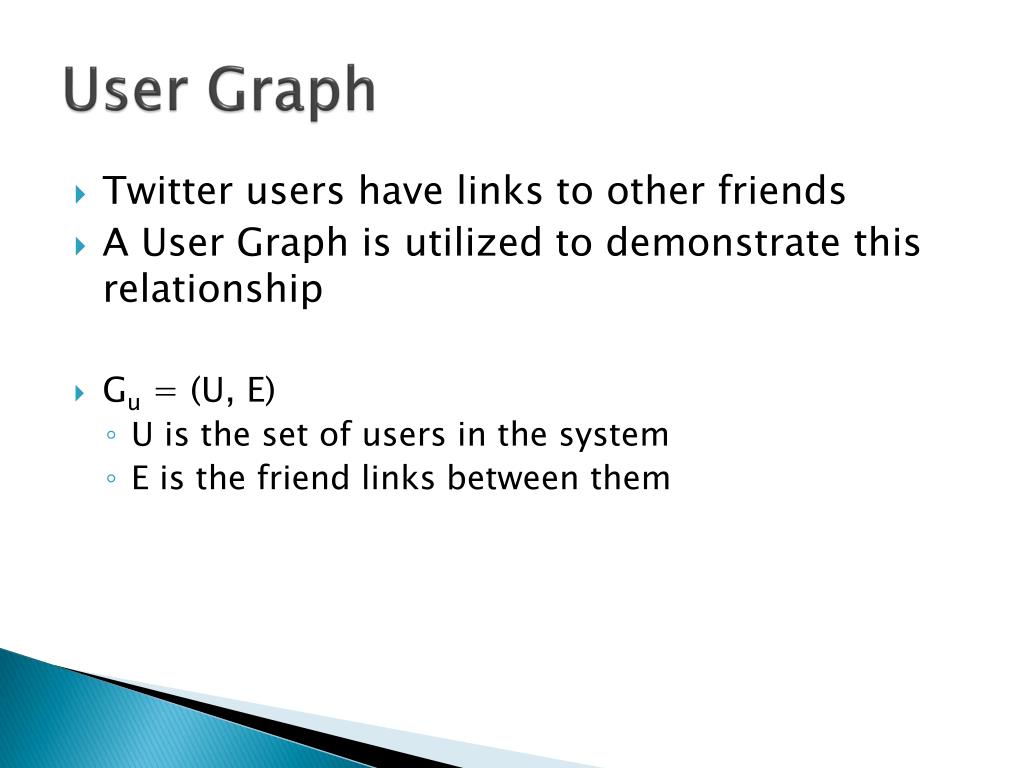

  13. User Graph • Twitter users have links to other friends • A User Graph is utilized to demonstrate this relationship • Gu = (U, E) • U is the set of users in the system • E is the friend links between them

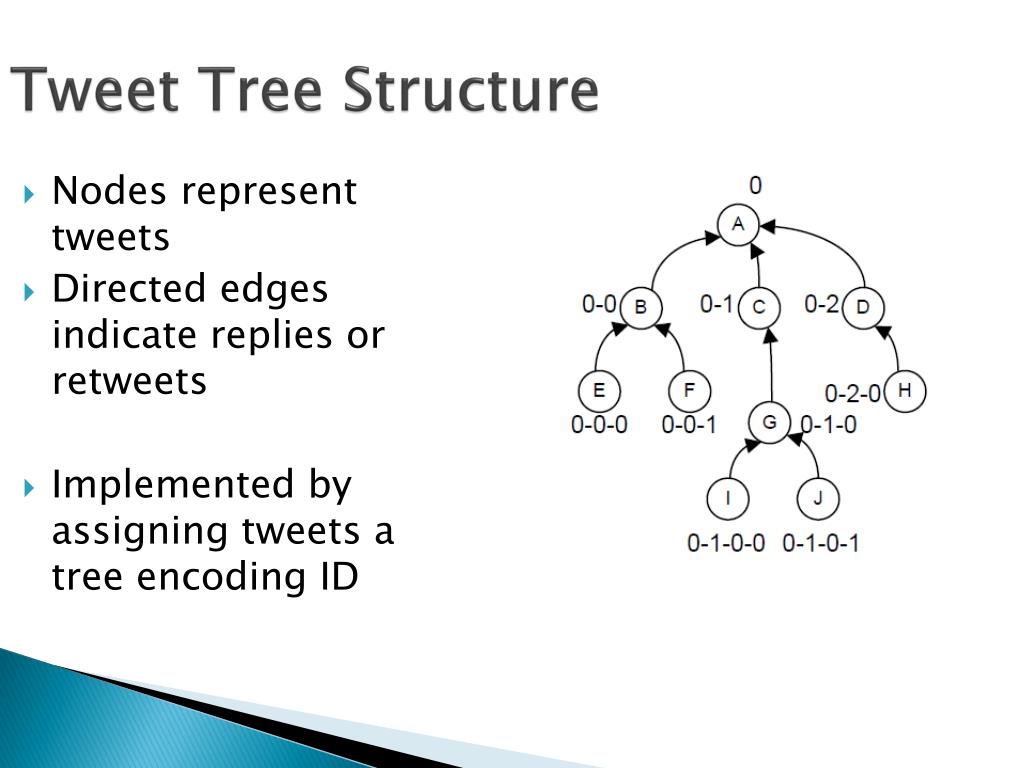

  14. Tweet Tree Structure Nodes represent tweets Directed edges indicate replies or retweets Implemented by assigning tweets a tree encoding ID

  15. TI Design • Search is handled via an inverted index for tweets • Given a keyword, the inverted index returns a tweet list, T • T contains set of tweets sorted by timestamp

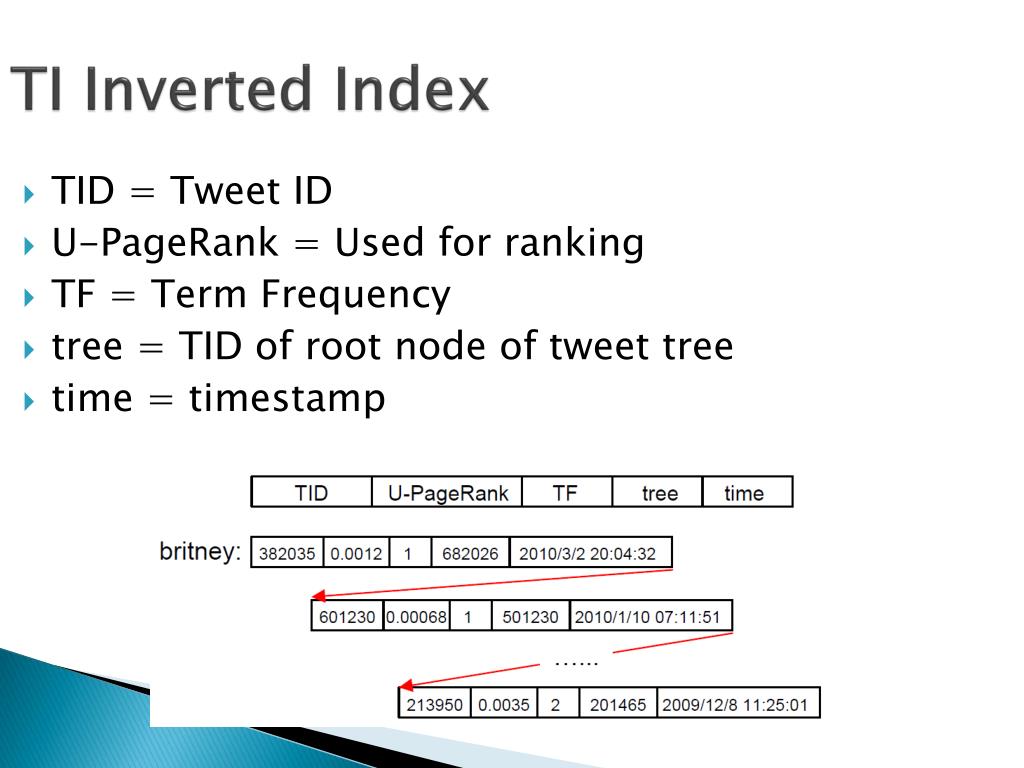

  16. TI Inverted Index TID = Tweet ID U-PageRank = Used for ranking TF = Term Frequency tree = TID of root node of tweet tree time = timestamp

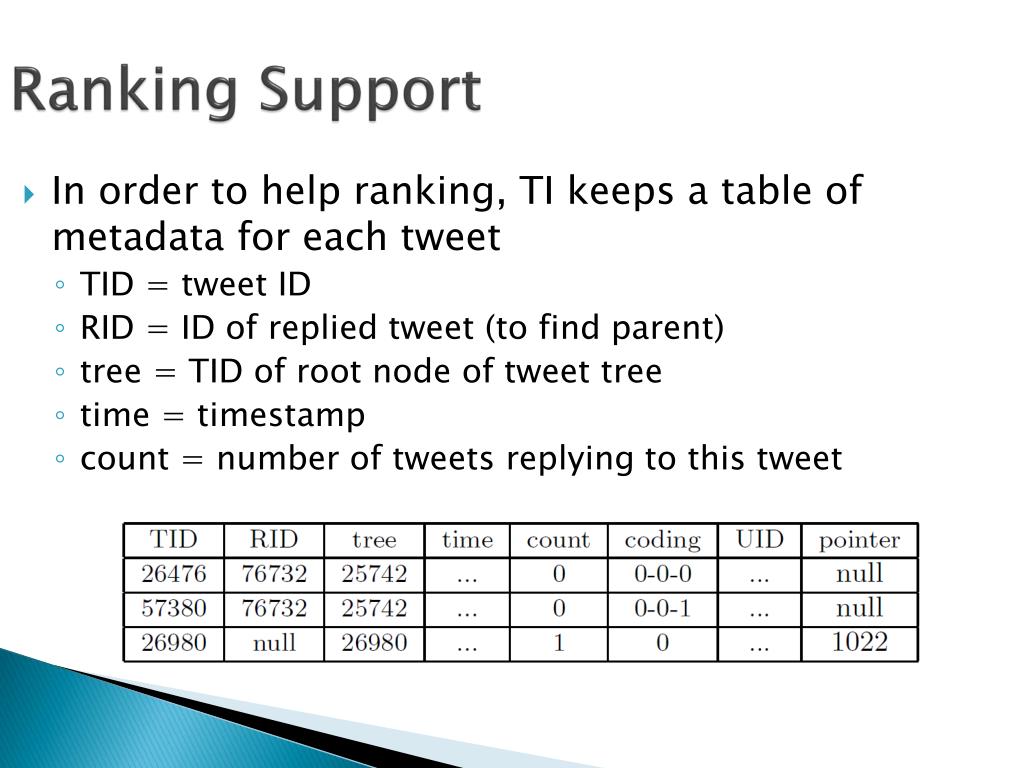

  17. Ranking Support • In order to help ranking, TI keeps a table of metadata for each tweet • TID = tweet ID • RID = ID of replied tweet (to find parent) • tree = TID of root node of tweet tree • time = timestamp • count = number of tweets replying to this tweet

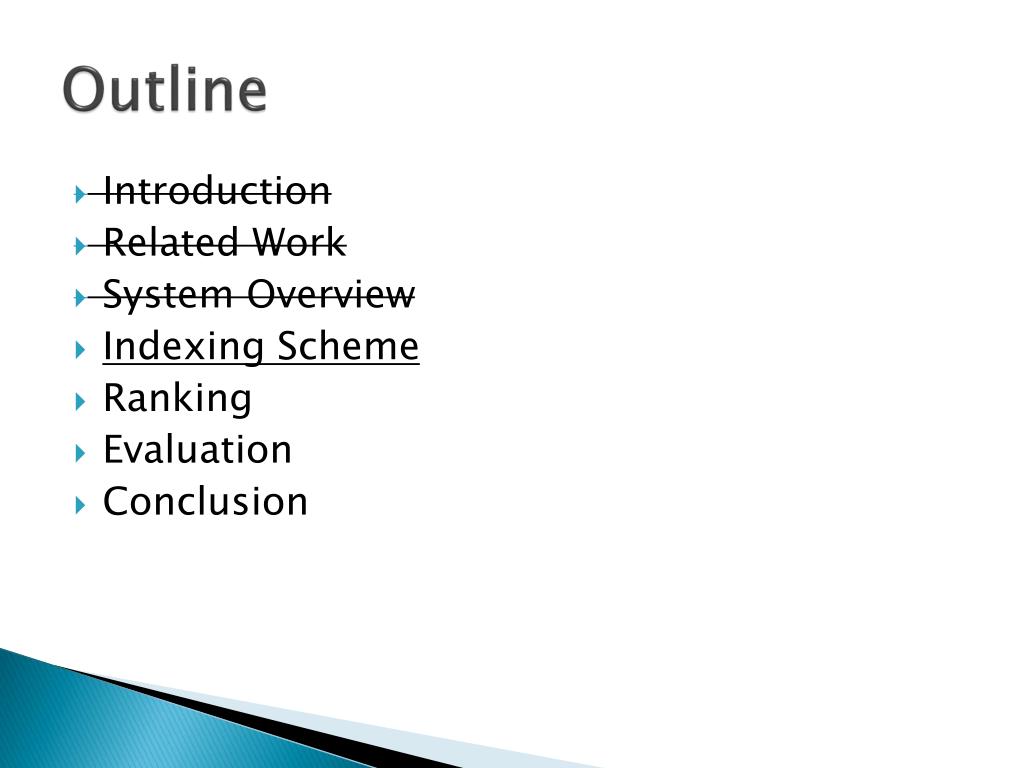

  18. Outline • Introduction • Related Work • System Overview • Indexing Scheme • Ranking • Evaluation • Conclusion

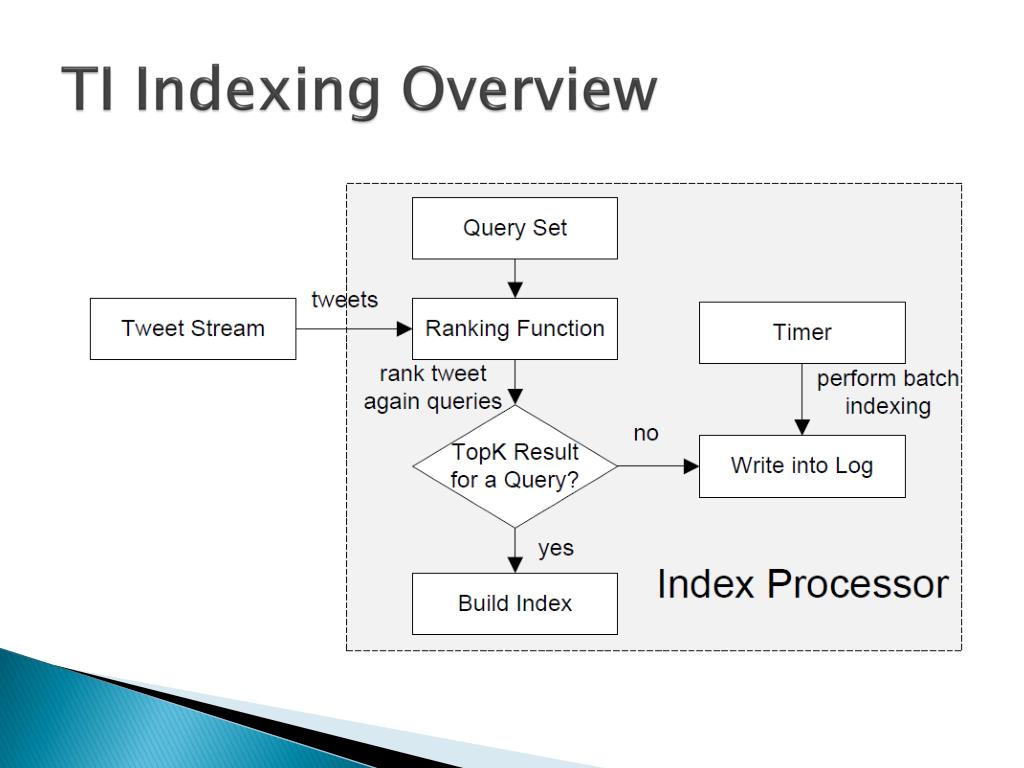

  19. TI Indexing Overview

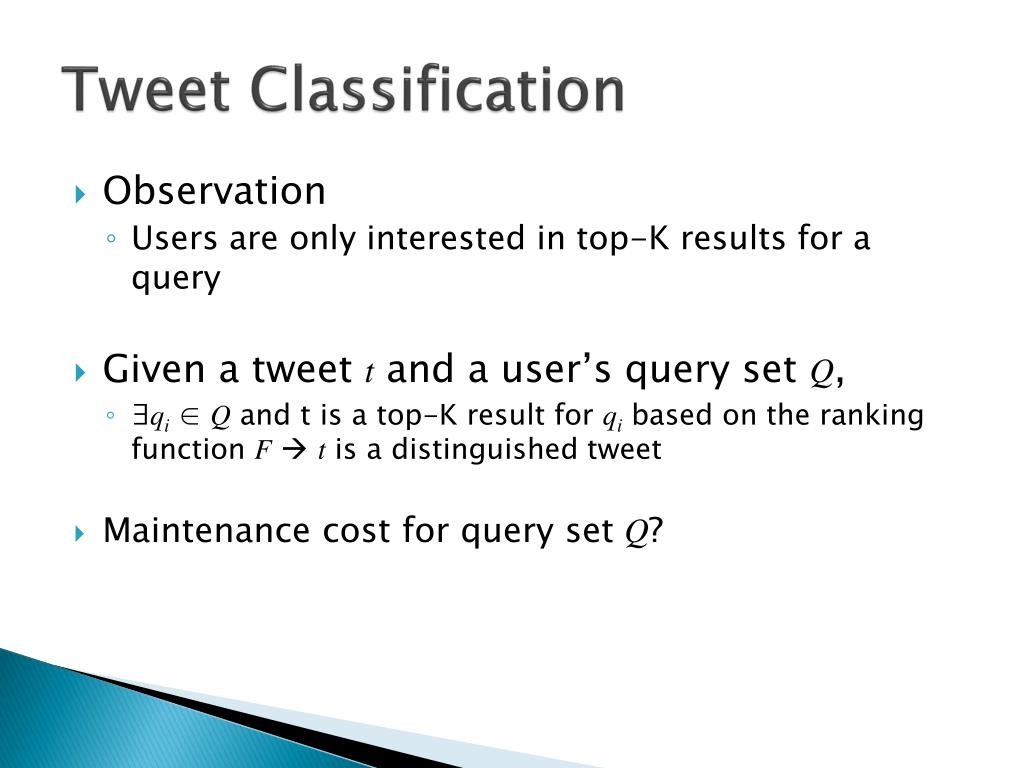

  20. Tweet Classification • Observation • Users are only interested in top-K results for a query • Given a tweet t and a user’s query set Q, • ∃qi∈ Q and t is a top-K result for qi based on the ranking function F t is a distinguished tweet • Maintenance cost for query set Q?

  21. Query Set • Observation • 20% of queries represent 80% of user requests (Zipf’s dist.) • Suppose the nth query appears with a prob. of (Zipf’s distribution) • Let s be the # of queries submitted /sec. Expected time interval of the nth query is • Batch processing occurs every t’ sec We will keep the n-th query in Q, only if t(n) < t’

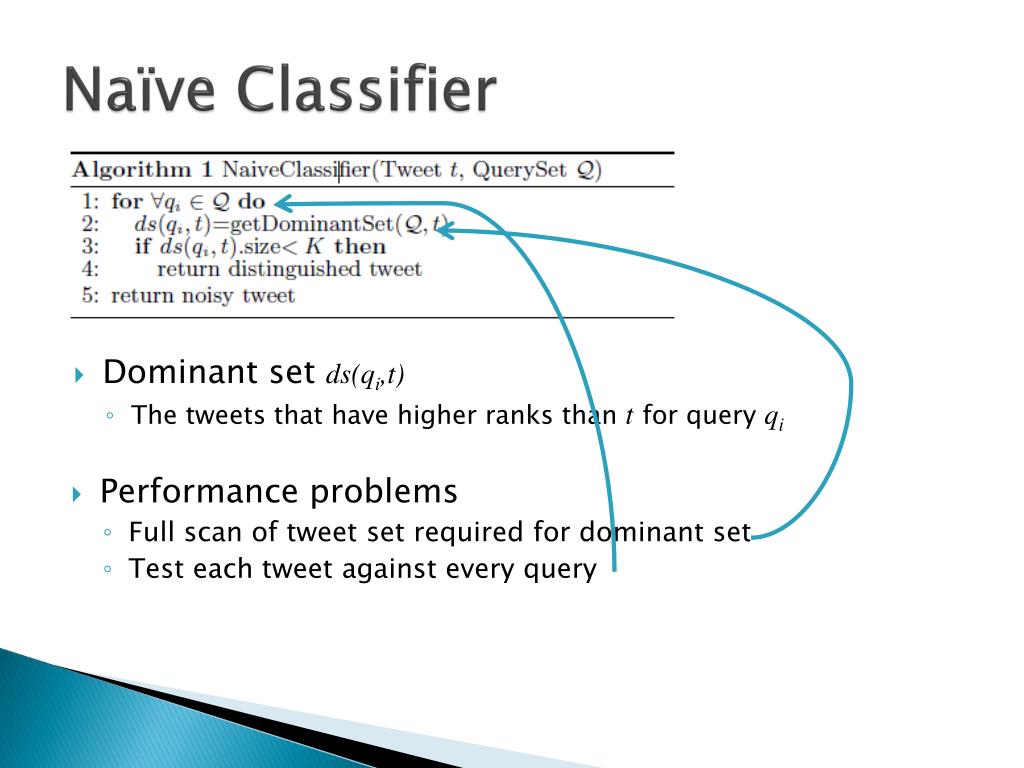

  22. Naïve Classifier • Dominant set ds(qi,t) • The tweets that have higher ranks than tfor query qi • Performance problems • Full scan of tweet set required for dominant set • Test each tweet against every query

  23. Optimization 1 • Observation • The rank of the lower results are stable • Replace dominant set with a comparison to the score of Q’s Kth result.

  24. Optimization 2 • Compare a tweet to similar queries • Given tweet t = <k1, k4>, compare t to Q1, Q3, Q4

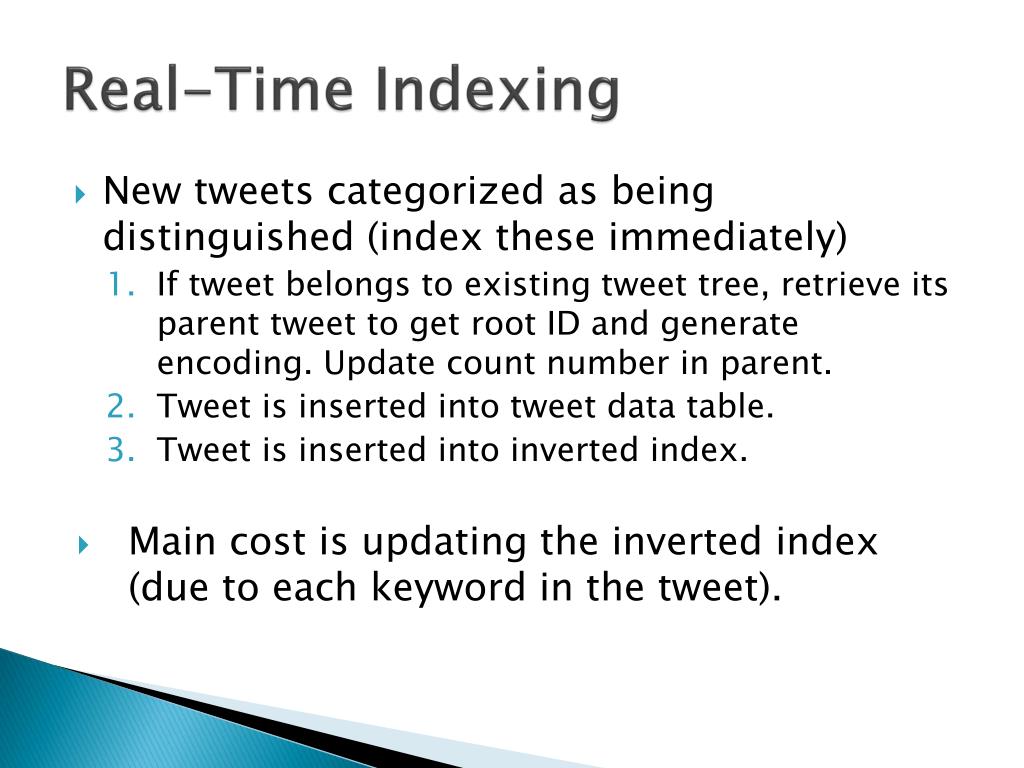

  25. Real-Time Indexing • New tweets categorized as being distinguished (index these immediately) • If tweet belongs to existing tweet tree, retrieve its parent tweet to get root ID and generate encoding. Update count number in parent. • Tweet is inserted into tweet data table. • Tweet is inserted into inverted index. • Main cost is updating the inverted index (due to each keyword in the tweet).

  26. Batch Indexing • New tweets categorized as being noisy (index these at a later time) • Instead of indexing in inverted index, append tweet to log file. • Batch indexing process periodically scans the log file and indexes the tweets there.

  27. Outline • Introduction • Related Work • System Overview • Indexing Scheme • Ranking • Evaluation • Conclusion

  28. Ranking Overview • Ranking functions are completely separate from the indexing mechanism • New ranking functions could be used • TI’s proposed ranking function is based on: • User’s PageRank • Popularity of the topic • Timestamp (self-explanatory) • Similarity between tweet and the query

  29. User’s PageRank • Twitter has two types of links between users • f(u): the set of users who follow user u • f-1(u): the set of users who user u follows • A matrix, Mf[i][j], is used to record the following links between users • A weight factor is given for each user • V = (w1, w2, ….. wn)

  30. User’s PageRank Formula • PageRank formula is given as: Pu = VMfx • So, the user’s PageRank is a combination of their user weight and how many followers they have • The more popular the user, the higher the PageRank

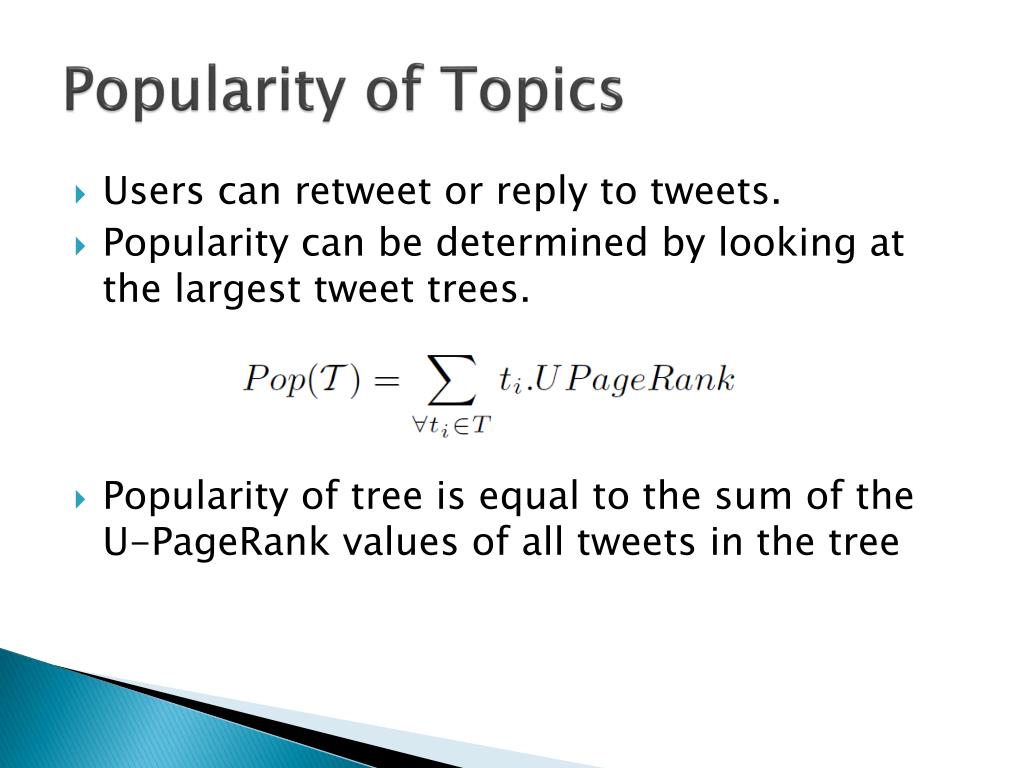

  31. Popularity of Topics • Users can retweet or reply to tweets. • Popularity can be determined by looking at the largest tweet trees. • Popularity of tree is equal to the sum of the U-PageRank values of all tweets in the tree

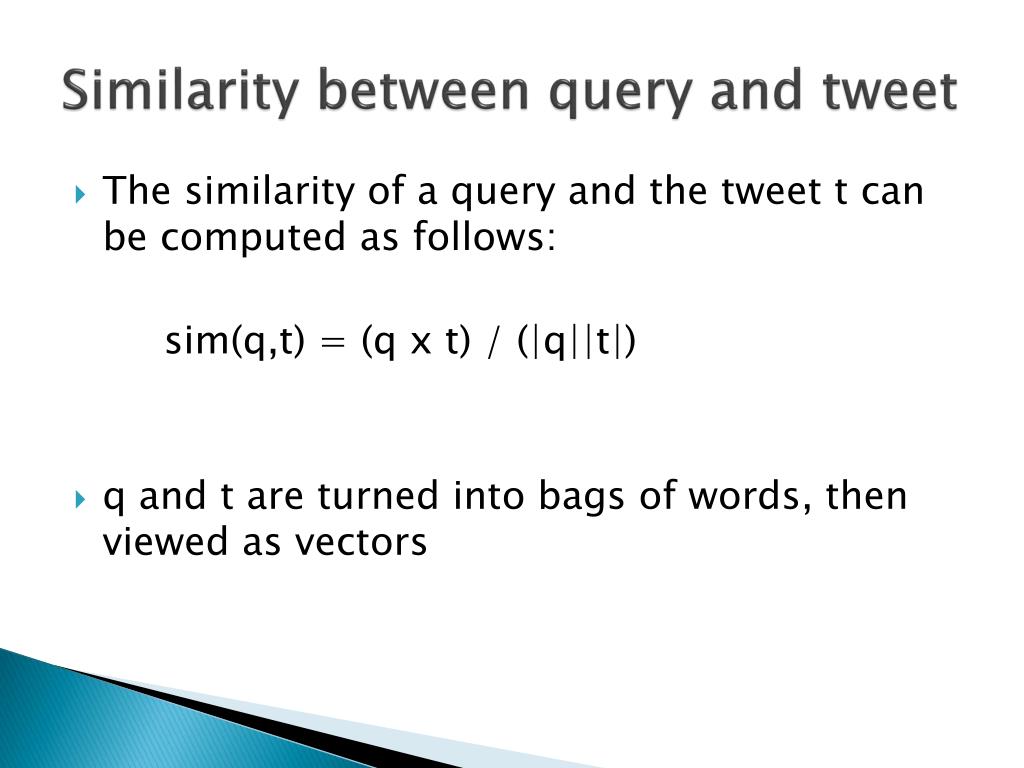

  32. Similarity between query and tweet • The similarity of a query and the tweet t can be computed as follows: sim(q,t) = (q x t) / (|q||t|) • q and t are turned into bags of words, then viewed as vectors

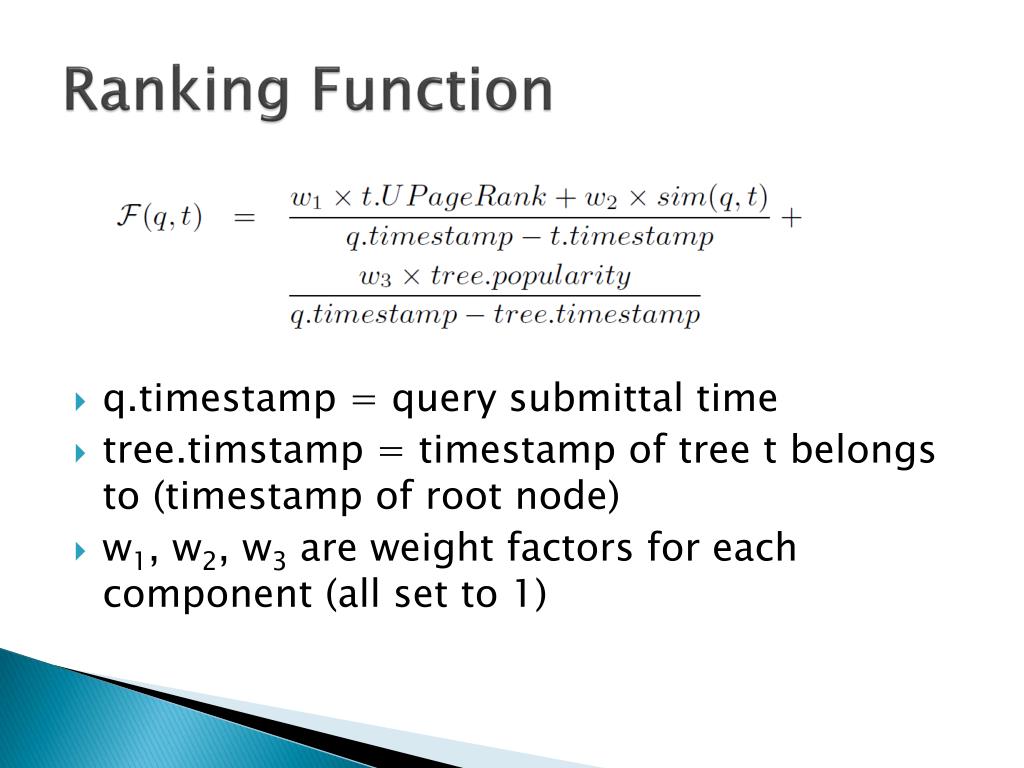

  33. Ranking Function • q.timestamp = query submittal time • tree.timstamp = timestamp of tree t belongs to (timestamp of root node) • w1, w2, w3 are weight factors for each component (all set to 1)

  34. Adaptive Indexing • The size of the inverted index limits the performance of the search for tweets • The size of the inverted index grows with the number of tweets • To alleviate this problem, adaptive indexing is proposed:

  35. Adaptive Indexing Cont. • The main idea: • Iteratively read a block of the inverted index (rather than the entire thing) • Stop iterating blocks when the timestamp value gives a score low enough to throw out the results • Stop because the rest of the tweets in the inverted index will also have a lower score

  36. Outline • Introduction • Related Work • System Overview • Indexing Scheme • Ranking • Evaluation • Conclusion

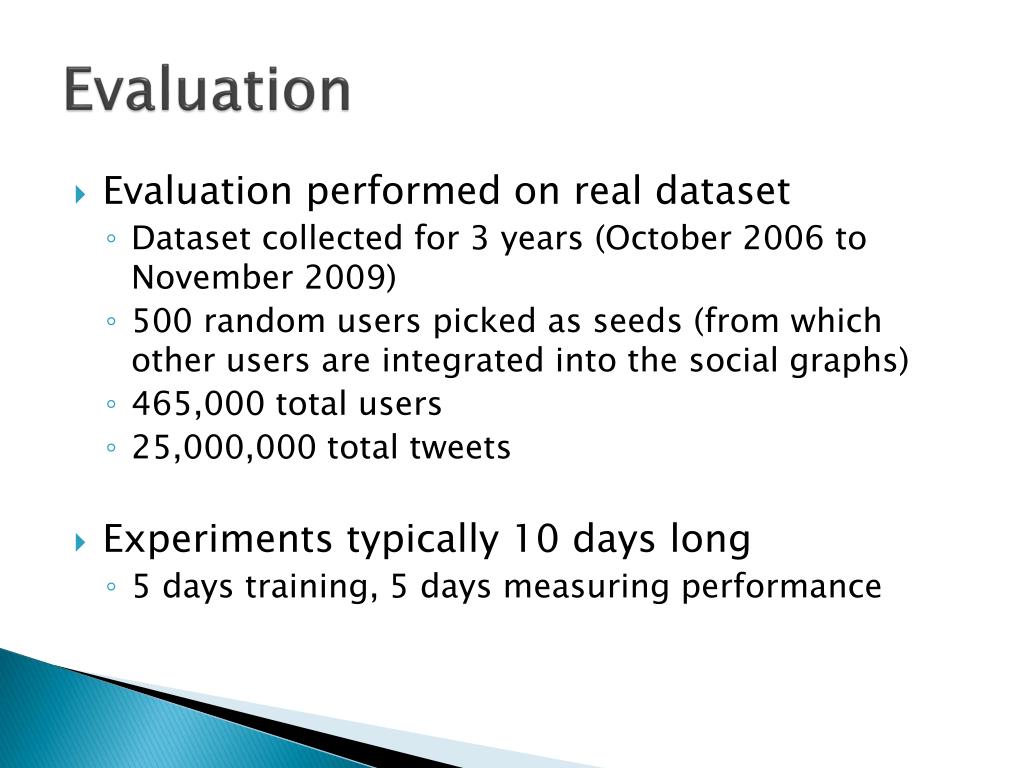

  37. Evaluation • Evaluation performed on real dataset • Dataset collected for 3 years (October 2006 to November 2009) • 500 random users picked as seeds (from which other users are integrated into the social graphs) • 465,000 total users • 25,000,000 total tweets • Experiments typically 10 days long • 5 days training, 5 days measuring performance

  38. Evaluation Cont. • Queries lengths are distributed as follows: • ~60% are 1 word • ~30% are 2 words • ~10% are more than 2 words • Queries submitted at random, tweets are inserted into system based on original timestamps (from dataset)

  39. Indexing Cost (per 10k tweets)

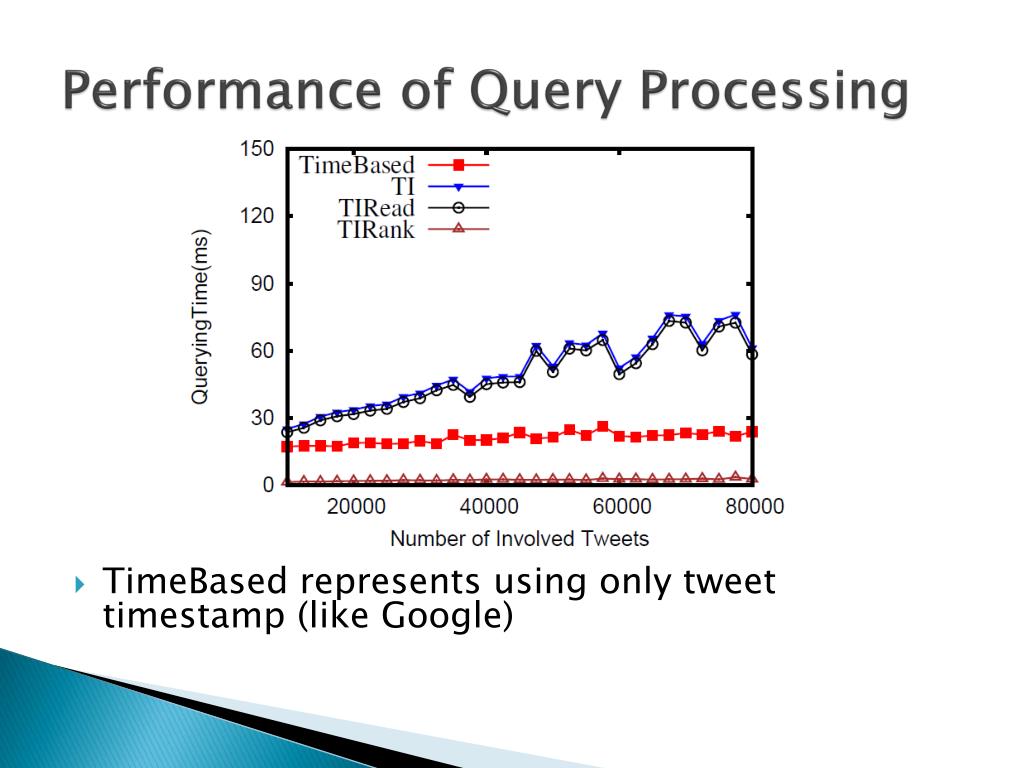

  40. Performance of Query Processing • TimeBased represents using only tweet timestamp (like Google)

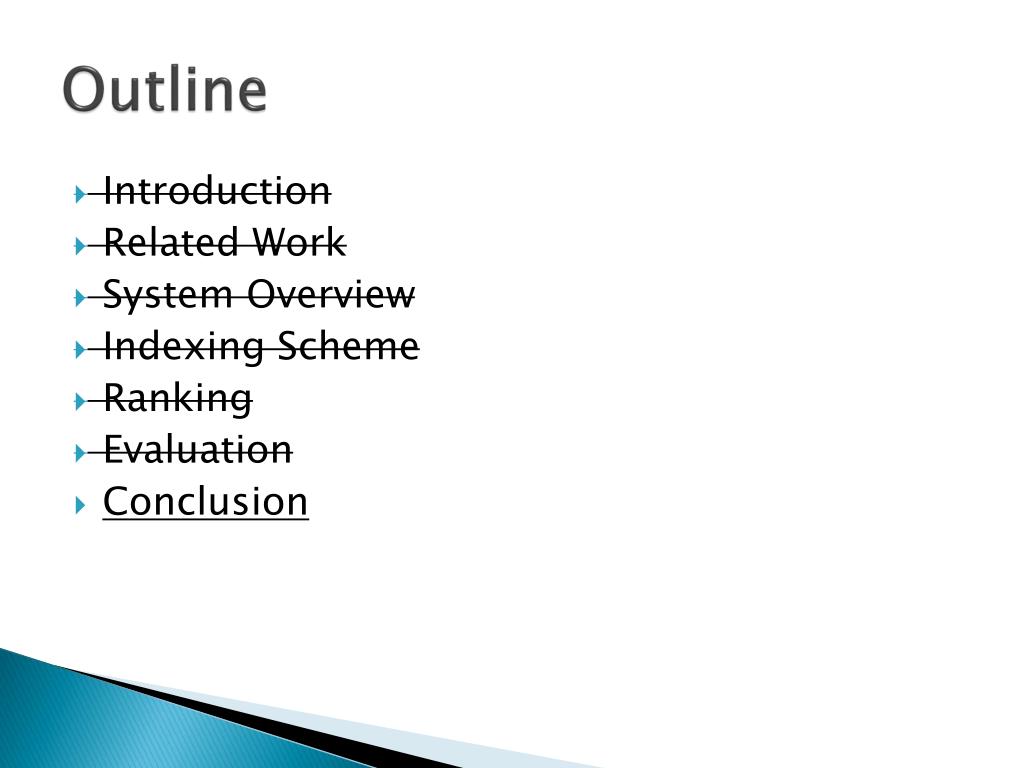

  41. Outline • Introduction • Related Work • System Overview • Indexing Scheme • Ranking • Evaluation • Conclusion

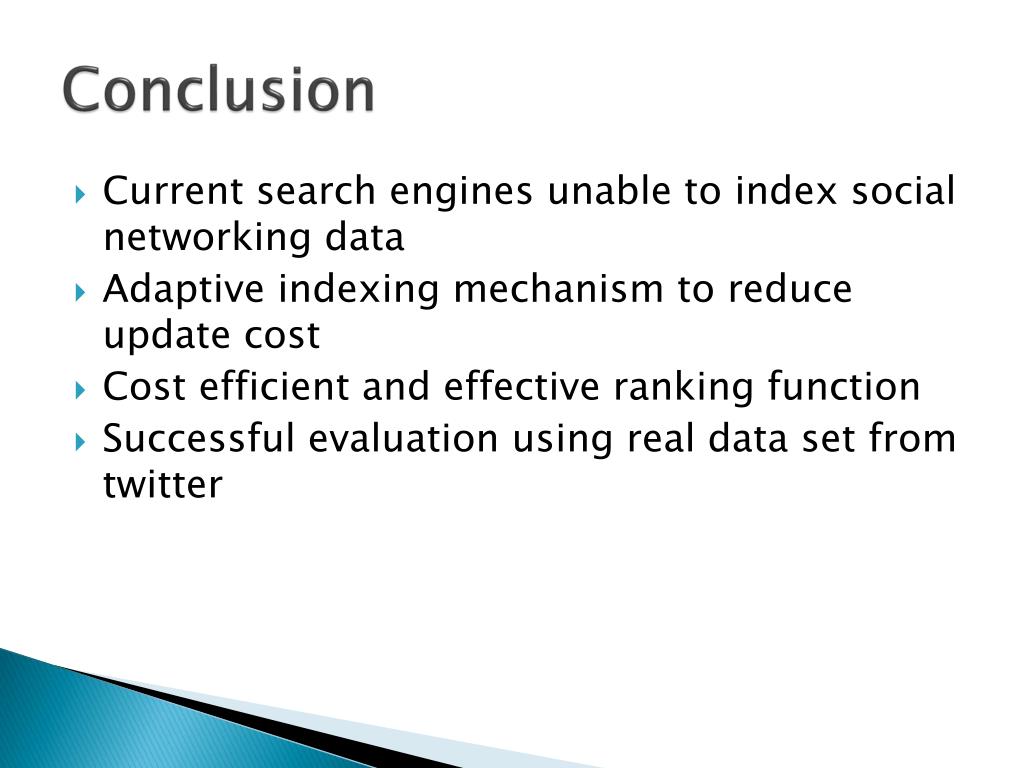

  42. Conclusion • Current search engines unable to index social networking data • Adaptive indexing mechanism to reduce update cost • Cost efficient and effective ranking function • Successful evaluation using real data set from twitter
