1. Additive Models and Trees Lecture Notes for CMPUT 466/551 Nilanjan Ray Principal Source: Department of Statistics, CMU

2. Topics to cover • GAM: Generalized Additive Models • CART: Classification and Regression Trees • MARS: Multiple Adaptive Regression Splines

3. Generalized Additive Models What is GAM? The functions fjare smoothing functions in general, such as splines, kernel functions, linear functions, and so on… Each function could be different, e.g., f1 can be linear, f2 can be a natural spline, etc. Compare GAM with Linear Basis Expansions (Ch. 5 of [HTF]) Similarities? Dissimilarities? Any similarity (in principle) with Naïve Bayes model?

4. Smoothing Functions in GAM • Non-parametric functions (linear smoother) • Smoothing splines (Basis expansion) • Simple k-nearest neighbor (raw moving average) • Locally weighted average by using kernel weighting • Local linear regression, local polynomial regression • Linear functions • Functions of more than one variables (interaction term) • Example:

5. Learning GAM: Backfitting Backfitting algorithm • Initialize: • Cycle: j = 1,2,…, p,…,1,2,…, p,…, (m cycles) Until the functions change less than a prespecified threshold

6. Backfitting: Points to Ponder Computational Advantage? Convergence? How to choose fitting functions?

7. Additive Logistic Regression: Backfitting Fitting logistic regression (P99) Fitting additive logistic regression (P262) 1. where 1. 2. 2. Iterate: Iterate: a. a. b. b. c. Using weighted least squares to fit a linear model to zi with weights wi, give new estimates c. Using weighted backfitting algorithm to fit an additive model to zi with weights wi, give new estimates 3. Continue step 2 until converge 3.Continue step 2 until converge

8. SPAM Detection via Additive Logistic Regression • Input variables (predictors): • 48 quantitative variables: percentage of words in the email that match a given word. Examples include business, address, internet, etc. • 6 quantitative variables: percentage of characters in the email that match a given character, such as ‘ch;’, ch(, etc. • The average length of uninterrupted sequences of capital letters • The length of the longest uninterrupted sequence of capital letters • The sum of length of uninterrupted length of capital letters • Output variable: SPAM (1) or Email (0) • fj’s are taken as cubic smoothing splines

9. SPAM Detection: Results Sensitivity: Probability of predicting spam given true state is spam = Specificity: Probability of predicting email given true state is email =

10. GAM: Summary • Useful flexible extensions of linear models • Backfitting algorithm is simple and modular • Interpretability of the predictors (input variables) are not obscured • Not suitable for very large data mining applications (why?)

11. CART • Overview • Principle behind: Divide and conquer • Partition the feature space into a set of rectangles • For simplicity, use recursive binary partition • Fit a simple model (e.g. constant) for each rectangle • Classification and Regression Trees (CART) • Regress Trees • Classification Trees • Popular in medical applications

12. CART • An example (in regression case):

13. Basic Issues in Tree-based Methods • How to grow a tree? • How large should we grow the tree?

14. Regression Trees • Partition the space into M regions: R1, R2, …, RM. Note that this is still an additive model

15. Regression Trees– Grow the Tree • The best partition: to minimize the sum of squared error: • Finding the global minimum is computationally infeasible • Greedy algorithm: at each level choose variable j and value s as: • The greedy algorithm makes the tree unstable • The error made at the upper level will be propagated to the lower level

16. Regression Tree – how large should we grow the tree ? • Trade-off between bias and variance • Very large tree: overfit (low bias, high variance) • Small tree (low variance, high bias): might not capture the structure • Strategies: • 1: split only when we can decrease the error (usually short-sighted) • 2: Cost-complexity pruning (preferred)

17. Penalty on the complexity/size of the tree Cost: sum of squared errors Regression Tree - Pruning • Cost-complexity pruning: • Pruning: collapsing some internal nodes • Cost complexity: • Choose best alpha: weakest link pruning (p.270, [HTF]) • Each time collapse an internal node which add smallest error • Choose from this tree sequence the best one by cross-validation

18. Classification Trees • Classify the observations in node m to the major class in the node: • Pmk is the proportion of observation of class k in node m • Define impurity for a node: • Misclassification error: • Entropy: • Gini index :

19. Classification Trees • Entropy and Gini are more sensitive • To grow the tree: use Entropy or Gini • To prune the tree: use Misclassification rate (or any other method) Node impurity measures versus class proportion for 2-class problem

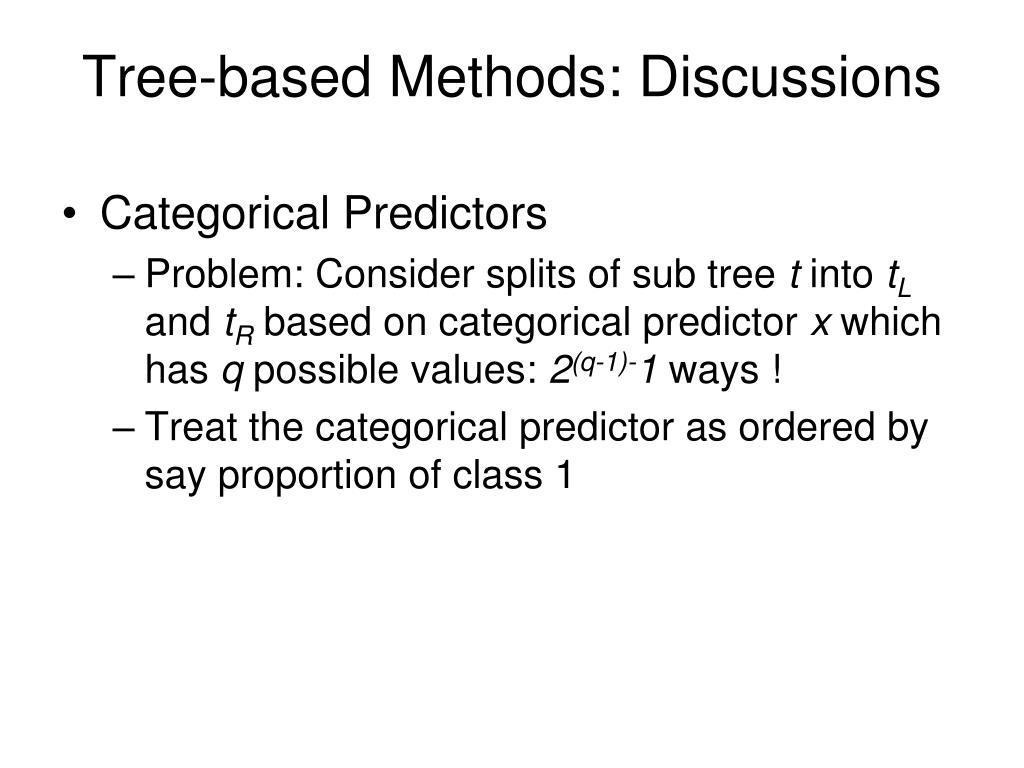

20. Tree-based Methods: Discussions • Categorical Predictors • Problem: Consider splits of sub tree t into tL and tR based on categorical predictor x which has q possible values: 2(q-1)-1 ways ! • Treat the categorical predictor as ordered by say proportion of class 1

21. Tree-based Methods: Discussions • Linear Combination Splits • Split the node based on • Improve the predictive power • Hurt interpretability • Instability of Trees • Inherited from the hierarchical nature • Bagging (section 8.7 of [HTF]) can reduce the variance

22. Bootstrap Trees Construct B number of trees from B bootstrap samples– bootstrap trees

23. Bootstrap Trees

24. Bagging The Bootstrap Trees is computed from the bth bootstrap sample in this case a tree Bagging reduces the variance of the original tree by aggregation

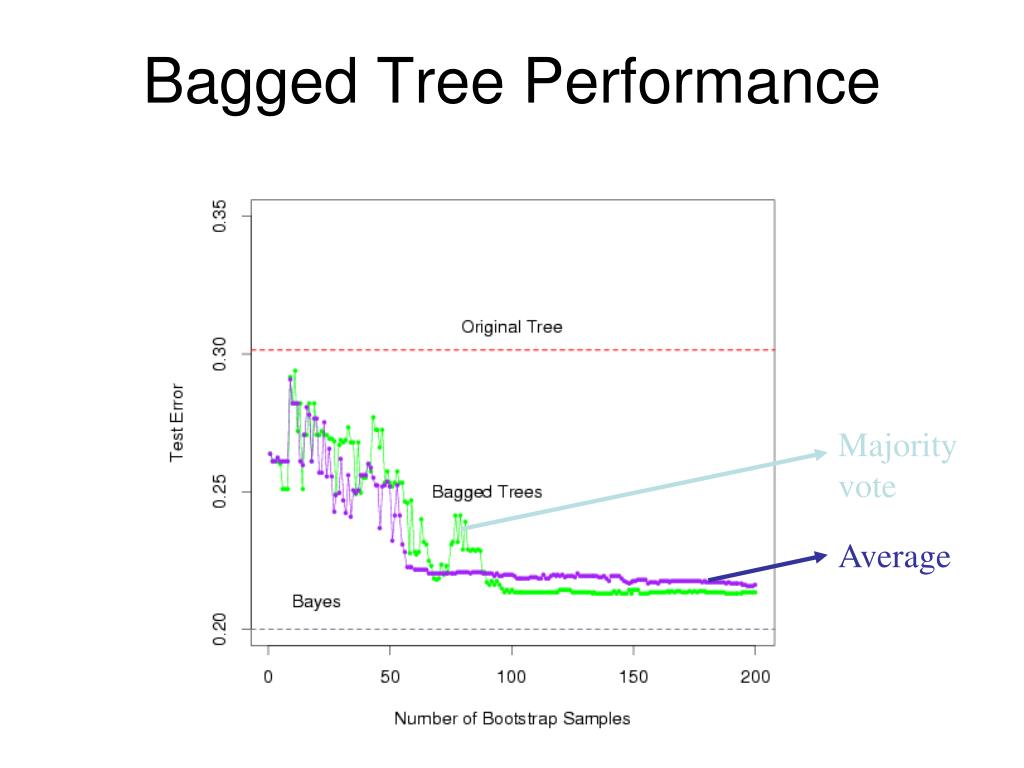

25. Bagged Tree Performance Majority vote Average

26. MARS • In multi-dimensional spline the basis functions grow exponentially– curse of dimensionality • A partial remedy is a greedy forward search algorithm • Create a simple basis-construction dictionary • Construct basis functions on-the-fly • Choose the best-fit basis function at each step

27. Basis functions • 1-dim linear spline (t represents the knot) • Basis collections C: |C| = 2 * N * p

28. The MARS procedure (1st stage) • Initialize basis set M with a constant function • Form candidates (cross-product of M with set C) • Add the best-fit basis pair (decrease residual error the most) into M • Repeat from step 2 (until e.g. |M| >= threshold) M (new) M (old) C

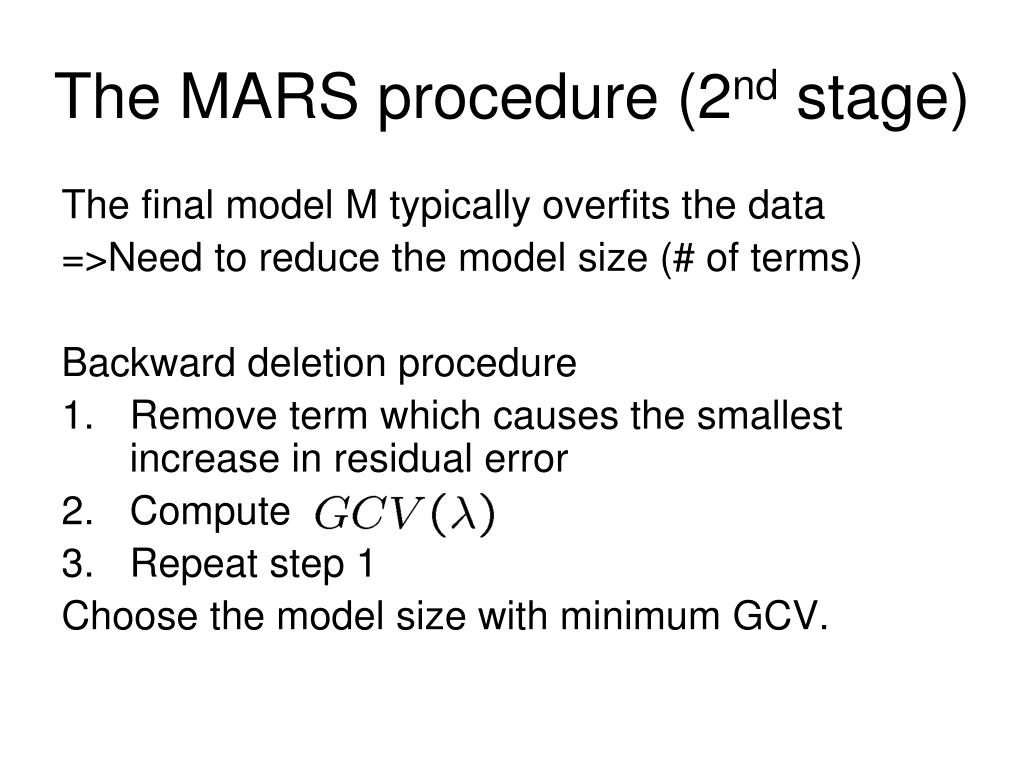

29. The MARS procedure (2nd stage) The final model M typically overfits the data =>Need to reduce the model size (# of terms) Backward deletion procedure • Remove term which causes the smallest increase in residual error • Compute • Repeat step 1 Choose the model size with minimum GCV.

30. Generalized Cross Validation (GCV) • M(.) measures effective # of parameters: • r: # of linearly independent basis functions • K: # of knots selected • c = 3

31. Discussion • Piecewise linear reflected basis • Allow operation on local region • Fitting N reflected basis pairs takes O(N) instead of O(N^2) • Left-part is zero, right-part differs by a constant X[i-1] X[i] X[i+1] X[i+2]

32. Discussion (continue) • Hierarchical model (reduce search computation) • High-order term exists => some lower-order “footprints” exist • Restriction: Each input appear at most once in a product: e.g. (Xj - t1) * (Xj - t1) is not considered • Set upper limit on order of interaction • Upper limit of 1 => additive model • MARS for classification • Use multi-response Y (N*K indicator matrix) • Masking problem may occur • Better solution: “optimal scoring” (Chapter 12.5 of [HTF])

33. MARS & CART relationship IF • replace piecewise linear basis by step functions • keep only the newly formed product terms in M (leaf nodes of a binary tree) THEN MARS forward procedure = CART tree growing procedure
