Reciprocal Graphs

Sketch and hence find the reciprocal graph. Reciprocal Graphs. y = 3. Domain: x  R{1} Range: y  R{0} Asymptotes: x = 1 y = 0 y-intercept y = 1. y = 2. Hyperbola. y = 1. Asymptote. y = 1/2. y = 1/3. y = 0. y = 0. Asymptote. x = 1. Reciprocal Graphs.

lisle
Télécharger la présentation

Reciprocal Graphs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Sketch and hence find the reciprocal graph Reciprocal Graphs y = 3 Domain: x  R\{1} Range: y  R\{0} Asymptotes: x = 1 y = 0 y-intercept y = 1 y = 2 Hyperbola y = 1 Asymptote y = 1/2 y = 1/3 y = 0 y = 0 Asymptote x = 1

  2. Reciprocal Graphs • All reciprocal graphs have a horizontal asymptote along the x-axis (y = 0) • Where the original graph has an x-intercept (y-value = 0), there will be a vertical asymptote. (Draw in and label) • Where y-value = 1 (or 1), the reciprocal is also 1 (or 1), so the graph and its reciprocal will intersect at those points • Where y-value > 1, reciprocal < 1 • Where y-value < 1, reciprocal > 1 • Where original graph is negative, reciprocal is also negative • A turning point not on the x-axis will create a turning point at the same x-coordinate in the reciprocal graph. • Pay attention to each end of x-axis and close to vertical asymptotes • Graphs should approach but not touch asymptotes and they should not curl away from asymptotes. • State domain, range, equations of asymptotes, intercepts, turning points

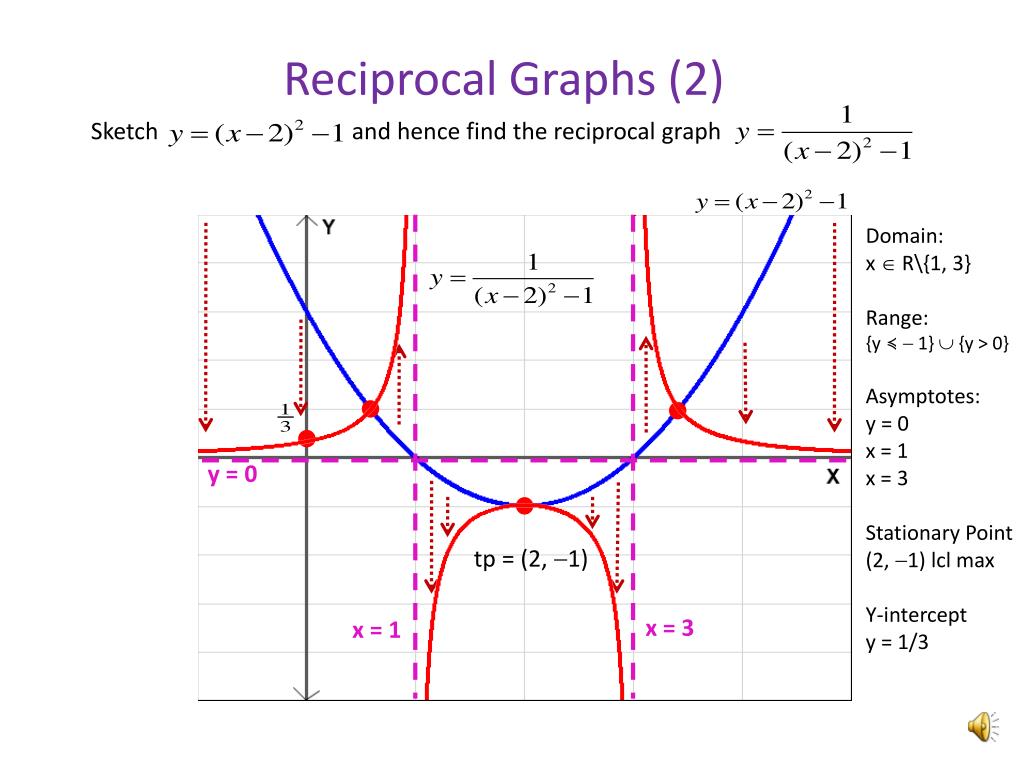

  3. Reciprocal Graphs (2) Sketch and hence find the reciprocal graph Domain: x  R\{1, 3} Range: {y ≼ 1}  {y > 0} Asymptotes: y = 0 x = 1 x = 3 Stationary Point (2, 1) lcl max Y-intercept y = 1/3 y = 0 tp = (2, 1) x = 3 x = 1
