6-2 Properties of Parallelograms page 294

6-2 Properties of Parallelograms page 294. Objective: To use relationships among sides, angles, diagonals or transversals of parallelograms. Vocabulary. Consecutive angles – angles of a polygon that share a side. NOTE: Consecutive angles of a parallelogram are supplementary. A. B. C. D.

lora
Télécharger la présentation

6-2 Properties of Parallelograms page 294

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

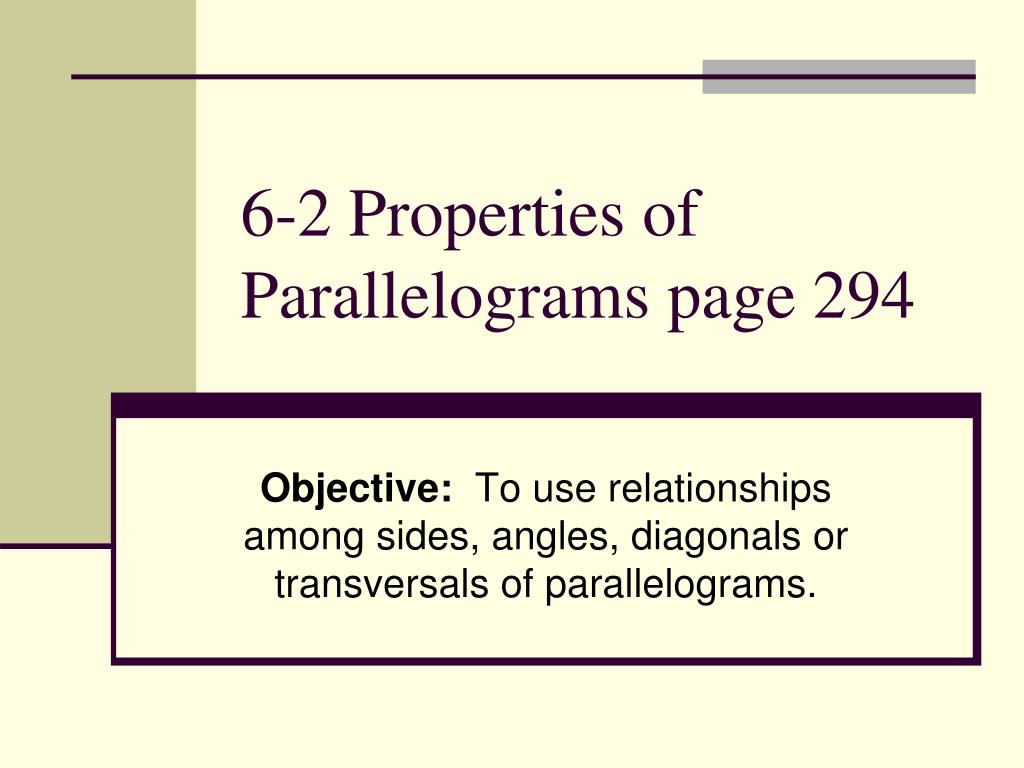

  1. 6-2 Properties of Parallelograms page 294 Objective: To use relationships among sides, angles, diagonals or transversals of parallelograms.

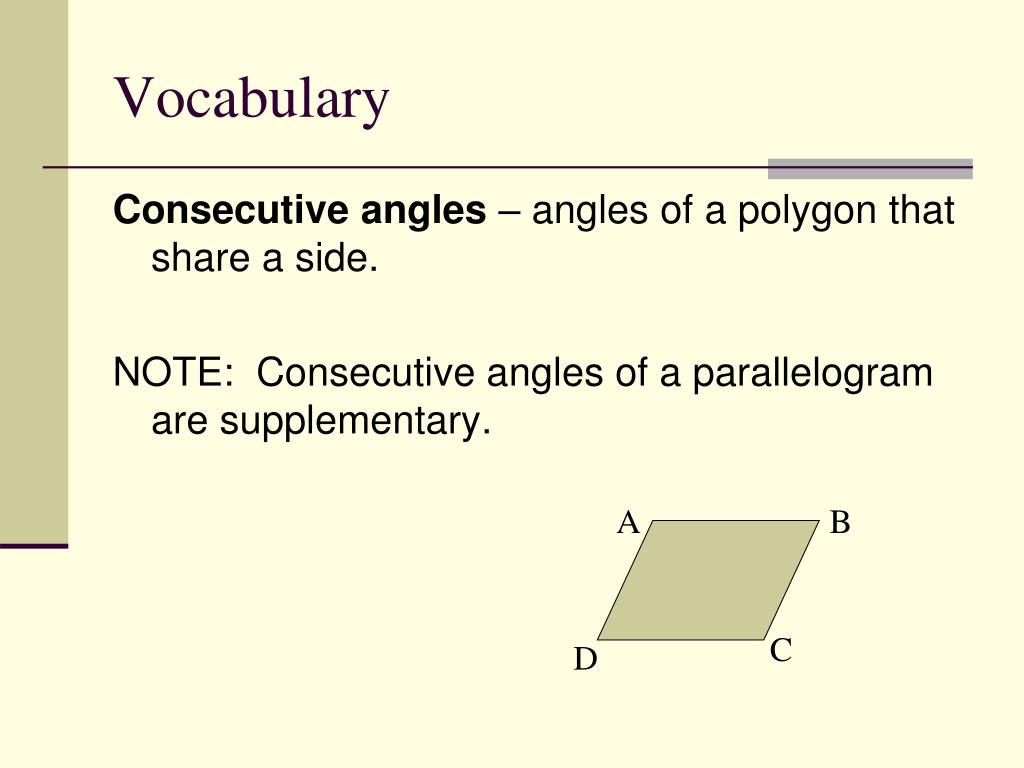

  2. Vocabulary Consecutive angles – angles of a polygon that share a side. NOTE: Consecutive angles of a parallelogram are supplementary. A B C D

  3. You can use what you know about parallel lines & transversals to prove some theorems about parallelograms • Theorem 6.1 p. 294---Opposite sides of a parallelogram are congruent

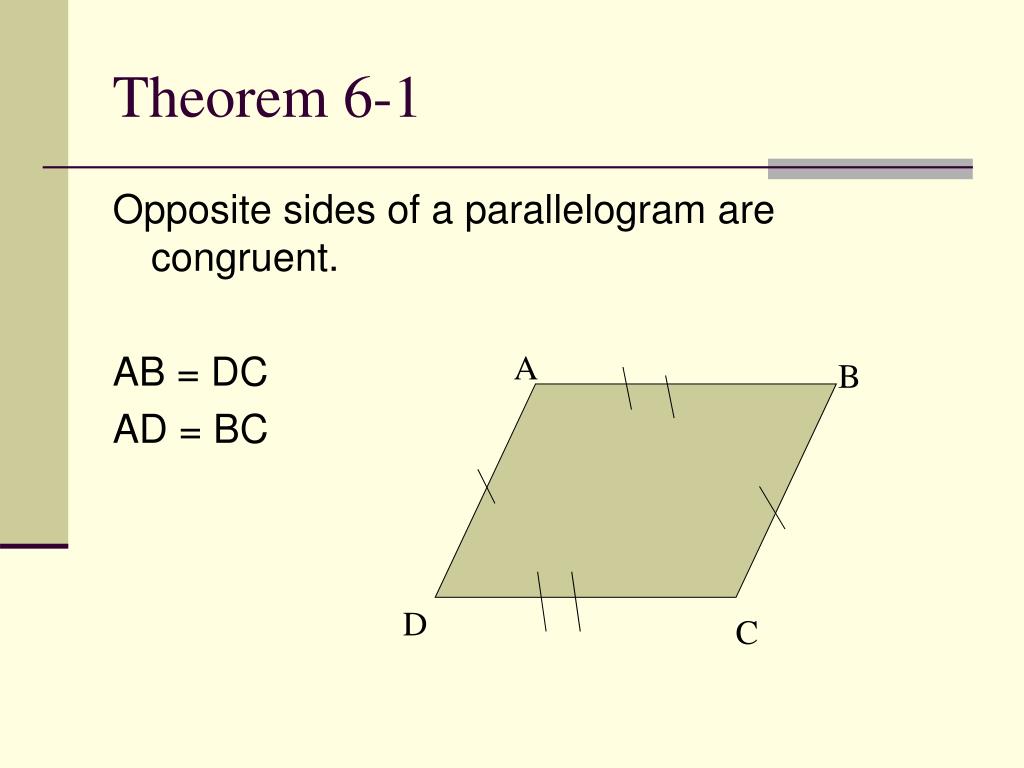

  4. Theorem 6-1 Opposite sides of a parallelogram are congruent. AB = DC AD = BC A B D C

  5. Use KMOQ to find m O. Q and O are consecutive angles of KMOQ, so they are supplementary. m O + m Q = 180 Definition of supplementary angles m O + 35 = 180 Substitute 35 for m Q. m O = 145 Subtract 35 from each side. Properties of Parallelograms 6-2

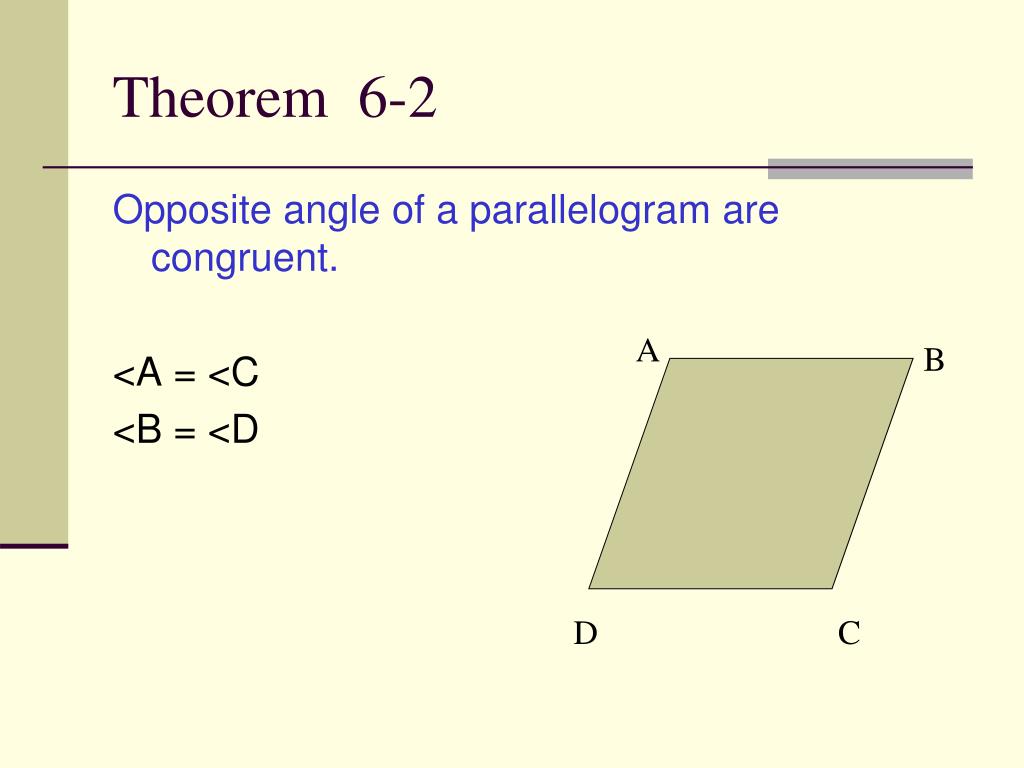

  6. Theorem 6-2 Opposite angle of a parallelogram are congruent. <A = <C <B = <D A B D C

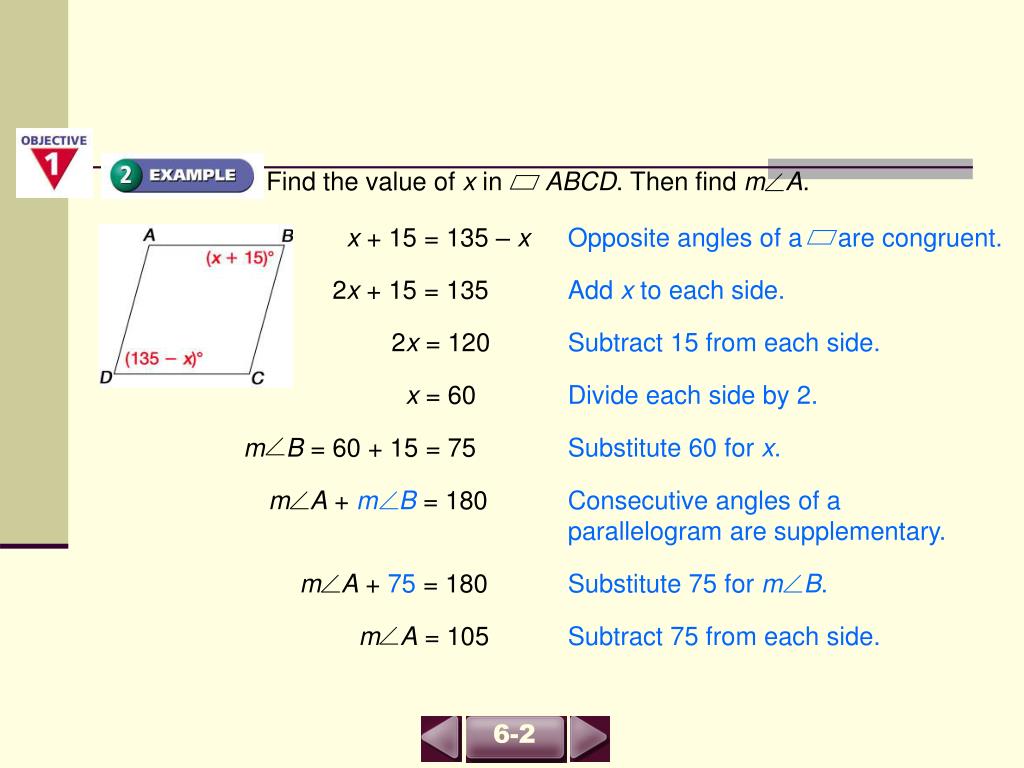

  7. x + 15 = 135 – x Opposite angles of a are congruent. 2x + 15 = 135 Add x to each side. 2x = 120 Subtract 15 from each side. x = 60 Divide each side by 2. Substitute 60 for x. m B = 60 + 15 = 75 m A + m B = 180 Consecutive angles of a parallelogram are supplementary. m A + 75 = 180 Substitute 75 for m B. m A = 105 Subtract 75 from each side. Find the value of x in ABCD. Then find m A. 6-2

  8. Theorem 6-3 The diagonals of a parallelogram bisect each other.

  9. Find the values of x and y in KLMN. x = 7y – 16 The diagonals of a parallelogram bisect each other. 2x + 5 = 5y 2(7y – 16) + 5 = 5y Substitute 7y – 16 for x in the second equation to solve for y. 14y – 32 + 5 = 5y Distribute. 14y – 27 = 5y Simplify. –27 = –9y Subtract 14y from each side. 3 = y Divide each side by –9. x = 7(3) – 16 Substitute 3 for y in the first equation to solve for x. x = 5 Simplify. Properties of Parallelograms So x = 5 and y = 3. 6-2

  10. Theorem 6-4 If three or more parallel lines cut off congruent segments on one transversal, then they cut off congruent segments on every transversal. BD = DF A B C D E F

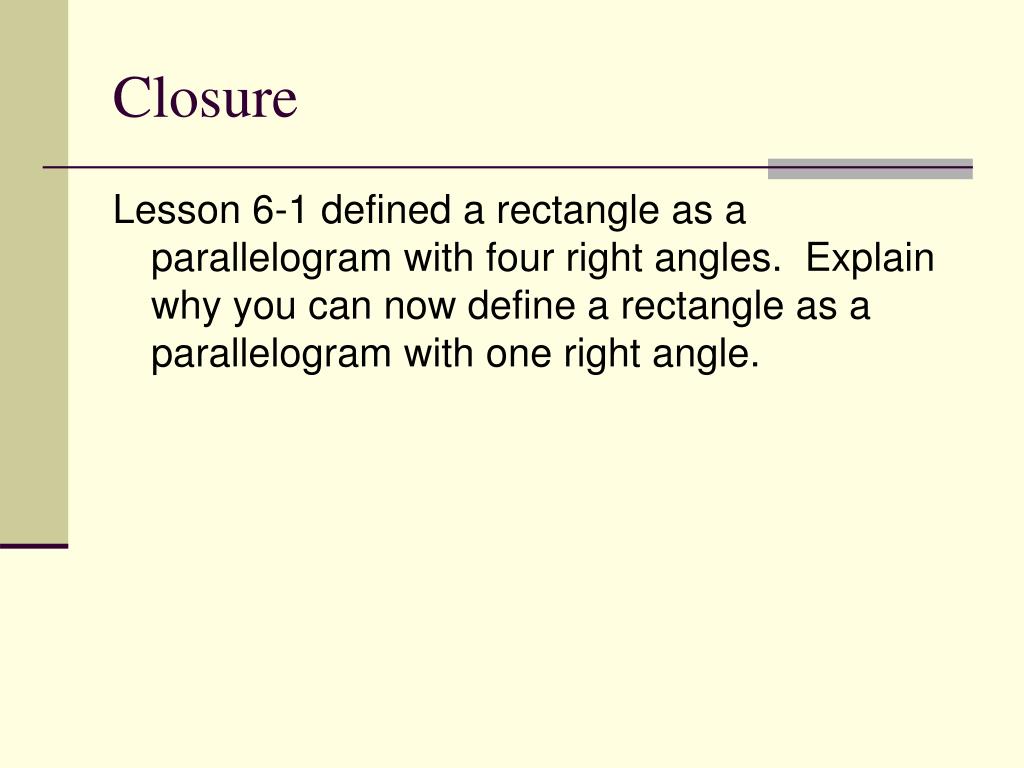

  11. Closure Lesson 6-1 defined a rectangle as a parallelogram with four right angles. Explain why you can now define a rectangle as a parallelogram with one right angle.

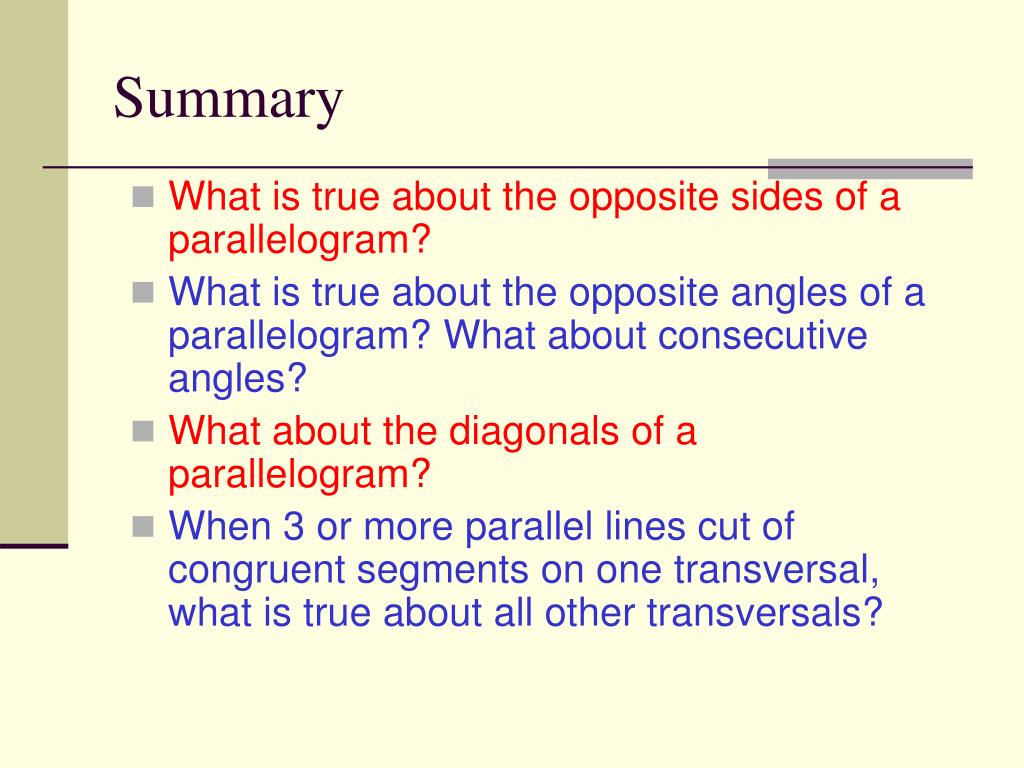

  12. Summary • What is true about the opposite sides of a parallelogram? • What is true about the opposite angles of a parallelogram? What about consecutive angles? • What about the diagonals of a parallelogram? • When 3 or more parallel lines cut of congruent segments on one transversal, what is true about all other transversals?

  13. Assignment 6.2 Page 297 #2-32 E, 34, 35, 39-41
