Pulse Code Modulation (PCM)

Pulse Code Modulation (PCM). Analog voice data must be translated into a series of binary digits before they can be transmitted. With Pulse Code Modulation (PCM) , the amplitude of the sound wave is sampled at regular intervals and translated into a binary number.

louis-ford
Télécharger la présentation

Pulse Code Modulation (PCM)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

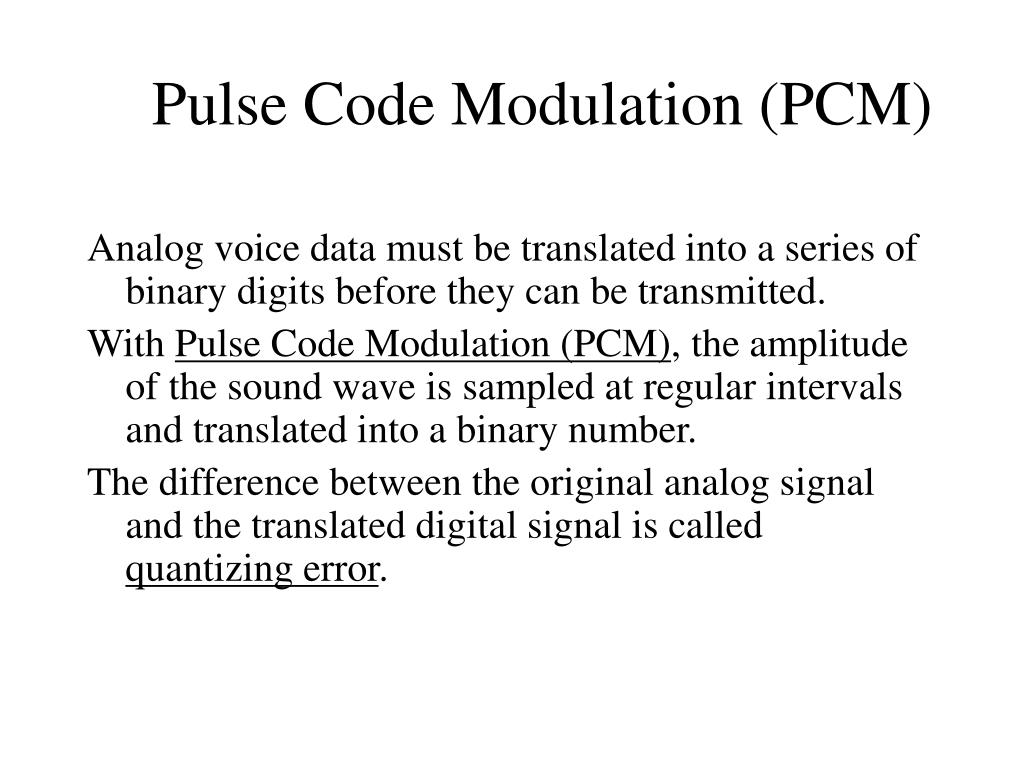

  1. Pulse Code Modulation (PCM) Analog voice data must be translated into a series of binary digits before they can be transmitted. With Pulse Code Modulation (PCM), the amplitude of the sound wave is sampled at regular intervals and translated into a binary number. The difference between the original analog signal and the translated digital signal is called quantizing error.

  2. PCM

  3. PCM

  4. PCM

  5. PCM PCM uses a sampling rate of 8000 samples per second. Each sample is an 8 bit sample resulting in a digital rate of 64,000 bps (8 x 8000).

  6. Converting Samples to Bits • Quantizing • Similar concept to pixelization • Breaks wave into pieces, assigns a value in a particular range • 8-bit range allows for 256 possible sample levels • More bits means greater detail, fewer bits means less detail
