  1. Chapter 5Creating and Editing Drawing Views

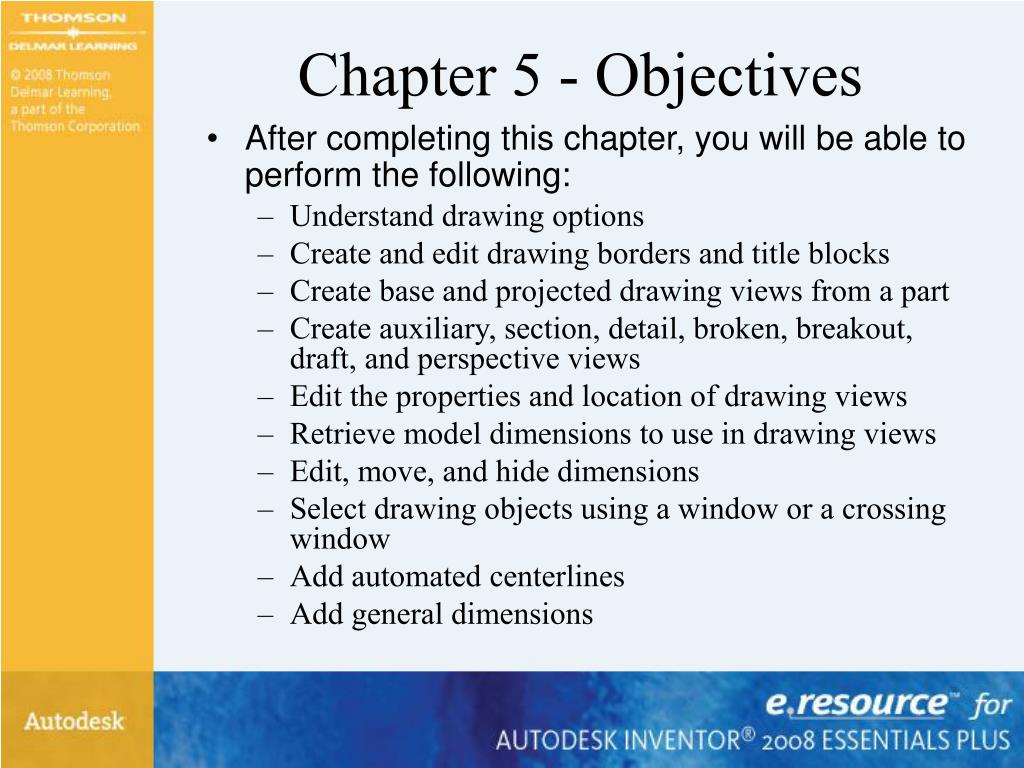

  2. Chapter 5 - Objectives • After completing this chapter, you will be able to perform the following: • Understand drawing options • Create and edit drawing borders and title blocks • Create base and projected drawing views from a part • Create auxiliary, section, detail, broken, breakout, draft, and perspective views • Edit the properties and location of drawing views • Retrieve model dimensions to use in drawing views • Edit, move, and hide dimensions • Select drawing objects using a window or a crossing window • Add automated centerlines • Add general dimensions

  3. Chapter 5 – Objectives - continued • After completing this chapter, you will be able to perform the following: • Add annotations such as text, leaders, Geometric Dimensioning & Tolerancing (GD&T), surface finish symbols, weld symbols, and datum identifiers • Create hole notes • Create chamfer notes • Open a model from a drawing to edit it • Manage drawing sheets • Create baseline dimensions • Create ordinate dimensions • Create hole tables • Create general tables • Create revision tables • Plot multiple drawing sheets

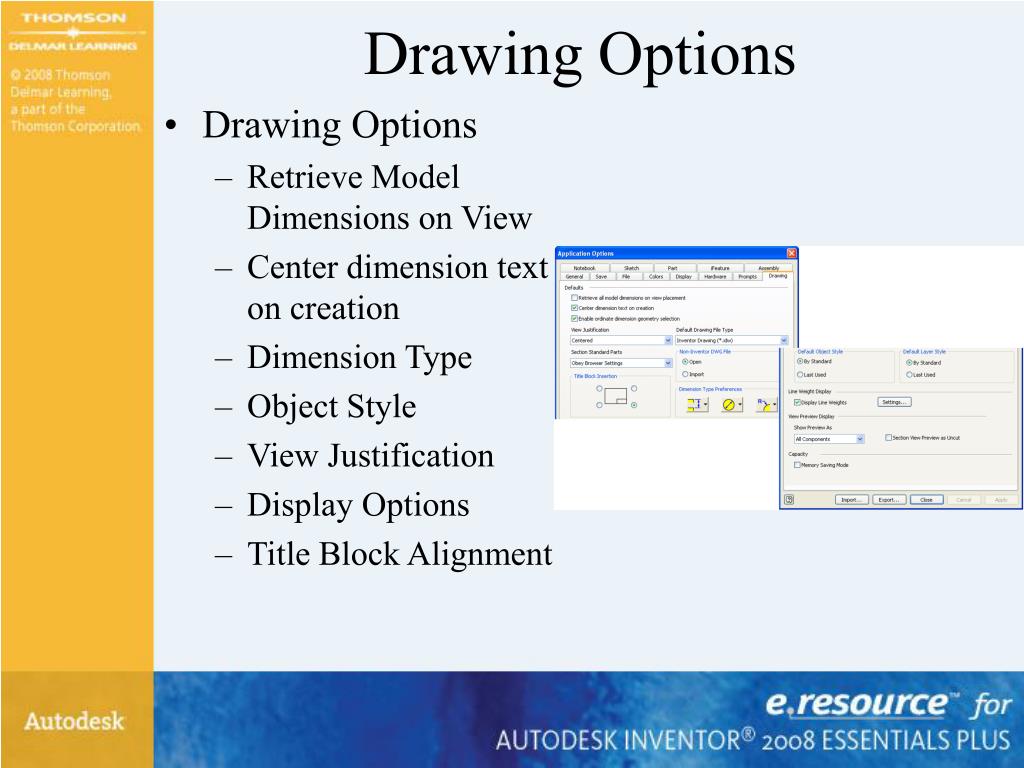

  4. Drawing Options • Drawing Options • Retrieve Model Dimensions on View • Center dimension text on creation • Dimension Type • Object Style • View Justification • Display Options • Title Block Alignment

  5. Creating a Drawing • Creating a Drawing • DWG or IDW files • Drawing Tools • Drawing Views • Sketch • Drawing Annotation

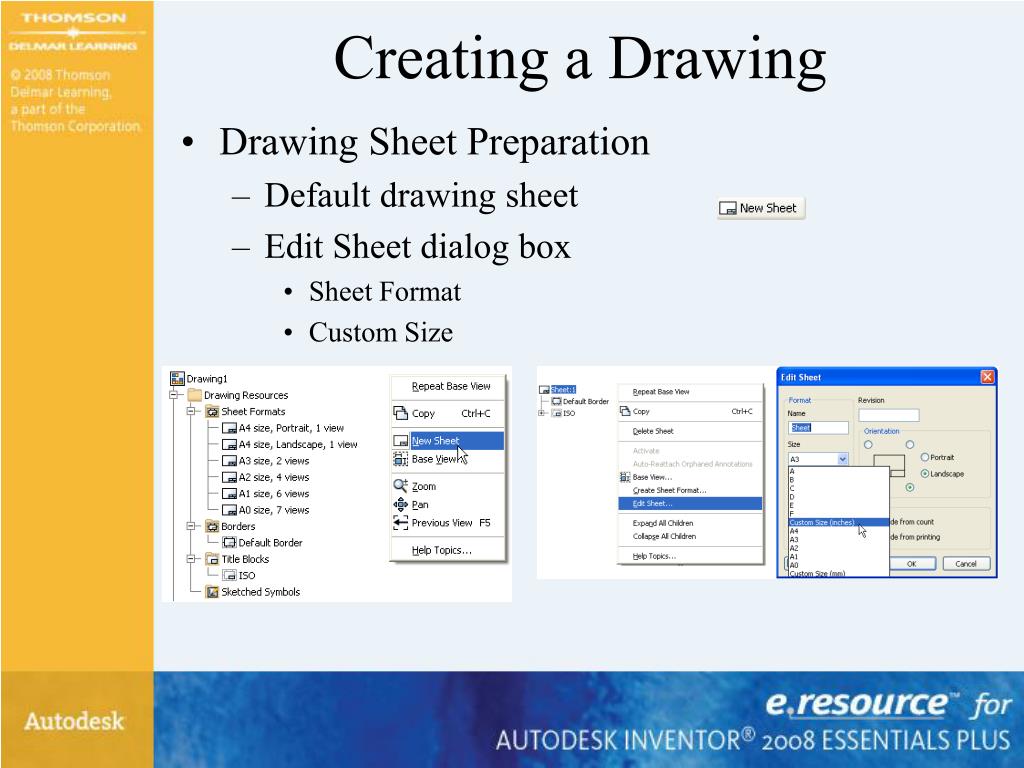

  6. Creating a Drawing • Drawing Sheet Preparation • Default drawing sheet • Edit Sheet dialog box • Sheet Format • Custom Size

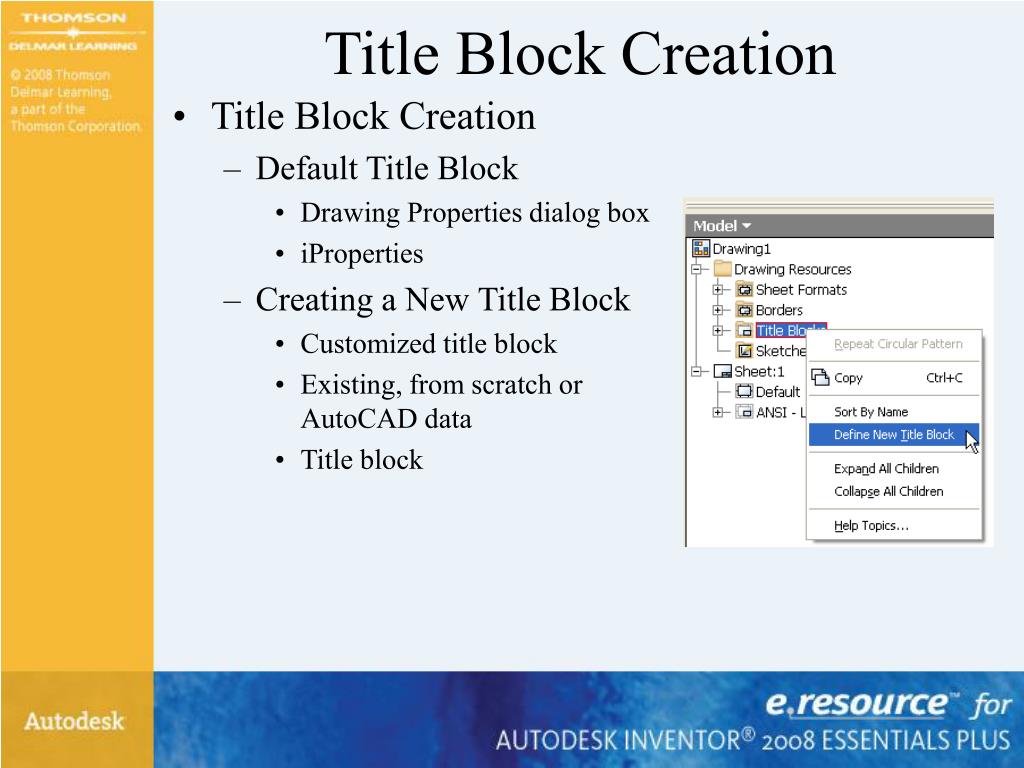

  7. Title Block Creation • Title Block Creation • Default Title Block • Drawing Properties dialog box • iProperties • Creating a New Title Block • Customized title block • Existing, from scratch or AutoCAD data • Title block

  8. Title Block Insertion • Insert Title Block • Delete existing title block • Drawing Resources Folder

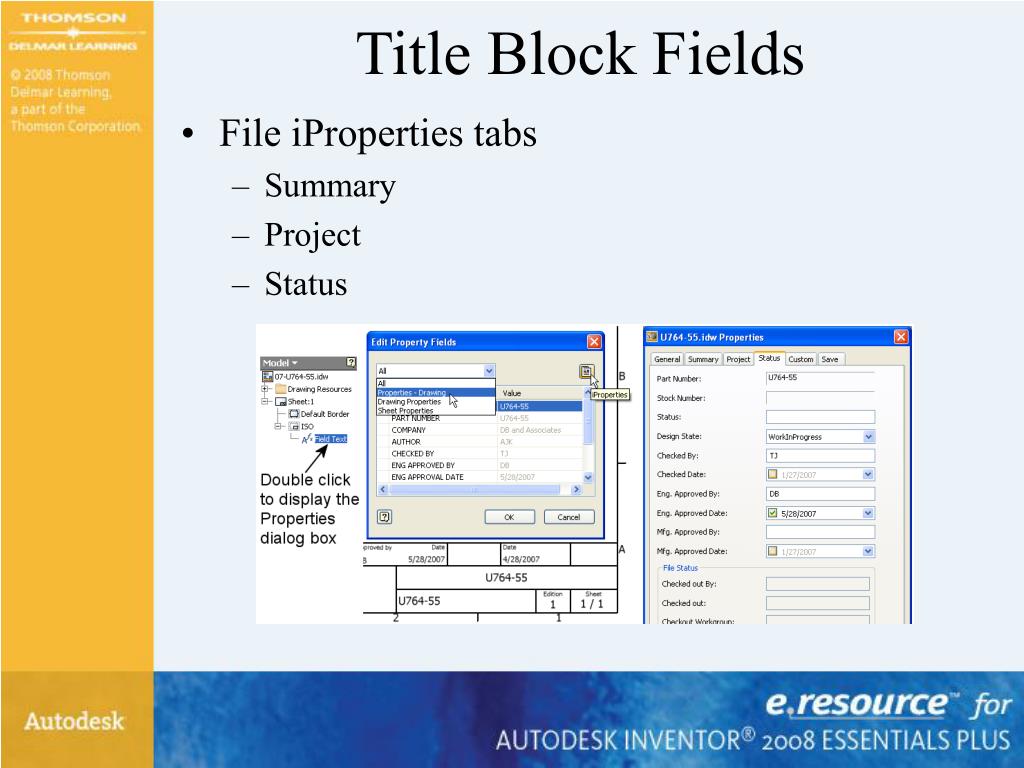

  9. Title Block Fields • File iProperties tabs • Summary • Project • Status

  10. Styles • Controlling Styles • Project File • Yes • Read Only • No • Styles Library • Format Menu • Active Standard • Styles Editor • Update Styles • Save Styles to Style Library • Purge Styles • Active Standard

  11. Styles • Style Library • Central storage location of styles • Style in document takes precedence over a style library • Styles are filtered by the active standard • Local (cached) style in a document is always available for use

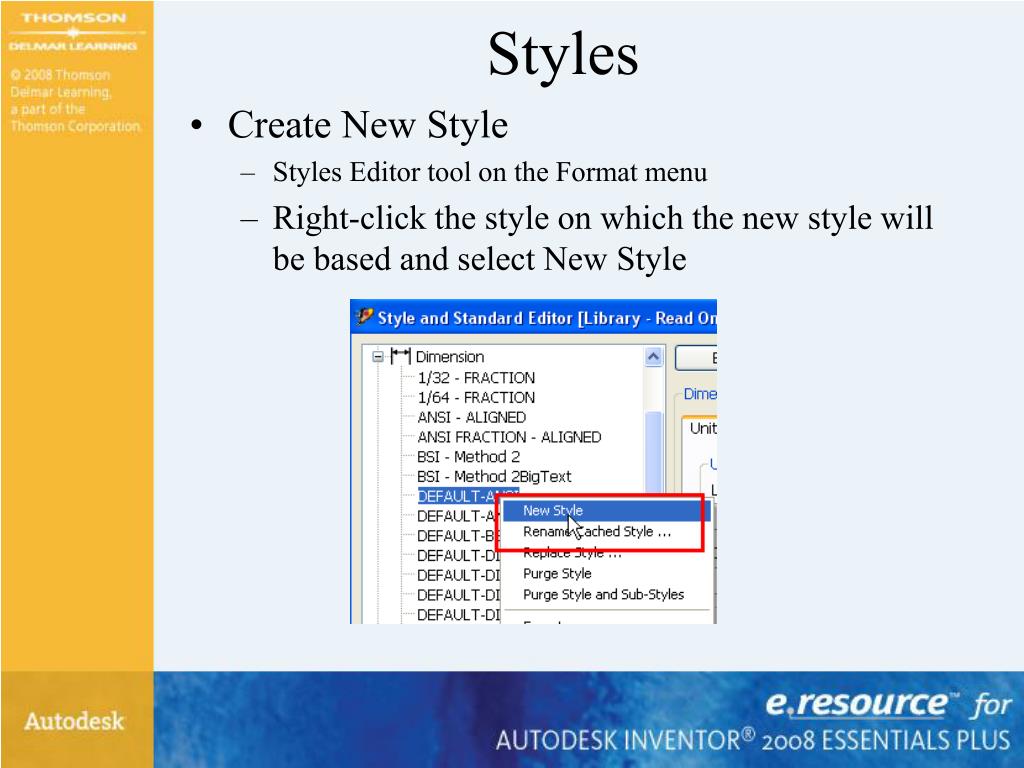

  12. Styles • Create New Style • Styles Editor tool on the Format menu • Right-click the style on which the new style will be based and select New Style

  13. Styles • Edit Styles • Click Styles Editor tool on the Format menu • Click the style you want to edit.

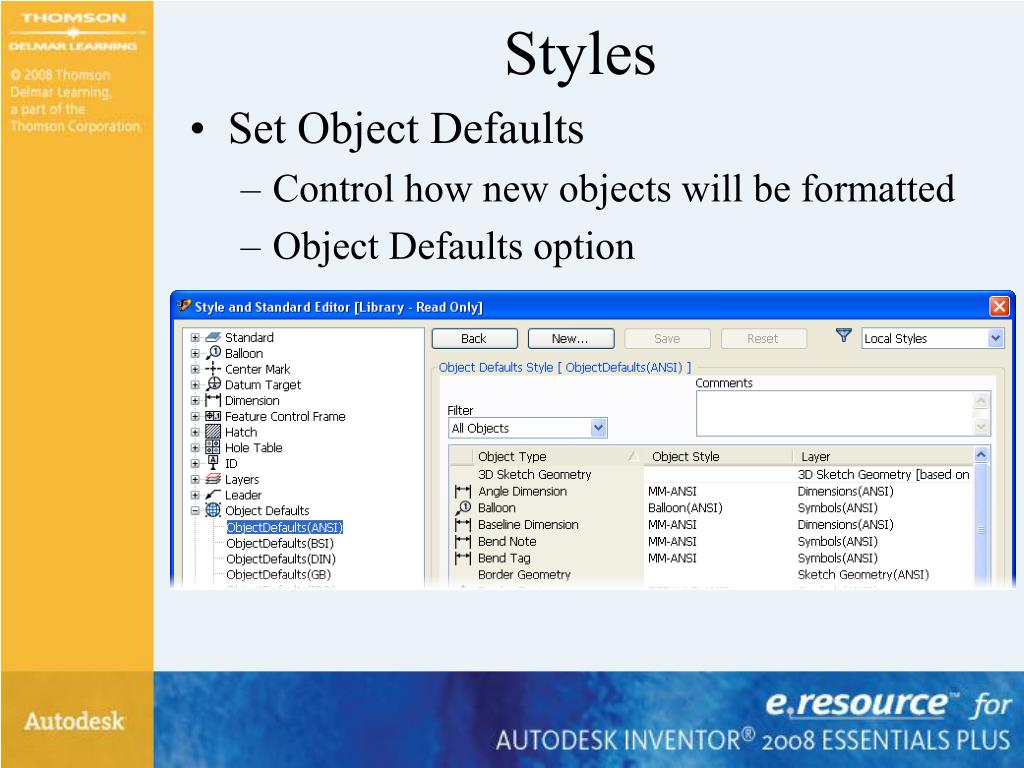

  14. Styles • Set Object Defaults • Control how new objects will be formatted • Object Defaults option

  15. Styles • Overriding an Object’s Style • Select objects • Select style from the Style drop list

  16. Exercise 5-1 • Creating Text and Dimension Styles

  17. Templates • Templates • Save your new drawing sheet, border, title block, drafting standard and dimension style as a template file • Save Copy As

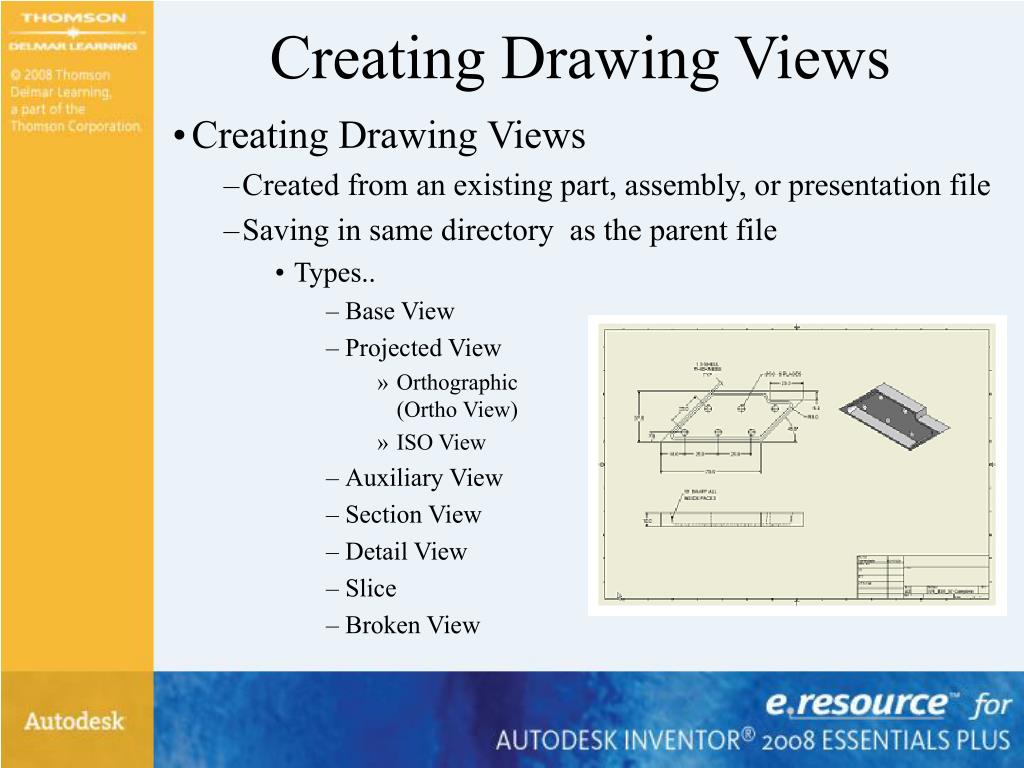

  18. Creating Drawing Views • Creating Drawing Views • Created from an existing part, assembly, or presentation file • Saving in same directory as the parent file • Types.. • Base View • Projected View • Orthographic (Ortho View) • ISO View • Auxiliary View • Section View • Detail View • Slice • Broken View

  19. Creating Drawing Views • Component tab • File - Options change depending upon selected file • Presentation File • Sheet Metal • iAssemblies • Representations • Orientation • Scale from Base • Scale • Label • Style • Style from Base

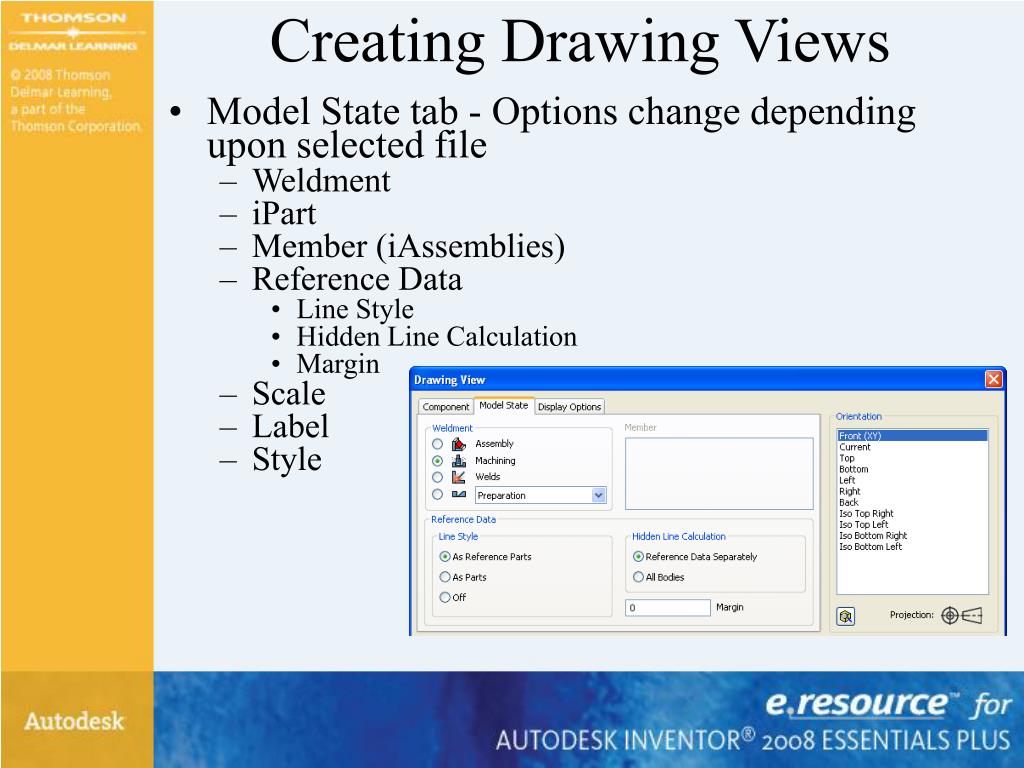

  20. Creating Drawing Views • Model State tab - Options change depending upon selected file • Weldment • iPart • Member (iAssemblies) • Reference Data • Line Style • Hidden Line Calculation • Margin • Scale • Label • Style

  21. Creating Drawing Views • Options tab • All Model Dimensions • Model Weld Symbols • Bend Extents • Thread Feature • Weld Annotations • User Work Features • Tangent Edges • Foreshortened • Show Trails • Hatching • Align to Base • Definition in Base View • Section Standard Parts • View justification

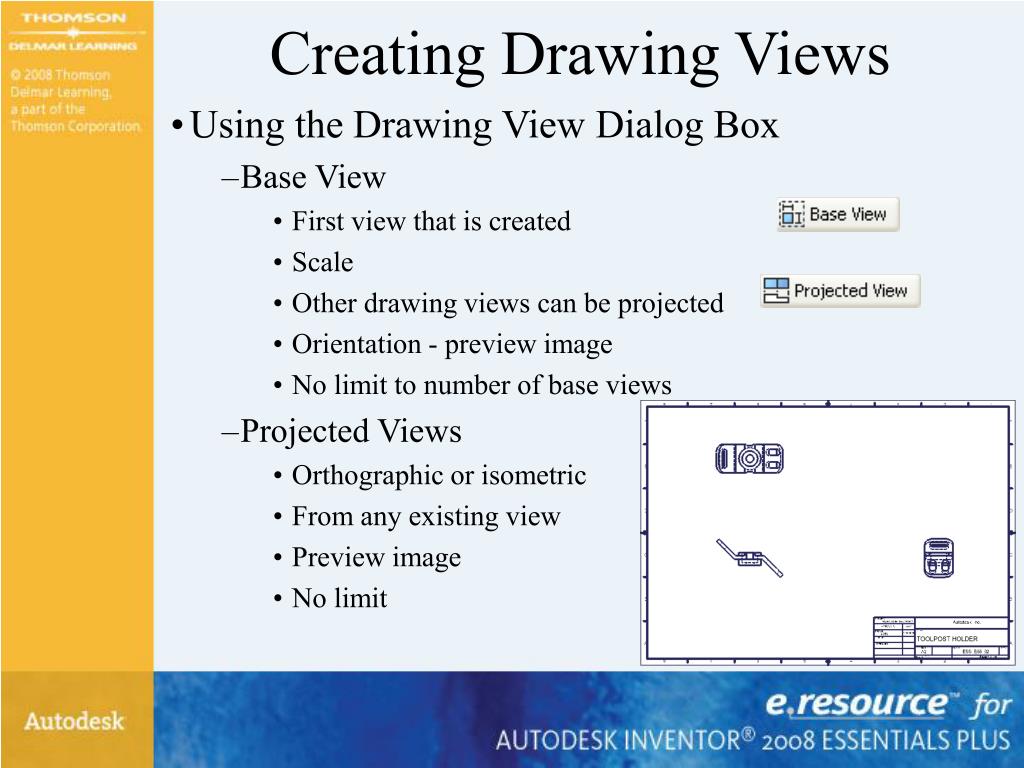

  22. Creating Drawing Views • Using the Drawing View Dialog Box • Base View • First view that is created • Scale • Other drawing views can be projected • Orientation - preview image • No limit to number of base views • Projected Views • Orthographic or isometric • From any existing view • Preview image • No limit

  23. Exercise 5-2 • Creating a Multiview Drawing

  24. Creating Drawing Views • Auxiliary Views • Created by selecting an edge • Projected at 90 degrees

  25. Creating Drawing Views • Section Views • Created by sketching a line or multiple lines that will define the plane(s) that will be cut through a part or assembly • Section View tool

  26. Creating Drawing Views • Section Views • Half Sections • Aligned Sections • Offset Sections • Slice • Modifying Hatch • Right-click > Edit

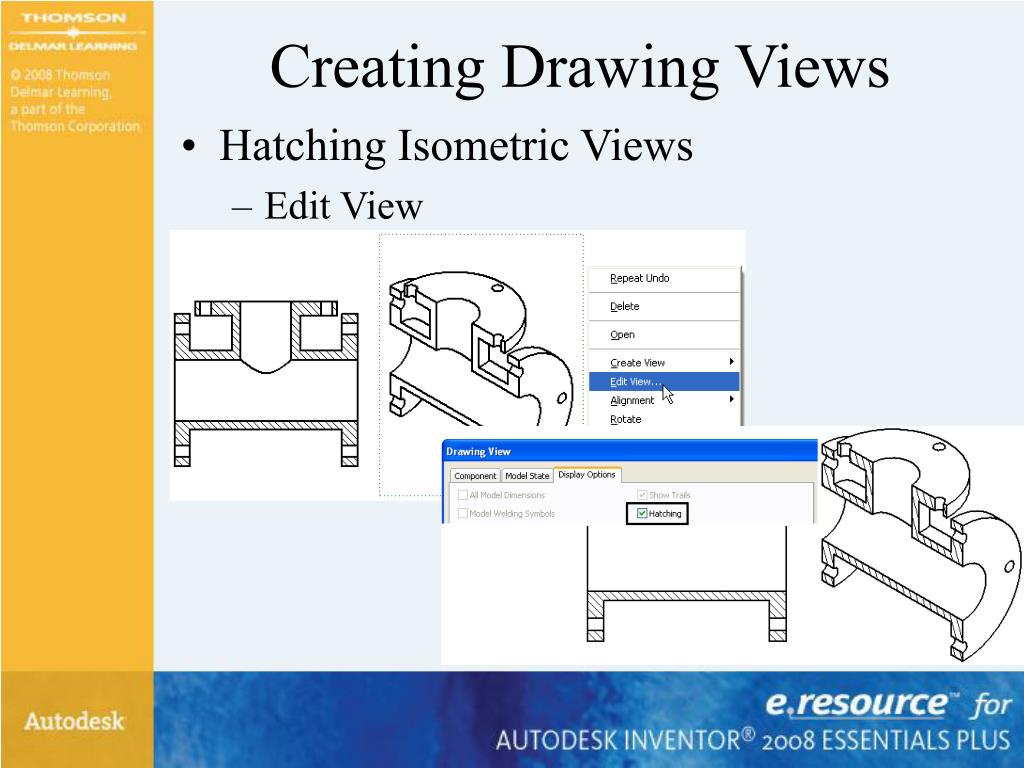

  27. Creating Drawing Views • Hatching Isometric Views • Edit View

  28. Creating Drawing Views • Crosshatching by Material Type • Material Hatch Pattern Defaults tab

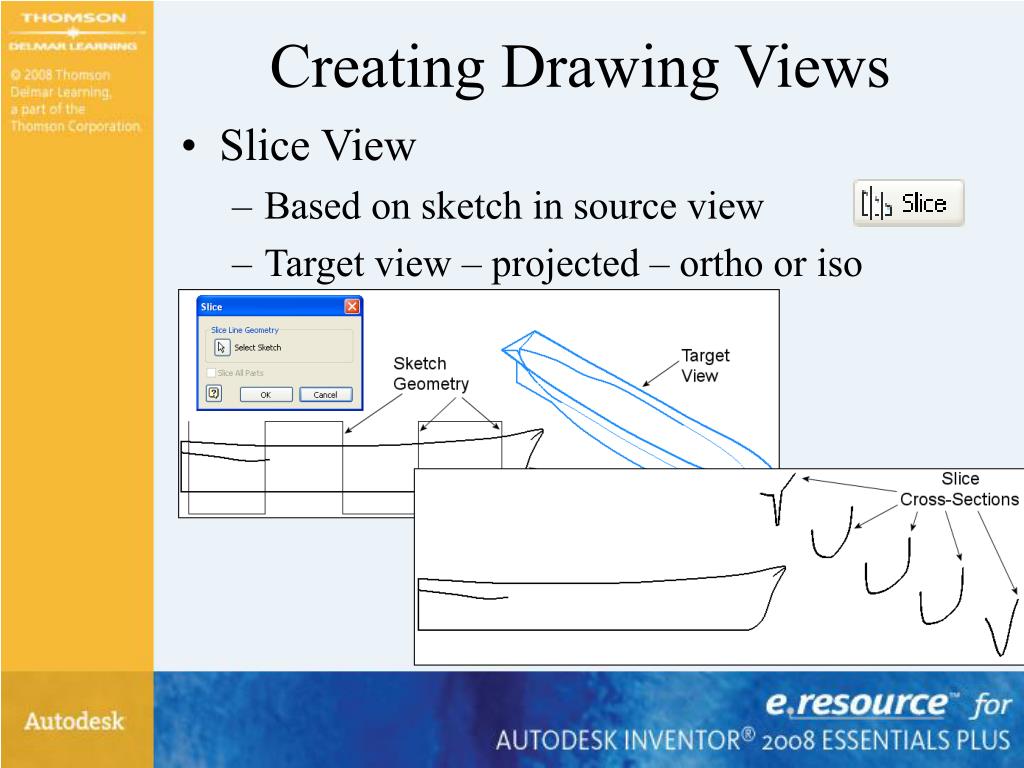

  29. Creating Drawing Views • Slice View • Based on sketch in source view • Target view – projected – ortho or iso

  30. Creating Drawing Views • Detail Views • Drawing view that enlarges an area of an existing drawing view by a specified scale • Detail View tool • Smooth Cutout Shape • Full Detail Boundary • Connection line

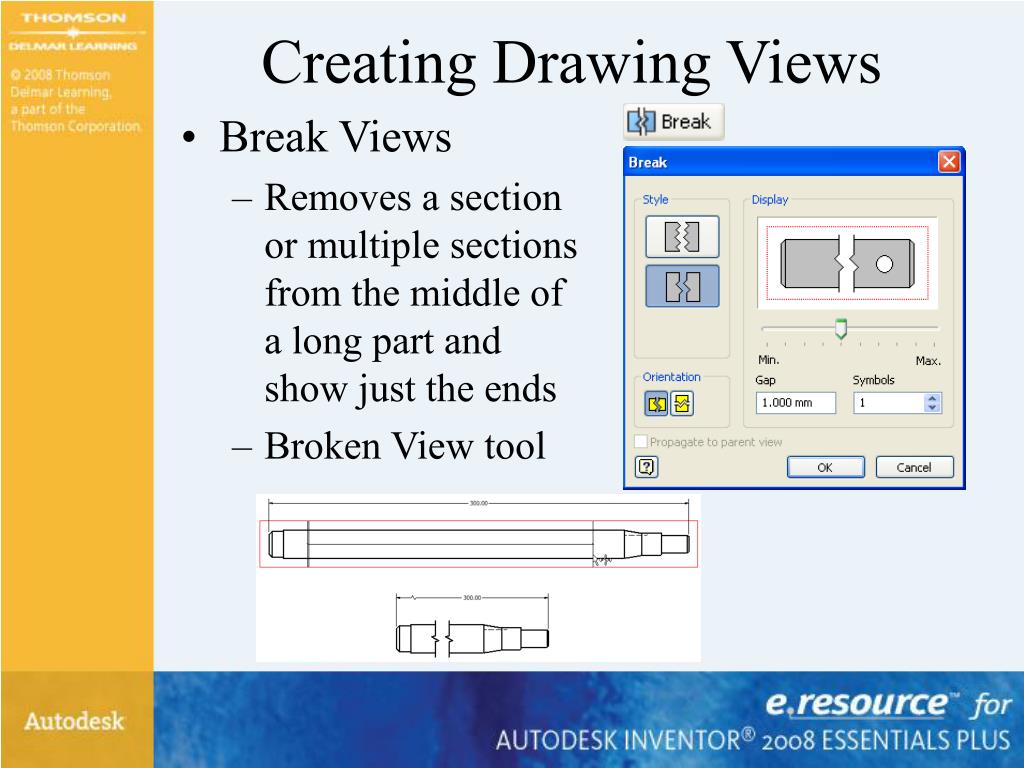

  31. Creating Drawing Views • Break Views • Removes a section or multiple sections from the middle of a long part and show just the ends • Broken View tool

  32. Creating Drawing Views • Break Out Views • Expose internal components or features • Break Out View tool • Boundary Profile

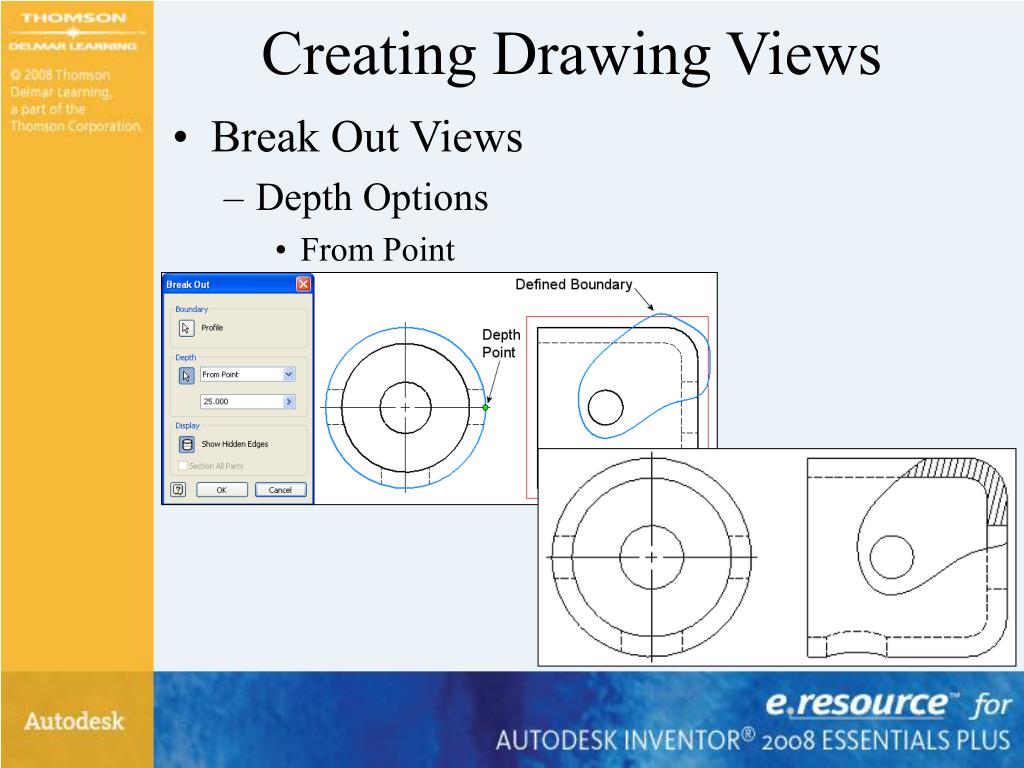

  33. Creating Drawing Views • Break Out Views • Depth Options • From Point

  34. Creating Drawing Views • Break Out Views • Depth Options • To Sketch

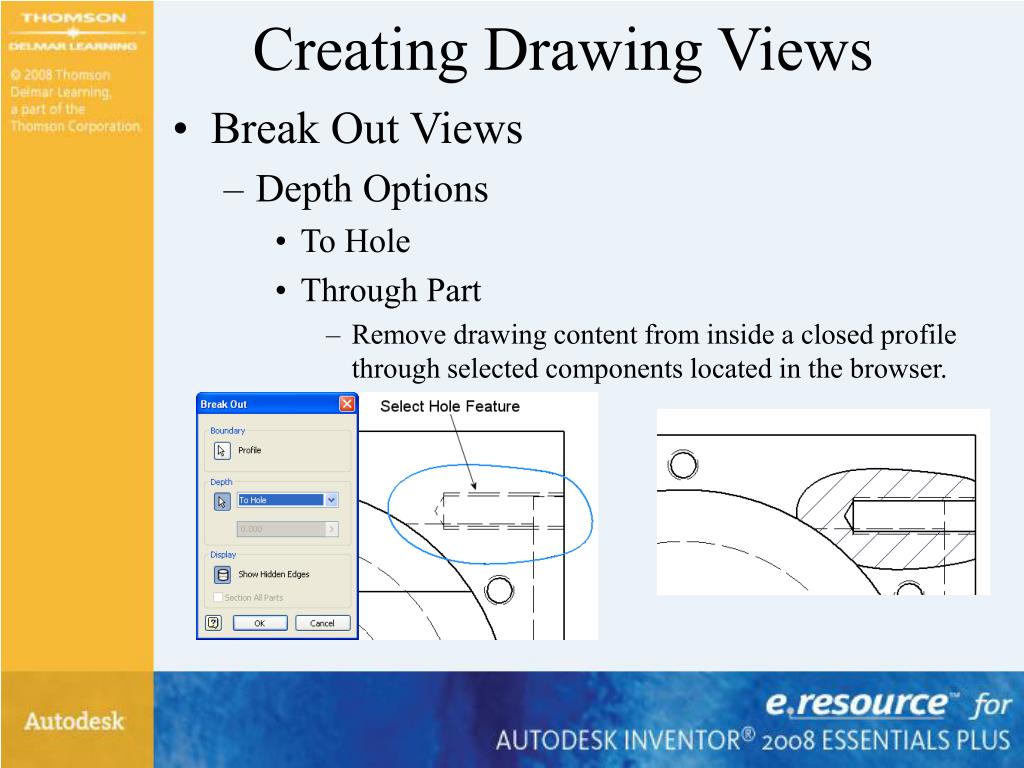

  35. Creating Drawing Views • Break Out Views • Depth Options • To Hole • Through Part • Remove drawing content from inside a closed profile through selected components located in the browser.

  36. Drawing View Options • Perspective View • Change View Orientation • Perspective views provide a realistic view of an assembly or component

  37. Exercise 5-3 • Creating Break, Section, Auxiliary, and Detail Views

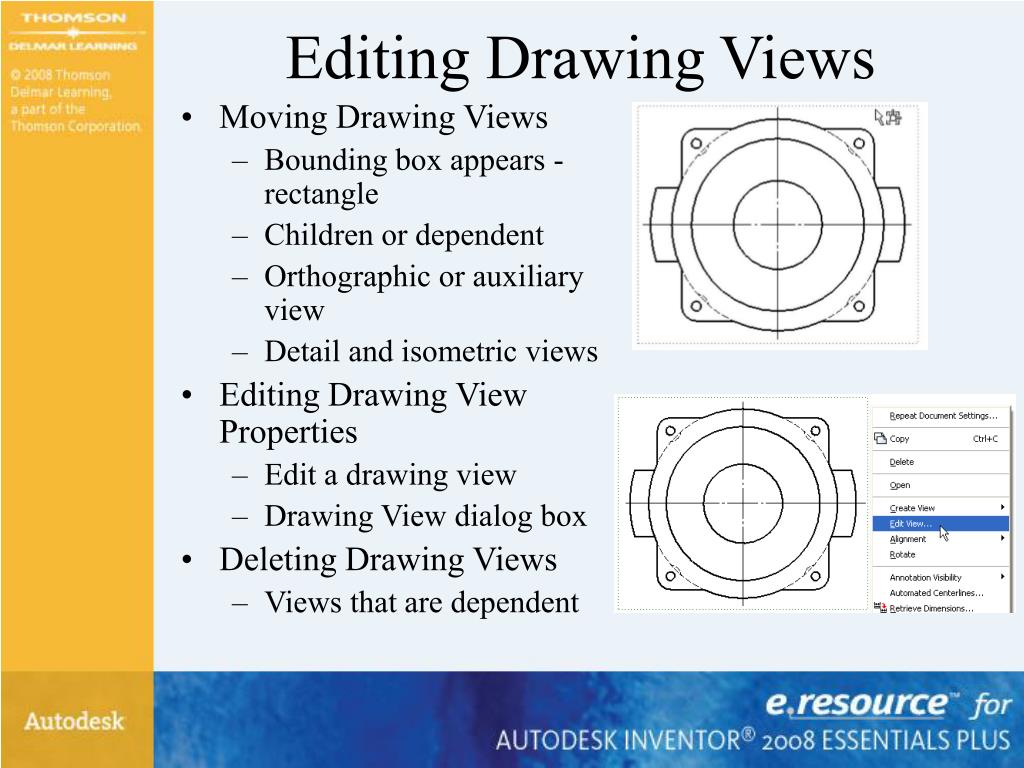

  38. Editing Drawing Views • Moving Drawing Views • Bounding box appears - rectangle • Children or dependent • Orthographic or auxiliary view • Detail and isometric views • Editing Drawing View Properties • Edit a drawing view • Drawing View dialog box • Deleting Drawing Views • Views that are dependent

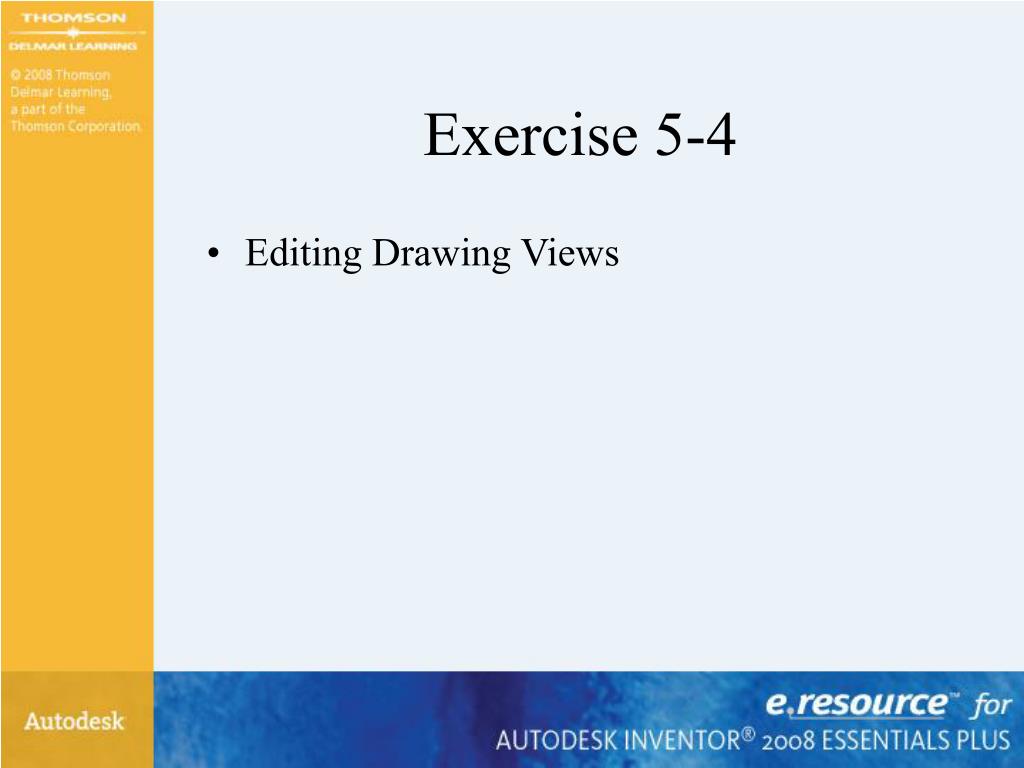

  39. Exercise 5-4 • Editing Drawing Views

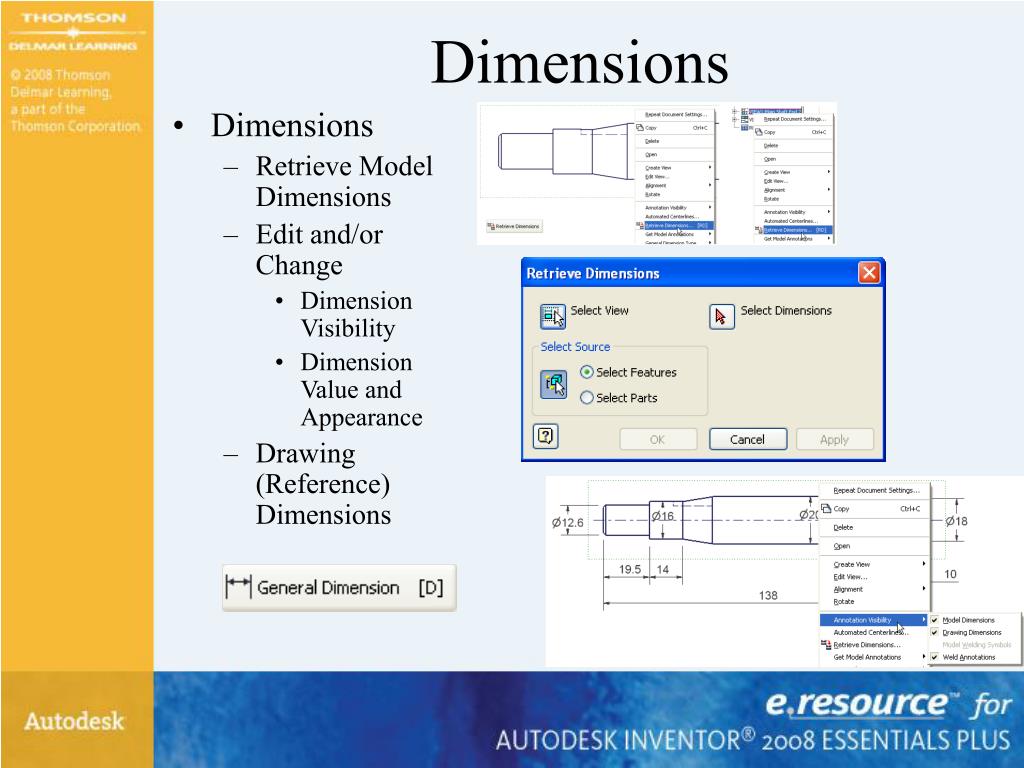

  40. Dimensions • Dimensions • Retrieve Model Dimensions • Edit and/or Change • Dimension Visibility • Dimension Value and Appearance • Drawing (Reference) Dimensions

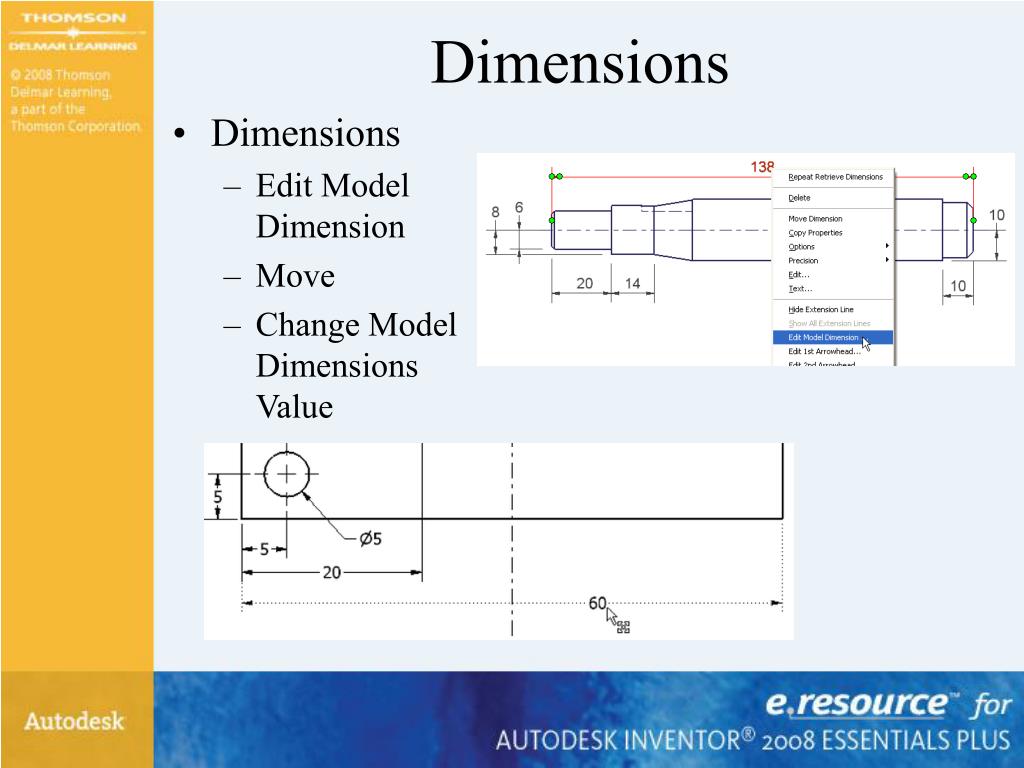

  41. Dimensions • Dimensions • Edit Model Dimension • Move • Change Model Dimensions Value

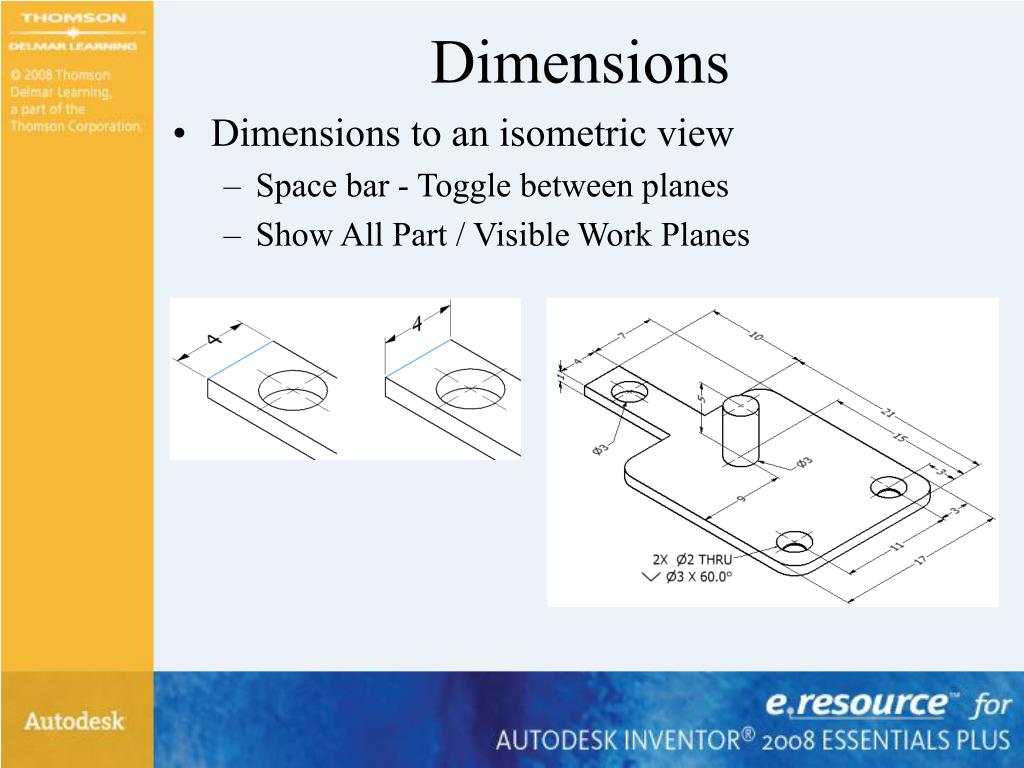

  42. Dimensions • Dimensions to an isometric view • Space bar - Toggle between planes • Show All Part / Visible Work Planes

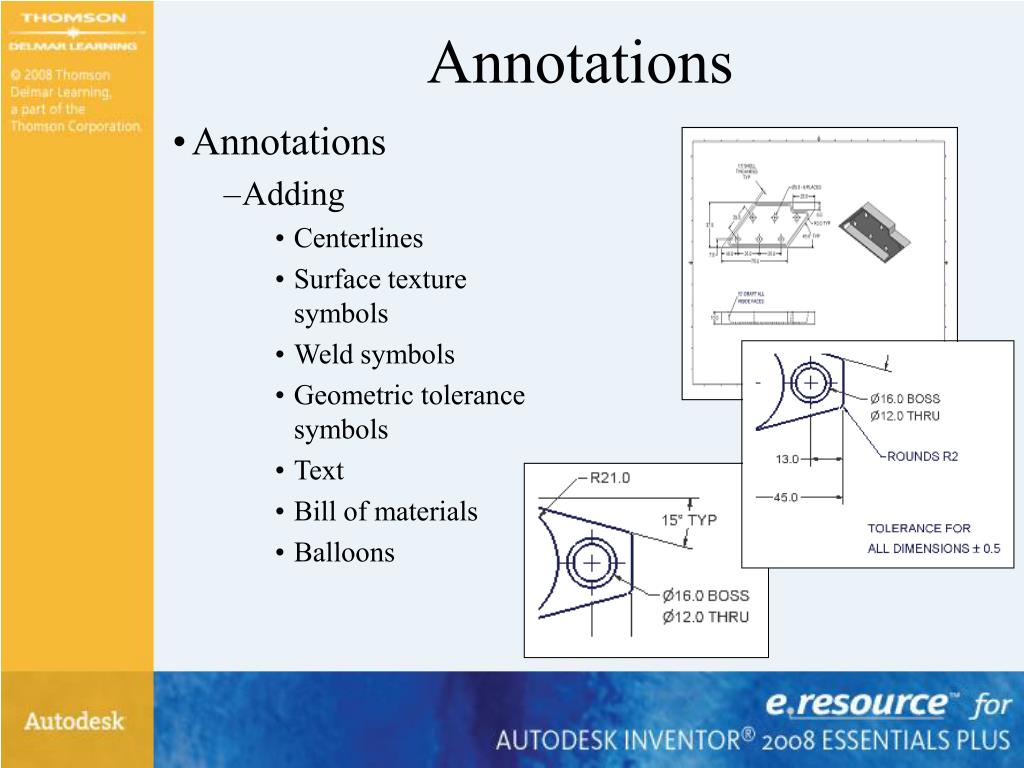

  43. Annotations • Annotations • Adding • Centerlines • Surface texture symbols • Weld symbols • Geometric tolerance symbols • Text • Bill of materials • Balloons

  44. Annotations • Centerlines • Center Mark • Center Line Bisector • Center Line • Centered Pattern tools • Automated Centerlines • Centerline Settings • Apply To • Threshold • View Types • Projection

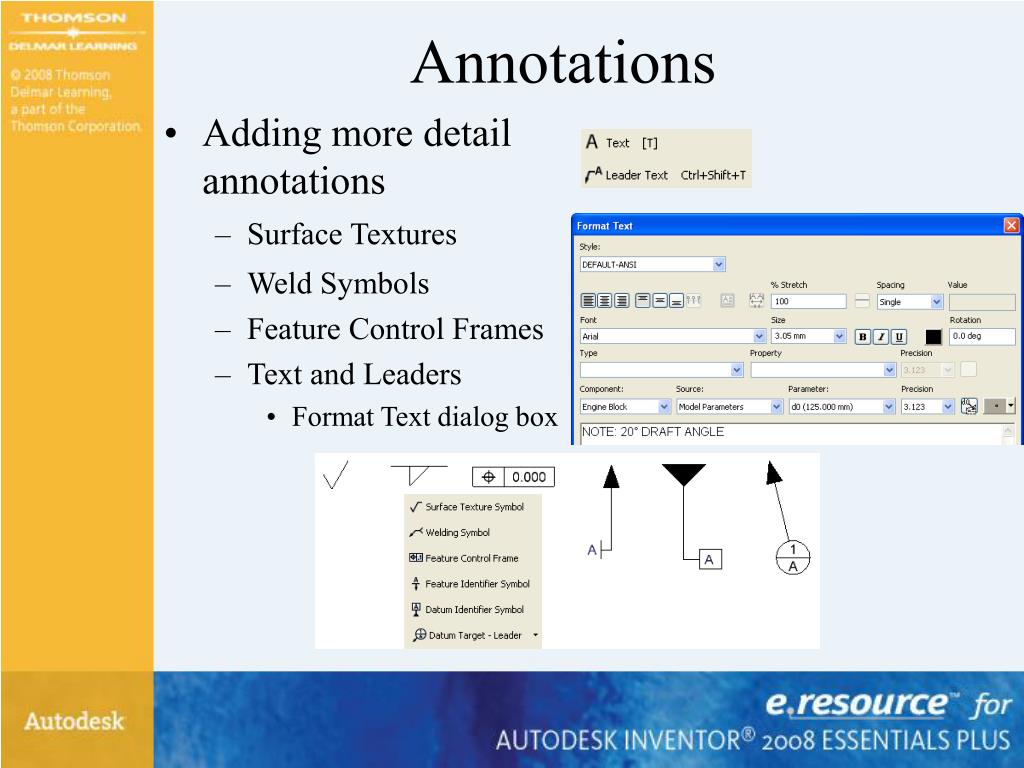

  45. Annotations • Adding more detail annotations • Surface Textures • Weld Symbols • Feature Control Frames • Text and Leaders • Format Text dialog box

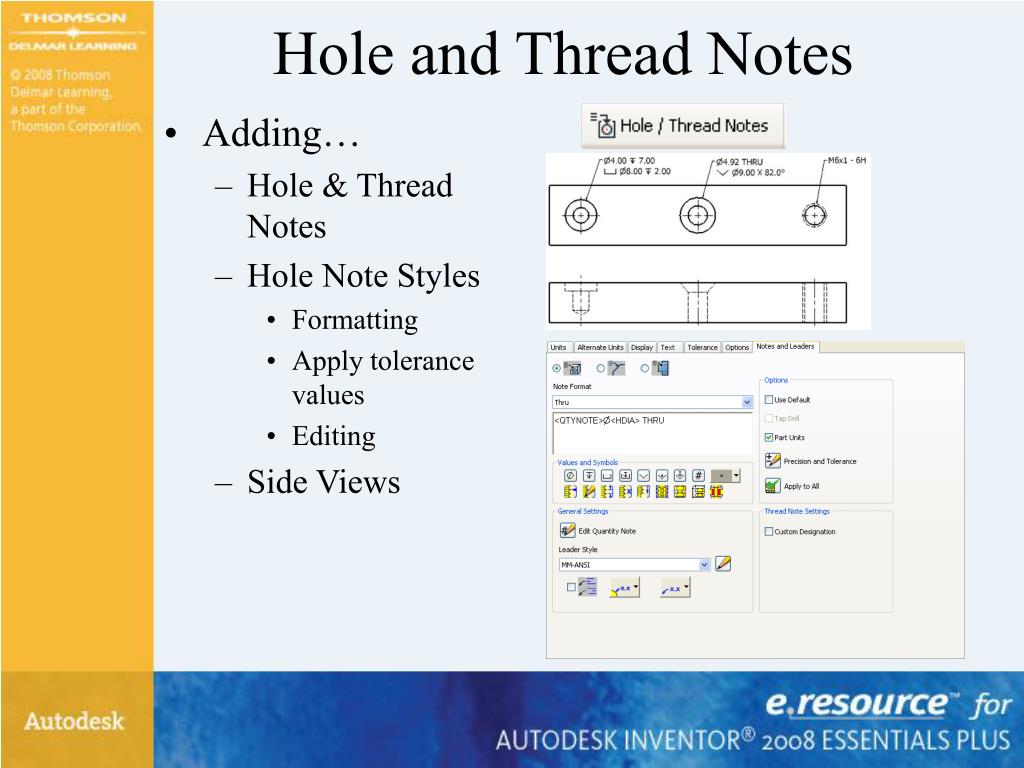

  46. Hole and Thread Notes • Adding… • Hole & Thread Notes • Hole Note Styles • Formatting • Apply tolerance values • Editing • Side Views

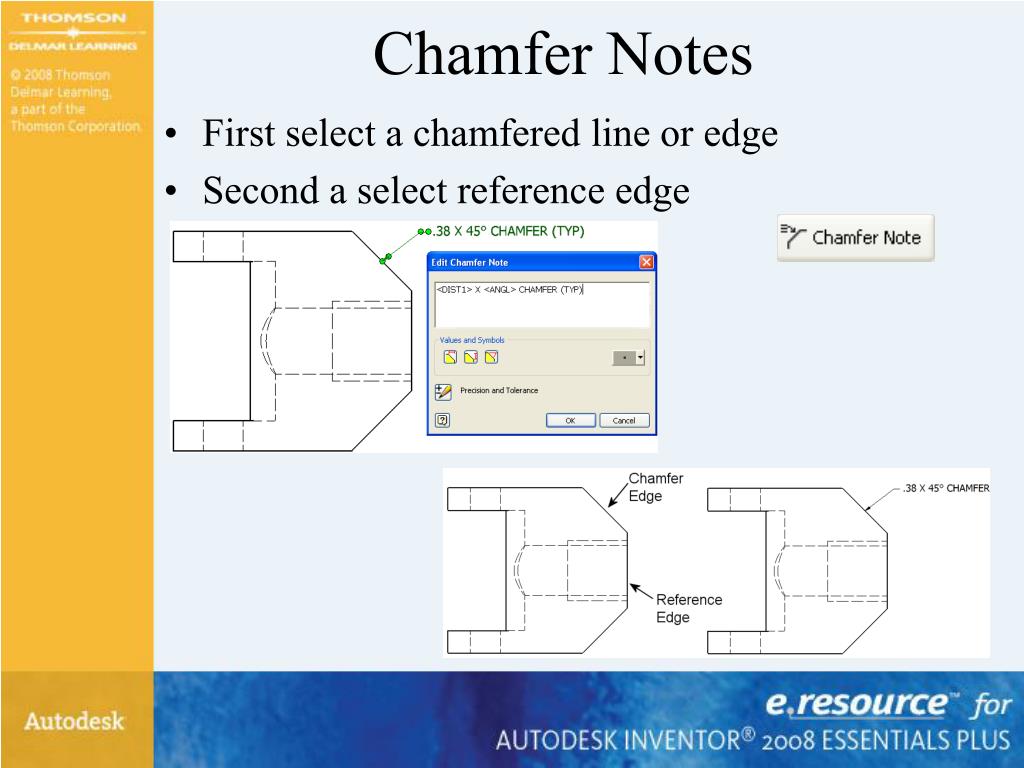

  47. Chamfer Notes • First select a chamfered line or edge • Second a select reference edge

  48. Exercise 5-5 • Adding Dimensions and Annotations

  49. Managing Drawing Sheets • New Sheets • Copy existing sheet

  50. Baseline Dimensions / Sets • Baseline Dimension • Window / cross objects • Individual dimensions • Baseline Dimension Set • Select objects Window / cross methods • Dimensions held as a set
