R&D topics

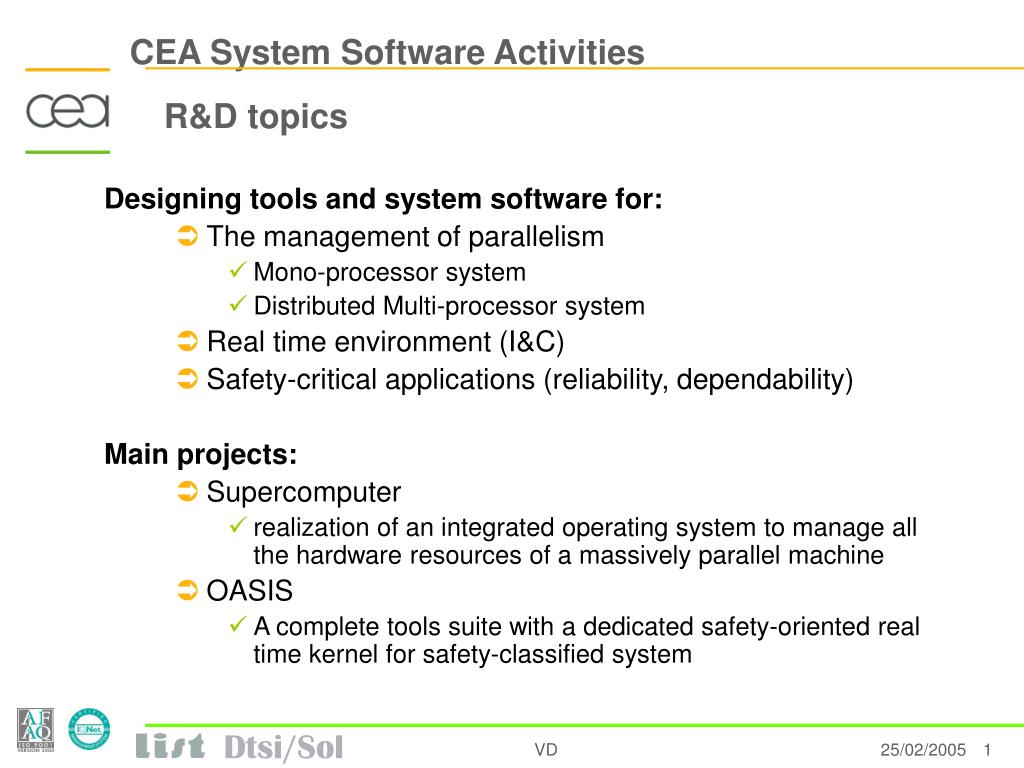

1. R&D topics • Designing tools and system software for: • The management of parallelism • Mono-processor system • Distributed Multi-processor system • Real time environment (I&C) • Safety-critical applications (reliability, dependability) • Main projects: • Supercomputer • realization of an integrated operating system to manage all the hardware resources of a massively parallel machine • OASIS • A complete tools suite with a dedicated safety-oriented real time kernel for safety-classified system VD

2. Supercomputer system software • Main functional features: • Management of 3 level of parallelism • Jobs • Tasks • SIMD • Automatic decomposition of Jobs and Tasks • Automatic dispatching and scheduling • Non functional features: • Security design • Protection against erroneous or malicious user or “administrative” command • Detection and confinement mechanisms • Safety design • Fault-tolerance migration and check/restart-point • Protection against critical hardware failure (cooling devices, high temperature, etc…) • Single failure criterion VD

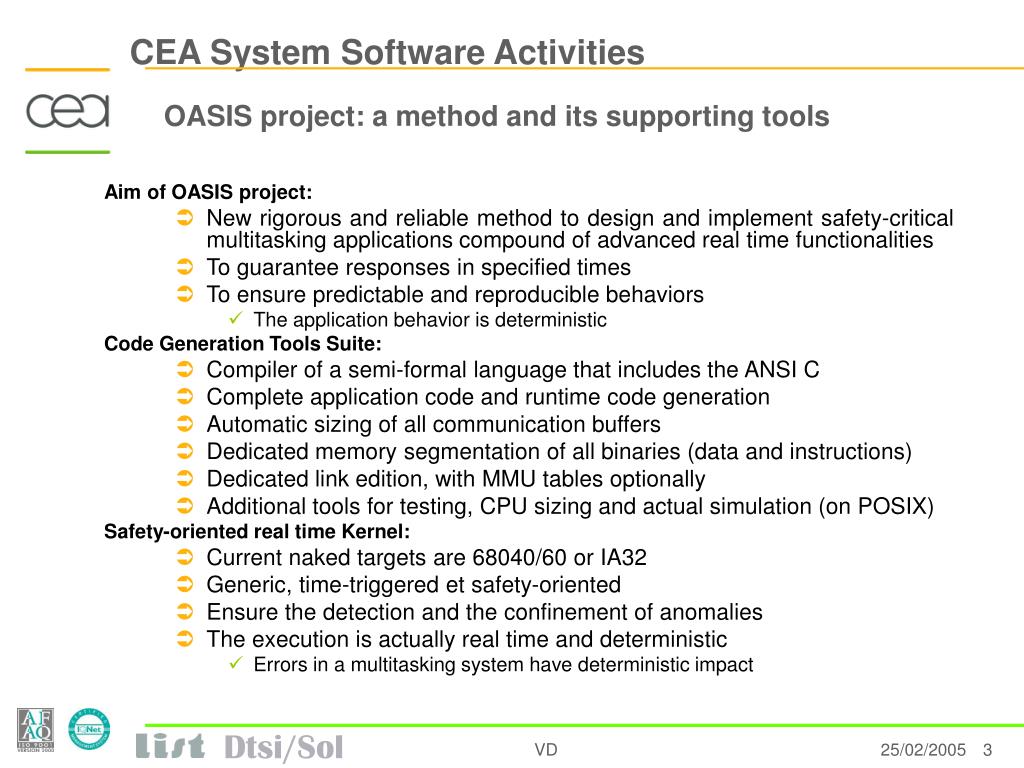

3. OASIS project: a method and its supporting tools • Aim of OASIS project: • New rigorous and reliable method to design and implement safety-critical multitasking applications compound of advanced real time functionalities • To guarantee responses in specified times • To ensure predictable and reproducible behaviors • The application behavior is deterministic • Code Generation Tools Suite: • Compiler of a semi-formal language that includes the ANSI C • Complete application code and runtime code generation • Automatic sizing of all communication buffers • Dedicated memory segmentation of all binaries (data and instructions) • Dedicated link edition, with MMU tables optionally • Additional tools for testing, CPU sizing and actual simulation (on POSIX) • Safety-oriented real time Kernel: • Current naked targets are 68040/60 or IA32 • Generic, time-triggered et safety-oriented • Ensure the detection and the confinement of anomalies • The execution is actually real time and deterministic • Errors in a multitasking system have deterministic impact VD

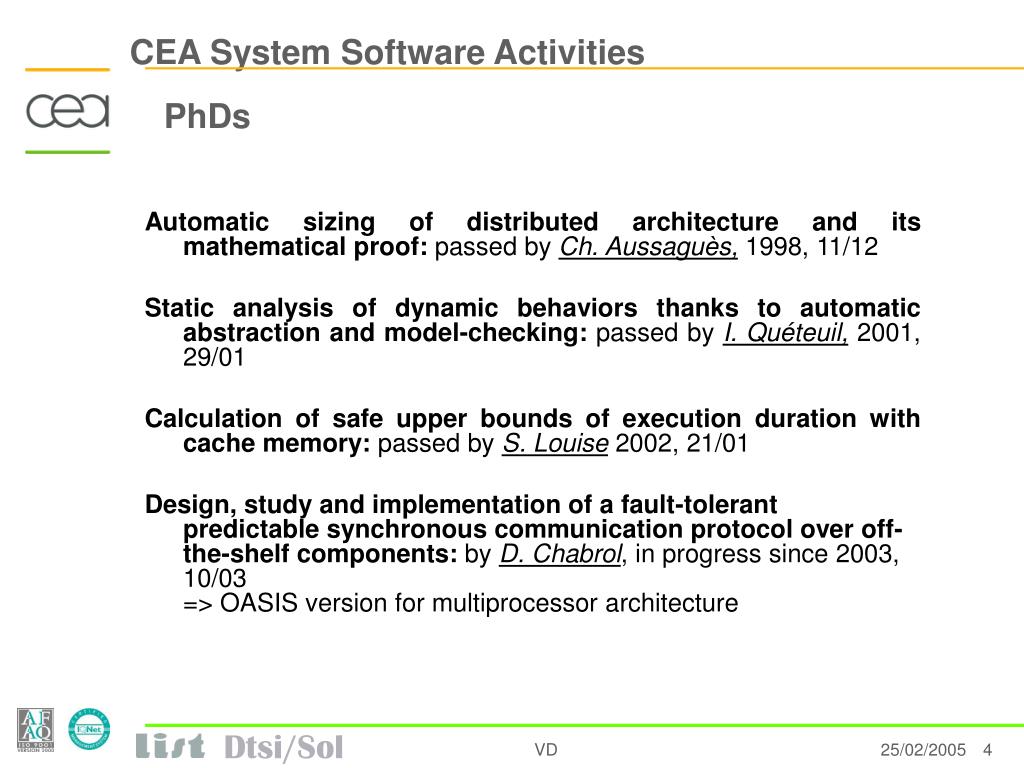

4. PhDs • Automatic sizing of distributed architecture and its mathematical proof: passed by Ch. Aussaguès, 1998, 11/12 • Static analysis of dynamic behaviors thanks to automatic abstraction and model-checking: passed by I. Quéteuil,2001,29/01 • Calculation of safe upper bounds of execution duration with cache memory: passed by S. Louise 2002, 21/01 • Design, study and implementation of a fault-tolerant predictable synchronous communication protocol over off-the-shelf components: by D. Chabrol, in progress since 2003, 10/03 => OASIS version for multiprocessor architecture VD

5. Industrialization success • Supercomputer: • Delivered to final users and in operation 24h/24 for 2 years • No system software failure recorded • OASIS with AREVA/Framatome-ANP: • Industrialization planned mid2003-mid2005 • « Qualified Display System OASIS based » project • A part of 1E safety-classified I&C system of the EPR (European pressurized reactor) • qualification of all OASIS tools and its system software • Full management of a standard IA32/PC-AT board • PS/2, GPU, touch screen, FlashIDE, Ethernet • Control of Chipsets (E7501, etc.) • OASIS with SMIE (a French SME leading the world market of crane anti-collision system) • Initialization achieved in early 2003 VD
