  1. Breath of USArray Data • Luciana Astiz • August 25-29, 2010 NW University

  2. TA stations rolling East

  3. TA station code convention • A04A A35A … • N07B • R03C • 109C • Z35A • 135A • … • 935A • 035A • 035Z 2013 2004

  4. Data at TA stations Seismic Channels 6 real time 6 removal BH? LH? VH? UH? State of Health Channels 31 in real tim L?? Q?? V?? Log files from Digitizer Environmental Channels (for a few stations starting in 2010) 6 in real time LCE_EP LC0_EP LDM_EP LIM_E LKM_EP Seismic Channels State of Health Channel

  5. Additional Assessments Calibration CMG-3T STS-2

  6. SoH & SoH_EP 31 37

  7. SNOFLU

  8. SNOFLU in PSD Color Grid

  9. Data: Seismic, SoH, Logs • Real-time monitoring of SoH • Detect problems • Initiate corrective actions • Station QC & SoH on the web • SoH channel displays for near-real-time and summary • Metrics for arbitrary time intervals

  10. EP Channels Barometric Pressure

  11. Adding Seismic Data

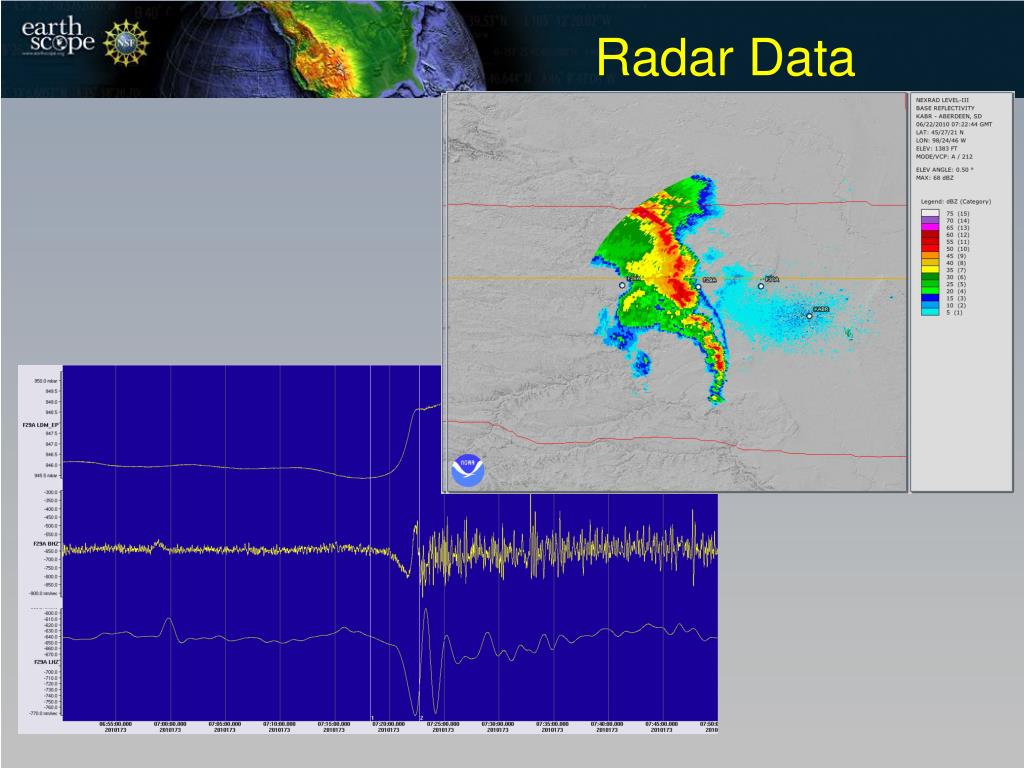

  12. Radar Data

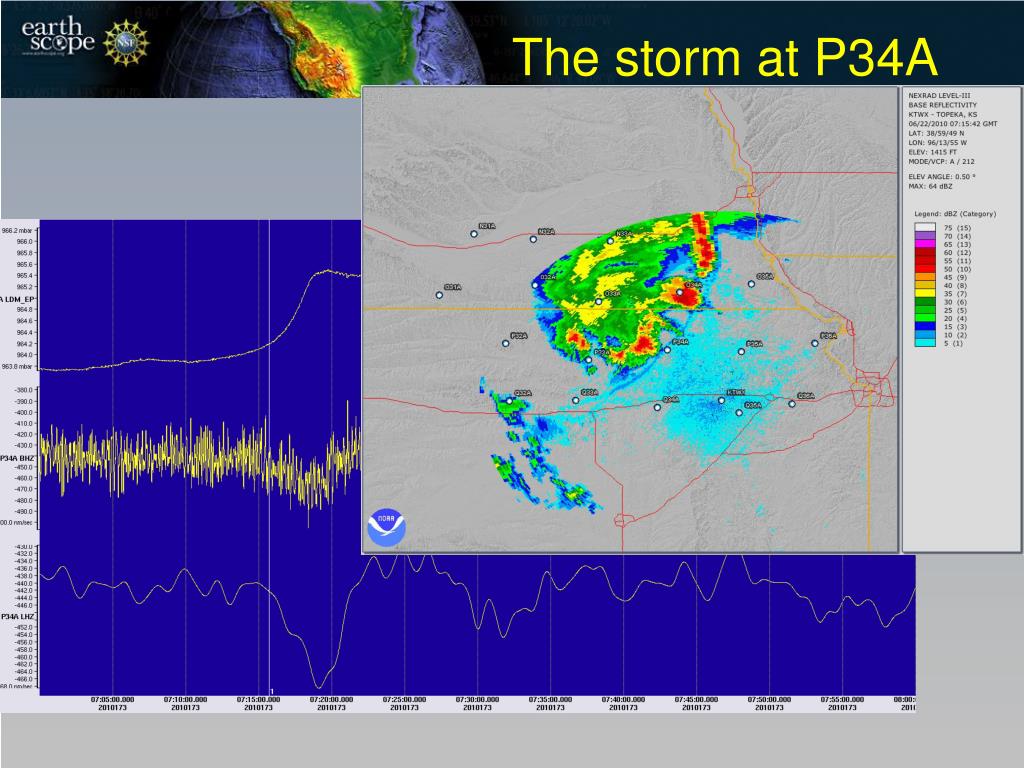

  13. The storm at P34A

  14. The storm at P35A

  15. The storm at P36A

  16. ANF Bulletin

  17. ANF-homepage

  18. Station pages
