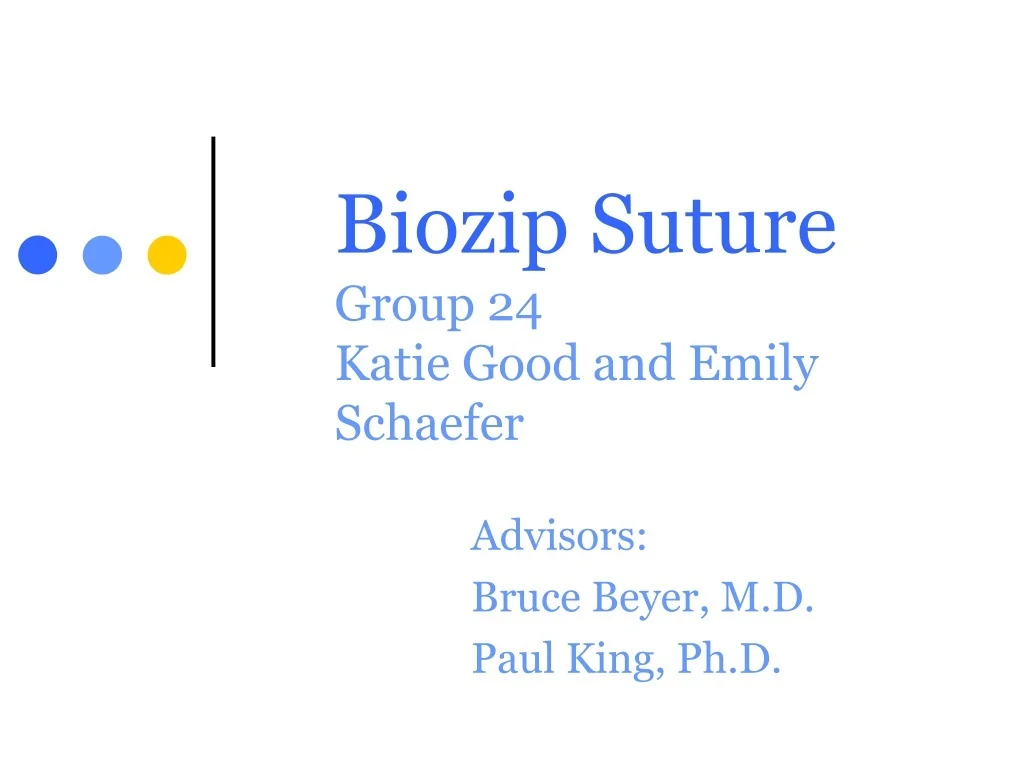

  1. Biozip SutureGroup 24Katie Good and Emily Schaefer Advisors: Bruce Beyer, M.D. Paul King, Ph.D.

  2. Problem Statement • Requirement • Bioabsorbable zip-tie suture • Performance Criteria • Unidirectional Tension • Maintain suture tied and tight • Primary Objective • Create suture allowing tactility and ease during deep tissue procedures

  3. Quality Function Deployment

  4. Current Technique • Current sutures - application of tension in opposite directions • Gynecological procedures - confined areas • Difficult to apply tension • Suture integrity compromised

  5. Suture Tying http://www.brooksidepress.org/Products/Suturing_entrance.htm

  6. Laparoscopic Technique • Advantages • Minimally invasive • Requires tension in one direction • Disadvantages • More complex system • Not widely used

  7. Endoscopic Suturing System http://paresurgical.com/procedure.htm

  8. Our Approach • Require tension in one direction • Noose type knot • Shape memory http://www.realknots.com/knots/noose.htm Movie clip of a shape memory polymer (scroll to bottom)

  9. Materials • Monofilament vs. Braided • Tensile Strength (0-gauge) • Polyglactin 910 • (Vicryl) ~ 95 N • Polyglycolic Acid • (Dexon) ~85 N • Polyglyconate • (Maxon) ~106 N • Polydioxanone • (PDS) ~82 N

  10. Current Status • Meeting with Dr. Beyer Monday 29th to • Discuss progress • Ask surgery specific questions/concerns • Continue literature search • Meet with Dr. Shastri to discuss shape memory sutures

  11. Future Work • Select a material to optimize design • Testing our designs in a virtual or real life simulator • Find a manufacturer who produces material to get a quote for our design

  12. References • Bourne, R.B., MD, FRCSC, Bitar, H. MD, Andreae, P.R., BSC, Martin L.M., MB, BS, Finlay, J.B., PhD, & Marquis, F., MD FRCSC (1988). In-vivo comparison of four absorbable sutures: Vicryl, Dexon Plus, Maxon, and PDS. The Canadian Journal of Surgery, 31(1), 43-45. • von Fraunhofer, J. A., Storey, R. S., Stone, I. K., & Masterson, B. J. (1985). Tensile strength of suture materials. Journal of Biomedical Materials Research, 19(5), 595-600.
