Bridging the gap between specification and implementation Insup Lee Department of Computer and Information Science University of Pennsylvania November 9, 2004
The gap between specification and implementation • Problem • gap between an abstract model and the implementation • scalability challenge (software size and complexity) • Approaches • Software model checking • Model-based code generation • Test generation from specification • Run-time verification/checking • Model checking • Formal, Complete • Does not scale well • Checks design, not implementation • Testing • Tests an implementation directly • Informal, Incomplete Requirements Design specification Implementation
Run-time Verification and its Application to Security • Run-time verification • The MaC framework • Java-MaC • Steering • Model-based security checking • Security automata • Model carrying code • Current work
Runtime Verification Program Verifier Execution Information Check Sat/Unsat Feedback User
Run-time verification • Run-time monitoring and checking w.r.t. formal specification • Ensures the runtime compliance of the current execution of a system with its formal requirement • Steps • Specifyformal requirements • Extractinformation from current executing program • Check the execution against formal requirements • Steer the computation to a safe state • Complementary methodology to formal verification and program testing • Validate implementation • Not complete: guarantee for current execution • Prevention, avoidance, and detection & recovery • Joint work with S. Kannan, M. Kim, U. Sammapun, O. Sokolsky, M. Viswanathan
The MaC Framework Human Automatic Instrumentation Automatic Translation Automatic Translation Program Filter Event Recognizer Run-time Checker Program Informal Requirement Spec Input Monitoring Scripts Low-level Specification High-level Specification Static Phase low-level behavior high-level behavior Run-time Phase [Kim et al, ECRTS 99]
Design of the MaC Languages • Must be able to reason about both time instants and information that holds for a duration of time in a program execution. • Events and conditions are a natural division, which is also found in other formalisms such as SCR. • Conditions, which are true or false for a finite duration of time (e.g., is variable x >5?) • Events, which are either present or absent at some instant of time (e.g., is the control right now at the end of method f?). • Need temporal operators combining events and conditions in order to reason about traces. raiseGate start(position==100) end(position==100) position == 100 1:00:10 1:00:15 1:00:30 Time
Logical Foundation e2 e1 [e1 ,e2) [e1 ,e2) • Conditions interpreted over 3 values: true, false and undefined. • [., .) pairs a couple of events to define an interval. • start and end define the events corresponding to the instant when conditions change their value. [Lee et al, ICPDP 99]
Meta Event Definition Language (MEDL) • Expresses requirements using the events and conditions, sent by event recognizer. • Expresses the subset of safety properties. • Describes the safety requirements of a system, in terms of conditions that must always be true, and alarms (events) that must never be raised. • propertysafeRRC = IC -> GD; • alarm violation = start (!safeRRC); • Auxilliary variables may be used to store history. • endIC-> { num_train_pass’ = num_train_pass + 1; } ReqSpec <spec_name> /* Import section */ import event <e>; import condition <c>; /*Auxiliary variable */ var int <aux_v>; /*Event and condition */ event <e> = ...; condition <c>= ...; /*Property and violation */ property <c> = ...; alarm <e> = ...; /*Auxiliary variable update*/ <e> -> { <aux_v'> := ... ; } End
The MaC languages MEDL PEDL SADL • PEDL: abstraction • MEDL: abstract transformation • SADL: feedback • Run-time state: • method call • object state • local variables • Abstract state: • events • conditions
PEDL (Primitive Event Definition Language) • Primitive Event Definition Language (PEDL) • Maps the low-level state information of the system to high-level events. • Depends on target program implementation • Design Issues • What can be observed? • Passive and active probes • Software probe vs. hardware probe • Programming language-based vs. systems API-based • Java-PEDL • Provides primitives to refer to values of variables and to certain points in the execution of the program. • PEDL is defined so that events can be recognized in time linear to the size of the PEDL specification [Kim et al, FMSD 04]

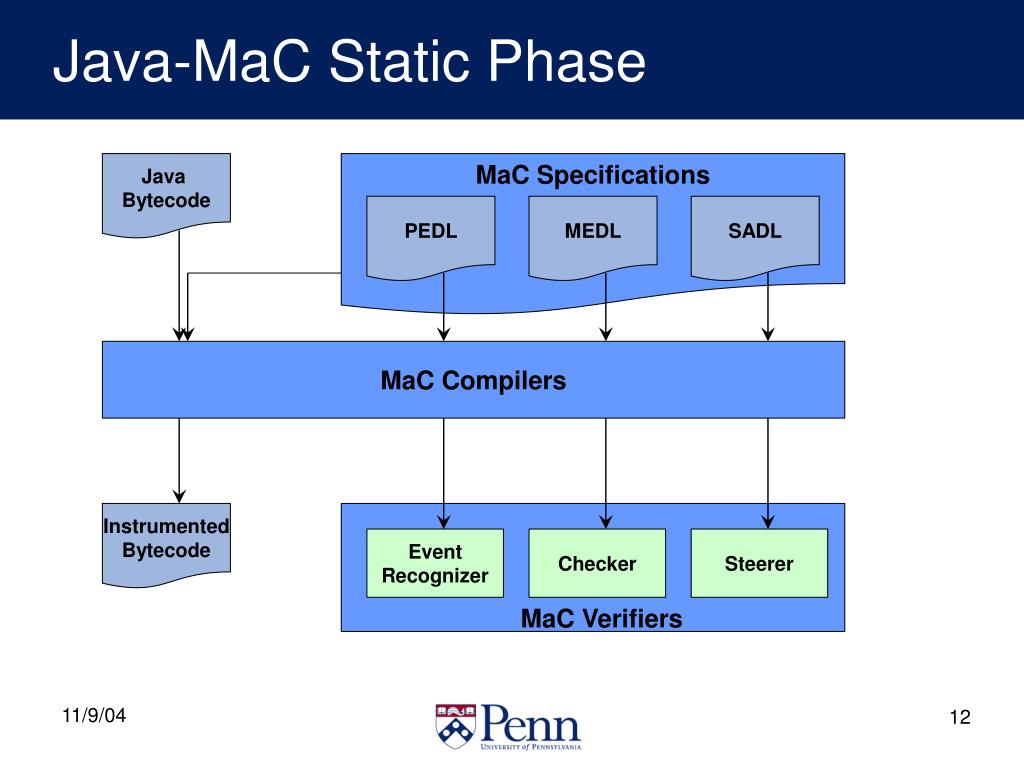

Java-MaC Static Phase Java Bytecode MaC Specifications PEDL MEDL SADL MaC Compilers Instrumented Bytecode Event Recognizer Checker Steerer MaC Verifiers
Java-MaC Dynamic Phase Instrumented Java Program MaC Verifier Event Recognizer (PEDL) Execution Information Checker (MEDL) Feedback Steerer Sat/Unsat User

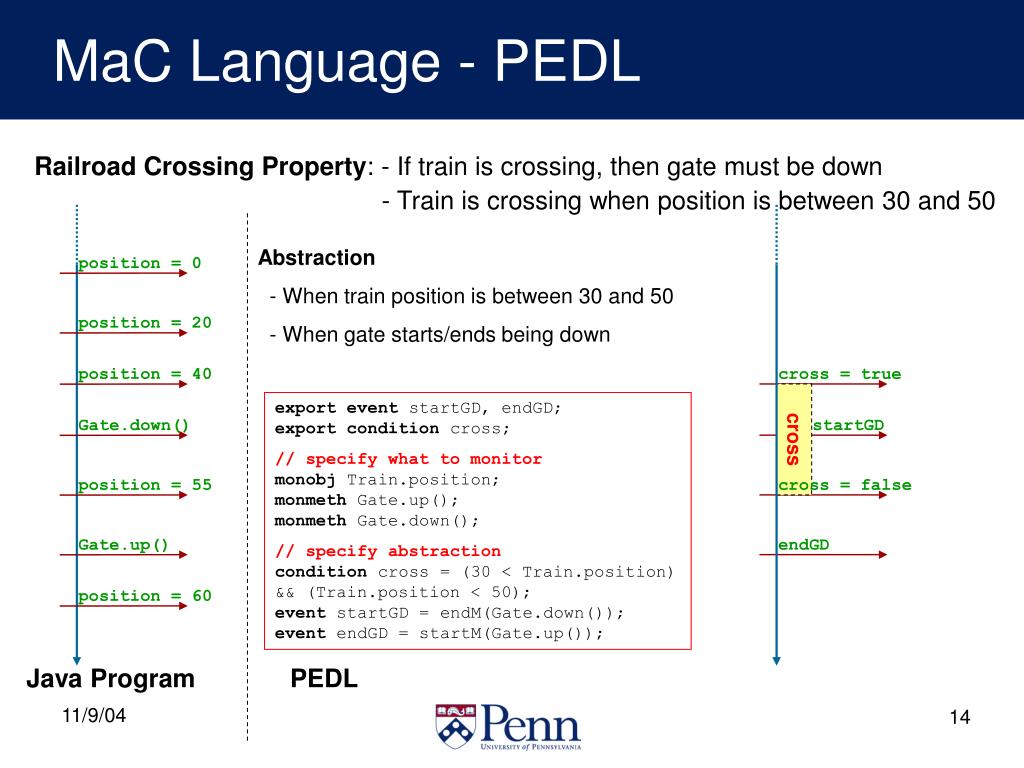

MaC Language - PEDL Railroad Crossing Property: - If train is crossing, then gate must be down - Train is crossing when position is between 30 and 50 position = 0 position = 20 position = 40 cross = true Gate.down() startGD cross position = 55 cross = false Gate.up() endGD position = 60 Abstraction - When train position is between 30 and 50 - When gate starts/ends being down export event startGD, endGD; export condition cross; // specify what to monitor monobj Train.position; monmeth Gate.up(); monmeth Gate.down(); // specify abstraction condition cross = (30 < Train.position) && (Train.position < 50); event startGD = endM(Gate.down()); event endGD = startM(Gate.up()); Java Program PEDL

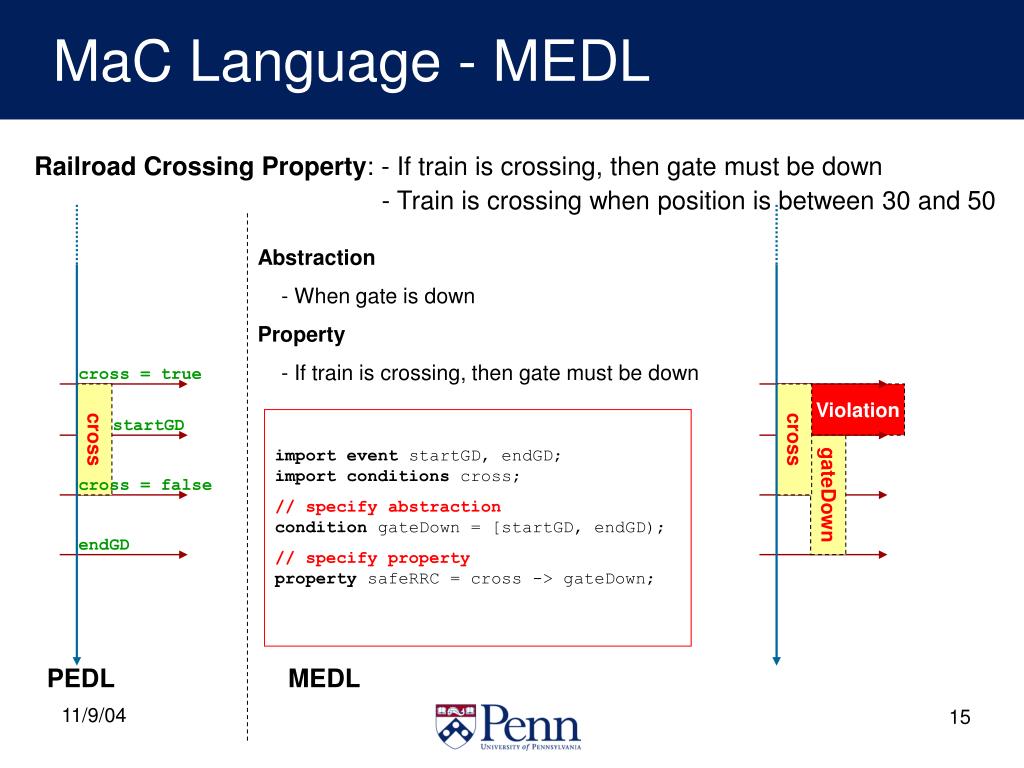

MaC Language - MEDL Railroad Crossing Property: - If train is crossing, then gate must be down - Train is crossing when position is between 30 and 50 cross = true Violation startGD cross cross cross = false gateDown endGD Abstraction - When gate is down Property - If train is crossing, then gate must be down import event startGD, endGD; import conditions cross; // specify abstraction condition gateDown = [startGD, endGD); // specify propertyproperty safeRRC = cross -> gateDown; PEDL MEDL

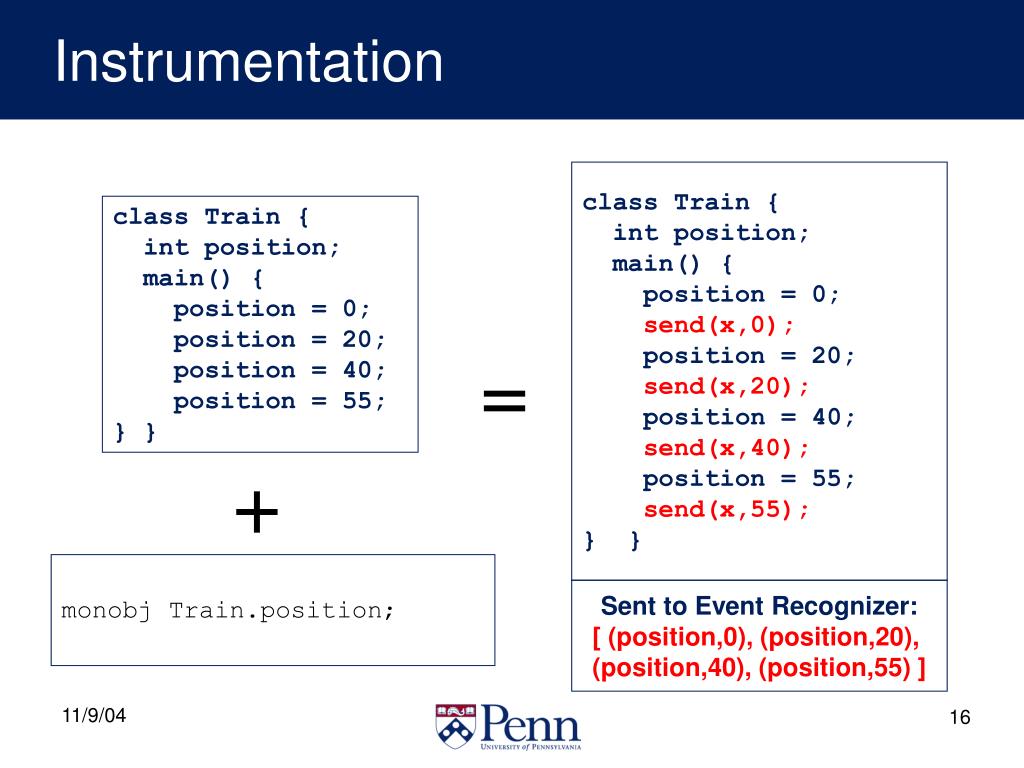

Instrumentation class Train { int position; main() { position = 0; send(x,0); position = 20; send(x,20); position = 40; send(x,40); position = 55; send(x,55); } } class Train { int position; main() { position = 0; position = 20; position = 40; position = 55; } } = + monobj Train.position; Sent to Event Recognizer: [ (position,0), (position,20), (position,40), (position,55) ]
MaC Language - Components Railroad Crossing Property: - If train is crossing, then gate must be down - Train is crossing when position is between 30 and 50 position = 0 position = 20 position = 40 cross = true Violation Gate.down() startGD cross cross position = 55 cross = false gateDown Gate.up() endGD position = 60 Abstraction - When train position is between 30 and 50 - When gate starts/ends being down • Abstraction • - When gate is down • Property • - If train is crossing, then gate must be down Java Program PEDL MEDL
Evaluation Overview • Static Phase: Each property is represented as a tree • The most basic events/conditions/aux vars are at the leaf level • For PEDL, variable updates, start/end method events are leaves • For MEDL, imported events from PEDL and auxiliary variables are leaves • Composition of events and conditions link to events/conditions that are composed of • PEDL and MEDL are forests • Dynamic Phase: In both Event Recognizer (ER) and Checker, evaluation starts at the leaves and traverses up to the root • Evaluation starts only at leaves representing occurred events or changed conditions • Otherwise, no evaluation is done • Efficient
PEDL Graph export event startGD, endGD; export condition cross; monobj Train.position; monmeth Gate.up(); monmeth Gate.down(); condition cross = (30 < Train.position) && (Train.position < 50); event startGD = endM(Gate.down()); event endGD = startM(Gate.up());
MEDL Graph import event startGD, endGD; import conditions cross; condition gateDown = [startGD, endGD); property safeRRC = cross -> gateDown;

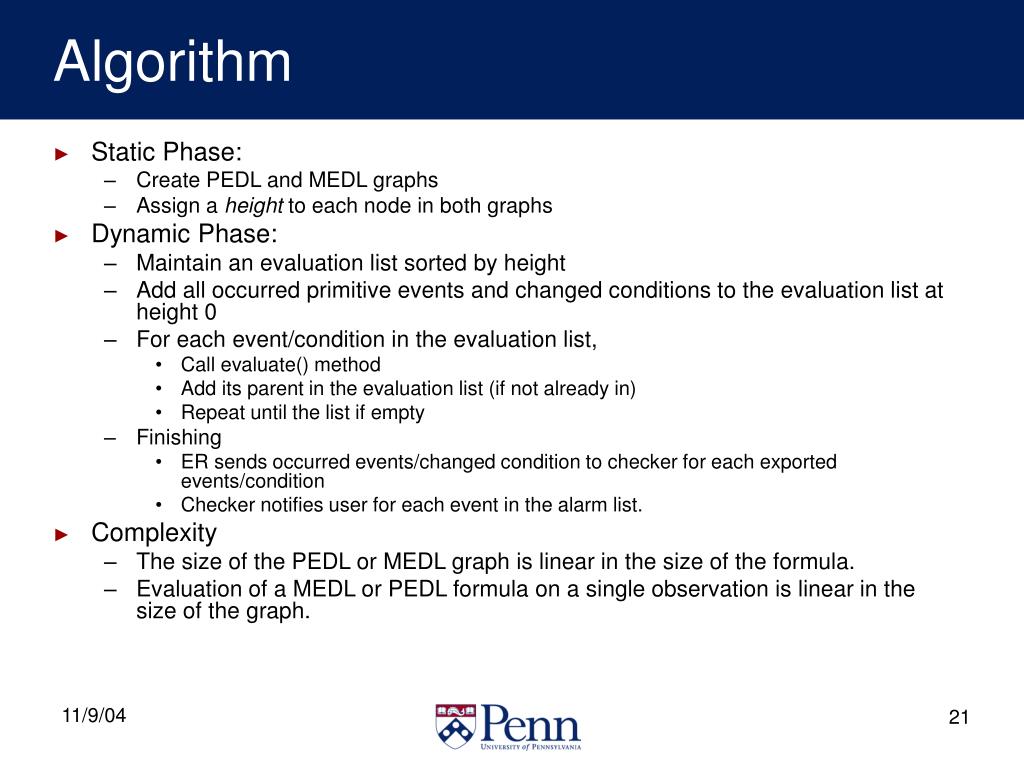

Algorithm • Static Phase: • Create PEDL and MEDL graphs • Assign a height to each node in both graphs • Dynamic Phase: • Maintain an evaluation list sorted by height • Add all occurred primitive events and changed conditions to the evaluation list at height 0 • For each event/condition in the evaluation list, • Call evaluate() method • Add its parent in the evaluation list (if not already in) • Repeat until the list if empty • Finishing • ER sends occurred events/changed condition to checker for each exported events/condition • Checker notifies user for each event in the alarm list. • Complexity • The size of the PEDL or MEDL graph is linear in the size of the formula. • Evaluation of a MEDL or PEDL formula on a single observation is linear in the size of the graph.
Java-MaC Dynamic Phase Instrumented Java Program MaC Verifier Event Recognizer (PEDL) Execution Information Checker (MEDL) Feedback Steerer (SADL) Sat/Unsat User
Steering process action invocation received steering condition satisfied violation action executed system event received action invoked detection checker
Simplex Architecture • Experimental controllers provide improved performance but uncertain stability properties • Can be dynamically added or replaced • Safety controller has the largest stability region us Safety EX x0 Decision Module u x Physical System Experimental ue SC Equilibrium state [L. Sha]
Inverted Pendulum (IP) Example g l m q uf M Experimental Controller Experimental Controller x Experimental Controller Decision Module Switching logic Written in C Safety Controller angle, track Device Drivers [L. Sha] volts
Steering Action Definition Language • SADL script • identifies object used in steering // the target of steering is the object dm of type DecisionModule // located in the class IP DecisionModule IP:dm; • defines steering actions // setSC() method of dm is invoked steering action change2SC = { call (IP:dm).setSC(); } • specifies steering location • locations in the code where the actions can be executed before read DecisionModule:volts;
IP and MaC Experimental Controller Experimental Controller Experimental Controller Written in Java Safety Controller angle, track monitor J N I MaC: Switching logic Device Drivers Decision Module volts steer [Kim et al, RV 02]
Applications • Where can we get specifications? • During the design specification and analysis phase, many properties may be identified and verified. • Reuse properties model checked during the design phase • E.g., more than 1000 properties during designing of flight control systems • Extract from (informal) requirements and specification documents • Security Policy • Extract from the target program • To ensure that the program has not been tampered • Model Carrying Code • Other application areas • Network routing simulation • Hardware design • Adaptable sensor network systems • Cheat detection in distributed game • Annual run-time verification workshop (01, 02, 03, 04, …)
Monitoring and Checking for Security Properties
Similar techniques, different purposes • Check security policy • Security automata, edit automata • Model-Carrying Code (MCC) • Intrusion detection • Extract from the target program to ensure that the program has not been tampered • Signature-based approach
Security Policy in Security/Edit Automata a = (malloc(q), q’=q’+q, q’< n) a a = (malloc(q), q’=q’+q, q’< n) a = (malloc(q), q’=q’+q, q’ >= n) a halt Example (modified from [BLW02]): Limit the amount of memory that an application can allocate for itself Property: application must not allocate memory more than n
Must not allocate more than n PEDL export event mallocCall; monmeth int malloc(int); event mallocCall = startM(malloc(int)); MEDL import event mallocCall; import action halt; var int memory; alarm violateMemoryPolicy = end(memory < 1000); mallocCall -> { // value(mallocCall,0) returns arg of malloc() memory’ = memory + value(mallocCall,0); } violateMemoryPolicy -> { invoke(halt); } SADL steering action halt = // exit before next malloc() call { call System.exit(); } before call malloc(int);

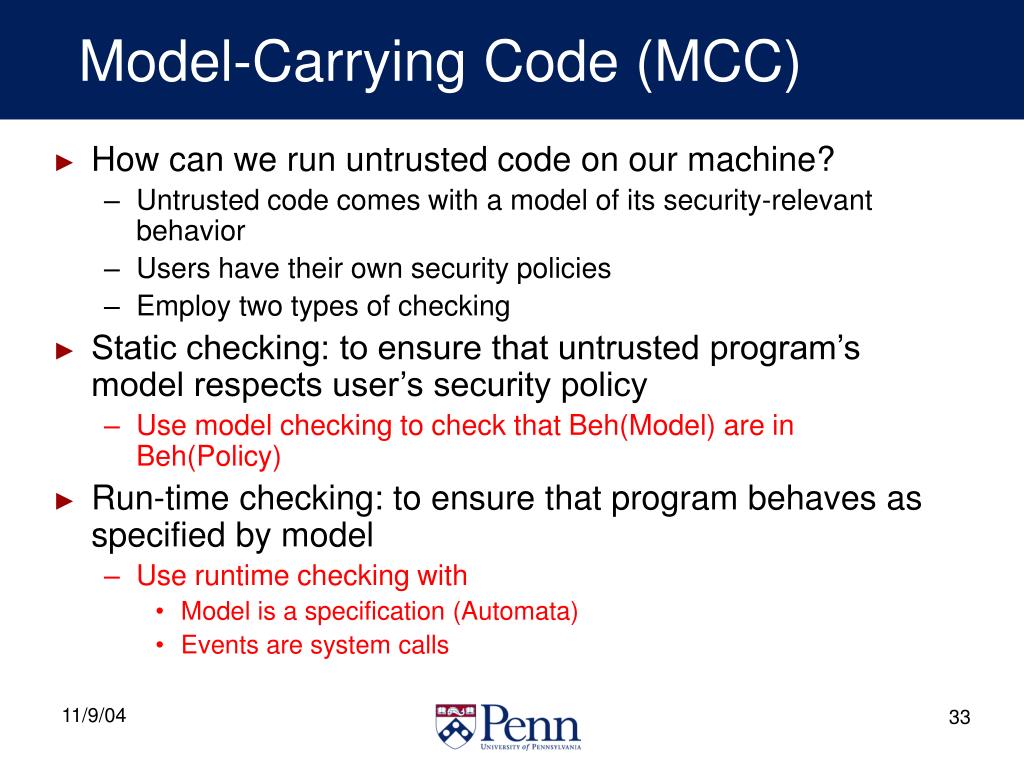

Model-Carrying Code (MCC) • How can we run untrusted code on our machine? • Untrusted code comes with a model of its security-relevant behavior • Users have their own security policies • Employ two types of checking • Static checking: to ensure that untrusted program’s model respects user’s security policy • Use model checking to check that Beh(Model) are in Beh(Policy) • Run-time checking: to ensure that program behaves as specified by model • Use runtime checking with • Model is a specification (Automata) • Events are system calls
MCC Framework [SVB+03]
Current Work on MaC • Java-MaC available for download • www.cis.upenn.edu/~rtg/mac • Minimum trace of run-time verification • MEDL-RE: MEDL with regular expressions • MaC with probability • Hierarchical IDS • Using MaC to detect failed/malicious sensor nodes
Minimal Trace for run-time verification • Large amounts of monitored data hampers communication between the system and the checker • How to extract minimum information necessary to check a given property? • Redundant information in traces • alarm dropReq = fault when respondingcondition responding = [acceptReq,response)event acceptReq = request when ready==trueevent fault = start(abort == true) • Trace with redundant data: request ready(t) abort(t) request abort(f) request abort(t) • Trace without redundant data: ready(t) request abort(t) • Approach: define minimally adequate trace, and MEDL automata
MEDL-RE: MaC with regular expression • Regular expression over events • Statement: RE R {Ē} = < R >, • Grammar of R: R ::= e | R.R | R+R | R* • Alphabet of R contains events used in R and events in its relevant set {Ē} • Regular expressions are neither events nor conditions and cannot be used alone • Events associated with RE R:startRE(R), success(R), fail(R) • Example • Three components of a media must start in the following order: video, caption, audio • RE media {} = < startVideo . startCaption . startAudio > • alarm notOrdered = fail(media) • Challenges • (Possibly infinite) multiple instances of (possibly overlapping) regular expressions
MaC with probability • Definition of Probability • P(E) = |E| / |S| Ex. Sample Space S = {H,T} and Event E = {H}, P(E) = 0.5 • Long run frequency: P(E) = lim n(E) n n • where n = the number of experiments performed, n(E) = the number of outcomes belonging to the event E • Ex. experiment is performing coin flipping, P(H) is the number of times the outcome is H in relative to the number of times the coin flipping is performed • Challenges • How to detect experiments from execution trace • Accuracy of probability calculated from execution trace • Possible approach • Detecting experiment using events or regular expressions • Calculate probability from execution trace with confidence interval • Possible syntax: E ~ [ p, Exp] and C ~ [ p, Exp] where = < | > | <= | >=, p is probability, Exp is an experiment
Extend MaC Architecture for IDS
Thank You!
