  1. Craig Drennan Booster BLM UpgradeSpecification Development September 2010

  2. How Does It Work? • BLM Digitizer Circuit Model

  3. How Does It Work? • More Details

  4. View of the VME Module

  5. What Does Data Look Like ? • Data from early Booster tests

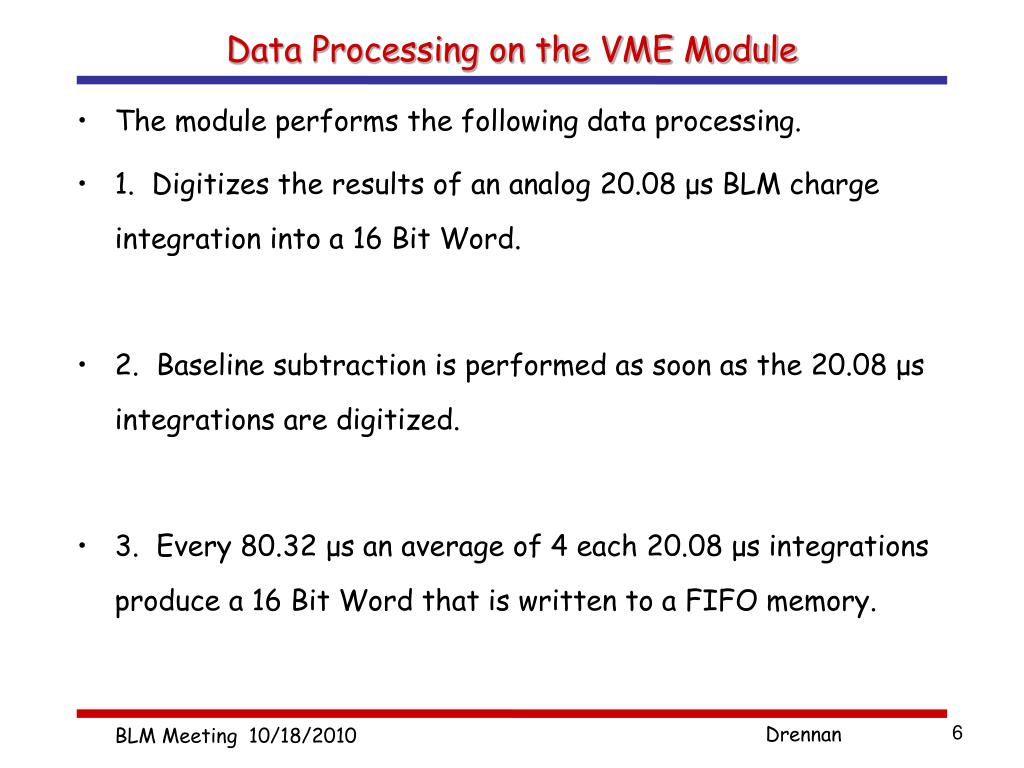

  6. Data Processing on the VME Module • The module performs the following data processing. • 1. Digitizes the results of an analog 20.08 μs BLM charge integration into a 16 Bit Word. • 2. Baseline subtraction is performed as soon as the 20.08 μs integrations are digitized. • 3. Every 80.32 μs an average of 4 each 20.08 μs integrations produce a 16 Bit Word that is written to a FIFO memory.

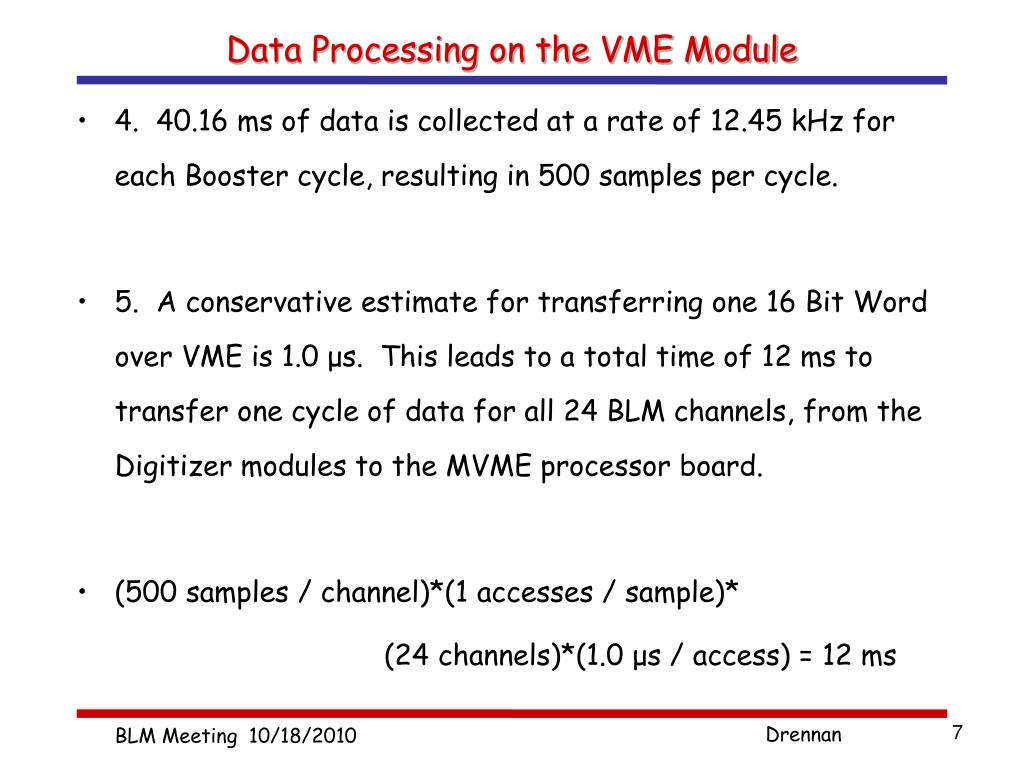

  7. Data Processing on the VME Module • 4. 40.16 ms of data is collected at a rate of 12.45 kHz for each Booster cycle, resulting in 500 samples per cycle. • 5. A conservative estimate for transferring one 16 Bit Word over VME is 1.0 μs. This leads to a total time of 12 ms to transfer one cycle of data for all 24 BLM channels, from the Digitizer modules to the MVME processor board. • (500 samples / channel)*(1 accesses / sample)* (24 channels)*(1.0 μs / access) = 12 ms

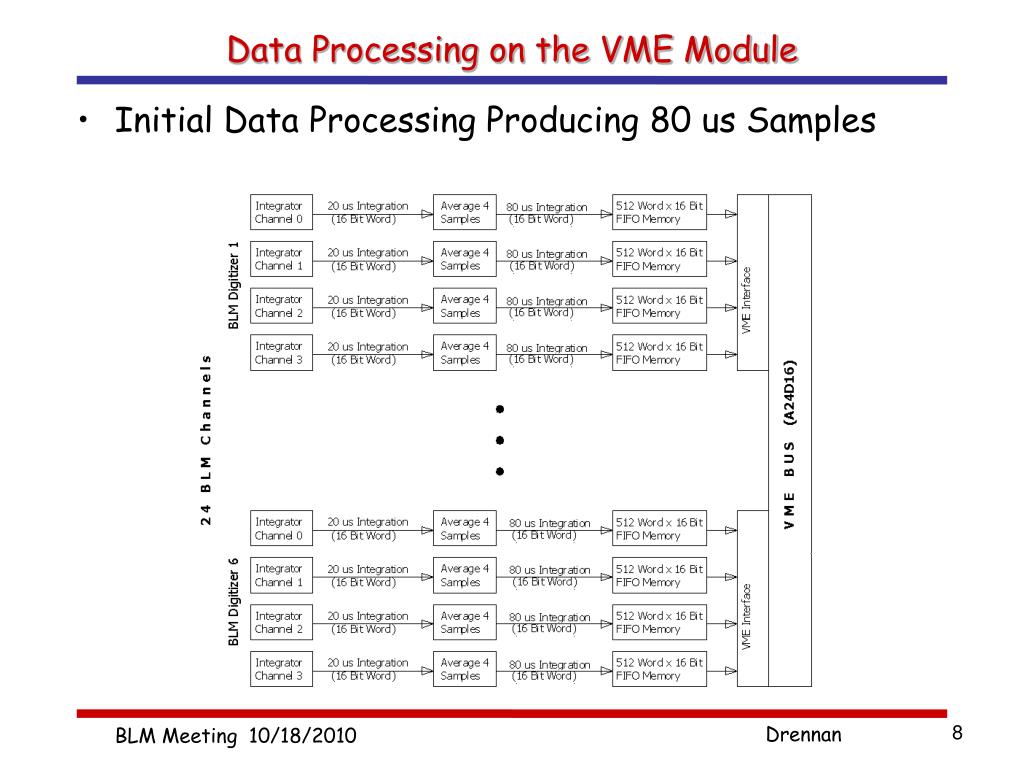

  8. Data Processing on the VME Module • Initial Data Processing Producing 80 us Samples

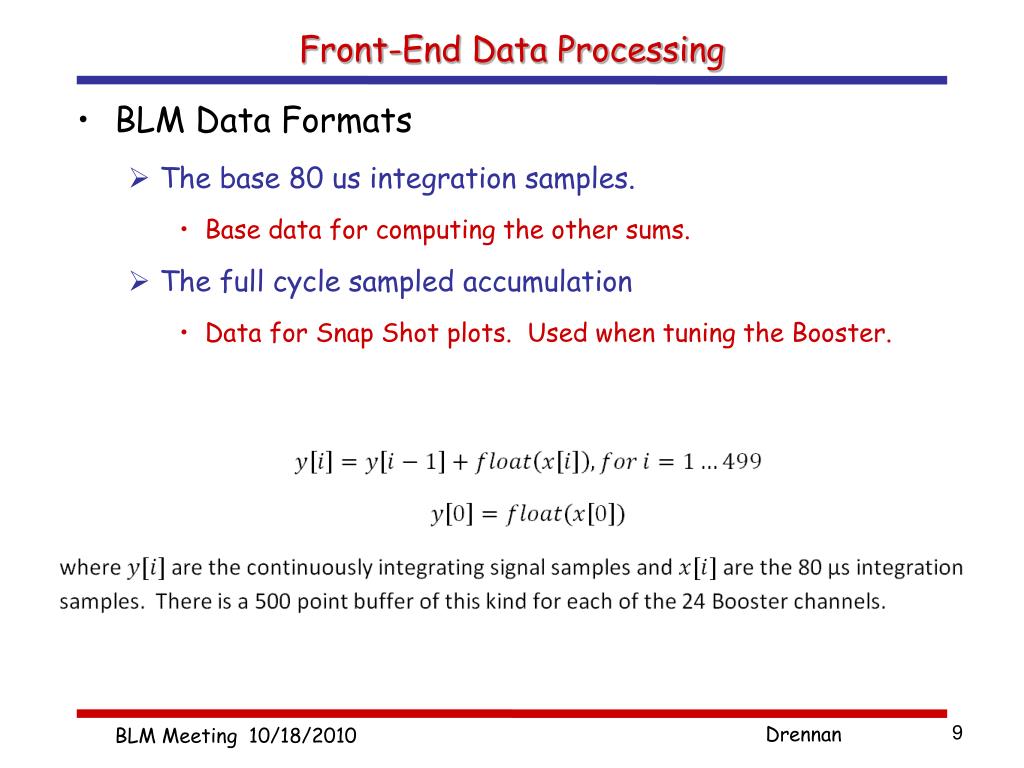

  9. Front-End Data Processing • BLM Data Formats • The base 80 us integration samples. • Base data for computing the other sums. • The full cycle sampled accumulation • Data for Snap Shot plots. Used when tuning the Booster.

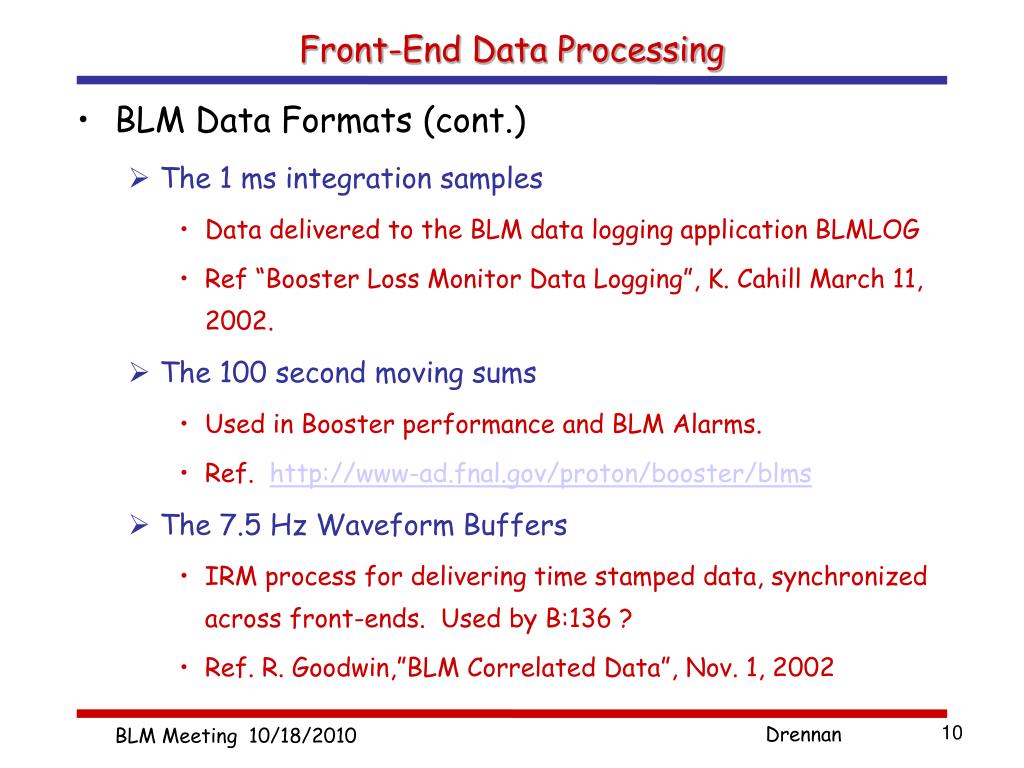

  10. Front-End Data Processing • BLM Data Formats (cont.) • The 1 ms integration samples • Data delivered to the BLM data logging application BLMLOG • Ref “Booster Loss Monitor Data Logging”, K. Cahill March 11, 2002. • The 100 second moving sums • Used in Booster performance and BLM Alarms. • Ref. http://www-ad.fnal.gov/proton/booster/blms • The 7.5 Hz Waveform Buffers • IRM process for delivering time stamped data, synchronized across front-ends. Used by B:136 ? • Ref. R. Goodwin,”BLM Correlated Data”, Nov. 1, 2002

  11. Front-End Data Processing • Illustration of the Front-End processing

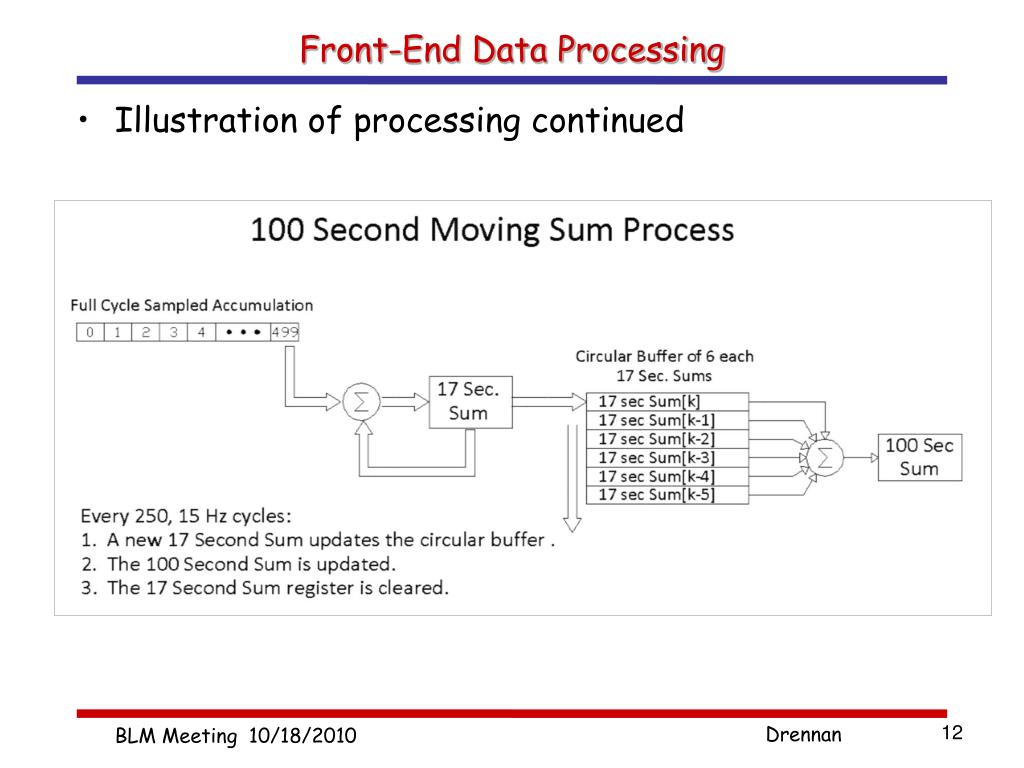

  12. Front-End Data Processing • Illustration of processing continued

  13. Front-End Data Processing • QUESTIONS: • What type of BLM summation is used by the following applications? • Are there other applications I have missed that currently exist? • Are there applications we may want that do not yet exist? • BLM2 Data Logger • App B88 – BLM / TRIP POINT BAR GRAPH DISPLAY • App B36 – BOOSTER BEAM LOSS NON-NORMALIZED BAR GRAPH DISPLAY • App B136 – BLM CYCLE PLOT MULTIPLE BLM TIME PLOTS, 87 CHANNELS ON A SPECIFIC EVENT

  14. Snap Shot Plots • Plotting • Needs to plot multiple Booster cycles. • Needs to approximate slower sampling rates • Needs to support Delay from Arm Event • Defining a new SNP Class ?

  15. Snap Shot Plots • Illustration of processing
