  1. Floating Point Unit 8087 Coprocesor

  2. 8087: a 40-pin Coprocessor

  3. Connection to Processor

  4. FPU: Floating Point Unit • Helps the Processor for floating point calculations • Part of a cpu. (Inside Pentium and 486) • Direct support for: • floating-point • Extended integer • BCD data types • Supports Standard IEEE 754 & 854 • Compatible with object code for • 8087 for 8086 • Intel287 for 80286 • Intel387 DX & SX • Intel487 DX • Intel486 DX: when in 66MHz = 1/3 Performance of Pentium (66 MHz)

  5. Comparison of 8087 and 8086 Clock Times In some cases the differences of run times is hours between PCs with and without math-coprocessor.

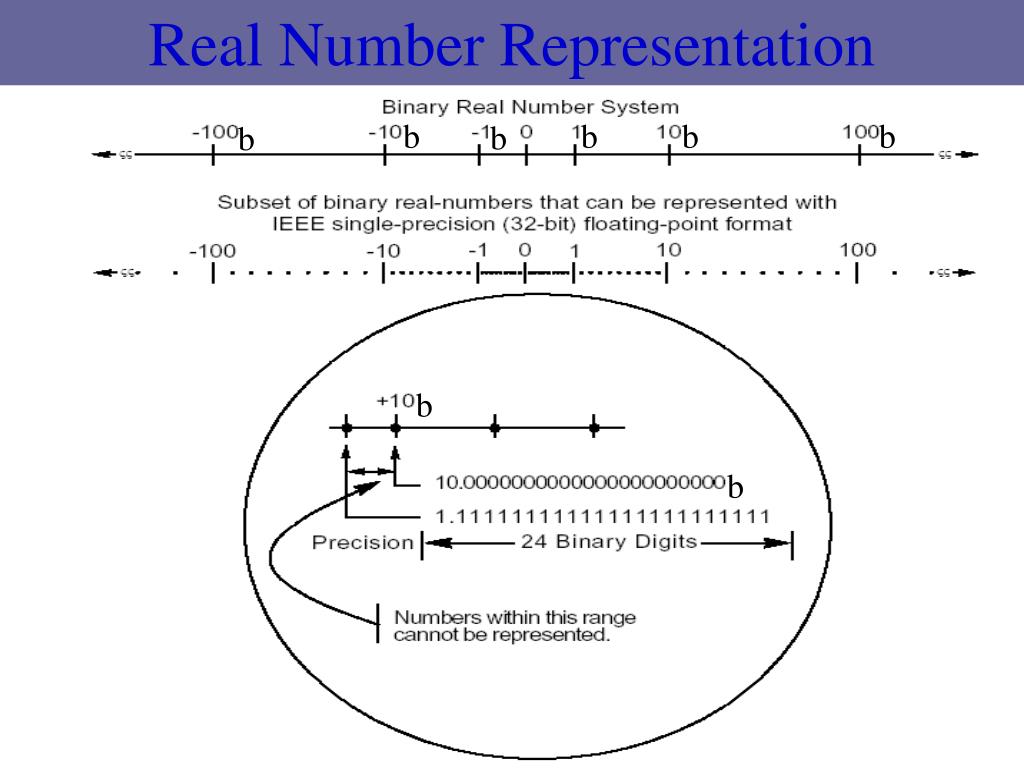

  6. Real Number Representation b b b b b b b b

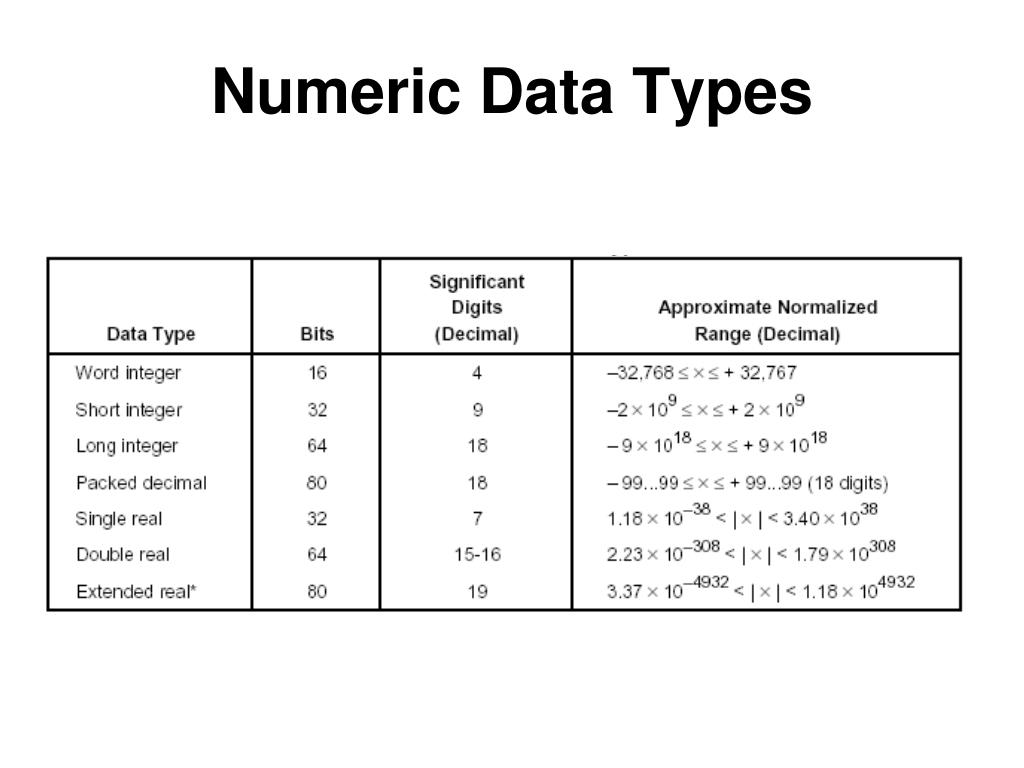

  7. Numeric Data Types

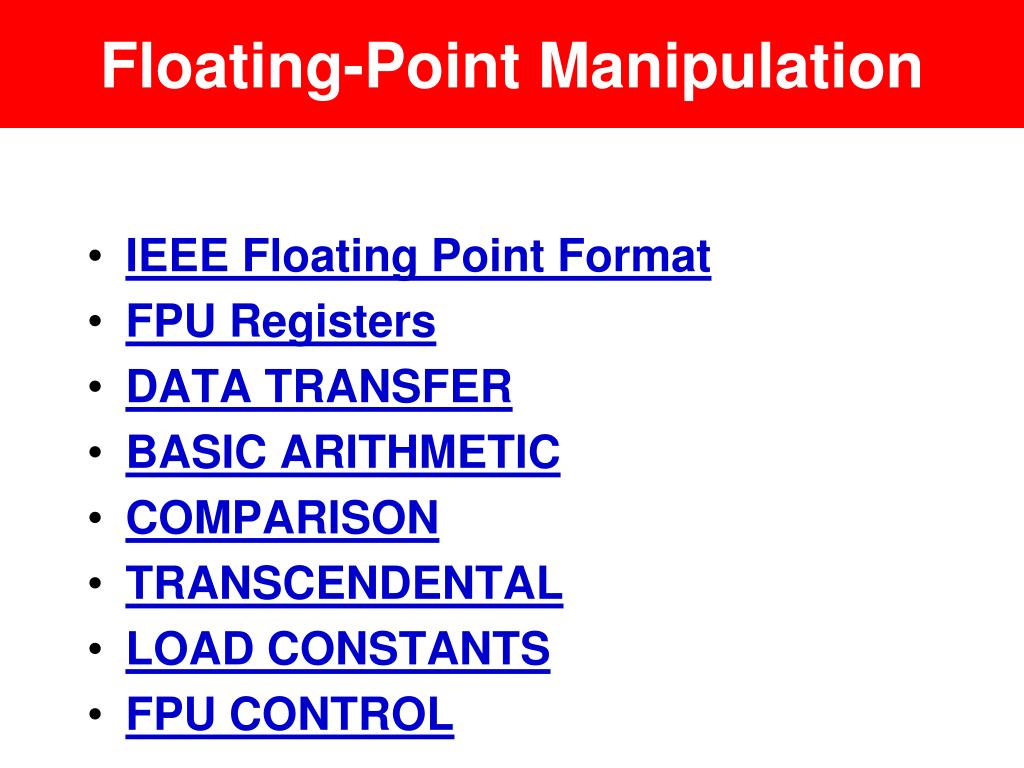

  8. Floating-Point Manipulation • IEEE Floating Point Format • FPU Registers • DATA TRANSFER • BASIC ARITHMETIC • COMPARISON • TRANSCENDENTAL • LOAD CONSTANTS • FPU CONTROL

  9. FPU CONTROL • FINCSTP Increment FPU register stack pointer • FDECSTP Decrement FPU register stack pointer • FFREE Free floating-point register • FINIT Initialize FPU after checking error conditions • FNINIT Initialize FPU without checking error conditions • FCLEX Clear floating-point exception flags after checking for error • conditions • FNCLEX Clear floating-point exception flags without checking for error • conditions • FSTCW Store FPU control word after checking error conditions • FNSTCW Store FPU control word without checking error conditions • FLDCW Load FPU control word • FSTENV Store FPU environment after checking error conditions • FNSTENV Store FPU environment without checking error conditions • FLDENV Load FPU environment • FSAVE Save FPU state after checking error conditions • FNSAVE Save FPU state without checking error conditions • FRSTOR Restore FPU state • FSTSW Store FPU status word after checking error conditions • FNSTSW Store FPU status word without checking error conditions • WAIT/FWAIT Wait for FPU • FNOP FPU no operation

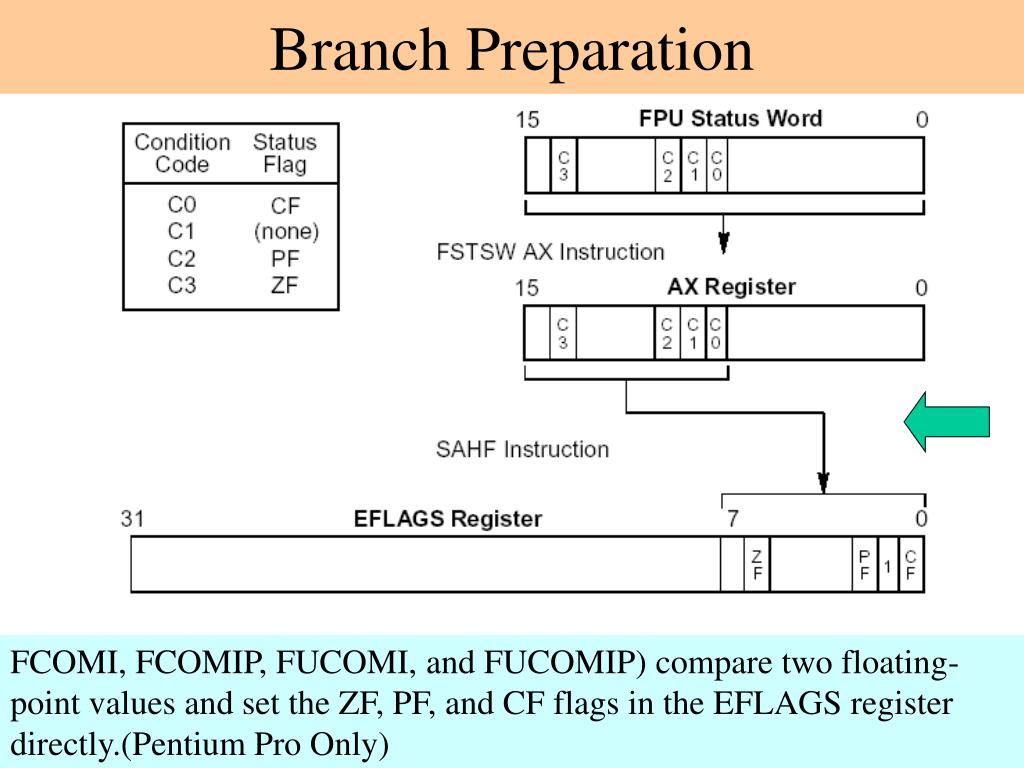

  10. Branch Preparation FCOMI, FCOMIP, FUCOMI, and FUCOMIP) compare two floating-point values and set the ZF, PF, and CF flags in the EFLAGS register directly.(Pentium Pro Only)

  11. LOAD CONSTANTS • FLD1 Load +1.0 • FLDZ Load +0.0 • FLDPI Load p • FLDL2E Load log2e • FLDLN2 Load loge2 • FLDL2T Load log210 • FLDLG2 Load log102

  12. TRANSCENDENTAL • FSIN Sine • FCOS Cosine • FSINCOS Sine and cosine • FPTAN Partial tangent st(0)=tan(st(0)); 1push register stack • FPATAN Partial arctangent • F2XM1 st(0)=2^st(0) - 1 • FYL2X y*log2x • FYL2XP1 y*log2(x+1)

  13. COMPARISON • FCOM m32/m64/st(I)/none st(0):src flags:c0,c1,c2 • FCOMP Compare real and pop • FCOMPP Compare real and pop twice • FUCOM Unordered compare real Does not generate an invalid-arithmetic-operand exception • FUCOMP Unordered compare real and pop • FUCOMPP Unordered compare real and pop twice • FICOM m16/m32 Compare with integer • FICOMP Compare integer and pop • FCOMI Compare real and set EFLAGS(Z,P,C) • FUCOMI Unordered compare real and set EFLAGS • FCOMIP Compare real, set EFLAGS, and pop • FUCOMIP Unordered compare real, set EFLAGS, and pop • FTST Test real Compare St(0):0.0 • FXAM Examine real

  14. FXAM C1 ¬ sign bit of ST; (* 0 for positive, 1 for negative *)

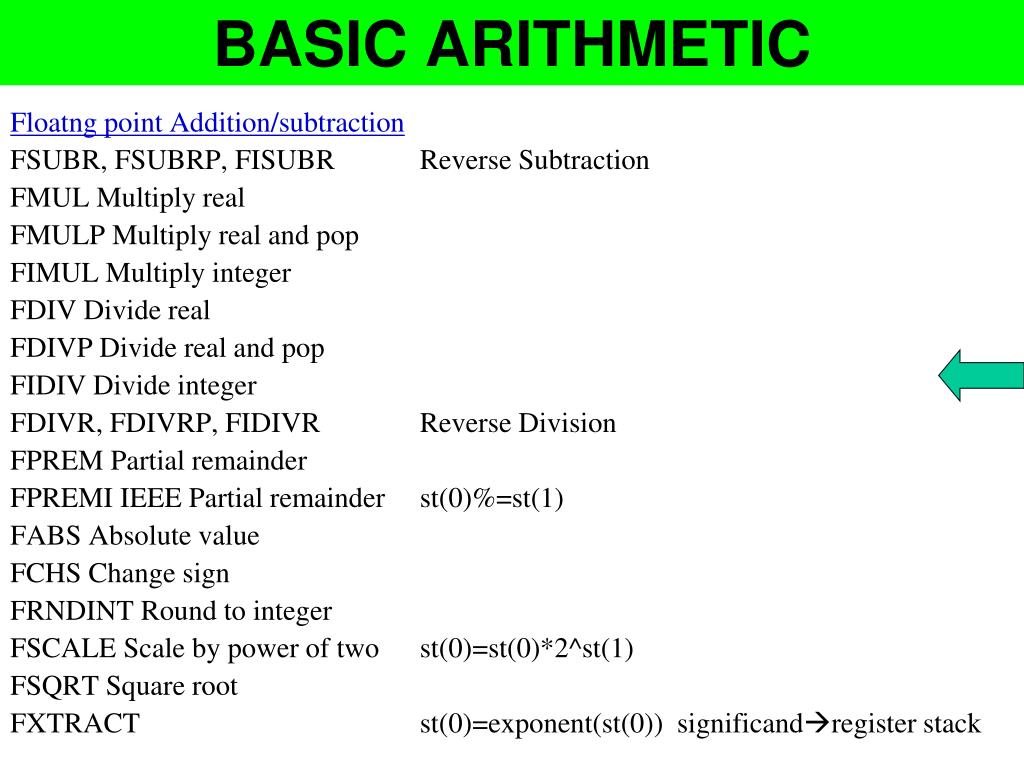

  15. BASIC ARITHMETIC Floatng point Addition/subtraction FSUBR, FSUBRP, FISUBR Reverse Subtraction FMUL Multiply real FMULP Multiply real and pop FIMUL Multiply integer FDIV Divide real FDIVP Divide real and pop FIDIV Divide integer FDIVR, FDIVRP, FIDIVR Reverse Division FPREM Partial remainder FPREMI IEEE Partial remainder st(0)%=st(1) FABS Absolute value FCHS Change sign FRNDINT Round to integer FSCALE Scale by power of two st(0)=st(0)*2^st(1) FSQRT Square root FXTRACT st(0)=exponent(st(0)) significandregister stack

  16. Floating Point Addition/Subtraction

  17. DATA TRANSFER FLD m32real/m64real/m80real/st(I) push onto FPU register stack FST m32real/m64real/st(I) store st(0) on m32…. FSTP m32real/m64real/m80real/st(I) FST & pop stack FILD m16/m32/m64 Load integer. push onto FPU register stack FIST Store integer FISTP Store integer and pop FBLD Load BCD FBSTP Store BCD and pop FXCH st(I)/none Exchange registers st(0) and st(I)/st(1) FCMOVE Floating-point conditional move if equal FCMOVNE Floating-point conditional move if not equal FCMOVB Floating-point conditional move if below FCMOVBE Floating-point conditional move if below or equal FCMOVNB Floating-point conditional move if not below FCMOVNBE Floating-point conditional move if not below or equal FCMOVU Floating-point conditional move if unordered FCMOVNU Floating-point

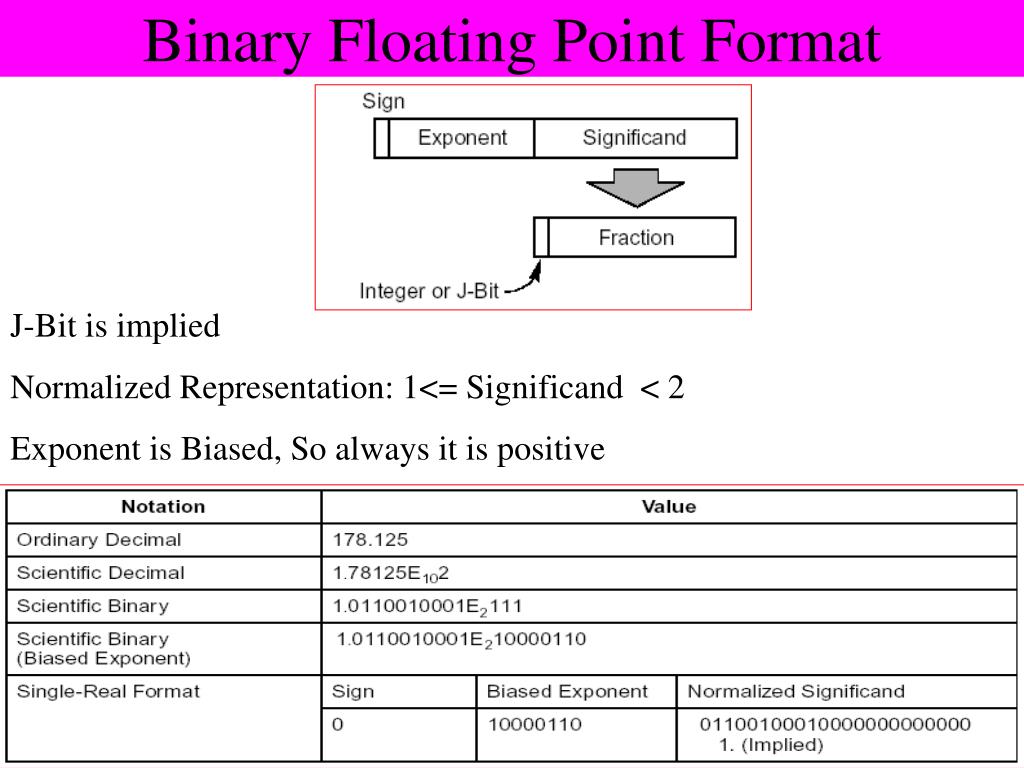

  18. Binary Floating Point Format J-Bit is implied Normalized Representation: 1<= Significand < 2 Exponent is Biased, So always it is positive

  19. Convert 9.75 to single-precision floating point

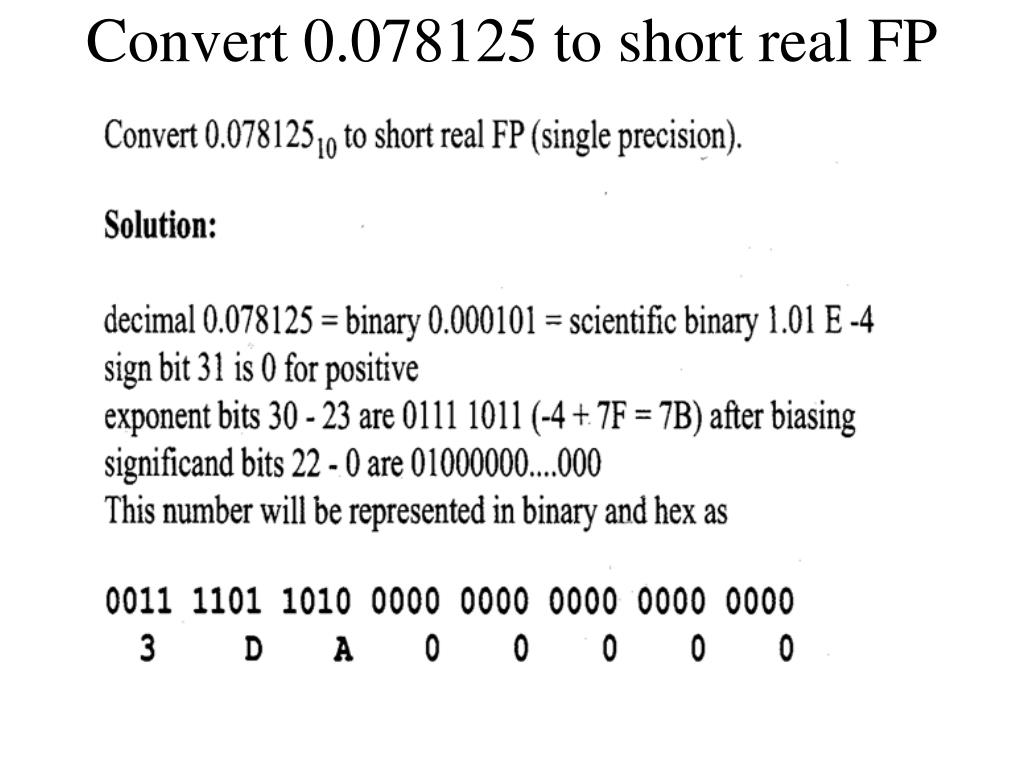

  20. Convert 0.078125 to short real FP

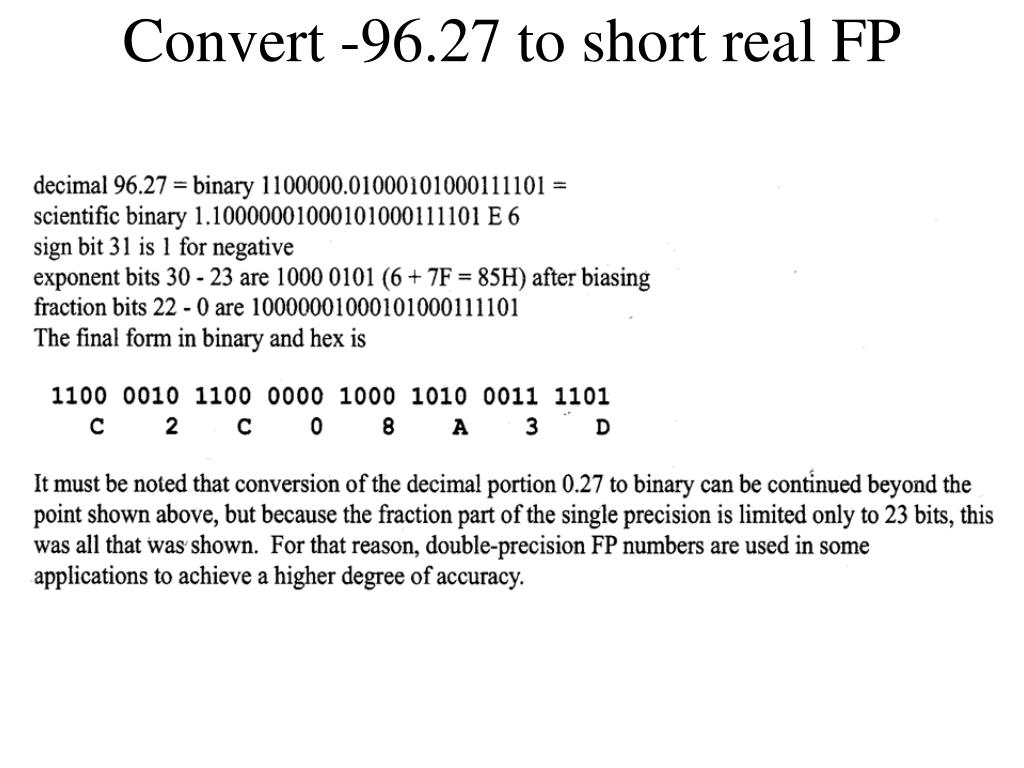

  21. Convert -96.27 to short real FP

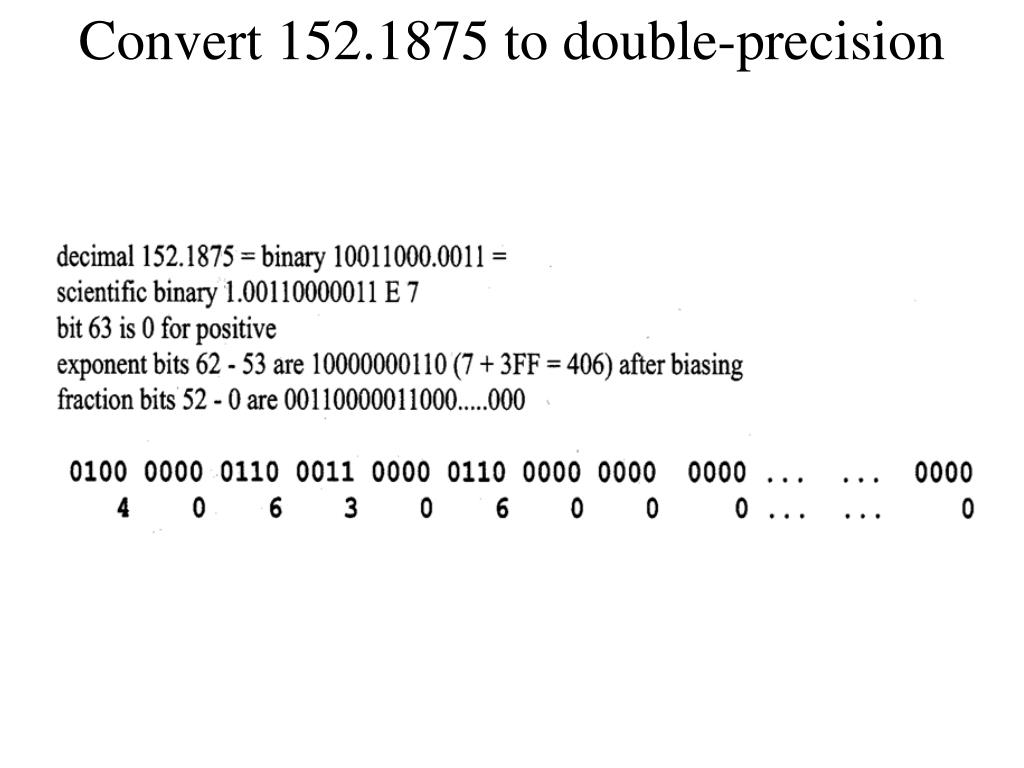

  22. Convert 152.1875 to double-precision

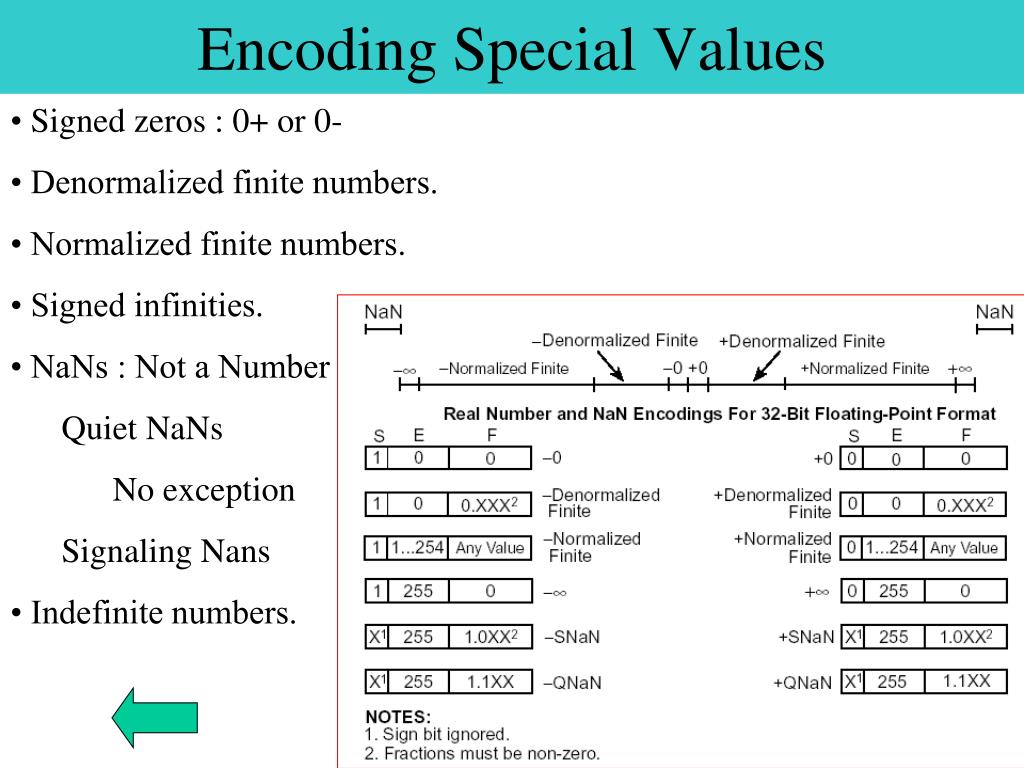

  23. Encoding Special Values • Signed zeros : 0+ or 0- • • Denormalized finite numbers. • • Normalized finite numbers. • • Signed infinities. • • NaNs : Not a Number • Quiet NaNs • No exception • Signaling Nans • • Indefinite numbers.

  24. FPU Registers Error Pointers: Instruction & Operand 16bit Selector + 32 bit address Opcode of the last non-control FPU instruction.

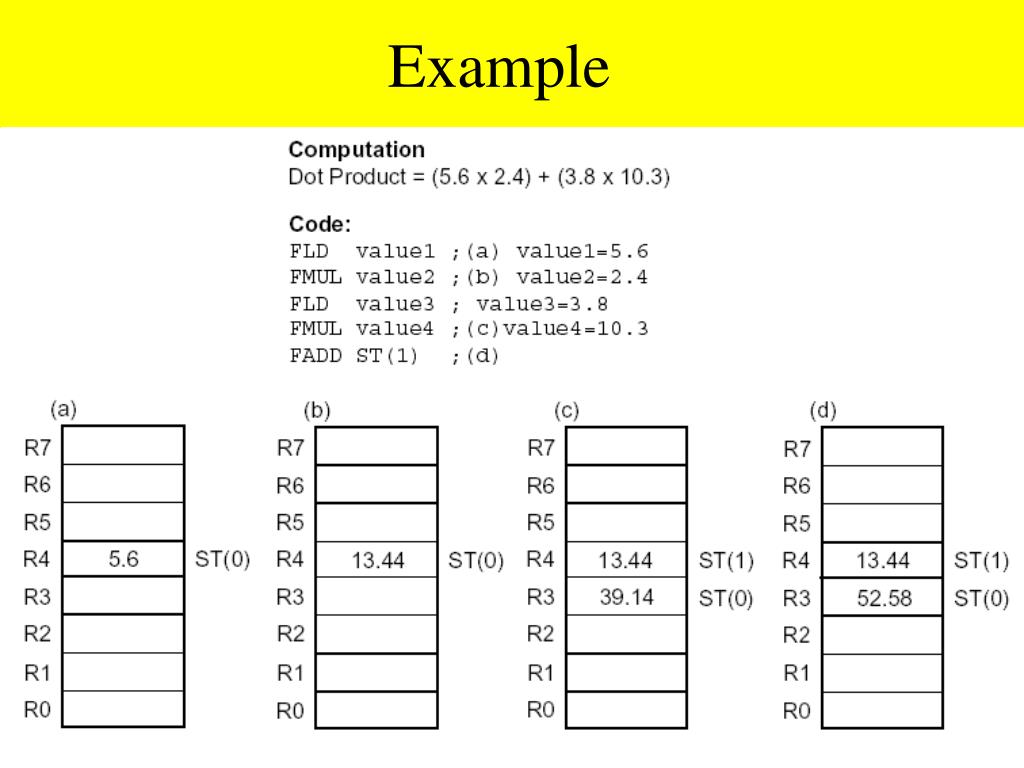

  25. Example

  26. FPU Control Word

  27. FPU Status & TAG Register Save Reg: FSTSW/FNSTSW, FSTENV/FNSTENV, FSAVE/FNSAVE

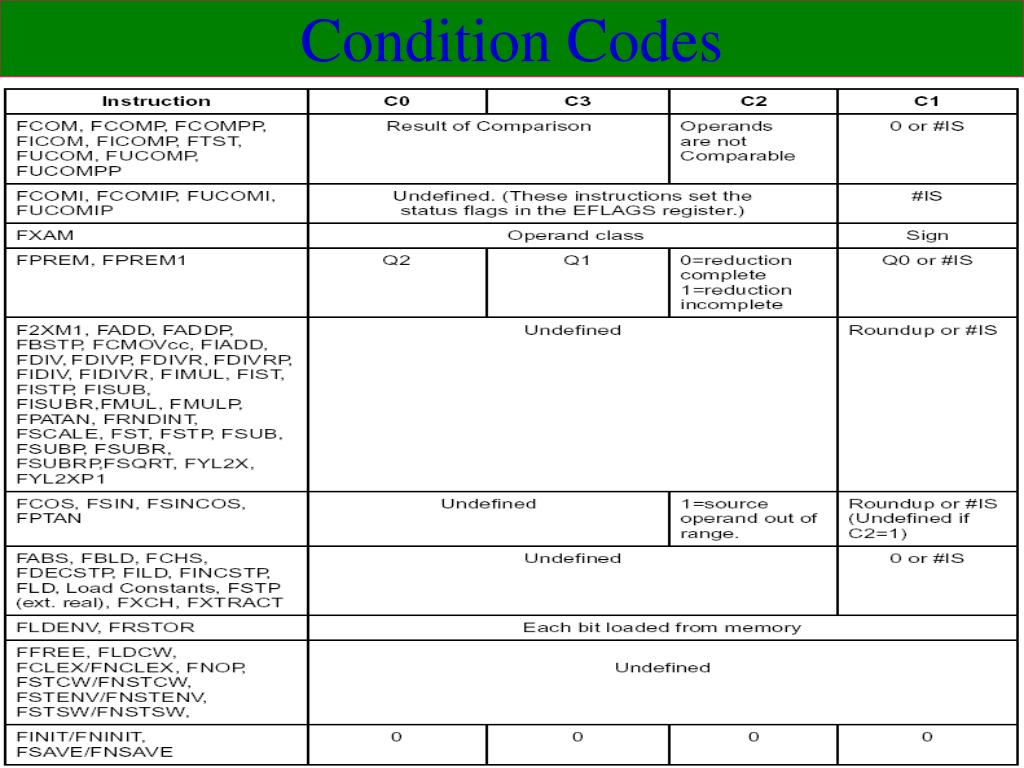

  28. Condition Codes

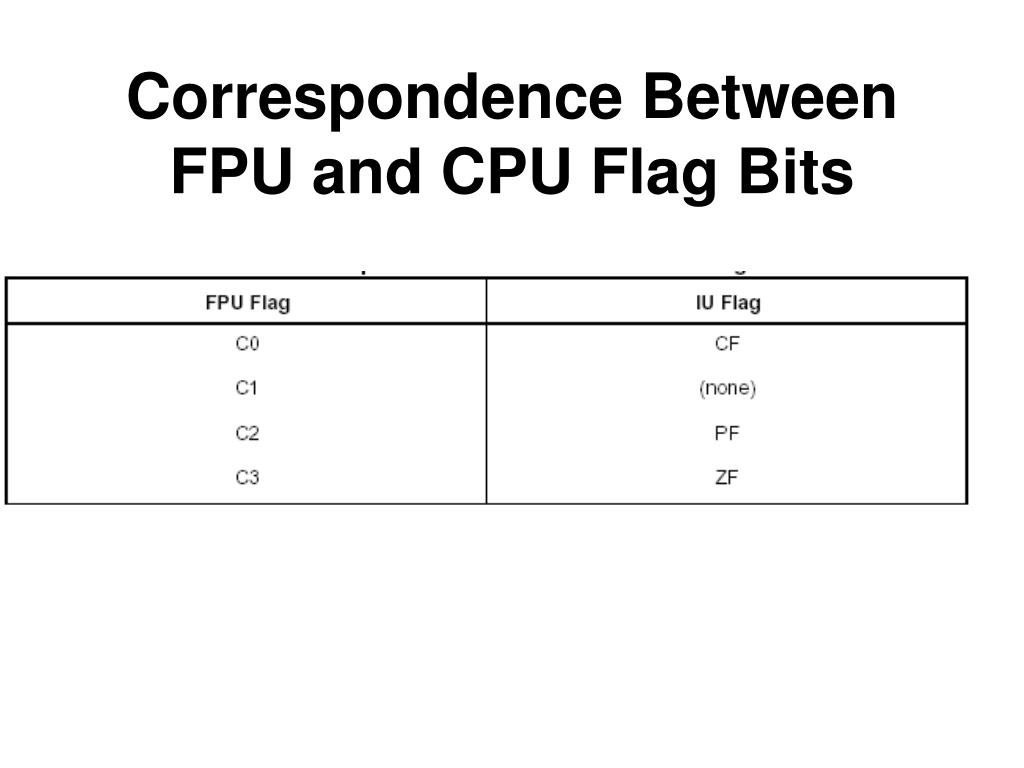

  29. Correspondence Between FPU and CPU Flag Bits

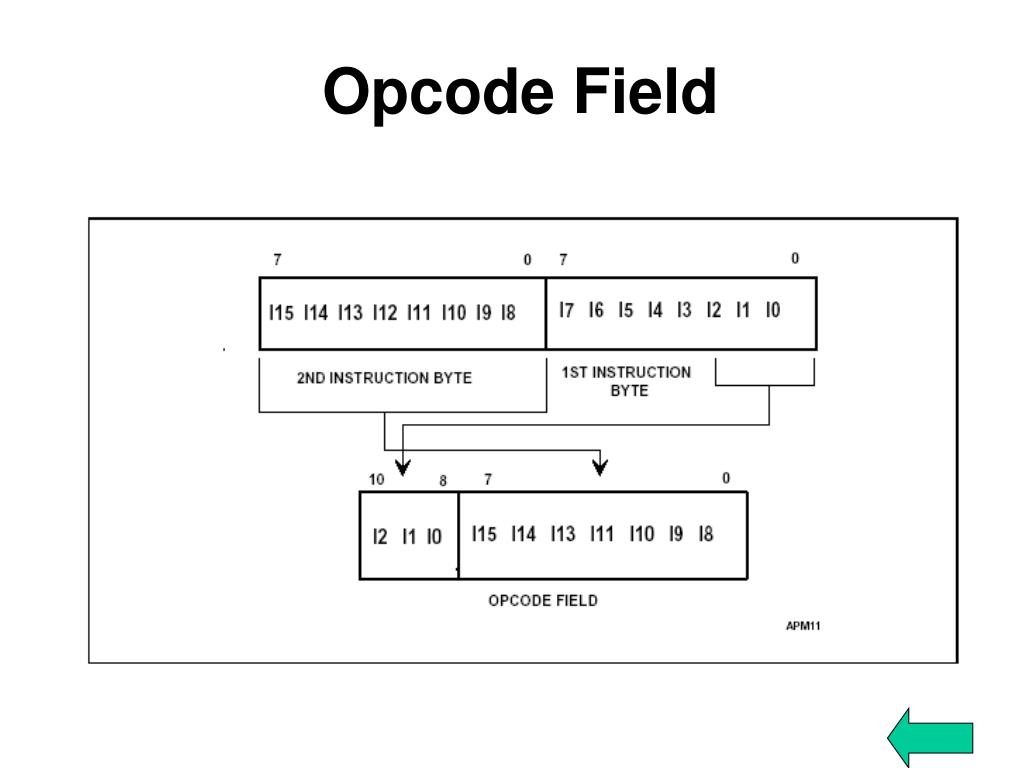

  30. Opcode Field

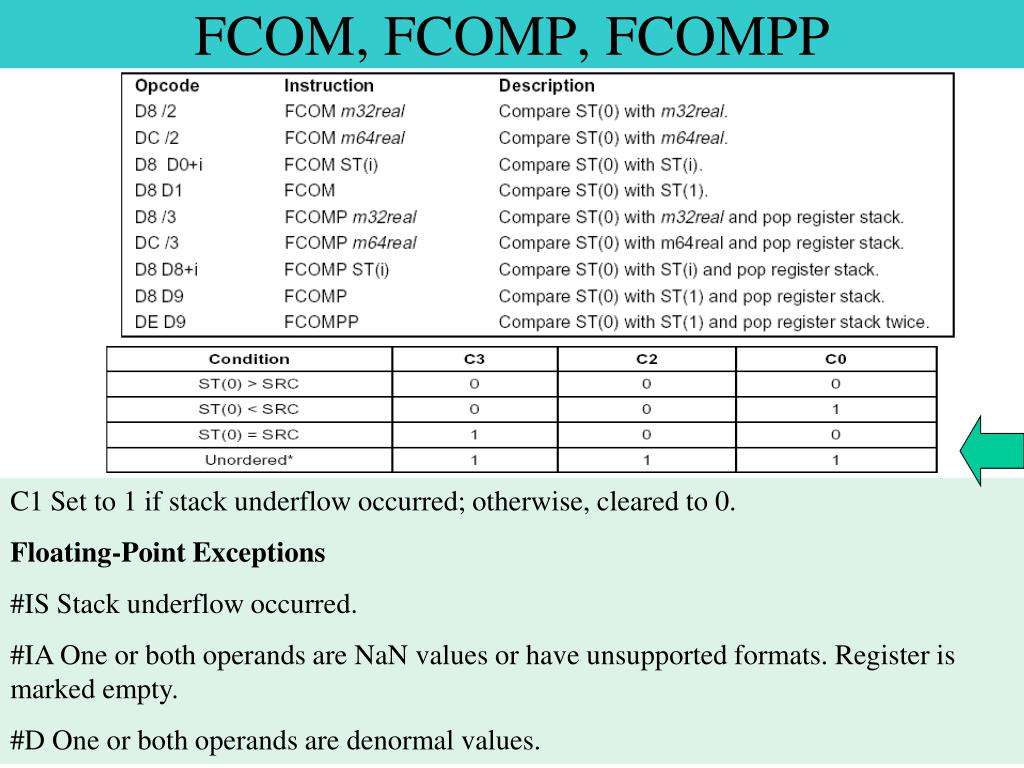

  31. FCOM, FCOMP, FCOMPP C1 Set to 1 if stack underflow occurred; otherwise, cleared to 0. Floating-Point Exceptions #IS Stack underflow occurred. #IA One or both operands are NaN values or have unsupported formats. Register is marked empty. #D One or both operands are denormal values.
