Combinational Circuit Design and Simulation Using NAND Gates for BCD Decoder

This document presents the logical expressions and design for a combinational circuit, focusing on a 2421 to BCD decoder using NAND gates. It outlines the logic equations for various outputs and provides representations for each part of the circuit. Additionally, we explore the implementation of NAND gates with the SN74 series, including single and multiple input configurations. This comprehensive guide covers both theoretical and practical aspects, ensuring a clear understanding of digital circuits and their simulation.

luther
Télécharger la présentation

Combinational Circuit Design and Simulation Using NAND Gates for BCD Decoder

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

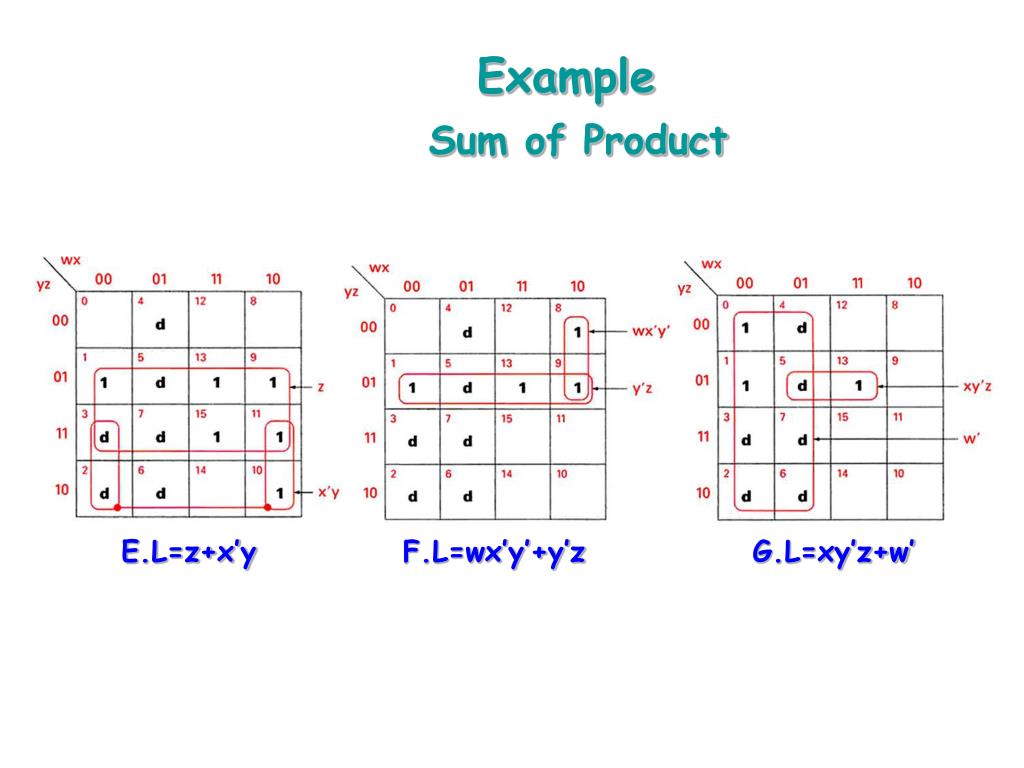

  1. Example Sum of Product E.L=z+x’y F.L=wx’y’+y’z G.L=xy’z+w’

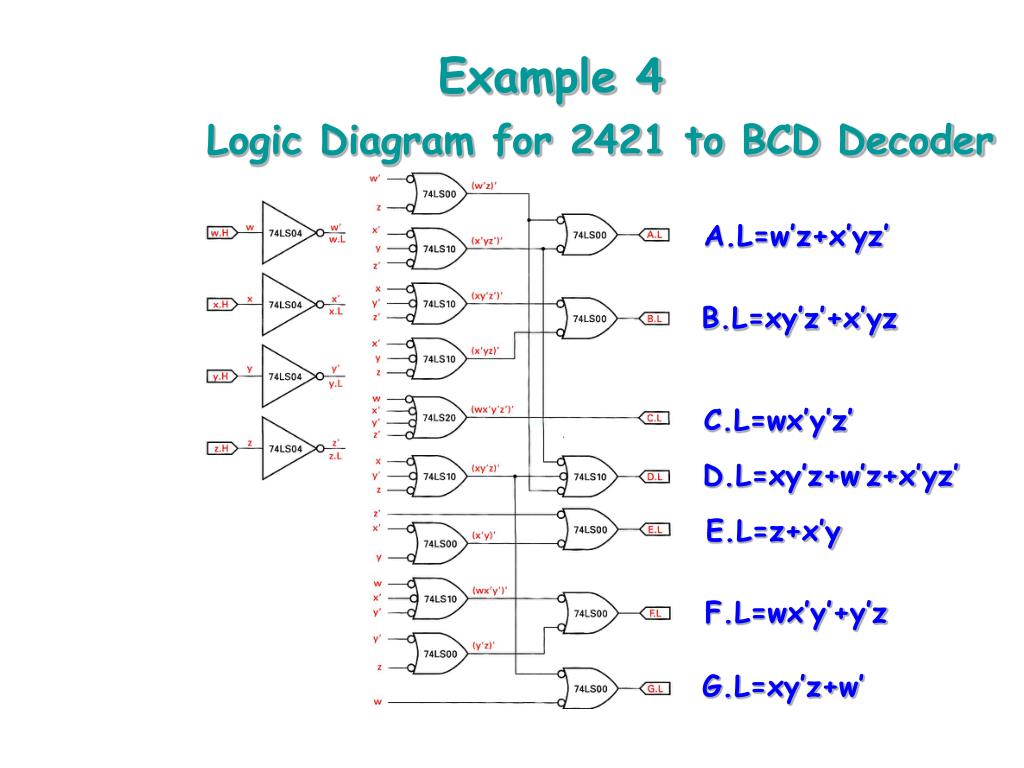

  2. Example 4 Logic Diagram for 2421 to BCD Decoder A.L=w’z+x’yz’ B.L=xy’z’+x’yz C.L=wx’y’z’ D.L=xy’z+w’z+x’yz’ E.L=z+x’y F.L=wx’y’+y’z G.L=xy’z+w’

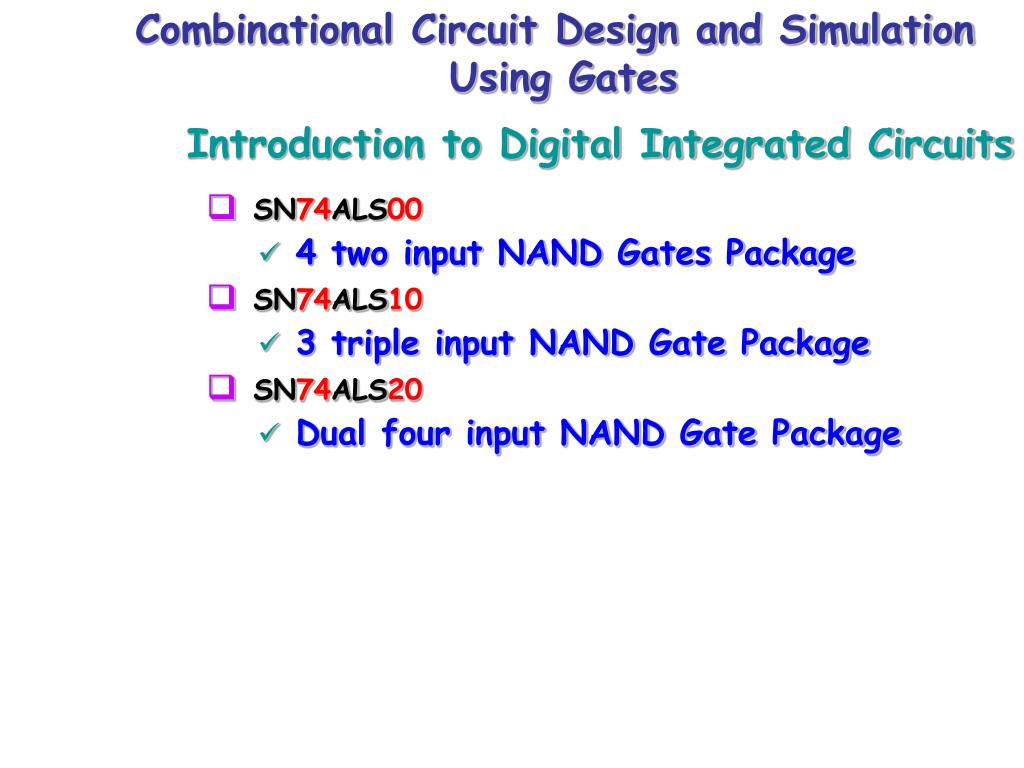

  3. Combinational Circuit Design and Simulation Using Gates Introduction to Digital Integrated Circuits • SN74ALS00 • 4 two input NAND Gates Package • SN74ALS10 • 3 triple input NAND Gate Package • SN74ALS20 • Dual four input NAND Gate Package

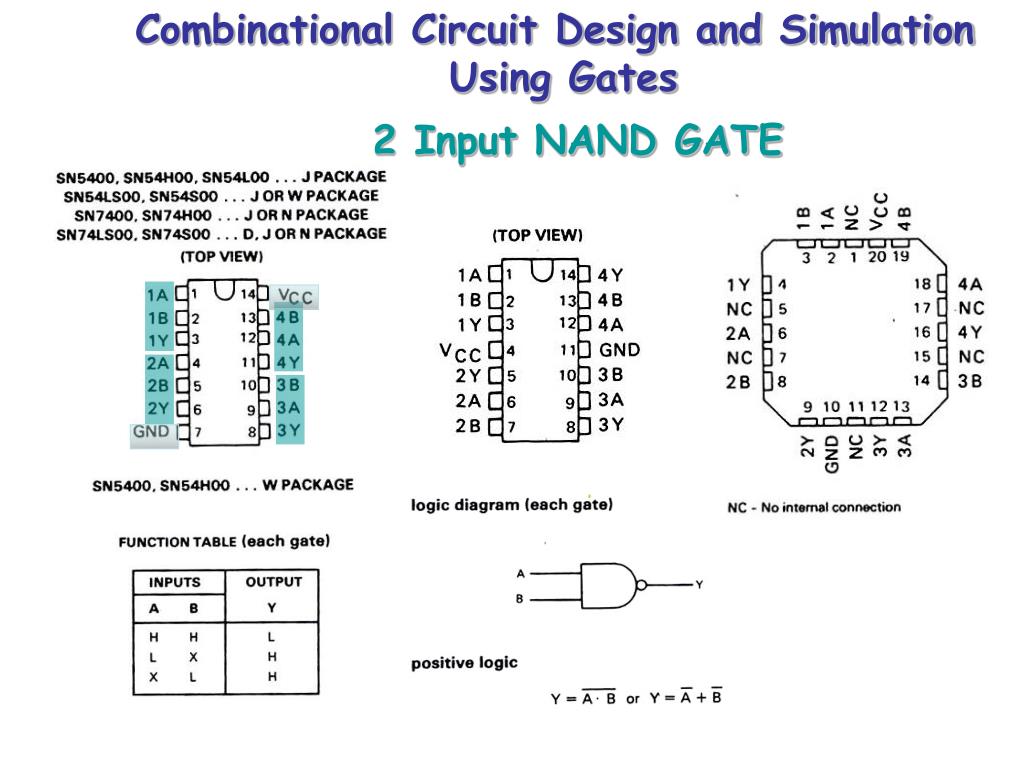

  4. Combinational Circuit Design and Simulation Using Gates 2 Input NAND GATE
