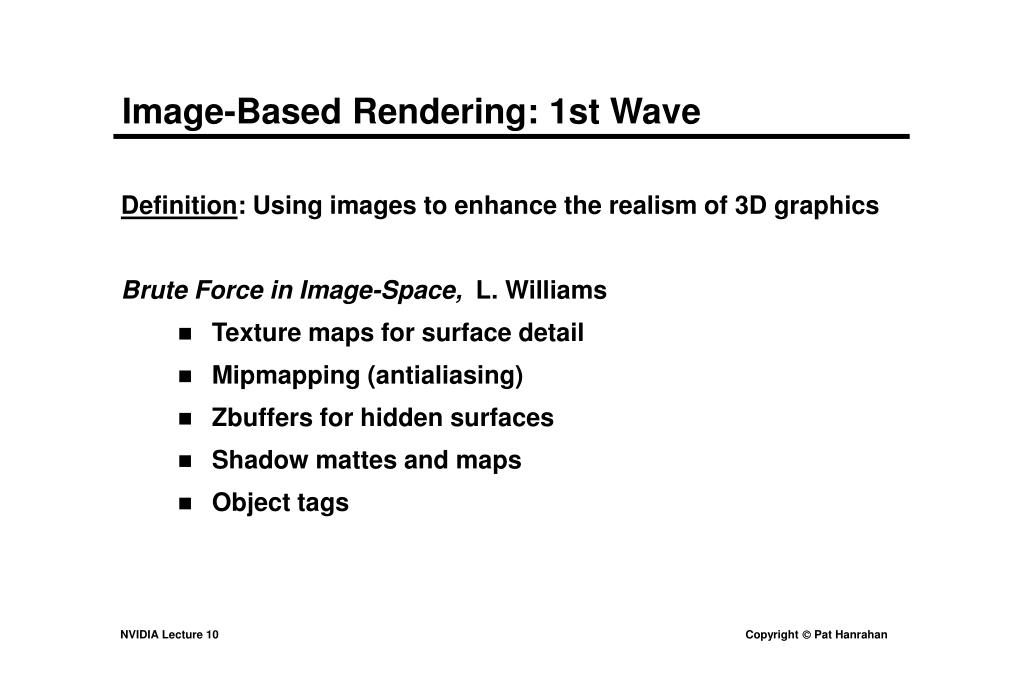

  1. Image-Based Rendering: 1st Wave • Definition: Using images to enhance the realism of 3D graphics • Brute Force in Image-Space, L. Williams • Texture maps for surface detail • Mipmapping (antialiasing) • Zbuffers for hidden surfaces • Shadow mattes and maps • Object tags

  2. Image-Based Rendering: 2nd Wave • Represent (model and render) environments without using traditional geometric representations (polygons) • Examples • QuickTimeVR and panoramic image representations • Light fields or virtual holograms • Color + Range images • Coupling viewing and morphing • Advantages • Cost independent of scene complexity • Imagery from real or virtual scenes • Modest computation compared to classical C.G.

  3. Applications • Capture 3D environments • MIT’s ASPEN MovieMap, Cyan’s MYST and RIVEN • Museums, real estate, products, sets, planets • Interactive 3D Graphics and Games • Representations of complex environments (lod) • Background environments • Textured portals • 3D sprites, billboards and imposters • Post rendering warps • Frame interpolation, priority rendering (Talisman) • Latency compentation: HMDs, networked telepresence • Stereo from single RGBZ image

  4. Apple’s QuickTime VR Outward Inward

  5. History of Panoramas • Robert Barker’s Panorama (1792) • 50’ high, 400’ circumference, platform for viewing • Raoul Brimoin-Sanson’s Cineorama (1897) • 10 synchronized projectors, 300’ circumference • Disney’s CircleVision • 9 35mm projectors • Mirrored panoramic camera • Modern IMAX and OMNIMAX theaters

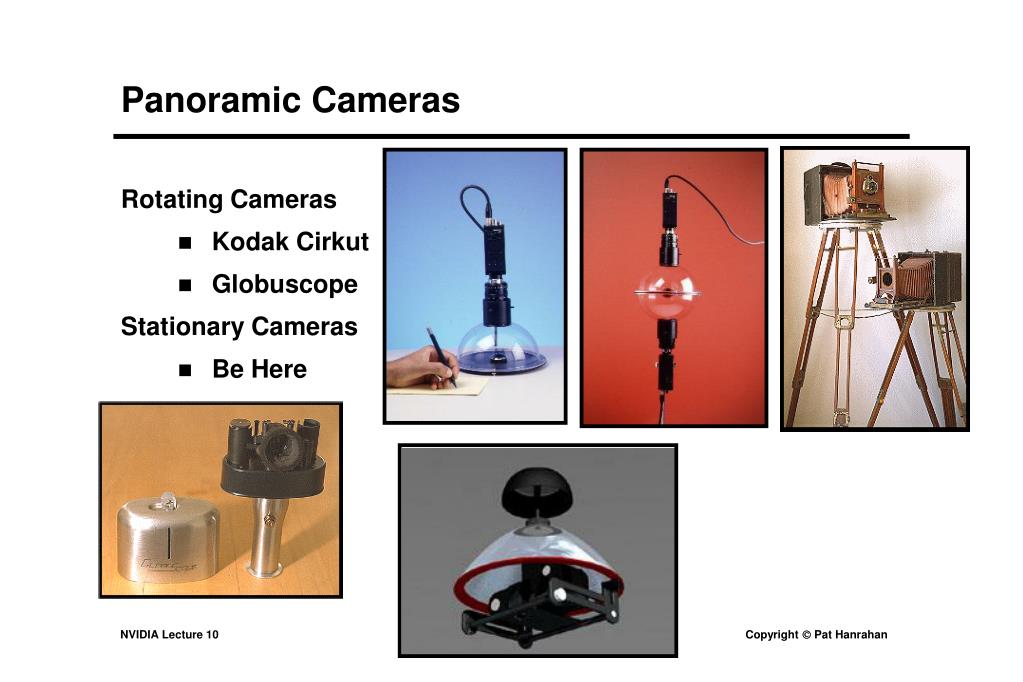

  6. Panoramic Cameras • Rotating Cameras • Kodak Cirkut • Globuscope • Stationary Cameras • Be Here

  7. Mars Pathfinder Panorama

  8. Creating a Cylindrical Panorama From www.quicktimevr.apple.com

  9. Stitching • Prewarping Lens Distortion, Radiometry,Cylindrical projection • Image Registration Feature alignment,Pixel difference minimization, Fourier correlation • Global Alignment Gap closingMutual image aligment • Compositing Blending,Nearest Neighbor Example courtesy James Davis

  10. Commercial Products • QuickTime VR, LivePicture, IBM (Panoramix) • VideoBrush • IPIX (PhotoBubbles), Be Here, etc.

  11. Future Directions • Geometry + panoramas • Hot spots • Hierarchical panoramas • Stereo / depth-mapped panoramas • Video panoramas

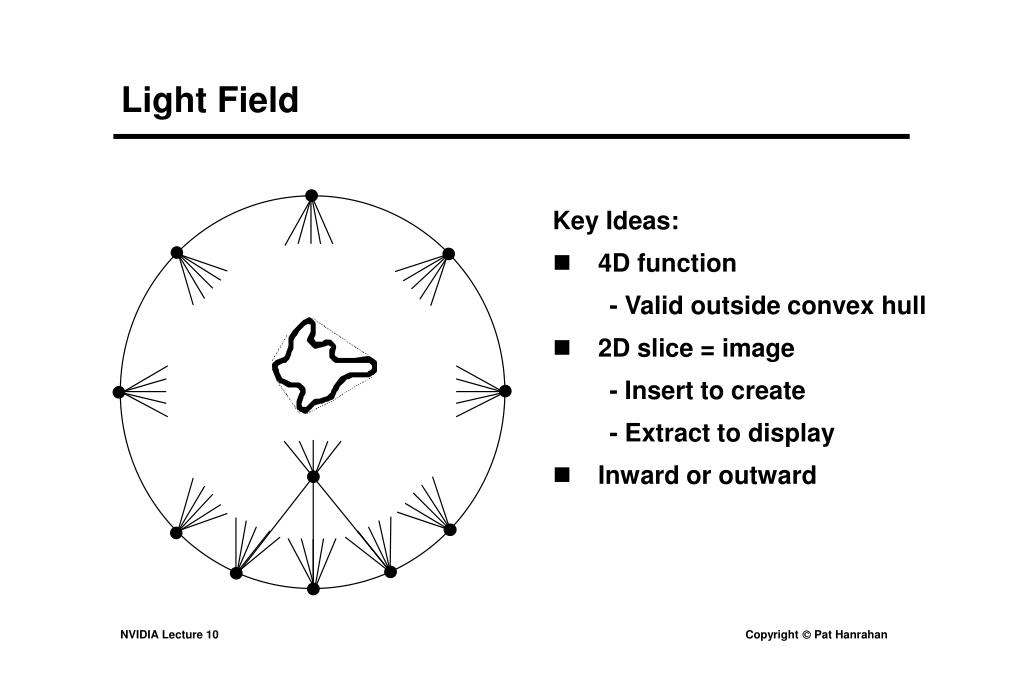

  12. Light Field • Key Ideas: • 4D function - Valid outside convex hull • 2D slice = image - Insert to create - Extract to display • Inward or outward

  13. Two Plane Parametrization Object Focal plane (st) Camera plane (uv)

  14. Reconstruction

  15. Original prototype gantry • Issues: focal plane, aperture, support, lighting

  16. New light field gantry • Applications: • digitizing light fields • measuring BRDFs • range scanning • Designed by • Marc Levoy et al.

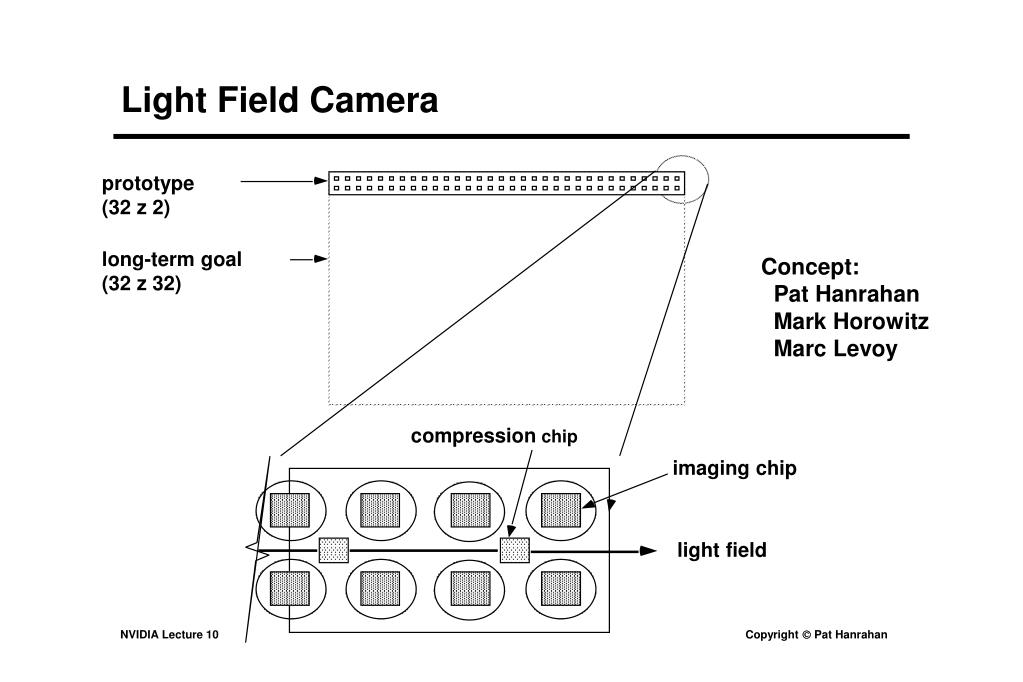

  17. Light Field Camera prototype (32 z 2) long-term goal (32 z 32) Concept: Pat Hanrahan Mark Horowitz Marc Levoy compression chip imaging chip light field

  18. Dayton Taylor’s Multiple Camera Rig
