  1. Chapter 10 Implementing Group Policy

  2. Learning Objectives • Understand Group Policy concepts • Plan an effective Group Policy design • Implement Group Policy

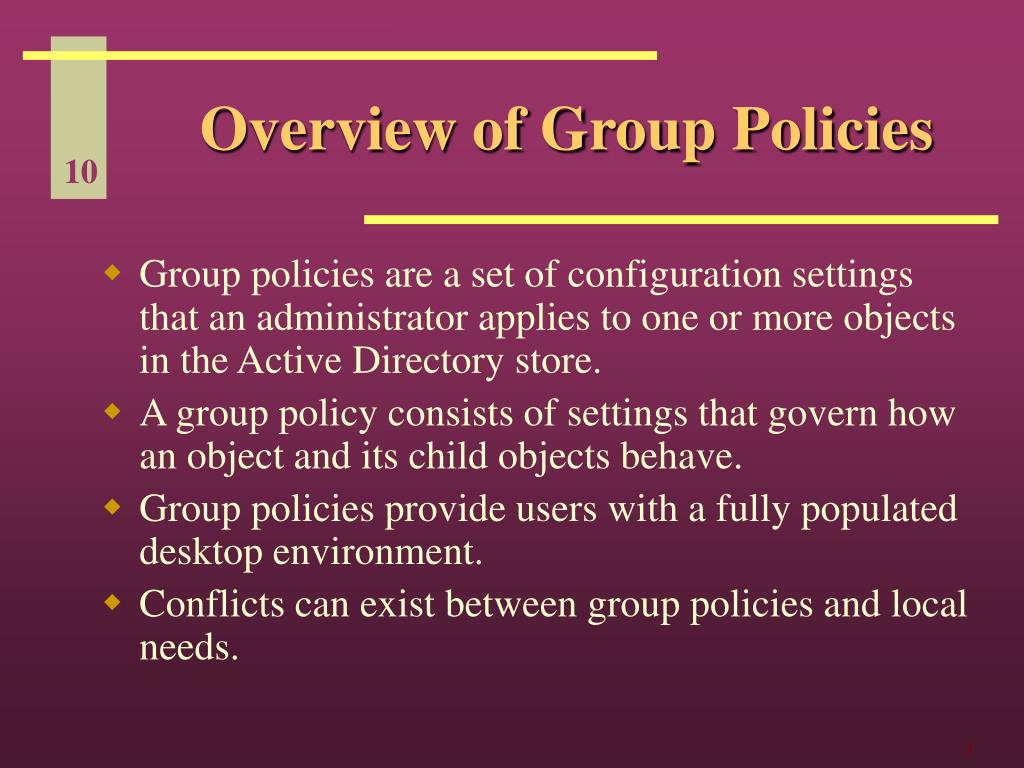

  3. Overview of Group Policies • Group policies are a set of configuration settings that an administrator applies to one or more objects in the Active Directory store. • A group policy consists of settings that govern how an object and its child objects behave. • Group policies provide users with a fully populated desktop environment. • Conflicts can exist between group policies and local needs.

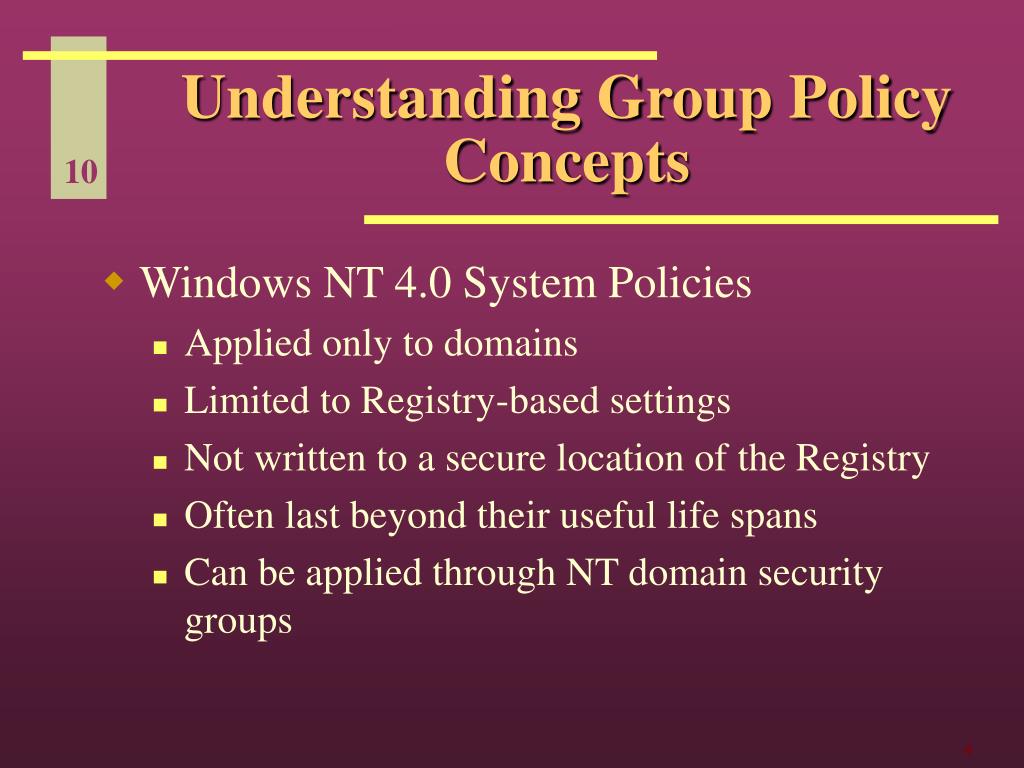

  4. Understanding Group Policy Concepts • Windows NT 4.0 System Policies • Applied only to domains • Limited to Registry-based settings • Not written to a secure location of the Registry • Often last beyond their useful life spans • Can be applied through NT domain security groups

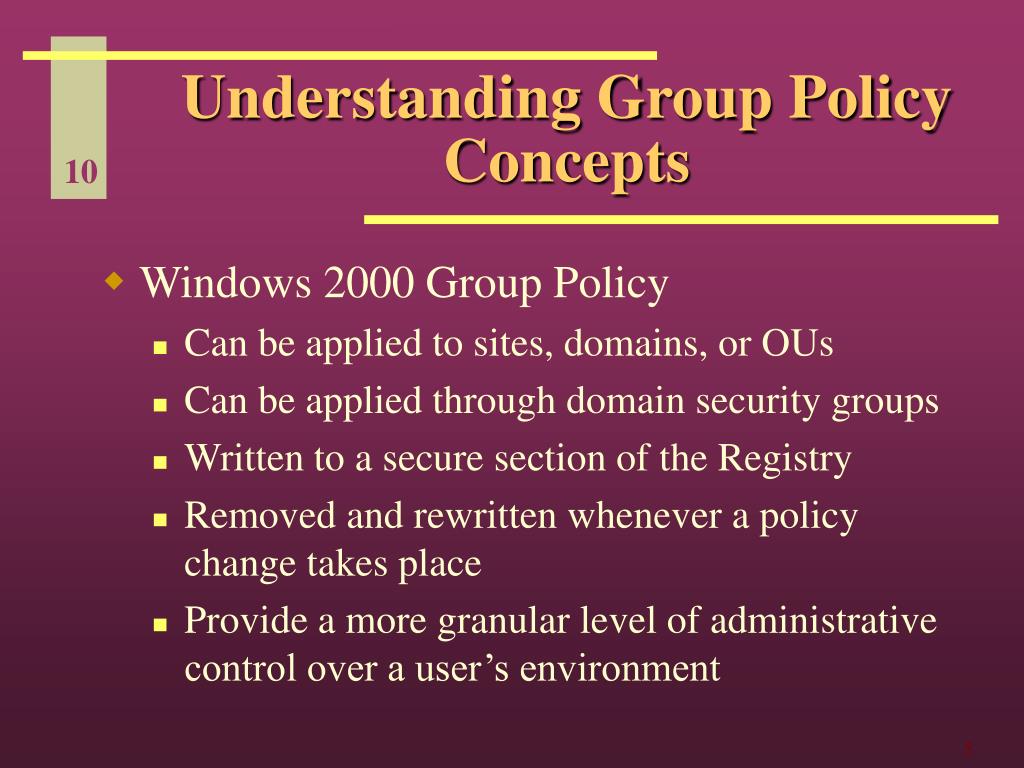

  5. Understanding Group Policy Concepts • Windows 2000 Group Policy • Can be applied to sites, domains, or OUs • Can be applied through domain security groups • Written to a secure section of the Registry • Removed and rewritten whenever a policy change takes place • Provide a more granular level of administrative control over a user’s environment

  6. Understanding Group Policy Concepts • Group Policy benefits • Can reduce the TCO for a Windows 2000 network • Securing user environment • Provides customized environments to meet the user’s work requirements

  7. Understanding Group Policy Concepts • Group Policy Objects (GPOs) • LocalGPOs are stored on each Windows 2000 computer • Non-local GPOs are stored at the domain level within AD • GPC – Group Policy Container • GPT – Group Policy Template

  8. Understanding Group Policy Concepts • Non-local GPOs • Group Policy container includes • version information • status information • list of extensions • policy settings • Group Policy template • Folder under %Sysvol%/DomainName/Policies • Identified by it GUID

  9. Understanding Group Policy Concepts • Group Policy template information

  10. Understanding Group Policy Concepts • Group Policy template subfolders

  11. Understanding Group Policy Concepts • Group Policy template subfolders • GPT.INI • In root folder of each template • Enabled/Disabled • Version

  12. Using the Group Policy Snap-In • Computer Configuration • Applies to Computers • When system initialized • Every user • Startup/Shutdown Scripts • User Configuration • Applies to users • When logon • Logon/logoff scripts

  13. Group Policy • More than 500 settings • Software Settings • Software installation • Windows Settings • Desktop settings • Administrative Templates

  14. Group Policies • Computer settings take precedence over user settings • Computer settings take effect • After refresh interval • When OS restarted • User setting • After refresh interval • When new logon

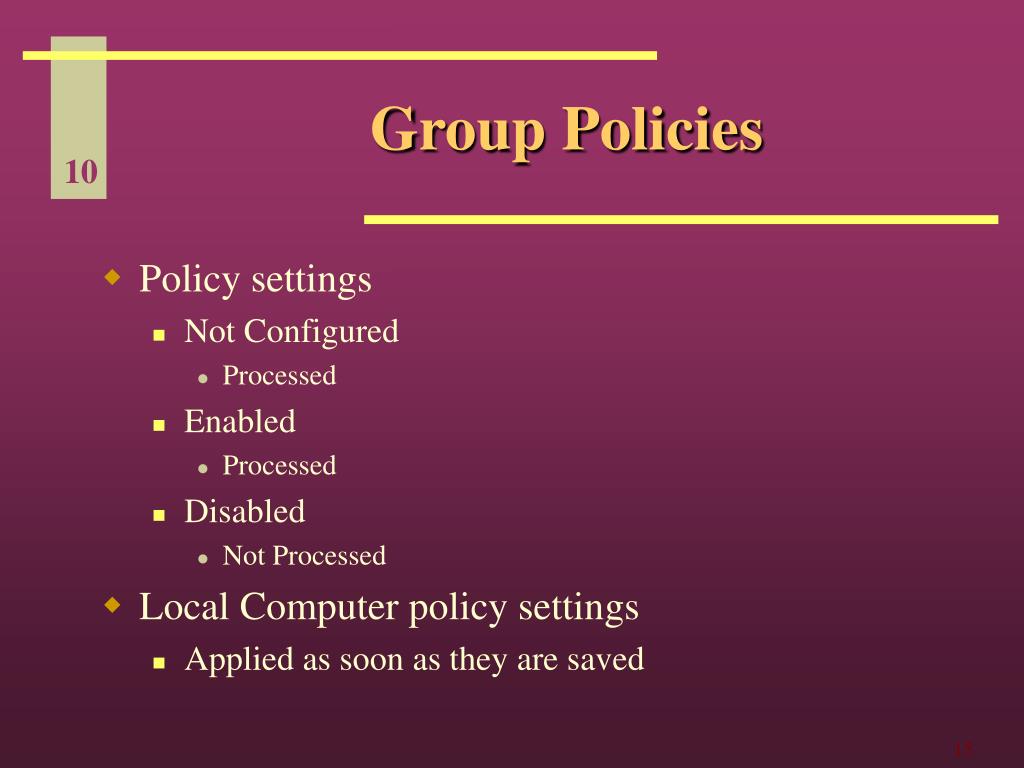

  15. Group Policies • Policy settings • Not Configured • Processed • Enabled • Processed • Disabled • Not Processed • Local Computer policy settings • Applied as soon as they are saved

  16. Understanding Group Policy Concepts • Password Policy settings, under Windows settings • Password History • Password age • Min Length • Complexity • Encryption

  17. Understanding Group Policy Concepts • Account Lockout Policy under Windows settings • Duration • Threshold • Reset • Zero must manually reset

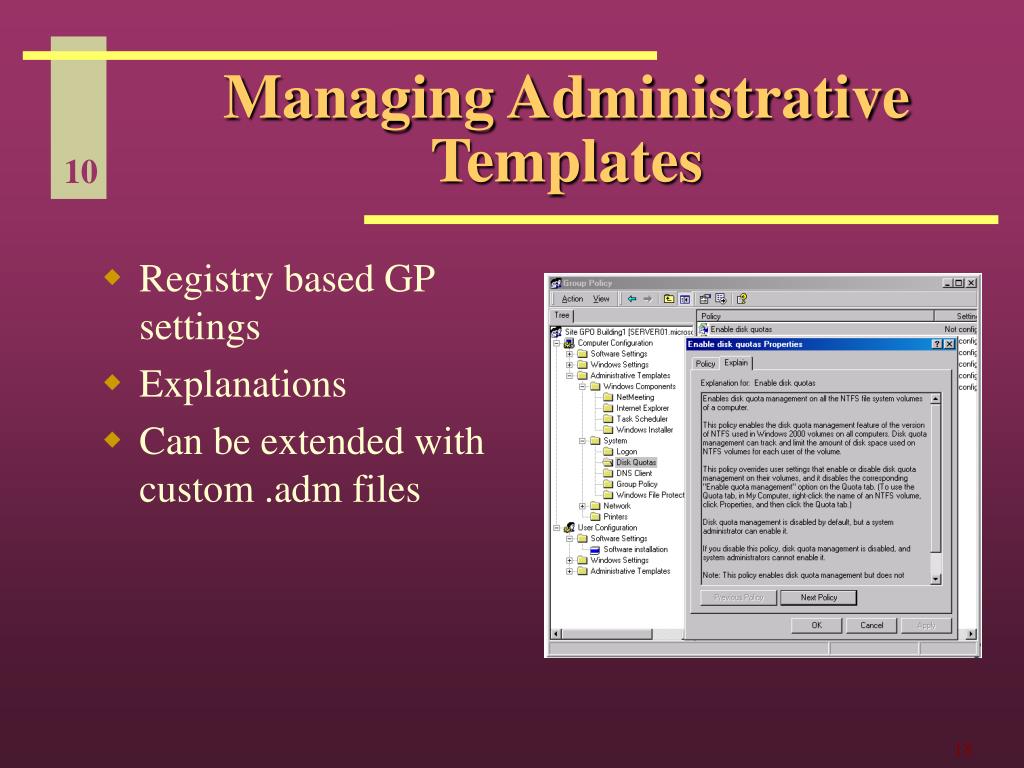

  18. Managing Administrative Templates • Registry based GP settings • Explanations • Can be extended with custom .adm files

  19. #if version >= 3 system.adm CLASS MACHINE CATEGORY !!AdministrativeServices POLICY !!NoSecurityMenu KEYNAME "Software\Microsoft\Windows\CurrentVersion\Policies\Explorer" EXPLAIN !!NoSecurityMenu_Help VALUENAME "NoNTSecurity" END POLICY POLICY !!NoDisconnectMenu KEYNAME "Software\Microsoft\Windows\CurrentVersion\Policies\Explorer" EXPLAIN !!NoDisconnectMenu_Help VALUENAME "NoDisconnect" END POLICY

  20. Understanding Group Policy Concepts • Group Policy categories and subcategories

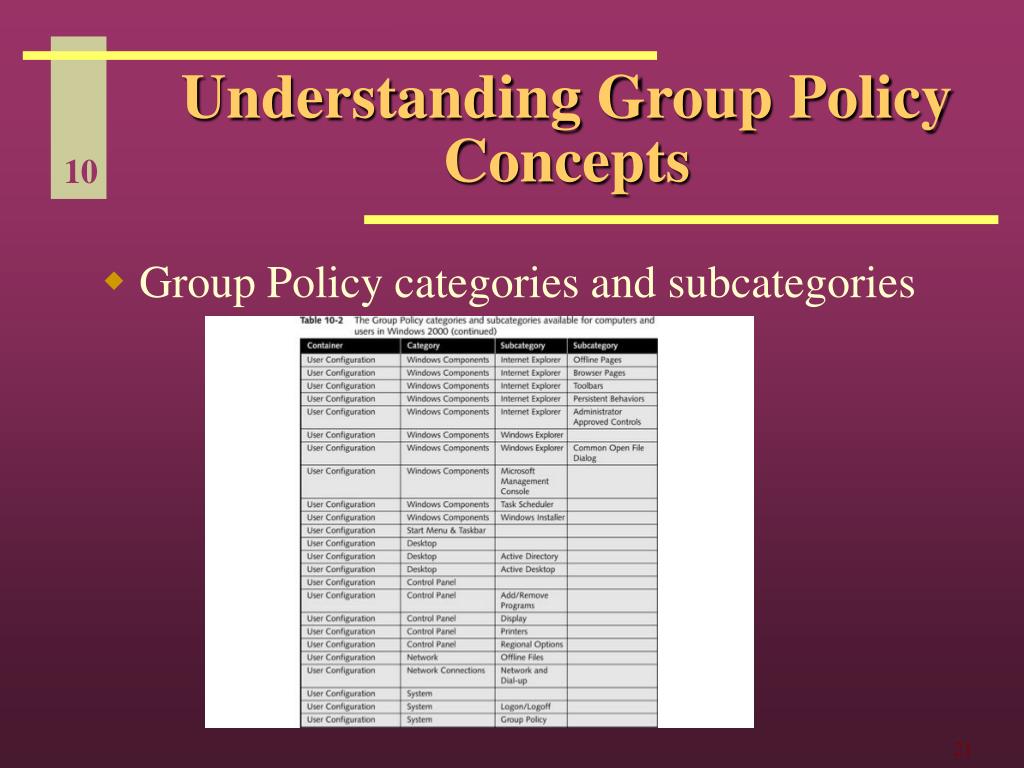

  21. Understanding Group Policy Concepts • Group Policy categories and subcategories

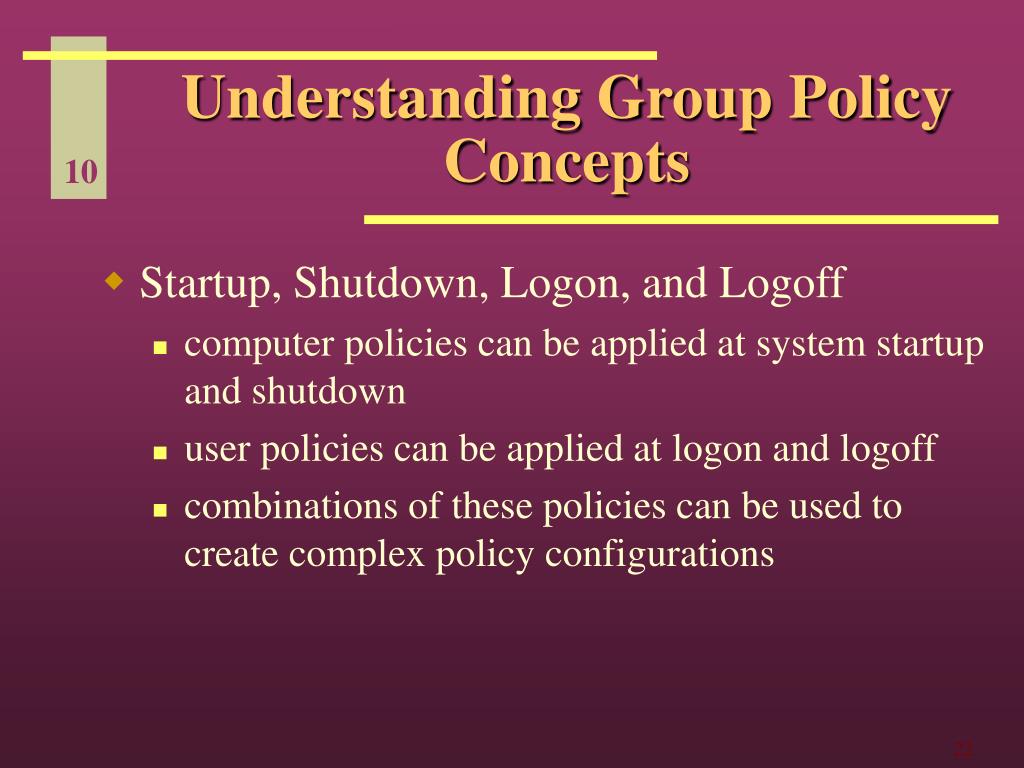

  22. Understanding Group Policy Concepts • Startup, Shutdown, Logon, and Logoff • computer policies can be applied at system startup and shutdown • user policies can be applied at logon and logoff • combinations of these policies can be used to create complex policy configurations

  23. Understanding Group Policy Concepts • AD structure and Group Policy • GPOs linked to a site apply to all domains within the site • GPOs applied to a domain apply to all users and computers within the domain • GPOs applied at the OU level apply to all users and computers within the OU • Local policies are applied first, followed by non-local policies • Non-local policies are applied in the following order: site, domain, OU

  24. Group Policy • More than 500 settings • Software Settings • Software installation • Windows Settings • Desktop settings • Administrative Templates

  25. Group Policies • Computer settings take precedence over user settings • Computer settings take effect • After refresh interval • When OS restarted • User setting • After refresh interval • When new logon

  26. Group Policies • Policy settings • Not Configured • Processed • Enabled • Processed • Disabled • Not Processed • Local Computer policy settings • Applied as soon as they are saved

  27. Understanding Group Policy Concepts • Group Policy Inheritance • No override • Prevent policies at lower level from taking precedence • Block Policy Inheritance

  28. Understanding Group Policy Concepts • Group Policy Processing • Computer vs. User Policy processing • Computer wins • Synchronous vs. Asynchronous processing • Asynchronous – Coputer and User Policies applied at same time • In Case of Conflict • Install with Elevated Privileges • Mudt be set both in Computer and User • Periodic Policy processing • 90 minute refresh period • 30 minute offset • Force refresh with SECEDIT

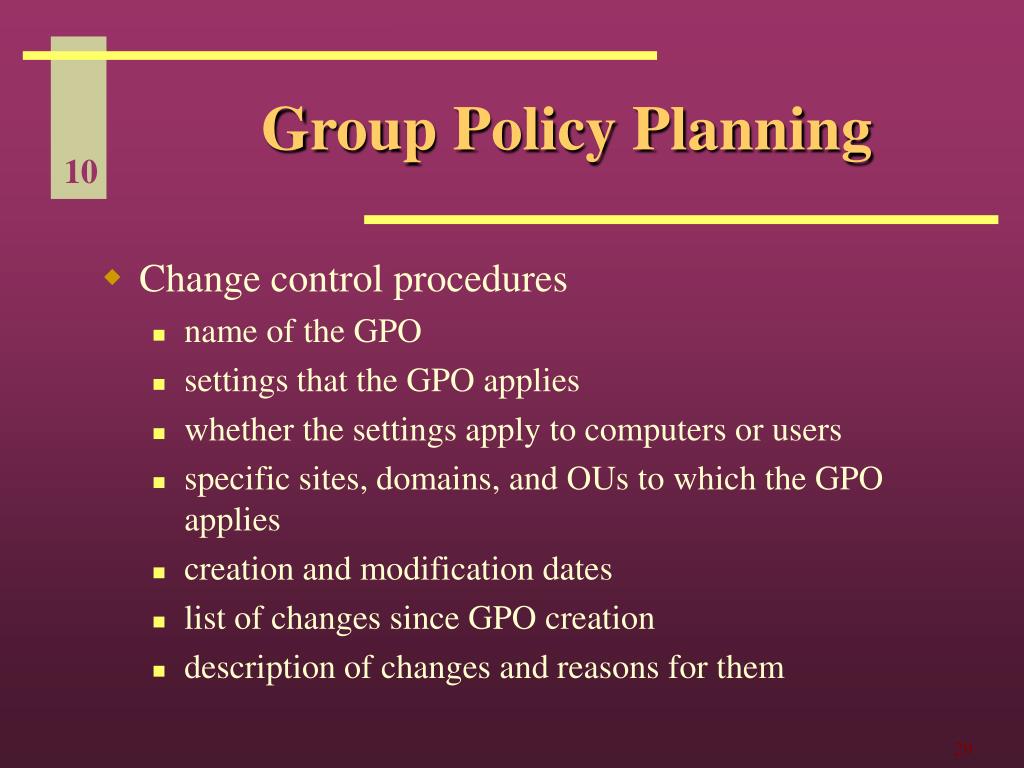

  29. Group Policy Planning • Change control procedures • name of the GPO • settings that the GPO applies • whether the settings apply to computers or users • specific sites, domains, and OUs to which the GPO applies • creation and modification dates • list of changes since GPO creation • description of changes and reasons for them

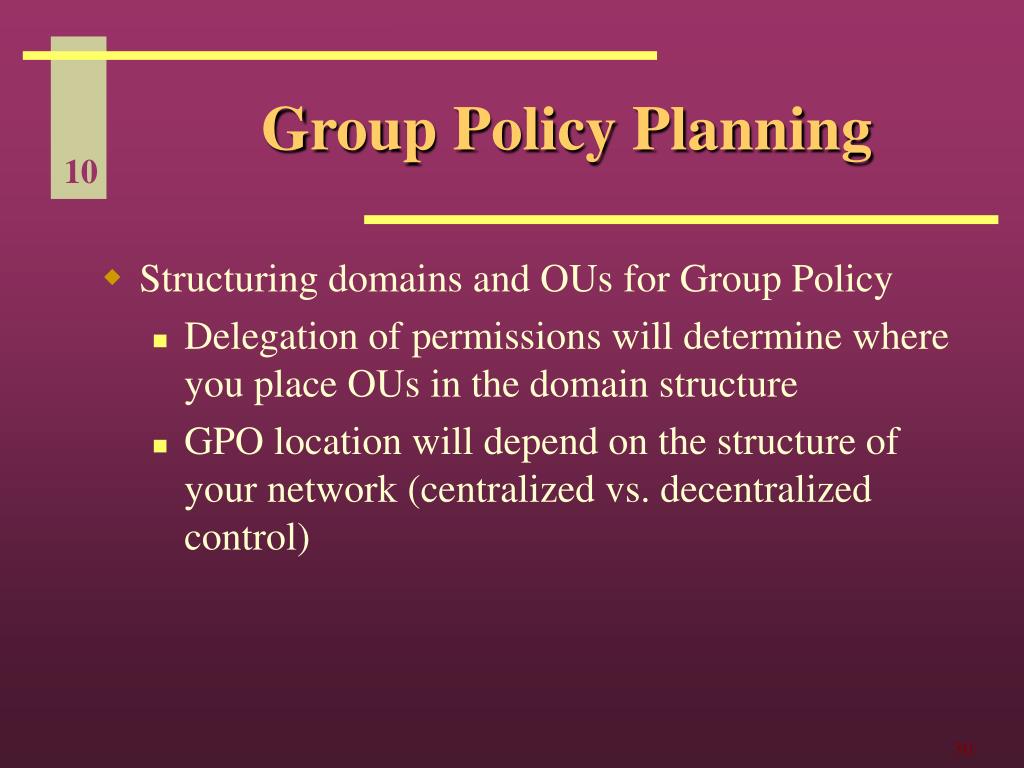

  30. Group Policy Planning • Structuring domains and OUs for Group Policy • Delegation of permissions will determine where you place OUs in the domain structure • GPO location will depend on the structure of your network (centralized vs. decentralized control)

  31. Group Policy Planning • Segmented vs. monolithic GPOs • Monolithic design - few large GPOs implemented at the site or domain level • Segmented design - smaller GPOs that contain fewer settings • Best design is probably a mix of the two

  32. Group Policy Planning • Cross-domain GPO links • it is possible, but not recommended, to create such links, as computer startup and logon are significantly slower

  33. Group Policy Planning • Managing network bandwidth • Windows 2000 has built-in safeguards when slow links are encountered • Security and Administrative always processed • Folder Redirection • Policy templates can be created and modified • Security and administrative templates always apply

  34. Group Policy Planning • Group Policy best practices • Disabling unused portions of a GPO

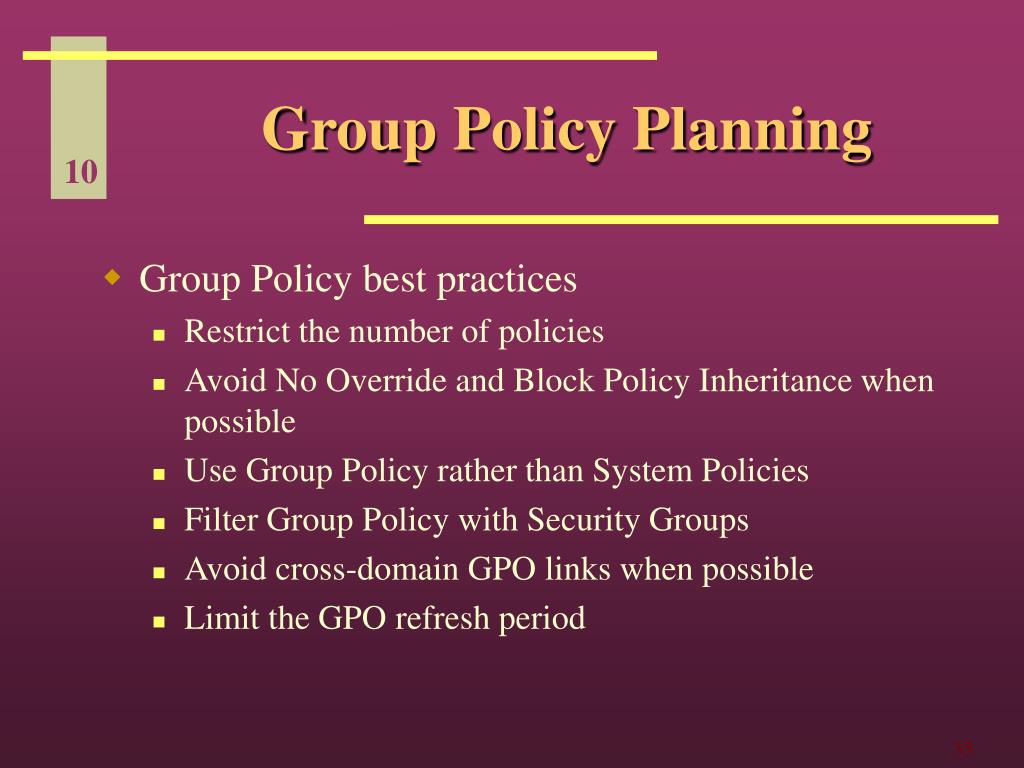

  35. Group Policy Planning • Group Policy best practices • Restrict the number of policies • Avoid No Override and Block Policy Inheritance when possible • Use Group Policy rather than System Policies • Filter Group Policy with Security Groups • Avoid cross-domain GPO links when possible • Limit the GPO refresh period

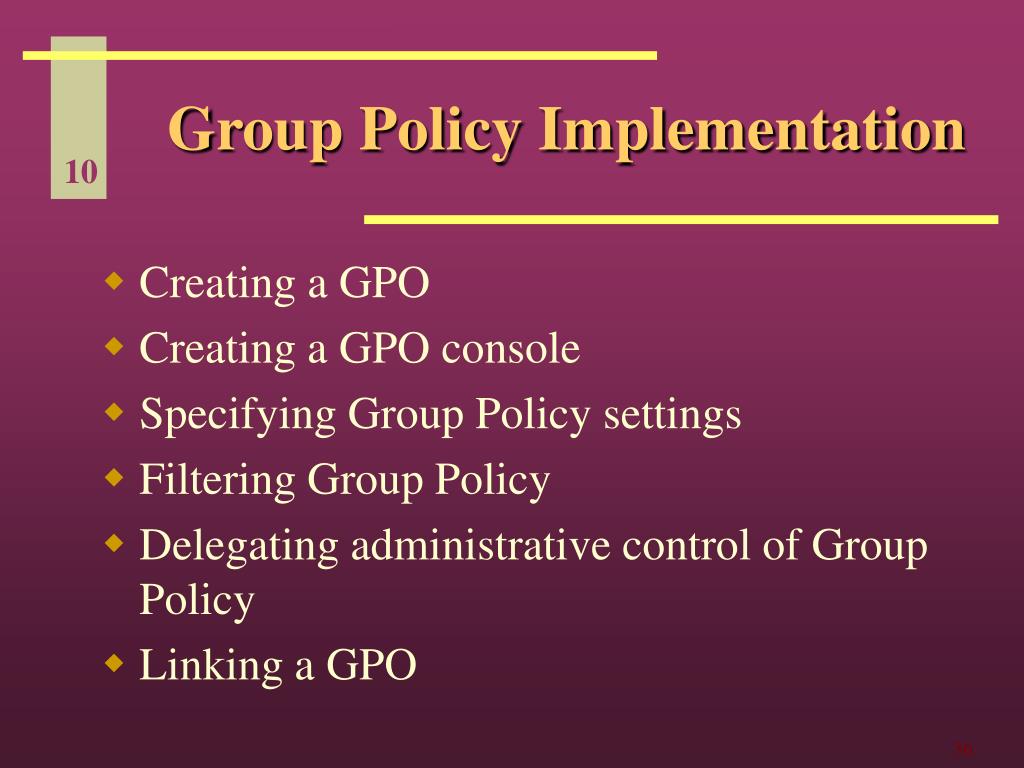

  36. Group Policy Implementation • Creating a GPO • Creating a GPO console • Specifying Group Policy settings • Filtering Group Policy • Delegating administrative control of Group Policy • Linking a GPO

  37. Group Policy Implementation • Creating a GPO • first step • Windows 2000 creates a GPO by default (Default Domain Policy) • AD Users and Computers management console • Add • New • Edit • Delete

  38. Group Policy Implementation • Creating a GPO Console • Use Group Policy Editor to add snap-ins to your console

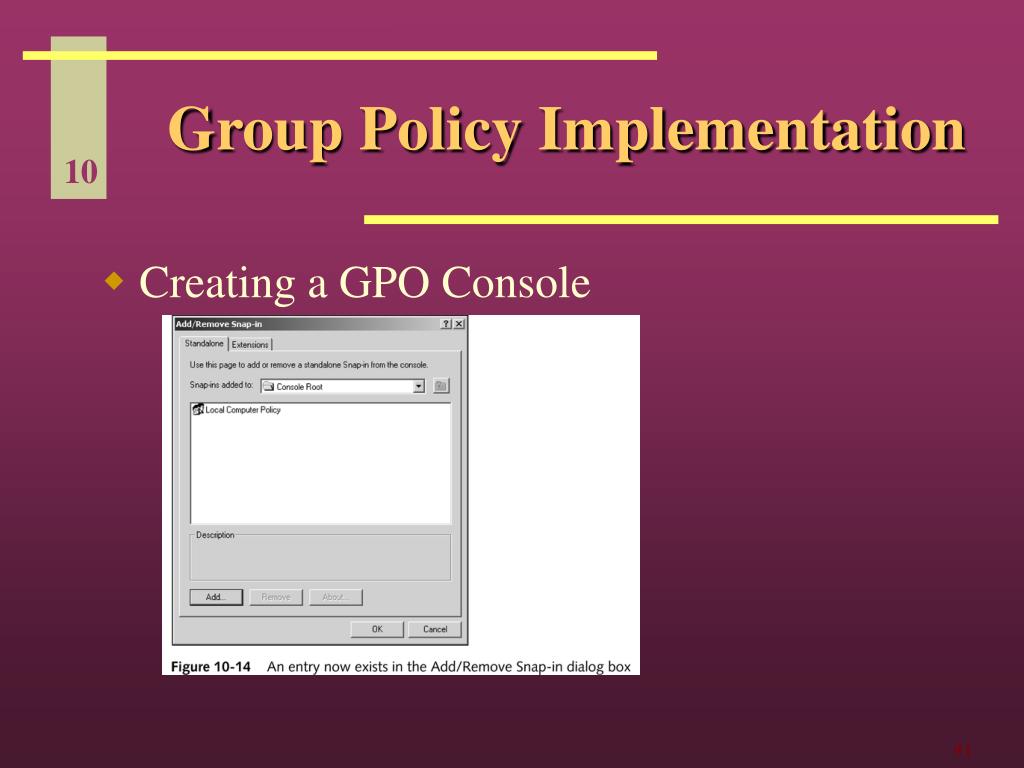

  39. Group Policy Implementation • Creating a GPO Console

  40. Group Policy Implementation • Creating a GPO Console

  41. Group Policy Implementation • Creating a GPO Console

  42. Group Policy Implementation • Specifying Group Policy settings

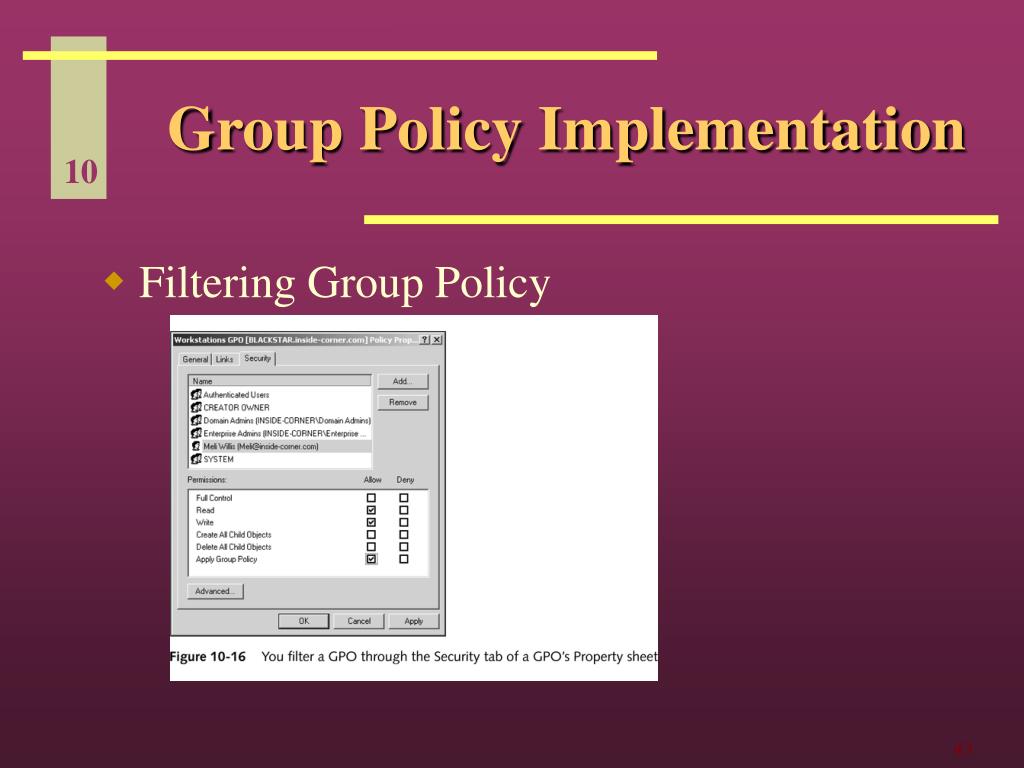

  43. Group Policy Implementation • Filtering Group Policy

  44. Group Policy Implementation • Delegating administrative control of Group Policy • Managing Group Policy links for a site, domain, or OU • Creating GPOs • Editing GPOs

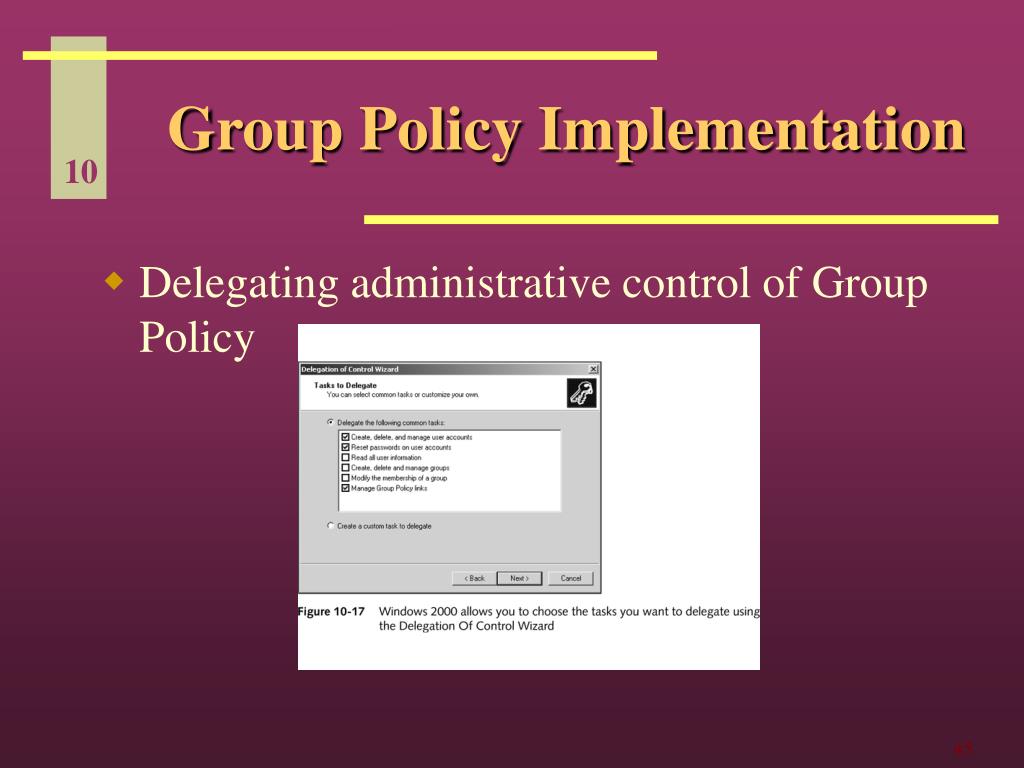

  45. Group Policy Implementation • Delegating administrative control of Group Policy

  46. Group Policy Implementation • Linking a GPO • You must have Read/Write or Full Control permissions • Use AD Users and Computers

  47. Chapter Summary • Windows 2000 Group Policy far surpasses Windows NT Group Policy in functionality • GPOs can be applied at the site, domain, or OU level • Group Policy can help reduce TCO on networks, while increasing ROI for tech expenditures • Group Policy is processed in the following order: local, site, domain, OU • The Group Policy Editor is the primary interface for modifying Group Policy settings

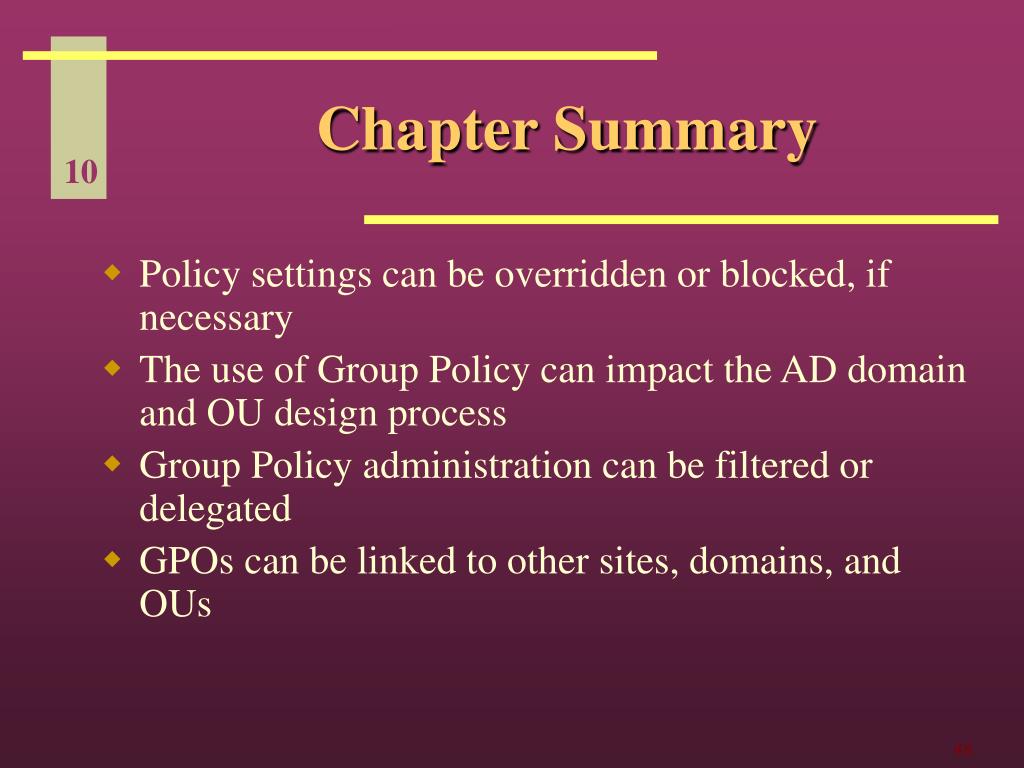

  48. Chapter Summary • Policy settings can be overridden or blocked, if necessary • The use of Group Policy can impact the AD domain and OU design process • Group Policy administration can be filtered or delegated • GPOs can be linked to other sites, domains, and OUs
