Machine-to-Machine Interface Strategy December 28, 2006 DRAFT

1. Machine-to-Machine Interface StrategyDecember 28, 2006DRAFT 1

2. Deliverables • Overall Strategy • All interactions outside of user interfaces • Alternative to screen-scraping • Security approach • Delivery approaches • Technical interoperability • Service Level Agreements (SLA) • Auditing, Monitoring and Management • Versioning • Governance to manage technical issues • List of Interfaces (services) • Prioritization set with TPTF • Importance of an interface • Volatility of an interface • Existence in underlying systems • Support to Market testing for example EDS3 • Uses the SoSA & Domain Model • Constrained by System Capabilities • Sufficient granularity to initiate MP work • Represents requirements • Interface Specification (per interface) • Interface Approach (based on the strategy) • Transport and Data Format e.g. XSD • Signature & Capabilities • Interoperability • Market Participant Sandbox Environment • Stubbed Applications • Validate the Approach • Validate the Security • Validate Interoperability • Identify Refactoring Early • Plan • Schedule to deliver all interface Specifications in iterations • Solicitation of feedback 2

3. Plan for Delivering the Complete Set of Interface Specifications 4/30/07 12/30/06 1/31/07 2/28/07 3/31/07 • Draft Strategy • Draft List of Interfaces • Draft Interface Specifications • Definition of Nodal Sandbox • Plan to Deliver Complete Set of Interface Specifications • Operating Nodal Sandbox • Definition of Interfaces for Bidding • Interfaces for Notifications • Definition of Interfaces for Awards and Obligations • Partial Set of Interfaces for Market Information Requests • Updated Sandbox to include some Bidding and Notification Interfaces • Final Strategy • Final List of Interfaces • Complete Set of Interface Specifications • Updated Nodal Sandbox to Include Some Market Information Request Interfaces • Plan for Iterative Implementation of the Interfaces 3

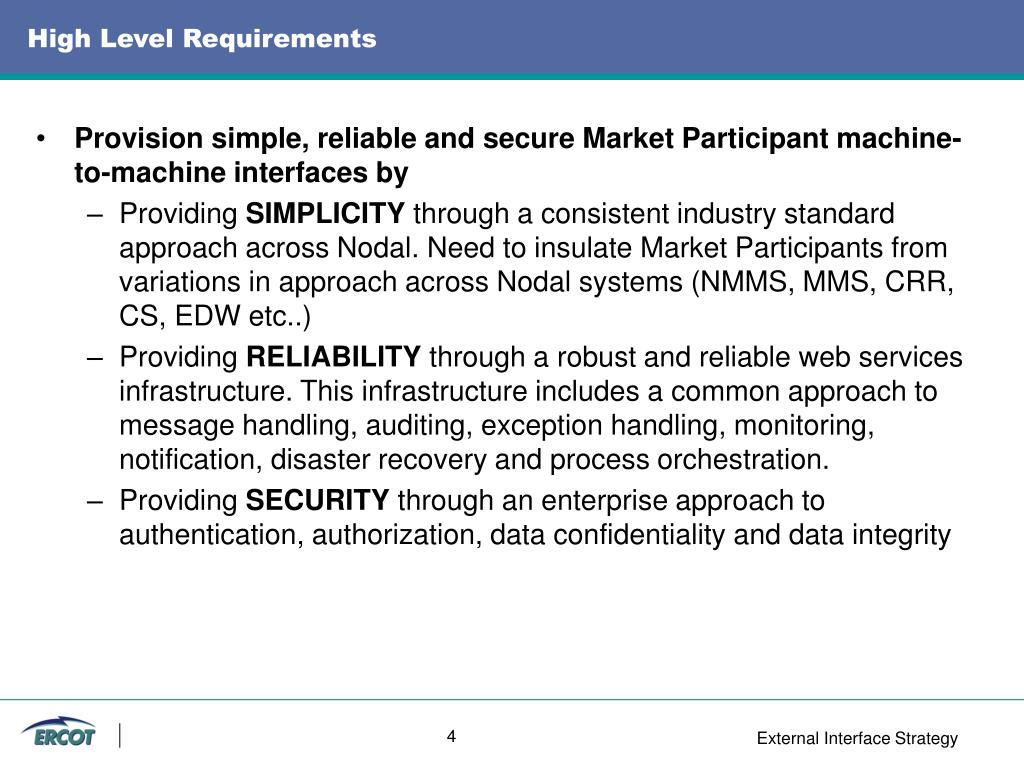

4. High Level Requirements • Provision simple, reliable and secure Market Participant machine-to-machine interfaces by • Providing SIMPLICITY through a consistent industry standard approach across Nodal. Need to insulate Market Participants from variations in approach across Nodal systems (NMMS, MMS, CRR, CS, EDW etc..) • Providing RELIABILITY through a robust and reliable web services infrastructure. This infrastructure includes a common approach to message handling, auditing, exception handling, monitoring, notification, disaster recovery and process orchestration. • Providing SECURITY through an enterprise approach to authentication, authorization, data confidentiality and data integrity 4

5. Functional Requirements • Need to provide support for servicing requests from Market Participant software: • A variety of Web services would be provided to enable the processing of requests • Need to continue existing functionality as well as support new Nodal functionality • Web Service Patterns • Market Participant initiated requests associated with bid, offers, trades… which must be received by the Market Participant • Awards, obligations, trades and bid submission results, which are published to the Market Participant(s) • Alerts which must be acknowledged • Trade confirmation or rejection • Notifications, which may be sent via web services or e-mail without acknowledgement • Large document download/upload request reply (settlement statements, extracts, models etc..) 5

6. High Level Architecture Market Participant Simple & Consistent Web services interface Web Service Interface Comprehensive security Reliable Web services infrastructure Enterprise Identity Management & Security Enterprise Integration Layer MMS EMS CRR NMMS Settle- ments & Billing EDW etc 6

7. Implementation Approach • Define Web services needed for Market Participants to request market information and initiate transactions • Leverage IEC 61968 for definition of message • Use the IEC Common Information Model (CIM) where appropriate • Provide the means for Market Participant Systems to receive notification messages from ERCOT systems • Leverage OASIS WS-Notifications specification • Participants can decide to pull notifications or have notifications be pushed to them • Requires only two Web service interfaces, due to the nature of use by ERCOT (e.g. subscriptions are predefined and persistent, where there is no need for subscription requests) 7

8. Application of IEC 61968 to Web Services • Message structures based upon IEC 61968-1 defined for the input and output of operations (i.e. request and response) • Header used for information needed for all messages, includes key control information such as verb, noun and source • Request structure has parameters (some required, some optional) that are appropriate for the specific operation • Reply structure indicates success, failure and errors as appropriate • Payloads can be strongly typed or loosely coupled from message structures, where payloads can be compressed and encoded if needed • Message structures used within WSDL • Messages form the body of the underlying SOAP message 8

9. Web Service Message Payloads • Message payloads carry the data that is needed for a specific request or reply (e.g. a set of bids and offers) • The noun in the message header identifies the type of the payload • Payloads can be supplied in one of the following forms: • Any type of XML element of any namespace (with structure typically defined by an XSD) • An XML document that is encoded as a string, compressed and base64 encoded • Other base64 encoded content 9

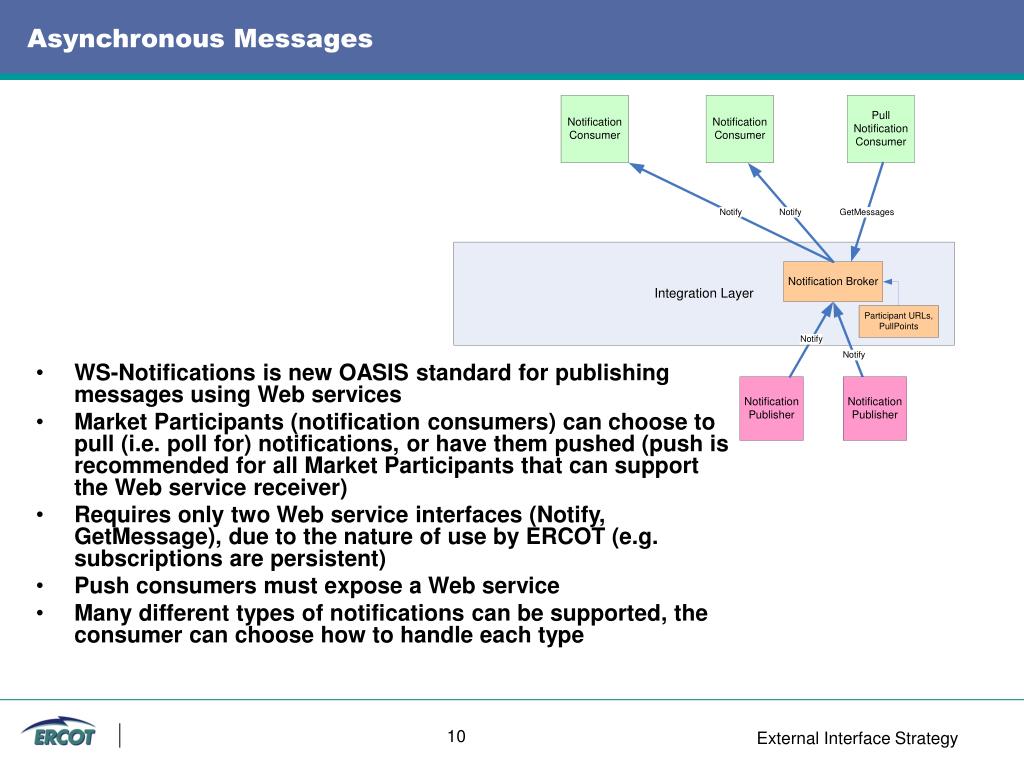

10. Asynchronous Messages • WS-Notifications is new OASIS standard for publishing messages using Web services • Market Participants (notification consumers) can choose to pull (i.e. poll for) notifications, or have them pushed (push is recommended for all Market Participants that can support the Web service receiver) • Requires only two Web service interfaces (Notify, GetMessage), due to the nature of use by ERCOT (e.g. subscriptions are persistent) • Push consumers must expose a Web service • Many different types of notifications can be supported, the consumer can choose how to handle each type 10

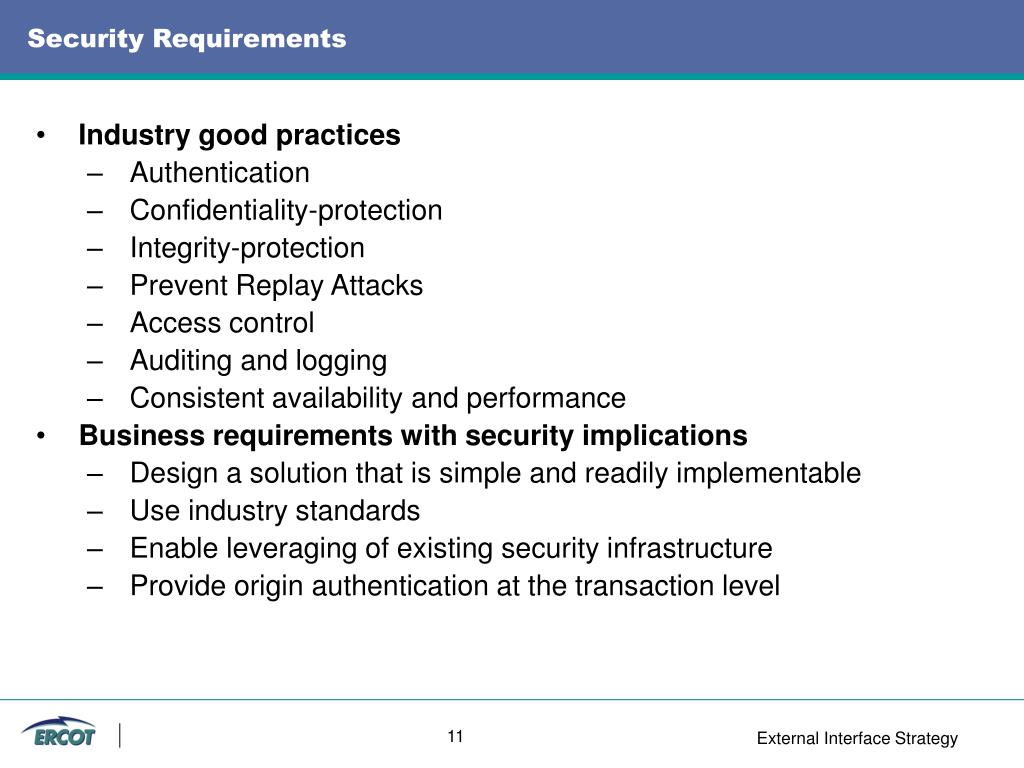

11. Security Requirements • Industry good practices • Authentication • Confidentiality-protection • Integrity-protection • Prevent Replay Attacks • Access control • Auditing and logging • Consistent availability and performance • Business requirements with security implications • Design a solution that is simple and readily implementable • Use industry standards • Enable leveraging of existing security infrastructure • Provide origin authentication at the transaction level 11

12. 3. Signed SOAP message Basic Message Flow Web Services Client 1. Signed SOAP message over HTTP/SSL with mutual authentication Signature verification Web Services Server Web Service Message Processor 2. SSL Certificate validation and authorization check Security Infrastructure 4. SOAP Message Certificate validation and authorization check 12

13. Security Standards • Transport level security via SSL/TLS • Message level security via signed SOAP messages according to the Web Services Security (WSS) standards 13

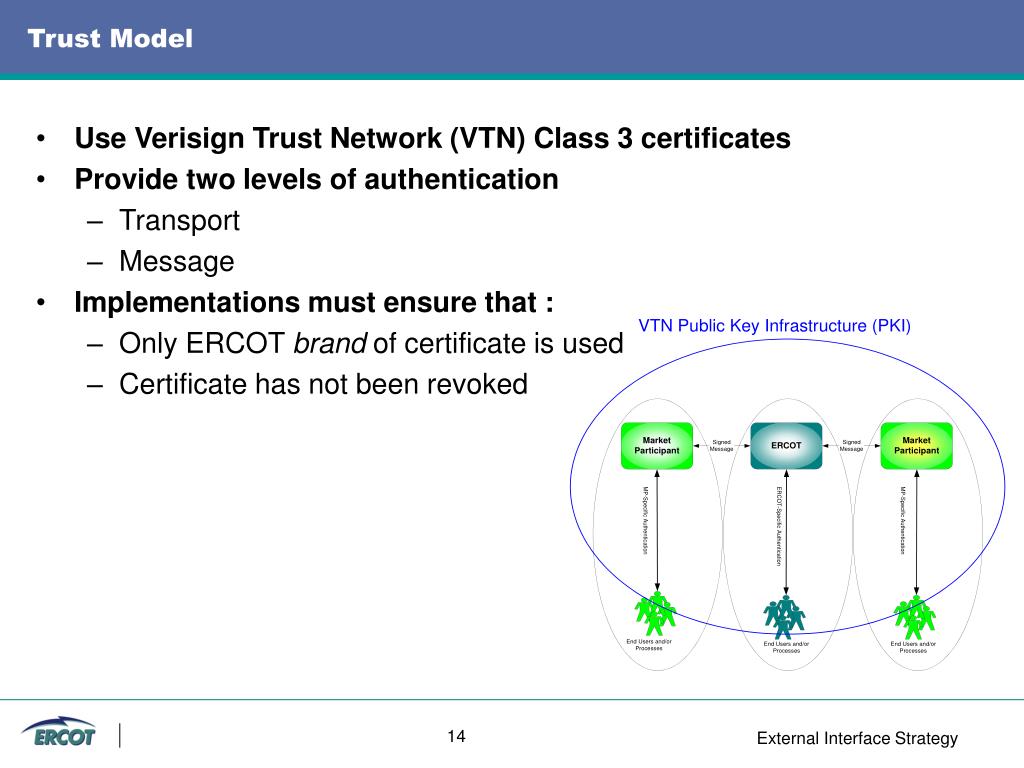

14. Trust Model • Use Verisign Trust Network (VTN) Class 3 certificates • Provide two levels of authentication • Transport • Message • Implementations must ensure that : • Only ERCOT brand of certificate is used • Certificate has not been revoked 14

15. Authentication • Transport-level • Implement mutual authentication via SSL/TLS • Message-level • Use OASIS Web Services Security (WSS) 1.1 standards • SOAP Message Security • X.509 Token Profile • Signing entities are expected to be applications/systems with appropriate certificates 15

16. Transport Level Confidentiality and Integrity Protection • SSL/TLS is required while data travels on the Internet • Deployments may implement additional data protection, based on their own security infrastructure • Minimum security settings for SSL/TLS • SSL/TLS version MUST be at least 3.0 • The SSL/TLS cipher suite MUST include AES 128 bit for encryption • The SSL/TLS cipher suite MUST include SHA-1 for integrity protection 16

17. Preventing Replay Attacks • Each message must include: • A timestamp as specified by WSS <wsu:timestamp> • A random number as specified by WSS <wsu:nonce> • Clocks need not be synchronized • Typical implementation • Reject expired messages • Cache the nonce for the expected amount of clock skew and reject messages whose nonce is in the cache 17

18. Implementation-Specific Security Functions • Access Control and Auditing • Use authenticated identity of message producer, as determined by the signing certificate of the SOAP message • Consistent performance and availability 18

19. What does this mean to Market Participants? • Market Participants MUST • Deploy SSL/TLS • Obtain client side certificate • Certificate is issued by Verisign under the ERCOT brand • Implement mutual authentication • Ensure minimum SSL/TLS security settings • Secure SOAP messages • Obtain application/system signing certificate • Certificate is issued by Verisign under the ERCOT brand • Sign all SOAP messages • Use Web Services Security Standards and its X.509 Certificate Token Profile • Message headers MUST include a timestamp and a nonce • Validate all SOAP messages • Signature • Certificates • Revocation status of certificates • Timestamp and nonce (to prevent replay attacks) 19

20. Security Summary • Web Services Client will need at most two certificates • SSL/TLS • SOAP Message Signing • Security rules are equally applicable to request, reply and notification messages • Some security functions are deployment specific and each MP must determine the best method of implementation • Implementation of industry standards promotes interoperability and flexibility 20

21. Delivery Approach • In advance of a Nodal go live and in accordance with agreed schedule and dependencies, ERCOT will provide the following: • Interface specifications for web services • Design artifacts, including XML schemas and WSDLs • Source code examples • A sand box environment for testing and validation of the interfaces • The interface specifications, artifacts and implementation of the sand box environment would be staged • An iterative implementation approach will be used, where feedback from each stage would be used to adjust subsequent stages 21

22. Technical Interoperability • Strategy is to achieve technical interoperability through the use of open standards, including: • W3C standards • OASIS WS-* standards • IEC Common Information Model and related standards (e.g. IEC 61968-1) • The implementation of Web service interfaces must not be dependent upon any proprietary, third party products • Key requirement is that implementation must be possible using tools that support SOAP-based Web Services (e.g. Java and .Net development tools) • More details on technical interoperability will be provided as a consequence of existing Web services provided by ERCOT, detailed design and experience with the Sand Box environment 22

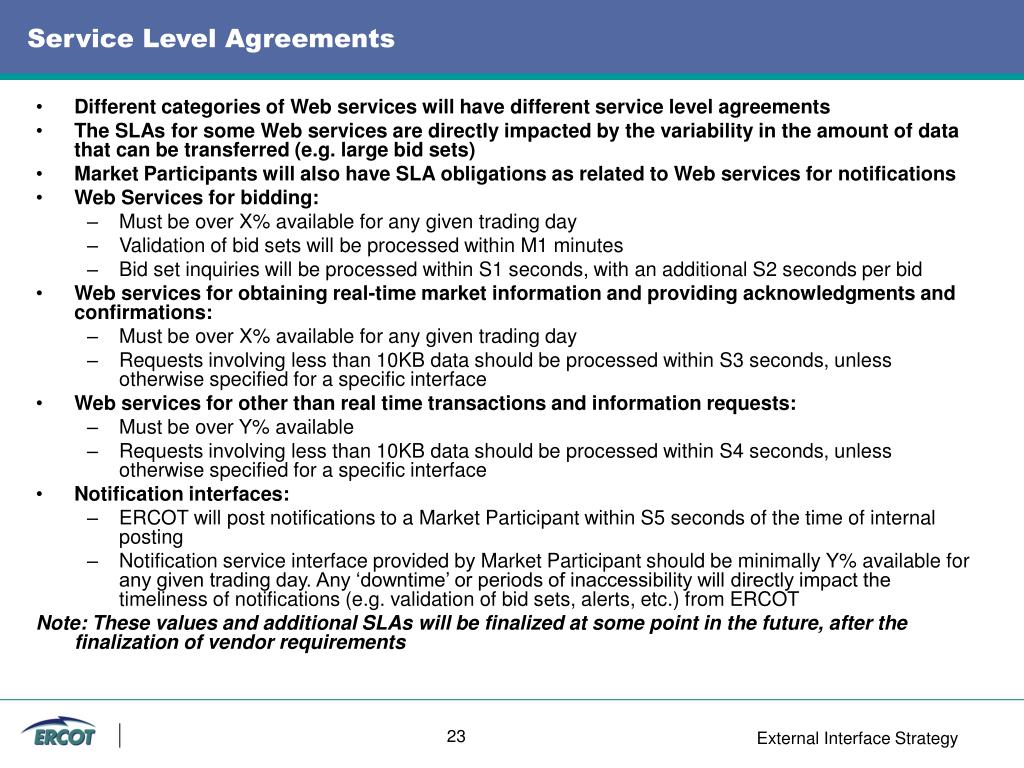

23. Service Level Agreements • Different categories of Web services will have different service level agreements • The SLAs for some Web services are directly impacted by the variability in the amount of data that can be transferred (e.g. large bid sets) • Market Participants will also have SLA obligations as related to Web services for notifications • Web Services for bidding: • Must be over X% available for any given trading day • Validation of bid sets will be processed within M1 minutes • Bid set inquiries will be processed within S1 seconds, with an additional S2 seconds per bid • Web services for obtaining real-time market information and providing acknowledgments and confirmations: • Must be over X% available for any given trading day • Requests involving less than 10KB data should be processed within S3 seconds, unless otherwise specified for a specific interface • Web services for other than real time transactions and information requests: • Must be over Y% available • Requests involving less than 10KB data should be processed within S4 seconds, unless otherwise specified for a specific interface • Notification interfaces: • ERCOT will post notifications to a Market Participant within S5 seconds of the time of internal posting • Notification service interface provided by Market Participant should be minimally Y% available for any given trading day. Any ‘downtime’ or periods of inaccessibility will directly impact the timeliness of notifications (e.g. validation of bid sets, alerts, etc.) from ERCOT Note: These values and additional SLAs will be finalized at some point in the future, after the finalization of vendor requirements 23

24. Auditing, Monitoring and Management • ERCOT will perform auditing, monitoring and management for all services it provides • Internal auditing by ERCOT will be used to track and insure that SLAs are met by ERCOT • All Web service requests will be logged by ERCOT in order to permit calculations related to SLAs • The signatures supplied on SOAP messages will be recorded with transactions as a means of non-repudiation • ERCOT is not responsible for the monitoring and management of Market Participant software and network connectivity, and therefore can not guarantee that notification interfaces provided by Market Participants are accessible as needed for timely delivery of notifications • Delivery of Alerts are guaranteed based on Market Participant acknowledgements 24

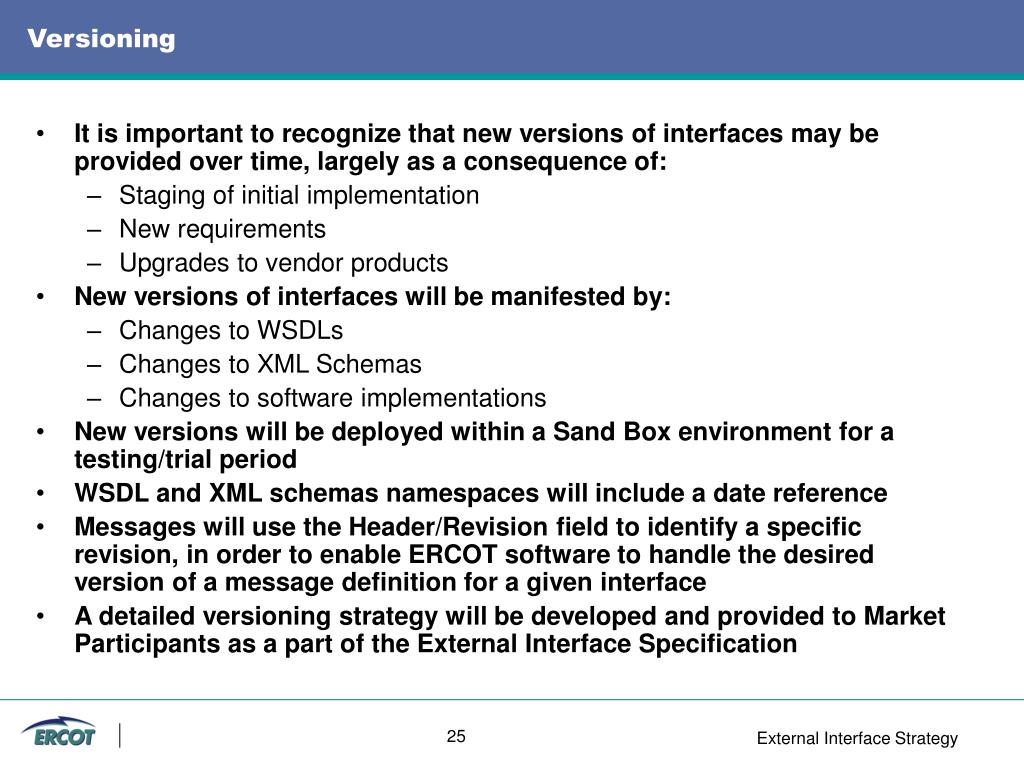

25. Versioning • It is important to recognize that new versions of interfaces may be provided over time, largely as a consequence of: • Staging of initial implementation • New requirements • Upgrades to vendor products • New versions of interfaces will be manifested by: • Changes to WSDLs • Changes to XML Schemas • Changes to software implementations • New versions will be deployed within a Sand Box environment for a testing/trial period • WSDL and XML schemas namespaces will include a date reference • Messages will use the Header/Revision field to identify a specific revision, in order to enable ERCOT software to handle the desired version of a message definition for a given interface • A detailed versioning strategy will be developed and provided to Market Participantsas a part of the External Interface Specification 25

26. Governance • The Web service interfaces will be critical to the operations of both ERCOT and Market Participants • The Web services will evolve for many reasons, especially as the needs of the market evolve • Governance policies and processes will need to be defined for the Web service lifecycle that provide strict guidelines related to: • Design • Implementation • Testing • Deployment • A comprehensive governance strategy will need to be developed and implemented by ERCOT with input from the TPTF and the API Subgroup 26

27. Web Service Configuration Standards • ERCOT will configure its Web servers with specific parameters that may be of consequence to use of Web services by Market Participants (e.g. for security) • Market Participants will need to set up Web services to handle notifications from ERCOT • ERCOT will define specific configuration details and parameters to be used by Market Participants • Detailed Web service configuration standards will be provided to Market Participants as identified through detailed design efforts and experience with the Sand Box environment 27

28. Public Forum • A public forum will need to be provided within an ERCOT web site • This would provide for: • Posting of interface specifications • Posting of design artifacts (e.g. XML Schemas, WSDLs) • Pages for frequently asked questions (FAQs) • Code examples • Some information may not be publicly posted, and would only be available to QSEs (e.g. Security Detailed Design document) • Consideration can be given to the use of a UDDI server to support the development efforts of the Market Participants 28

29. Sand Box Environment • Sand Box environment will: • Allow for the testing of machine-to-machine interaction between Market Participants and ERCOT • Provide a platform where interfaces can be incrementally deployed and validated • Mimic the machine-to-machine interaction of the future production environment • Be used for interoperability testing between the Market Participant and ERCOT • Provide a Pre-Market Trial Environment for Texas Nodal • Staging of the Sand Box: • First deployment will provide for a simple ‘Who am I?’ service • Next deployment will provide a small set of Web services with a loop back stub • Subsequent deployments would provide incrementally greater functionality 29

30. Firewall Firewall Proxy Server HTTP Server TIBCO BUS SiteMinder Market Participant Test Mode EIF “Who Am I” Web Service Oracle 10g Policy Server SiteMinder 6 LDAP Sand Box: ‘Who Am I?’ Sandbox initially implements a simple ‘Who am I?’ interface for initial connectivity testing 30

31. Firewall Firewall Proxy Server HTTP Server TIBCO BUS SiteMinder Market Participant Loopback Mode EIF MMS POC Web Service Oracle 10g Policy Server SiteMinder 6 LDAP Sand Box: ‘Loopback’ Sandbox implements several interfaces as described by the External Interfaces Specification, with mimic response messages 31

32. Dependencies and Assumptions • All development of external interfaces is dependent upon access to the design documentation related to interfaces provided by ERCOT systems • Need interface specifications from MMS • Need interface specifications from EMS • Need interface specifications from CRR • The set of specifications developed in the first quarter of 2007 may need to be modified as project teams update their requirements and design 32
