  1. ImprovingCommunication & WorkflowsThroughout the Land Development Life Cycle “There are many times throughout the improvement of land when the engineering community needs to cooperate with government agencies, utility providers, and developers. Come help us understand how, and how often, you interact with these agencies and how having access to information may influence site analysis, design issues, and implementation.”

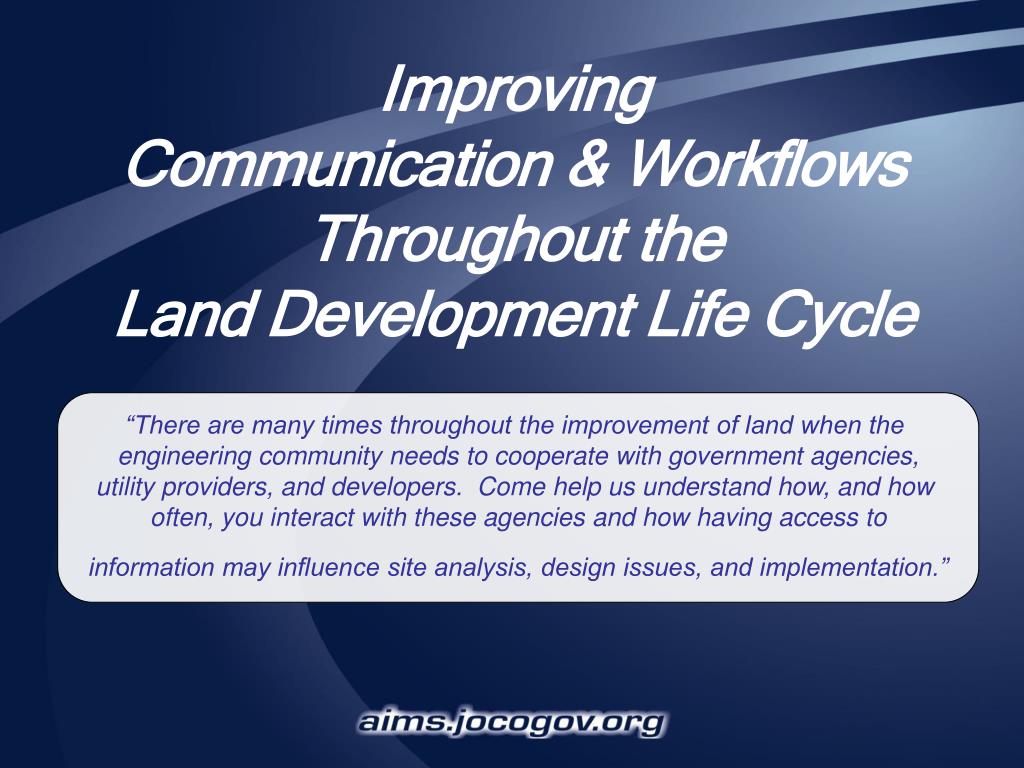

  2. ImprovingCommunication & WorkflowsThroughout the Land Development Life Cycle “There are many times throughout the improvement of land when the engineering community needs to cooperate with government agencies, utility providers, and developers.Comehelp us understandhow, and how often, you interact with these agencies and how having access to information may influence site analysis, design issues, and implementation.”

  3. How well integrated are our organizations? Is there more that can/should be done? ► Fromdata translation … todata and database integration ► From separated workflows … to integrated workflows

  4. CAD – GIS Integration ► Fromdata translation … todata and database integration ► From separated workflows … to integrated workflows

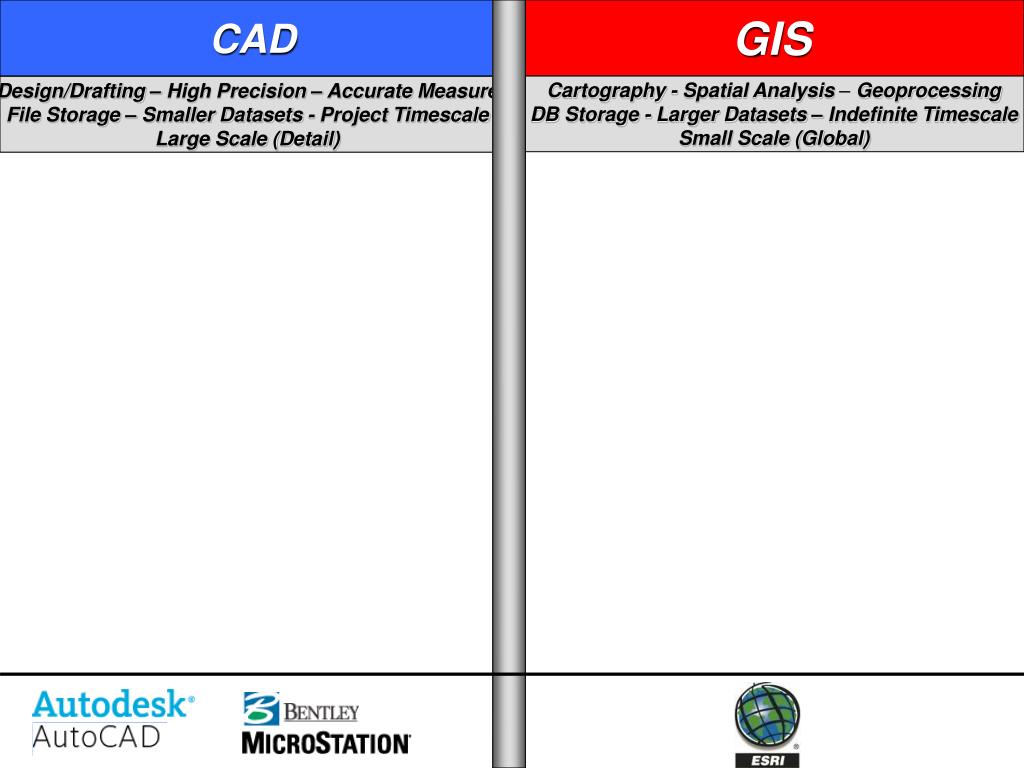

  5. CAD GIS Cartography - Spatial Analysis – Geoprocessing DB Storage - Larger Datasets – Indefinite Timescale Small Scale (Global) Design/Drafting – High Precision – Accurate Measure File Storage – Smaller Datasets - Project Timescale Large Scale (Detail)

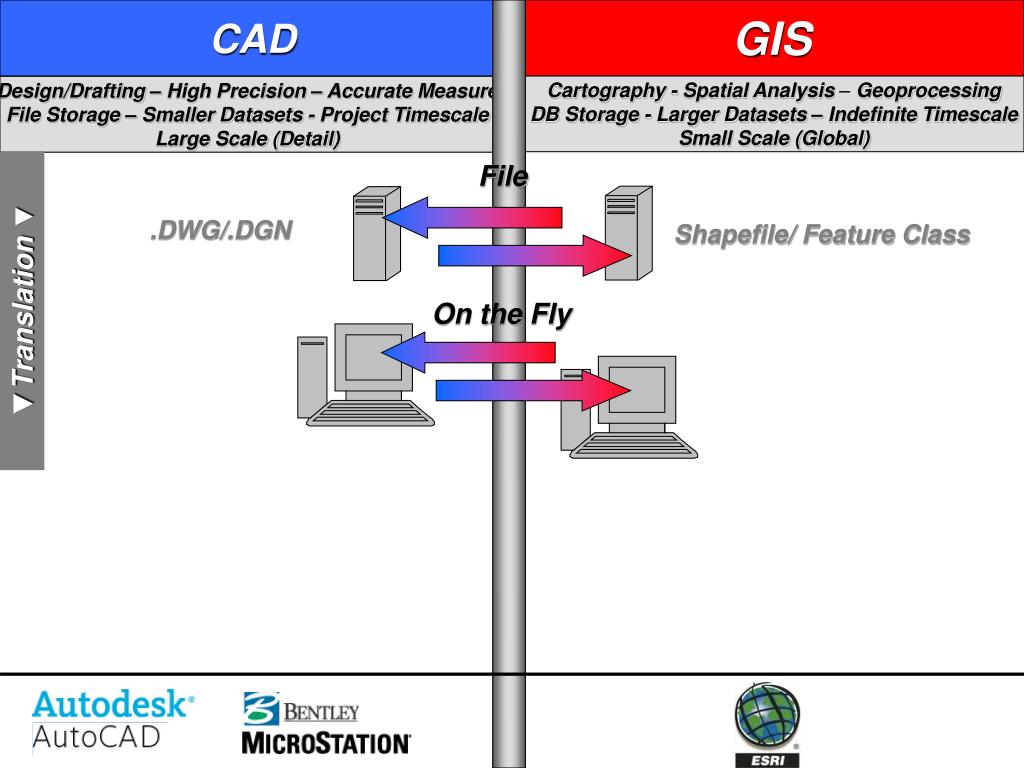

  6. CAD GIS Cartography - Spatial Analysis – Geoprocessing DB Storage - Larger Datasets – Indefinite Timescale Small Scale (Global) Design/Drafting – High Precision – Accurate Measure File Storage – Smaller Datasets - Project Timescale Large Scale (Detail) File .DWG/.DGN Shapefile/ Feature Class ▼Translation ▼ On the Fly

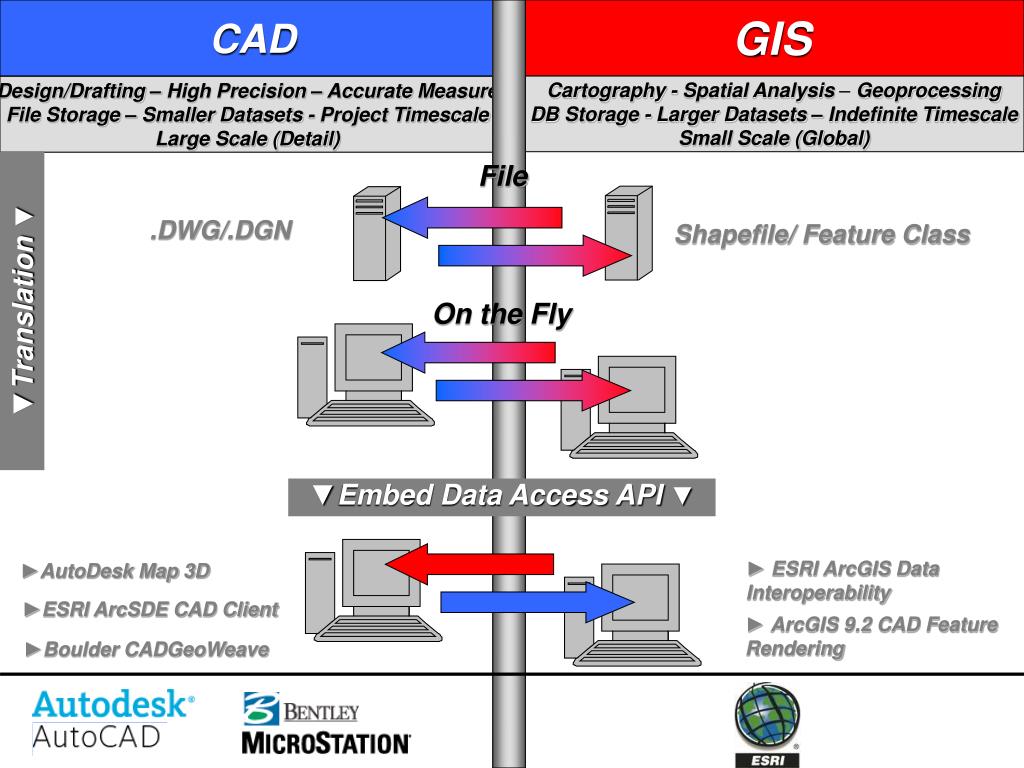

  7. CAD GIS Cartography - Spatial Analysis – Geoprocessing DB Storage - Larger Datasets – Indefinite Timescale Small Scale (Global) Design/Drafting – High Precision – Accurate Measure File Storage – Smaller Datasets - Project Timescale Large Scale (Detail) File .DWG/.DGN Shapefile/ Feature Class ▼Translation ▼ On the Fly ▼Embed Data Access API ▼ ►AutoDesk Map 3D ►ESRI ArcGIS Data Interoperability ►ESRI ArcSDE CAD Client ►ArcGIS 9.2 CAD Feature Rendering ►Boulder CADGeoWeave

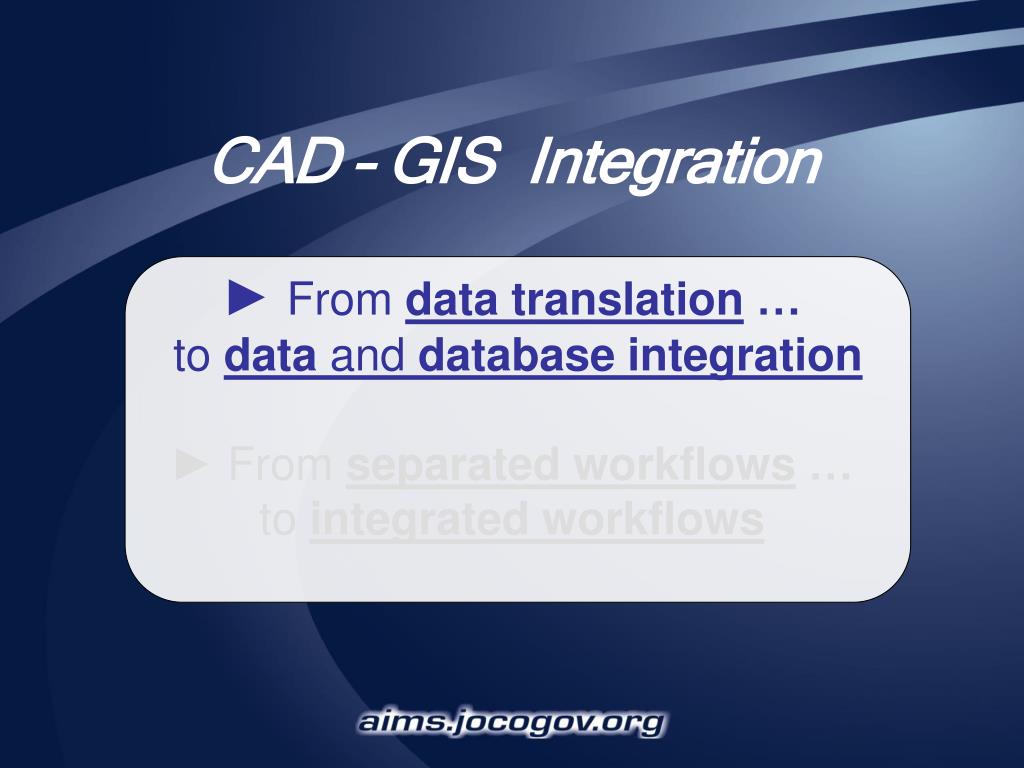

  8. CAD – GIS Integration ► Fromdata translation … todata and database integration ► From separated workflows … to integrated workflows

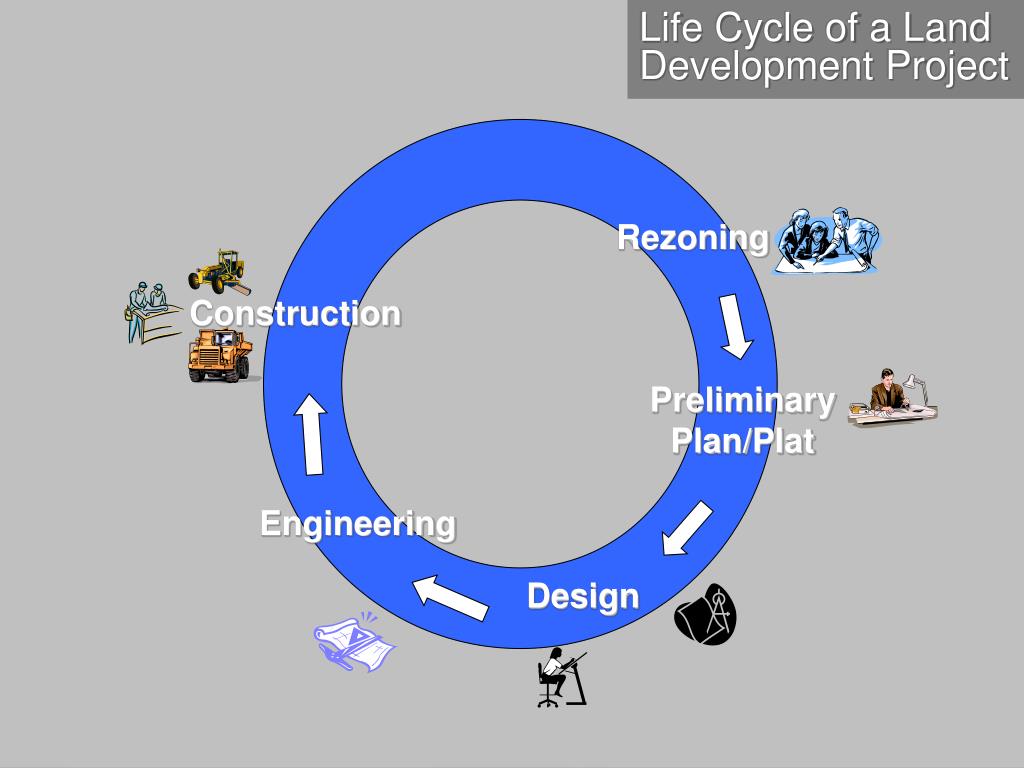

  9. Life Cycle of a Land Development Project Rezoning Construction Preliminary Plan/Plat Engineering Design

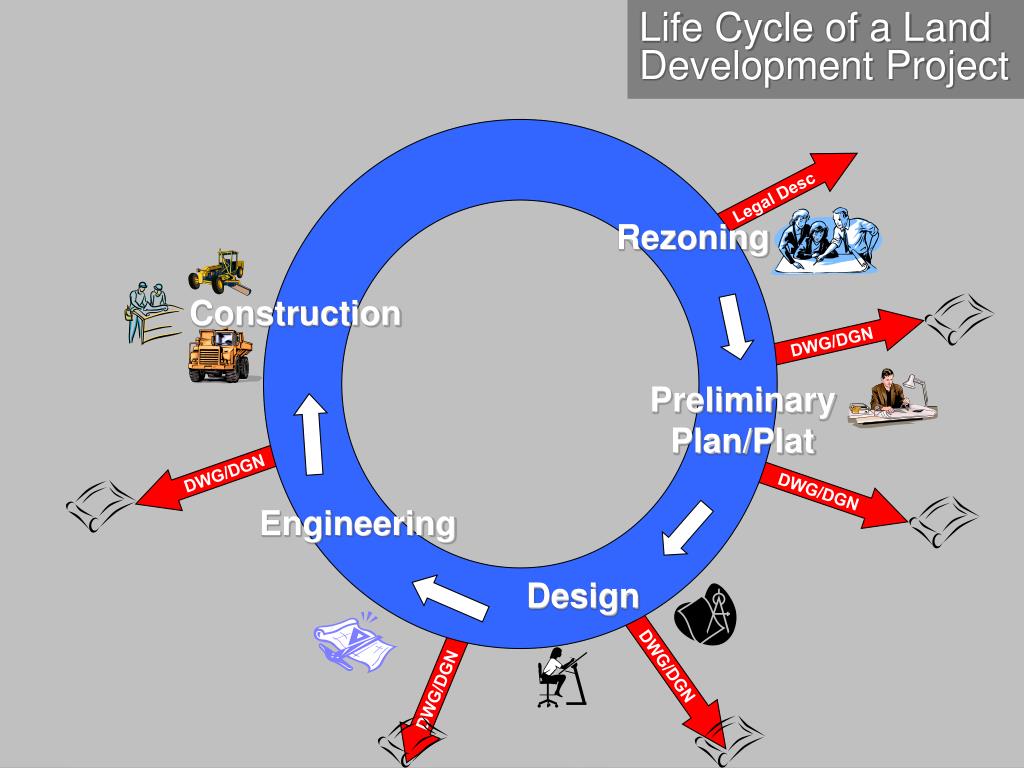

  10. Life Cycle of a Land Development Project Legal Desc Rezoning DWG/DGN Construction Preliminary Plan/Plat DWG/DGN DWG/DGN Engineering Design DWG/DGN DWG/DGN

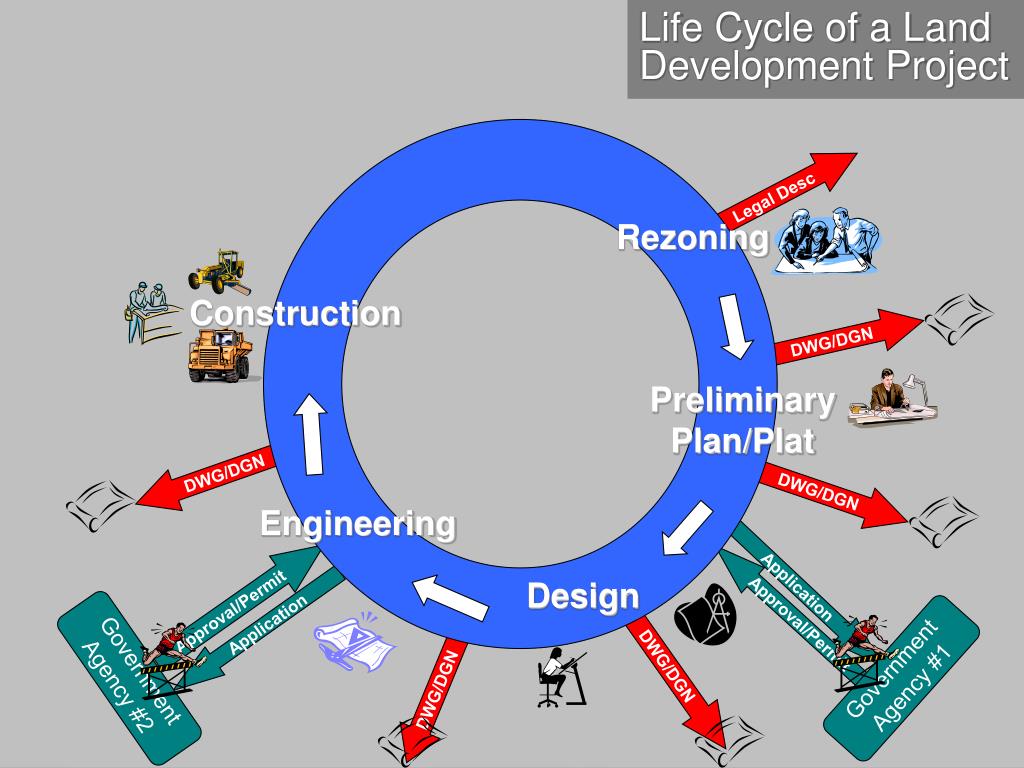

  11. Application Approval/Permit Approval/Permit Application Government Agency #1 Government Agency #2 Life Cycle of a Land Development Project Legal Desc Rezoning DWG/DGN Construction Preliminary Plan/Plat DWG/DGN DWG/DGN Engineering Design DWG/DGN DWG/DGN

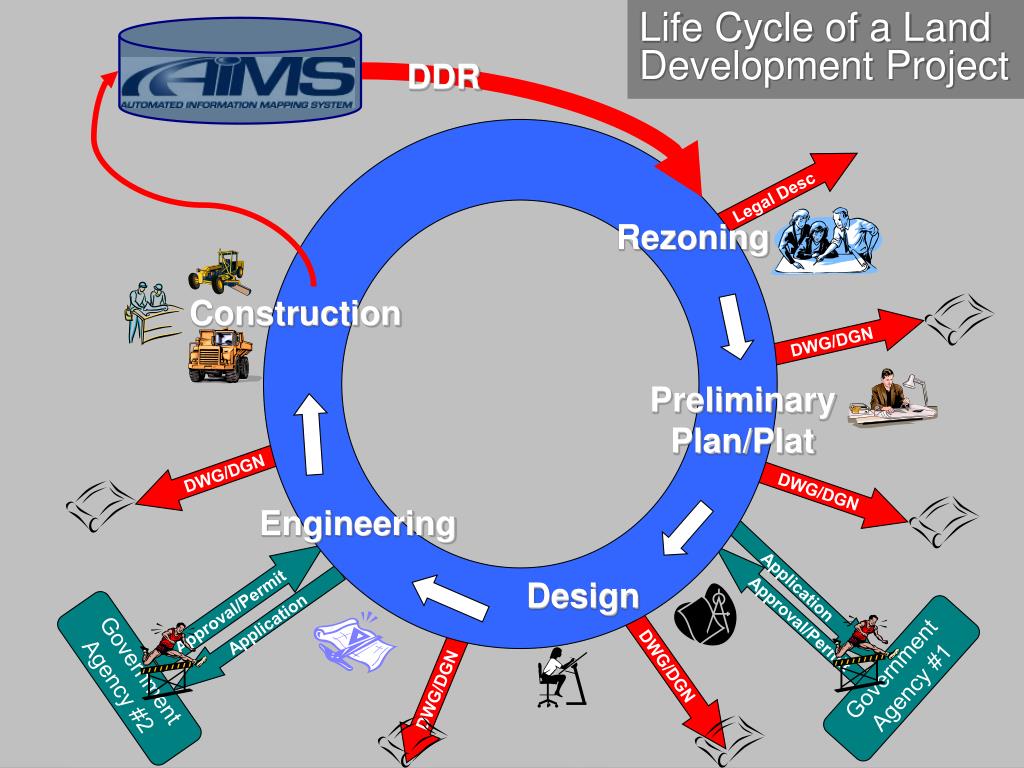

  12. Application Approval/Permit Approval/Permit Application Government Agency #1 Government Agency #2 Life Cycle of a Land Development Project DDR Legal Desc Rezoning DWG/DGN Construction Preliminary Plan/Plat DWG/DGN DWG/DGN Engineering Design DWG/DGN DWG/DGN
