Bivariate (multivariate) analysis

Bivariate (multivariate) analysis. Aim: to estimate the model: Y t =b*X t + N t ; b= the regression coefficient expressing the effect of X on Y N t =noise term (error term), including other causes of Y besides X.

lyre
Télécharger la présentation

Bivariate (multivariate) analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

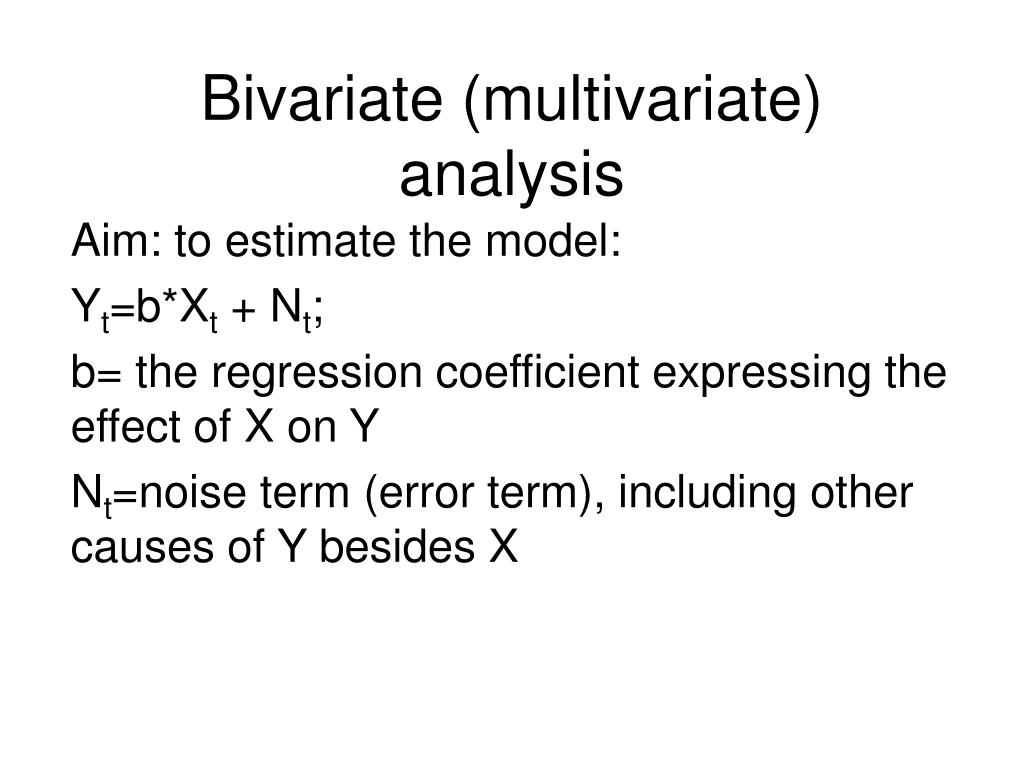

  1. Bivariate (multivariate) analysis Aim: to estimate the model: Yt=b*Xt + Nt; b= the regression coefficient expressing the effect of X on Y Nt=noise term (error term), including other causes of Y besides X

  2. Is the series stationary? If not: difference the series: Xt = Xt-Xt-1 The differencing reduces the risk of spurious correlations, since an omitted variable is more likely to be correlated with the explanatory variable due to common trends than as a result of synchronization in the yearly changes. Plot (scattergram) Yt against Xt to detect outliers

  3. Are the series stationary? If not: difference both X and Y; Xt = Xt-Xt-1Plot (scattergram) Yt against Xt to detect outliers. Remedies: shorten series; dummy variable

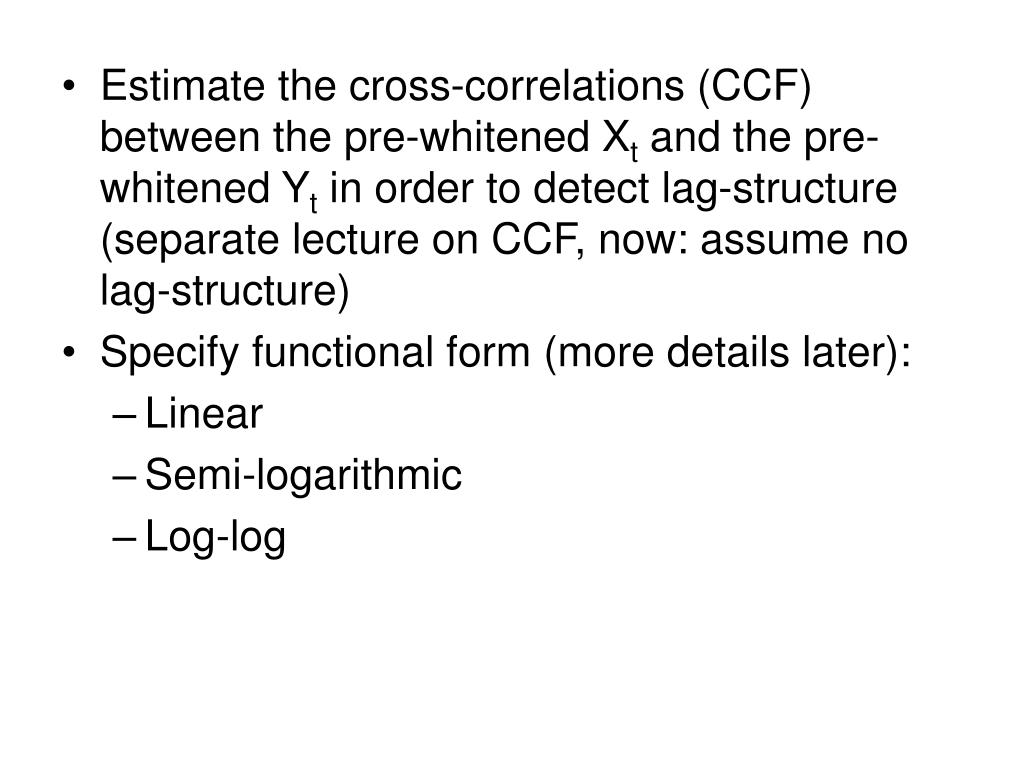

  4. Estimate the cross-correlations (CCF) between the pre-whitened Xt and the pre-whitened Yt in order to detect lag-structure (separate lecture on CCF, now: assume no lag-structure) • Specify functional form (more details later): • Linear • Semi-logarithmic • Log-log

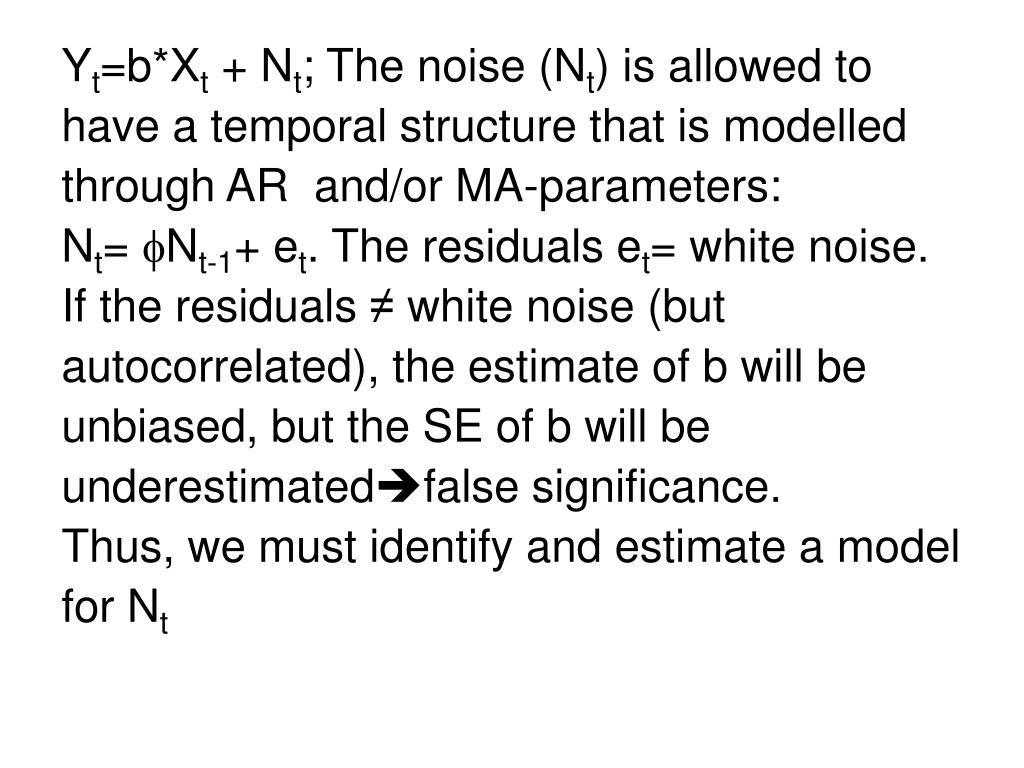

  5. Yt=b*Xt + Nt; The noise (Nt) is allowed to have a temporal structure that is modelled through AR and/or MA-parameters: Nt= Nt-1+ et. The residuals et= white noise. If the residuals ≠ white noise (but autocorrelated), the estimate of b will be unbiased, but the SE of b will be underestimatedfalse significance. Thus, we must identify and estimate a model for Nt

  6. 1. Estimate the model: Yt=b*Xt + Nt ;don’t include any noise parameters. 2. Identify the structure of the noise term on the basis of the ACF and PACF of the residuals. 3. Re-estimate the model including noise parameters. 4. Diagnostic test of the model: are the residuals white noise. If not: modify the noise parameters on the basis of the ACF and PACF of the residuals, and re-estimate the model.

  7. Example: Assaultratet=b* Alkuttott + Nt Assaultrate=assaults/100,000 Alkuttot=public (bars etc) alcohol consumption 1. twoway (line alkuttot year) if year>1955 2. twoway (line assaultrate year) if year>1955 /Trending: should difference, but analyse raw data as an exercise / 3. generate alkutdif=d.alkuttot 4. generate assaultdif=d.assaultrate 5. twoway (scatter assaultdif alkutdif) 6. corrgram assaultdif, lags(20) 7. corrgram alkutdif, lags(20) 8.arima alkutdif, arima(1,0,0) 9.predict resass, r 10. corrgram resass, lags(20)

  8. 11. xcorr resass assaultdif, table lags(10) 12. arima assaultrate alkuttot, arima(0,0,0) 13. predict resmod1, r 14. arima assaultrate alkuttot, arima(1,0,0) 15. predict resmod2, r 16. corrgram resmod2, lags(20) 17. arima assaultrate alkuttot, arima(0,1,0) 18. predict resmod3, r 19. corrgram resmod3, lags(20)
