Understanding phase transitions and critical phenomena from conformal bootstrap

1. Understanding phase transitions and critical phenomena from conformal bootstrap Yu Nakayama (Kavli IPMU, Caltech) in collaboration with Tomoki Ohtsuki (Kavli IPMU)

2. Critical point of H2Ophase diagram • AtT= 647K, P = 22MPa, we have a critical point • Second order phase transition • Critical behavior is universal

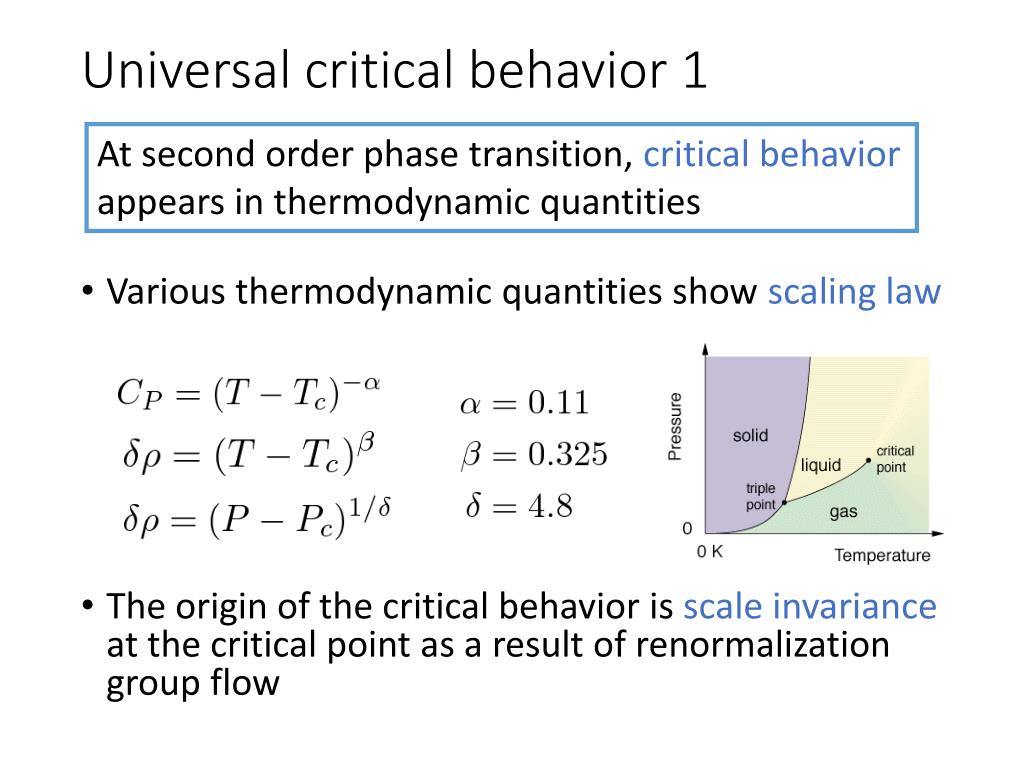

3. Universal critical behavior 1 At second order phase transition, critical behavior appears in thermodynamic quantities • Various thermodynamic quantities show scaling law • The origin of the critical behavior is scale invariance at the critical point as a result of renormalization group flow

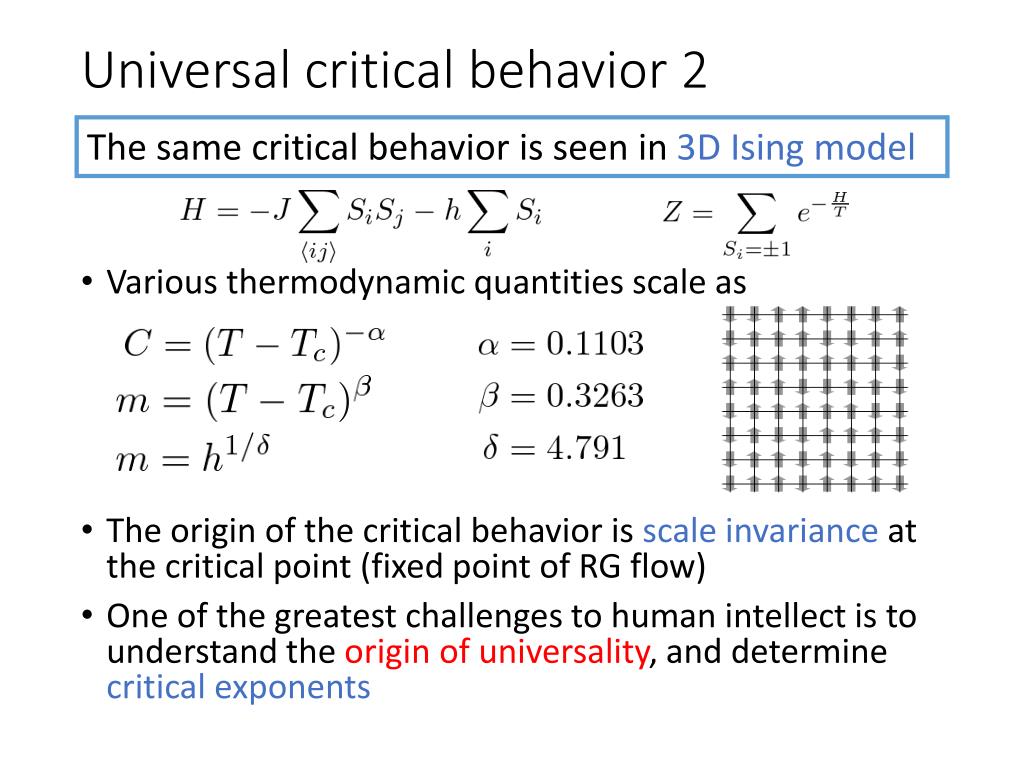

4. Universal critical behavior 2 The same critical behavior is seen in 3D Ising model • Various thermodynamic quantities scale as • The origin of the critical behavior is scale invariance at the critical point (fixed point of RG flow) • One of the greatest challenges to human intellect is to understand the origin of universality, and determine critical exponents

5. Scaling hypothesis At the critical point, the thermodynamic free energy satisfies the scaling law • Assume free energy shows the scaling behavior • Then, scaling relations can be derived • The scaling hypothesis and universality may be understood from the renormalization group (Wilson) • But the scaling hypothesis itself does not explain the value of and

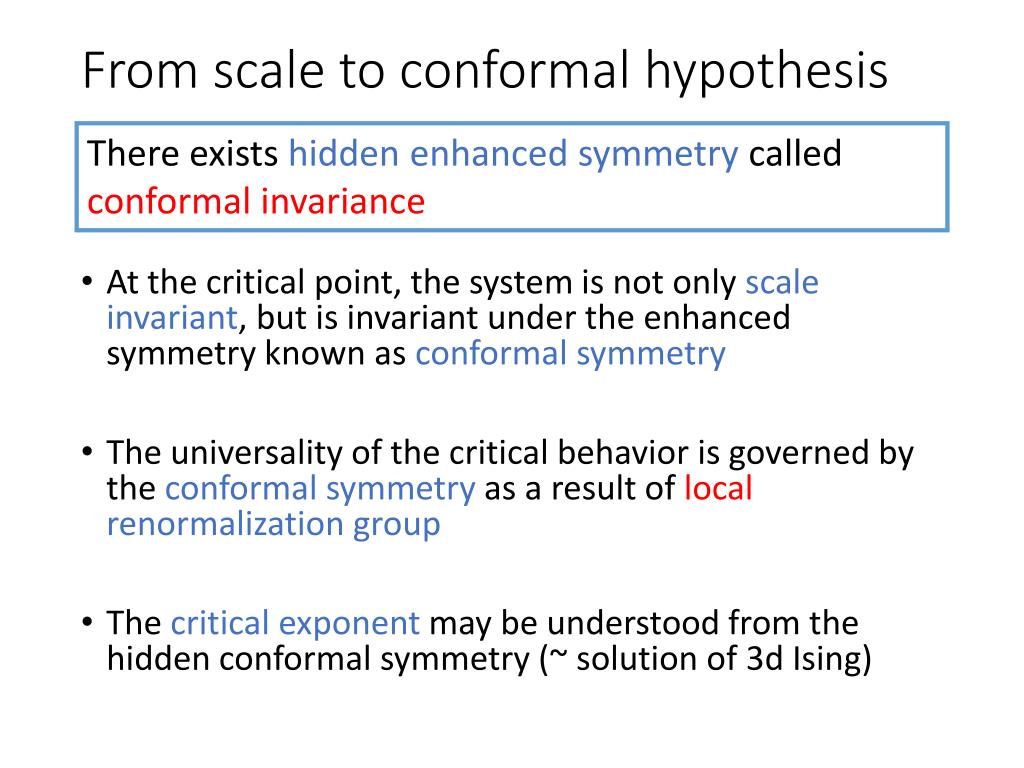

6. From scale to conformal hypothesis There exists hidden enhanced symmetry called conformal invariance • At the critical point, the system is not only scale invariant, but is invariant under the enhanced symmetry known as conformal symmetry • The universality of the critical behavior is governed by the conformal symmetry as a result of local renormalization group • The critical exponent may be understood from the hidden conformal symmetry (~ solution of 3d Ising)

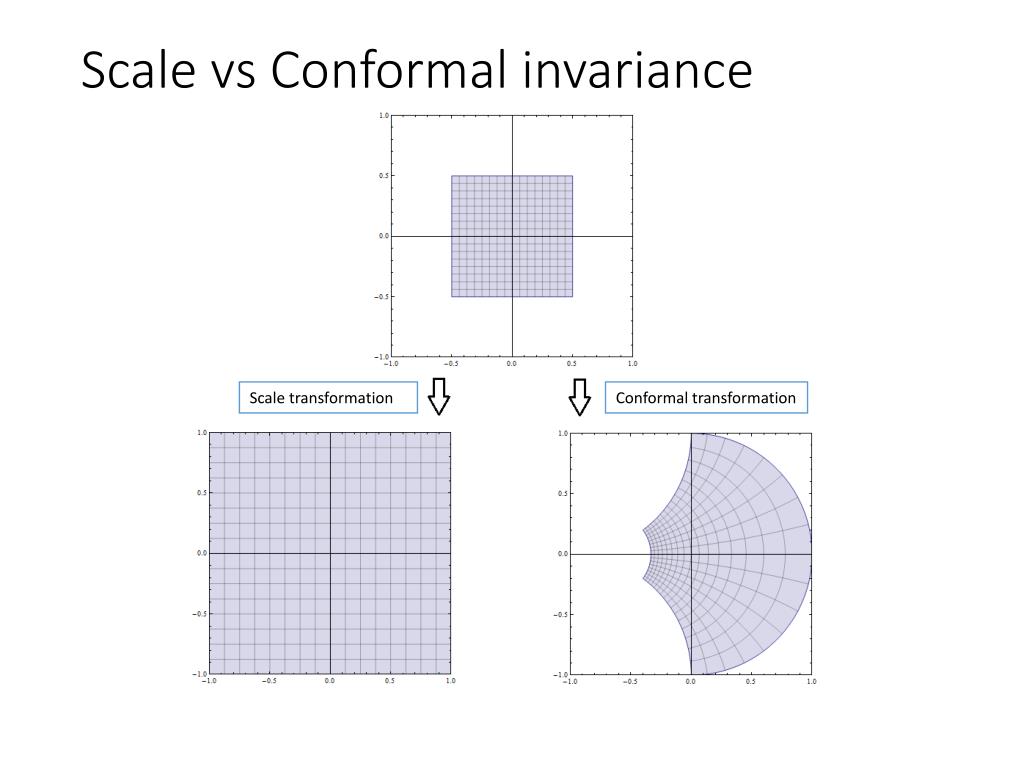

7. Scale vs Conformal invariance Scale transformation Conformal transformation

8. Conformal transformation • Scale transformation: • Conformal transformation: It is not immediately obvious if global scale invariance means conformal invariance (see my review paper arXiv:1302.0884)

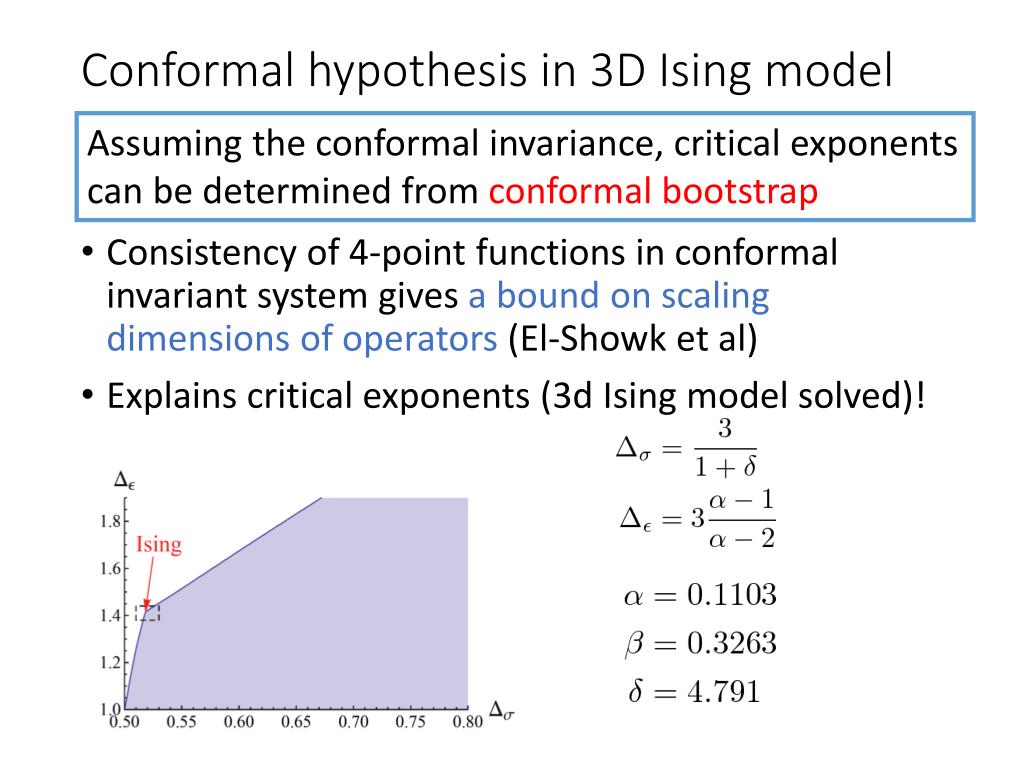

9. Conformal hypothesis in 3D Ising model Assuming the conformal invariance, critical exponents can be determined from conformal bootstrap • Consistency of 4-point functions in conformal invariant system gives a bound on scaling dimensions of operators (El-Showket al) • Explains critical exponents (3d Ising model solved)!

10. O(n) x O(m) symmetric CFTs and critical phenomena

11. O(n)xO(m) Landau-Ginzburg model Although we won’t need Hamiltonian (Lagrangian), we start with the concrete model… • Field transforms vector x vector rep under O(n) x O(m) global symmetry • u preserves O(nm) symmetry, but v breaks it • Always exists O(nm) symmetric Heisenberg fixed point with v = 0 • d= 3 model appears in effective theories of frustrated spins or chiral transition in QCD

12. Frustrated spins in non-collinear order Anti-ferro spins in frustrated lattice (Kawamura) • Effective theory = O(n) x O(m) LG model: n = components of spin, m = non-collinear dim • 1st order phase transition or 2nd order phase transition? Huge debate in experiments • Theoretical controversy as well. Monte Carlo, epsilon expansions, large N expansions, exact RG all disagree which values of n and m, the fixed points exist ( 2nd order phase transition)… n=3, m=3 n=2, m=2 chiral anti-chiral

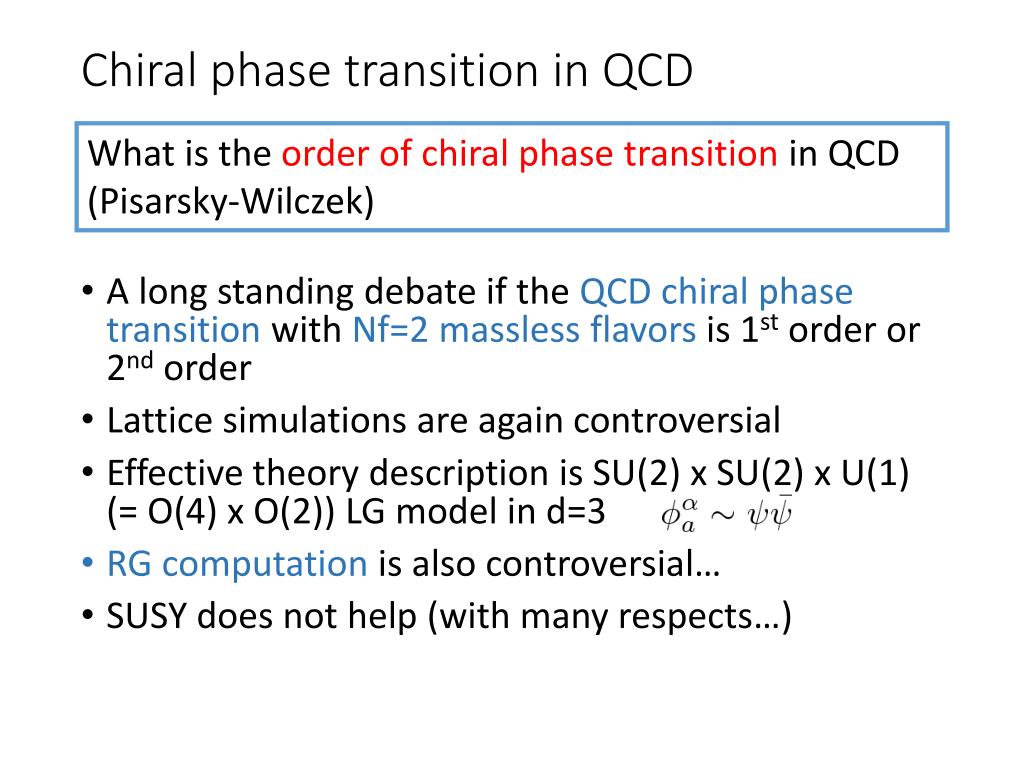

13. Chiral phase transition in QCD What is the order of chiral phase transition in QCD (Pisarsky-Wilczek) • A long standing debate if the QCD chiral phase transition with Nf=2 massless flavors is 1st order or 2nd order • Lattice simulations are again controversial • Effective theory description is SU(2) x SU(2) x U(1) (= O(4) x O(2)) LG model in d=3 • RG computation is also controversial… • SUSY does not help (with many respects…)

14. Schematic RG picture • (Un)stable one is called (anti-)chiral fixed • For sufficiently large n with fixed m, they both exist • Nobody has agreed what happens for smaller n • Multiple fixed points cannot appear in SUSY theories…

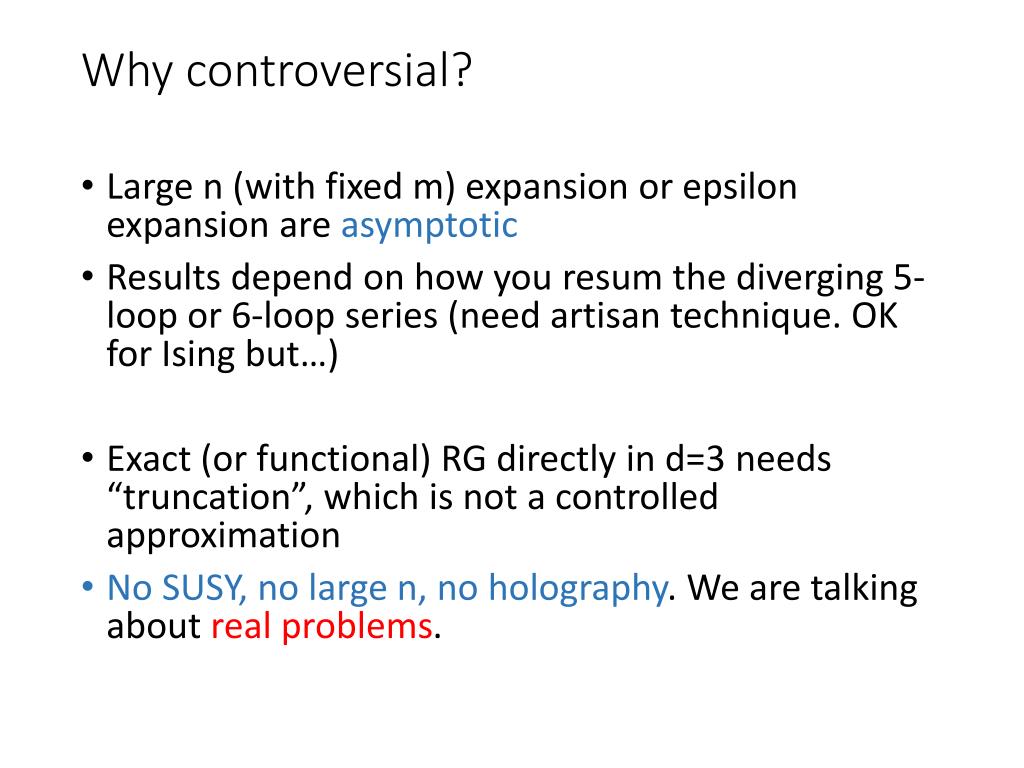

15. Why controversial? • Large n (with fixed m) expansion or epsilon expansion are asymptotic • Results depend on how you resum the diverging 5-loop or 6-loop series (need artisan technique. OK for Isingbut…) • Exact (or functional) RG directly in d=3 needs “truncation”, which is not a controlled approximation • No SUSY, no large n, no holography. We are talking about real problems.

16. The questions to be answered • To fix the conformal window for O(n) x O(m) symmetric Landau-Ginzburg models in d=3 • (Non-)Existence of non-Heisenberg fixed point  determine the order of phase transitions • Compute critical exponents to compare with experiments (or simulations) • Our conformal bootstrap approach is non-perturbative without assuming any Hamiltonian (c.f. “Hamiltonian is dead”)

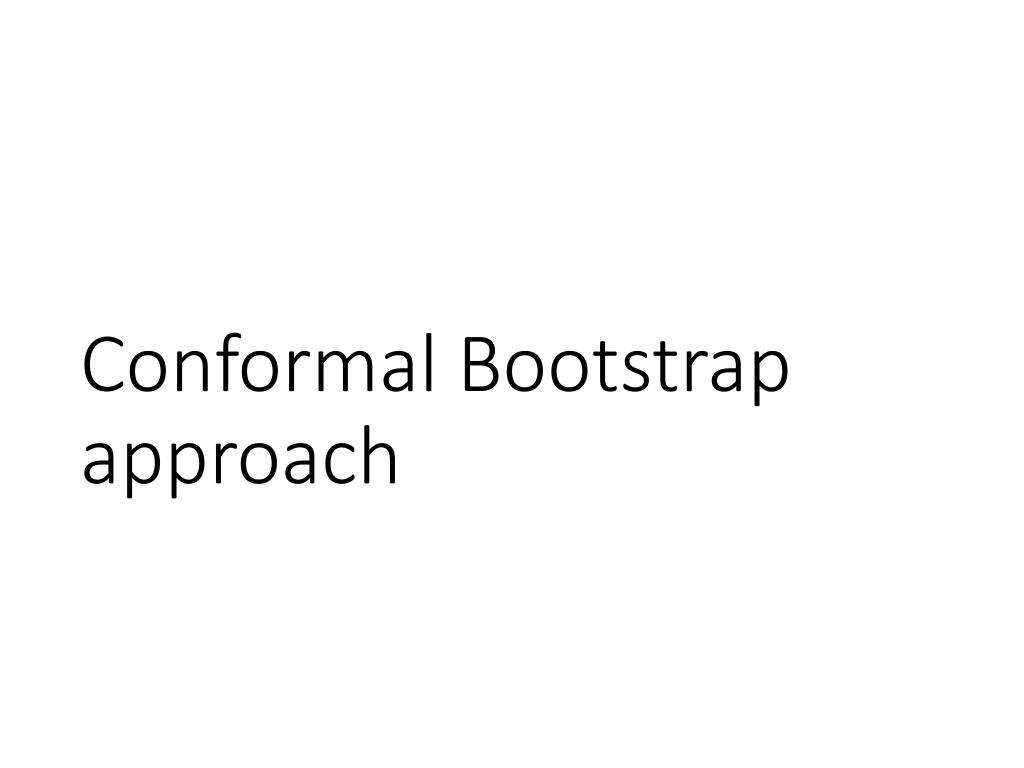

17. Conformal Bootstrap approach

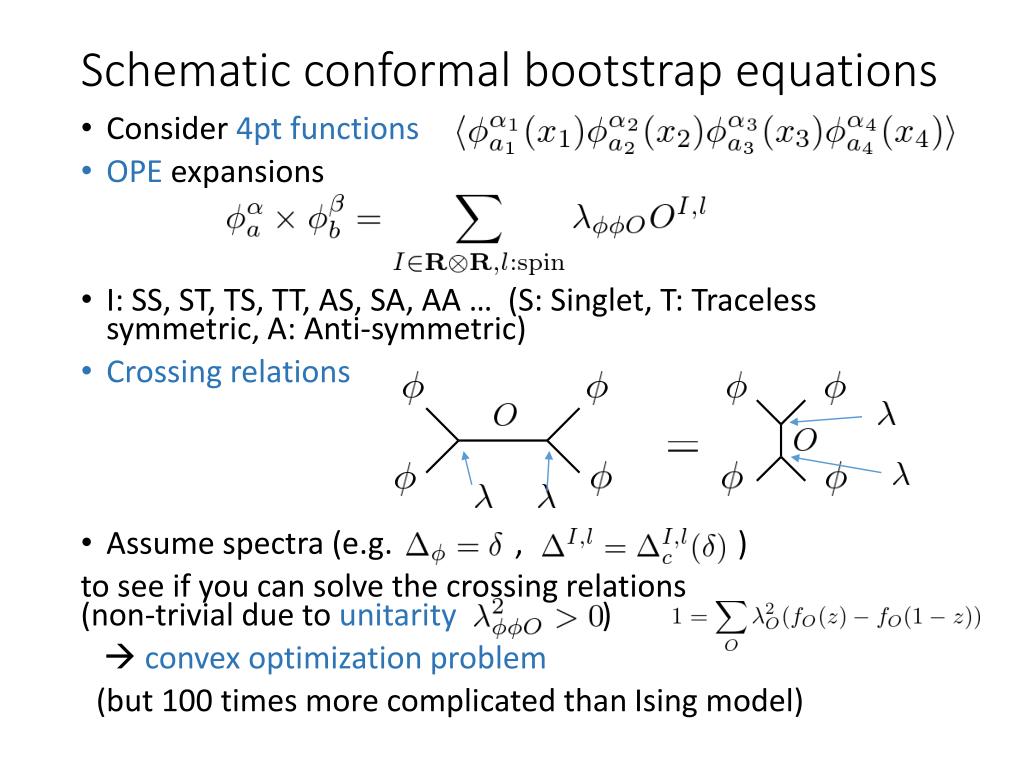

18. Schematic conformal bootstrap equations • Consider 4pt functions • OPE expansions • I: SS, ST, TS, TT, AS, SA, AA … (S: Singlet, T: Traceless symmetric, A: Anti-symmetric) • Crossing relations • Assume spectra (e.g. , ) to see if you can solve the crossing relations (non-trivial due to unitarity )  convex optimization problem (but 100 times more complicated than Ising model)

19. Results • Begin with O(3) x O(m) with m=15 • Can we see Heisenberg/chiral/anti-chiral fixed point? • Each plots need 1~2 weeks computation on our cluster computers • Hypothesis: non-trivial behavior of the bound indicates conformal fixed point

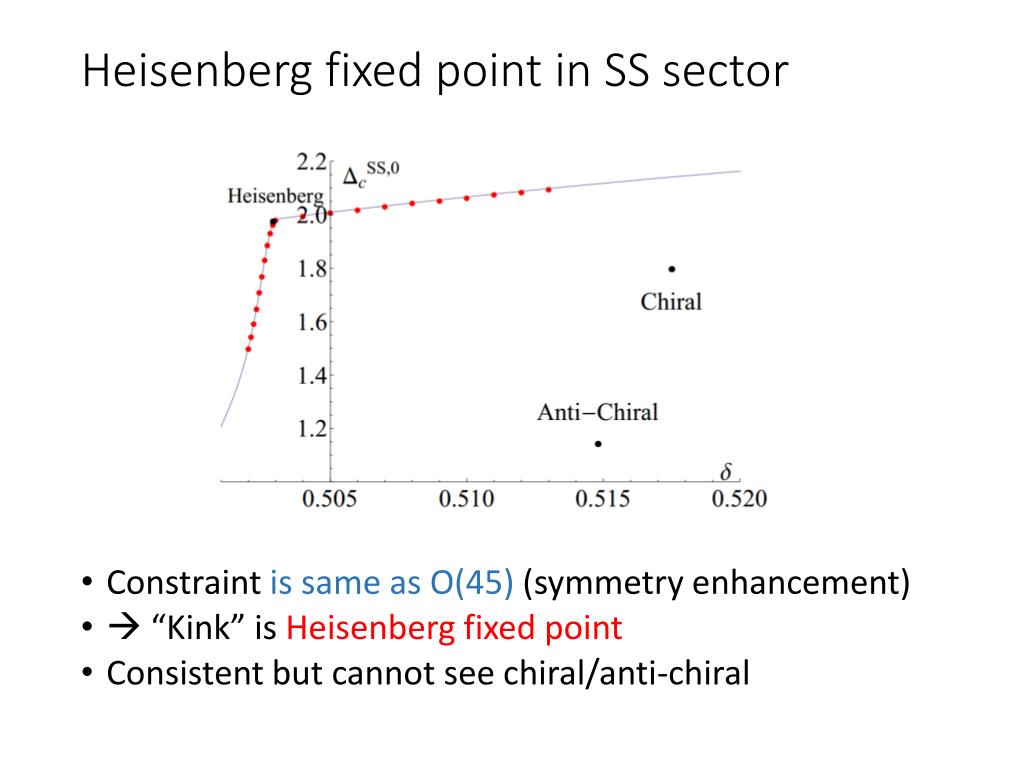

20. Heisenberg fixed point in SS sector • Constraint is same as O(45) (symmetry enhancement) •  “Kink” is Heisenberg fixed point • Consistent but cannot see chiral/anti-chiral

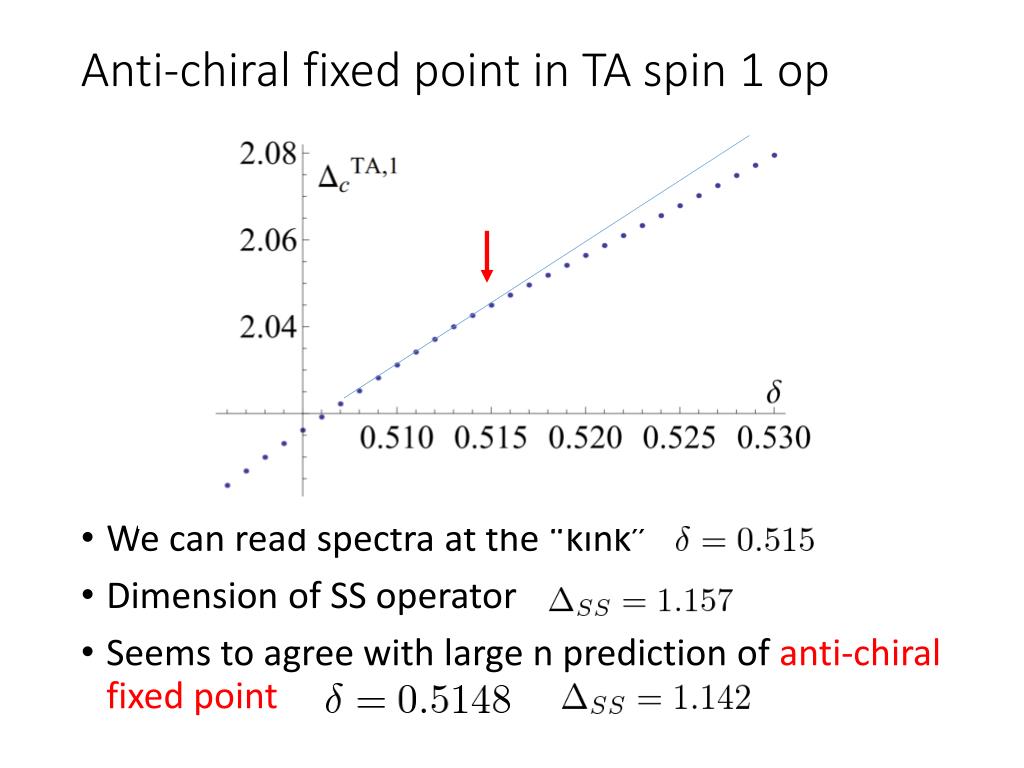

21. Anti-chiral fixed point in TA spin 1 op • We can read spectra at the “kink” • Dimension of SS operator • Seems to agree with large n prediction of anti-chiral fixed point

22. Anti-chiral fixed point in ST spin 0 op • We can read spectral at the “kink(?)” • Dimension of SS operator • Agrees with anti-chiral fixed point?

23. Chiral fixed point in TS spin 0 op • We can read spectral at the “kink” • Dimension of SS operator • Seems to agree with large n prediction of chiral fixed point

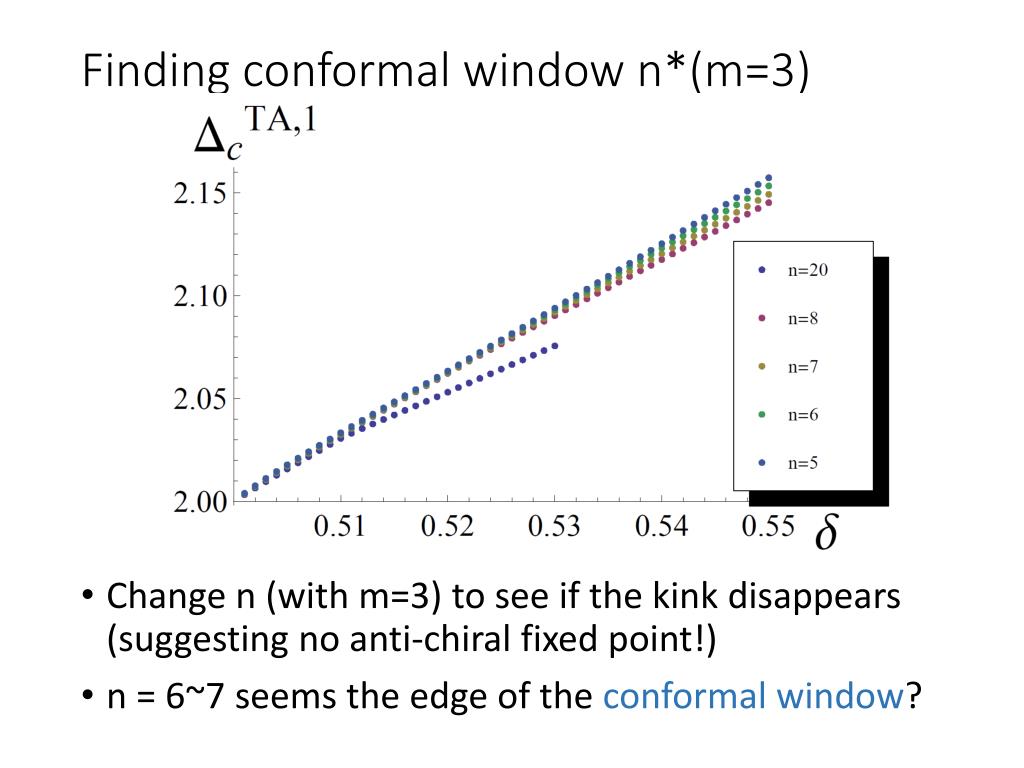

24. Finding conformal window n*(m=3) • Change n (with m=3) to see if the kink disappears (suggesting no anti-chiral fixed point!) • n = 6~7 seems the edge of the conformal window?

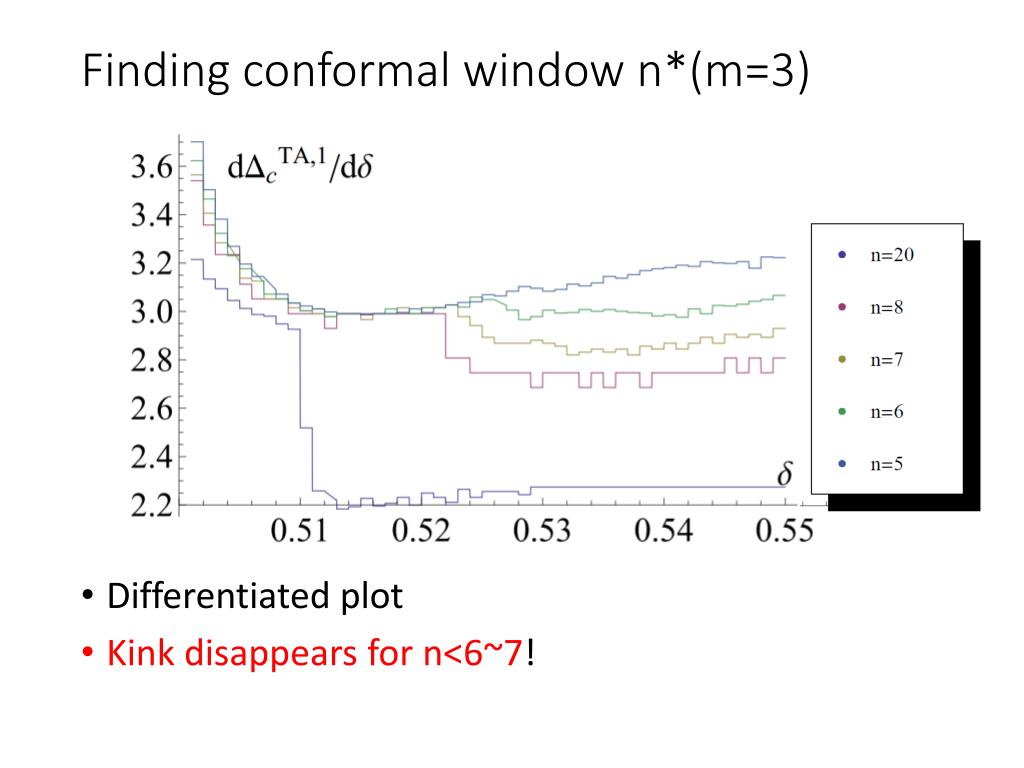

25. Finding conformal window n*(m=3) • Differentiated plot • Kink disappears for n<6~7!

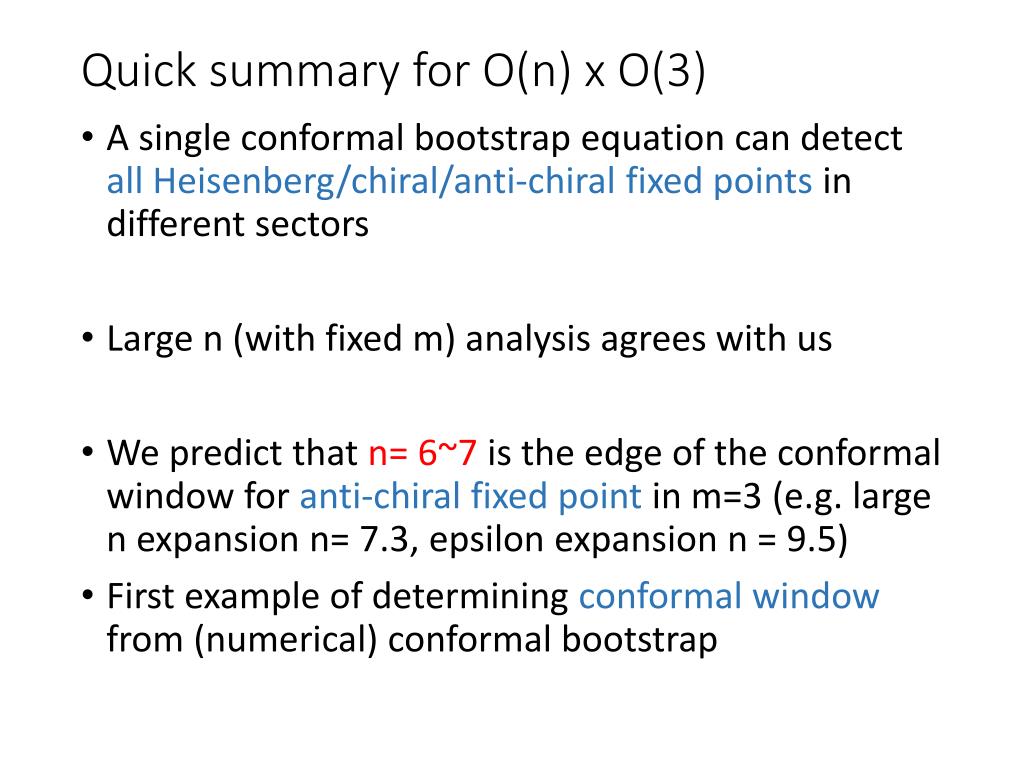

26. Quick summary for O(n) x O(3) • A single conformal bootstrap equation can detect all Heisenberg/chiral/anti-chiral fixed points in different sectors • Large n (with fixed m) analysis agrees with us • We predict that n= 6~7 is the edge of the conformal window for anti-chiral fixed point in m=3 (e.g. large n expansion n= 7.3, epsilon expansion n = 9.5) • First example of determining conformal window from (numerical) conformal bootstrap

27. Toward O(n) x O(2) under controversies • Situation is much controversial • n > n*~5,6, chiral and anti-chiral exit • n =2,3,4, some say there are (non-perturbative) chiral fixed point (cannot seen in 1/n expansions) • Can we see it? • Found conformal window in spin 1 sector • We have preliminary results on controversial regime, but my collaborator refuses to show them here…

28. Summary and discussions • Conformal hypothesis is very powerful • O(n) x O(m) bootstrap is exciting • Applications to real physics (frustrated spin, QCD…) • Determination of conformal window is now possible! • Theoretical backup needed? Still empirical science. • If you have any models to be studied with conformal bootstrap, let us know
