Chapter 8 Channels

1. Chapter 8Channels

2. Concurrent Programming Constructs • So far we have seen contructs based on shared memory concept (shared directly – buffer - or through a shared service of an OS – semaphores and monitors) • Now, we will see constructs based on communications (processes send and receive messages) which may be • Synchronous in which the exchange of message is an atomic operation requiring participation of both the sender and the receiver (receiver is blocked is message is not send yet or sender is blocked if receiver is not ready yet • Asynchronous in which messages are saved somewhere and sender nor receiver is blocked • This chapter is on synchronous communication methods (channels and ADA rendezvous)

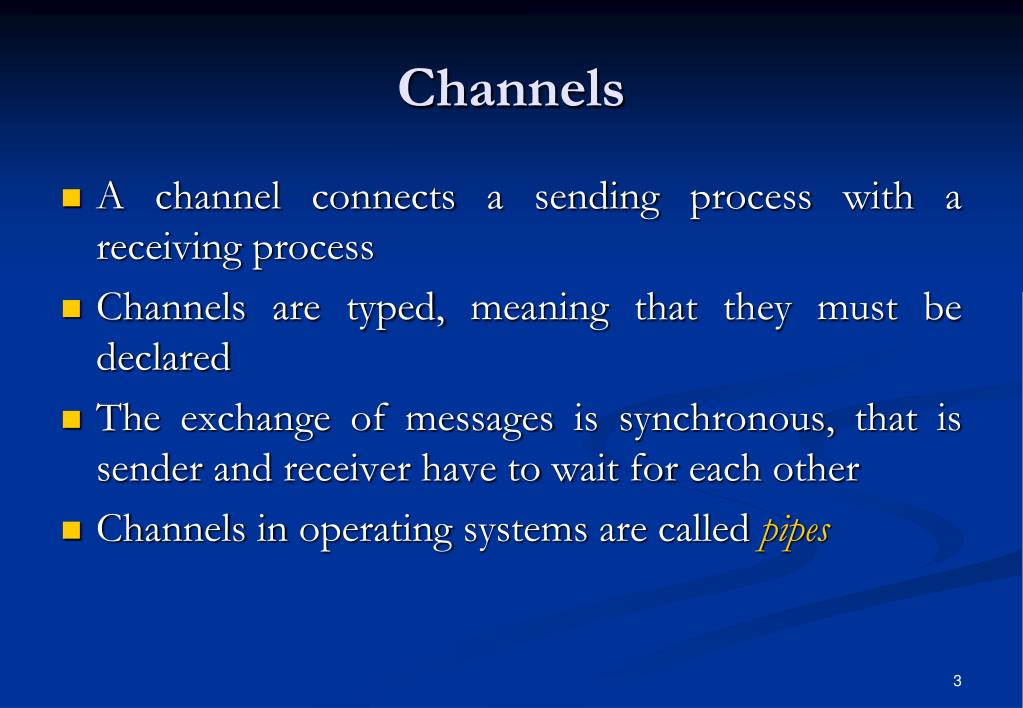

3. Channels • A channel connects a sending process with a receiving process • Channels are typed, meaning that they must be declared • The exchange of messages is synchronous, that is sender and receiver have to wait for each other • Channels in operating systems are called pipes

4. Producer - Consumer Using a Channel • At p2 and q1 both processes must wait for each other

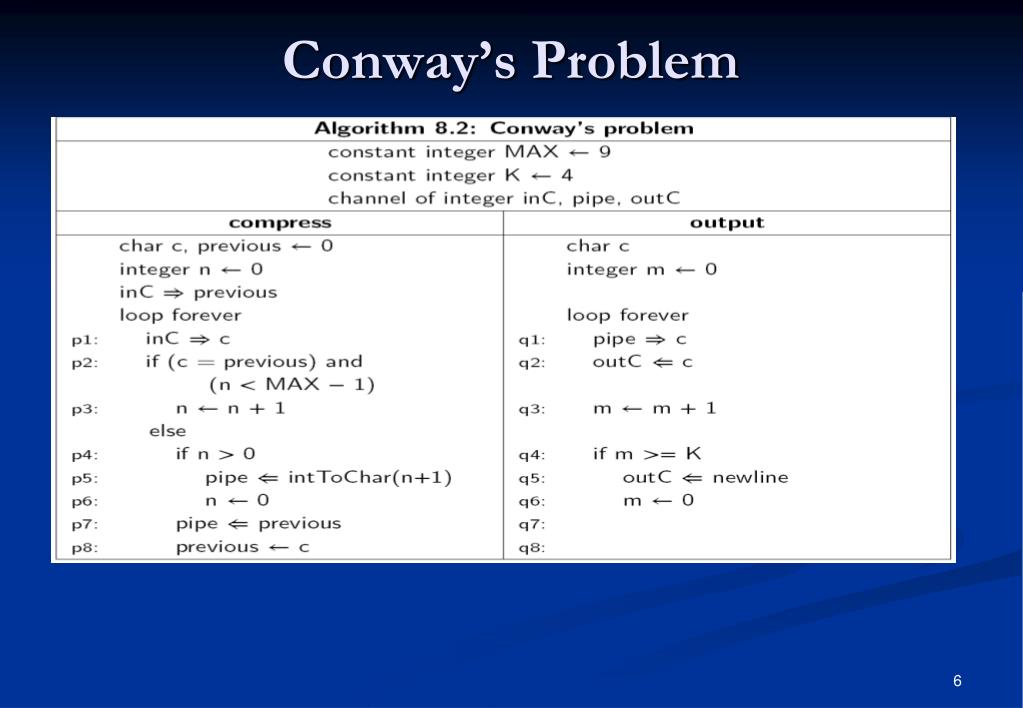

5. Conway’s Problem • inC is the input channel for a sequence of characters send by some process • outC is the output channel for a sequence of transformed characters to be received by some other process • Transformation • 2 ≤ n ≤ 9 occurrences of the same character is replaced by n and the character (compress process) • A newline character is appended following every K’th character (output process) • Pipe is the channel connecting compress to output

6. Conway’s Problem

7. Transputer and OCCAM Language • The transputer was a microprocessor developed by Inmos Corporation to support the OCCAM programming model. • The IMS 800 transputer contained a fast 32-bit processor, a floating point processor, a small amount of on-chip memory (4K) and four bi-directional high-speed serial communication links. • Each of these communication links implement a pair of occam channels (for example, north, east, south and west). • OCCAM was a parallel computation language designed for the transputer architectures

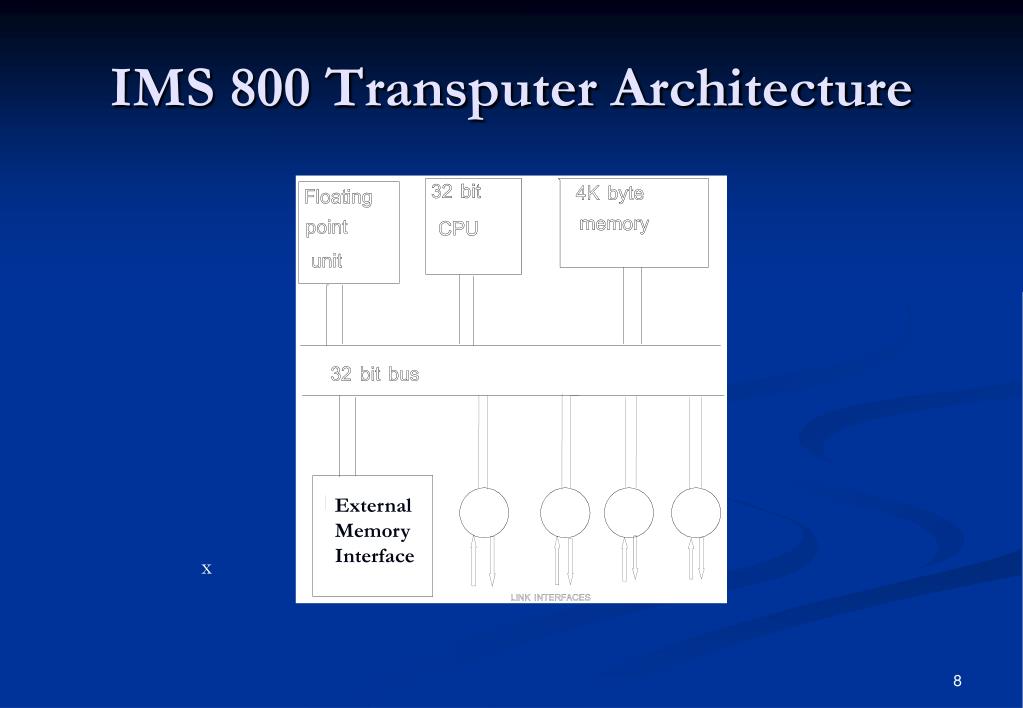

8. IMS 800 Transputer Architecture External Memory Interface x

9. A Matrix Multiplication Example • To multiply two matrices A * X, a process is allocated for each A[i,j]. • The elements of X are fed from the top (an input channel) • The partial sums are passed from right to left until they emerge from the array of processes with the final result • At the right, a set of processes feed in zeros to initialize the sums • At the bottom, sink processes absorb the elements of X as they leave the bottom row. This is necessary since matrix element processes are identical and need not to know if they are at a particular edge of the array • Matrices: 1 2 3 1 0 2 4 2 6 4 5 6 x 0 1 2 = 10 5 18 7 8 9 1 0 0 16 8 30

10. Computation of One Element 2 7 8 9 x 2 = 7x2+8x2+9x0 = 14+16+0 = 30 0

11. Processor Array for Multiplication

12. Multiplier Processes (one for each A[i,j] .. 9 in total)

13. Occam Syntax • Every statement in occam is a process. It is up to the programmer to indicate whether the statements will be combined in sequence or parallel. For example, SEQ statement_1 statement_2 statement_3 PAR statement_1 statement_2 statement_3 • Indentation is used instead of punctuation (';') to show program structure. Input and output statements have the form channel ? variable channel ! value respectively.

14. Multiplier Process in Occam Syntax WHILE TRUE SEQ north ? x south ! x east ? sum sum := sum + a * x west ! sum

15. Multiplier Process Made More Paralel • north ? x -- read first x WHILE TRUE SEQ PAR south ! x east ? sum temp := a * x PAR west ! sum + temp north ? X • After reading the x value, transferring value to south, reading the partial sum from east and multiplication of a*x can be done in parallel. Similarly, transferring new sum and reading next x value can be done in parallel after waiting for the first set of parallel computations.

16. The Dining Philosophers with Channels • A forkis a process which is connected by a channel to the philosopher on its left and right • Before eating a philosopher waits for an input from the left and right channels (value is not important – but both forks must be available) in p2 and p3 • A fork process sends a “true” value down the channel when the fork is free (q1) and then waits for the fork to become free again after eating (q2) • The philosopher releases the forks after eating in steps p5and p6

17. Rendezvous in ADA • Communication in ADA is synchronous and unbuffered • Two processes (tasks in ADA) must meet in a rendezvous in order to communicate. This means one of the two processes must wait for the other to come to the rendezvous point • One of the two processes is called the calling task and the other as an accepting task • The calling task must know the identity of the accepting task and the name of the rendezvous location called the entry • The acceptingtask does not know the identity of the calling task

18. ADA Tasks • An ADA task has two sections: • A specification (declaration) section contains the declarations of the entries (their names) • The body (code) section contains the entry points and the code to be executed in the rendezvous

19. ADA Way Other Methods Consumer Producer Consumer Producer Buffer Process Buffer Data Structure Comparison of Communication Methods

20. Producer-Consumer With a Degenerate Bounded Buffer(Task Specification) task buffer is entry append(i: in integer); entry take(i: out integer); end buffer; • The above task specification declares two entry points (append, take) for the accepting task

21. Producer-Consumer With a Degenerate Bounded Buffer(Task Body) task body buffer is buf :array(0..n-1) of integer; in_ptr, out_ptr :integer:= 0; count :integer:= 0; begin loop accept append(i: in integer) do buf(in_ptr) := i; end append; count:= count+1; in_ptr := (in_ptr+1) mod N; accept take(i : out integer) do i:= buf(out_ptr); end take; count:= count-1; out_ptr:= (out_ptr+1) mod N; end loop; end buffer;

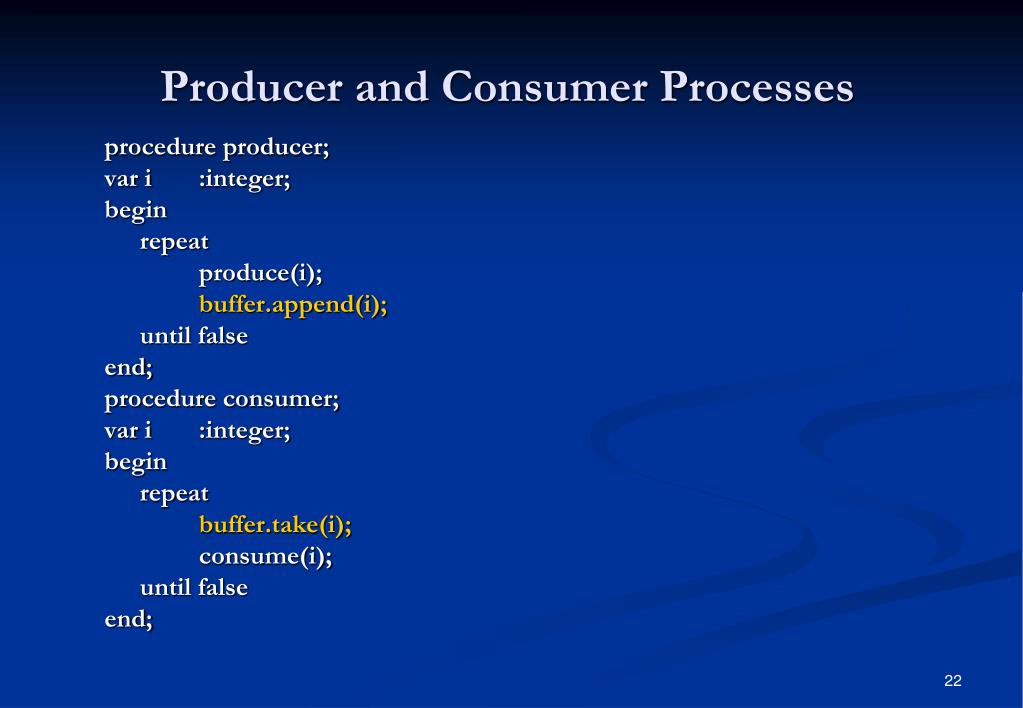

22. Producer and Consumer Processes procedure producer; var i :integer; begin repeat produce(i); buffer.append(i); until false end; procedure consumer; var i :integer; begin repeat buffer.take(i); consume(i); until false end;

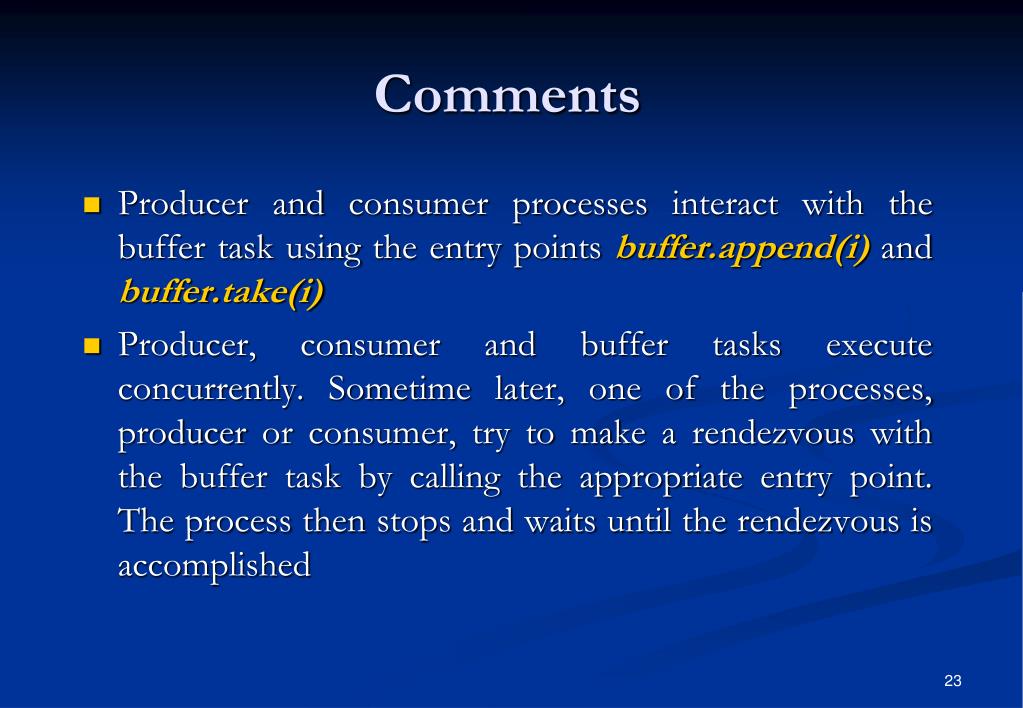

23. Comments • Producer and consumer processes interact with the buffer task using the entry points buffer.append(i) and buffer.take(i) • Producer, consumer and buffer tasks execute concurrently. Sometime later, one of the processes, producer or consumer, try to make a rendezvous with the buffer task by calling the appropriate entry point. The process then stops and waits until the rendezvous is accomplished

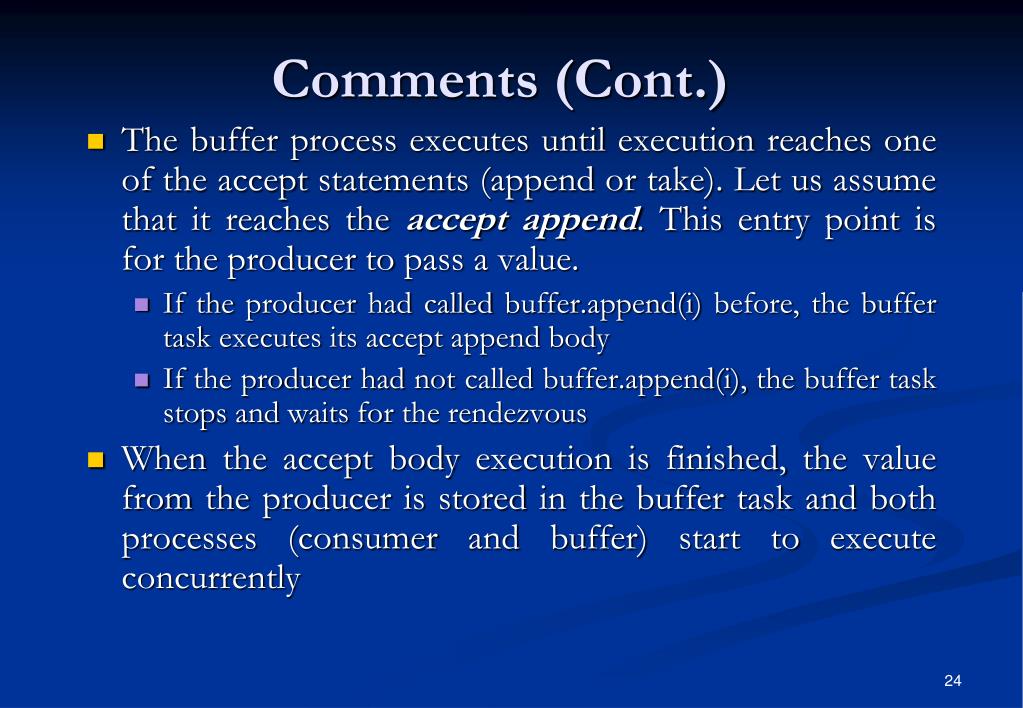

24. Comments (Cont.) • The buffer process executes until execution reaches one of the accept statements (append or take). Let us assume that it reaches the accept append. This entry point is for the producer to pass a value. • If the producer had called buffer.append(i) before, the buffer task executes its accept append body • If the producer had not called buffer.append(i), the buffer task stops and waits for the rendezvous • When the accept body execution is finished, the value from the producer is stored in the buffer task and both processes (consumer and buffer) start to execute concurrently

25. Comments (Cont.) • In the buffer process, the task makes two rendezvous. Note that, buffer process works in a synchronized fashion. Producer produces a value, puts it in buffer by calling buffer.append(i). The next append rendezvous happens after a take rendezvous. • Other producer processes may call buffer.append(i) causing them to be queued in a FIFO manner. Similarly, consumer processes are queued up at take entries assuming that there are several producers and consumers active at the same time

26. The Select Statement • The previous solution is a degenerate because it has no provisions for refusing a rendezvous with a full or empty buffer. • Furthermore, there is a strict alternation between producing and consuming • The select statement allows a task to select an entry call amoung several alternatives (like a case statement in Pascal) and also conditionally accept an entry call

27. Task Body with a Select Statement task body buffer is buf :array(0..n-1) of integer; in_ptr, out_ptr :integer:= 0; count :integer:= 0; begin loop select when count < N => accept append(i: in integer) do buf(in_ptr) := i; end append; count:= count+1; in_ptr := (in_ptr+1) mod N; or when count > 0 => accept take(i : out integer) do i:= buf(out_ptr); end take; count:= count-1; out_ptr:= (out_ptr+1) mod N; end select; end loop; end buffer;

28. Comments • The boolean expressions prefixed to the accept statements are called quards. If the expression is true, the alternative is an open alternative permitting a rendezvous else it is a closed alternative denying a rendezvous • When the buffer is empty (count = 0), the take alternative is closed. When the buffer is full (count = N), only the take alternative is open • When “0 < count < N”, buffer task will wait for the first caller that calls an entry. If there are calling tasks waiting in both entry queues, the task is chosen according to an implementation algorithm (first open alternative for example). In the bounded buffer case, first open alternative is a good choice to fill an empty buffer or empty a full buffer

29. General Form of a Select Statement • Arbitrary number of quarded accept statements separated with or’s • The quard may be missing implying “when true =>” • The last alternative may be • Else followed by a sequence of statements • Delay T followed by a sequence of statements • Terminate

30. Semantics • The quards are evaluated to determine open alternatives. There must be at least one open alternative else it is a fatal error. The quards are not re-evaluated during the execution of the select statement • If all open alternative queues are empty, the accepting task is suspended until a caller asks for a rendezvous • If open alternative queues are not empty, the first process from one of the alternative queue is chosen (depending on the implementation algorithm)

31. Producer Producer Buffer Accept append Buffer.append(i) End append; Programming with Rendezvous • A simple rendezvous is a remote procedure call. The calling task calls a procedure which belongs to another task, namely the accepting task Buffer.append(i)

32. Emulation of Binary Semaphores in ADA • Null accept bodies may be used for synchronization of tasks. As an example, consider the following emulation of binary semaphores in ADA Task body semaphore is Begin loop accept wait; accept signal; end loop; End semaphore;

33. Semaphore Example Continued .. Task body producer is Begin loop produce; semaphore.wait; put-in-buffer; semaphore.signal; end loop; End producer; Task body consumer is Begin loop semaphore.wait; get-from-buffer; semaphore.signal; consume; end loop; End consumer;
