  1. Case Schematic Raytheon Senior Project Team Jarrett Allen Luis Cintron MichealKubacki Robert Skinner

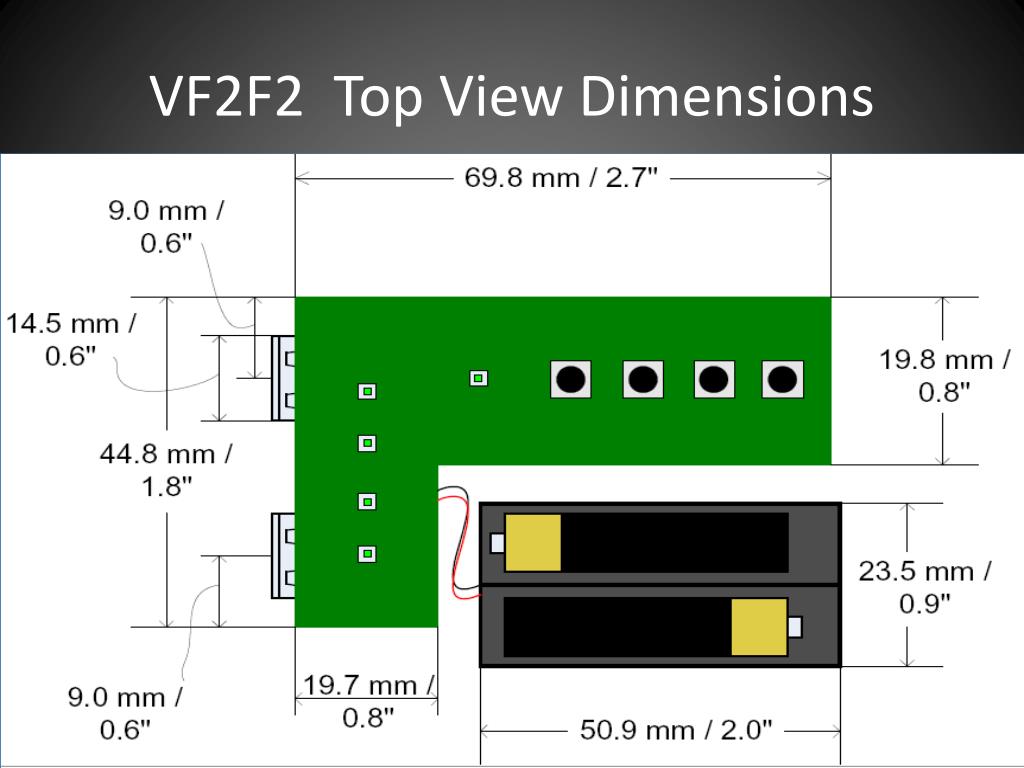

  2. VF2F2 Top View Dimensions

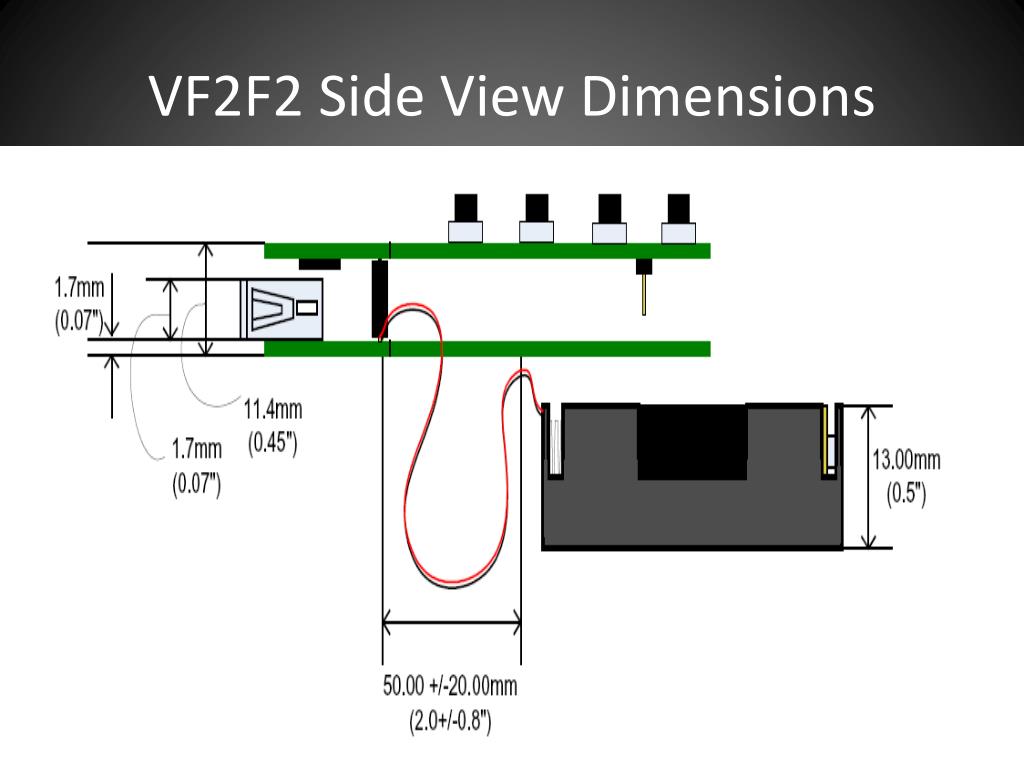

  3. VF2F2 Side View Dimensions

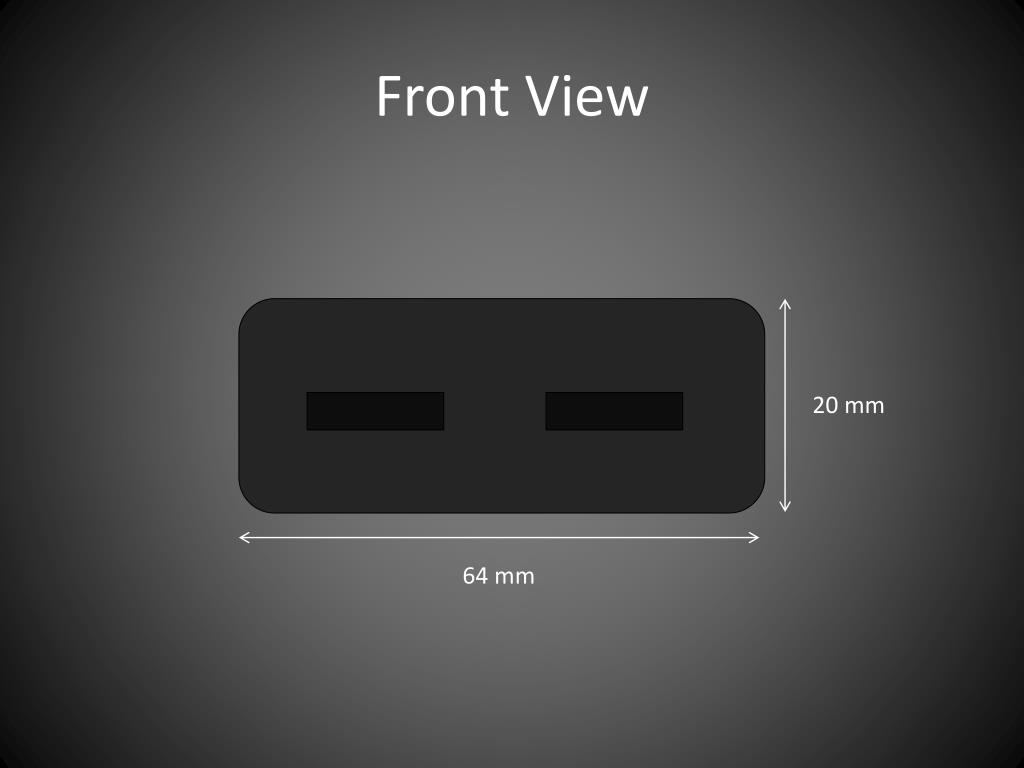

  4. Front View 20 mm 64 mm

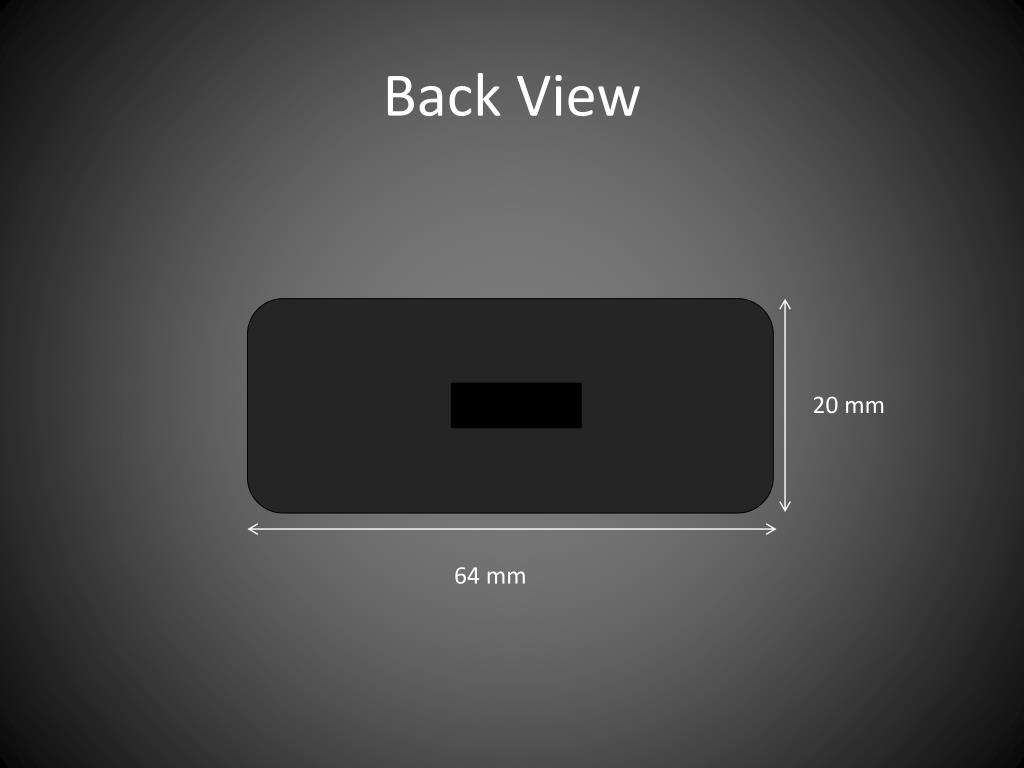

  5. Back View 20 mm 64 mm

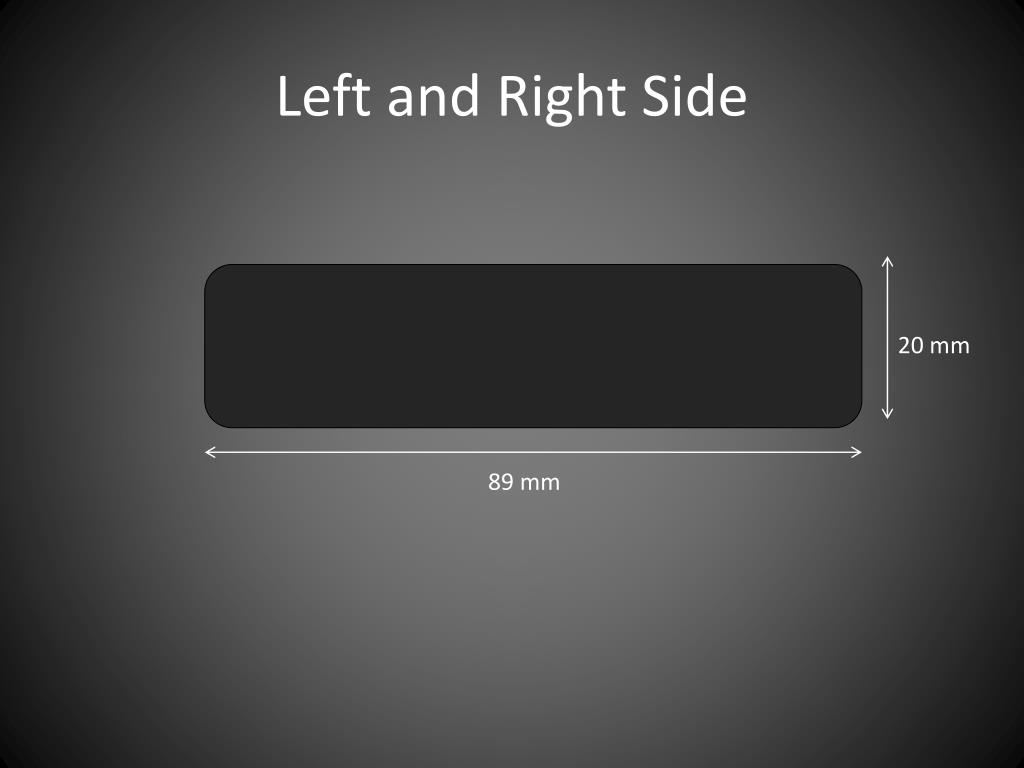

  6. Left and Right Side 20 mm 89 mm

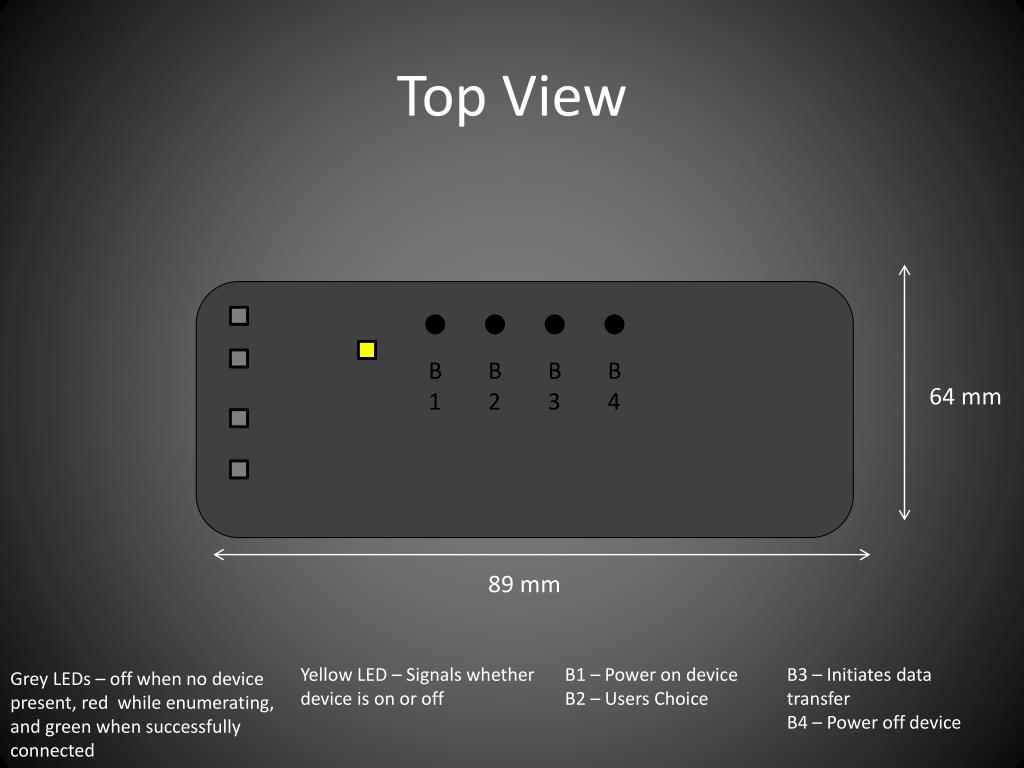

  7. Top View B1 B2 B3 B4 64 mm 89 mm Yellow LED – Signals whether device is on or off B1 – Power on device B2 – Users Choice B3 – Initiates data transfer B4 – Power off device Grey LEDs – off when no device present, red while enumerating, and green when successfully connected

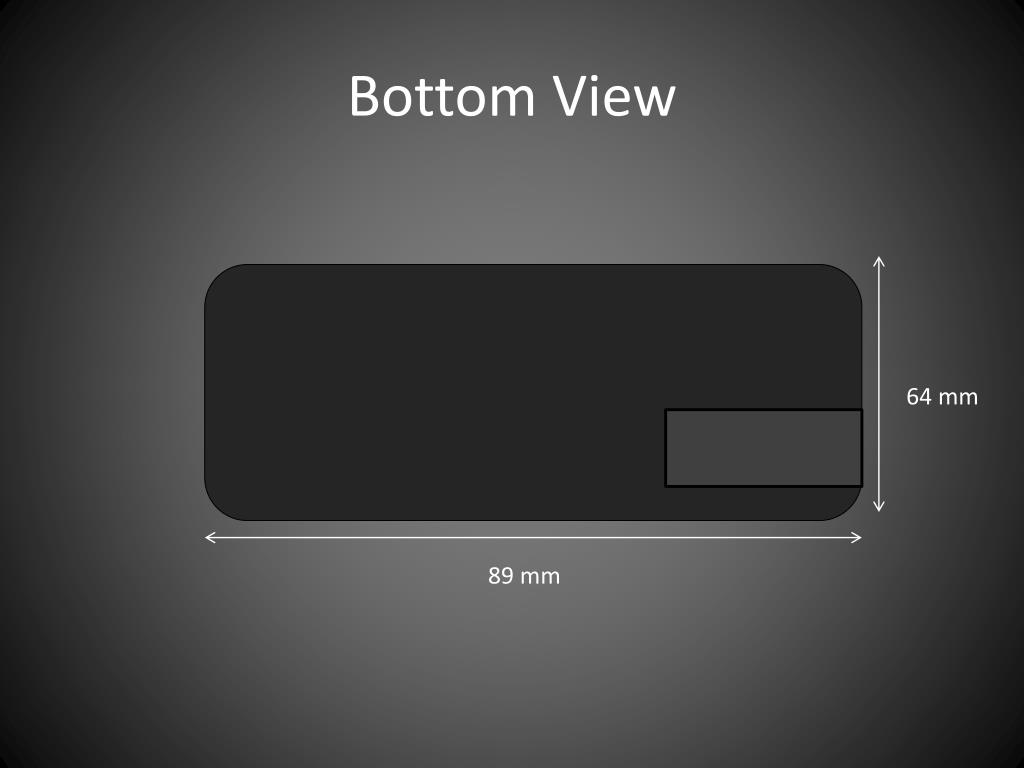

  8. Bottom View 64 mm 89 mm

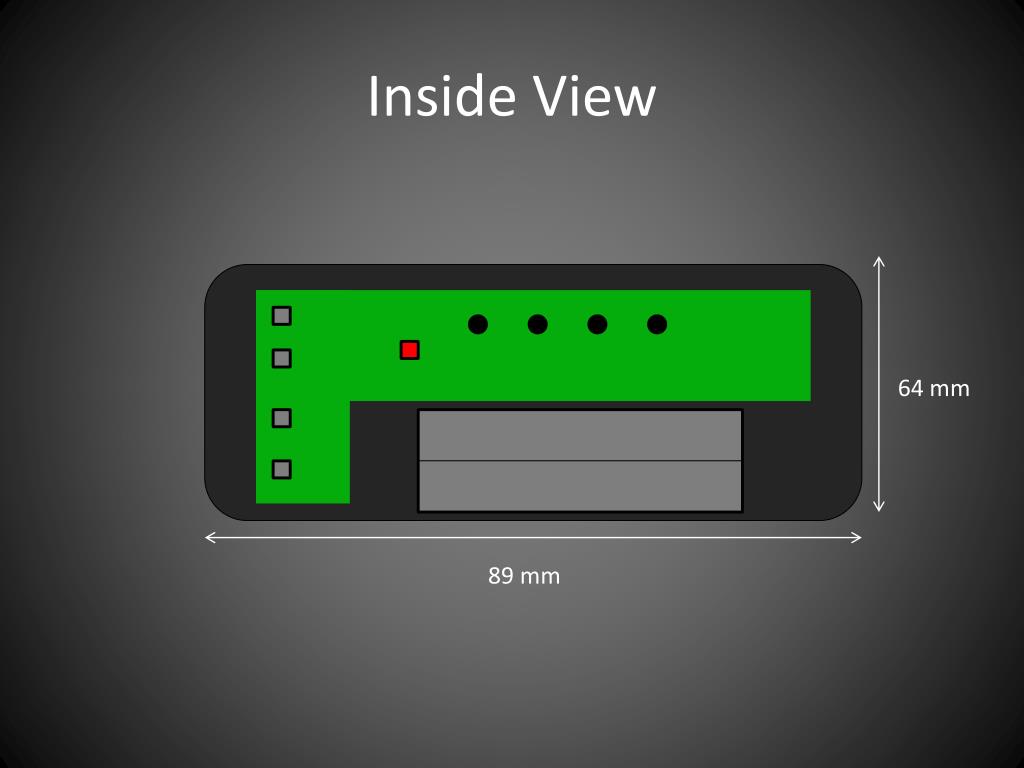

  9. Inside View 64 mm 89 mm
