Weather Patterns

Weather Patterns. CH. 13. Weather: current state of the atmosphere. Climate: average weather of a particular area over a long span of time. Weather vs. Climate. Air Masses. Air mass- huge body of air with similar temperatures and moisture

mahon
Télécharger la présentation

Weather Patterns

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Weather Patterns CH. 13

  2. Weather: current state of the atmosphere Climate: average weather of a particular area over a long span of time Weather vs. Climate

  3. Air Masses Air mass- huge body of air with similar temperatures and moisture • Brings different weather to an area, lasts for several days, are classified 2 ways: http://player.discoveryeducation.com/index.cfm?guidAssetId=2CAB90DA-3C54-49D0-9847-AFACFBFD90CA&blnFromSearch=1&productcode=US

  4. Classified how??? • By their temperature • Polar (P) • Tropical (T) 2. By the source region over which they form. • Continental: forms over land • Maritime: forms over water

  5. Can you identify the air masses?

  6. Air Masses and US (us or U.S. or both?) • Most of US is affected by 2 air masses • Continental Polar (cP) – begins in Canada and Alaska - cold and dry, little moisture, clear skies, lake effect snows • Maritime Tropical (mT)- begins in Pacific or Atlantic Ocean - hot temps, lots of rain, unstable air, lots of humidity

  7. How does cP affect Michigan in the summer? How does mT affects states like Florida and Louisiana in the winter?

  8. Minor Roles… • mP- occur in winter, bring lots of snow, come from the Pacific or the Atlantic • cT- start in Mexico/SW US, least influence of all air masses • What hot dry arid states are affected by cT?

  9. Bell Ringer 1-4-2012 • Determine the type of air mass that typically plays a role in the weather in your area. Describe the type of weather that is commonly associated with the air mass and where the air mass originates. Describe the season in your area which result from that air mass. • (Looks somewhere around pg. 302 and 303  ) • No you do not have to write this if you write in complete sentences!

  10. Bell Ringer: January 6, 2012 • Weather is a great metaphor for life - sometimes it's good, sometimes it's bad, and there's nothing much you can do about it but carry an umbrella.  ~Terri Guillemets • What do you think about this quote? • Is it true? Why/ why not?

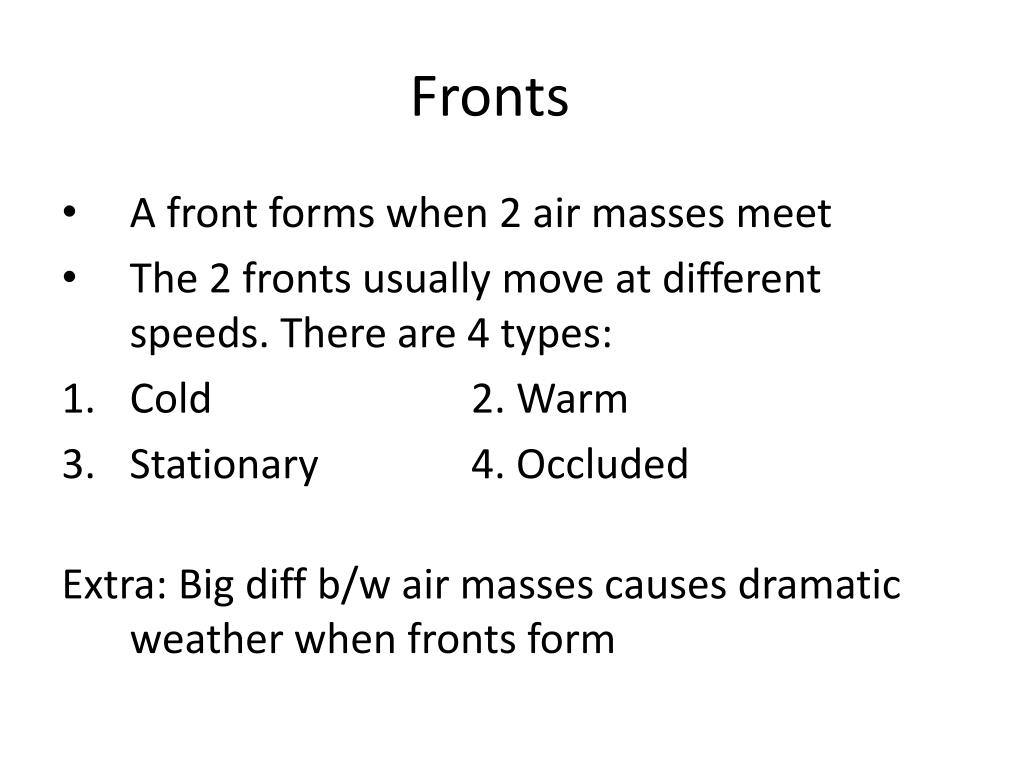

  11. Fronts • A front forms when 2 air masses meet • The 2 fronts usually move at different speeds. There are 4 types: • Cold 2. Warm • Stationary 4. Occluded Extra: Big diff b/w air masses causes dramatic weather when fronts form

  12. Warm Fronts • Warm air moves into an area with cooler air • A red line on the weather map: • Symbol = • Temperature difference (Temp Δ) at boundary • Moves slowly, produces rain over a large area for an extended period • Clouds = cirrus, cirrostratus, altostratus, nimbostratus • Weather gets slowly warmer with light rain and wind

  13. Warm Front moving in! http://www.youtube.com/watch?v=4QPkjP7EzaI

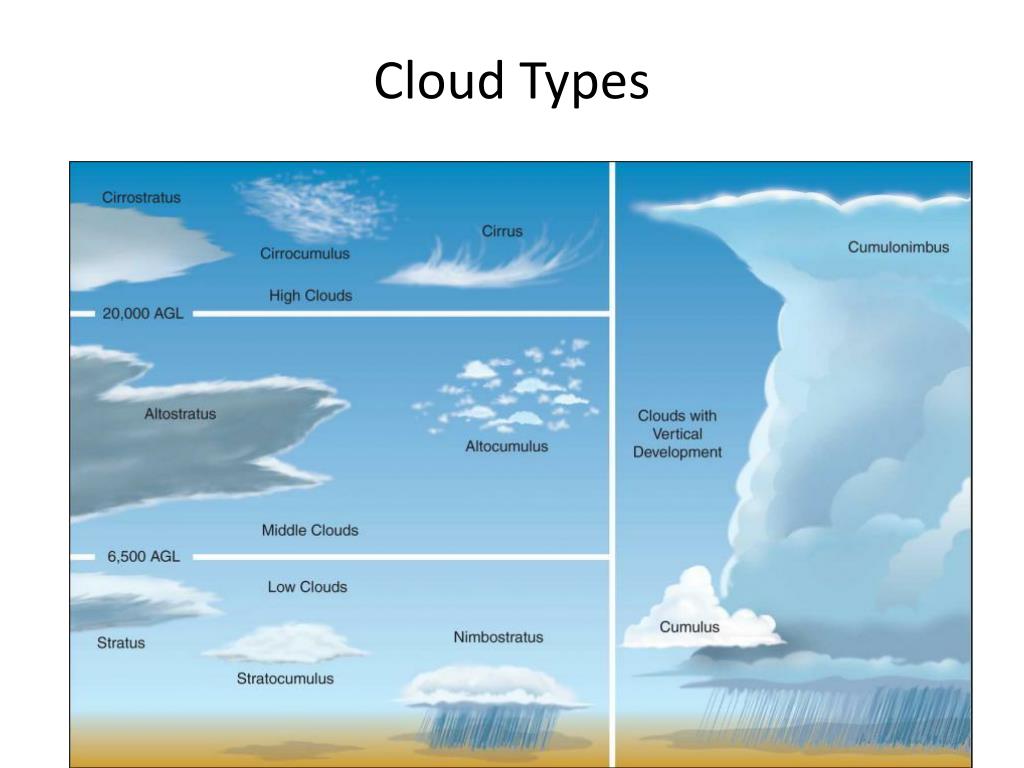

  14. Cloud Types

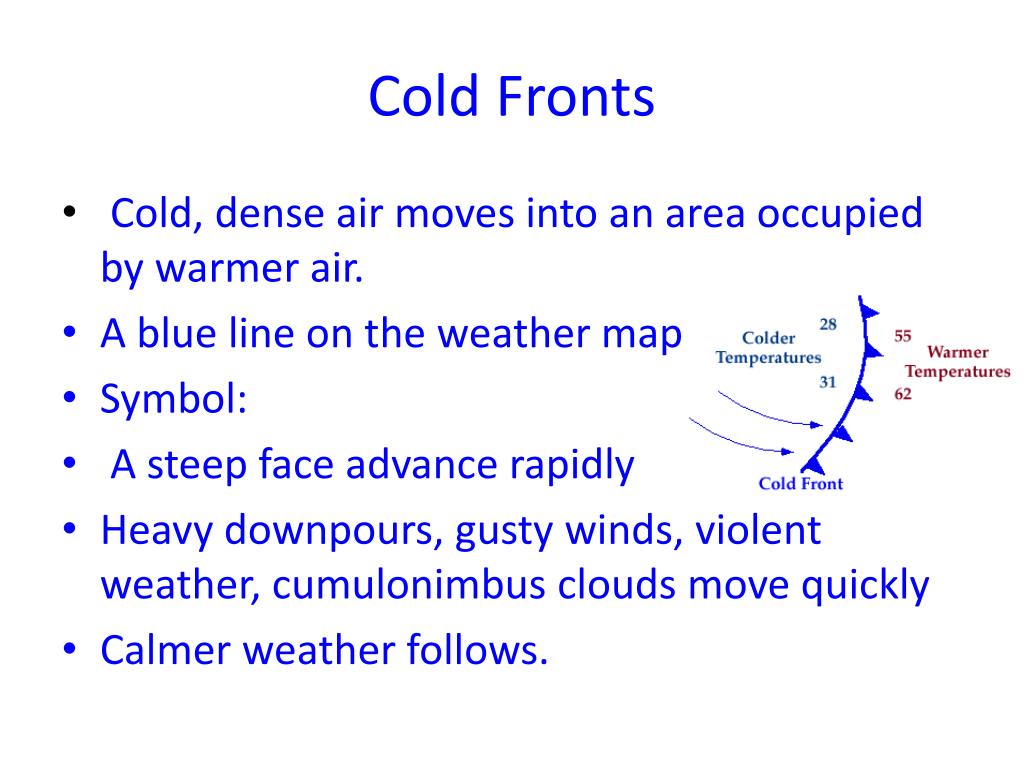

  15. Cold, dense air moves into an area occupied by warmer air. A blue line on the weather map: Symbol: A steep face advance rapidly Heavy downpours, gusty winds, violent weather, cumulonimbus clouds move quickly Calmer weather follows. ColdFronts

  16. Cold Front video!http://www.youtube.com/watch?v=0NoPXm7d5Tc (Colorado) Better Cold Front Video! http://www.youtube.com/watch?v=nPFMKw1_wKM(Latvia)

  17. Stationary Fronts • Fronts are not overtaking, but rather moving parallel to each other; don’t really move… stationary! • Red & blue on the weather map: symbol? Extra: Very little “weather” happening if stationary for a short time. If stationary for a long time, warmer weather will occur

  18. Occluded Fronts • Cold front overtakes a warm front • Complex weather patterns- CRAZY! And unpredictable Fronts, much like all of nature, do not always behave as we would expect (they may produce weather that varies from our descriptions)
