  1. Afghanistan Rural Fuel Project

  2. Displace Opium cultivation with rural fuel feedstocks Renewable Diesel Fuel Rural Communities Energizing Afghan With the Multi Functional Rural Fuel Platform M.F.R.F.P. Rural Electricity Clean Water

  3. A poor person’s greatest need is a way to make money… The world donates $300 billion every year… …yet there are 1 billion people living on a $1 dollar per day… It would be more efficient to mail $300 to each person every year to double their income to $2 per day than use the world’s existing aid system to lift Afghanistan's rural poor out of poverty. This is a proposal how Afghanistan's rural poor might make money…

  4. Rural Development Aid can supply… Household Electrification Clean Water but a rurally produced diesel fuel replacement is the missing piece in the aid puzzle that can energize rural communities and provide income generation opportunities for the rural poor trapped in the poverty cycle…

  5. The Rural Poverty Trap? Biomass energy like wood, dung etc. accounts for on average 75% of the total energy consumption in developing regions... This dependence on biomass energy in rural areas has led to women dedicating long hours to wood and water gathering activities, ensnaring them and their families in the rural poverty trap...

  6. Vegetable Oil can break the Trap? …process meal cake for human and animal diet supplement… …process soy beans into vegetable oil, rural fuel and meal cake… …use diesel power for electricity generation to charge LED lanterns and run the water maker. Rural communities grow soy beans instead of opium… …use vegetable oil to power a diesel engine and sell rural fuel for cash…

  7. Vegetable Oil is a clean burning, renewable substitute for petroleum based Diesel Fuel…

  8. How can vegetable oil replace diesel fuel? …2. or you can modify the vegetable oil to reduce it’s viscosity through a chemical conversion process called Transestrification and produce Biodiesel… 1. You can use a conversion kit to modify a vehicle and reduce a vegetable oil’s viscosity on-board using engine heat…these are commonly known as SVO kits.

  9. Straight Vegetable Oil (SVO) SVO is an acronym for “Straight Vegetable Oil” when used as a diesel fuel substitute. Suitable oils are commonly found vegetable oils like soy, sunflower & canola…

  10. Current Biodiesel Technology Small ↔ Large Home Brew Refinery Containerized Refinery Industrial Scale Refinery The Challenges of a Biodiesel refinery in a remote location: • You have to get the Methanol to the refinery. • Biodiesel is a different product from diesel fuel. The Challenges of using Methanol in a Biodiesel refinery in war torn regions are: • A single tracer round shot into methanol tank destroys facility. • A correctly place lighted cigarette in the on-site methanol tank • in a suicide mission destroys facility. • A methanol delivery tanker truck could be used as a suicide • mission, a single tanker is capable of destroying refinery.

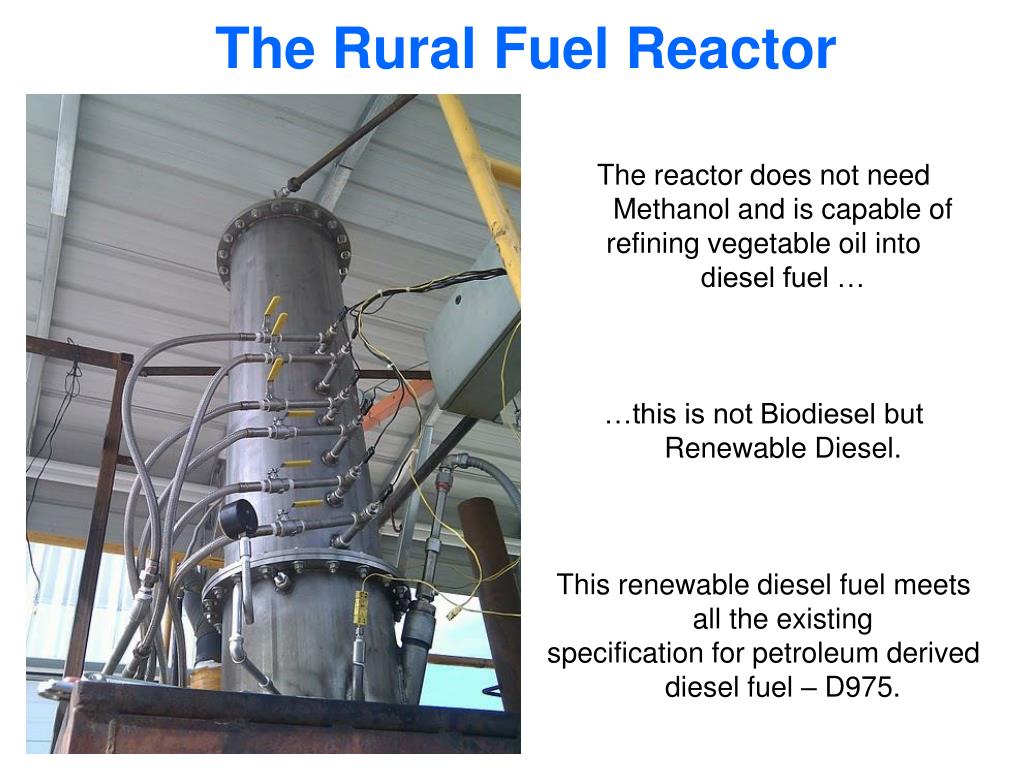

  11. The Rural Fuel Reactor The reactor does not need Methanol and is capable of refining vegetable oil into diesel fuel … …this is not Biodiesel but Renewable Diesel. This renewable diesel fuel meets all the existing specification for petroleum derived diesel fuel – D975.

  12. Rural Fuel Production Process Feedstock Oil Propane Finished Fuel Heat Water

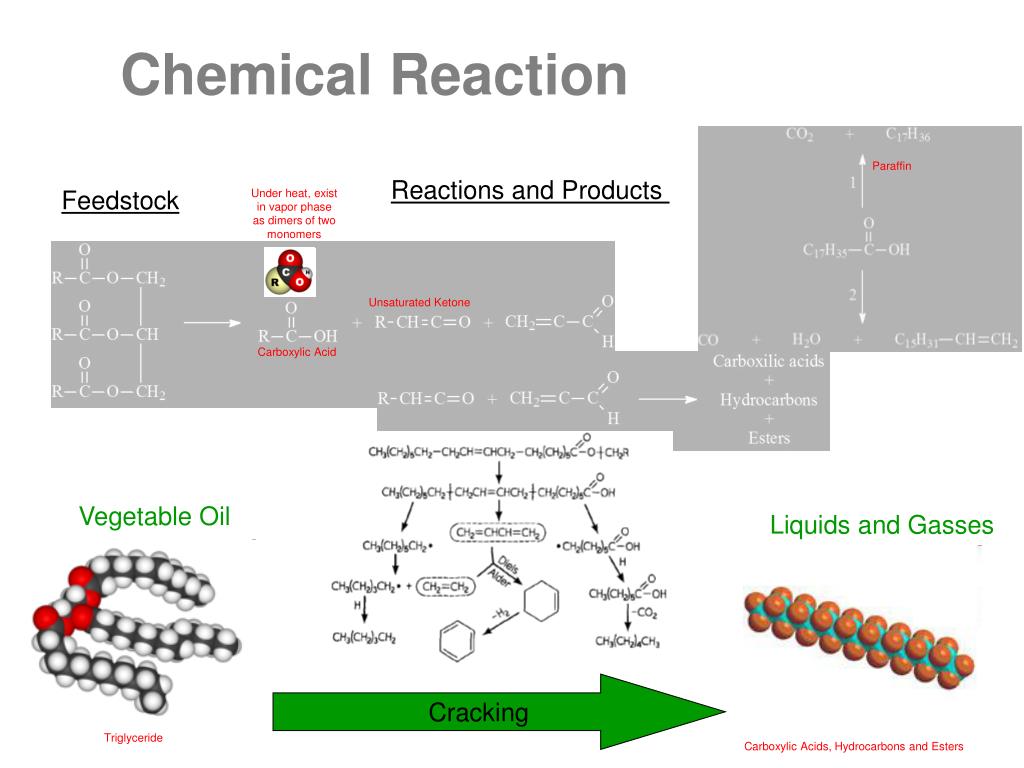

  13. Chemical Reaction Paraffin Reactions and Products Feedstock Under heat, exist in vapor phase as dimers of two monomers Unsaturated Ketone Carboxylic Acid Vegetable Oil Liquids and Gasses Cracking Triglyceride Carboxylic Acids, Hydrocarbons and Esters

  14. No Hydrogen or Methanol Needed Carbon Dioxide Water Propane Light Fractions Gasoline Triglyceride cracked into Hydrocarbons C3 backbone converted into Propane Kerosene Diesel Hydrocarbons Heavy Fractions Oxygen converted into CO2 and water Heat Triglyceride

  15. High quality fuel produced The fuel produced has a high Cetane number of 63… …and has an excellent cold flow properties of: Cold filter plug -10 Deg C 14 Deg F Cloud Point: 10 Deg C 14 Deg F … when made from a soy oil feedstock which is necessary for the cold Afghan winters.

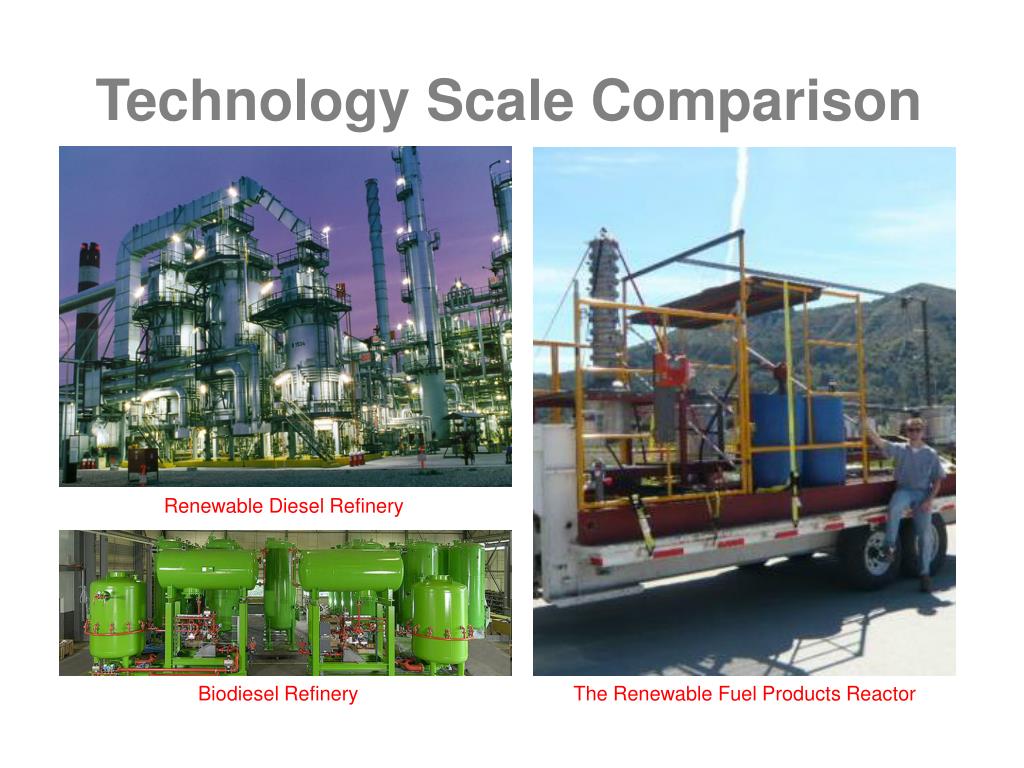

  16. Technology Scale Comparison Renewable Diesel Refinery Biodiesel Refinery The Renewable Fuel Products Reactor

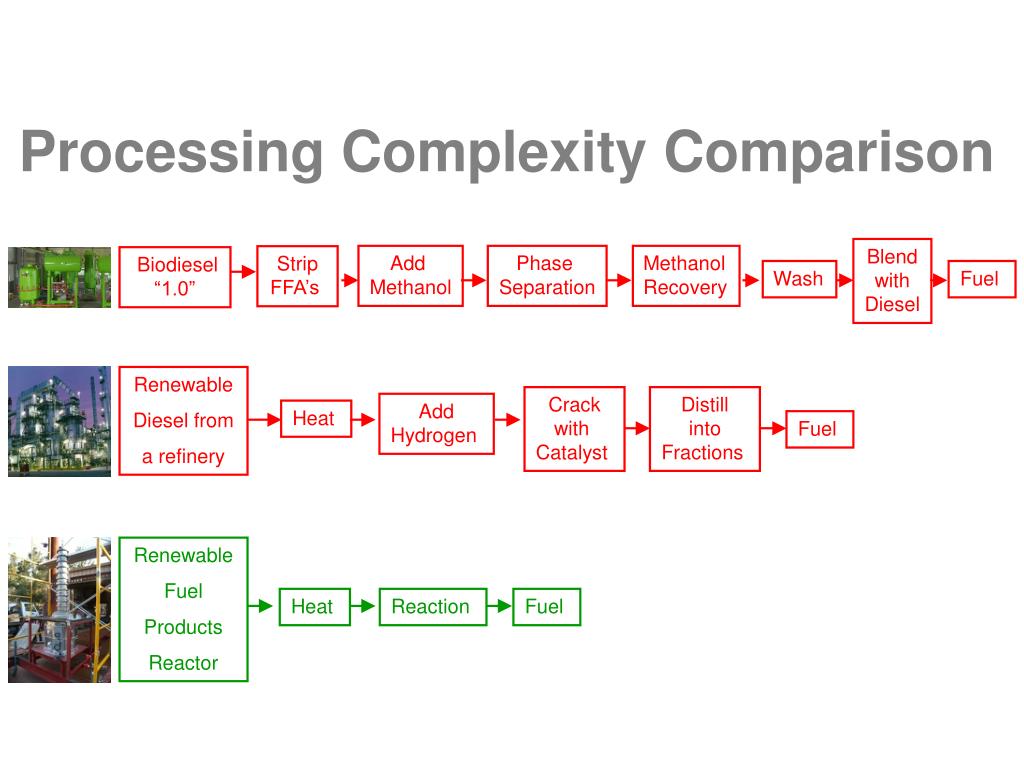

  17. Processing Complexity Comparison Blend with Diesel Add Methanol Phase Separation Methanol Recovery Strip FFA’s Biodiesel “1.0” Wash Fuel Renewable Diesel from a refinery Crack with Catalyst Distill into Fractions Add Hydrogen Heat Fuel Renewable Fuel Products Reactor Heat Reaction Fuel

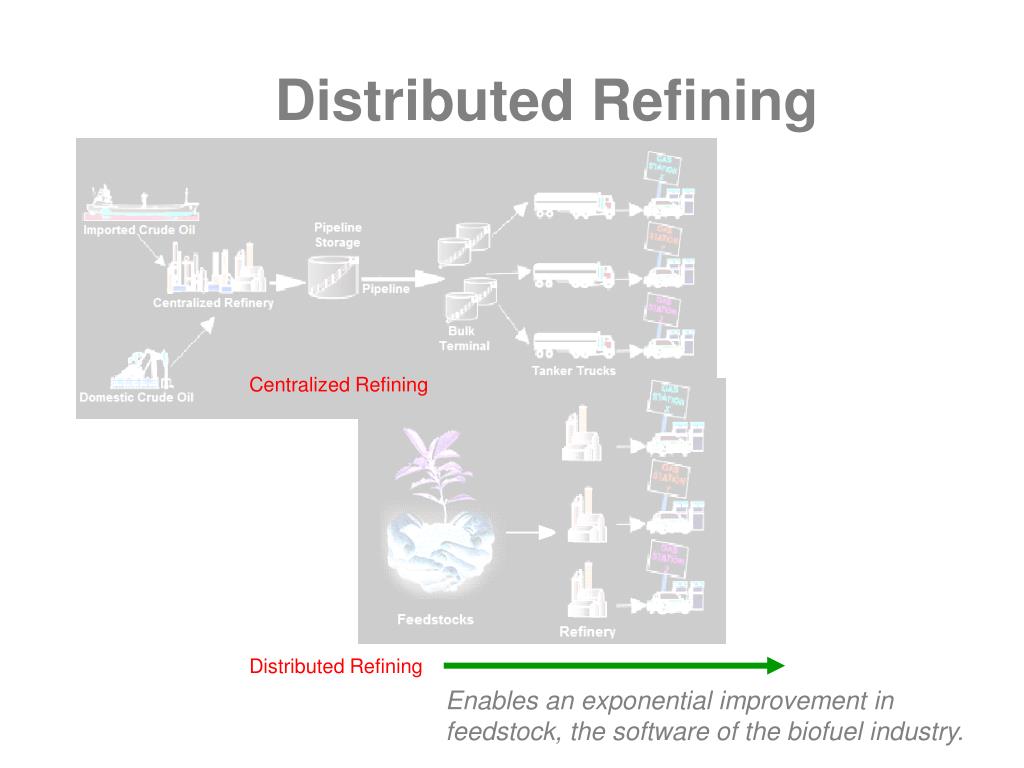

  18. Distributed Refining Centralized Refining Distributed Refining Enables an exponential improvement in feedstock, the software of the biofuel industry.

  19. We call it Biodiesel “2.0” Petroleum Diesel Biodiesel Renewable Diesel Producing a vegetable oil derived diesel fuel replacement that is ready to use in any diesel engine overcomes the need to convert the vehicle to Straight Vegetable Oil (SVO). This kind of diesel fuel production technology overcomes the practical issues that plague making biodiesel using transesterification... …and could be the missing piece of the aid puzzle.

  20. The M.F.R.F.P. Platform The Multi Functional Rural Fuel Platform enables poor, rural farmers to free themselves from the poverty trap by using vegetable oil seed crops to energize their communities…

  21. …a way for rural populations to earn money producing diesel fuel… The M.F.R.F.P.Multi Functional Rural Fuel Platform brings….. Renewable Diesel Fuel …plus brings electricity and clean water to their communities … Clean Water Rural Electricity

  22. Multi Functional Platforms - MFP Multi Functional Platforms (MFP’s) are used very successfully in countries like Mali as part of rural poverty alleviation programs.

  23. The Multi Functional Rural Fuel Platform - MFRFP + Adding a rural fuel production capability to other typical Multi Functional Platform sub-systems creates the Multi Functional Rural Fuel Platform (MFRFP)…

  24. Components of a Multi Functional Rural Fuel Platform (MFRFP) Rural Fuel Processor Oil Seed Processor Electric generator for lighting Diesel Engine Water pump for irrigation Skywater water maker Flour Mill

  25. MFRFP’s Oil Seed Processing The prototype MFRFP uses an seed Expeller combined with a… …C.S. Bell Flour Mill

  26. MFRFP miniaturized Extrusion Technology for processing oil seeds The MFRFP will use a small, light weight, 60ib per hour Extrusion unit that was co-developed for a NASA mission to Mars producing 50ibs of meal cake and 1 gallon of oil per hour. Extrusion has a number of advantages as the process applies heat and pressure which enables oil seeds to be processed, ready for human and animal consumption directly out of the Platform.

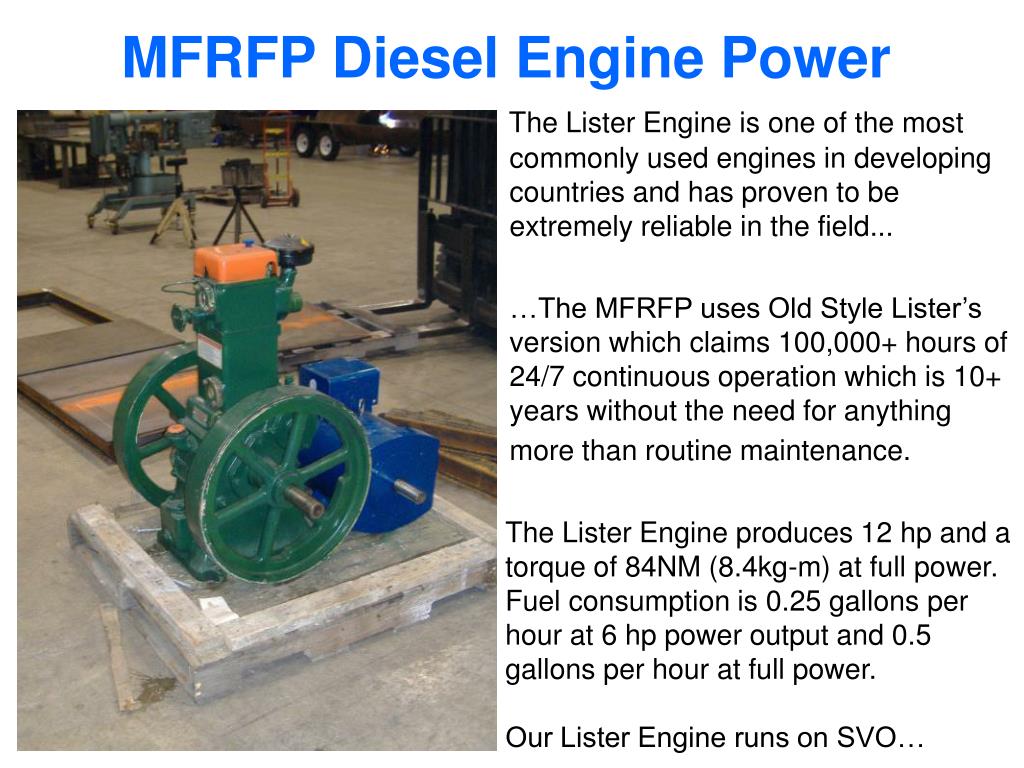

  27. MFRFP Diesel Engine Power The Lister Engine is one of the most commonly used engines in developing countries and has proven to be extremely reliable in the field... …The MFRFP uses Old Style Lister’s version which claims 100,000+ hours of 24/7 continuous operation which is 10+ years without the need for anything more than routine maintenance. The Lister Engine produces 12 hp and a torque of 84NM (8.4kg-m) at full power.Fuel consumption is 0.25 gallons per hour at 6 hp power output and 0.5 gallons per hour at full power.Our Lister Engine runs on SVO…

  28. MFRFP Electricity Generation The prototype MFRFP uses a 10KVA generator… The generator is connected to a series of outlets, 12, 120 and 220 volt. We can run most of our equipment in our shop from this unit so we gain a lot of experience being off the grid ourselves… The field units will in all likelihood use a regular 12 volt vehicle alternator as these are readily available pretty much anywhere in the world.

  29. “Sandal Grid” Community Lighting …an electric LED lantern can replace and provide more light than 3 kerosene lanterns... …a small business opportunity is created collecting and recharging the community's electric lanterns daily. Rechargeable LED lanterns can be used in community households, brought to be recharged in a “Sandal” grid network and recharged daily using the MFRFP’s generator…

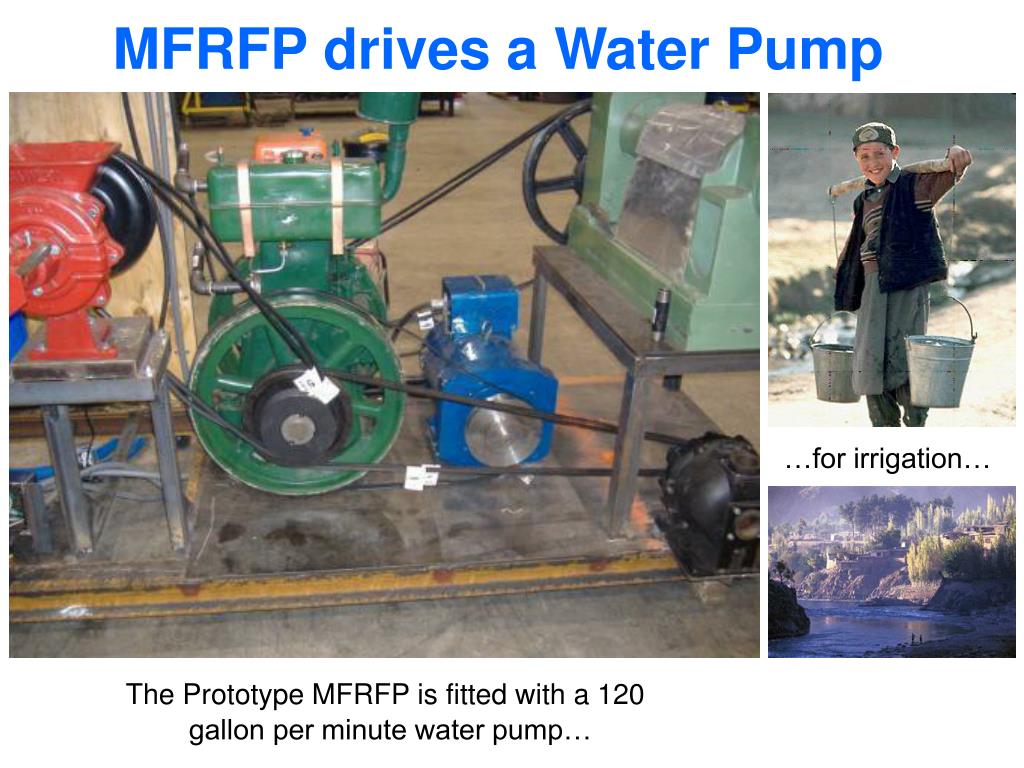

  30. MFRFP drives a Water Pump …for irrigation… The Prototype MFRFP is fitted with a 120 gallon per minute water pump…

  31. MFRFP makes water from the air The MFRFP Platform is design to use a Skywater system coupled to a series of filters to produce good quality, drinking water without the need for a well… Clean water is critical to any development effort that seeks to improve the lives of poor, rural communities…

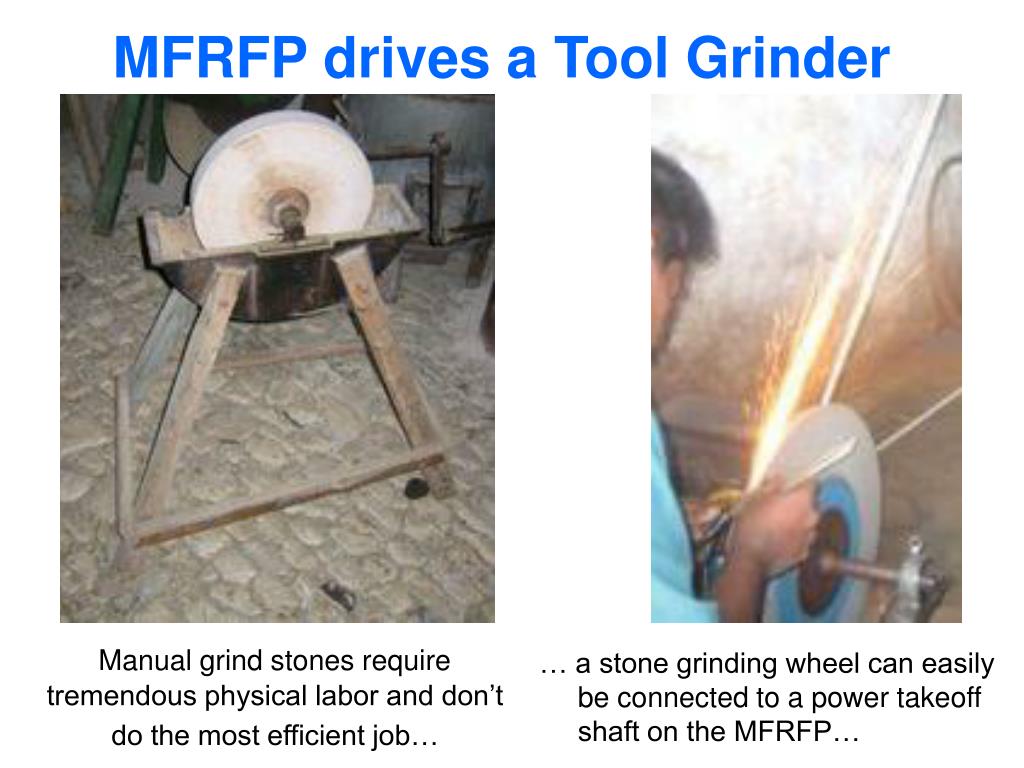

  32. MFRFP drives a Tool Grinder Manual grind stones require tremendous physical labor and don’t do the most efficient job… … a stone grinding wheel can easily be connected to a power takeoff shaft on the MFRFP…

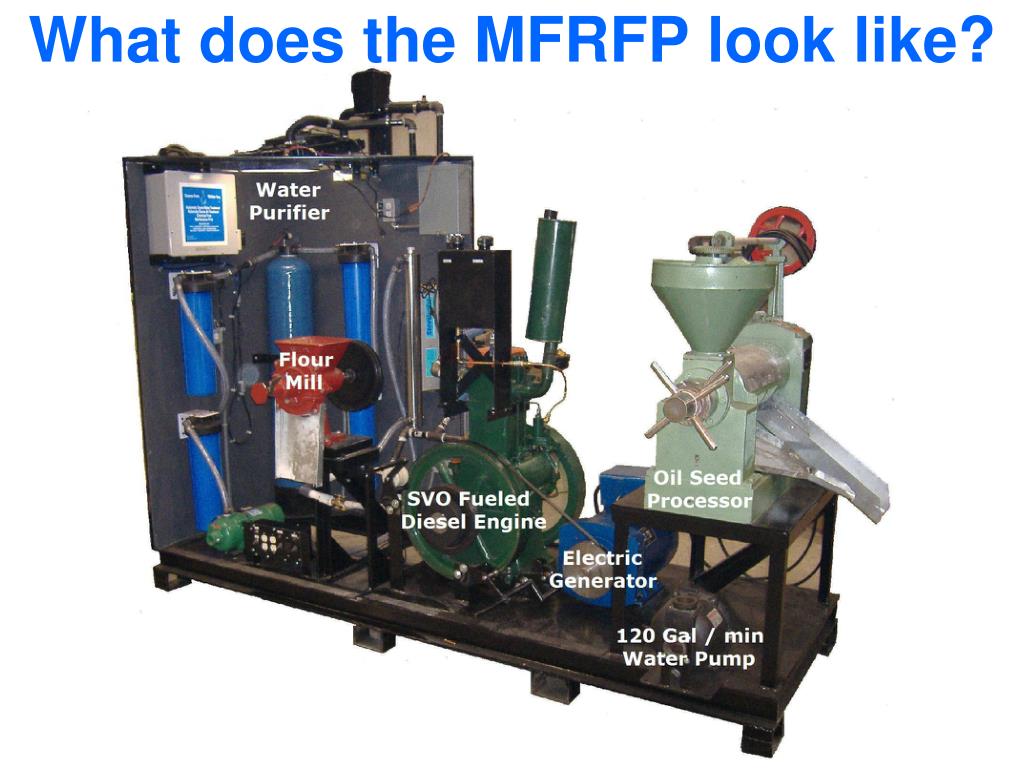

  33. What does the MFRFP look like?

  34. How does a community purchase a Multi Functional Rural Fuel Platform? We wish to create a micro bond finance system for financing community level MFRFP infrastructure… similar to Muhammad Yunus’s microfinance model…and supplemented with carbon credits… Proceeds from the sales of carbon credits are used to pay off the purchase costs of the MFRFP equipment and fuel sales provide cash to all those individuals in the community providing services and products to the MFRFP enterprise...

  35. MFRFP Economics

  36. MFRFP’s Carbon Accounting

  37. Cash from fuel sales funds the vegetable oil uplift system Cash from Carbon Credits funds the purchase of the MFRFP equipment

  38. Land Available for Agriculture Afghanistan is 5 times bigger than Iowa and a little smaller than Texas, with a land mass of 250,000 square miles or 650,000 square kilometers and a population of approximately 30 million people. There are approximately 22 million acres of land currently under agricultural cultivation in Afghanistan. 5% of that land or 1 million acres is estimated at being currently available for soybean cultivation. At yields of 40 bushels per acre, 1 million acres of soybean will support 500 rural fuel reactors…

  39. Soybeans available worldwide No need to wait for an Afghan soy harvest as soy can be shipped from overseas to get the first year MFRFP production up and running…. …the operating MFRFP Platform and Fuel reactor demonstrate to the local farming community that there is a viable market for soy, so reducing the risk to the farmer that if the does plant for next year, the farmer will be able to sell the soybeans harvested into a local market…. …using shipping containers as on-site storage for imported soybeans, these containers can be used in the following years as local silo storage for the future soy harvests…

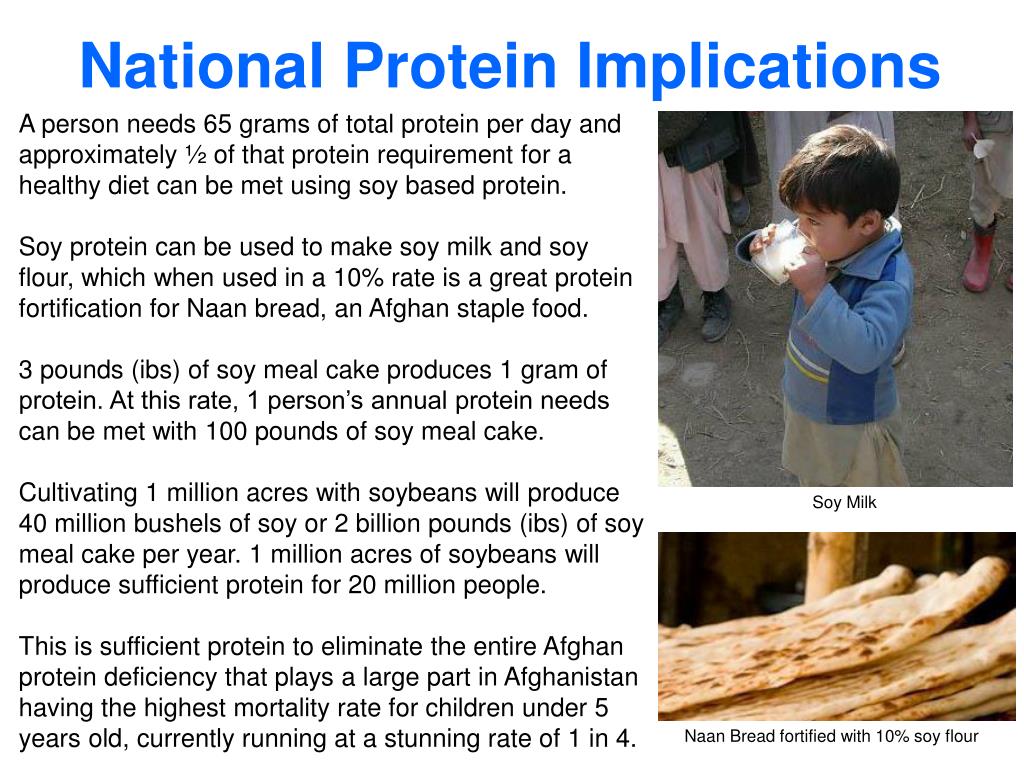

  40. National Protein Implications A person needs 65 grams of total protein per day and approximately ½ of that protein requirement for a healthy diet can be met using soy based protein. Soy protein can be used to make soy milk and soy flour, which when used in a 10% rate is a great protein fortification for Naan bread, an Afghan staple food. 3 pounds (ibs) of soy meal cake produces 1 gram of protein. At this rate, 1 person’s annual protein needs can be met with 100 pounds of soy meal cake. Cultivating 1 million acres with soybeans will produce 40 million bushels of soy or 2 billion pounds (ibs) of soy meal cake per year. 1 million acres of soybeans will produce sufficient protein for 20 million people. This is sufficient protein to eliminate the entire Afghan protein deficiency that plays a large part in Afghanistan having the highest mortality rate for children under 5 years old, currently running at a stunning rate of 1 in 4. Soy Milk Naan Bread fortified with 10% soy flour

  41. Afghan Diesel Market • An estimated 75 million gallons of Petroleum and Lubricants were used in Afghanistan in 2004. • Diesel represents 60% of consumption - 40 million gallons per year. • Approximately 75 percent of all Petroleum and Lubricant products are imported through three border points: - Islam Qala - 30 percent - Heratan - 25 percent - Aqina - 20 percent. • Iran supplies 50 percent of the total Petroleum and Lubricant volume to Afghanistan, Uzbekistan and Turkmenistan supply nearly 25 percent each. • Refined oil products are shipped over 700 miles by rail and truck from a Turkmen refinery on the Caspian Sea. Fuel is trucked from four refineries in Pakistan passing through the Khyber and Salang Passes and delivery runs take a week at a time. On any given day, there are approximately 50 to 60 trucks coming to the wholesale market daily. • Kabul, its surroundings and the Northern Region consume over 55 percent of the total volume of imported petroleum products. • Kabul generates 35% of its electricity from diesel - all funded by USAID…

  42. National Economic Implications The envisioned Afghan soybean industry and using soybean derived vegetable oil used as a diesel fuel production feedstock replacement has the potential to transform the prospects for many poor, rural Afghans… 500 Fuel Reactors installed throughout rural Afghanistan could produce approximately 35 million gallons of diesel fuel. This volume of diesel production would represent approximately $70 million dollars in sales revenue and replace most of Afghanistan’s diesel imports at 2004 levels. Loan capital required for 500 systems would be approximately $90 million dollars. $70 million dollars of economic income usually results in a 7 to 1 multiplication in economic activity. At this rate, 500 Fuel Reactors installed throughout rural Afghanistan could potentially result in $500 million dollars of economic activity. Adding this much economic activity into the rural communities would result in the tripling of the average rural Afghan’s per capita income, from the current level of: $1 per day or $365 per year to $3 per day or $1,095 per year.

  43. What are the first steps establishing an MFRFP program? …roll out Micro Finance and Carbon program, install MFRFP equipment into rural communities… R&D Effort needed to investigate crop availability and suitability for area in need of Economic Development… Capital and personnel are needed to establish a Vegetable Oil Uplift System Center of Excellence in the region…

  44. Military patrols are the keystone customer The military patrols made into remote regions in Afghanistan can be used as a keystone customer base to help speed up getting rural fuel platforms installed around the country. Rural villagers have an economic interest in helping the military patrols arrive at remote villages safely to buy their fuel. Locally produced diesel can reduce the price the military pays for fuel at the front line and reduces the amount of fuel that has to be sent into Afghanistan via vulnerable fuel convoys.

  45. Village Scale Deployment A military commander who is looking to win over a village in his area can provide a reactor in return for the villagers providing fuel for his patrol vehicles… The military can establish an economic link between their patrols and the villagers economic income. The more the military show up, the more fuel they can buy, the richer the villagers become and the more information on the insurgency that can be gleaned from this regular contact. The more the military show up, the more the villagers will reject the insurgent influence and the more secure the village will become. The military become associated with village well being, security and economic prosperity, not the mayhem and destruction of the insurgency. Expand program to other villages once model perfected…

  46. If successful…install seed crush equipment …supply with raw oil seeds… How to start? Identify a local US commander that is willing to pilot the concept, that works with a suitable local community… Install one Rural Fuel Reactor…supply with vegetable oil…sell fuel to a regular military patrol… If successful…local farmers will see seeds being processed in their community and will feel confident planting for the next season to meet this local oil seed demand.

  47. Thank you for your time. If you have any questions, please feel free to contact: Peter Bell at: 972-948-8355 info@mfrfp.com http://www.mfrfp.org
