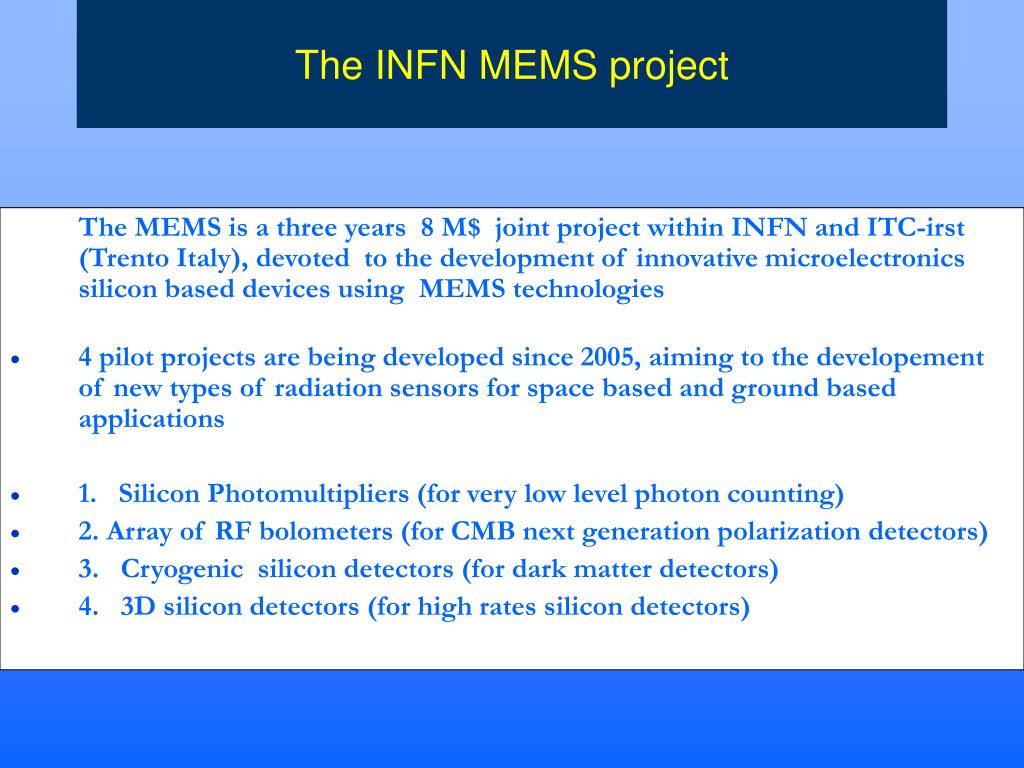

2. The INFN MEMS project The MEMS is a three years 8 M$ joint project within INFN and ITC-irst (Trento Italy), devoted to the development of innovative microelectronics silicon based devices using MEMS technologies 4 pilot projects are being developed since 2005, aiming to the developement of new types of radiation sensors for space based and ground based applications 1. Silicon Photomultipliers (for very low level photon counting) 2. Array of RF bolometers (for CMB next generation polarization detectors) 3. Cryogenic silicon detectors (for dark matter detectors) 4. 3D silicon detectors (for high rates silicon detectors)

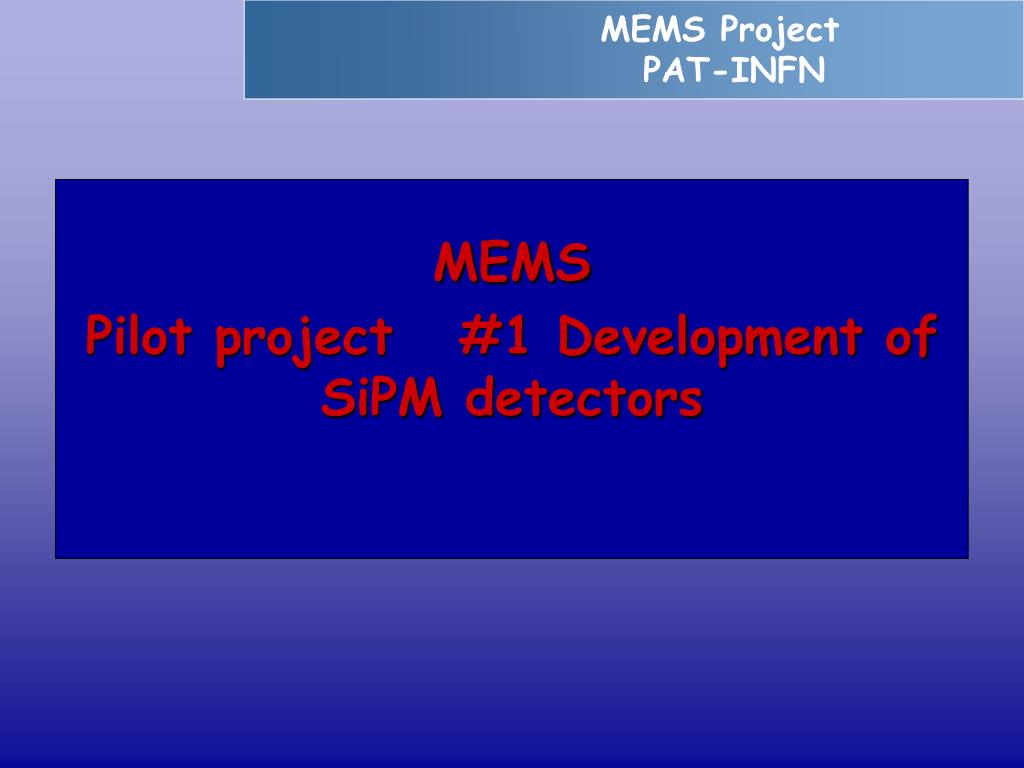

3. MEMS Project PAT-INFN MEMS Pilot project #1 Development of SiPM detectors

4. Front contact Out Current (a.u.) h Rquenching Two pixels fired Al Threepixels fired One pixel fired ARC n+ n pixels n+ p p  p+ silicon wafer Back contact Time (a.u.) - Vbias -Vbias What is a SiPM ? • matrix of n microcells in parallel • each microcell: GM-APD + Rquenching • originally developed by russian • groups The advantage of the SiPM in comparison with GM-APD ANALOG DEVICE – the output signal is the sum of the signals from all fired pixels SiPM – photon detector candidate for many future applications N. Dinu (Elba 2006)

5. S. Haino (INFN Perugia)

6. S. Haino (INFN Perugia)

7. A look on photon detectors characteristics N. Dinu (Elba 2006)

8. Silicon Photomultiplier for the redout of a space born particle detector (Perugia and Rome 2 INFN)-> 2005 first time in space! <-

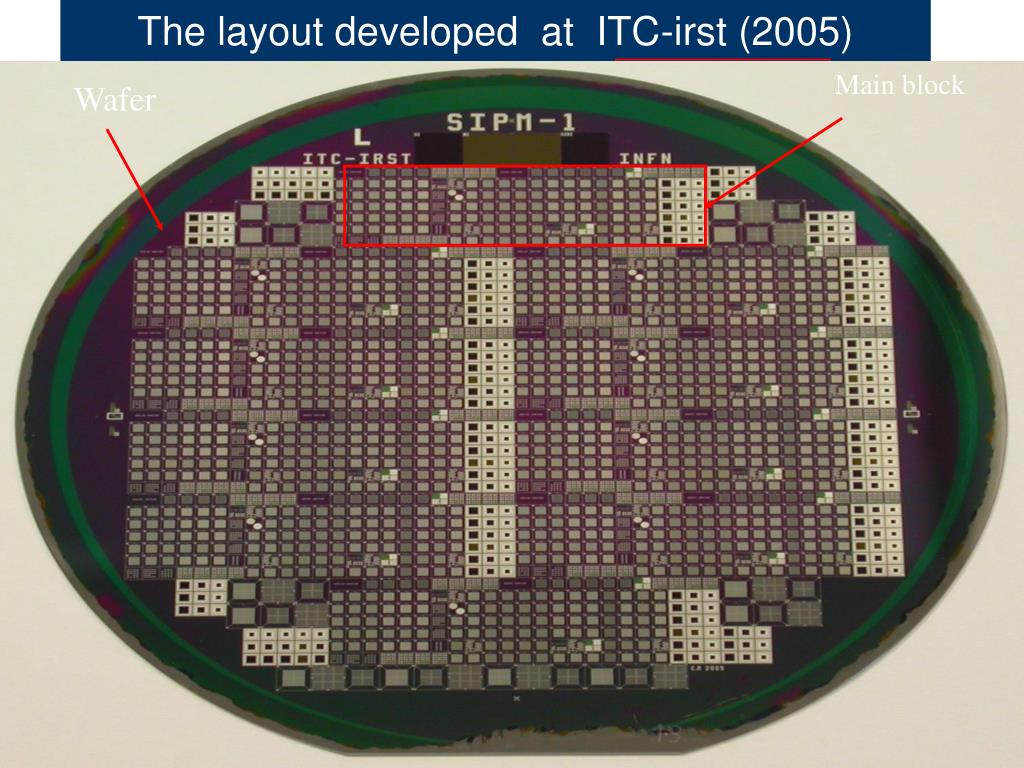

9. The layout developed at ITC-irst (2005) Main block Wafer p n+ Technology • Carachteristics • 1) Very thin window • 2) Optimized for the UV (420 nm) Geometry 1mm Current structure: - pixel 1x1 mm2 - 25x25 microcells - single microcell: 40x40mm2 1mm Geometry not yet optimized (geometrical factor today~ 30%) => to reach 45%

10. Characterization • Reverse IV measurement • fast test to verify functionality and uniformity of the properties. • (Performed on more than 1000 devices • coming from 3 different batches) • Dynamic characterization in the dark • for a complete characterization of the output signal and • noise properties (signal shape, gain, dark count, optical cross-talk, after-pulse) • (performed on ~100 devices, coming from 2 different batches) • Photodetection efficiency • Energy resolution of SiPM coupled with LSO • Timing performance

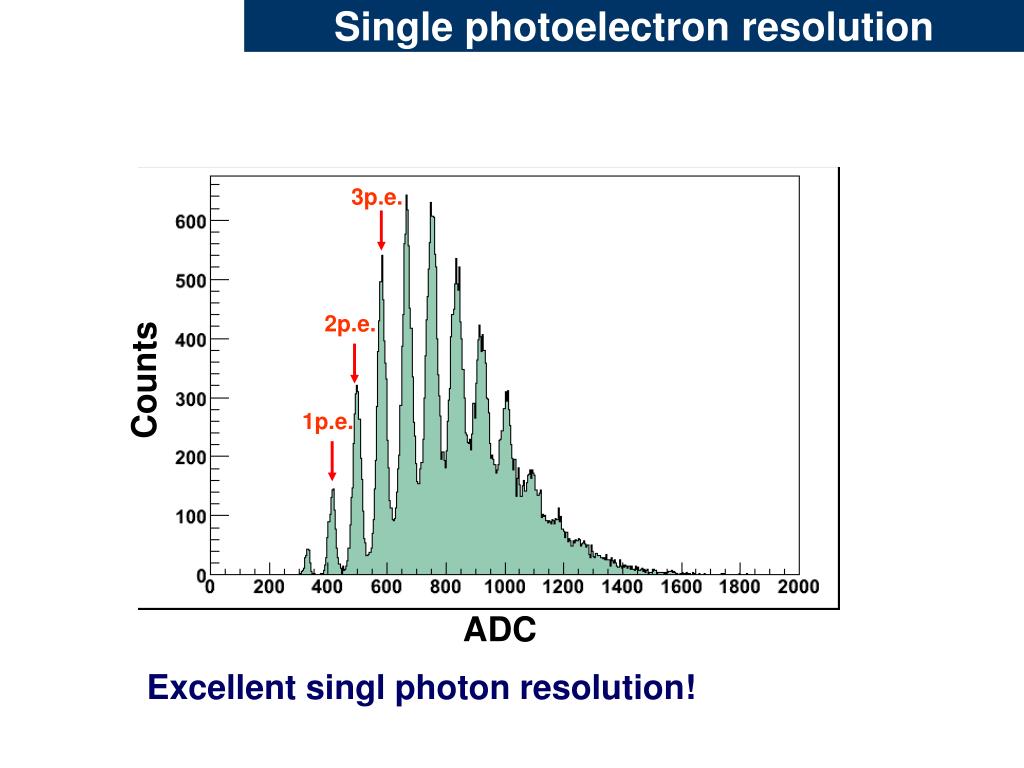

11. Single photoelectron resolution 3p.e. 2p.e. Counts 1p.e. ADC Excellent singl photon resolution!

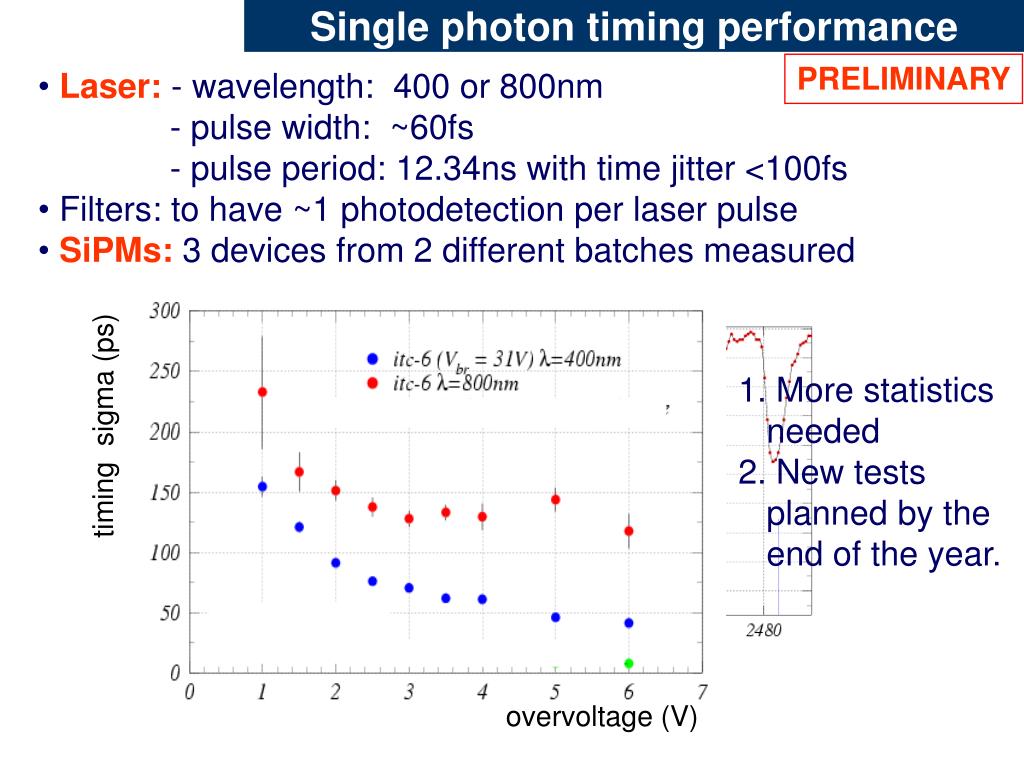

12. Single photon timing performance 12.34ns PRELIMINARY • Laser: - wavelength: 400 or 800nm • - pulse width: ~60fs • - pulse period: 12.34ns with time jitter <100fs • Filters: to have ~1 photodetection per laser pulse • SiPMs: 3 devices from 2 different batches measured 1. More statistics needed 2. New tests planned by the end of the year. timing sigma (ps) overvoltage (V)

13. Photodetection efficiency 4V 3.5V 3V 2.5V DV=2V long l: low PDE because low QE short l: low PDE because avalanche is triggered by holes Reduced by ARC Reduced by small epi thickness 0.16 0.14 0.12 0.10 0.08 0.06 0.04 0.02 0 Geometrical Factor ~ 20% Why this shape? PDE=QE*Pt*GF PDE QE=quantum eff. Pt=avalanche prob. GF=geometrical factor 350 400 450 500 550 600 650 700 750 800 QE vs Wavelength Measured on a diode

14. Micro-pixel: 40x40mm2 Fill factor: 42% 1x1 mm2, 1.2 mm Ø Single SiPMs Micro-pixel: 50x50mm2 Fill factor: 50% QE*pt ~ 60% @ 400 nm  PDE ~ 28 – 45 % @ 400 nm Micro-pixel: 100x100mm2 Fill factor: 76% 1x1 mm2, 2x2 mm2

15. New Perugia Wafer layout (  march 2007) • It includes: • square SiPMs with area: • - 1x1mm2 • - 2x2mm2 • - 3x3mm2 • - 4x4mm2 • circular SiPMs • linear arrays of SiPMs: • - 1x8 • - 1x16 • - 1x32 • - 4x4 matrix of SiPMs

16. Scientific applications Exploit your imagination ! Replace PM on Scintillator readout for triggering and timing (eg. in space, medical) UV light detection from space Cerenkov imaging for fast topological triggers Fiber tracking Calorimetry ……………..

17. SiPM + Scintillator (DaSiPM) PRELIMINARY SiPM Geom factor ~ 20% • Measurement set up: • 1x1mm2 SiPM • 1x1x10mm3 LSO • scintillator (lpeak=420nm) • Two SiPM, each one equipped • with a LSO finger crystal • directly positioned on the SiPM • Measurement in Coincidence • with a b+emitting 22Na • source (2 g at 511keV) 1) Set up could be optimized 2) Geom factor to be optimized! ResFWHM ~ 29% New tests on 2x2 matrices are ongoing SiPM Geom factor ~ 30% ResFWHM ~ 21%

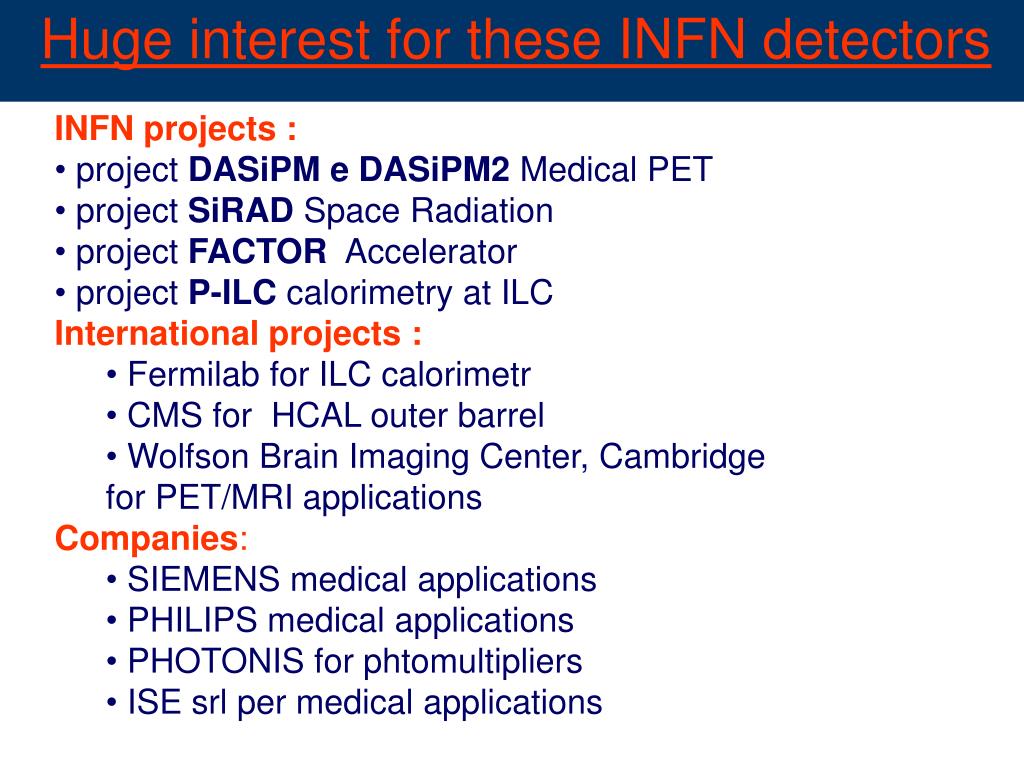

20. Huge interest for these INFN detectors • INFN projects : • project DASiPM e DASiPM2 Medical PET • project SiRAD Space Radiation • project FACTOR Accelerator • project P-ILC calorimetry at ILC • International projects : • Fermilab for ILC calorimetr • CMS for HCAL outer barrel • Wolfson Brain Imaging Center, Cambridge • for PET/MRI applications • Companies: • SIEMENS medical applications • PHILIPS medical applications • PHOTONIS for phtomultipliers • ISE srl per medical applications

21. Pubblicazioni INFN/ITC-irst (2006-2007) • C. Piemonte “A new silicon photomultiplier structure for blue light detection” • NIMA 568 (2006) 224-232 • S. Moehrs et al. “Detector head design for small animal PET with Silicon • Photomultiplier (SiPM)”, Physics in Medicine and Biology 51(2006) 1113-27. • D.J.Herbert et al.”First results of scintillator readout with Silicon Photomultiplier” • IEEE Trans Nucl Sci 53(1), 2006,389-394. • D.J.Herbert et al. “Study of SiPM as a photodetector for scintillator readout” • NIMA (2006) in press. • C. Piemonte et al. “Characterization of the first prototypes of silicon • photomultipliers produced at ITC-irst” to appear on IEEE TNS February 2007 • D.J.Herbert et al. “The Silicon Photomultiplier in high resolution gamma • camera for PET applications” NIMA (2007) to be published. • N. Dinu et al. “Development of the first prototypes of SiPM at ITC-irst" • NIMA (2007) to be published • F.Corsi et al “ Modelling a Silicon Photomultiplier (SiPM) as a signal source for • optimum front-end design” NIMA (2007) to be published • G. Llosa et al. “Novel silicon photomultipliers for PET application” • CD Conference Records IEEE NSS and MIC 2006 • C. Piemonte et al. “New results on the characterization of ITC-irst silicon • photomultipliers” CD Conference records IEEE NSS and MIC 2006 • C.Mazzocca et al.”Electrical Characterization of Silicon Photomultiplier • detectors for optimal fornt-end design” CD Conference Records IEEE NSS • and MIC 2006

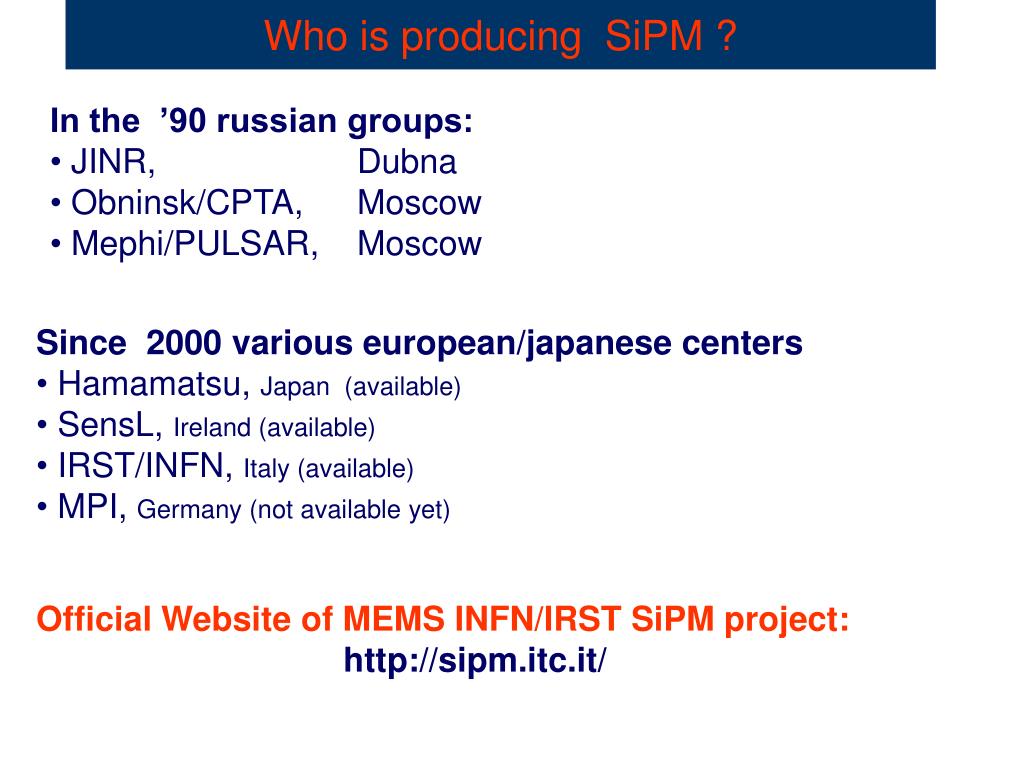

22. Who is producing SiPM ? • In the ’90 russian groups: • JINR, Dubna • Obninsk/CPTA, Moscow • Mephi/PULSAR, Moscow • Since 2000 various european/japanese centers • Hamamatsu, Japan (available) • SensL, Ireland (available) • IRST/INFN, Italy (available) • MPI, Germany (not available yet) • Official Website of MEMS INFN/IRST SiPM project: • http://sipm.itc.it/

23. Final comments A look to the future ……possible areas for collaboration among AMES and INFN ……….more and more integration among detectors and readout  3D electronics

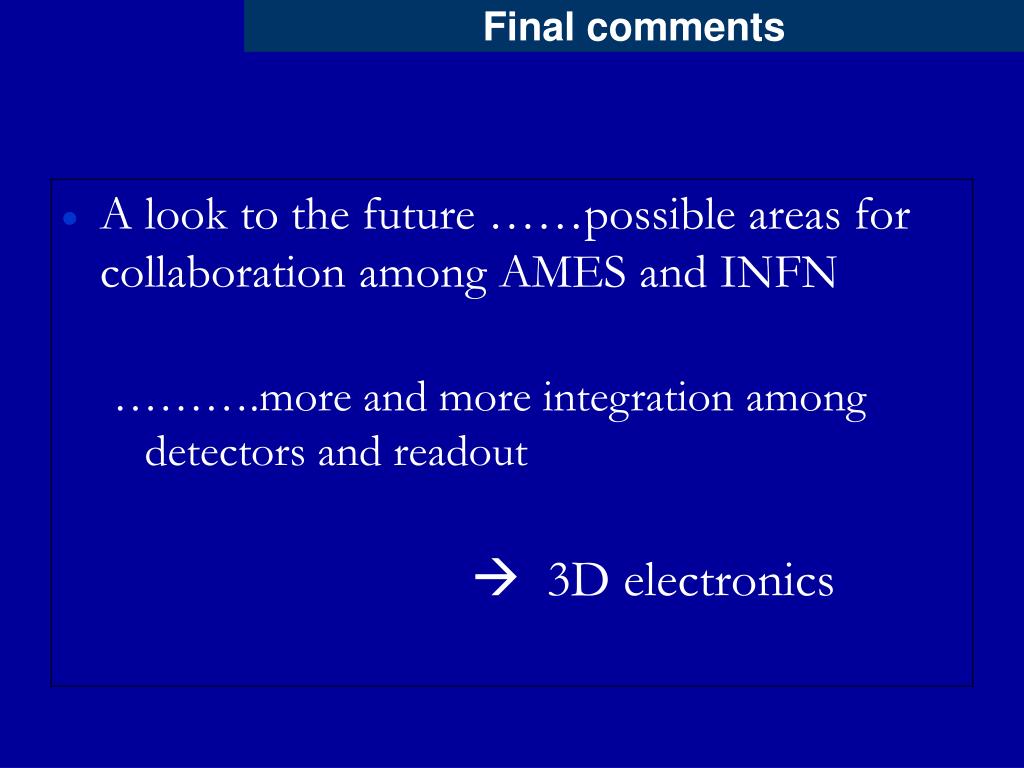

24. R. Yarema

25. R. Yarema

26. R. Yarema

30. R. Yarema

32. Conclusions MEMS detectors coupled with VLSI electronics, will be the basic blocks for more and more sensitive and compact detectors for ground based and space based applications where power and mass are of essence With the MEMS project INFN and I are developing some among the most interesting technologies in this field (SiPM, bolometeres arrays) INFN could collaborate with AMES on the future development in this field of intelligent compact detectors.
