  1. What is ImproNet?

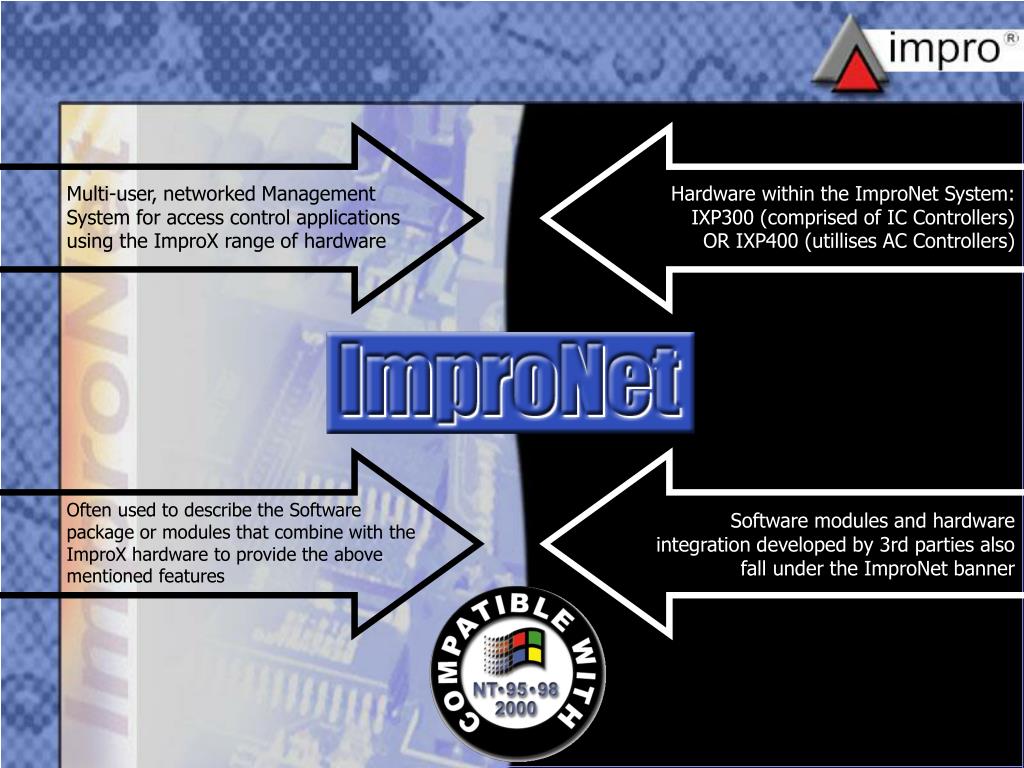

  2. Multi-user, networked Management System for access control applications using the ImproX range of hardware Hardware within the ImproNet System: IXP300 (comprised of IC Controllers) OR IXP400 (utillises AC Controllers) Often used to describe the Software package or modules that combine with the ImproX hardware to provide the above mentioned features Software modules and hardware integration developed by 3rd parties also fall under the ImproNet banner

  3. The ImproX Hardware Terminal Description & Features

  4. Available Hardware Resources: ImproX MT R/W core module, reads various types of tags: Slim (Read Only), Omega (Read Only), WriTag128 and WriTag2048 Single Bi-coloured LED (Configurable) Buzzer (Configurable) Uses in the ImproNet System: Reading tags Micro Terminal

  5. ImproX KT Available Hardware Resources: R/W core module, reads various types of tags: Slim (Read Only),Omega (Read Only), WriTag128 and WriTag2048 Unit is ABS moulded and fully potted Single Bi-coloured LED (Configurable) Buzzer (Configurable) 12- button keypad with backlighting Keypad Terminal

  6. Uses in the ImproNet System: ImproX KT Reading Tags PIN Code Entry Reason Code Entry Keypad Terminal

  7. Small compact R/W ImproX MH Available Hardware Resources: R/W core module, reads various types of tags: Slim (Read Only),Omega (Read Only), WriTag128 and WriTag2048 Single Bi-coloured LED (Configurable) Buzzer (Configurable) Uses in the ImproNet System: Harsh Environment Micro Terminal Reading tags

  8. Available Hardware Resources: ImproX KH R/W core module, reads various types of tags: Slim (Read Only),Omega (Read Only), WriTag128 and WriTag2048 Single Bi-coloured LED (Configurable) Buzzer (Configurable) 12- button keypad with backlighting Harsh Environment Keypad Terminal

  9. Uses in the ImproNet System: ImproX KH Reading Tags PIN Code Entry Reason Code Entry Harsh Environment Keypad Terminal

  10. Available Hardware Resources: ImproX DT 2 Input sensors 1 Relay Relay contact ratings:10A at 28V DC and 5A at 220 AC ImproX remote reader connects via the remote port Door Terminal

  11. Uses in the ImproNet System: ImproX DT Door open/ close sensing, RTE requests Alarm sensing General input sensing Magnetic lock or door strike control, Boom and gate control, Turnstile control Door Terminal

  12. ImproX KHR The ImproX DT can only support one remote reader

  13. ImproX MHR The ImproX DT can only support one remote reader

  14. ImproX KR The ImproX DT can only support one remote reader

  15. ImproX MR The ImproX DT can only support one remote reader

  16. ImproX RF The ImproX DT can only support one remote reader

  17. Available Hardware Resources: ImproX DR 4 Input sensors 4 Relays Relay contact ratings:10A at 28V DC and 5A at 220 AC Door Relay

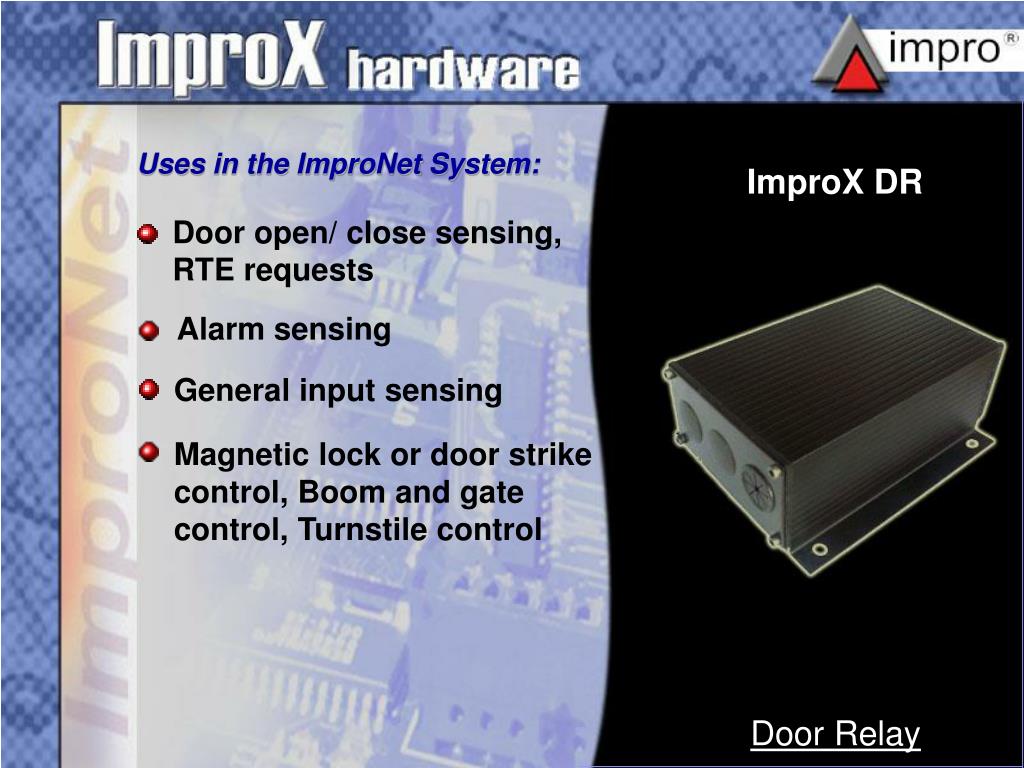

  18. Uses in the ImproNet System: ImproX DR Door open/ close sensing, RTE requests Alarm sensing General input sensing Magnetic lock or door strike control, Boom and gate control, Turnstile control Door Relay

  19. Available Hardware Resources: ImproX DL R/W core module, reads various types of tags: Slim (Read Only),Omega (Read Only), WriTag128 and WriTag2048 Single Bi-coloured LED (Configurable) Buzzer (Configurable) 20- button keypad LCD Terminal

  20. 4 Input sensors ImproX DL 4 Relays Relay contact ratings:10A at 28V DC and 5A at 220 AC LCD Display RS232 Peripheral Port LCD Terminal

  21. Uses in the ImproNet System: ImproX DL Reading Tags Door open/ close sensing, RTE requests Alarm sensing General input sensing Magnetic lock or door strike control T&A monitoring Messaging facilities LCD Terminal

  22. Available Hardware Resources: ImproX O16 16 RelaysRelay contact ratings:1A at 30V DC and2A at 125V AC Uses in the ImproNet System: Magnetic lock or door strike control, Boom and gate control, Turnstile control Output Unit

  23. Available Hardware Resources: ImproX I16 16 Input sensors Each input can be set for end of line sensing Uses in the ImproNet System: Door open/ close sensing Alarm sensing General input sensing Input Unit

  24. The ImproX Hardware Controllers

  25. Forms part of the IXP300 ImproNet System ImproX IC Upgrade option from the IXP200 16 door system Communicates with Terminals via a RS485 Terminal Bus port (Port 1) and communicates with other Controllers and the PC via the RS485 Host bus port (Port 2) IXP300 Controller

  26. Available Hardware Resources: ImproX IC 4 Input sensors 2 Relays Host Bus (Port 2) Terminal Bus (Port 1) LCD and 20-character keypad 8V DC to 36V DC power input. Polarity sensitive IXP300 Controller

  27. Forms part of the IXP400 ImproNet System ImproX AC Specified for any new ImproNet System Communicates with Terminals via a RS485 Terminal Bus port (Port 1) and communicates with other Controllers and the PC via the RS485 Host bus port (Port 2) IXP400 Controller

  28. Available Hardware Resources: ImproX AC Host Bus (Port 2) Terminal Bus (Port 1) Power input range, 8V DC to 36V DC (Model XAC900) LCD interface for system monitoring (Optional) IXP400 Controller

  29. No of controllers per system 16 64 No of tags supported per system 8000 Up to 160 000 Max no. of terminals per controller 48 64 Max no. of Locations per controller (doors) 16 64 Max no. of Zones per Controller (either APB or non APB) 16 64 Operating Voltage 8 – 36V DC 8 – 36V DC Controller comms baud rate (Port 2) 38400 38400 Terminal comms baud rate (Port 1) 38400 38400 No. of inputs None 4 No. of onboard relays 4 None Up to 500 000 (This amount is relative to the no. of tags in the database) 9000 No. of transactions buffered by controller Capable of storing 30 000 tags and 30 000 transactions as standard with the ability to upgrade to 160 000 tags and 160 000 transactions (potentially 500 000 transactions) ImproX Controller Comparrison IC Controller (IXP300) AC Controller (IXP400) ImproNet Controller

  30. Other ImproX Hardware

  31. Configuration 1 Configuration 2 IXP 300 IXP 300 ImproX HI RS232 RS232 RS232 ProxMate ProxMate

  32. The ImproX Hardware New Components Adding Increased Functionality

  33. Flash Memory ... Both the Controllers and Terminals utilise this memory.This allows for certain improvements on our previous systems 1 - The ability to store Logical Addresses Addressing Scheme: S S H H C C T T 0 1 0 1 0 1 0 3 2 - Remote Firmware Upgrade The ImproX hardware can be upgraded on site utilising the firmware upgrade utility ‘ImproX FU’. It is no longer necessary to replace EPROM‘s each time a firmware upgrade is required.

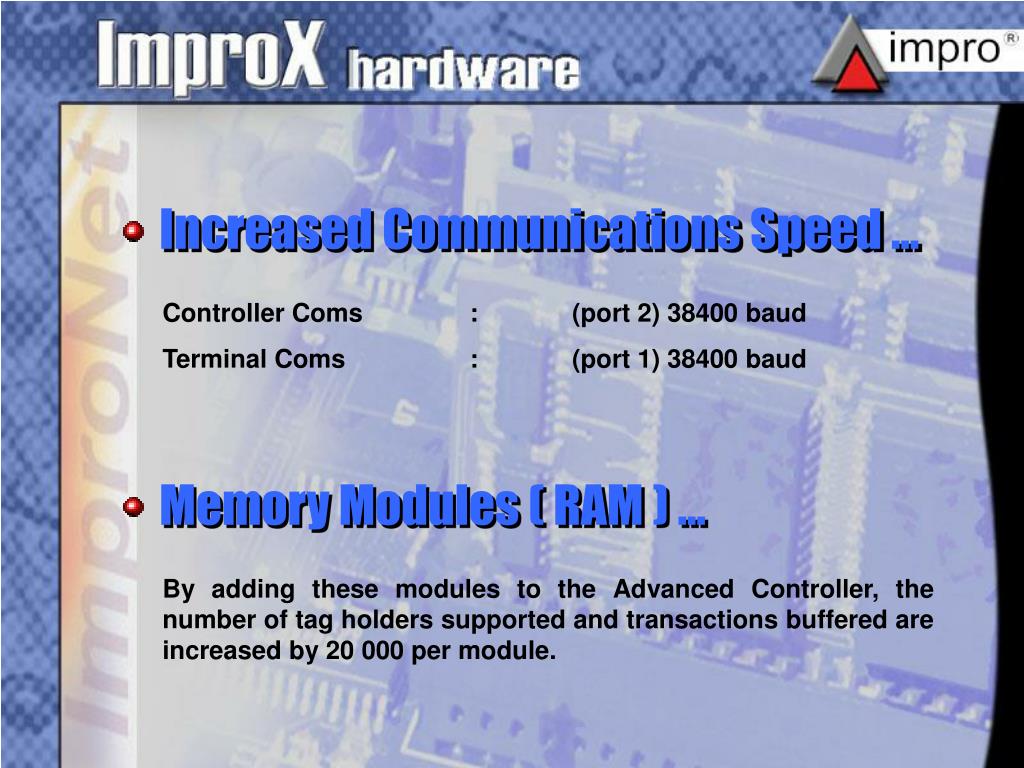

  34. Increased Communications Speed ... Memory Modules ( RAM ) ... Controller Coms : (port 2) 38400 baud Terminal Coms : (port 1) 38400 baud By adding these modules to the Advanced Controller, the number of tag holders supported and transactions buffered are increased by 20 000 per module.

  35. Switch Mode Power Supply ... Onboard Termination Resistors This Module provides an increased input range of 8V DC to36V DC on both Terminals and Controllers

  36. ImproX Hardware as a part of the ImproNet System Diagrams showing where the different hardware devices fit into the ImproNet System

  37. ImproX HI (included in Software Pack) IXP 300 Host Bus Port 2 (38400 Baud) RS485 Individual Controller Terminal Bus (RS485) RS232 RS232 ImproX IC ImproX IC ProxMate Up to 16 Controllers RS485 Terminal Bus Port 1 (38400 Baud) RS485 ImproX DT ImproX DT ImproX MT ImproX I16 ImproX DR ImproX KH ImproX DL ImproX DT ImproX DT ImproX DT ImproX MH ImproX KT ImproX O16 ImproX ER Extended Range Reader* ImproX KR ImproX KHR Up to 48 Terminals per Controller ImproX MR ImproX MHR ImproX RF 433 MHz Receiver (RF)* Tag Readers Input and Output Terminals Tag Reader + Input and Output Functions

  38. Maximum of 16 ImproX IC Controllers per System Maximum of 8000 Tags (Wri-Tag 128/2048 (in Read Only Mode), Slim and Omega supported) SYSTEM EACH CONTROLLER SUPPORTS Maximum of 16 Locations Maximum of 48 Terminals Maximum of 3 Terminals per location Maximum of 16 Zones (APB or Non-APB)The number of Zones is directly proportional to the number of Locations within the Zones. eg. If there were 2 Locations per Zone, the Controller would only be able to support 8 Zones. Buffering of 9000 transactions Configuration Rules

  39. ImproX HI (included in Software Pack) IXP 400 Host Bus Port 2 (38400 Baud) RS485 Memory Modules as per individual User needs Individual Terminal Bus Individual Terminal Bus Individual Terminal Bus RS232 RS232 ProxMate ImproX AC ImproX AC ImproX AC ImproX AC RS485 Up to 64 Advanced Controllers Terminal Bus Port 1 (38400 Baud) RS485 ImproX DT ImproX DT ImproX MT ImproX I16 ImproX DR ImproX KH ImproX DL ImproX DT ImproX DT ImproX DT ImproX MH ImproX KT ImproX O16 ImproX ER Extended Range Reader* ImproX KR ImproX KHR Up to 64 Terminals per Controller ImproX MR ImproX MHR ImproX RF 433 MHz Receiver (RF)* Full Read / Write Terminals Input and Output Terminals Tag Reader + Input and Output Functions

  40. Maximum of 64 ImproX AC Controllers per System Maximum of 160,000 Tags (Wri-Tag 128/2048, Slim and Omega supported) SYSTEM Maximum of 64 Locations (The maximum number of Locations is dependent on the number of Terminals per Location. The Controller cannot support more than 64 Terminals, therefore if 3 Terminals are needed per Location, there would only be support for 21 Locations off the particular Controller) Maximum of 64 Terminals Maximum of 3 Terminals per Location Maximum of 64 Zones (APB or Non-APB)The number of Zones is directly proportional to the number of Locations within the Zones. eg. If there were 2 Locations per Zone, the Controller would only support 32 Zones. Buffering of 500,000 transactions EACH CONTROLLER SUPPORTS Configuration Rules

  41. ImproX Hardware as a part of the ImproNet System Installation / Wiring Diagrams

  42. The Grouping of ImproX Terminals to Form Zones and Locations Diagrams illustrating the different combinations of Terminals

  43. To RS232 / RS485 Convertor Host Bus Port 2 (38400 Baud) RS485 To other Controllers (Max. 16) Terminal Bus ImproX IC OR Firmware Upgrade from IXP200 System ImproX KT Keypad Terminal ImproX MT Micro Terminal ImproX KH Harsh Environment Keypad Metal Reader ImproX MT Micro Terminal 1 1 2 2 3 3 4 4 8 - 36 V DC power in Power to Lock ZONE A 4 relays The 4 digital inputs could be used for RTE buttons or to monitor door open sensing 4 inputs Power to Lock Door Strike ImproX DR Door Relay Terminal Door Strike LOCATION 1 LOCATION 2 1 relay 1 relay Power to Lock 1 input ImproX MT Micro Terminal ImproX MR Micro Remote Reader 4 inputs ZONE B ZONE C ImproX DT Door Terminal ImproX DT Door Terminal ImproX KHR Read/Write Metal Keypad Remote Reader Door Strike RTE Push Button Could be used to exit Door Strike LOCATION 3 LOCATION 4 Location & Zone Configuration An IXP300 system is usually configured as an upgrade of an IXP200

  44. The Grouping of ImproX Terminals to Form Zones and Locations Discuss the different configuration rules

  45. ImproNet Software Standard ImproNet Modules

  46. ImproNet Access Vending Machine Control Asset Control ImproNet Alarms ImproNet Engine Canteen Management Job Costing ImproNet Building Graphics ImproNet Transaction Viewer Impronet.gdb Time & Attendance Building Management ImproNet QuickTag ImproNet Visitors ImproNet CCTV Open Database Modules written by Impro Modules written by Partners

  47. ImproNet Software Possible Modules Developed by 3rd Parties

  48. The Different Modules and Their Function Within the ImproNet System

  49. ImproNet Access Configuration Module
