Introduction to the Microscope

malaya avatar
malaya
27 diapositives · 607 Views · Aug 02, 2014

Introduction to the Microscope. History Types Care Parts Focusing. Who invented the microscope?. Diggs? Hans and Zcharias Janssen?. Who really used the microscope?. Antony van Leeuwenhook. Robert Hooke. He figured out that living things are made of cells. Types of Microscopes.

#introduction to the microscope #introduction to the microscope ppt #powerpoint #presentation
Introduction to the Microscope - slide 1
01 / 27Introduction to the Microscope
1 / 17

Télécharger la présentation

Introduction to the Microscope
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

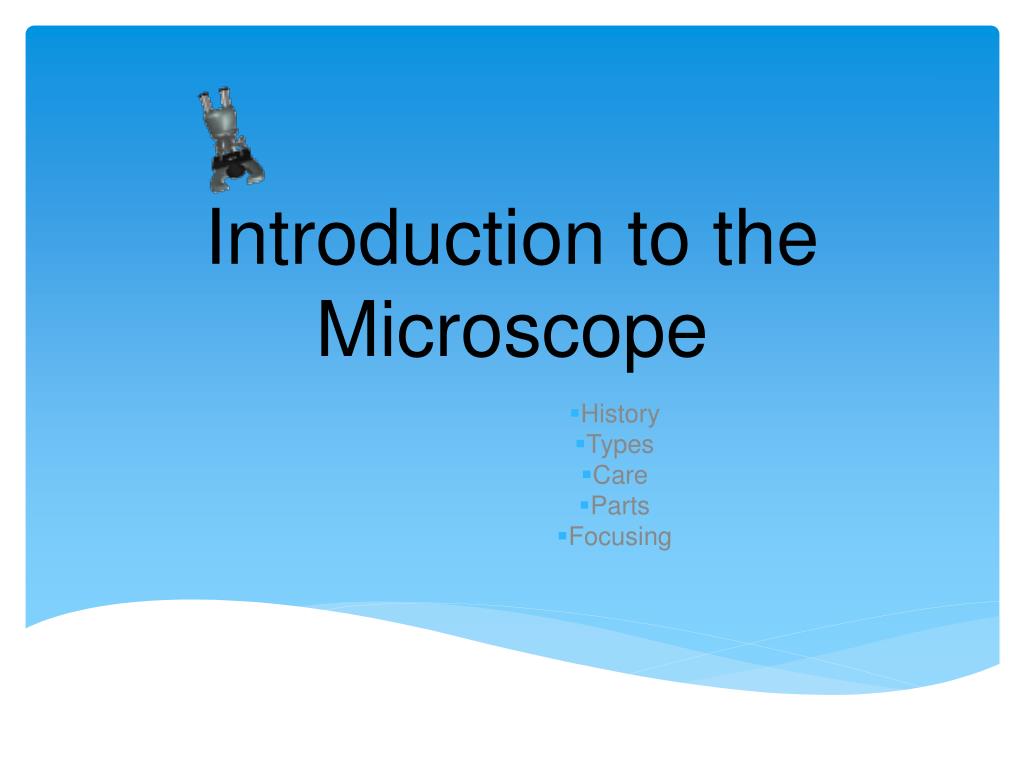

  1. Introduction to the Microscope History Types Care Parts Focusing

  2. Who invented the microscope? Diggs? Hans and Zcharias Janssen?

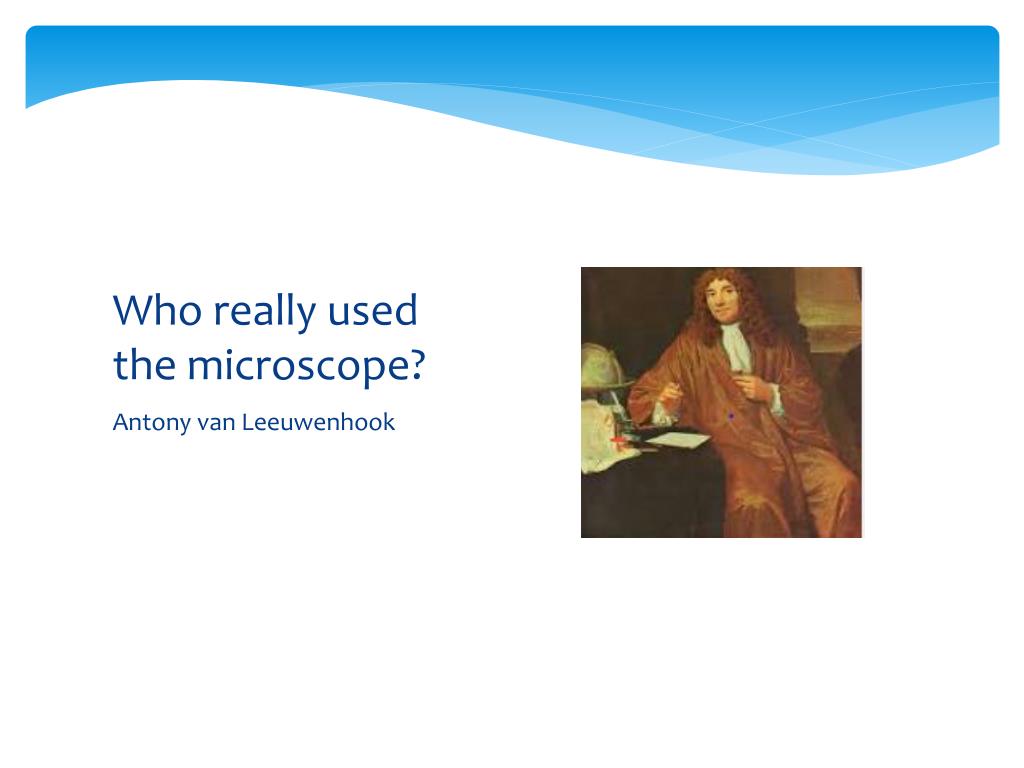

  3. Who really used the microscope? Antony van Leeuwenhook

  4. Robert Hooke He figured out that living things are made of cells.

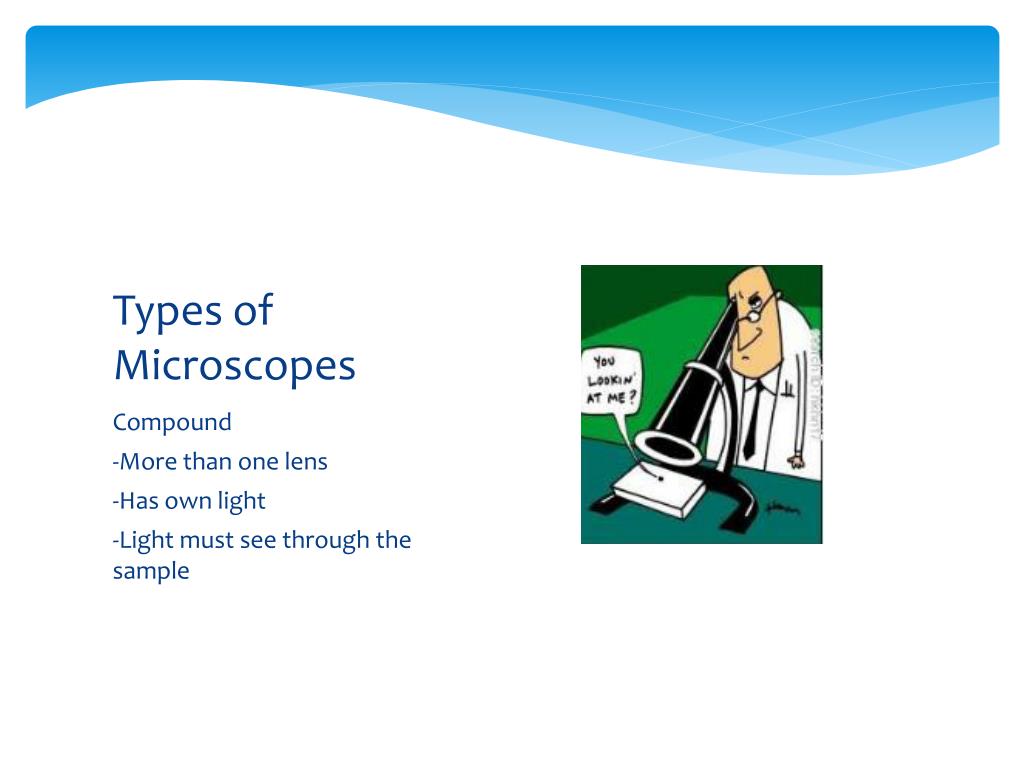

  5. Types of Microscopes Compound -More than one lens -Has own light -Light must see through the sample

  6. Types of Microscopes Stereomicroscope/Dissecting -Do not need light to pass through object -Low magnification

  7. Types of Microscopes Electron -Very powerful -Passes electrons through an object rather than light -Coat with gold or platinum to attract particles

  8. Label the parts on your microscope picture. Eyepiece/ocularlensmagnification = 10X

  9. Label the parts on your microscope picture. Eyepiece/ocularlensmagnification = 10X Arm-Support

  10. Label the parts on your microscope picture. Eyepiece/ocularlensmagnification = 10X Arm-Support Stage - support

  11. Label the parts on your microscope picture. Eyepiece/ocularlensmagnification = 10X Arm-support Stage - support

  12. Label the parts on your microscope picture. Eyepiece/ocularlensmagnification = 10X Arm-support Stage - support Coarse adjust – general focus Fine Focus –medium and high power focus

  13. Label the parts on your microscope picture. Eyepiece/ocularlensmagnification = 10X Arm-Support Stage - support Coarse adjust – general focus Fine Focus – medium andhigh power focus Base -support

  14. Label the parts on your microscope picture. Eyepiece/ocularlensmagnification = 10X Arm-Support Stage - support Coarse adjust – general focus Fine Focus –high power focus Light source Base -support

  15. Label the parts on your microscope picture. Eyepiece/ocularlensmagnification = 10X Arm-Support Stage - support Coarse adjust – general focus Diaphragm – adjusts amount of light Fine Focus –high power focus Light source Base -support

  16. Label the parts on your microscope picture. Eyepiece/ocularlensmagnification = 10X Arm-Support Stage - support Stage clips – holds slide Coarse adjust – general focus Diaphragm – adjusts amount of light Fine Focus –high power focus Light source Base -support

  17. Label the parts on your microscope picture. Eyepiece/ocularlensmagnification = 10X Arm-Support Objective Lenses Stage - support Stage clips – holds slide Coarse adjust – general focus Diaphragm – adjusts amount of light Fine Focus –medium and high power focus Light source Base -support

  18. Label the parts on your microscope picture. Body Tube Eyepiece/ocularlensmagnification = 10X Revolving nosepiece Arm-Support Objective Lenses Stage - support Stage clips – holds slide Coarse adjust – general focus Diaphragm – adjusts amount of light Fine Focus –high power focus Light source Base -support

  19. Eyepiece Objective Lens Magnification Low Power 10X 4X 40X Medium Power 10X 10X 100X High Power 10X 40X 400X • Magnification of a Compound Microscope • Because you are looking through multiple lenses the lenses have a “compounding” effect. • The eyepiece always magnifies 10X

  20. FIELD OF VIEW The circular area viewed through the eyepiece.Magnification – The number of times the image of an object is increased insize by a lens system

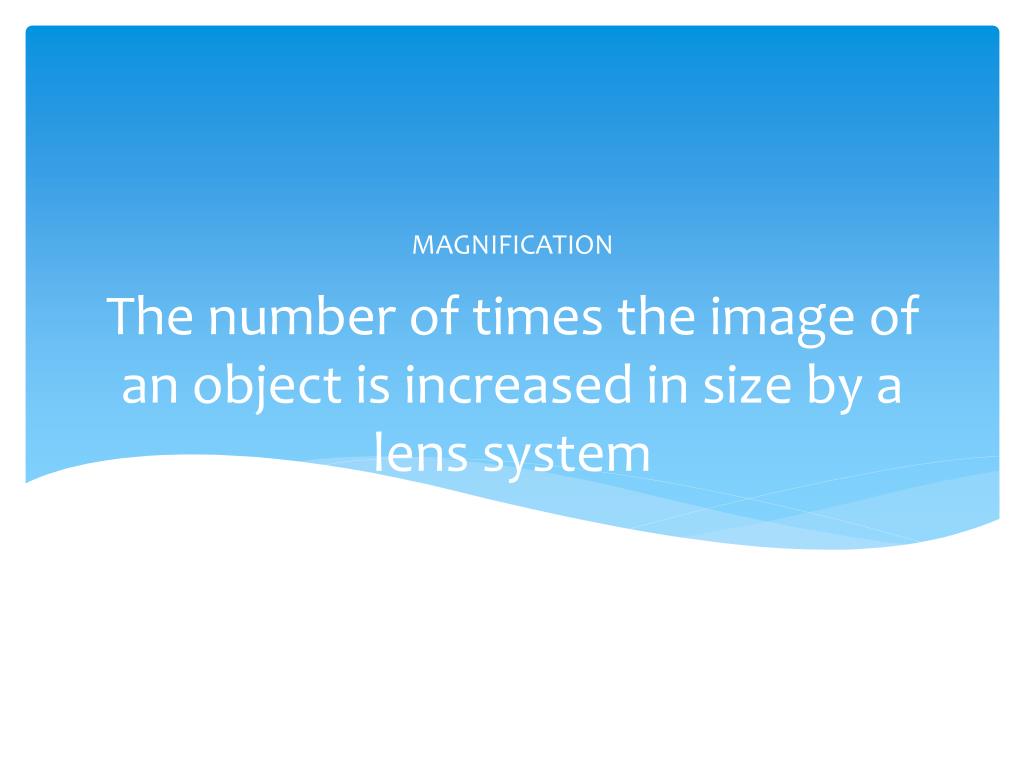

  21. MAGNIFICATION The number of times the image of an object is increased in size by a lens system

  22. Microscope Care Always carry with 2 hands – one on the base and the other on the arm Do not force knobs Click Nosepiece to the lowest (shortest) setting when done – otherwise known as the park position Cover the microscope when done

  23. Using the Microscope • Place the Slide on the Microscope • Use Stage Clips • Click Nosepiece to the lowest (shortest) setting • Look into the Eyepiece • Use the Coarse Focus

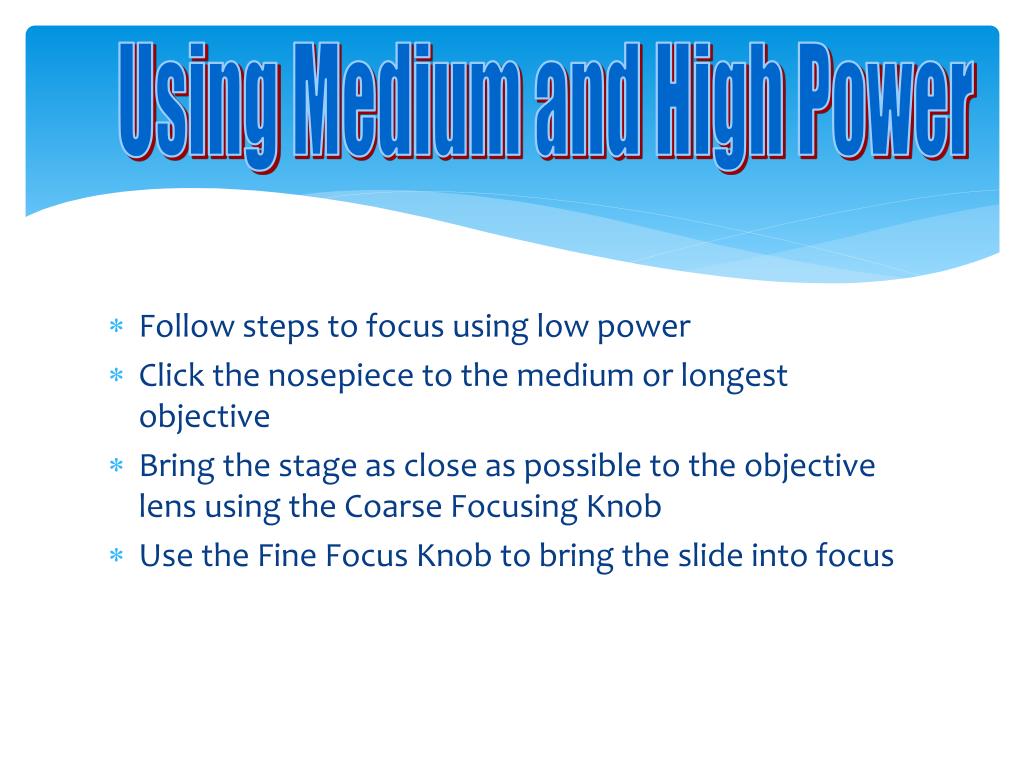

  24. Using Medium and High Power Follow steps to focus using low power Click the nosepiece to the medium or longest objective Bring the stage as close as possible to the objective lens using the Coarse Focusing Knob Use the Fine Focus Knob to bring the slide into focus
