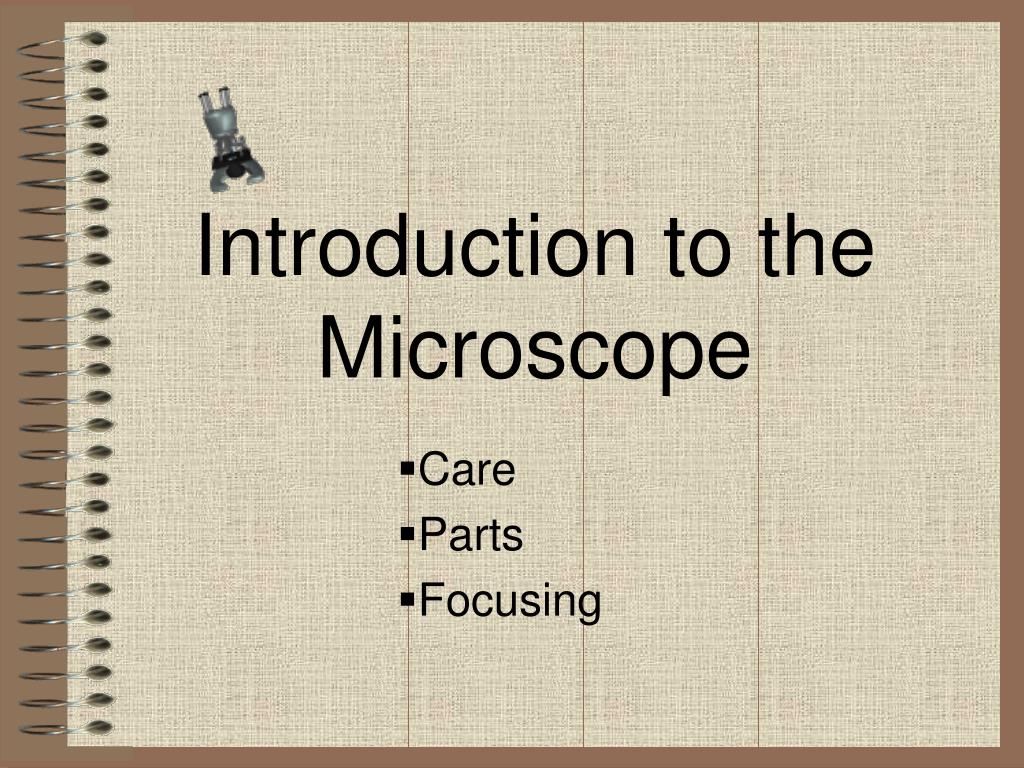

  1. Introduction to the Microscope Care Parts Focusing

  2. We can see better details with higher the powers of magnification, but we cannot see as much of the image. Why Use a Microscope?

  3. We can See Tiny Objects Like These Blood Cells

  4. Microscope Parts Eyepiece BodyTube RevolvingNosepiece Arm ObjectiveLens Stage StageClips CoarseFocus Diaphragm FineFocus Light Base

  5. Microscope Care • Always carry with 2 hands • Only use lens paper for cleaning • Do not force knobs • Always store covered • Keep objects clear of desk and cords

  6. Magnification Your microscope has 3 magnifications: Scanning (lowest power), Low and High. Each objective will have written the magnification. In addition to this, the ocular lens (eyepiece) has a magnification. The total magnification is the ocular lens power times the objective power.

  7. Using the Microscope • Place the Slide on the Microscope • Use Stage Clips • Click Nosepiece to the lowest (shortest) setting • Look into the Eyepiece • Use the Coarse Focus

  8. Using High Power • Follow steps to focus using the scanning objective with the lowest power. • Click the nosepiece to the longest objective • Do NOTuse the Coarse Focusing Knob • Use the Fine Focus Knob to bring the slide
