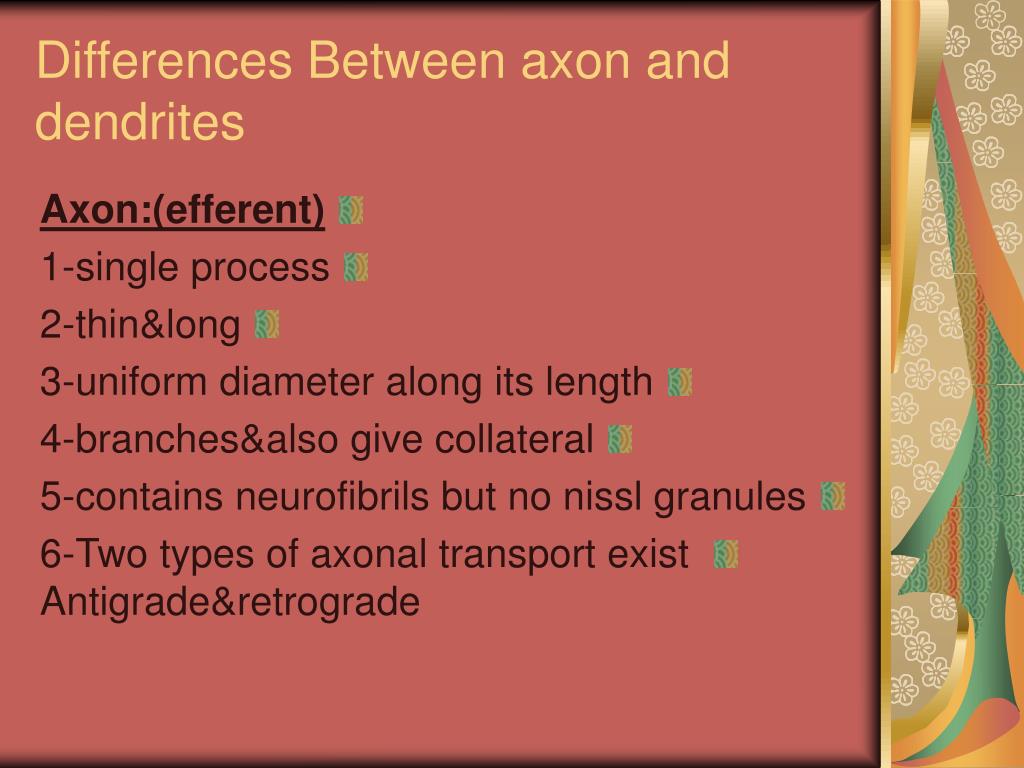

1. Differences Between axon and dendrites • Axon:(efferent) • 1-single process • 2-thin&long • 3-uniform diameter along its length • 4-branches&also give collateral • 5-contains neurofibrils but no nissl granules • 6-Two types of axonal transport exist Antigrade&retrograde

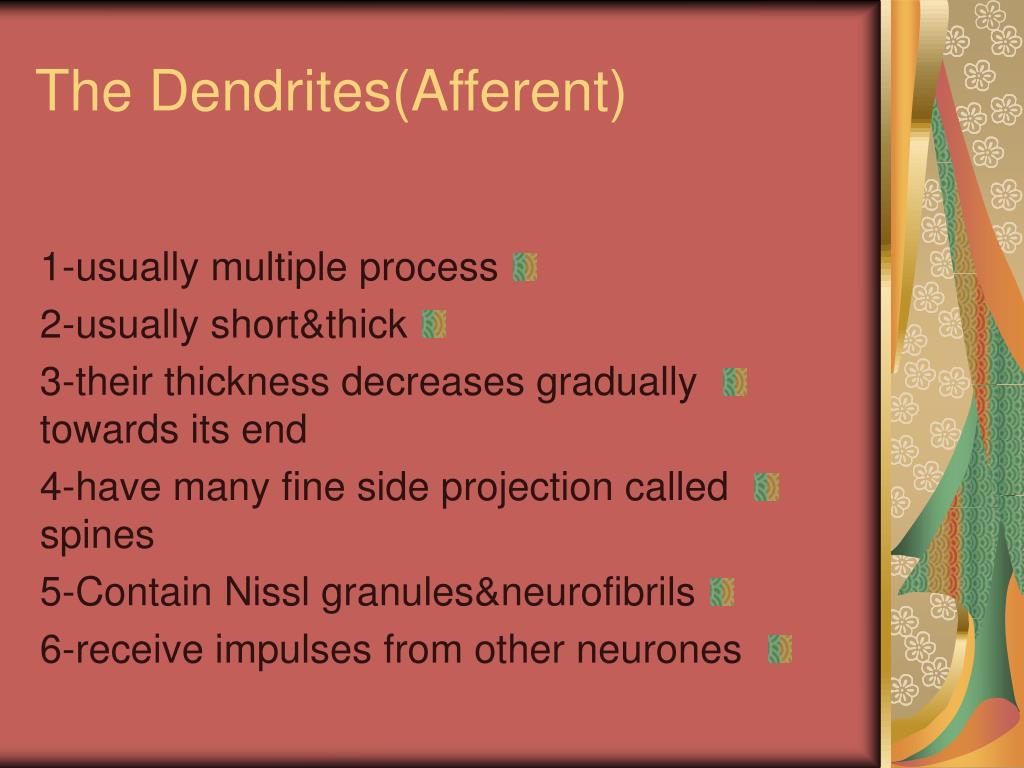

2. The Dendrites(Afferent) • 1-usually multiple process • 2-usually short&thick • 3-their thickness decreases gradually towards its end • 4-have many fine side projection called spines • 5-Contain Nissl granules&neurofibrils • 6-receive impulses from other neurones

3. The Axon • Formed of cytoplasm known as axoplasm containing • mitochondria,neurofibrils&neurotubule • surround by membrane(axolemma)

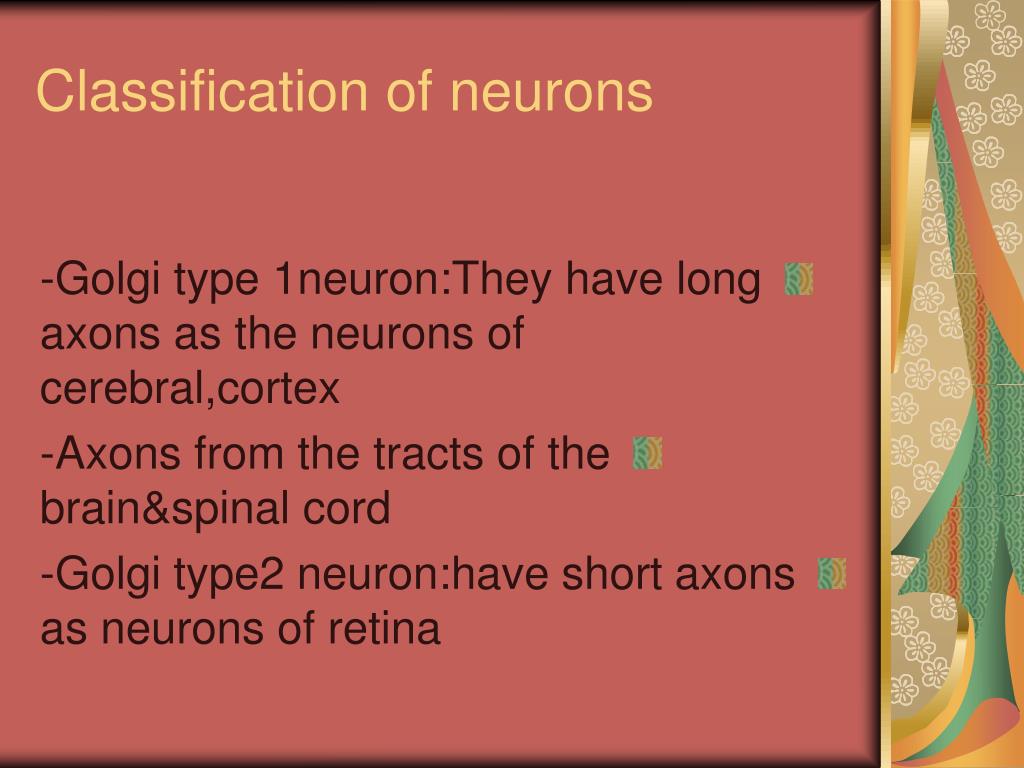

4. Classification of neurons • -Golgi type 1neuron:They have long axons as the neurons of cerebral,cortex • -Axons from the tracts of the brain&spinal cord • -Golgi type2 neuron:have short axons as neurons of retina

5. Classified axon according to covering sheates • -The axon covered with myelin sheath or neurolemma • -1-Naked nerve axons without amyelin sheath without aneurolemma as found in grey matter • -2-covered with myelin sheats but without neurolemma found in whait matter

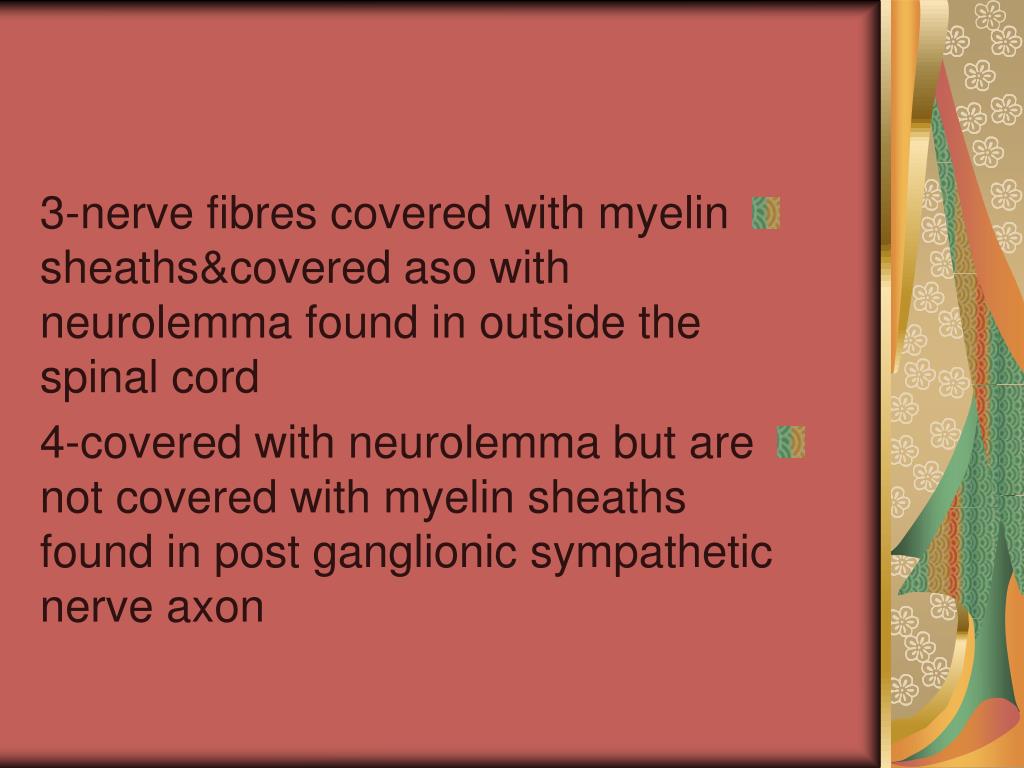

6. 3-nerve fibres covered with myelin sheaths&covered aso with neurolemma found in outside the spinal cord • 4-covered with neurolemma but are not covered with myelin sheaths found in post ganglionic sympathetic nerve axon

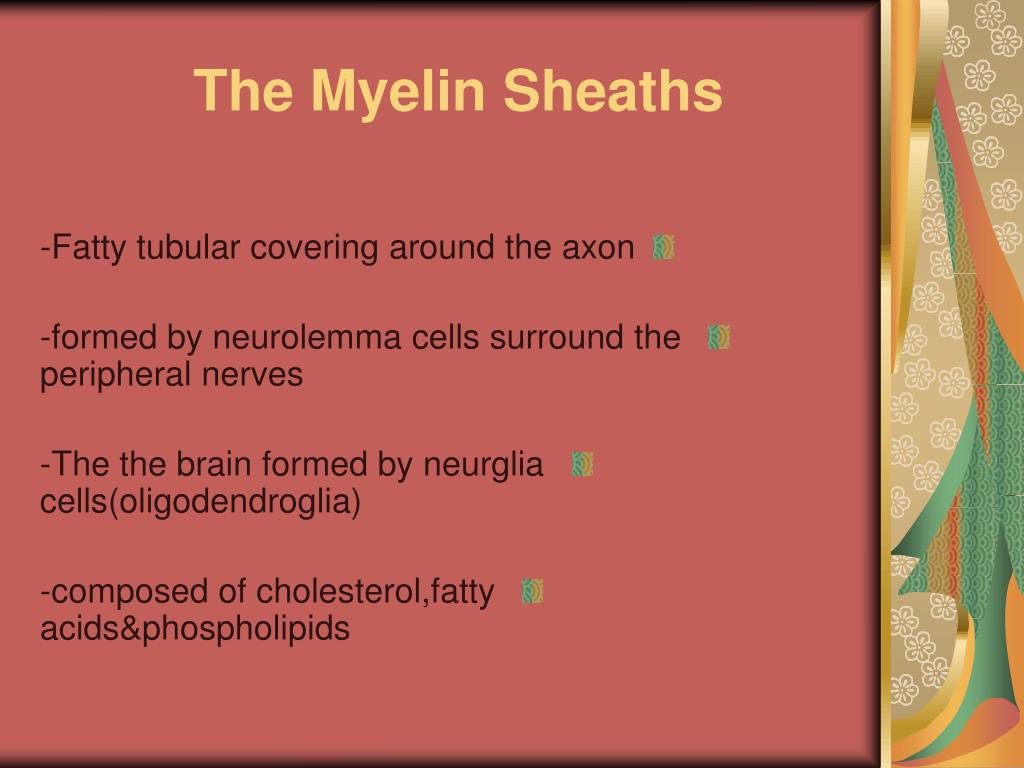

7. The Myelin Sheaths • -Fatty tubular covering around the axon • -formed by neurolemma cells surround the peripheral nerves • -The the brain formed by neurglia cells(oligodendroglia) • -composed of cholesterol,fatty acids&phospholipids

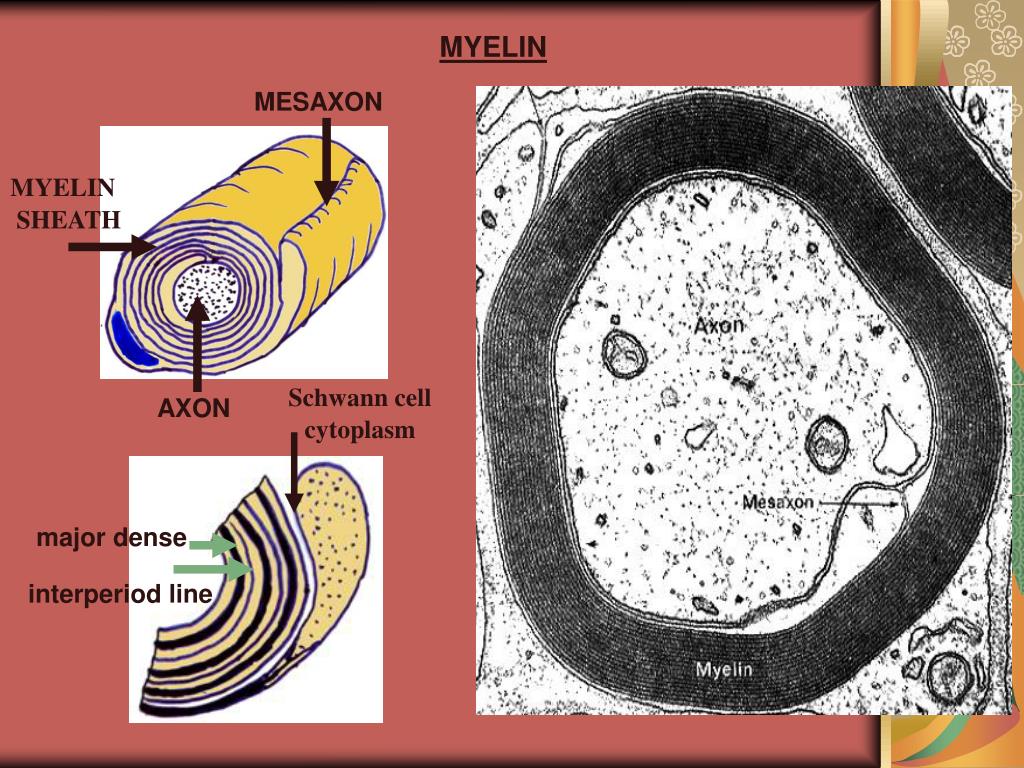

9. MYELIN MESAXON MYELIN SHEATH Schwann cell AXON cytoplasm major dense interperiod line

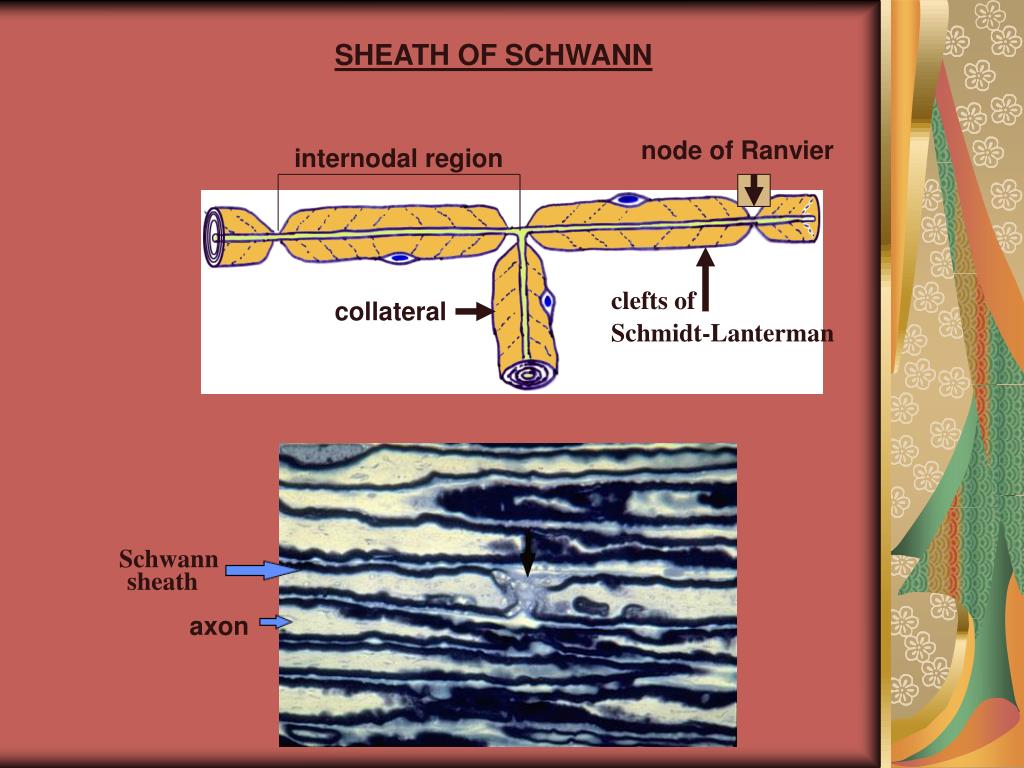

10. SHEATH OF SCHWANN node of Ranvier internodal region clefts of collateral Schmidt-Lanterman Schwann sheath axon

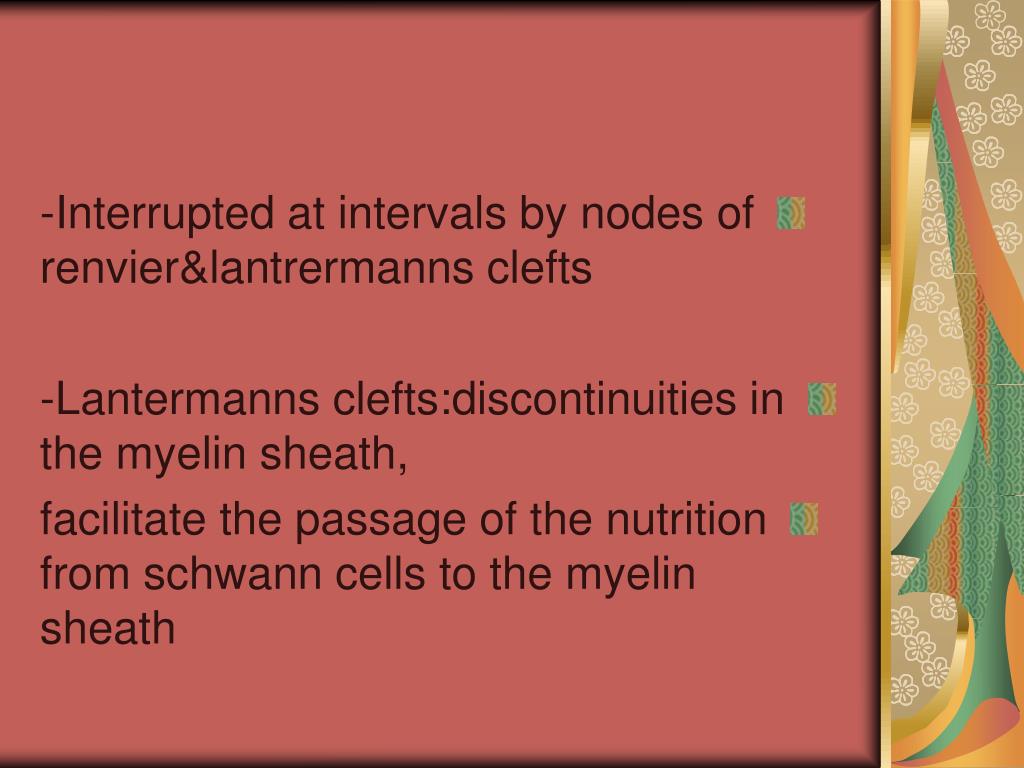

11. -Interrupted at intervals by nodes of renvier&lantrermanns clefts • -Lantermanns clefts:discontinuities in the myelin sheath, • facilitate the passage of the nutrition from schwann cells to the myelin sheath

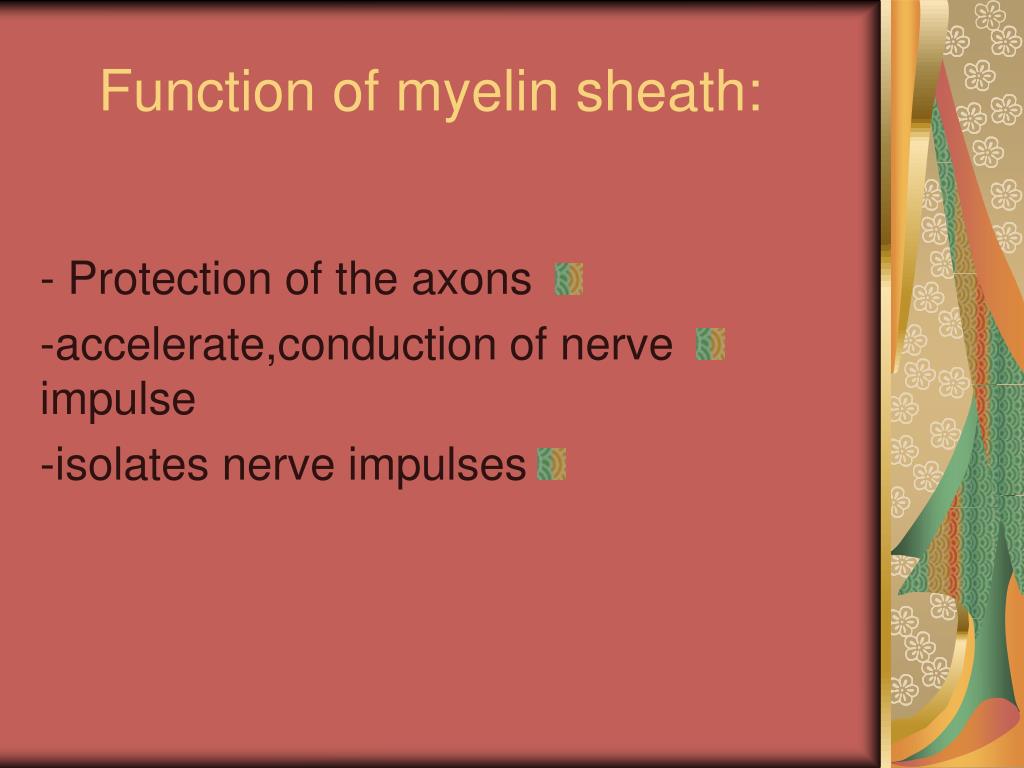

12. Function of myelin sheath: • - Protection of the axons • -accelerate,conduction of nerve impulse • -isolates nerve impulses

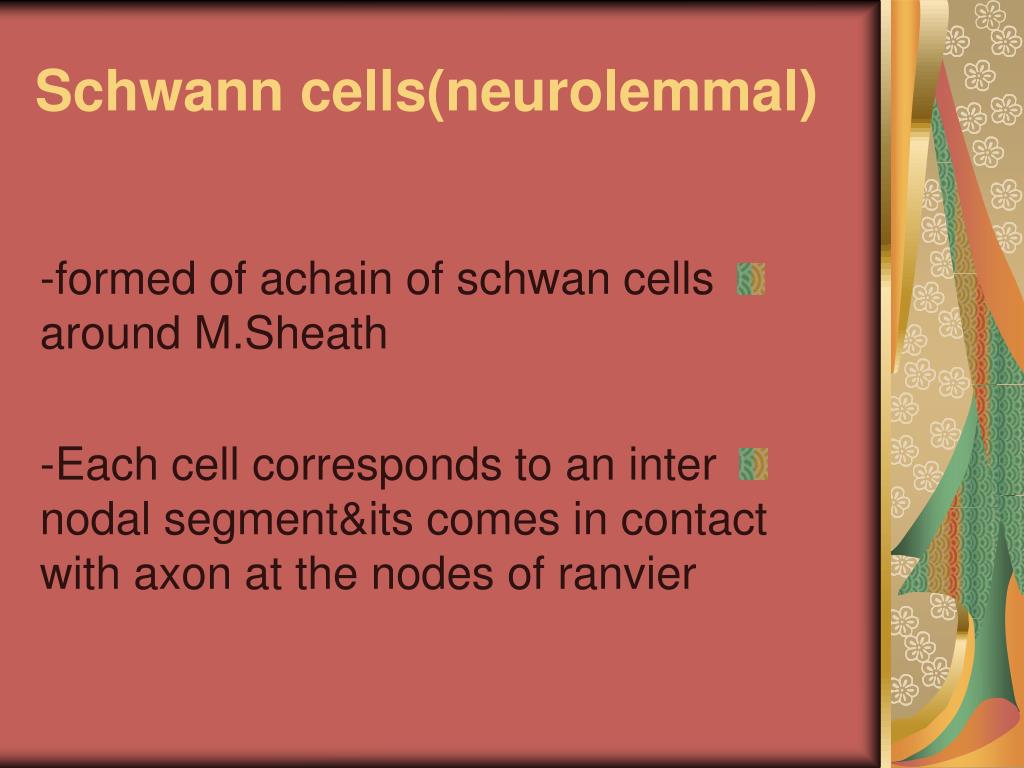

13. Schwann cells(neurolemmal) • -formed of achain of schwan cells around M.Sheath • -Each cell corresponds to an inter nodal segment&its comes in contact with axon at the nodes of ranvier

14. -Schwan cells in order to form the myelin sheath around the axon • -encircles the axon&rotates several tymes around it&forming series of rings

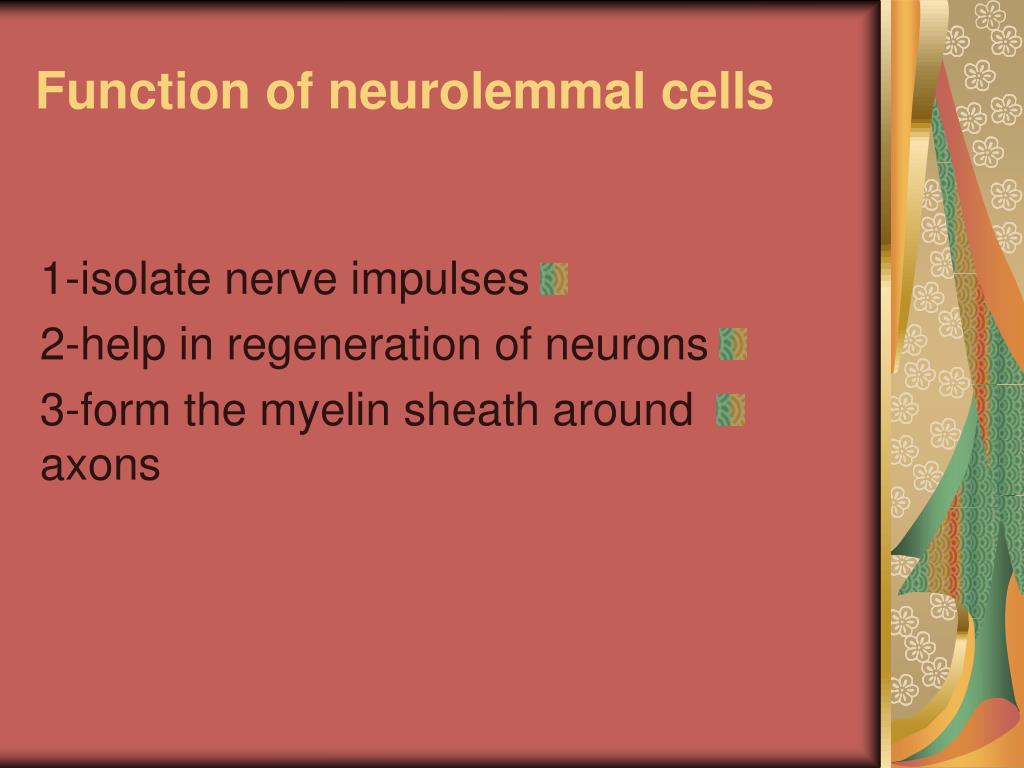

16. Function of neurolemmal cells • 1-isolate nerve impulses • 2-help in regeneration of neurons • 3-form the myelin sheath around axons

17. The Synapse • The point of contact between the processes of the neurons • -there is no cytoplasmic continuity between neurons • -Synapses may be Excitatory Or Inhibitory • -Chemical synapse transmit impulses through neurotransmitters • -Electrical synapse transmit impulse directly

18. Types of Synapses • a-Axo-dendritic synapse:contact between the axon of one neuron&dendrites of another neuron • b-Axo-somatic synapse&cell body of another neuron • C-Axo-axonic synapse:contact between the axons of 2 neurons • d-Dendro-dendritic:contact between dendrites of 2 neurones

19. Function: • a-Excitaory or inhibitory • b-transmit impulses through neurotransmitters • c-transmit impulse directly • d-contact between the processes of the neurons

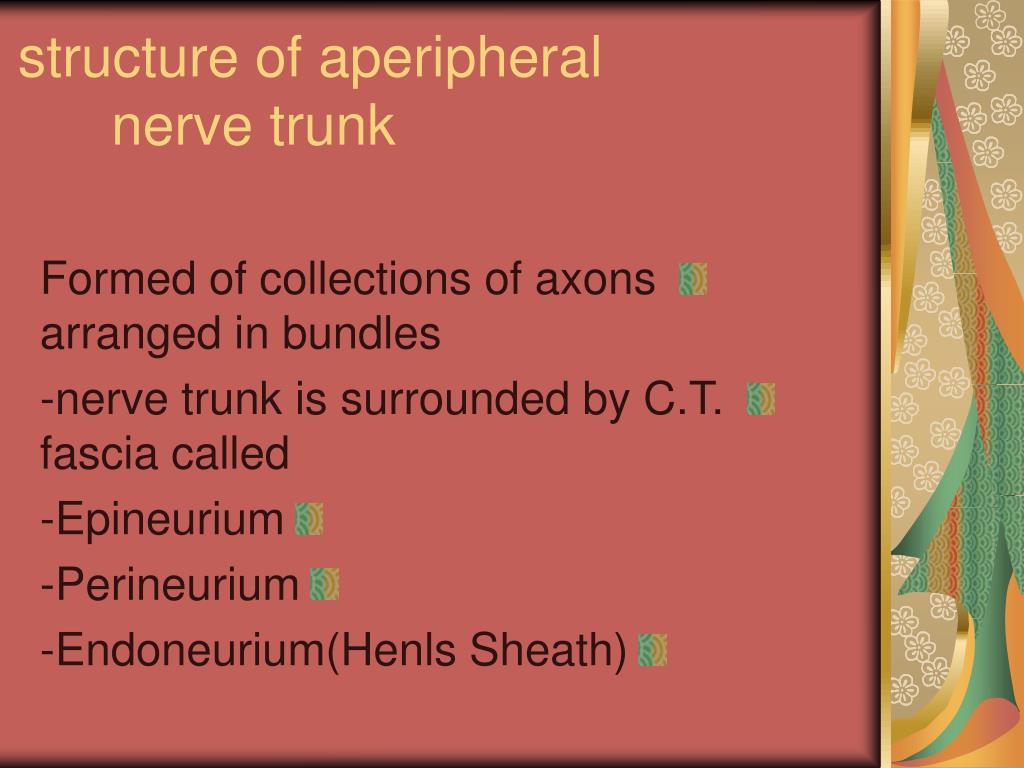

20. The structure of aperipheral nerve trunk • Formed of collections of axons arranged in bundles • -nerve trunk is surrounded by C.T. fascia called • -Epineurium • -Perineurium • -Endoneurium(Henls Sheath)

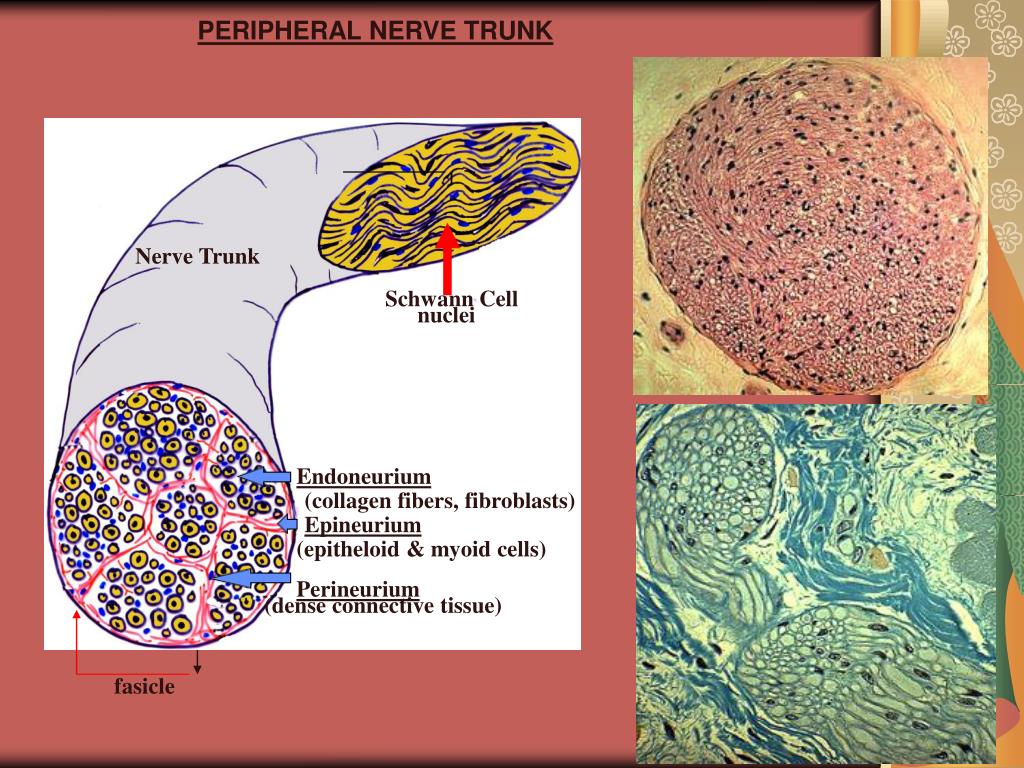

21. PERIPHERAL NERVE TRUNK Nerve Trunk Schwann Cell nuclei Endoneurium (collagen fibers, fibroblasts) Epineurium (epitheloid & myoid cells) Perineurium (dense connective tissue) fasicle

22. Nerve trunk stained with osmic acid,the myelin sheaths will appear as black circles(osmic acid stains only the myelin sheath)

23. PERIPHERAL NERVES (Osmic Acid) Epineurium Fasicle Fasicle Perineurium Fasicle Myelin Sheath Axon

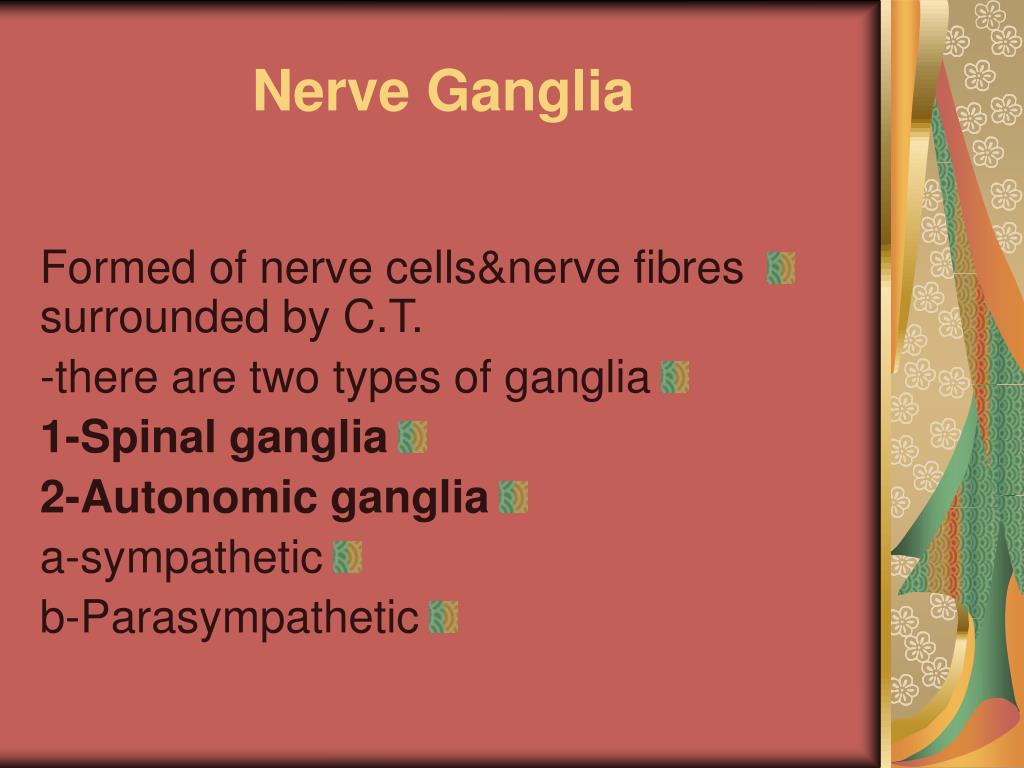

24. Nerve Ganglia • Formed of nerve cells&nerve fibres surrounded by C.T. • -there are two types of ganglia • 1-Spinal ganglia • 2-Autonomic ganglia • a-sympathetic • b-Parasympathetic

25. 1-spinal ganglia • Present beside the spinal cord • -They act as relay for sensations: • -Formed of pseudo-unipolar nerve cells • -each nerve cell is surrounded by many supportive satellite cells • -the ganglion is covered by thick capsule

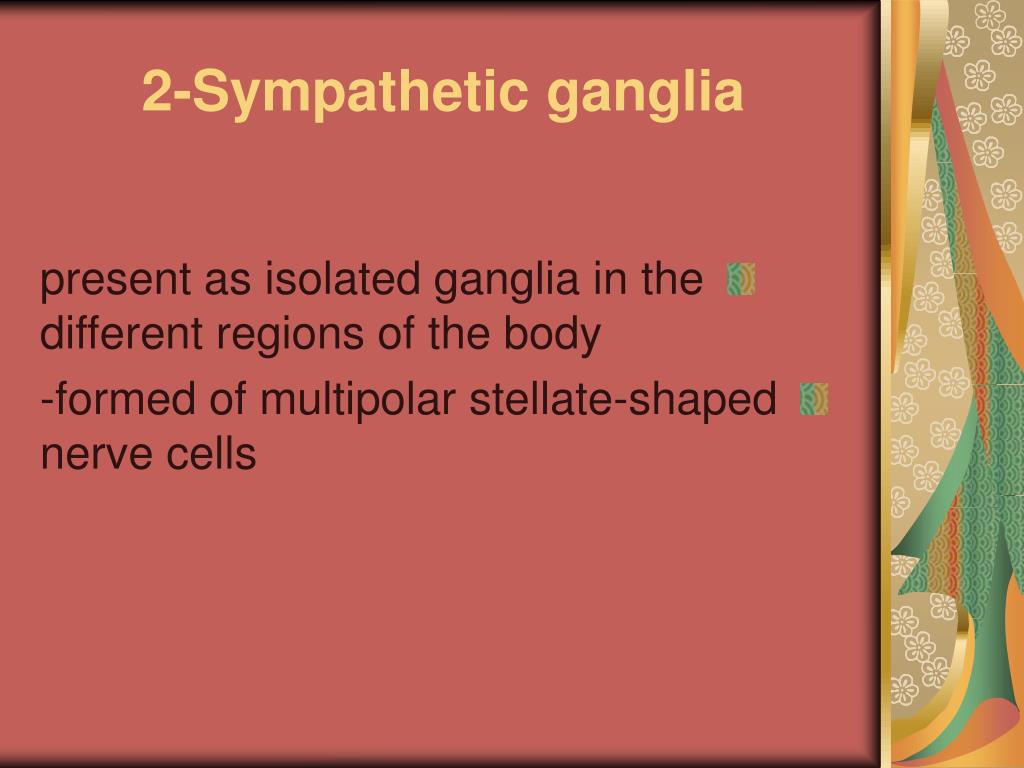

26. 2-Sympathetic ganglia • present as isolated ganglia in the different regions of the body • -formed of multipolar stellate-shaped nerve cells

28. Neuroglia • -There is no C.T. in CNS • -they form the supporting tissue between the neurons of CNS • Stained with silver or gold choloride

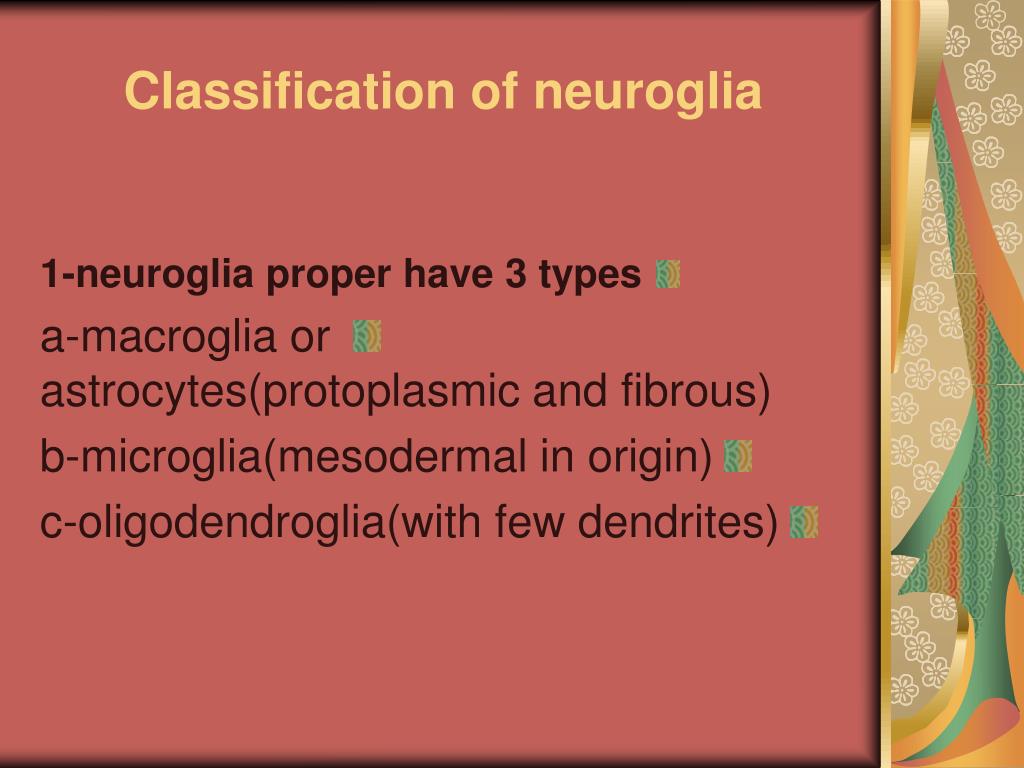

29. Classification of neuroglia • 1-neuroglia proper have 3 types • a-macroglia or astrocytes(protoplasmic and fibrous) • b-microglia(mesodermal in origin) • c-oligodendroglia(with few dendrites)

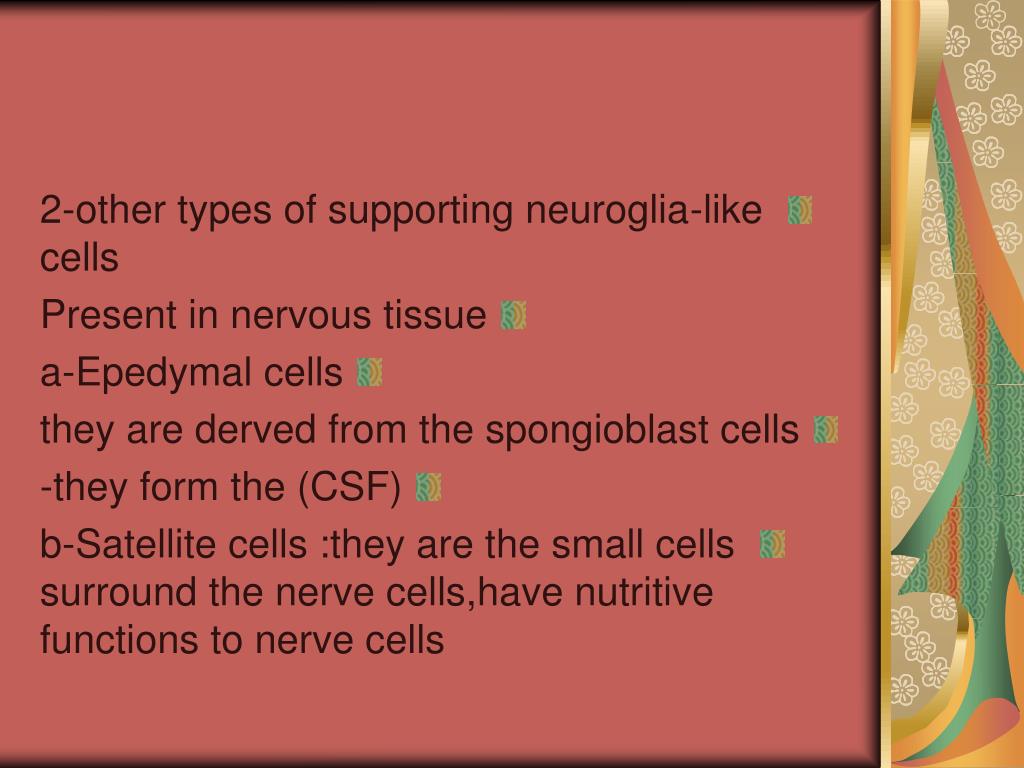

30. 2-other types of supporting neuroglia-like cells • Present in nervous tissue • a-Epedymal cells • they are derved from the spongioblast cells • -they form the (CSF) • b-Satellite cells :they are the small cells surround the nerve cells,have nutritive functions to nerve cells

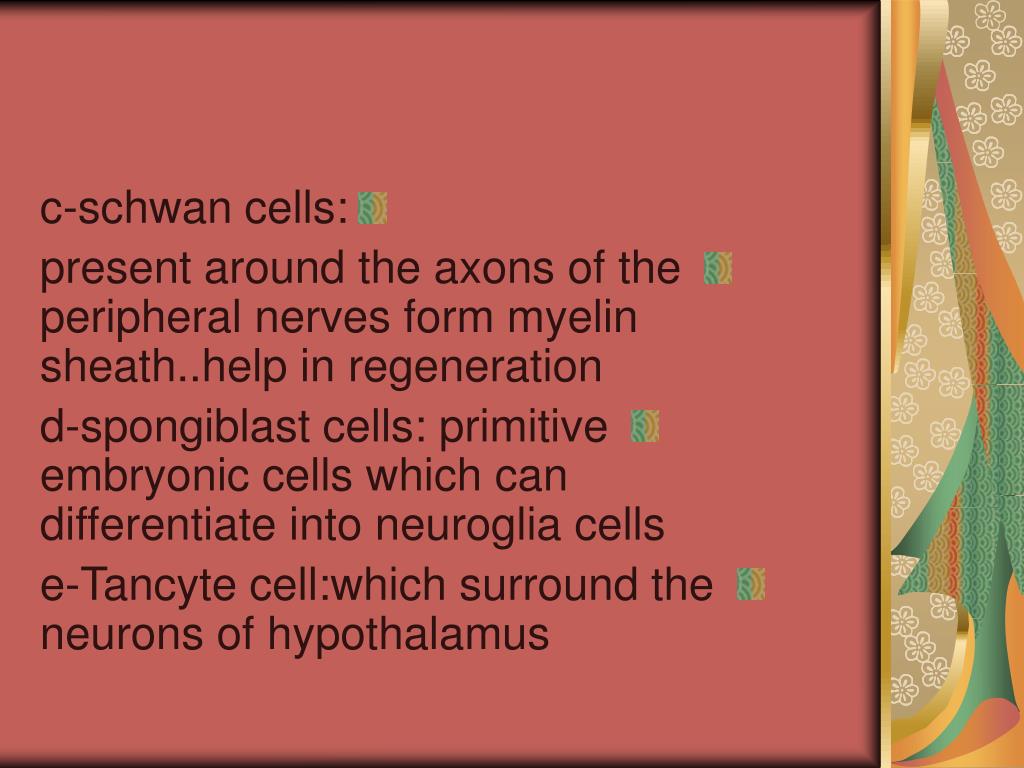

31. c-schwan cells: • present around the axons of the peripheral nerves form myelin sheath..help in regeneration • d-spongiblast cells: primitive embryonic cells which can differentiate into neuroglia cells • e-Tancyte cell:which surround the neurons of hypothalamus

32. The Neuroglia Proper • 1-Macroglia or Astrocytes(star Shaped) • There are 2 types of astrocytes • A-protoplasmic astrocytes • B-Fibrous astrocytes

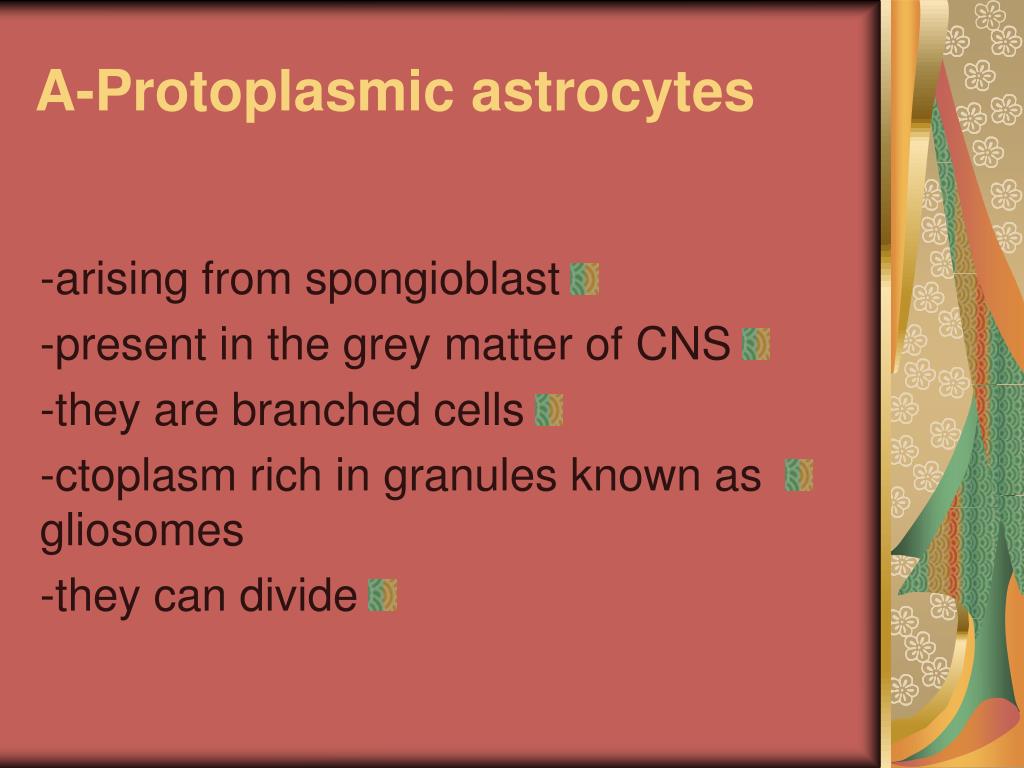

33. A-Protoplasmic astrocytes • -arising from spongioblast • -present in the grey matter of CNS • -they are branched cells • -ctoplasm rich in granules known as gliosomes • -they can divide

34. B-Fibrous astrocytes • -similar to protoplasmic astrocytes • -present in the white matter of CNS • -cytoplasm non granular

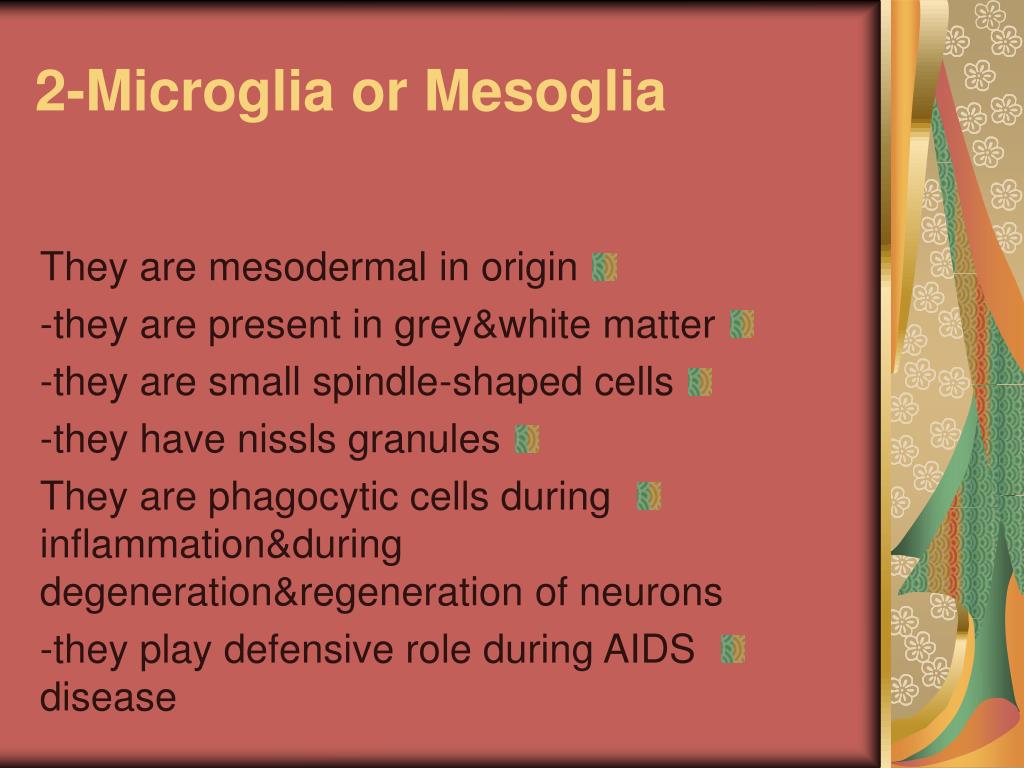

35. 2-Microglia or Mesoglia • They are mesodermal in origin • -they are present in grey&white matter • -they are small spindle-shaped cells • -they have nissls granules • They are phagocytic cells during inflammation&during degeneration&regeneration of neurons • -they play defensive role during AIDS disease

36. 3-oligodendroglia(few dendroglia) • -present in the grey &white matter • -small branched cells with large deeply stained nuclei • They can form the myelin sheats • They present around B.V.&nerve cells

37. GREY AND WHITE MATTER Grey Matter WHITE AND GREY MATTER nerve cell bodies nerve white matter glial fibers nuclei White Matter dura axons grey matter mater (fibers) arachnoid membrane motor glial neurons pia nuclei mater

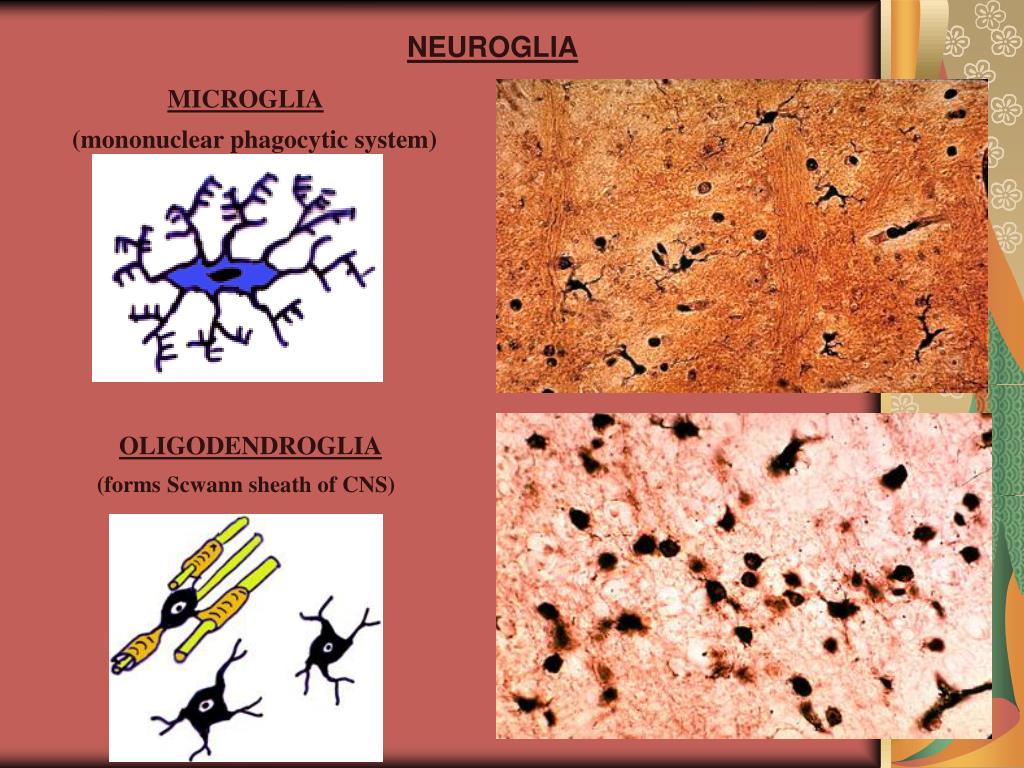

38. NEUROGLIA MICROGLIA (mononuclear phagocytic system) OLIGODENDROGLIA (forms Scwann sheath of CNS)

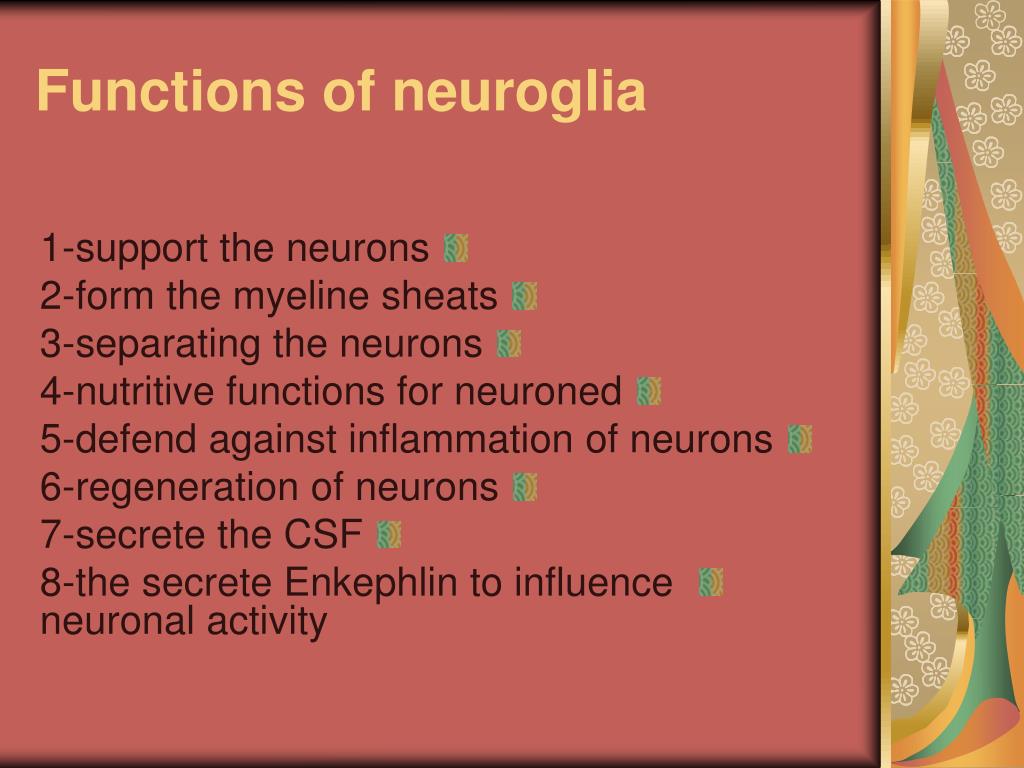

39. Functions of neuroglia • 1-support the neurons • 2-form the myeline sheats • 3-separating the neurons • 4-nutritive functions for neuroned • 5-defend against inflammation of neurons • 6-regeneration of neurons • 7-secrete the CSF • 8-the secrete Enkephlin to influence neuronal activity

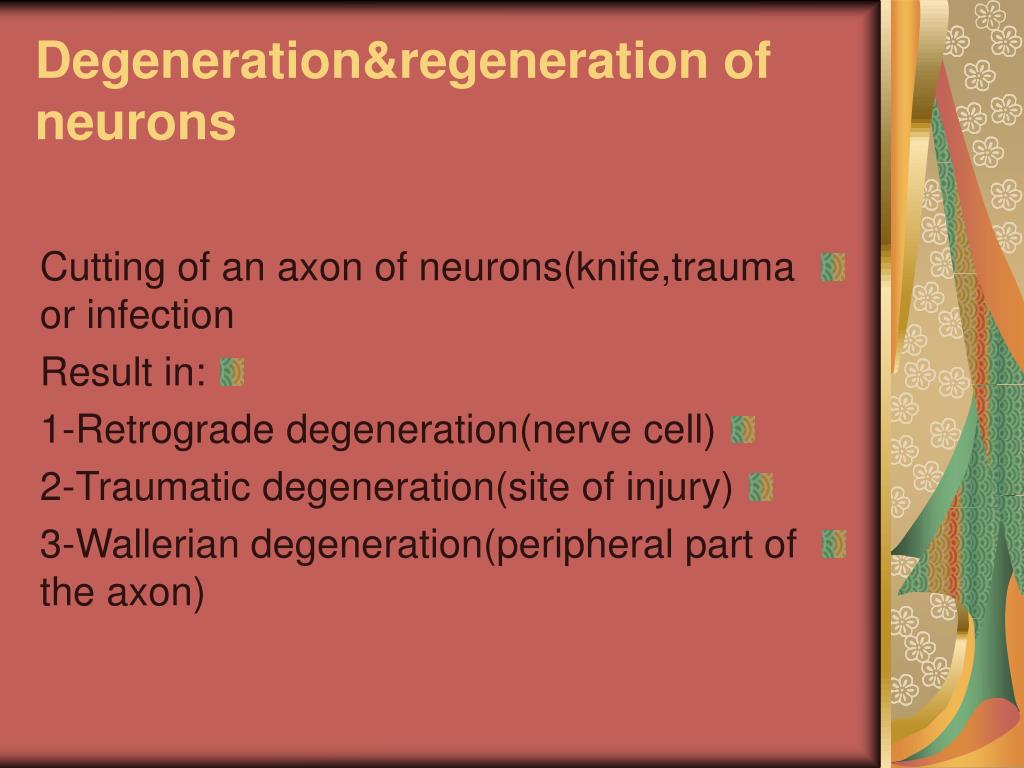

40. Degeneration&regeneration of neurons • Cutting of an axon of neurons(knife,trauma or infection • Result in: • 1-Retrograde degeneration(nerve cell) • 2-Traumatic degeneration(site of injury) • 3-Wallerian degeneration(peripheral part of the axon)

41. Retrograde Degeneration • Changes in shape,size nucleus,cell organoids&cell inclusion of the nerve cell • The nerve cells,chnges:swells,loses dendrites ,small in size,cytoplasm pale,nucleus pyknotic nuclear chromatolysis,disappearance of nissl granules

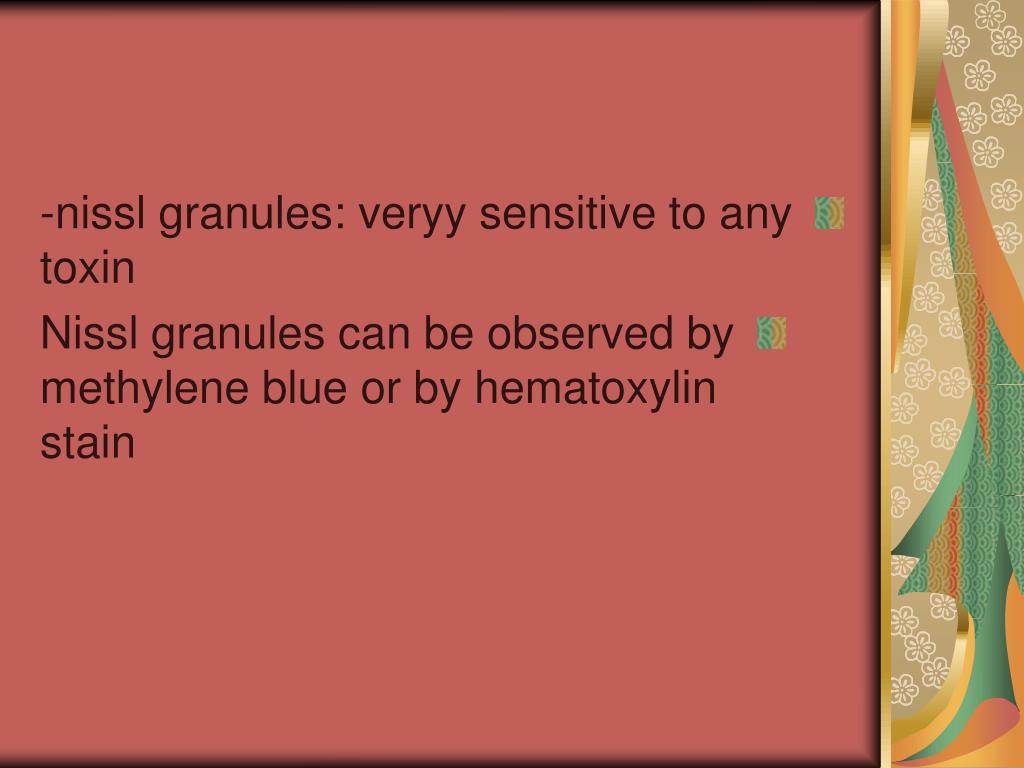

42. -nissl granules: veryy sensitive to any toxin • Nissl granules can be observed by methylene blue or by hematoxylin stain

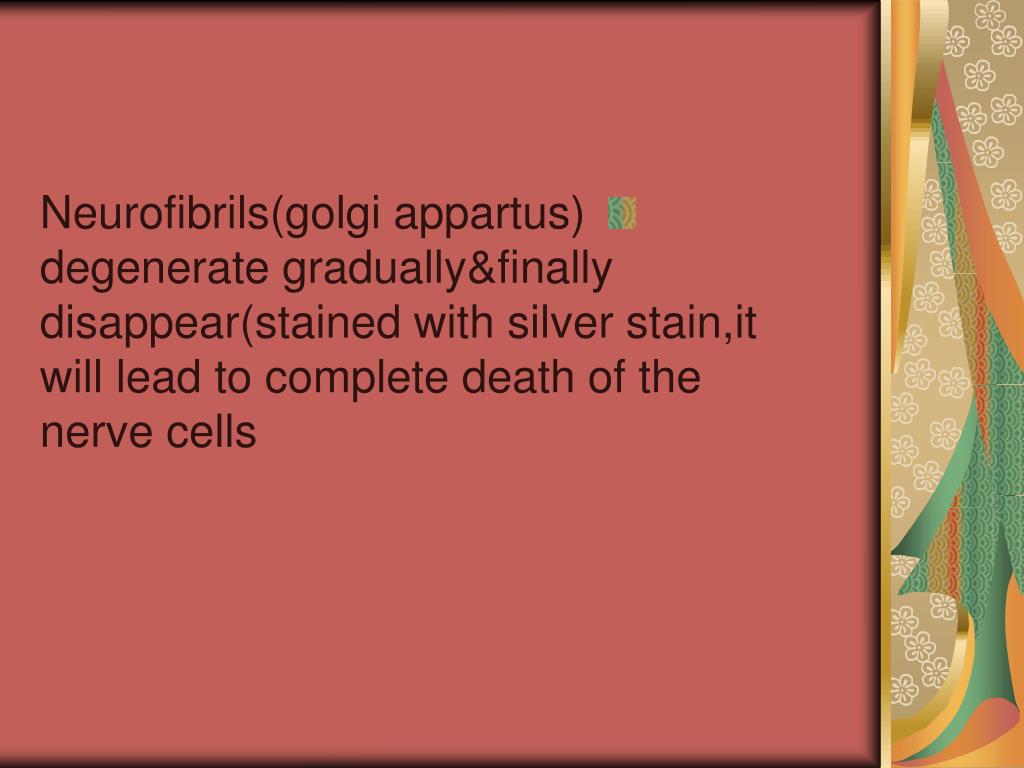

43. Neurofibrils(golgi appartus) degenerate gradually&finally disappear(stained with silver stain,it will lead to complete death of the nerve cells

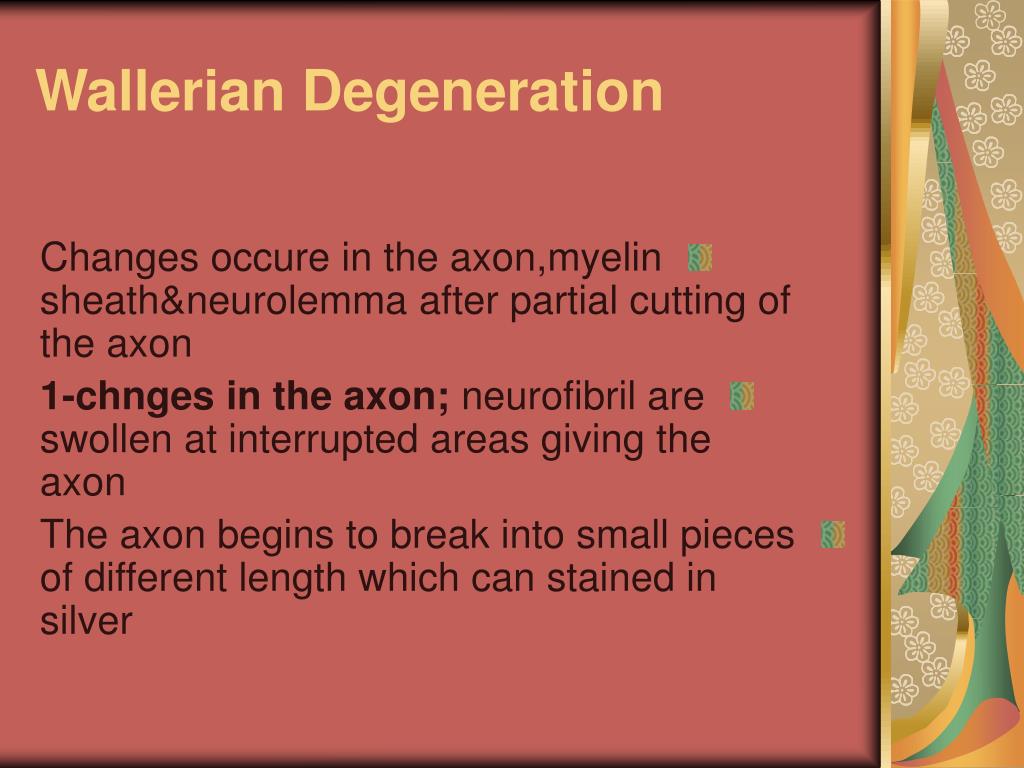

44. Wallerian Degeneration • Changes occure in the axon,myelin sheath&neurolemma after partial cutting of the axon • 1-chnges in the axon; neurofibril are swollen at interrupted areas giving the axon • The axon begins to break into small pieces of different length which can stained in silver

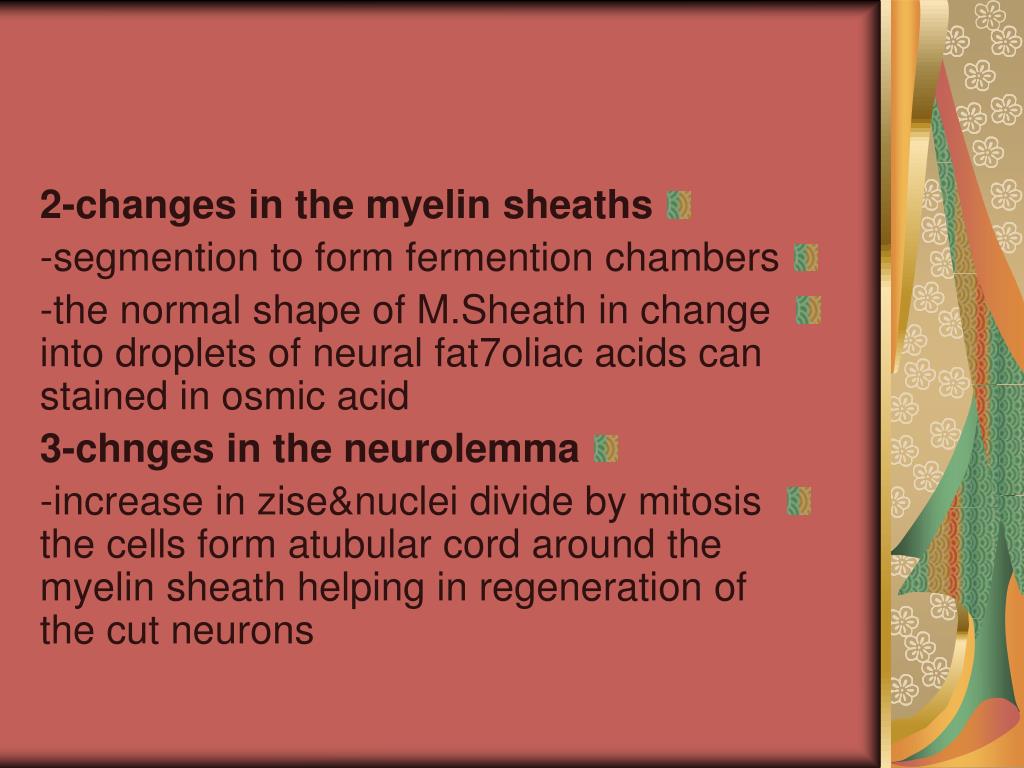

45. 2-changes in the myelin sheaths • -segmention to form fermention chambers • -the normal shape of M.Sheath in change into droplets of neural fat7oliac acids can stained in osmic acid • 3-chnges in the neurolemma • -increase in zise&nuclei divide by mitosis the cells form atubular cord around the myelin sheath helping in regeneration of the cut neurons

46. N.B.:traumatic degeneration • rapid process of W.degeneration

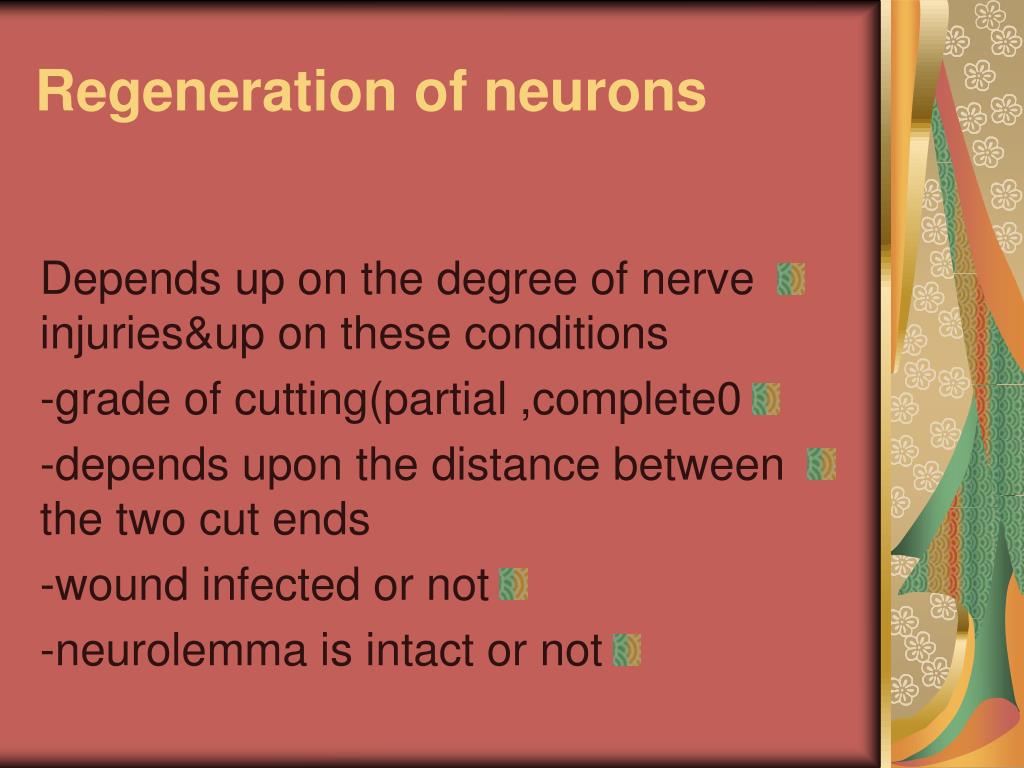

47. Regeneration of neurons • Depends up on the degree of nerve injuries&up on these conditions • -grade of cutting(partial ,complete0 • -depends upon the distance between the two cut ends • -wound infected or not • -neurolemma is intact or not

48. -If there is no infection in partial cut&neurolemma intact&the neurofibrils of the central stump will grow,these fibrils are known as aton sprouts • -regeneration in human nerve occurs slowly

49. Transneural degeneration • The neuron are functionally connected by synapse,if there is cutting,there is no stimuli from the other neurones

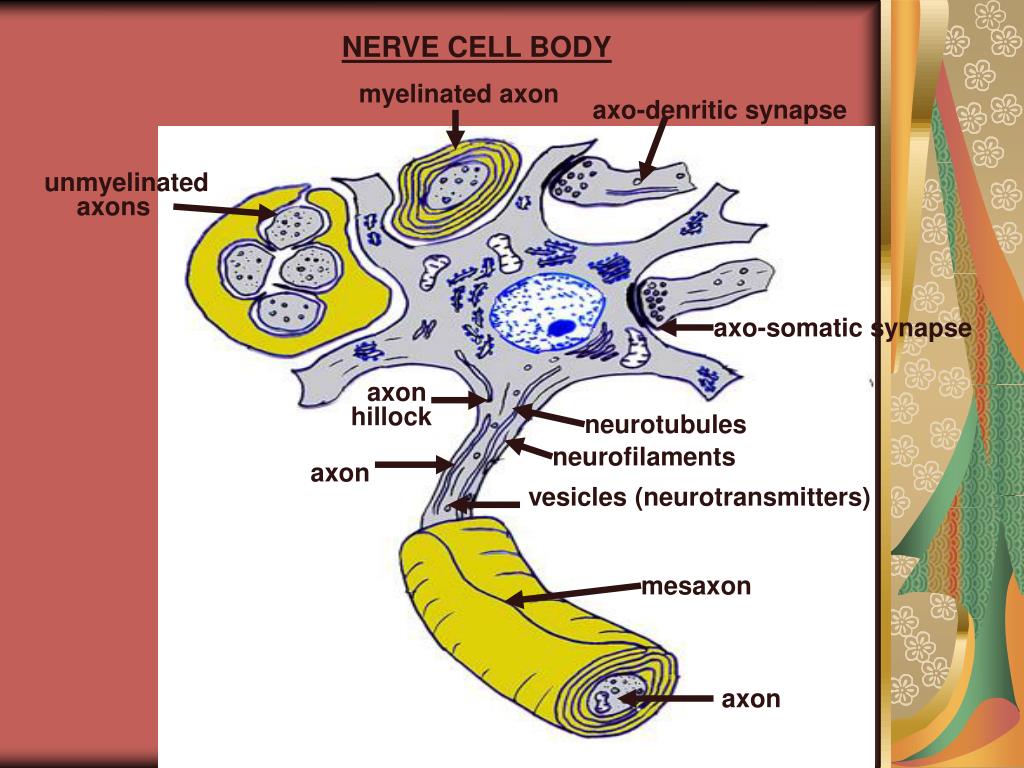

50. NERVE CELL BODY myelinated axon axo-denritic synapse unmyelinated axons axo-somatic synapse axon hillock neurotubules neurofilaments axon vesicles (neurotransmitters) mesaxon axon
