Thank you for choosing Practical Sleep Solutions, LLC. Follow these instructions for using the Embletta Gold device effectively. Begin by unpacking and placing all items on your bed for easy access. Ensure not to touch the Start-Stop button, as it is programmed to operate automatically. Adhere to guidelines regarding caffeine intake and exercise prior to your sleep study. Use the appropriate straps, leads, and devices as outlined, and ensure proper setup for accurate readings. Please keep all packaging for return shipping. For support, call 888-662-7632.

#instructions for using embletta gold by practical sleep solutions, llc #instructions for using embletta gold by practical sleep solutions, llc ppt #powerpoint #presentation
Instructions for Using Embletta Gold by Practical Sleep Solutions, LLC - slide 1
01 / 9Instructions for Using Embletta Gold by Practical Sleep Solutions, LLC
1 / 17

Télécharger la présentation

Instructions for Using Embletta Gold by Practical Sleep Solutions, LLC
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

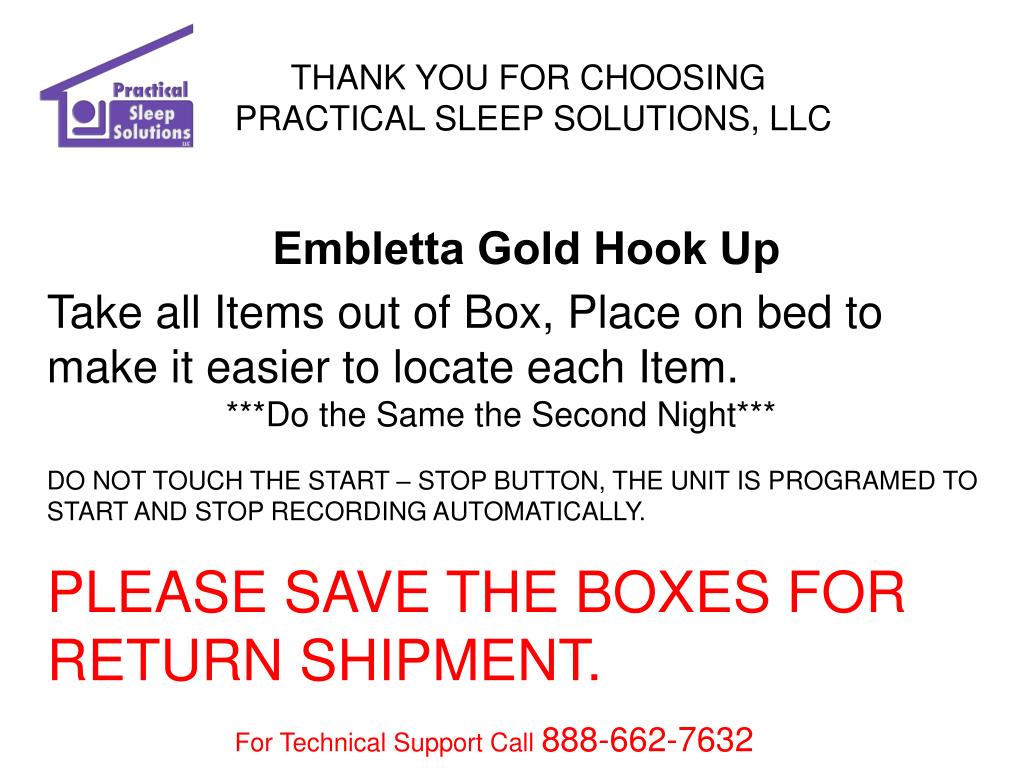

  1. THANK YOU FOR CHOOSING PRACTICAL SLEEP SOLUTIONS, LLC Embletta Gold Hook Up Take all Items out of Box, Place on bed to make it easier to locate each Item. ***Do the Same the Second Night*** DO NOT TOUCH THE START – STOP BUTTON, THE UNIT IS PROGRAMED TO START AND STOP RECORDING AUTOMATICALLY. PLEASE SAVE THE BOXES FOR RETURN SHIPMENT. For Technical Support Call 888-662-7632

  2. Important Information Prior to Sleep Study • Do NOT drink caffeinated drinks after 12:00 PM (Noon) the day of the Study. • If you exercise, do so at least 3 hours prior to going to sleep. • Eat your dinner at least 3 hours prior to going to sleep (It’s ok to have a light snack prior to going to bed) • If you take medications, continue taking them as usual. Technical Support 888-662-7632

  3. Embletta Gold Hook Up Place Embletta Gold recorder mid to lower section of chest, and Pull straps not too loose and not too tight. Technical Support 888-662-7632

  4. 2. Trace Belts – Snap On Put on the BLUE Labeled Belt, On the upper part of your chest, under Armpits. (Not too Tight and Not too Loose) Put on the YELLOW Labeled Belt around Abdomen waist line – Belly Button Section. (Not too Loose and Not too Tight) Ensure Cords are plugged into proper colored port. Technical Support 888-662-7632

  5. 3. EKG (directly on Skin) 5 There are 3 leads for the EKG. RED, GREEN and BLACK Clean are of skin where the Electrode will be placed , with the alcohol pad provided. Make sure skin area is dry. RED–Snap on Red Lead into Electrode, Peel off back of Electrode, Press Electrode upper RIGHT Shoulder directly onto skin. Plug into Embletta Gold GREEN–Snap on Green Lead into Electrode, Peel off Electrode, Press Electrode Upper RIGHT Hip area directly on skin. Plug into Embletta Gold BLACK– Snap on Black Lead into Electrode, Peel off Electrode, Press on LEFT side below rib are directly on skin. Plug into Embletta Gold Embletta Gold Ensure cords are Plugged into proper Color Leads. Technical Support 888-662-7632

  6. 4. Nasal Cannula A. B. C. Place small piece of tape on each side of cheek to secure the tube. Plug and Twist on to Embletta Gold. Technical Support 888-662-7632

  7. 5. Finger Probe Secure cord by putting a small piece of tape around the Finger Probe and below wrist, see Arrows above. Ensure cord is plugged in BROWN Port Plug 2 Cords together Technical Support 888-662-7632

  8. 6. Final Set up Technical Support 888-662-7632

  9. Returning Equipment AFTER 2 NIGHT USE • Instructions: • 1. Pack the EMBLETTA GOLD, manuals, Instructions documents and cd in the return box make sure the EMBLETTA GOLD Recorder is in it’s port, to secure recorder from being damaged while shipping. • 2. Pack the Embletta Gold Power Adapter. • 3. Pack the Blue labeled belt in the plastic bag. DO NOT wrap cords around the belt- This can cause damage. • 4. Pack the Yellow labeled belt in the plastic bag. DO NOT wrap cords around the belt – This can cause damage. • 5. Pack the Finger Probes in the labeled plastic bag (both attachments) • 6. Pack ALL cords and wires in the labeled plastic bag. • 7. Tape Box – Wet the Back of the Tape provide, assure the box is sealed properly. • 8. Place label on outside of Box (Return for Shipment) • 9. Drop Box Off at any FedEx Station or FedEx Office (Kinkos) near you. • Thank You for Choosing Practical Sleep Solutions, LLC. http://www.fedex.com/Dropoff/start?locale=en_us Technical Support 888-662-7632
